WARNING

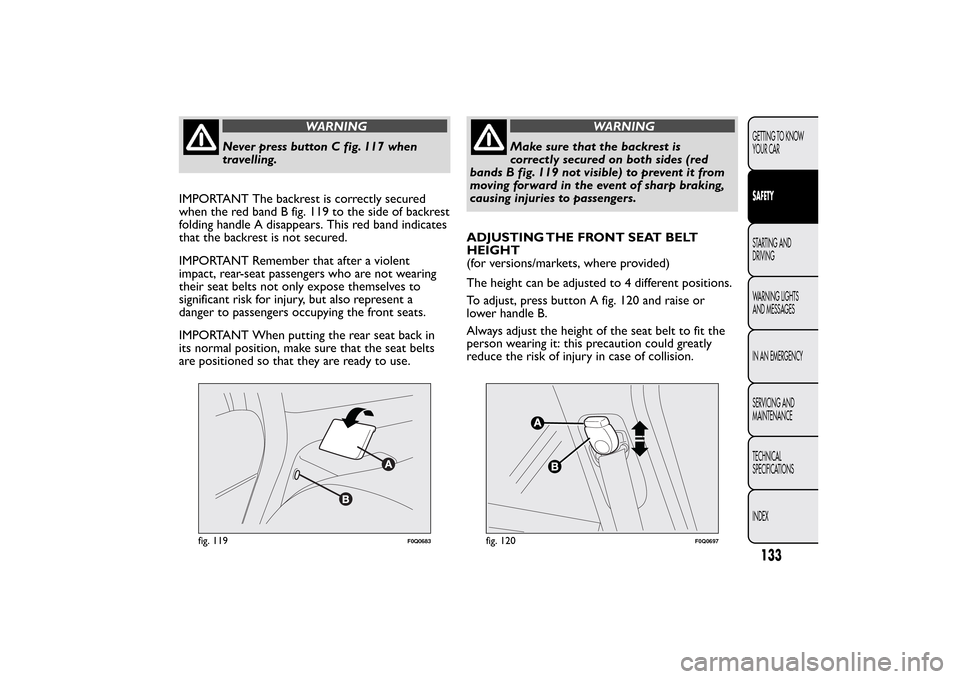

Never press button C fig. 117 when
travelling.
IMPORTANT The backrest is correctly secured
when the red band B fig. 119 to the side of backrest
folding handle A disappears. This red band indicates
that the backrest is not secured.
IMPORTANT Remember that after a violent
impact, rear-seat passengers who are not wearing
their seat belts not only expose themselves to
significant risk for injury, but also represent a
danger to passengers occupying the front seats.
IMPORTANT When putting the rear seat back in
its normal position, make sure that the seat belts
are positioned so that they are ready to use.
WARNING
Make sure that the backrest is
correctly secured on both sides (red
bands B fig. 119 not visible) to prevent it from
moving forward in the event of sharp braking,
causing injuries to passengers.
ADJUSTING THE FRONT SEAT BELT
HEIGHT
(for versions/markets, where provided)
The height can be adjusted to 4 different positions.
To adjust, press button A fig. 120 and raise or
lower handle B.
Always adjust the height of the seat belt to fit the
person wearing it: this precaution could greatly
reduce the risk of injury in case of collision.
fig. 119
F0Q0683
fig. 120
F0Q0697
