INTRODUCTION
Sound system, fitted with CD player (radio
with Compact Disc player) or MP3 CD player (radio
with MP3 CD player) has been designed in accordance
with the special features of the passenger
compartment, with a personalised design that blends
with the style of the dashboard. The sound system
cannot be adapted to other vehicles and for this
reason it cannot be removed.
The radio is installed in a user-friendly position for the
driver and passenger and the graphics on the front
panel make location of the controls quick, facilitating
use.
The CD Changer for 10 discs (if provided), is housed
in the boot.
In the following pages you will find the instructions for
use, which you are advised to read through carefully.
The instructions also contain the procedure for
controlling the CD Changer (if provided) through the
radio. For the instructions for use of the CD Changer
refer to the specific manual.
ADVICE
Road Safety
You are advised to learn how to use the various radio
functions (e.g.: storing stations) before starting to
drive.
Reception conditions
Reception conditions change constantly when driving.
Reception may be disturbed by the presence of
mountains, buildings or bridges particularly when far
away from the station being listened to.
IMPORTANT When receiving traffic information, the
volume may be higher than normal.
WARNINGToo high a volume when driving can put the driver’s life at risk and that of other
people. Therefore the volume should always be adjusted in such a way that it is
always possible to hear the noises of the surrounding environment (e.g.: horns,
ambulance, police sirens, etc.).

8
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
1
2
3
4
5
6
7
8
9
10

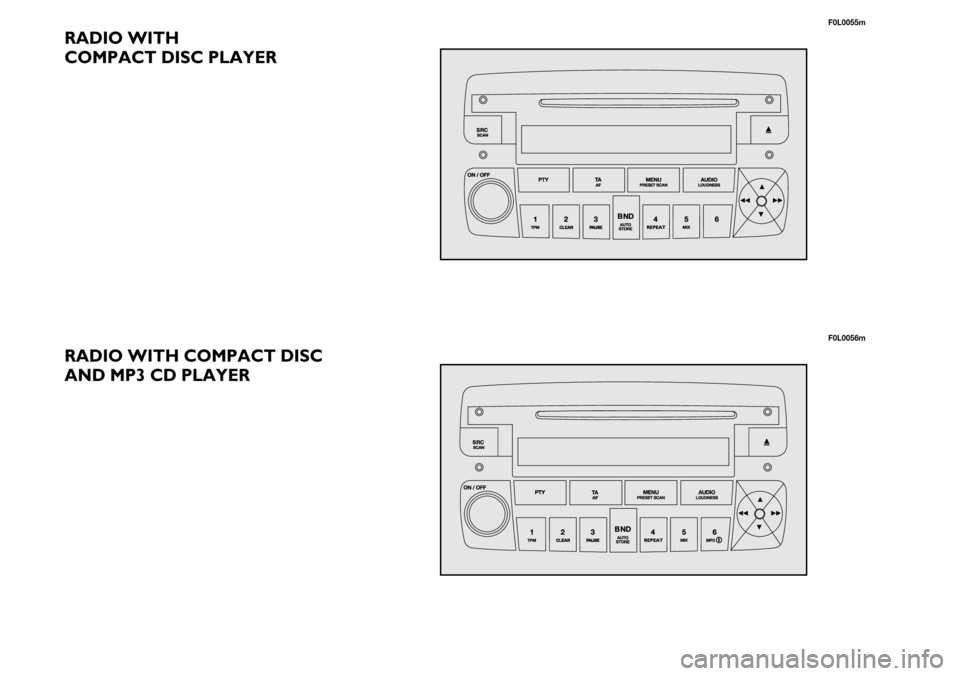

SOURCE-SCAN
Display
N
˚
˜
O
÷
6
AUDIO-LOUDNESS
5-MIXSelect audio source/Scan function
Automatic station tuning
Eject CD
Manual station tuning
Automatic station tuning
Manual station tuning
Preset station 6
Audio settings/Loudness
Preset station 5/MIX functionSelect CD,CD Changer
(if installed) or Radio
Manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Eject CD
Manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
Manual station tuning
TP: seek -
PTY: seek -
AF: seek -
FM/AM:call preset
station 6
Bass (B)
Treble (T)
Fader (F)
Balance (B)
FM/AM: call preset
station 5FM/AM station scan
Fast manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast manual station tuning
TP: seek +
PTY: seek +
AF: seek +
Fast automatic station tuning
TP: seek -
PTY: seek -
AF: seek -
Fast manual station tuning
TP: seek -
PTY: seek -
AF: seek -
FM/AM:call preset
station 6
Loudness on/off
FM/AM: call preset
station 5
ButtonButtons and front panel
Letters or symbol FunctionRADIO mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)

12
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
GENERAL
The set possesses the following functions:
RADIO SECTION
❒PLL tuning with FM/AM/MW/LW frequency bands;
❒RDS (Radio Data System)with TA (traffic
information) - PTY (Program Type) - EON
(Enhanced Other Network) - REG (Regional
programmes);
❒AF: alternative frequency search selection in RDS
mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;❒manual storage of 36 stations: 18 in the FM band (6
in FM1, 6 in FM2, 6 in FMT), 6 in the MW band and
6 in the LW band and 6 PTY (only in FM);
❒automatic storage (AUTOSTORE function) of 6
stations in FM band;
❒DX function (Distant: maximum sensitivity in
searching radio stations) and LO (Local) manual;
❒Scan function (scanning stored stations);
❒SVC function:automatic volume adjustment with
car speed
❒automatic Stereo/Mono switching.
For installation and connection of a Lineaccessori Fiat CD Changer apply only to Fiat Dealership.
On multimedia CDs in addition to sound tracks also data tracks are recorded.
Playing one of these CDs may cause rustling and such a volume as to compromise road safety, as
well as causing damage to the final stages and speakers.

16
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Fader
Function with which it is possible to suitably adjust the
sound from the front or rear speakers.
Hicut (treble reduction)
Function with which it is possible to reduce the treble
tones, in accordance with the signal transmitted.
Loudness
Function that emphasises the bass and treble tones
when listening at low level. It is cut off with the
volume set to maximum (level 66).
Mix
This function is used to randomly select a Compact
Disc among those present in the CD Changer and all
the tracks on this Compact Disc are played in random
sequence.
Mute
This function enables to mute the active source. This
function is activated automatically, if a cell phone is
connected to the radio, when a phone call is being
received.Presettings
Number of radio stations that can be stored manually
or automatically.
PTY (Program Type)
This function allows the presetting of a category of
programmes such as for instance, news bulletins,
music, sport, etc.
RDS (Radio Data System)
This is an additional radio information system which
uses the 57 kHz subcarrier of normal FM broadcasts.
With this function it is possible to receive different
types of information such as station names, alternative
frequencies, automatic tuning to traffic bulletins or
special programmes selected through the PTY
function.
REG (Regional transmission reception function)
Function with which it is possible to tune only to local
(regional) stations.

21
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Pause function
If while listening to a Compact Disc another function is
selected (e.g.: the radio), playing is stopped and when
the Compact Disc mode is resumed, it starts again
from the point in which it was stopped.
If while listening to the radio another function is
selected, when the Radio mode is resumed, it is tuned
to the last station selected.Volume adjustment
Volume level can be adjusted from min. (“VOLUME
0”) to max. (“VOLUME 66”) volume.
Adjust volume through button/knob 19 (ON/OFF
VOLUME).
Turn the knob rightwards to increase volume and
leftwards to decrease it. Set volume is displayed for
about 4 seconds (e.g.: “VOLUME 23”).
If the volume level is changed during the broadcast of a
traffic bulletin or during use of the phone (if the voice
feature is installed), the new setting is maintained only
until the end of the bulletin or phone call.
Volume can be also adjusted during manual/automatic
tuning, AutoSTore, radio station scan or CD Changer
mode.

27
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Should it be not possible to receive the PI stored on a
frequency after searching along the whole band, the
radio will tune to the stored frequency.
Pressing the respective preset button for longer than 2
seconds will store the tuned station (the sound system
will always store the frequency and the PI code).
Storing is confirmed by a beep.
Storing the last station heard
The radio automatically keeps in storage the last
station heard for each reception band, which is then
tuned when the radio is turned on or the reception
band is changed.
Automatic tuning
Briefly press button 3 (
N) or 6 (O) to start
automatically searching the tuning for the next station
that it is possible to receive in the direction chosen.
If button 3 (
N) or 6 (O) is pressed for longer, quick
searching takes place: upon having tuned in to the first
well receivable station, the tuner stops for about 1
second (in Mute) before quick searching continues.
When the button is released, the tuner stops on the
next receivable station.
If the TA function is on (traffic information), the tuner
only searches stations which broadcast traffic bulletins.If the PTY function is on, the tuner only searches PTY
stations. When searching, the display alternatively
shows the type of programme and the word
“SEARCH”.
If the station on which the tuner stops is one of the
stations stored with the preset buttons, the display will
show the presetting number for a few seconds.
Manual tuning
This allows manual station searching in the chosen
band.
Proceed as follows:
❒select the band with button 13 (BAND-
AUTOSTORE): FM1, FM2, FMT, MW or LW;
❒press briefly and repeatedly button 7 (
÷) or 5
(
˜) to start searching in the chosen band.
Pressing one of the buttons 7 (
÷) or 5 (˜)
longer obtains fast forward searching, which is
stopped when the button is released.
To turn on manual tuning search it is necessary to turn
off the PTY and AF (alternative frequencies), if on.
If the station tuned is a station stored with the preset
buttons, the display will show the presetting number
for a few seconds.

28
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Scan function (station scanning)
Keeping button 1 (SOURCE-SCAN) pressed until the
beep, starts scanning the stations in the frequency
band selected (FM, MW, LW). Each station found will
be heard for a few seconds and the name and
frequency will flash on the display.
While searching the display will show “FM SCAN”,
“AM SCAN” or “PTY SCAN” for a few seconds.
If the TA function is on (traffic information), the
system will search only the stations that broadcast
traffic bulletins. If the PTY function is on, the system
will only search stations broacasting the chosen PTY.
When the Scan function is on, all the other functions
are cancelled. With Scan function on, the display
shows the word “SEARCH”.The Scan function is interrupted in the following cases:
❒pressing again button 1 (SOURCE-SCAN);
❒pressing button 3 (
N) or 6 (O) or 5 (˜) or 7
(
÷) (manual or automatic tuning starts);
❒pressing a preset button;
❒turning AutoSTore on;
❒turning PTY on/off;
❒changing the chosen frequency band;
❒pressing button 12 (MENU-PRESET SCAN) or 9
(AUDIO-LOUDNESS);
❒when a station is found that is broadcasting a traffic
bulletin, if the TA is on;
❒inserting a Compact Disc.
In any case the search function will be turned off after
scanning the frequency band, even if no station is
selected.

29
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Scanning preset stations
Keep button 12 (MENU-PRESET SCAN) pressed to
start scanning the preset stations in the present
frequency band:
❒FM: FM1 1, FM1 2, ...FM1 6, FM2 1, FM2 2, ...FM2
6, FMT 1, FMT 2, ...FMT 6;
❒MW: MW 1, MW 2, ..., MW 6;
❒LW: LW 1, LW 2, ...LW 6.
Each preset station will be heard for a few seconds
and its name or frequency will flash on the display, if
the signal intensity is sufficient. In passing from a
preselection to another, the display will show the
word “SCAN” for about 2 seconds.
In the first 2 seconds in which the new preset station
is heard, the display shows the current frequency band
and the number of the pre-select button.
If the TA function is on (traffic information), the
system will search only the stations that broadcast
traffic bulletins.
When the Scan function is on, all the other functions
are cancelled.The Scan function is interrupted in the following cases:
❒pressing again button 12 (MENU-PRESET SCAN);
❒pressing button 3 (
N) or 6 (O) or 5 (˜) or 7
(
÷) (manual or automatic tuning starts);
❒pressing a preset button;
❒turning AutoSTore on;
❒turning PTY on/off;
❒changing the listening source (CD, CD Changer);
❒changing the FM level or frequency band selected;
❒pressing button 9 (AUDIO-LOUDNESS);
❒when a station is found that is broadcasting a traffic
bulletin, if the TA is on;
❒inserting a Compact Disc.
If no presetting has been selected, the station chosen
previously will be resumed.

30
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Manual station storage
The station being heard can be stored in the range
selected with buttons (“17”, “16”, “14”, “11”, “10”,
“8”) numbered from 1 to 6.
Keep one of these buttons (from 1 to 6) pressed until
receiving the confirmation “beep”. After storage,the
display shows the number of the button with which
the station has been stored.
AutoSTore function (automatic station
storage)
To switch on the Autostore function, keep button 13
(BAND-AUTOSTORE) pressed until receiving the
confirmation “beep”. With this function the radio
automatically stores the six stations with the strongest
signal in decreasing order of intensity of the FMT
frequency band.
IMPORTANT Activating the AutoSTore function
cancels the stations stored previously in the FMT band.If the TA function is on (traffic information), only the
stations that send traffic information will be stored.
This function may also be turned on when listening to
a Compact Disc, CD Changer (if installed) or in
Telephone mode.
During automatic storage the display shows “FM AST”.
To interrupt AutoSTore press button 13 (BAND-
AUTOSTORE) again: the radio will automatically tune
to the station heard before activation of the
AutoSTore function.
At the end of the AutoSTore function the radio
automatically tunes on the first preset station in the
FMT band stored on preset button 1-TPM (17).
On buttons (“17”, “16”, “14”, “11”, “10”, “8”)
numbered from 1 to 6, the stations are automatically
stored that give a strong signal in that moment in the
present band.

32
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
When the signal of the RDS station tuned weakens,
the following two cases may occur:
❒with “AF ON” the RDS system activates automatic
tuning of the optimum frequency of the station
chosen, with the stations enabled, therefore the
radio is automatically tuned to the station with the
strongest signal that is broadcasting the same
programme. During the journey it will thus be
possible to continue listening to the station chosen
without having to change the frequency when
changing area. Of course, the station being listened
to must be receivable in the area the car is crossing.
❒With “AF OFF” the radio will not tune the
strongest station automatically and it will have to be
found manually using the tuner buttons.
To turn the AF function on/off, keep button 15 (AF-
TA) pressed until hearing the beep.
The name RDS (if available) stays on the display and if
the AF function has been turned on the symbol “AF” is
shown.
If the radio is working in the AM band, when button
15 (AF-TA) is pressed, it passes to the FM1 band on
the last station selected.TA function (traffic information)
Certain stations in the FM band (FM1, FM2 and FMT)
are enabled to also broadcast information about traffic
conditions. In this case the display shows “TP”.
To turn the TA (traffic information) function on/off,
briefly press button 15 (AF-TA).
The listening conditions and information given on the
display may be the following:
❒TA and TP: if tuned to a station that sends traffic
information and the traffic information function is on.
❒TP: if tuned to a station that sends traffic
information but the traffic information function is off;
❒TA (*): the traffic information function is on but the
radio is tuned to a station that does not give traffic
information.
❒TA and TP not shown on the display:the radio is
tuned to a station that does not give traffic
information and the traffic information function is off.
(*) SIf the TA function (traffic information) is on, but the radio
station chosen does not give traffic information, the device
“beeps” every 30 seconds.
