sensor FIAT CROMA 2008 2.G DVD Player Manual

Main components and features............................................. 12
PRELIMINARY OPERATIONS.............................................. 13
Opening the LCD panel.......................................................... 13
Switching the apparatus on ....................................................13
Adjusting monitor angle.......................................................... 14
Selecting the source of signal to be played......................... 14
Starting playback using the selected unit............................. 14
Adjusting the car AV receiver volume................................. 14
Switching the apparatus off ....................................................14
Enabling the door sensor........................................................ 14
REGULATIONS........................................................................ 15
Using the monitor menu.........................................................15
- Basic procedure................................................................. 15
- Items regulated from the monitor menu...................... 16
Changing the aspect ratio....................................................... 18
- Basic procedure................................................................. 18
- Selectable aspect ratios.................................................... 18
PLAYABLE DISCS.................................................................... 20
Playable discs .............................................................................20
Non-playable discs................................................................... 20
Important remarks for playing DualDisc............................. 20
Remarks on region codes....................................................... 20
- Inserting a new video DVD with an
incorrect region code....................................................... 20
T
T T T
A A A A
B B B B
L L L L
E E E E

O O O O
F F F F

C C C C
O O O O
N N N N
T T T T
E E E E
N N N N
T T T T
S S S S
PRESENTATION .................................................................... 4
Important remarks on laser products.................................. 5
- User’s information for disposing
of obsolete equipment...................................................... 5
IMPORTANT REMARKS AND PRECAUTIONS............. 6
Important remarks................................................................... 6
Important remarks on the supplied
headphones KS-HP2................................................................ 7
Precautions for using the LCD panel................................... 7
Forced disc ejection................................................................. 8
Reading this manual.................................................................. 8
WIDESCREEN MONITOR.................................................... 9
Component identification....................................................... 9
REMOTE CONTROL - RM-RK231..................................... 10
Installing the lithium battery (CR2025)................................ 10
Operations prior to remote control use............................ 10
Important remarks................................................................... 10
Main components and features............................................. 10
- Monitor ............................................................................... 10
- DVD ..................................................................................... 11
- Selecting a number............................................................ 11
HEADPHONES - KS-HP2 ......................................................12
Battery installation.................................................................... 12
Operations prior to using the wireless headphones........ 12
604_39_712 DVD Croma GB 3-06-2008 16:26 Pagina 1

9
BASIC
OPERATIONS -
REGULATIONS
PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS
PRESENTATION
-IMPORTANT
REMARKS AND
PRECAUTIONS
W W W W
I I I I
D D D D
E E E E
S S S S
C C C C
R R R R
E E E E
E E E E
N N N N

M M M M
O O O O
N N N N
I I I I
T T T T
O O O O
R R R R
COMPONENT
IDENTIFICATION
1Infrared transmitter
2Disc tray
3Dome lights
4Screen box
5Screen (LCD panel)
6Button
˚(eject)7Button
¸(play/pause)
8Button
I¯¯(jump back)
9Button
˙˙I(jump fwd)
10MODE button
11Button
g(standby)
• When pressed, this button switches
the unit on.
• When held pressed, this button
switches the unit off.12Remote control sensor
13“Open” button
14Dome light switch
• Refer to section “Enabling the door
sensor” on page 14.
15AV1 INPUT terminals
IMPORTANT If you watch the screen
from an angle and not directly, the image
may not appear clear. This does not in-
dicate any malfunctioning. The watcher
perceives the best image quality when s/he
sits opposite the screen.
MOITOR -
REMOTE
CONTROL -
HEADPHONES
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 9

BASIC
OPERATIONS -
REGULATIONS
PRESENTATION -
IMPORTANT
REMARKS AND
PRECAUTIONS
MOITOR -
REMOTE
CONTROL -
HEADPHONES
10
PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS
R R R R
E E E E
M M M M
O O O O
T T T T
E E E E

C C C C
O O O O
N N N N
T T T T
R R R R
O O O O
L L L L

- - - -

R R R R
M M M M
- - - -
R R R R
K K K K
2 2 2 2
3 3 3 3
1 1 1 1
INSTALLING THE LITHIUM
BATTERY (CR2025)
OPERATIONS PRIOR TO
REMOTE CONTROL USE
❒Direct the remote control towards the
monitor control sensor. Make sure that
the infrared ray is not hindered by any
obstacle.
❒Do not expose the remote control sen-
sor to intense direct sunlight or artifi-
cial lights.IMPORTANT REMARKS
❒Store the battery away from children.
Immediately go to a doctor if a child
swallows the battery.
❒Do not recharge, remove, heat the bat-
tery and do not place it close to free
flames. In these cases the battery may
produce heat, break down or go on fire.
❒Do not place the battery with other
metals. In this case the battery may pro-
duce heat, break down or go on fire.
❒When disposing of/storing the battery,
wrap it in insulating film. If it is not
wrapped, the battery may produce heat,
break down or go on fire.
❒Do not punch the battery with metal
nails or similar tools.MAIN COMPONENTS AND
FEATURES
Monitor
1MODE button
• Enables selection of the source of
signal to be played.
2ASPECT button
• Enables changing the aspect ratio of
the image.
Remote control
sensor
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 10

BASIC
OPERATIONS -
REGULATIONS
PRESENTATION -
IMPORTANT
REMARKS AND
PRECAUTIONS
MOITOR -
REMOTE
CONTROL -
HEADPHONES
12
PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS

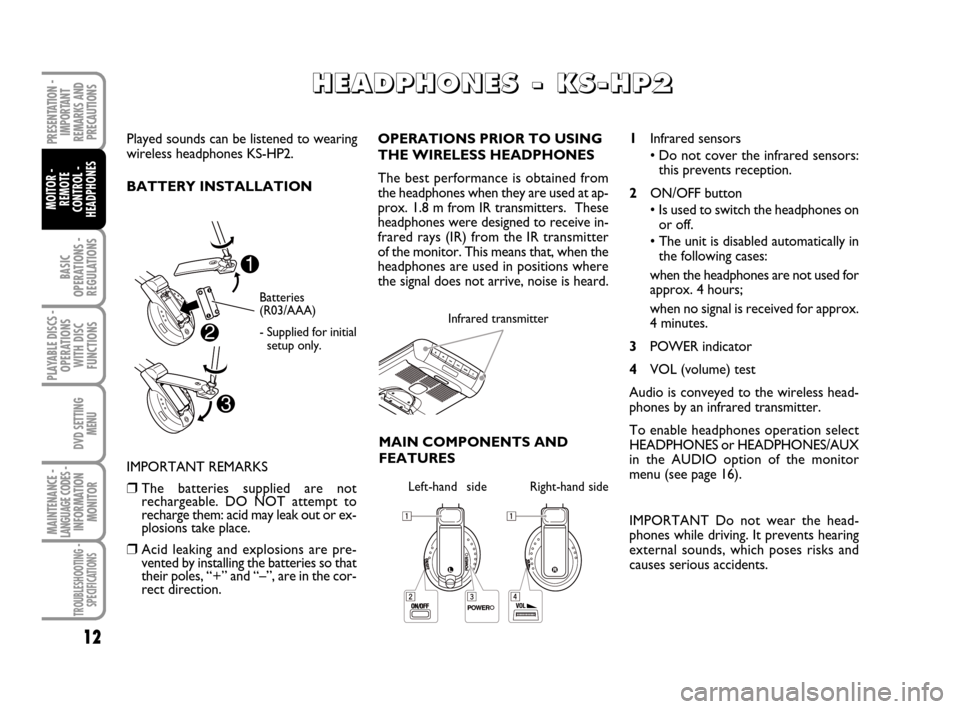

Played sounds can be listened to wearing
wireless headphones KS-HP2.
BATTERY INSTALLATION
H H H H
E E E E
A A A A
D D D D
P P P P
H H H H
O O O O
N N N N
E E E E
S S S S

- - - -

K K K K
S S S S
- - - -
H H H H
P P P P
2 2 2 2
Batteries
(R03/AAA)
- Supplied for initial
setup only.
IMPORTANT REMARKS
❒The batteries supplied are not
rechargeable. DO NOT attempt to
recharge them: acid may leak out or ex-
plosions take place.
❒Acid leaking and explosions are pre-
vented by installing the batteries so that
their poles, “+” and “–”, are in the cor-
rect direction.OPERATIONS PRIOR TO USING
THE WIRELESS HEADPHONES
The best performance is obtained from
the headphones when they are used at ap-
prox. 1.8 m from IR transmitters. These
headphones were designed to receive in-
frared rays (IR) from the IR transmitter
of the monitor. This means that, when the
headphones are used in positions where
the signal does not arrive, noise is heard.
Infrared transmitter
MAIN COMPONENTS AND
FEATURES
Left-hand sideRight-hand side
1Infrared sensors
• Do not cover the infrared sensors:
this prevents reception.
2ON/OFF button
• Is used to switch the headphones on
or off.
• The unit is disabled automatically in
the following cases:
when the headphones are not used for
approx. 4 hours;
when no signal is received for approx.
4 minutes.
3POWER indicator
4VOL (volume) test
Audio is conveyed to the wireless head-
phones by an infrared transmitter.
To enable headphones operation select
HEADPHONES or HEADPHONES/AUX
in the AUDIO option of the monitor
menu (see page 16).
IMPORTANT Do not wear the head-
phones while driving. It prevents hearing
external sounds, which poses risks and
causes serious accidents.
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 12

PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
MOITOR -
REMOTE
CONTROL -
HEADPHONES
14
BASIC
OPERATIONS -
REGULATIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS
PRESENTATION -
IMPORTANT
REMARKS AND
PRECAUTIONS
3 - Adjusting the monitor angle
4 - Selecting the source of signal to
be played
MonitorRemote control
Whenever the button is pressed, the
played source changes as follows:
DISC: selects the internal DVD player.
AV 1: selects the external component
connected to the AV1 INPUT ter-
minals of the screen.
AV 2: selects the AV receiver of the car.5 - Starting playback using the
selected unit
Test the built-in DVD player as described
in the section “Operations with discs” on
page 21.
To enable external components refer to
the manuals of the connected compo-
nents.
6 - Adjusting the AV receiver
volume in the car
When using the headphones, adjust the
volume (see page 12).
Switching the apparatus off
When using the headphones, switch the
unit off after switching the headphones off. When the car is delivered, the option
“SWITCH-OFF MODE” is set to “20
MINUTES” (see page 17). This setting en-
ables keeping the monitor on for 20 min-
utes after the engine has been turned off.
Monitor only
Enabling the door sensor
OFF: switches the dome light off.
DOOR: engages the door sensor which
switches the dome light on,
when the door is opened.
ON: switches the dome light on.
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 14

41
MOITOR -
REMOTE
CONTROL -
HEADPHONES
BASIC
OPERATIONS -
REGULATIONS
PLAYABLE DISCS -
OPERATIONS
WITH DISC
FUNCTIONS
DVD SETTING
MENU
MAINTENANCE - LANGUAGE CODES - INFORMATION
MONITOR
TROUBLESHOOTING -
SPECIFICATIONS
PRESENTATION
-IMPORTANT
REMARKS AND

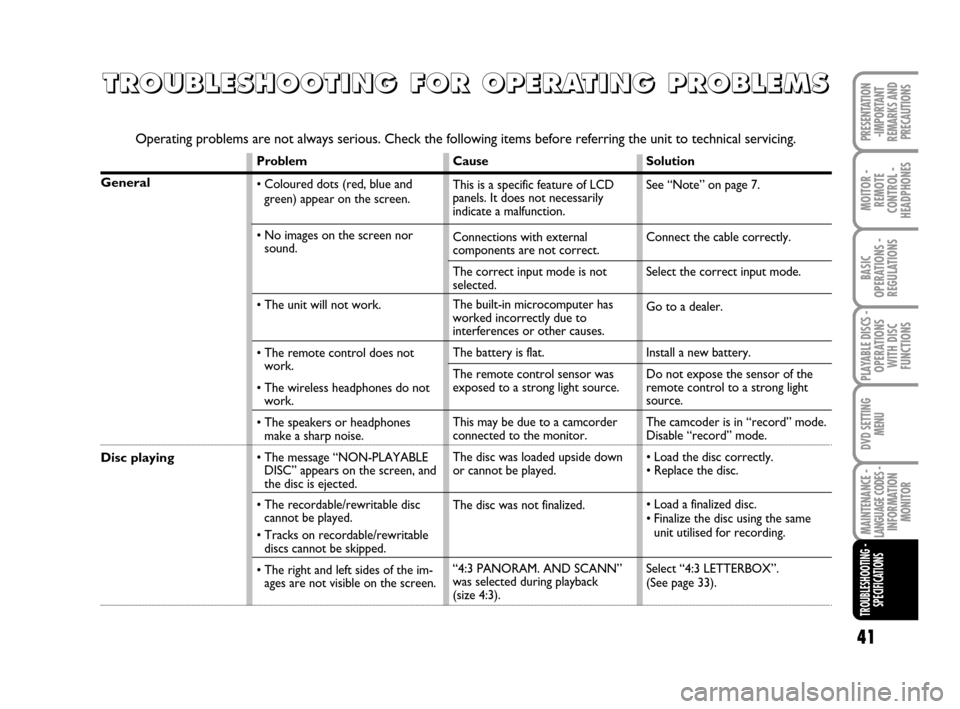

PRECAUTIONSOperating problems are not always serious. Check the following items before referring the unit to technical servicing.
T T T T
R R R R
O O O O
U U U U
B B B B
L L L L
E E E E
S S S S
H H H H
O O O O
O O O O
T T T T
I I I I
N N N N
G G G G

F F F F
O O O O
R R R R

O O O O
P P P P
E E E E
R R R R
A A A A
TT T T
I I I I
N N N N
G G G G

P P P P
R R R R
O O O O
B B B B
L L L L
E E E E
M M M M
S S S S

General
Disc playing
Problem
• Coloured dots (red, blue and
green) appear on the screen.
• No images on the screen nor
sound.
• The unit will not work.
• The remote control does not
work.
• The wireless headphones do not
work.
• The speakers or headphones
make a sharp noise.
• The message “NON-PLAYABLE
DISC” appears on the screen, and
the disc is ejected.
• The recordable/rewritable disc
cannot be played.
• Tracks on recordable/rewritable
discs cannot be skipped.
• The right and left sides of the im-
ages are not visible on the screen.Cause
This is a specific feature of LCD
panels. It does not necessarily
indicate a malfunction.
Connections with external
components are not correct.
The correct input mode is not
selected.
The built-in microcomputer has
worked incorrectly due to
interferences or other causes.
The battery is flat.
The remote control sensor was
exposed to a strong light source.
This may be due to a camcorder
connected to the monitor.
The disc was loaded upside down
or cannot be played.
The disc was not finalized.
“4:3 PANORAM. AND SCANN”
was selected during playback
(size 4:3).Solution
See “Note” on page 7.
Connect the cable correctly.
Select the correct input mode.
Go to a dealer.
Install a new battery.
Do not expose the sensor of the
remote control to a strong light
source.
The camcoder is in “record” mode.
Disable “record” mode.
• Load the disc correctly.
• Replace the disc.
• Load a finalized disc.
• Finalize the disc using the same
unit utilised for recording.
Select “4:3 LETTERBOX”.
(See page 33).
604_39_712 DVD Croma GB 3-06-2008 16:27 Pagina 41
