FIAT CROMA 2008 2.G Owners Manual

F0L0511m
fig. 3
F0L0510m

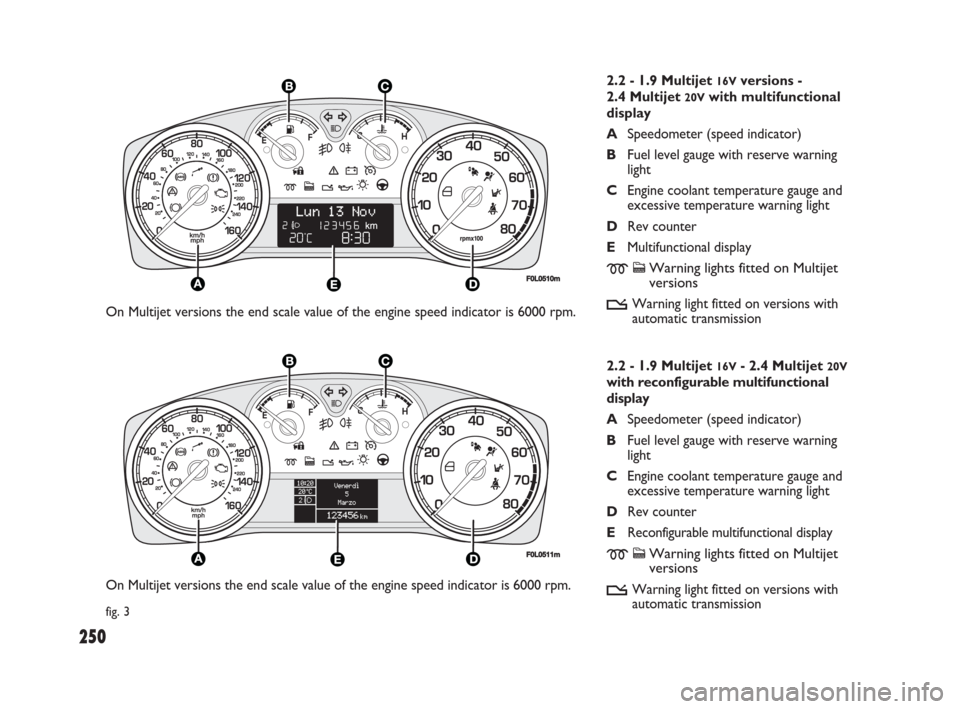

2.2 - 1.9 Multijet 16Vversions -
2.4 Multijet
20Vwith multifunctional
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunctional display
mcWarning lights fitted on Multijet
versions
tWarning light fitted on versions with
automatic transmission
2.2 - 1.9 Multijet
16V- 2.4 Multijet 20V
with reconfigurable multifunctional
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EReconfigurable multifunctional display
mcWarning lights fitted on Multijet
versions
tWarning light fitted on versions with
automatic transmission On Multijet versions the end scale value of the engine speed indicator is 6000 rpm.
On Multijet versions the end scale value of the engine speed indicator is 6000 rpm.
250
243-256 Croma TRW GB 11-11-2008 11:39 Pagina 250

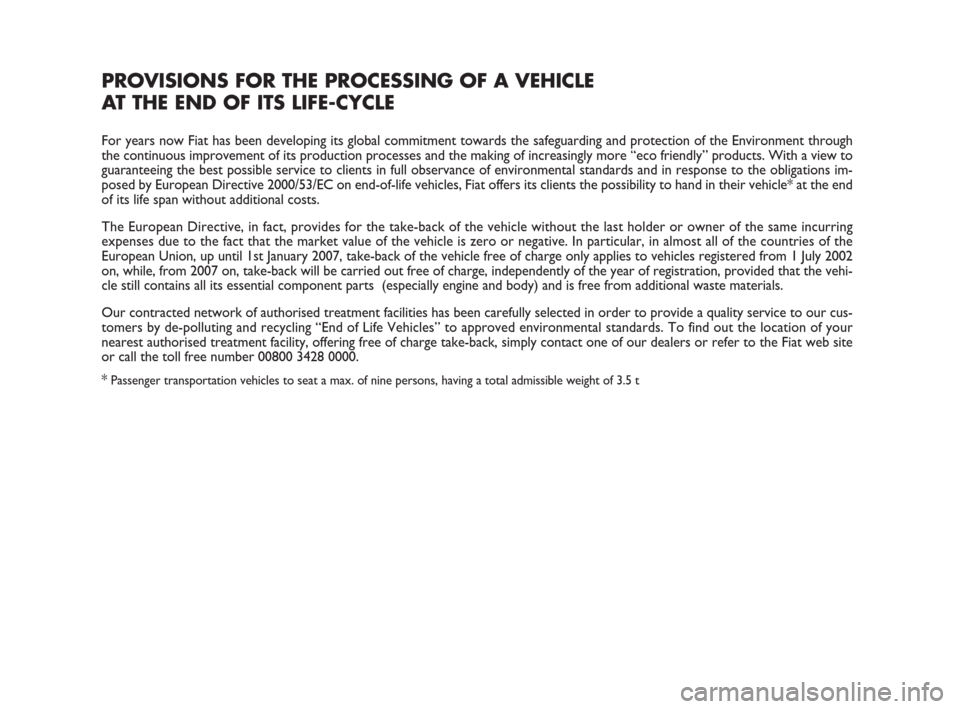

PROVISIONS FOR THE PROCESSING OF A VEHICLE
AT THE END OF ITS LIFE-CYCLE
For years now Fiat has been developing its global commitment towards the safeguarding and protection of the Environment through
the continuous improvement of its production processes and the making of increasingly more “eco friendly” products. With a view to
guaranteeing the best possible service to clients in full observance of environmental standards and in response to the obligations im-
posed by European Directive 2000/53/EC on end-of-life vehicles, Fiat offers its clients the possibility to hand in their vehicle* at the end
of its life span without additional costs.
The European Directive, in fact, provides for the take-back of the vehicle without the last holder or owner of the same incurring
expenses due to the fact that the market value of the vehicle is zero or negative. In particular, in almost all of the countries of the
European Union, up until 1st January 2007, take-back of the vehicle free of charge only applies to vehicles registered from 1 July 2002
on, while, from 2007 on, take-back will be carried out free of charge, independently of the year of registration, provided that the vehi-
cle still contains all its essential component parts (especially engine and body) and is free from additional waste materials.
Our contracted network of authorised treatment facilities has been carefully selected in order to provide a quality service to our cus-
tomers by de-polluting and recycling “End of Life Vehicles” to approved environmental standards. To find out the location of your
nearest authorised treatment facility, offering free of charge take-back, simply contact one of our dealers or refer to the Fiat web site
or call the toll free number 00800 3428 0000.
*
Passenger transportation vehicles to seat a max. of nine persons, having a total admissible weight of 3.5 t
243-256 Croma TRW GB 11-11-2008 11:39 Pagina 251

N N
O O
T T
E E
S S
243-256 Croma TRW GB 11-11-2008 11:39 Pagina 252

243-256 Croma TRW GB 11-11-2008 11:39 Pagina 253

243-256 Croma TRW GB 11-11-2008 11:39 Pagina 254

243-256 Croma TRW GB 11-11-2008 11:39 Pagina 255

Fiat Group Automobiles S.p.A. - Customer Services - Technical Services - Service Engineering - Largo Senatore G. Agnelli, 5 - 10040 Volvera - Torino (Italia)
Print N. 603.81.575 - 11/2008 - 1stedition
FUEL CAPACITYTank capacity: 62 litres Riserve: 7 - 9 litres
Only refuel cars with petrol engines with unleaded petrol with octane rating (RON) not less than 95.
Only refuel cars with diesel engines with diesel fuel for motor vehicles conforming to the EN590 European Specification
STANDARD TYRES SPARE
Versions Size Medium load Full load WHEEL
Front Rear Front Rear
205/55 R16 91V 2.4 2.4 2.7 2.6
1.8215/55 R16 93W 2.4 2.4 2.5 2.5 4.2
215/50 R17 91W 2.4 2.4 2.6 2.6
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.52.2
215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.7 2.6
205/55 R16 91V 2.4 2.4 2.7 2.6
2.2 a.t.215/55 R16 93W 2.4 2.4 2.5 2.51.9 Multijet 8V215/50 R17 91W 2.4 2.4 2.6 2.54.2
225/45 R18 95W 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.8 2.7
215/55 R16 93W 2.4 2.4 2.5 2.51.9 Multijet 16V215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.6 2.5
205/55 R16 91V 2.4 2.4 2.7 2.6
215/55 R16 93W 2.4 2.4 2.5 2.51.9 Multijet 16Va.t.215/50 R17 91W 2.4 2.4 2.7 2.64.2
225/45 R18 95W 2.4 2.4 2.6 2.5
2.4 Multijet 20Va.t.215/50 R17 95W 2.6 2.5 2.9 2.7
4.2225/45 R18 95W 2.6 2.5 2.8 2.6
COLD TYRE INFLATION PRESSURE (bar)
ENGINE OIL REPLACEMENT
2.2 2.2 a.t. 1.9 Multijet 8V1.9 Multijet 16V 1.9 Multijet 16V a.t. 2.4 Multijet 20V a.t.
litres kg litres kg litres kg litres kg litres kg litres kg
Sump and filter 5 – 5 – 4.5 – 4.5 – 4.5 – 5.4 –
243-256 Croma TRW GB 11-11-2008 11:39 Pagina 256
