WATER IN DIESEL
FUEL FILTER
(Multijet versions -
amber)
Turning the ignition key toMARthe
warning light turns on, but it should go
off after few seconds. The warning
light
cturns on when there is water
in the diesel fuel filter. On certain ver-
sions the warning light
èturns on
and the display shows a dedicated
message.
44GETTING TO KNOW YOUR VEHICLE
GLOW PLUG
WARMING
(Multijet versions - am-
ber)
GLOW PLUG WARMING FAIL-
URE (Multijet versions - amber)
Spark plug pre-heating
Turning the ignition key to MAR, the
warning light turns on and it will turn
off when glow plugs reach the preset
temperature. Start the engine imme-
diately after warning light switching off.
IMPORTANTWith hot ambient
temperature, warning light stays on for
very short time.
Glow plug warming failure
The warning light turns on when
there is a failure in the glow plug
warming system. Contact Fiat Deal-
ershipas soon as possible.
On certain versions the dedicated
message is displayed. FRONT
PASSENGER’S AIR
BAG DEACTIVATED
(amber)
Warning light
Fcomes on when
front passenger’s air bag is deactivat-
ed.
With front passenger’s air bag on,
turning the ignition key to MAR,
warning light
Fcomes on steadily
for about 4 seconds, it flashes for oth-
er 4 seconds and then it shall go off.
Warning light
Findi-
cates also warning light ¬
failures. This is indicated
by intermittent flashing, over 4
seconds, of warning light F. In
this event warning light ¬indi-
cates that there could be a failure
in safety systems. Contact Fiat
Dealership immediately to have
the system checked.
mcF
001-105 Doblo GB 16-12-2008 14:22 Pagina 44

HEATED REAR
WINDOW (amber)
The warning light turns
on when switching the heated rear
window on.
45GETTING TO KNOW YOUR VEHICLE
The presence of water in
the fuel circuit may cause
serious damage to the en-
tire injection system and cause ir-
regular engine operation. If the
warning light
cor èturns on
(on certain versions together
with the message on the display)
contact Fiat Dealership as soon
as possible to have the system re-
lieved. If the above indications
come on immediately after refu-
elling, water has probably been
poured into the tank: turn the en-
gine off immediately and contact
Fiat Dealership.
¢Y(
EXTERNAL LIGHT
FAILURE (amber)
The warning light turns on
when one of the following
lights is failing:
– sidelights
– brake lights (third brake light ex-
cluded)
– rear fog guards
– direction indicators
– number plate lights.
W
VEHICLE
PROTECTION
SYSTEM
FAILURE -
FIAT CODE
(amber)
Turning the key to MARthe warn-
ing light shall flash only once and then
go off.
If with the ignition key at MAR, the
warning light stays on, this indicates a
possible failure (see “Fiat Code sys-
tem” in section “Dashboard and con-
trols”).
IMPORTANTThe turning on at
the same time of the warning lights
U
and Yindicates a failure of the Fiat
CODE system.
If with the engine running the warn-
ing light
Uflashes, this means that
the vehicle is not protected by the en-
gine inhibitor device (see “Fiat Code
system” in section “Dashboard and
controls”).
Contact Fiat Dealership to have all
the key memorised.
001-105 Doblo GB 16-12-2008 14:22 Pagina 45

46GETTING TO KNOW YOUR VEHICLE
GENERIC
FAILURE
INDICATION
(amber)
The warning light turns on in the fol-
lowing circumstances.
Engine oil pressure sensor
failure
The warning light comes on when
the engine oil pressure sensor is faulty.
Contact Fiat Dealership as soon as
possible.
On certain versions the dedicated
message is displayed.
Speed limit exceeded
The display will show the dedicated
message when the vehicle exceeds the
set speed limit (see “Reconfigurable
Multifunction Display” in this section).
On certain versions the dedicated
message is displayed. The failure referring to these lights
could be: one or more blown bulbs,
a blown protection fuse or an electric
connection cut-off.
On certain versions the dedicated
message is displayed; symbols
¯/ ˙
indicate respectively the left / right
side.
REAR FOG LIGHTS
(amber)
The warning light turns on
when the rear fog lights are
turned on.
4
è
DIESEL
PARTICULATE
FILTER CLOGGED
(1.3 Multijet 85 HP and
1.9 Multijet 120 HP versions)
(Amber)
The warning light turns on when the
diesel particulate filter is clogged and
the driving conditions do not enable
to activate automatically the reclaim-
ing procedure.
To enable the cleaning procedure,
keep the vehicle running until the
warning light turns off.
The display will show the dedicated
message.
h
Warning light Uturns
on together with the ded-
icated message on the
display to indicate that the clean-
ing procedure cannot be per-
formed, contact Fiat Dealership
as soon as possible.
001-105 Doblo GB 16-12-2008 14:22 Pagina 46

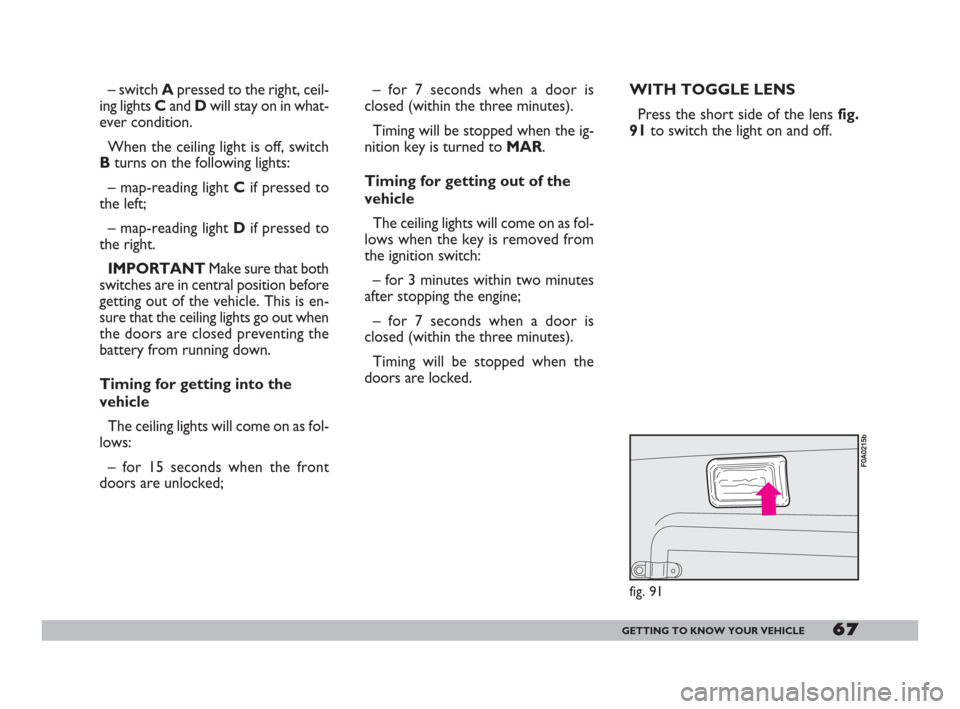

67GETTING TO KNOW YOUR VEHICLE
– switch Apressed to the right, ceil-
ing lights Cand Dwill stay on in what-
ever condition.
When the ceiling light is off, switch
Bturns on the following lights:
– map-reading light Cif pressed to
the left;
– map-reading light Dif pressed to
the right.
IMPORTANTMake sure that both
switches are in central position before
getting out of the vehicle. This is en-
sure that the ceiling lights go out when
the doors are closed preventing the
battery from running down.
Timing for getting into the
vehicle
The ceiling lights will come on as fol-
lows:
– for 15 seconds when the front
doors are unlocked;– for 7 seconds when a door is
closed (within the three minutes).
Timing will be stopped when the ig-
nition key is turned to MAR.
Timing for getting out of the
vehicle
The ceiling lights will come on as fol-
lows when the key is removed from
the ignition switch:
– for 3 minutes within two minutes
after stopping the engine;
– for 7 seconds when a door is
closed (within the three minutes).
Timing will be stopped when the
doors are locked.WITH TOGGLE LENS
Press the short side of the lens fig.
91to switch the light on and off.
fig. 91
F0A0215b
001-105 Doblo GB 16-12-2008 14:22 Pagina 67

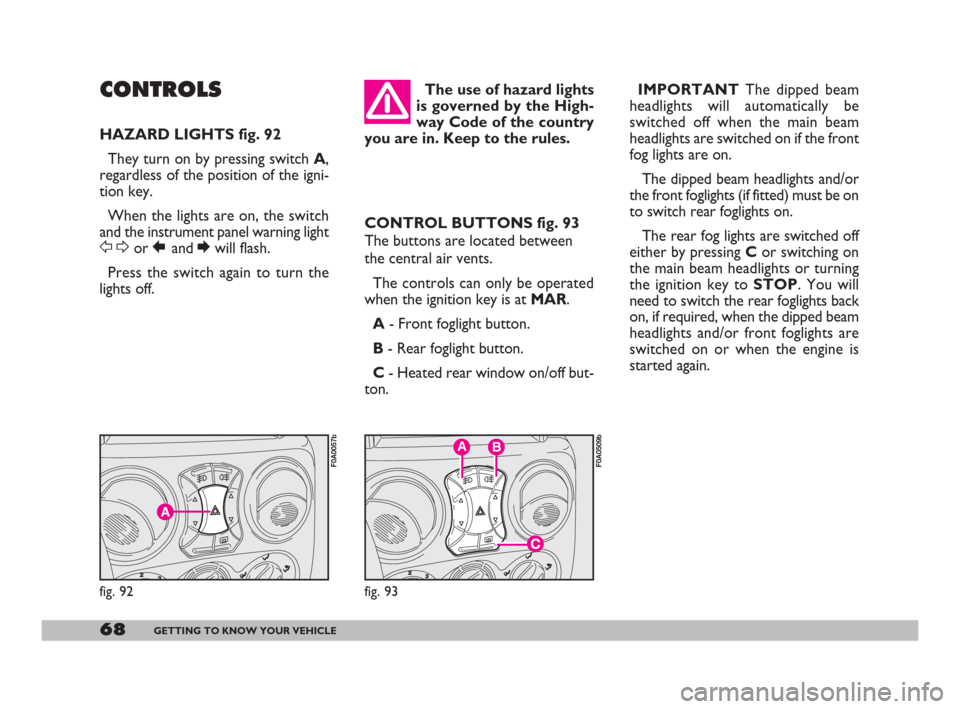

68GETTING TO KNOW YOUR VEHICLE
CONTROLS
HAZARD LIGHTS fig. 92
They turn on by pressing switch A,
regardless of the position of the igni-
tion key.
When the lights are on, the switch
and the instrument panel warning light
FDor Rand Ewill flash.
Press the switch again to turn the
lights off.CONTROL BUTTONS fig. 93
The buttons are located between
the central air vents.
The controls can only be operated
when the ignition key is at MAR.
A- Front foglight button.
B- Rear foglight button.
C- Heated rear window on/off but-
ton. IMPORTANTThe dipped beam
headlights will automatically be
switched off when the main beam
headlights are switched on if the front
fog lights are on.
The dipped beam headlights and/or
the front foglights (if fitted) must be on
to switch rear foglights on.
The rear fog lights are switched off
either by pressing C or switching on
the main beam headlights or turning
the ignition key to STOP. You will
need to switch the rear foglights back
on, if required, when the dipped beam
headlights and/or front foglights are
switched on or when the engine is
started again.
A
fig. 92
F0A0057b
The use of hazard lights
is governed by the High-
way Code of the country
you are in. Keep to the rules.
BA
fig. 93
F0A0509b
001-105 Doblo GB 16-12-2008 14:22 Pagina 68

70GETTING TO KNOW YOUR VEHICLE
ASHTRAY fig. 99
Pull flap Atowards yourself. Remove
the ashtray Bby pulling it upwards for
emptying it.
Non smokers can remove the ash-
tray and use it as additional oddment
compartment.
ODDMENT SHELF fig. 100
The shelf is fitted over the sunvisors.
It was designed to easily house light-
weight objects (e.g. documents, road
maps, etc.).
IMPORTANTThe shelf was de-
signed for loads not exceeding 3 kg on
each side. Consequently, do not arrange
objects exceeding these weights. Do
not use the points shown as grips fig.
100. Use the specific side handles.
B
A
fig. 99
F0A0064b
POWER SOCKET
(where provided)
The vehicle is fitted with a power
socket A-fig. 98set on the dashboard
(on the left of the gearbox) that only
works with ignition key at MAR. Do
not use current sockets for accessories
with power over 180 W (max. intake
15 A).
A
fig. 97
F0A0062b
Do not use the sockets
for accessories with pow-
er over the max. specified
one.
U-
MAX
180
WA
fig. 98
F0A0063b
Prolonged use of accessories with
high current intake could deploy the
battery, even preventing the engine
from starting.
CIGAR LIGHTER fig. 97
With ignition key at MAR: press but-
ton A; after approximately 15 seconds
it will return to its initial position and
is ready for use.
IMPORTANTAlways make sure
the cigar lighter does in fact pop out
after it has been pushed in.
Important. The cigar
lighter gets very hot.
Handle with care and do
not let children use it: danger of
fire or burns.
001-105 Doblo GB 16-12-2008 14:22 Pagina 70

85GETTING TO KNOW YOUR VEHICLE
Important. The bonnet
might fall violently if the
support rod is not posi-
tioned properly.
When the engine is hot,
mind your hands when
working inside the engine
compartment to avoid burning
yourself. Never put your hands
near the fan: it could start up even
without the key in the switch.
Wait until the engine cools down.BONNET
To open the bonnet
This should only be done
when the vehicle is sta-
tionary. Before opening
the bonnet, check the windscreen
wiper arms are not lifted from
the windscreen.
1)Pull the yellow lever A-fig. 133
in the direction of the arrow.
2)Raise the bonnet slightly until lo-
cating the release lever.
fig. 133
F0A0082b
3)Press the fastener A-fig. 134, as
shown in the figure.
4)Open the bonnet and release the
rod A-fig. 135from its clip at the
same time. Then Bon the bonnet.
B
A
fig. 135
F0A0084b
Take care that scarves,
ties or loose clothing do
not accidentally come
near moving parts; they could be-
come entangled with serious dan-
ger for the wearer.
fig. 134
F0A0901b
001-105 Doblo GB 16-12-2008 14:22 Pagina 85

90GETTING TO KNOW YOUR VEHICLE
To exploit the ABS system to the full
in the event of necessity, you should
take heed of the following advice:
Braking while cornering always re-
quires extreme care even when using
ABS.
The most important advice to follow
is this The ABS exploits the
road hold available as
much as possible but can-
not increase it. You should always
drive carefully on slippery sur-
faces and avoid any unnecessary
risks.
If the ABS system cuts in
it is a sign that the grip
between the tyre and the
road surface has reached the lim-
it: you must slow down to match
the speed to the road grip avail-
able.
If there is a fault, the in-
strument panel warning
light >will come on. At
this point, reduce speed and go to
a Fiat Dealership to have your ve-
hicle checked and put right im-
mediately.
When the ABS cuts in,
and you feel the brake
pedal pulsating, do not re-
move your foot, but keep it
pressed. In doing so you will stop
in the shortest amount of space
possible under the current road
conditions.
If you follow these tips you will be
able to brake better in any situation.
IMPORTANTVehicles fitted with
may only be fitted with wheel rims,
tyres and brake pads of the make and
model approved by the vehicle man-
ufacturer.
The system is completed with an
EBD electronic brake force distribu-
tor which increases the brake system
performance and employs the ABS
control unit and sensors.
The vehicle is fitted with
an electronic braking de-
vice (EBD). The >and
xwarning light will come on at
the same time when the engine
is running to indicate that there
is an EBD system failure. In this
case violent braking may be ac-
companied by early rear wheel
locking with the possibility of
skidding. Drive the vehicle ex-
tremely carefully to the nearest
Fiat Dealership to have the sys-
tem checked.
001-105 Doblo GB 16-12-2008 14:22 Pagina 90

91GETTING TO KNOW YOUR VEHICLE
The cushion immediately inflates,
placing itself as a protection between
the body of the front occupants and
the structure that could cause injuries.
Immediately after, the cushion deflates.
The front air bag (driver and pas-
senger) is not a replacement of but
complementary to the use of belts,
which should always be worn, as spec-
ified by law in Europe and most non-
European countries.
In case of crash, a person not wear-
ing the seat belt moves forward and
may come into contact with the cush-
ion while it is still inflating. Under this
circumstance the protection offered
by the airbag is reduced.
Front airbags may not activate in the
following situations:
– in collisions against highly de-
formable objects not affecting the ve-
hicle front surface (e.g. bumper colli-
sion against guard rail); If the xbrake fluid low
warning light comes on,
stop the vehicle immedi-
ately and contact the nearest Fi-
at Dealership. Fluid leaks from
the hydraulic system, in fact, can
compromise brake system oper-
ation, both traditional systems
and systems with ABS.FRONT AND SIDE
AIRBAGS
The vehicle can be fitted with front
air bags for the driver and passenger
and with side bags.
FRONT AIRBAGS
Front airbags (driver and passenger)
have been designed to protect the oc-
cupants in the event of head-on crash-
es of medium-high severity, by plac-
ing the cushion between the occupant
and the steering wheel or dashboard.
Front airbags are designed to protect
vehicle’s occupants in front crashes
and therefore non-activation in other
types of collisions (side collisions, rear
shunts, roll-overs, etc.) is not a system
malfunction.
In case of crash, an electronic con-
trol unit, when required, triggers the
inflation of the cushion according to
the severity of the collision. Warning light >alone,
with the engine running,
normally indicates a fault
in the ABS system only. In this
case, the braking system is still ef-
ficient, though without the anti-
locking device. Under these con-
ditions, performance of the EBD
system may be reduced. Also in
this case, you are advised to go
immediately to the nearest Fiat
Dealership, driving in such a way
to avoid sharp braking to have
the system checked.
001-105 Doblo GB 16-12-2008 14:22 Pagina 91

93GETTING TO KNOW YOUR VEHICLE
Manual deactivation
The passenger side airbag can be de-
activated if it is absolutely necessary to
carry a child in the front passenger
seat.
Deactivation / reactivation shall be
carried out with ignition device at
STOP. Turn the specific switch fig.
142on the dashboard on passenger
side with the ignition key.IMPORTANTOperate the switch
only with engine off and ignition key
removed.
The switch fig. 142has two posi-
tions:
– Passenger front airbag on: (position
ON P): instrument panel warning
light
Foff. Do not carry children on
the front seat.
– Passenger front airbag off: (position
OFF F): instrument panel warning
light Fon. A child can be carried on
the front seat with a suitable restraint
system.
Warning light Fon the cluster
stays on permanently until the pas-
senger’s airbag is reactivated.
Deactivation of the passenger’s front
air bag does not inhibit operation of
the side air bag.SERIOUS DANGER:
With passenger’s
air bag active (ON),
never place child’s seats with the
cradle facing backwards since the
air bag activation could cause to
the child serious injuries, even
mortal. In the case of need, al-
ways deactivate the passenger’s
air bag when a child’s seat is
placed on the front seat. The
front passenger’s seat shall be ad-
justed in the most backward po-
sition to prevent any contact be-
tween child’s seat and dashboard.
Even if not compulsory by law,
you are recommended to reac-
tivate the air bag immediately as
soon as child transport is no
longer necessary.
ON OFF
PASS.
AIR BAG
fig. 142
F0A0213b
001-105 Doblo GB 16-12-2008 14:22 Pagina 93
