engine coolant FIAT DOBLO COMBI 2011 Owner handbook (in English)

199
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
fig. 180 – 1.4 versions
fig. 181 – 1.3 Multijet versions without DPFF0V0076m
F0V0187m
CHECKING LEVELS
A. Engine oil filler
B. Engine oil dipstick
C. Engine coolant
D. Windscreen washer fluid
E. Brake fluid
F. Battery
G. Power steering fluid
Never smoke while
working in the engine
compartment: flammable gases
and vapours may be present.
Fire hazard.
WARNING
When topping up, be
careful not to confuse the
various types of fluids:
they are all mutually incompati-
ble and may severely damage
your vehicle.

200
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
fig. 182 – 1.3 Multijet version with DPF
fig. 183 – 1.6 Multijet versionF0V0189m
F0V0190m
A. Engine oil filler
B. Engine oil dipstick
C. Engine coolant
D. Windscreen washer fluid
E. Brake fluid
F. Battery
G. Power steering fluid

201
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX
fig. 184 – 2.0 Multijet versions
A. Engine oil filler
B. Engine oil dipstick
C. Engine coolant
D. Windscreen washer fluid
E. Brake fluid
F. Battery
G. Power steering fluid
F0V0160m

203
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

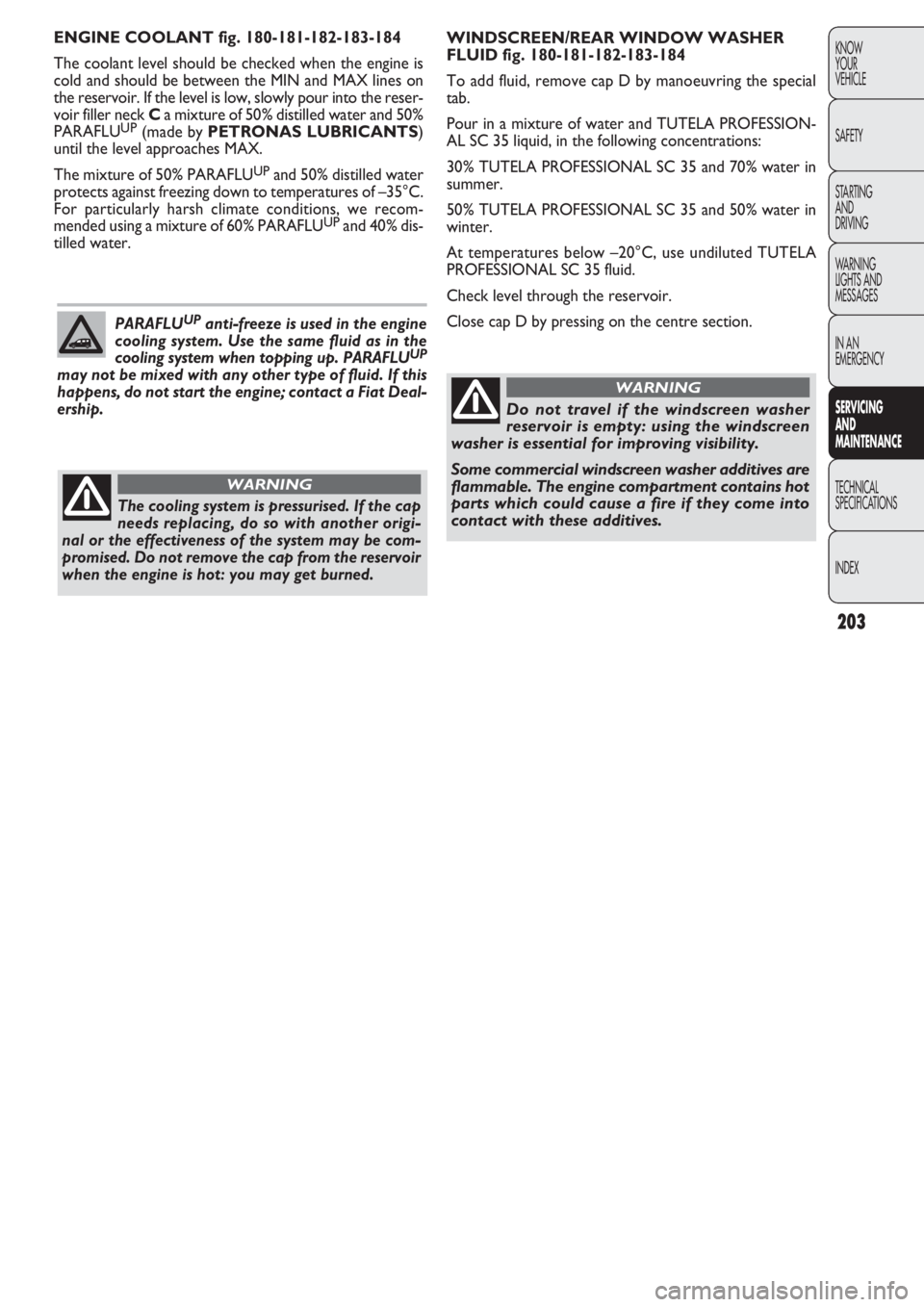

WINDSCREEN/REAR WINDOW WASHER
FLUID fig. 180-181-182-183-184
To add fluid, remove cap D by manoeuvring the special
tab.
Pour in a mixture of water and TUTELA PROFESSION-
AL SC 35 liquid, in the following concentrations:
30% TUTELA PROFESSIONAL SC 35 and 70% water in
summer.
50% TUTELA PROFESSIONAL SC 35 and 50% water in
winter.
At temperatures below –20°C, use undiluted TUTELA
PROFESSIONAL SC 35 fluid.
Check level through the reservoir.
Close cap D by pressing on the centre section. ENGINE COOLANT fig. 180-181-182-183-184
The coolant level should be checked when the engine is
cold and should be between the MIN and MAX lines on
the reservoir. If the level is low, slowly pour into the reser-
voir filler neck Ca mixture of 50% distilled water and 50%
PARAFLU
UP(made by PETRONAS LUBRICANTS)
until the level approaches MAX.
The mixture of 50% PARAFLU
UPand 50% distilled water
protects against freezing down to temperatures of –35°C.
For particularly harsh climate conditions, we recom-
mended using a mixture of 60% PARAFLU
UPand 40% dis-
tilled water.
PARAFLU
UPanti-freeze is used in the engine
cooling system. Use the same fluid as in the
cooling system when topping up. PARAFLU
UP
may not be mixed with any other type of fluid. If this
happens, do not start the engine; contact a Fiat Deal-
ership.
The cooling system is pressurised. If the cap
needs replacing, do so with another origi-
nal or the effectiveness of the system may be com-
promised. Do not remove the cap from the reservoir
when the engine is hot: you may get burned.
WARNING
Do not travel if the windscreen washer
reservoir is empty: using the windscreen
washer is essential for improving visibility.
Some commercial windscreen washer additives are
flammable. The engine compartment contains hot
parts which could cause a fire if they come into
contact with these additives.
WARNING

262
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Brake fluid
– checking levels
and topping up ................. 203
– specifications .................... 248
Brake lights
– bulb replacement.............. 176
Brakes
– brake fluid (type) ..... 246-248
– checking levels
and topping up ................. 203
– handbrake.......................... 135
– technical specifications .... 225
Bulbs
– bulb types .................170-171
– general information
on replacement ............... 169
Capability for Isofix
child seat .............................. 125Capacities
– technical data
(quantities) ........................ 246
Carrying children .................. 120
Carrying children safely ....... 125
– Isofix child seat
capability .............................125
Catalytic converter .............. 113
Central locking ........................ 77
Changing a wheel .................. 156
– general information
and warnings .................... 156
– tyre and wheel types ....... 228
– tyre inflation pressure .... 229
Changing bulbs
– bulb types ......................... 170
– exterior ............................. 172
– general information ........ 169
– interior .............................. 178Checking levels ...................... 199
– brake fluid ......................... 204
– engine coolant ................. 203
– engine oil ........................... 202
– windscreen/rearscreen/
headlamp washer fluid ... 203
Child safety device .................. 80
Child seats .............................. 120
– capability for Isofix child
seat ..................................... 125
– suitability for using
child seats .................124-127
Cigar light
er ............................. 58
Cleaning and maintenance
– body.................................... 214
– engine compartment ...... 216
– fabric seats ........................ 217
– interiors ............................ 216
– leather upholstery ........... 217
– plastic parts....................... 217
– windows .............................. 61

264
KNOW
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DPF (diesel particulate
filter) ...................................... 114
Electrical/electronic devices 110
Emergency starting................ 155
– bump starting ................... 166
– jump starting .................... 155
Emissions of CO
2................. 253
End of vehicle life .................. 255
Engine codes........................... 221
Engine compartment
– checking levels ................. 199
– opening/closing
the bonnet .......................... 91
– washing .............................. 216
Engine coolant
– checking levels
and topping up ................. 203
– specifications .................... 248
– temperature gauge
and warning light................. 13Engine coolant temperature
gauge ........................................ 13
– type of coolant ................ 248
Engine coolant temperature
overheating warning light .. 145
Engine coolant
– checking levels and
topping up ......................... 203
– specifications .................... 248
Engine cooling
– checking levels
and topping up ................. 203
– specifications .................... 248
Engine immobiliser
(Fiat CODE) ............................. 4
Engine marking ...................... 220
Engine oil consumption ....... 201
– consumption .................... 202
– engine oil specifications .. 247Engine oil
– checking levels
and topping up.................. 202
– consumption .................... 202
– specifications .................... 247
Engine starting ....................... 133
– emergency starting ..134-155
– ignition switch .......................9
– procedure for Diesel
versions ..............................134
– procedure for petrol
versions.............................. 133
– stopping the engine ........ 135
– warming up the engine .. 134
Engine
– engine immobiliser
(Fiat CODE) ......................... 4
– identification codes .......... 221
– marking .............................. 220
– technical data ...................223
