Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Long wheelbase - Low roof - 2
front seats1360 1855 1090 1450 570 495(°) 1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
Short wheelbase - Low roof - 3
front seats1355 1850 1090 1140 570 495(°) 1000/500 100 60
1355 2030 1090 1140 750 675 1000/500 100 60
1355 2210 1090 1450 930855(°°)
1000/500 100 60
Short wheelbase - High roof - 3
front seats1365 1860 1090 1140 570 495(°) 1000/500 - 60
1365 2040 1090 1160 750 675 1000/500 - 60
1360 2215 1090 1450 930855(°°)
1000/500 - 60
Long wheelbase - Low roof - 3
front seats1360 1855 1090 1450 570 495(°) 1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
253
Page 258 of 323
Combi 1.4
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats-3rearseats1425 2084 1090 1450 734 659 1000/500 100 60
1435 2184 1090 1450 824749(°°)
1000/500 100 60
Long wheelbase - Low roof - 2
front seats-3rearseats1466 2215 1090 1450 824 749 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
254
TECHNICAL SPECIFICATIONS
Page 259 of 323
Cargo 1.4 T-JET
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short Wheelbase - Low roof - 2
front seats - Increased payload1440 2370 1090 1450 1005930(°°)
1000/500 100 60
Short Wheelbase - High roof - 2
front seats - Increased payload1480 2410 1090 1450 1005930(°°)
1000/500 - 60
Long wheelbase - Low roof - 2
front seats1480 2410 1120 1450 1005 930 1000/500 100 60
Long wheelbase - High roof - 2
front seats1550 2480 1200 1450 1005 930 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
255
Page 260 of 323
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 3
front seats - Increased payload1440 2370 1090 1450 1005930(°°)
1000/500 100 60
Short wheelbase - High roof - 3
front seats - Increased payload1480 2410 1120 1450 1005930(°°)
1000/500 - 60
Long wheelbase - Low roof - 3
front seats1480 2410 1150 1450 1005 930 1000/500 100 60
Long wheelbase - High roof - 3
front seats1550 2480 1200 1450 1005 930 1000/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
256
TECHNICAL SPECIFICATIONS
Page 261 of 323

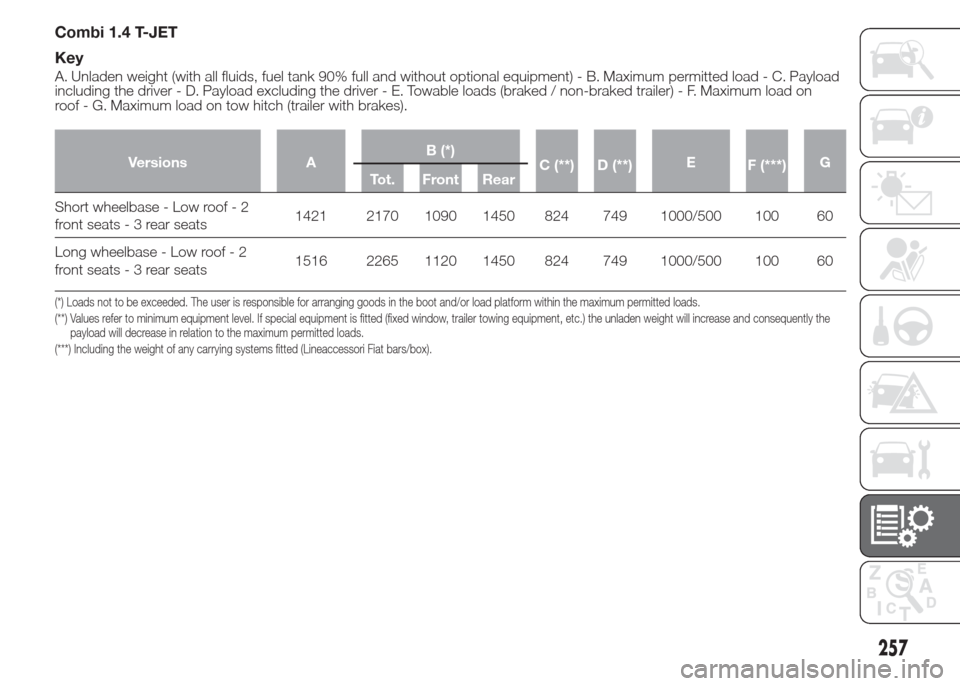

Combi 1.4 T-JET
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats-3rearseats1421 2170 1090 1450 824 749 1000/500 100 60
Long wheelbase - Low roof - 2
front seats-3rearseats1516 2265 1120 1450 824 749 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
257
Page 262 of 323

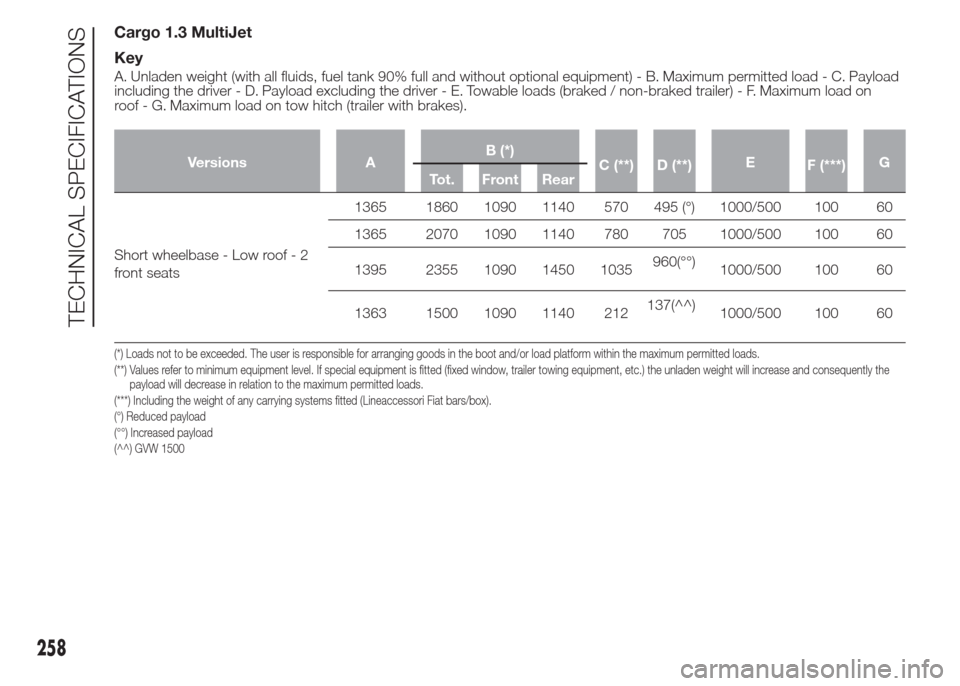

Cargo 1.3 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1365 1860 1090 1140 570 495 (°) 1000/500 100 60
1365 2070 1090 1140 780 705 1000/500 100 60
1395 2355 1090 1450 1035960(°°)
1000/500 100 60
1363 1500 1090 1140 212137(^^)
1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^^) GVW 1500
258
TECHNICAL SPECIFICATIONS
Page 263 of 323
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear

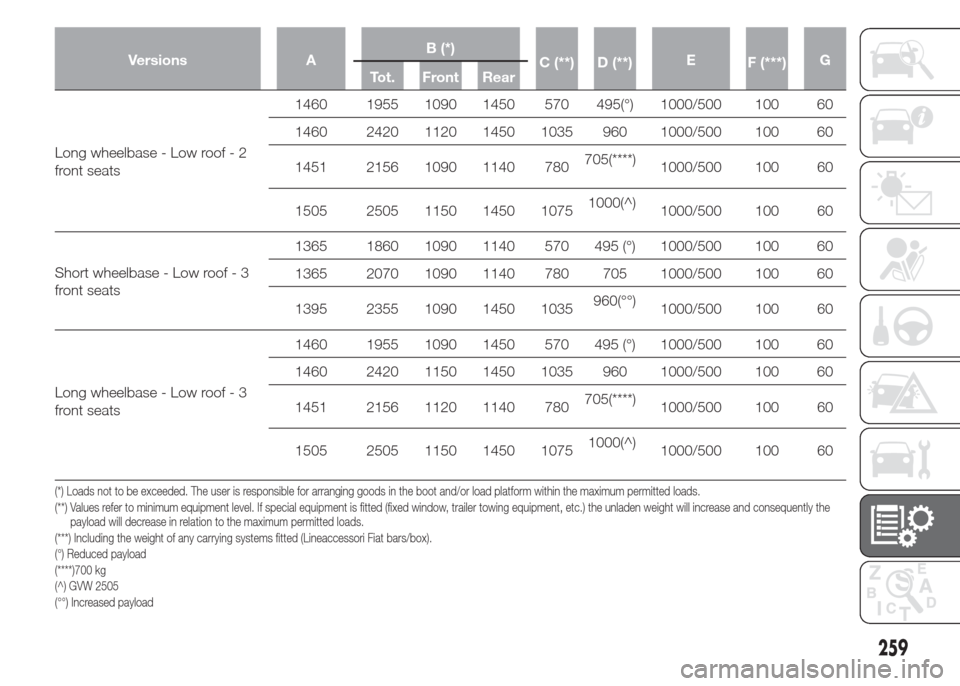

Long wheelbase - Low roof - 2
front seats1460 1955 1090 1450 570 495(°) 1000/500 100 60
1460 2420 1120 1450 1035 960 1000/500 100 60
1451 2156 1090 1140 780705(****)
1000/500 100 60
1505 2505 1150 1450 10751000(^)
1000/500 100 60
Short wheelbase - Low roof - 3
front seats1365 1860 1090 1140 570 495 (°) 1000/500 100 60
1365 2070 1090 1140 780 705 1000/500 100 60
1395 2355 1090 1450 1035960(°°)
1000/500 100 60
Long wheelbase - Low roof - 3
front seats1460 1955 1090 1450 570 495 (°) 1000/500 100 60
1460 2420 1150 1450 1035 960 1000/500 100 60
1451 2156 1120 1140 780705(****)
1000/500 100 60
1505 2505 1150 1450 10751000(^)
1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(****)700 kg
(^) GVW 2505
(°°) Increased payload
259
Page 264 of 323
Combi 1.3 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats-3rearseats1485 2144 1090 1310 734 659 1000/500 100 60
1485 2234 1090 1310 824749(°°)
1000/500 100 60
Long wheelbase - Low roof - 2
front seats-3rearseats1505 2254 1120 1310 824 749 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
260
TECHNICAL SPECIFICATIONS
Page 265 of 323

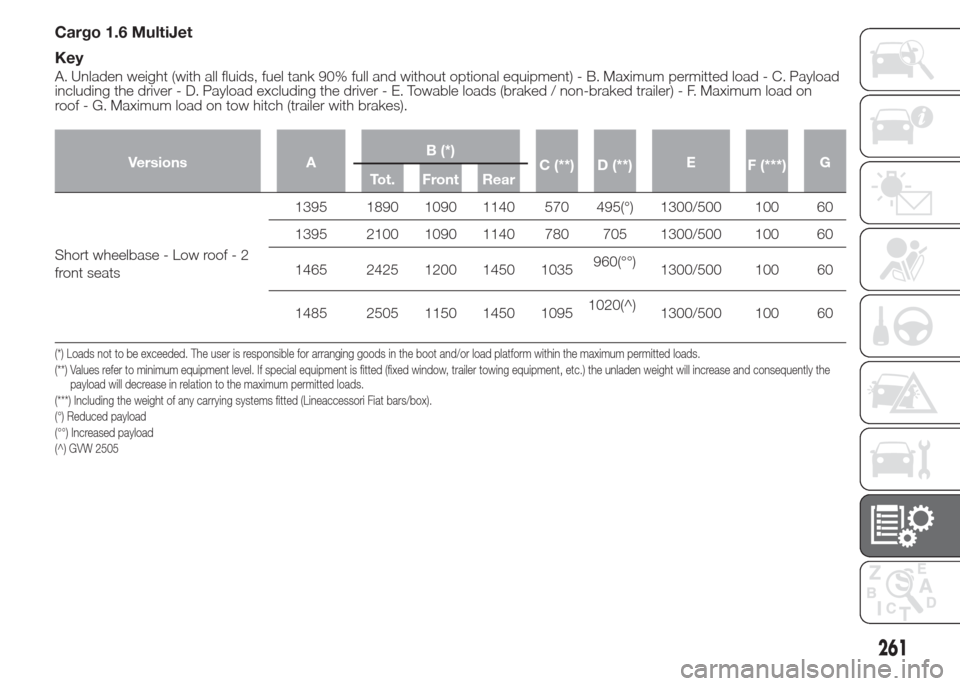

Cargo 1.6 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1395 1890 1090 1140 570 495(°) 1300/500 100 60
1395 2100 1090 1140 780 705 1300/500 100 60
1465 2425 1200 1450 1035960(°°)
1300/500 100 60
1485 2505 1150 1450 10951020(^)
1300/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
261
Page 266 of 323
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - High roof - 2
front seats1438 1933 1090 1140 570 495(°) 1300/500 - 60
1438 2143 1090 1140 780 705 1300/500 - 60
1475 2435 1200 1450 1035960(°°)
1300/500 - 60
1505 2505 1150 1450 10751000(^)
1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
262
