Cargo 2.0 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1448 1943 1120 1140 570 495 (°) 1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035960(°°)
1500/500 100 60
1535 2505 1200 1450 1045 970(^) 1500/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
267

Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - High roof - 2
front seats1465 1960 1120 1140 570 495 (°) 1500/500 - 60
1465 2170 1120 1450 780 705 1500/500 - 60
1505 2465 1200 1450 1035960(°°)
1500/500 - 60
1555 2505 1200 1450 1025 950(^) 1500/500 - 60
Long wheelbase - Low roof - 2
front seats1505 2000 1120 1450 570 495(°) 1500/500 100 60
1505 2465 1200 1450 1035 960 1500/500 100 60
Long wheelbase - High roof - 2
front seats1545 2040 1200 1450 570 495(°) 1500/500 - 60
1545 2505 1200 1450 1035 960 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
268
TECHNICAL SPECIFICATIONS

Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 3
front seats1448 1943 1120 1140 570 495(°) 1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035960(°°)
1500/500 100 60
1535 2505 1233 1450 1045 970(^) 1500/500 100 60
Short wheelbase - High roof - 3
front seats1465 1960 1120 1140 570 495(°) 1500/500 - 60
1465 2170 1135 1450 780 705 1500/500 - 60
1505 2465 1200 1450 1035960(°°)
1500/500 - 60
1555 2505 1233 1450 1025 950(^) 1500/500 - 60
Long wheelbase - Low roof - 3
front seats1505 2000 1150 1450 570 495(°) 1500/500 100 60
1505 2465 1200 1450 1035 960 1500/500 100 60
Long wheelbase - High roof - 3
front seats1545 2040 1200 1450 570 495(°) 1500/500 - 60
1545 2505 1233 1450 1035 960(^) 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
269

Combi 2.0 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats-3rearseats1511 2170 1135 1450 734 659 1500/500 100 60
1605 2354 1150 1450 824749(°°)
1500/500 100 60
Long wheelbase - Low roof - 2
front seats-3rearseats1615 2364 1200 1450 824 749 1500/500 100 60
Long wheelbase - High roof - 2
front seats-3rearseats1675 2424 1200 1450 824 749 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
270
TECHNICAL SPECIFICATIONS

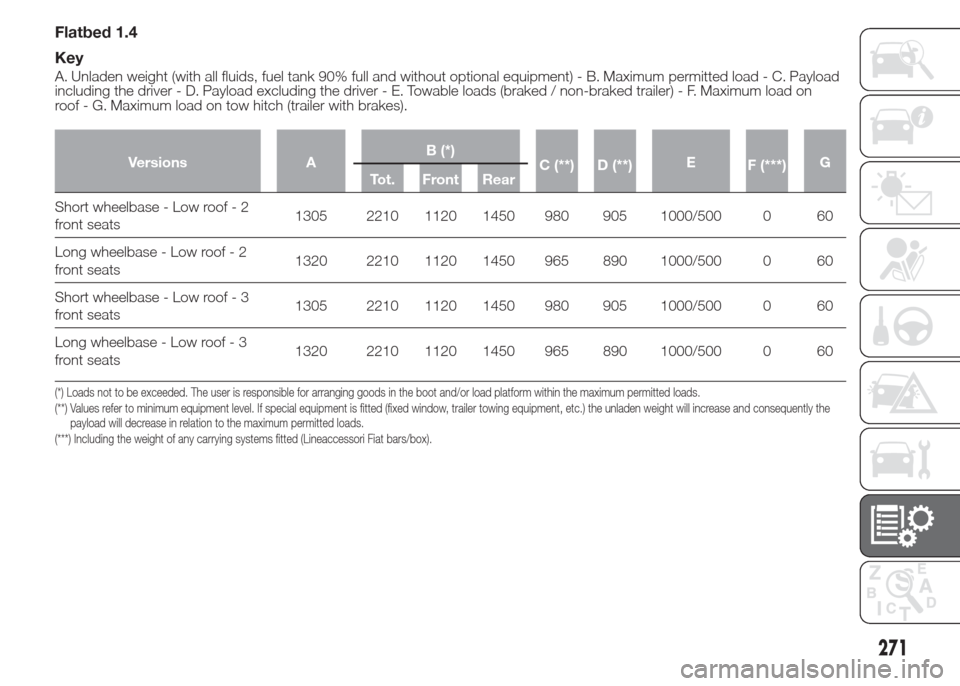

Flatbed 1.4
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof - 2
front seats1320 2210 1120 1450 965 890 1000/500 0 60
Short wheelbase - Low roof - 3
front seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof - 3
front seats1320 2210 1120 1450 965 890 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
271

Flatbed 1.3 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1345 2414 1120 1450 1144 1069 1000/500 0 60
Long wheelbase - Low roof - 2
front seats1360 2440 1120 1450 1155 1080 1000/500 0 60
Short wheelbase - Low roof - 3
front seats1345 2414 1120 1450 1144 1069 1000/500 0 60
Long wheelbase - Low roof - 3
front seats1360 2440 1120 1450 1155 1080 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
272
TECHNICAL SPECIFICATIONS

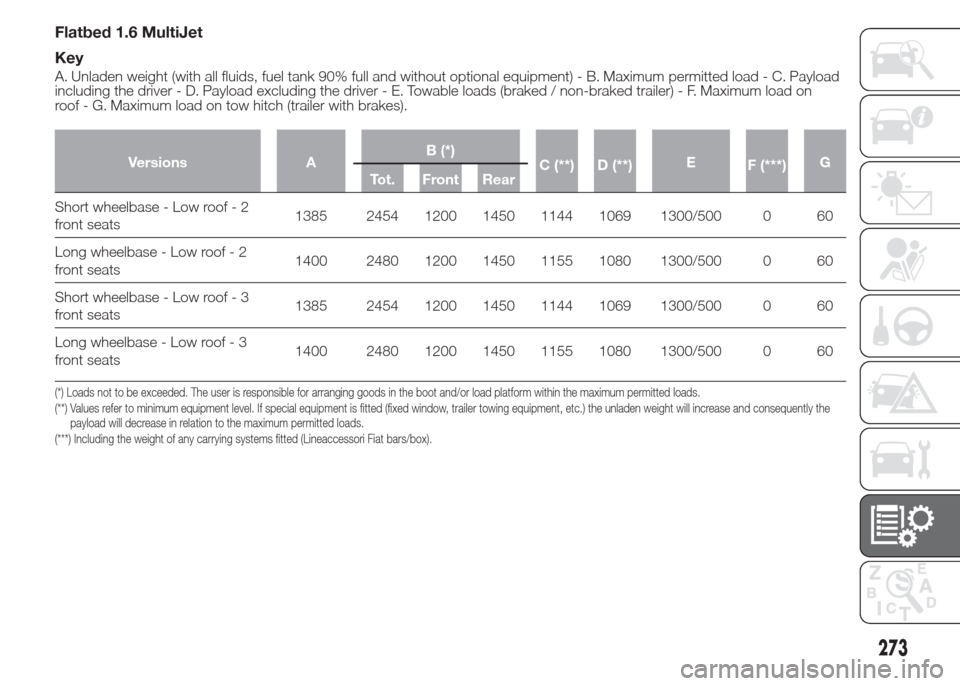

Flatbed 1.6 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof - 2
front seats1400 2480 1200 1450 1155 1080 1300/500 0 60
Short wheelbase - Low roof - 3
front seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof - 3
front seats1400 2480 1200 1450 1155 1080 1300/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
273

Flatbed 2.0 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof - 2
front seats1440 2505 1200 1450 1140 1065 1500/500 0 60
Short wheelbase - Low roof - 3
front seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof - 3
front seats1440 2505 1200 1450 1140 1065 1500/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
274
