Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 3
front seats1448 1943 1120 1140 570 495(°) 1500/500 100 60
1448 2153 1120 1140 780 705 1500/500 100 60
1475 2435 1200 1450 1035960(°°)
1500/500 100 60
1535 2505 1233 1450 1045 970(^) 1500/500 100 60
Short wheelbase - High roof - 3
front seats1465 1960 1120 1140 570 495(°) 1500/500 - 60
1465 2170 1135 1450 780 705 1500/500 - 60
1505 2465 1200 1450 1035960(°°)
1500/500 - 60
1555 2505 1233 1450 1025 950(^) 1500/500 - 60
Long wheelbase - Low roof - 3
front seats1505 2000 1150 1450 570 495(°) 1500/500 100 60
1505 2465 1200 1450 1035 960 1500/500 100 60
Long wheelbase - High roof - 3
front seats1545 2040 1200 1450 570 495(°) 1500/500 - 60
1545 2505 1233 1450 1035 960(^) 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
(^) GVW 2505
269
Page 274 of 323
Combi 2.0 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats-3rearseats1511 2170 1135 1450 734 659 1500/500 100 60
1605 2354 1150 1450 824749(°°)
1500/500 100 60
Long wheelbase - Low roof - 2
front seats-3rearseats1615 2364 1200 1450 824 749 1500/500 100 60
Long wheelbase - High roof - 2
front seats-3rearseats1675 2424 1200 1450 824 749 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
270
TECHNICAL SPECIFICATIONS
Page 275 of 323
Flatbed 1.4
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof - 2
front seats1320 2210 1120 1450 965 890 1000/500 0 60
Short wheelbase - Low roof - 3
front seats1305 2210 1120 1450 980 905 1000/500 0 60
Long wheelbase - Low roof - 3
front seats1320 2210 1120 1450 965 890 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
271
Page 276 of 323
Flatbed 1.3 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1345 2414 1120 1450 1144 1069 1000/500 0 60
Long wheelbase - Low roof - 2
front seats1360 2440 1120 1450 1155 1080 1000/500 0 60
Short wheelbase - Low roof - 3
front seats1345 2414 1120 1450 1144 1069 1000/500 0 60
Long wheelbase - Low roof - 3
front seats1360 2440 1120 1450 1155 1080 1000/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
272
TECHNICAL SPECIFICATIONS
Page 277 of 323
Flatbed 1.6 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof - 2
front seats1400 2480 1200 1450 1155 1080 1300/500 0 60
Short wheelbase - Low roof - 3
front seats1385 2454 1200 1450 1144 1069 1300/500 0 60
Long wheelbase - Low roof - 3
front seats1400 2480 1200 1450 1155 1080 1300/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
273
Page 278 of 323
Flatbed 2.0 MultiJet
Key
A. Unladen weight (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted load - C. Payload
including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) - F. Maximum load on
roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB (*)
C (**) D (**)E
F (***)G
Tot. Front Rear
Short wheelbase - Low roof - 2
front seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof - 2
front seats1440 2505 1200 1450 1140 1065 1500/500 0 60
Short wheelbase - Low roof - 3
front seats1425 2494 1200 1450 1144 1069 1500/500 0 60
Long wheelbase - Low roof - 3
front seats1440 2505 1200 1450 1140 1065 1500/500 0 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the boot and/or load platform within the maximum permitted loads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and consequently the
payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
274
TECHNICAL SPECIFICATIONS
Page 286 of 323
4. Do not travel with a heavy load:
the weight of the vehicle (especially
when driving in town) and its trim
greatly affect fuel consumption and
stability.
5. Remove roof racks or ski racks
after use. These accessories reduce
the vehicle's aerodynamic
penetration and have a negative
effect on fuel consumption.
6. When transporting particularly
large objects, use a trailer if
possible.
7. Use the vehicle's air vents if
possible: travelling with the windows
open impairs aerodynamics.
8. Use electrical devices only for the
amount of time needed. The
vehicle’s heated rear window,
additional headlights, screen wipers
and heater fan require a
considerable amount of energy;
increasing the current uptake
increases fuel consumption (by up
to +25% in an urban cycle).
9. Air conditioning leads to higher
fuel consumption (on average up to
+30%). If the temperature outside
is not too extreme, try and use
the air vents.Driving style
1. After starting the engine you
should drive away immediately and
slowly, avoiding high revs. Do not
warm up the engine at low or high
revs when the vehicle is stationary;
this causes the engine to warm
up more slowly, thereby increasing
fuel consumption, emissions and
mechanical component wear.
2. Avoid pointless actions such as
revving up when at traffic lights
or before stopping the engine. The
latter action, like double-
declutching, is unnecessary and
causes increased fuel consumption
and pollution.
3. Gear selection: select a high gear
as soon as possible (taking into
account normal engine operation
and traffic conditions) without
pushing the engine to high revs
during the intermediate gears. Using
low gears at high revs to get lively
acceleration increases fuel
consumption, harmful emissions
and engine wear.4. Vehicle speed: fuel consumption
increases exponentially as the speed
of the vehicle increases. Keep your
speed moderate and as even as
possible, avoiding unnecessary
braking and acceleration, which
cause excessive fuel consumption
and increased emissions. Keeping a
safe distance from the vehicle in
front helps to maintain a steady
speed.
5. Acceleration: accelerating
violently severely affects
consumption and emissions.
Acceleration should be gradual and
should not exceed the maximum
engine torque rate.
282
TECHNICAL SPECIFICATIONS
Page 313 of 323

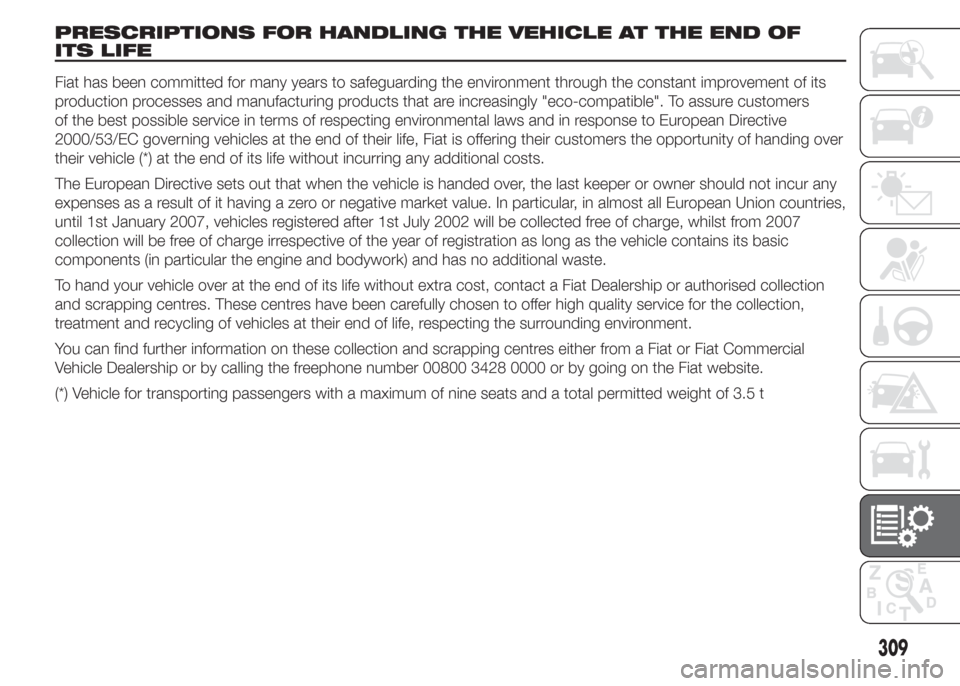

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF
ITS LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly "eco-compatible". To assure customers
of the best possible service in terms of respecting environmental laws and in response to European Directive
2000/53/EC governing vehicles at the end of their life, Fiat is offering their customers the opportunity of handing over
their vehicle (*) at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value. In particular, in almost all European Union countries,
until 1st January 2007, vehicles registered after 1st July 2002 will be collected free of charge, whilst from 2007
collection will be free of charge irrespective of the year of registration as long as the vehicle contains its basic
components (in particular the engine and bodywork) and has no additional waste.
To hand your vehicle over at the end of its life without extra cost, contact a Fiat Dealership or authorised collection
and scrapping centres. These centres have been carefully chosen to offer high quality service for the collection,
treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial
Vehicle Dealership or by calling the freephone number 00800 3428 0000 or by going on the Fiat website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of 3.5 t
309
