FIAT DOBLO COMBI 2016 2.G Owners Manual

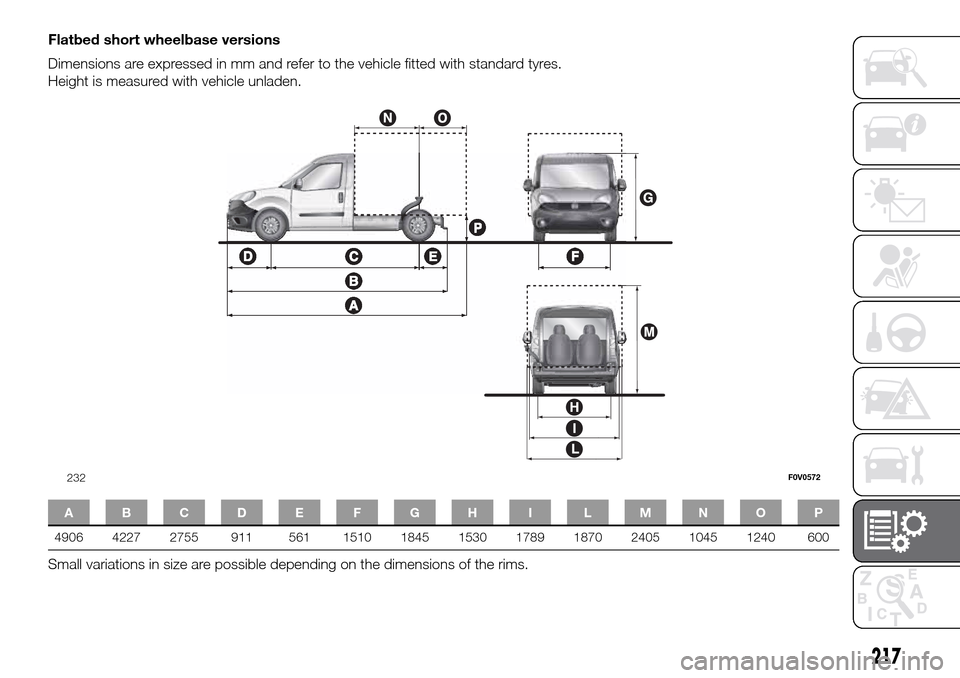

Flatbed short wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH I LMNOP
4906 4227 2755 911 561 1510 1845 1530 1789 1870 2405 1045 1240 600
Small variations in size are possible depending on the dimensions of the rims.
232F0V0572
217

Flatbed long wheelbase versions
Dimensions are expressed in mm and refer to the vehicle fitted with standard tyres.
Height is measured with vehicle unladen.
ABCDE FGH I LMNOP
5416 4577 3105 911 561 1510 1845 1530 1789 1870 2405 1395 1400 600
Small variations in size are possible depending on the dimensions of the rims.
233F0V0573
218
TECHNICAL DATA

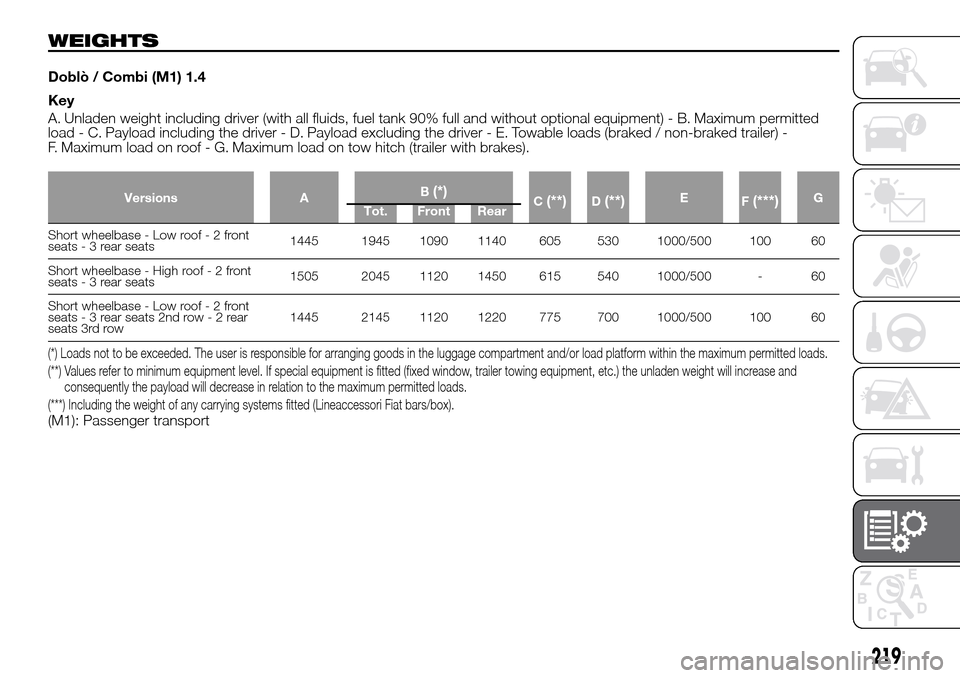

WEIGHTS
Doblò / Combi (M1) 1.4
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1445 1945 1090 1140 605 530 1000/500 100 60
Short wheelbase - High roof-2front
seats-3rearseats1505 2045 1120 1450 615 540 1000/500 - 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1445 2145 1120 1220 775 700 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(M1): Passenger transport
219

Doblò / Combi (M1) 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1490 2030 1090 1140 615 540 1000/500 100 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1490 2190 1120 1160 775 700 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(M1): Passenger transport
220
TECHNICAL DATA

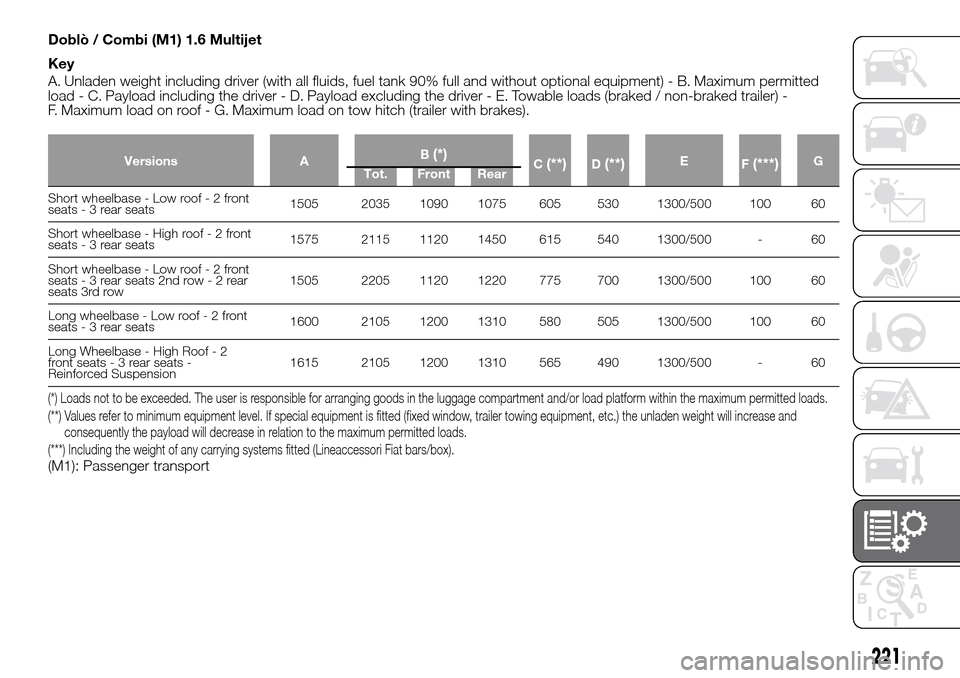

Doblò / Combi (M1) 1.6 Multijet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1505 2035 1090 1075 605 530 1300/500 100 60
Short wheelbase - High roof-2front
seats-3rearseats1575 2115 1120 1450 615 540 1300/500 - 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1505 2205 1120 1220 775 700 1300/500 100 60
Long wheelbase - Low roof-2front
seats-3rearseats1600 2105 1200 1310 580 505 1300/500 100 60
Long Wheelbase - High Roof - 2
front seats-3rearseats -
Reinforced Suspension1615 2105 1200 1310 565 490 1300/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(M1): Passenger transport
221

Doblò / Combi (M1) 2.0 Multijet
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1555 2085 1130 1140 605 530 1500/500 100 60
Short wheelbase - High roof-2front
seats-3rearseats1615 2155 1120 1450 615 540 1500/500 - 60
Short wheelbase - Low roof-2front
seats-3rearseats 2nd row-2rear
seats 3rd row1555 2255 1120 1220 775 700 1500/500 100 60
Long wheelbase - Low roof-2front
seats-3rearseats1615 2105 1200 1450 565 490 1500/500 100 60
Long wheelbase - High roof-2front
seats-3rearseats1675 2215 1200 1450 615 540 1500/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(M1): Passenger transport
222
TECHNICAL DATA

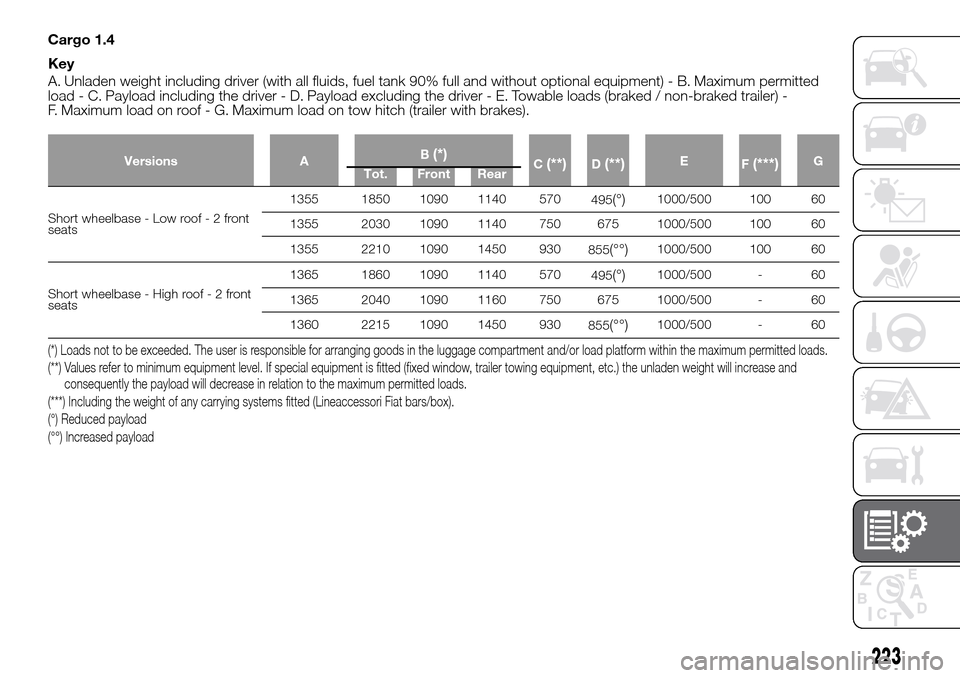

Cargo 1.4
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats1355 1850 1090 1140 570
495
(°)1000/500 100 60
1355 2030 1090 1140 750 675 1000/500 100 60
1355 2210 1090 1450 930
855
(°°)1000/500 100 60
Short wheelbase - High roof-2front
seats1365 1860 1090 1140 570
495
(°)1000/500 - 60
1365 2040 1090 1160 750 675 1000/500 - 60
1360 2215 1090 1450 930
855
(°°)1000/500 - 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
223

Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Long wheelbase - Low roof-2front
seats1360 1855 1090 1450 570
495(°)1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
Short wheelbase - Low roof-3front
seats1355 1850 1090 1140 570
495
(°)1000/500 100 60
1355 2030 1090 1140 750 675 1000/500 100 60
1355 2210 1090 1450 930
855
(°°)1000/500 100 60
Short wheelbase - High roof-3front
seats1365 1860 1090 1140 570
495
(°)1000/500 - 60
1365 2040 1090 1160 750 675 1000/500 - 60
1360 2215 1090 1450 930
855
(°°)1000/500 - 60
Long wheelbase - Low roof-3front
seats1360 1855 1090 1450 570
495
(°)1000/500 100 60
1360 2215 1090 1450 930 855 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°) Reduced payload
(°°) Increased payload
224
TECHNICAL DATA

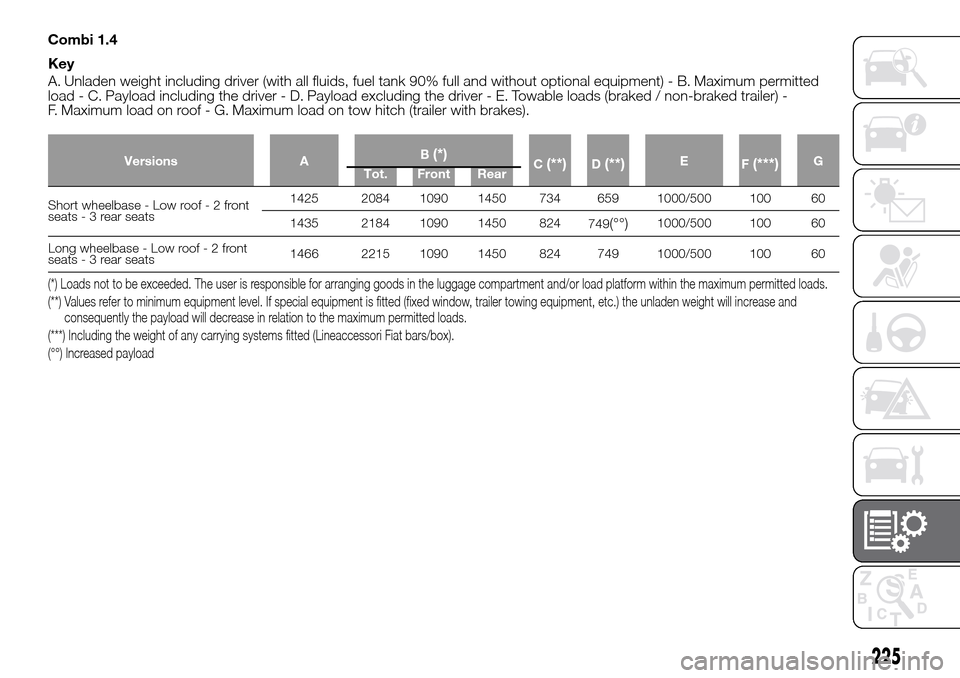

Combi 1.4
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats-3rearseats1425 2084 1090 1450 734 659 1000/500 100 60
1435 2184 1090 1450 824
749
(°°)1000/500 100 60
Long wheelbase - Low roof-2front
seats-3rearseats1466 2215 1090 1450 824 749 1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
225

Cargo 1.4 T-JET
Key
A. Unladen weight including driver (with all fluids, fuel tank 90% full and without optional equipment) - B. Maximum permitted
load - C. Payload including the driver - D. Payload excluding the driver - E. Towable loads (braked / non-braked trailer) -
F. Maximum load on roof - G. Maximum load on tow hitch (trailer with brakes).
Versions AB(*)C(**)D(**)E
F(***)G
Tot. Front Rear
Short wheelbase - Low roof-2front
seats - Increased Payload1440 2370 1090 1450 1005
930(°°)1000/500 100 60
Short Wheelbase - High roof-2front
seats - Increased Payload1480 2410 1090 1450 1005
930
(°°)1000/500 - 60
Long wheelbase - Low roof-2front
seats1480 2410 1120 1450 1005 930 1000/500 100 60
Long wheelbase - High roof-2front
seats1550 2480 1200 1450 1005 930 1000/500 100 60
Short wheelbase - Low roof-3front
seats - Increased payload1440 2370 1090 1450 1005
930
(°°)1000/500 100 60
(*) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
(**) Values refer to minimum equipment level. If special equipment is fitted (fixed window, trailer towing equipment, etc.) the unladen weight will increase and
consequently the payload will decrease in relation to the maximum permitted loads.
(***) Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
(°°) Increased payload
226
