stop start FIAT DOBLO COMBI 2016 2.G Owner's Guide

.
VERSIONS CONSUMPTION

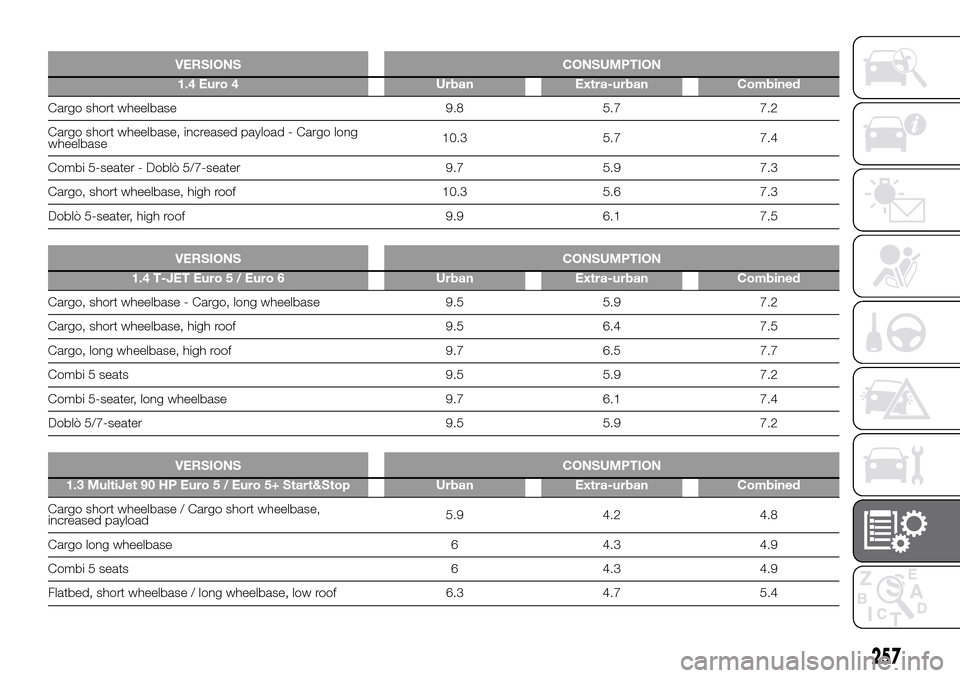

1.4 Euro 4 Urban Extra-urban Combined
Cargo short wheelbase 9.8 5.7 7.2
Cargo short wheelbase, increased payload - Cargo long
wheelbase10.3 5.7 7.4
Combi 5-seater - Doblò 5/7-seater 9.7 5.9 7.3
Cargo, short wheelbase, high roof 10.3 5.6 7.3
Doblò 5-seater, high roof 9.9 6.1 7.5
.
VERSIONS CONSUMPTION
1.4 T-JET Euro 5 / Euro 6 Urban Extra-urban Combined
Cargo, short wheelbase - Cargo, long wheelbase 9.5 5.9 7.2
Cargo, short wheelbase, high roof 9.5 6.4 7.5
Cargo, long wheelbase, high roof 9.7 6.5 7.7
Combi 5 seats 9.5 5.9 7.2
Combi 5-seater, long wheelbase 9.7 6.1 7.4
Doblò 5/7-seater 9.5 5.9 7.2
.
VERSIONS CONSUMPTION
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Urban Extra-urban Combined
Cargo short wheelbase / Cargo short wheelbase,
increased payload5.9 4.2 4.8
Cargo long wheelbase 6 4.3 4.9
Combi 5 seats 6 4.3 4.9
Flatbed, short wheelbase / long wheelbase, low roof 6.3 4.7 5.4
.
257

VERSIONS CONSUMPTION
1.3 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Eco
PackUrban Extra-urban Combined
Cargo short wheelbase / Cargo short wheelbase,
increased payload5.2 3.9 4.4
Cargo, long wheelbase, increased payload 5.3 4.0 4.5
Combi, short wheelbase / long wheelbase 5.3 4.0 4.5
Flatbed, short wheelbase / long wheelbase, low roof 5.8 4.5 5.0
.
VERSIONS CONSUMPTION
1.3 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop
with DPFUrban Extra-urban Combined
Cargo, short wheelbase - Cargo, short wheelbase,
increased payload - Cargo, long wheelbase6.5 4.2 5.0
Combi 5-seater, short wheelbase / long wheelbase 6.6 4.3 5.1
Flatbed, short wheelbase / long wheelbase, low roof 7.1 4.8 5.6
.
VERSIONS CONSUMPTION
1.3 Multijet 80 HP/95 HP Euro 6 Start&Stop Eco
PackUrban Extra-urban Combined
Cargo short wheelbase / Cargo short wheelbase,
increased payload5.4 4.1 4.6
Cargo, long wheelbase / Cargo, long wheelbase (700 kg) 5.5 4.2 4.7
Combi, short wheelbase / Combi, short wheelbase,
increased payload5.5 4.2 4.7
Long wheelbase Combi 5.5 4.2 4.7
Truck, long wheelbase 5.7 4.3 4.8
Flatbed, short wheelbase / long wheelbase, low roof 5.7 4.3 4.8
.
258
TECHNICAL DATA

VERSIONS CONSUMPTION

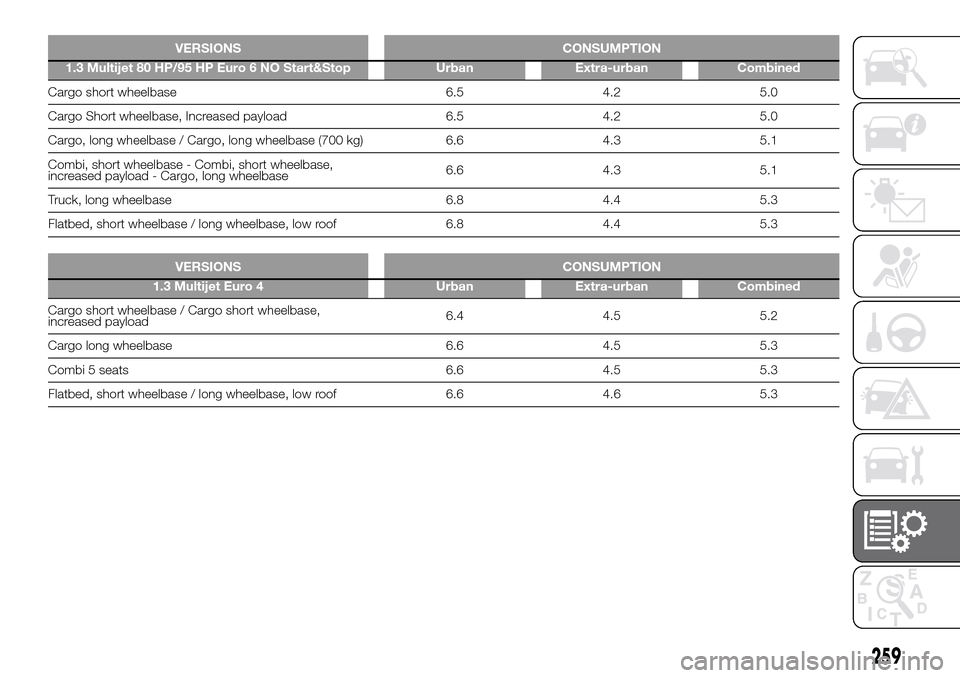

1.3 Multijet 80 HP/95 HP Euro 6 NO Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 6.5 4.2 5.0
Cargo Short wheelbase, Increased payload 6.5 4.2 5.0
Cargo, long wheelbase / Cargo, long wheelbase (700 kg) 6.6 4.3 5.1
Combi, short wheelbase - Combi, short wheelbase,
increased payload - Cargo, long wheelbase6.6 4.3 5.1
Truck, long wheelbase 6.8 4.4 5.3
Flatbed, short wheelbase / long wheelbase, low roof 6.8 4.4 5.3
.
VERSIONS CONSUMPTION
1.3 Multijet Euro 4 Urban Extra-urban Combined
Cargo short wheelbase / Cargo short wheelbase,
increased payload6.4 4.5 5.2
Cargo long wheelbase 6.6 4.5 5.3
Combi 5 seats 6.6 4.5 5.3
Flatbed, short wheelbase / long wheelbase, low roof 6.6 4.6 5.3
259

.
VERSIONS CONSUMPTION
1.3 MultiJet Euro 4 Start&Stop with DPF Urban Extra-urban Combined
Doblò 5/7-seater 6 4.3 4.9.
VERSIONS CONSUMPTION
1.3 MultiJet 75 HP Euro 5+ DPF Start&Stop Urban Extra-urban Combined
Flatbed, short wheelbase / long wheelbase 6.3 4.6 5.2
Cargo short wheelbase / Cargo short wheelbase,
increased payload5.9 4.2 4.8
Cargo long wheelbase, increased payload / Combi
5-seater6 4.3 4.9
.
VERSIONS CONSUMPTION
1.3 MultiJet 75 HP Euro 5+ DPF NO Start&Stop Urban Extra-urban Combined
Flatbed, short wheelbase / long wheelbase 6.9 4.6 5.4
Cargo Short wheelbase / Cargo Short wheelbase,
Increased payload / Cargo Long wheelbase6.5 4.2 5.0
Combi 5-seater / Cargo long wheelbase / Increased
payload6.6 4.3 5.1
260
TECHNICAL DATA

.
VERSIONS CONSUMPTION

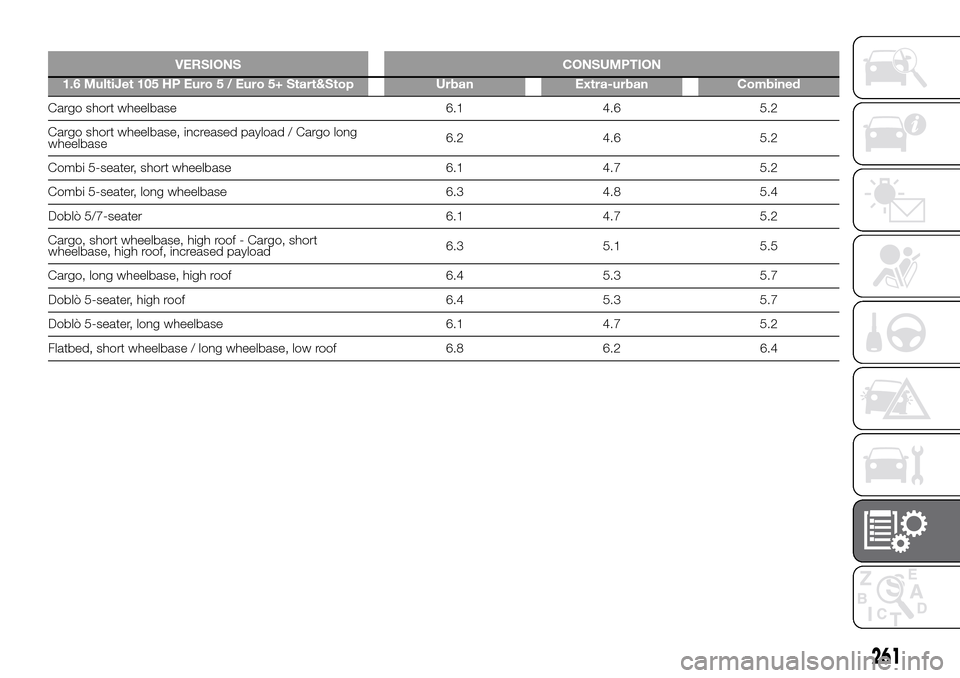

1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 6.1 4.6 5.2
Cargo short wheelbase, increased payload / Cargo long
wheelbase6.2 4.6 5.2
Combi 5-seater, short wheelbase 6.1 4.7 5.2
Combi 5-seater, long wheelbase 6.3 4.8 5.4
Doblò 5/7-seater 6.1 4.7 5.2
Cargo, short wheelbase, high roof - Cargo, short
wheelbase, high roof, increased payload6.3 5.1 5.5
Cargo, long wheelbase, high roof 6.4 5.3 5.7
Doblò 5-seater, high roof 6.4 5.3 5.7
Doblò 5-seater, long wheelbase 6.1 4.7 5.2
Flatbed, short wheelbase / long wheelbase, low roof 6.8 6.2 6.4
261

.
VERSIONS CONSUMPTION
1.6 MultiJet 105 HP Euro 5 / Euro 5+ Start&Stop Eco
PackUrban Extra-urban Combined
Cargo short wheelbase 5.4 4.3 4.7
Cargo, short wheelbase / Cargo, short wheelbase,
increased payload5.5 4.3 4.7
Combi short wheelbase 5.4 4.4 4.8
Long wheelbase Combi 5.5 4.6 4.9
Combi Panorama, short wheelbase / long wheelbase -
Doblò, short wheelbase / long wheelbase5.4 4.4 4.8
Cargo / Cargo increased payload, short wheelbase, high
roof5.8 4.7 5.1
Cargo, long wheelbase, high roof 5.7 4.9 5.2
Doblò, short wheelbase, high roof 5.8 4.8 5.2
Flatbed, short wheelbase / long wheelbase, low roof 6.1 5.8 5.9
262
TECHNICAL DATA

.
VERSIONS CONSUMPTION

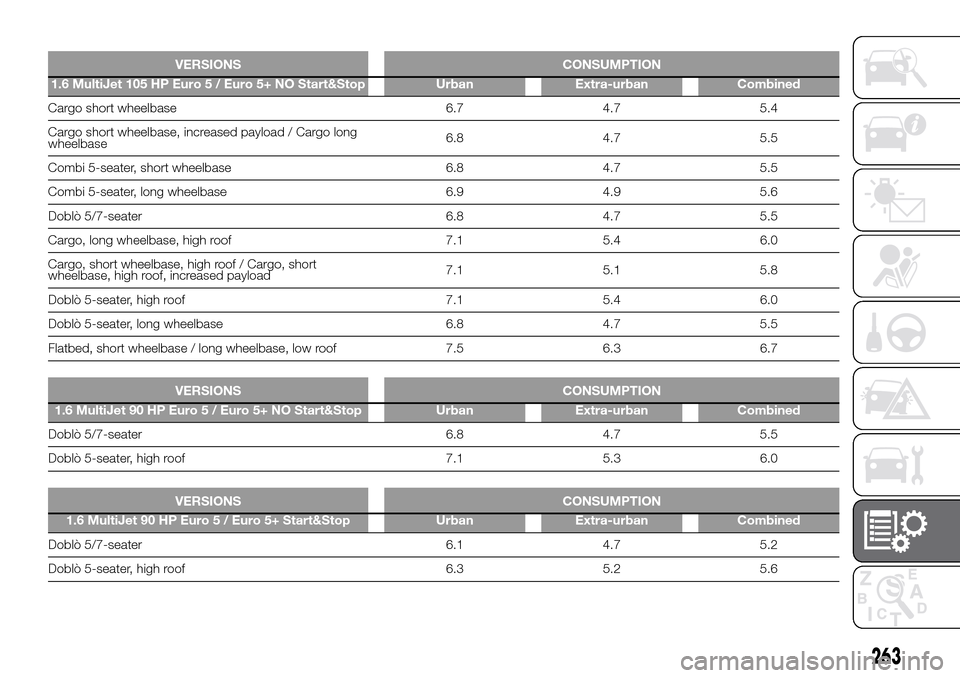

1.6 MultiJet 105 HP Euro 5 / Euro 5+ NO Start&Stop Urban Extra-urban Combined
Cargo short wheelbase 6.7 4.7 5.4
Cargo short wheelbase, increased payload / Cargo long
wheelbase6.8 4.7 5.5
Combi 5-seater, short wheelbase 6.8 4.7 5.5
Combi 5-seater, long wheelbase 6.9 4.9 5.6
Doblò 5/7-seater 6.8 4.7 5.5
Cargo, long wheelbase, high roof 7.1 5.4 6.0
Cargo, short wheelbase, high roof / Cargo, short
wheelbase, high roof, increased payload7.1 5.1 5.8
Doblò 5-seater, high roof 7.1 5.4 6.0
Doblò 5-seater, long wheelbase 6.8 4.7 5.5
Flatbed, short wheelbase / long wheelbase, low roof 7.5 6.3 6.7
.
VERSIONS CONSUMPTION
1.6 MultiJet 90 HP Euro 5 / Euro 5+ NO Start&Stop Urban Extra-urban Combined
Doblò 5/7-seater 6.8 4.7 5.5
Doblò 5-seater, high roof 7.1 5.3 6.0
.
VERSIONS CONSUMPTION
1.6 MultiJet 90 HP Euro 5 / Euro 5+ Start&Stop Urban Extra-urban Combined
Doblò 5/7-seater 6.1 4.7 5.2
Doblò 5-seater, high roof 6.3 5.2 5.6
.
263

VERSIONS CONSUMPTION
1.6 Multijet 95 HP/105 HP/120 HP Euro 6 NO
Start&StopUrban Extra-urban Combined
Doblò 5/7 seater, short wheelbase / low roof 6.5 4.4 5.2
Doblò 5 seater, long wheelbase / low roof / reinforced
suspension6.8 4.7 5.5
Doblò 5 seater, short wheelbase / low roof / reinforced
Suspension6.9 5.1 5.8
Doblò 5 seater (120 HP), long wheelbase / high roof /
reinforced suspension6.9 5.1 5.8
Cargo, short wheelbase, low roof 6.3 4.4 5.1
Cargo, short wheelbase, high roof, increased payload 6.5 4.4 5.2
Cargo, short wheelbase, high roof / Cargo, short
wheelbase, high roof, increased payload6.5 4.4 5.2
Cargo, long wheelbase, low roof / Cargo, long
wheelbase, low roof (700 kg)6.5 4.4 5.2
Cargo, long wheelbase, high roof 6.7 5.1 5.7
Combi, short wheelbase, low roof / Combi, short
wheelbase, low roof, increased payload6.4 4.5 5.2
Combi, long wheelbase, low roof 6.5 4.6 5.3
Truck, long wheelbase, low roof 6.7 5.1 5.7
Flatbed, short wheelbase / long wheelbase, low roof 6.7 5.1 5.7
264
TECHNICAL DATA

.
VERSIONS CONSUMPTION

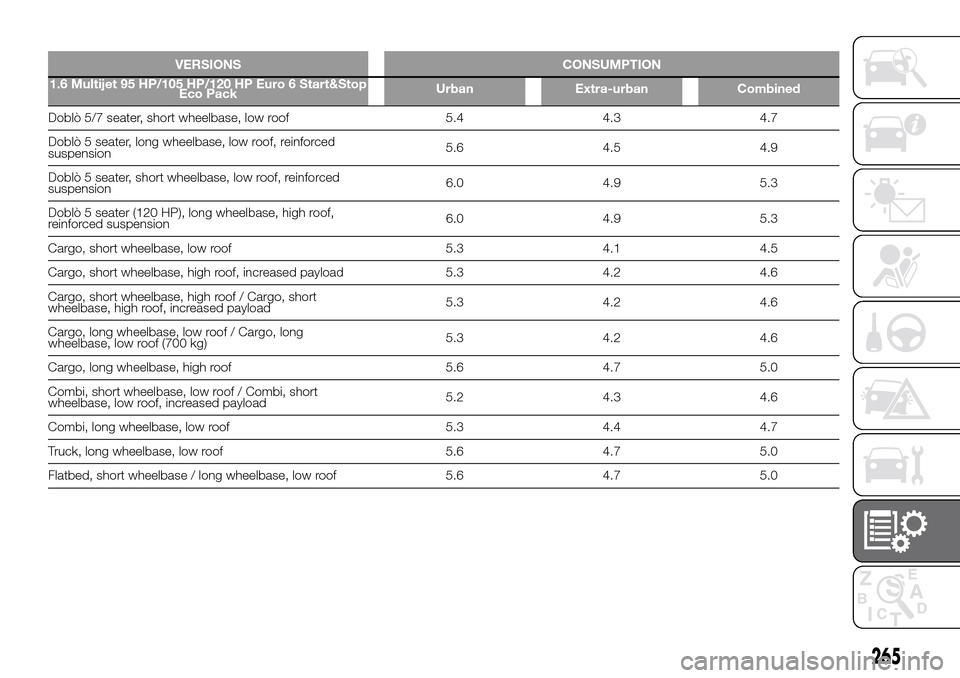

1.6 Multijet 95 HP/105 HP/120 HP Euro 6 Start&Stop
Eco PackUrban Extra-urban Combined
Doblò 5/7 seater, short wheelbase, low roof 5.4 4.3 4.7
Doblò 5 seater, long wheelbase, low roof, reinforced
suspension5.6 4.5 4.9
Doblò 5 seater, short wheelbase, low roof, reinforced
suspension6.0 4.9 5.3
Doblò 5 seater (120 HP), long wheelbase, high roof,
reinforced suspension6.0 4.9 5.3
Cargo, short wheelbase, low roof 5.3 4.1 4.5
Cargo, short wheelbase, high roof, increased payload 5.3 4.2 4.6
Cargo, short wheelbase, high roof / Cargo, short
wheelbase, high roof, increased payload5.3 4.2 4.6
Cargo, long wheelbase, low roof / Cargo, long
wheelbase, low roof (700 kg)5.3 4.2 4.6
Cargo, long wheelbase, high roof 5.6 4.7 5.0
Combi, short wheelbase, low roof / Combi, short
wheelbase, low roof, increased payload5.2 4.3 4.6
Combi, long wheelbase, low roof 5.3 4.4 4.7
Truck, long wheelbase, low roof 5.6 4.7 5.0
Flatbed, short wheelbase / long wheelbase, low roof 5.6 4.7 5.0
265

.
VERSIONS CONSUMPTION
1.6 Multijet Euro 4 Urban Extra-urban Combined
Cargo short wheelbase 6.6 4.7 5.4
Cargo, increased payload, short wheelbase, long
wheelbase6.7 4.7 5.4
Cargo,short wheelbase, high roof / Cargo, short
wheelbase, increased payload, high roof6.8 5.1 5.7
.
VERSIONS CONSUMPTION
1.6 MultiJet Euro 4 Start&Stop with DPF Urban Extra-urban Combined
Doblò 5/7-seater 6.1 4.7 5.2
Doblò 5-seater, high roof 6.4 5.3 5.7
.
VERSIONS CONSUMPTION
2.0 MultiJet Euro 5 / Euro 5+ Urban Extra-urban Combined
Cargo short wheelbase / long wheelbase 6.5 5.1 5.6
Combi 5-seater / Doblò 5/7-seater 6.7 5.1 5.7
Cargo,short wheelbase, high roof / Cargo, short
wheelbase, increased payload, high roof6.7 5.2 5.8
Doblò 5-seater, high roof 6.8 5.5 6.0
Combi, long wheelbase, high roof 7.2 5.5 6.1
Cargo, long wheelbase, high roof 6.8 5.5 6.0
Doblò 5-seater, long wheelbase 6.1 4.7 5.2
.
266
TECHNICAL DATA
