RADIO
(for versions/markets, where provided)
For the operation of the radio with
CD/MP3 player (for versions/markets
where provided), read the Supplement
attached to this Owner's Handbook.
WIRING FOR
LIGHTWEIGHT SYSTEM
The system consists of:
radio supply leads;
front speaker cables (on door
mirrors trims);
front door panel speaker cables;
rear speaker cables (on the side of
the parcel shelf) (for versions/markets,
where provided);
radio housing;
aerial lead:
aerial.
WIRING FOR
HEAVYWEIGHT SYSTEM
The system consists of:
radio supply leads;
rear speaker cables (on the side of
the parcel shelf) (for versions/markets,
where provided);
no. 2 tweeters on door mirror trims;
no. 2 midwoofers on front door
lower part;
no. 2 rear speakers (on the side of
the parcel shelf) (for versions/markets,
where provided);
radio housing;
aerial lead:
aerial.
SOUND SYSTEM
INSTALLATION
The sound system must be installed in
the space occupied by the centre glove
compartment where you will find the
wiring. Press tabs A to remove the
compartment fig. 111.
46)
WARNING
46)For connection to the existing devices
supplied in the vehicle contact a Fiat
Dealership to prevent any problems that
could impair vehicle safety.
PROTECTING THE
ENVIRONMENT
The following devices are used for
reducing petrol fuel engine emissions:
three-way catalytic converter
(catalytic converter);
oxygen sensors;
evaporation control system.
In addition, do not let the engine run,
even for a test, with one or more spark
plugs disconnected.
The following devices are used for
reducing diesel fuel engine emissions:
oxidising catalytic converter;
exhaust gas recirculation system
(EGR);
particulate filter (DPF) (for versions/
markets, where provided).
DIESEL PARTICULATE
FILTER (DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a
mechanical filter, integral with the
exhaust system, that physically traps
carbon particles present in the exhaust
gases of diesel engines.
The diesel particulate filter has been
adopted to eliminate almost all carbon
particles in compliance with current /
future legal regulations.
111F0V0508
65

Thousands of kilometres 30 60 90 120 150 180
Months 24 48 72 96 120 144
Check handbrake lever travel and adjust, if necessary●●●●●●
Check exhaust emissions/smokiness●●●●●●
Inspect the conditions of toothed timing drive belt●●
Spark plug replacement (*)●●●●●●
Replace accessory drive belt/s●
Replace the toothed timing drive belt (**)●
Replace air cleaner cartridge●●●●●●
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine cooling, etc.)●●●●●●
Check operation of engine management systems (using diagnosis
socket)●●●●●●
Check cleanliness of sliding side door lower guides (or every 6
months)●●●●●●
(*) For 1.4 Turbo Petrol versions, in order to guarantee correct operation and prevent serious damage to the engine, it is essential to observe the following: only use
spark plugs specifically certified for these engines; all spark plugs should be of the same type and brand (see the “Engine” paragraph in the "Technical
Specifications" section); strictly comply with the replacement intervals in the Scheduled Servicing Plan; you are advised to contact a Fiat Dealership to have plugs
replaced.
(**) Irrespective of the mileage, the timing drive belt must be changed every 4 years for heavy-duty use (cold climates, town use, long periods of idling) or at least
every 5 years.
172
SERVICING AND CARE

ENGINE
Versions 1.4 1.4 T-JET 1.3 MultiJet without DPF
Engine code 843A1000 198A4000 199A3000
Cycle Otto Otto Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72x84 72x84 69.6x82
Total displacement (cm³) 1368 1368 1248
Compression ratio 11:1 9.8±0.2 17.6:1
Maximum power (EC) (kW) 70 88 66
Maximum power (EEC) (HP) 95 120 90
corresponding engine speed (rpm) 6000 5000 4000
Maximum torque (EC) (Nm) 127 206 200
Maximum torque (EC) (kgm) 12.95 21 20.4
corresponding engine speed (rpm) 4500 3000 1750
Spark plugs NGK DCPR7E NGK IKR9F8 -
FuelUnleaded petrol 95 R.O.N.
(EN 228 specifications)Unleaded petrol 95 R.O.N.
(EN 228 specifications)Diesel for motor vehicles
(EN590 Specification)
204
TECHNICAL DATA

Versions 1.3 MultiJet with DPF 1.3 Multijet Euro 61.6 Multijet Euro 4 / Euro 5
/ Euro 5+
Engine code 263A2000 / 263A6000 330A1000/225A2000198A3000 / 263A3000 /
263A4000 / 263A5000
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 69.6x82 69.6x82 79.5x80.5
Total displacement (cm³) 1248 1248 1598
Compression ratio 16.8:1 16.8:1 16.5:1
Maximum power (EC) (kW) 66/55 70/59 77/74/66
Maximum power (EEC) (HP) 90/75 95/80 105/100/90
corresponding engine speed (rpm) 4000 3750 4000
Maximum torque (EC) (Nm) 200 200
290/200
(*)
Maximum torque (EC) (kgm) 20.4 20.4
29.6/20.4(*)
corresponding engine speed (rpm) 1500 1500 1500
Spark plugs - - -
FuelDiesel for motor vehicles (EN
590 Specification)Diesel for motor vehicles (EN
590 Specification)Diesel for motor vehicles (EN
590 Specification)
(*) Engine code 263A5000
205

Versions 1.6 Multijet Euro 6 2.0 Multijet
Engine code940C1000 / 263A8000 / 263A7000 /
263A9000263A1000
Cycle Diesel Diesel
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 79.5x80.5 83x90.5
Total displacement (cm³) 1598 1956
Compression ratio 16.5+-0.4 16.5:1
Maximum power (EC) (kW) 88/77/70/74 99
Maximum power (EEC) (HP) 120/105/95/100 135
corresponding engine speed (rpm) 3750/3750/2500/3750 3500
Maximum torque (EC) (Nm) 320/300/300/300 320
Maximum torque (EC) (kgm) 32.6/30.6/30.6/30.6 32.6
corresponding engine speed (rpm) 1750 1500
Spark plugs - -
FuelDiesel for motor vehicles (EN590
Specification)Diesel for motor vehicles (EN 590
Specification)
206
TECHNICAL DATA

– Driver’s seat .............................. 22
– Passenger seat ......................... 23
– Rear seats ................................. 24
Seats and fabric parts .................... 198
Side bag ........................................ 121
Side bags....................................... 121
Side doors ..................................... 19
Side lights ...................................... 147
Side/tail lights................................. 32
Size................................................ 214
Ski rack.......................................... 63
Snow chains .................................. 141
Snow tyres ..................................... 141
Spare wheel ................................... 209
Spark plugs (type) .......................... 204
Speed block................................... 133
Spray nozzles................................. 193
Start&Stop system ......................... 127
Starting the engine ......................... 124Steering ......................................... 208
Steering wheel ............................... 30
Stopping the engine ....................... 125
Storage compartment .................... 60
Sun visors ...................................... 62
Supply ........................................... 207
Suspension .................................... 208
Symbols......................................... 4......................................... 17
The keys
....................................... 14
– Key with remote control............. 14
– Key without remote control........ 14
Third brake lights............................ 149
Towing the vehicle .......................... 167
Towing trailers ................................ 140
TPMS............................................. 130
Traction Plus system ...................... 135
Transmission .................................. 207
Trip computer................................. 80
Types of bulbs ................................ 145
Tyres .............................................. 209
Usage conditions
.......................... 140
Use of the Owner Handbook.......... 3
Useful tips for extending battery
life ................................................ 190
Using the gearbox .......................... 126
Vehicle exterior and underbody
warranty
....................................... 196
Vehicle modifications/alterations ..... 5
VIN plate ........................................ 200
Warming up the engine just
after it has started
........................ 125
Warning lights and messages......... 83
Weights.......................................... 219
Wheel geometry ............................. 209
Wheels ........................................... 209
Wheels and tyres ........................... 194
Windscreen / rear window wiper
(replacement) ............................... 192
Windscreen washer ....................... 37
Windscreen wiper .......................... 37
Windscreen/rear window washer
fluid .............................................. 187
FCA Italy S.p.A. - MOPAR - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Torino (Italia)
Print no. 603.99. - 0 /201 - 1 Edition 962 4 6

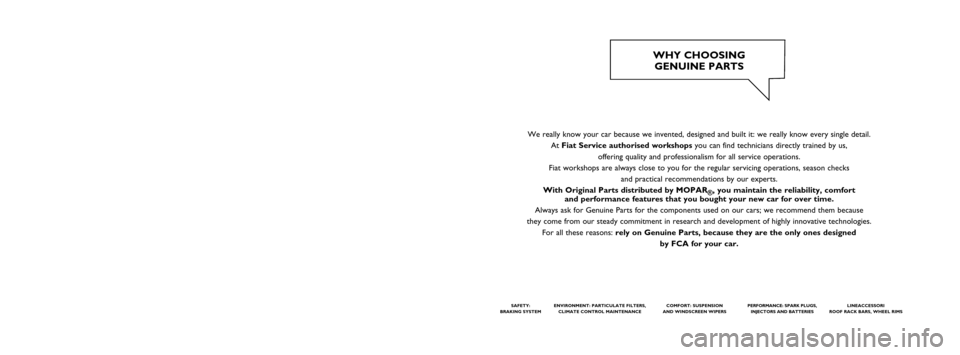

We really know your car because we invented, designed and built it: we really know every single detail.
