bulb FIAT DOBLO COMBI 2017 2.G User Guide

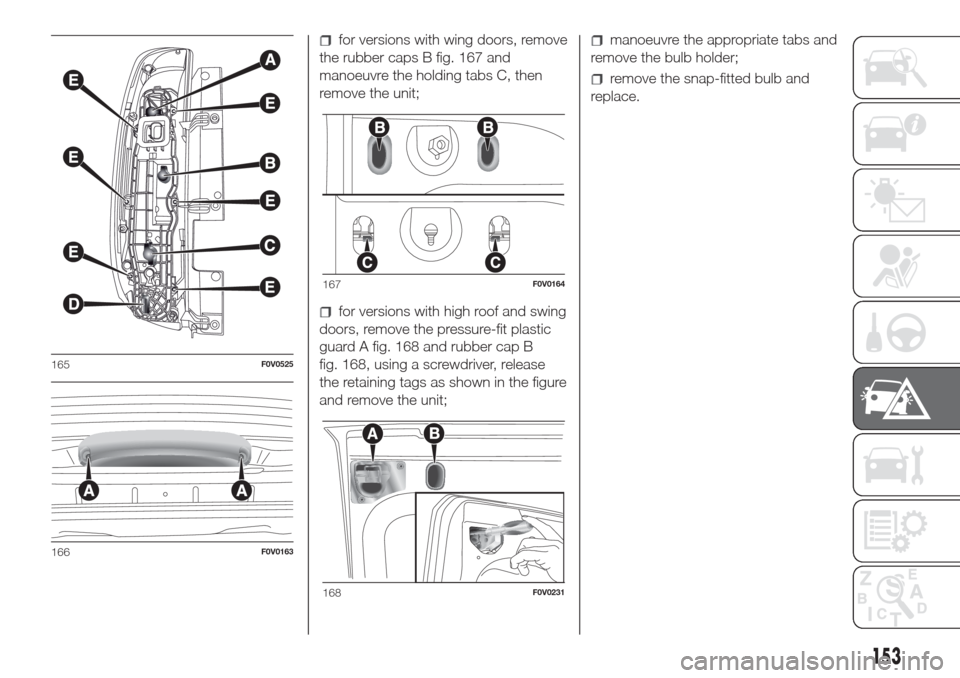

for versions with wing doors, remove
the rubber caps B fig. 167 and
manoeuvre the holding tabs C, then
remove the unit;
for versions with high roof and swing
doors, remove the pressure-fit plastic
guard A fig. 168 and rubber cap B
fig. 168, using a screwdriver, release
the retaining tags as shown in the figure
and remove the unit;
manoeuvre the appropriate tabs and
remove the bulb holder;
remove the snap-fitted bulb and
replace.
165F0V0525
166F0V0163
167F0V0164
168F0V0231
153

NUMBER PLATE LIGHTS
(for hatchback
versions)
Proceed as follows to replace the bulbs
A fig. 169:
manoeuvre the holding tabs at the
points indicated by the arrows, and
remove the bulb holder;
turn the bulb holder B fig. 170
anticlockwise, then remove bulb C.NUMBER PLATE LIGHTS
(for versions with wing
doors)
Proceed as follows to replace the bulbs
A fig. 171:
manoeuvre the holding tabs at the
points indicated in the diagram, and
remove the lens by lifting to the left;
remove the bulbs by releasing them
from the side contacts; insert the new
bulbs and make sure they are correctly
clamped between these contacts.
169F0V0179
170F0V0037
171F0V0036
154
IN AN EMERGENCY

REPLACING AN
INTERIOR BULB
For the type of bulb and power rating,
see "Changing a bulb".
FRONT ROOF LIGHT
Roof light with movable lens
Proceed as follows to replace the
bulbs:
remove roof light A fig. 172 working
at the points indicated by the arrows;
open the cover B fig. 173 as
indicated;
replace the bulb C fig. 174 releasing
the side contacts, insert the new bulb
and make sure that it is correctly locked
between the contacts;
close the cover and secure the roof
light into its housing, making sure it
locks properly into place.Roof light with spot lights (where
provided)
Proceed as follows to replace the
bulbs:
operate in the points indicated by
the arrows and remove light A fig. 175;
open protective flap B fig. 176;
replace the bulbs C releasing them
from the side contacts making sure that
the new bulbs are correctly secured
between the contacts;
close flap B fig. 176 and fix roof light
A fig. 175 in its housing, making sure
that it locks into place.
REAR ROOF LIGHT
To replace the bulb, proceed as follows:
remove roof light A fig. 177 working
at the points indicated by the arrows;
open the cover B fig. 178 as
indicated;
172F0V0070
173F0V0071
174F0V0072
175F0V0073
176F0V0074
155

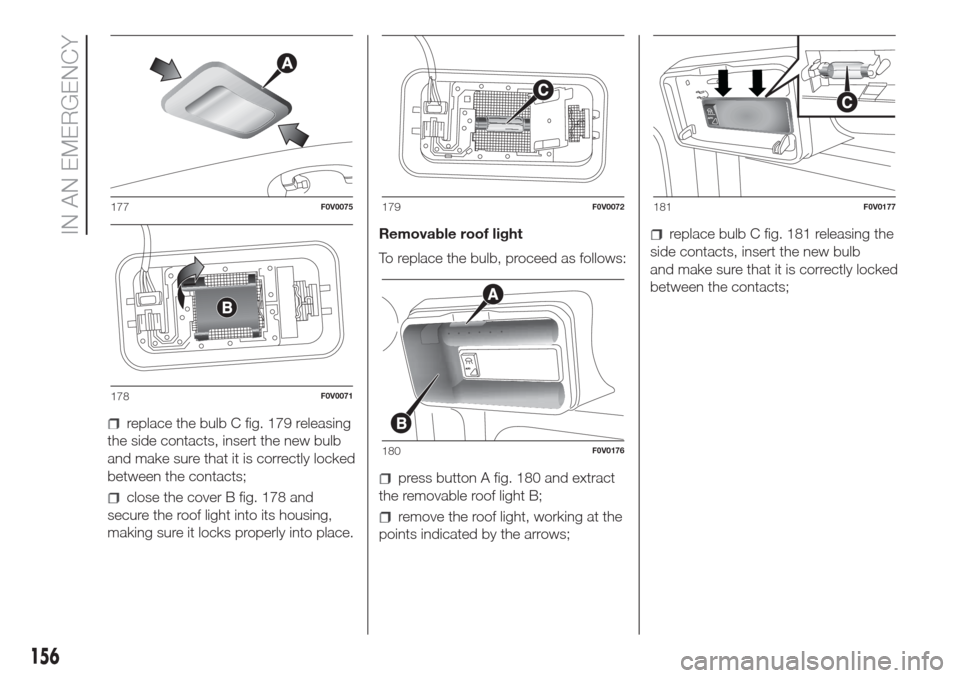

replace the bulb C fig. 179 releasing
the side contacts, insert the new bulb
and make sure that it is correctly locked
between the contacts;
close the cover B fig. 178 and
secure the roof light into its housing,
making sure it locks properly into place.Removable roof light
To replace the bulb, proceed as follows:
press button A fig. 180 and extract
the removable roof light B;
remove the roof light, working at the
points indicated by the arrows;
replace bulb C fig. 181 releasing the
side contacts, insert the new bulb
and make sure that it is correctly locked
between the contacts;
177F0V0075
178F0V0071
179F0V0072
180F0V0176
181F0V0177
156
IN AN EMERGENCY

Handbrake
