Page 217 of 300

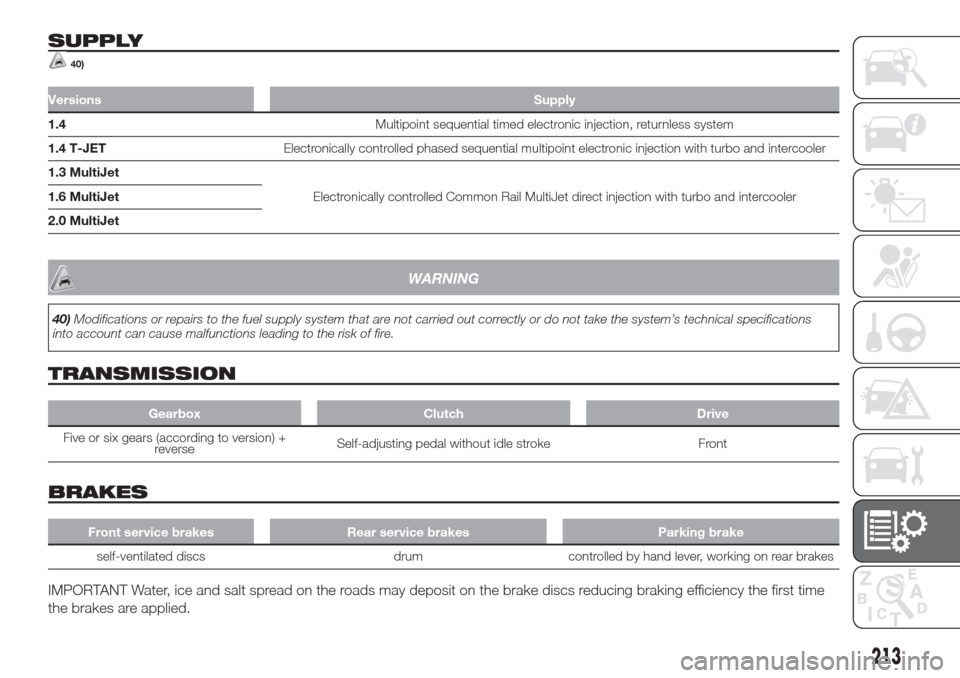

SUPPLY
40)
VersionsSupply
1.4Multipoint sequential timed electronic injection, returnless system
1.4 T-JETElectronically controlled phased sequential multipoint electronic injection with turbo and intercooler
1.3 MultiJet
Electronically controlled Common Rail MultiJet direct injection with turbo and intercooler 1.6 MultiJet
2.0 MultiJet
WARNING
40)Modifications or repairs to the fuel supply system that are not carried out correctly or do not take the system’s technical specifications
into account can cause malfunctions leading to the risk of fire.
TRANSMISSION
Gearbox Clutch Drive
Five or six gears (according to version) +
reverseSelf-adjusting pedal without idle stroke Front
BRAKES
Front service brakes Rear service brakes Parking brake
self-ventilated discs drum controlled by hand lever, working on rear brakes
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake discs reducing braking efficiency the first time
the brakes are applied.
213
Page 260 of 300
FLUIDS AND LUBRICANTS
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Service Schedule. Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications.
Lubricant quality is crucial for engine operation and duration.
RECOMMENDED PRODUCTS AND THEIR SPECIFICATIONS
Use Features SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricants for petrol
enginesSAE 5W-40
ACEA C3 / API SN9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference N° F603.C07According to Service
Schedule
Diesel engine lubricants
41)
SAE 5W-30
ACEA C29.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Service
Schedule
Lubricants for Euro 6
diesel engines
41)SAE 0W-30
ACEA C29.55535-DS1 or
MS90047.SELENIA WR
FORWARD
Contractual Technical
Reference No. F842.F13According to Service
Schedule
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used to
top up; in this case optimal performance of the engine is not guaranteed.
256
TECHNICAL DATA
WARNING
41)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
Page 261 of 300

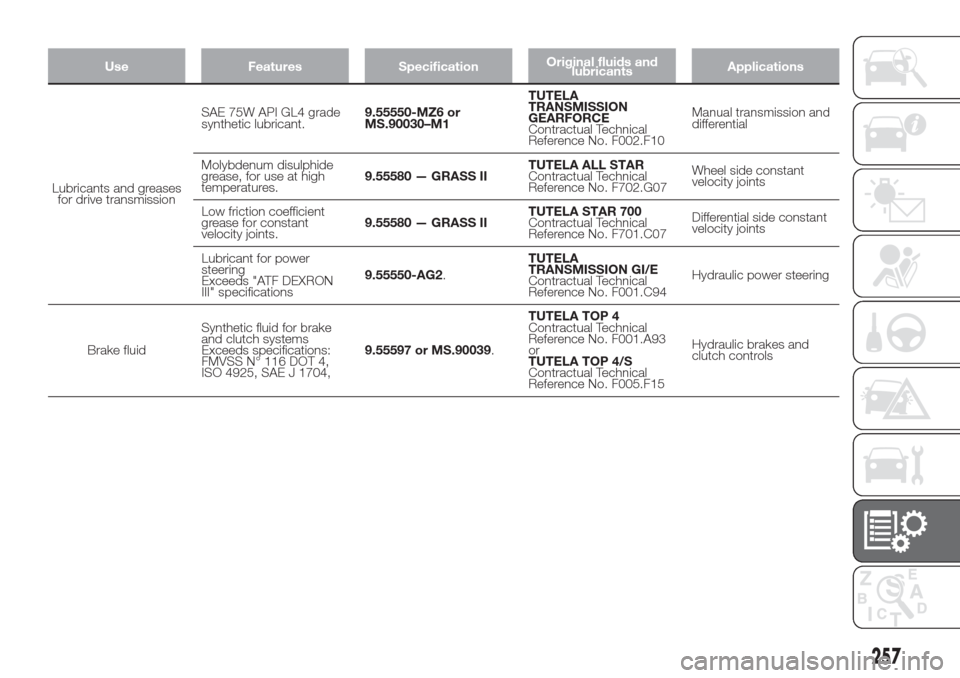

Use Features SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W API GL4 grade
synthetic lubricant.9.55550-MZ6 or
MS.90030–M1TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Manual transmission and
differential
Molybdenum disulphide
grease, for use at high
temperatures.9.55580 — GRASS IITUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Low friction coefficient
grease for constant
velocity joints.9.55580 — GRASS IITUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Lubricant for power
steering
Exceeds "ATF DEXRON
III" specifications9.55550-AG2.TUTELA
TRANSMISSION GI/E
Contractual Technical
Reference No. F001.C94Hydraulic power steering
Brake fluidSynthetic fluid for brake
and clutch systems
Exceeds specifications:
FMVSS N° 116 DOT 4,
ISO 4925, SAE J 1704,9.55597 or MS.90039.TUTELA TOP 4
Contractual Technical
Reference No. F001.A93
or
TUTELA TOP 4/S
Contractual Technical
Reference No. F005.F15Hydraulic brakes and
clutch controls
257
Page 262 of 300
Use Features SpecificationOriginal fluids and
lubricantsApplications
Protective agent for
radiatorsRed protective with
antifreeze action, based
on inhibited monoethyl
glycol with organic
formula. Exceeds CUNA
NC 956-16, ASTM D
3306 specifications.9.55523 or MS.90032PARAFLUUP(*)
Contractual Technical
Reference No. F101.M01Cooling circuits. Use rate
50% up to -35°C. Mixture
with different formulation
products not allowed.
Diesel fuel additiveAdditive for diesel
antifreeze, protecting
Diesel engines.-PETRONAS DURANCE
DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with diesel
(25 cc per 10 litres)
Windscreen washer fluidMixture of alcohol and
surfactants CUNA NC
956-II.9.55522 or MS.90043PETRONAS DURANCE
SC 35
Contractual Technical
Reference No. F001.D16To be used diluted or
undiluted in windscreen
washer/wiper systems
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLUUPand 40% demineralised water.
258
TECHNICAL DATA
Page 295 of 300

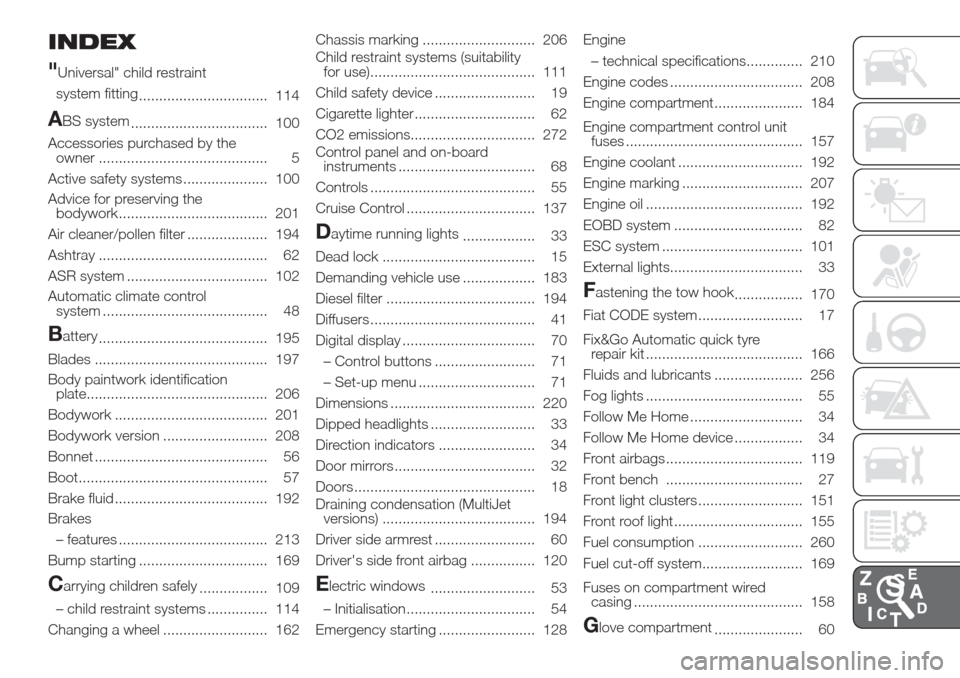

INDEX
"
Universal" child restraint
system fitting
................................ 114
ABS system
.................................. 100
Accessories purchased by the
owner .......................................... 5
Active safety systems ..................... 100
Advice for preserving the
bodywork..................................... 201
Air cleaner/pollen filter .................... 194
Ashtray .......................................... 62
ASR system ................................... 102
Automatic climate control
system ......................................... 48
Battery
.......................................... 195
Blades ........................................... 197
Body paintwork identification
plate............................................. 206
Bodywork ...................................... 201
Bodywork version .......................... 208
Bonnet ........................................... 56
Boot............................................... 57
Brake fluid ...................................... 192
Brakes
– features ..................................... 213
Bump starting ................................ 169
Carrying children safely
................. 109
– child restraint systems ............... 114
Changing a wheel .......................... 162Chassis marking ............................ 206
Child restraint systems (suitability
for use)......................................... 111
Child safety device ......................... 19
Cigarette lighter .............................. 62
CO2 emissions............................... 272
Control panel and on-board
instruments .................................. 68
Controls ......................................... 55
Cruise Control ................................ 137
Daytime running lights
.................. 33
Dead lock ...................................... 15
Demanding vehicle use .................. 183
Diesel filter ..................................... 194
Diffusers ......................................... 41
Digital display ................................. 70
– Control buttons ......................... 71
– Set-up menu ............................. 71
Dimensions .................................... 220
Dipped headlights .......................... 33
Direction indicators ........................ 34
Door mirrors ................................... 32
Doors ............................................. 18
Draining condensation (MultiJet
versions) ...................................... 194
Driver side armrest ......................... 60
Driver's side front airbag ................ 120
Electric windows
.......................... 53
– Initialisation................................ 54
Emergency starting ........................ 128Engine
– technical specifications.............. 210
Engine codes ................................. 208
Engine compartment...................... 184
Engine compartment control unit
fuses ............................................ 157
Engine coolant ............................... 192
Engine marking .............................. 207
Engine oil ....................................... 192
EOBD system ................................ 82
ESC system ................................... 101
External lights................................. 33
Fastening the tow hook
................. 170
Fiat CODE system.......................... 17
Fix&Go Automatic quick tyre
repair kit ....................................... 166
Fluids and lubricants ...................... 256
Fog lights ....................................... 55
Follow Me Home ............................ 34
Follow Me Home device ................. 34
Front airbags .................................. 119
Front bench .................................. 27
Front light clusters .......................... 151
Front roof light ................................ 155
Fuel consumption .......................... 260
Fuel cut-off system......................... 169
Fuses on compartment wired
casing .......................................... 158
Glove compartment
...................... 60
