The device remains engaged even if the
doors are electrically unlocked.
12)
KEY EMERGENCY LOCK
(KEL) DEVICE
The sliding side doors are provided with
a device for locking all the doors using
the lock in the case of a power fault.
The device can be engaged, with
the sliding side doors open, as follows
fig. 16:
Position 2: device not engaged
(doors released)
position 1: device engaged (fit the
metal insert of the ignition key in its seat
and rotate clockwise), door locked
The device is released and thus the
doors can be opened as follows: in the
event that electrical operation is
restored:
by remote control
or
opening a front door by inserting the
key into the key pawl. if the power is
not restored;
opening the driver side door by key
pawl and the other doors (passenger's
side and sliding side door) pulling the
inner handle.DOUBLE REAR SWING
DOORS
The double rear swing doors are fitted
with a link system that stops them
when they have opened to an angle of
approximately 90 degrees.
To open them wider to an angle of 180
degrees, push the locking device A
fig. 17 (one on each side) as shown in
the diagram and simultaneously open
the doors.
13)
Using the key latch on the door, you
can do the following:
for Cargo versions with wing door:
centrally unlock the load compartment
(sliding side doors + rear wing doors),
centrally lock all the doors;
for Doblò/Doblò Combi versions
with swing door: local unlocking/
locking.
14F0V0382
15F0V0186
16F0V0383
17F0V0067
20
KNOWING YOUR VEHICLE

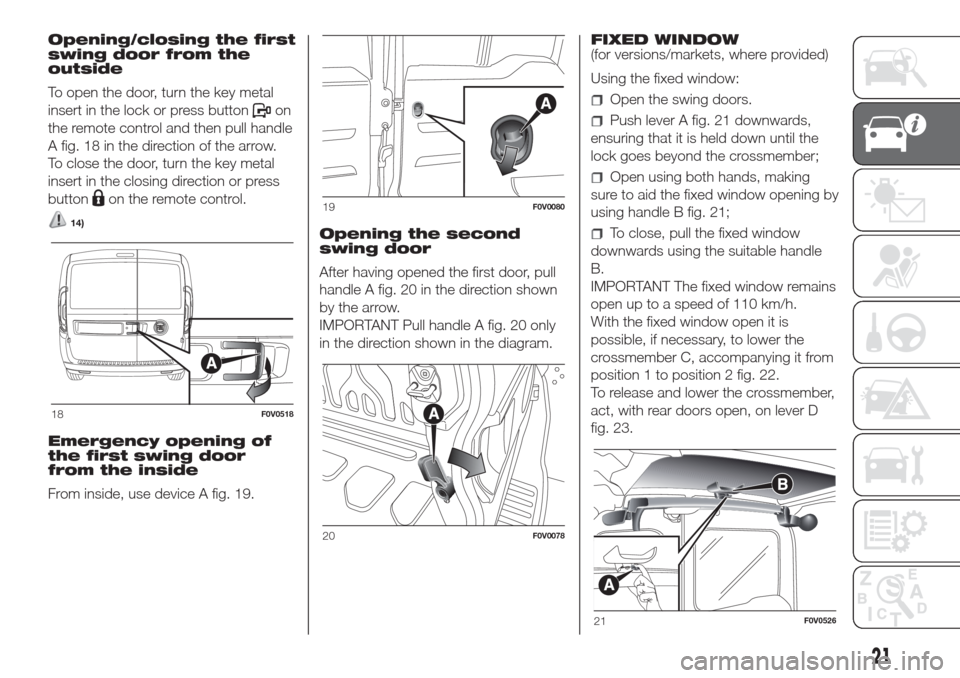

Opening/closing the first
swing door from the
outside
To open the door, turn the key metal
insert in the lock or press button
on
the remote control and then pull handle
A fig. 18 in the direction of the arrow.
To close the door, turn the key metal
insert in the closing direction or press
button
on the remote control.
14)
Emergency opening of
the first swing door
from the inside
From inside, use device A fig. 19.Opening the second
swing door
After having opened the first door, pull
handle A fig. 20 in the direction shown
by the arrow.
IMPORTANT Pull handle A fig. 20 only
in the direction shown in the diagram.FIXED WINDOW
(for versions/markets, where provided)
Using the fixed window:
Open the swing doors.
Push lever A fig. 21 downwards,
ensuring that it is held down until the
lock goes beyond the crossmember;
Open using both hands, making
sure to aid the fixed window opening by
using handle B fig. 21;
To close, pull the fixed window
downwards using the suitable handle
B.
IMPORTANT The fixed window remains
open up to a speed of 110 km/h.
With the fixed window open it is
possible, if necessary, to lower the
crossmember C, accompanying it from
position 1 to position 2 fig. 22.
To release and lower the crossmember,
act, with rear doors open, on lever D
fig. 23.
18F0V0518
19F0V0080
20F0V0078
21F0V0526
21

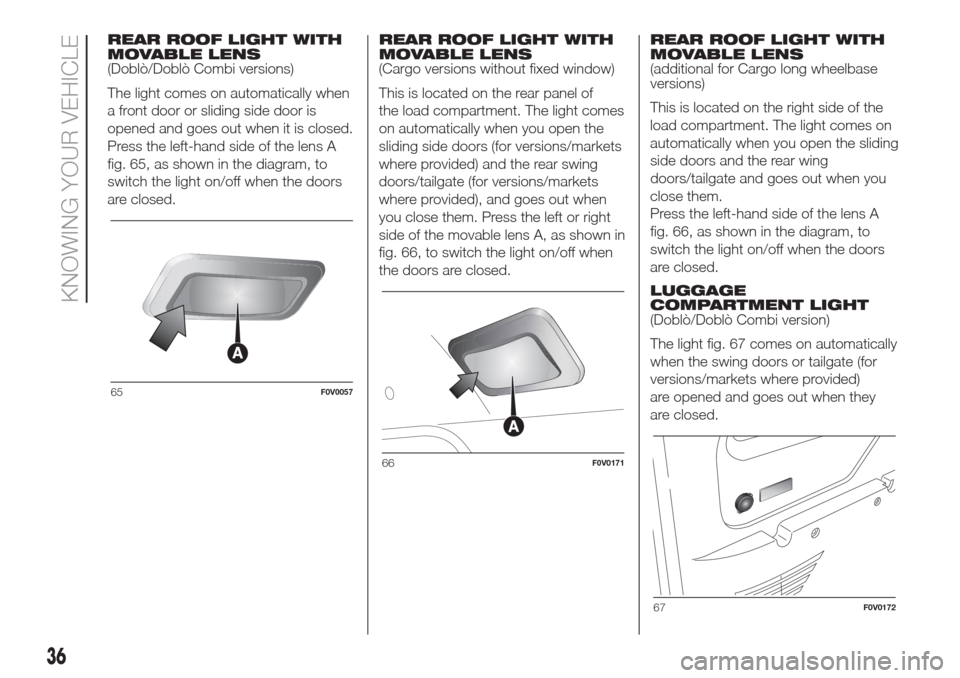

REAR ROOF LIGHT WITH
MOVABLE LENS
(Doblò/Doblò Combi versions)
The light comes on automatically when
a front door or sliding side door is
opened and goes out when it is closed.
Press the left-hand side of the lens A
fig. 65, as shown in the diagram, to
switch the light on/off when the doors
are closed.REAR ROOF LIGHT WITH
MOVABLE LENS
(Cargo versions without fixed window)
This is located on the rear panel of
the load compartment. The light comes
on automatically when you open the
sliding side doors (for versions/markets
where provided) and the rear swing
doors/tailgate (for versions/markets
where provided), and goes out when
you close them. Press the left or right
side of the movable lens A, as shown in
fig. 66, to switch the light on/off when
the doors are closed.REAR ROOF LIGHT WITH
MOVABLE LENS
(additional for Cargo long wheelbase
versions)
This is located on the right side of the
load compartment. The light comes on
automatically when you open the sliding
side doors and the rear wing
doors/tailgate and goes out when you
close them.
Press the left-hand side of the lens A
fig. 66, as shown in the diagram, to
switch the light on/off when the doors
are closed.
LUGGAGE
COMPARTMENT LIGHT
(Doblò/Doblò Combi version)
The light fig. 67 comes on automatically
when the swing doors or tailgate (for
versions/markets where provided)
are opened and goes out when they
are closed.
65F0V0057
66F0V0171
67F0V0172
36
KNOWING YOUR VEHICLE

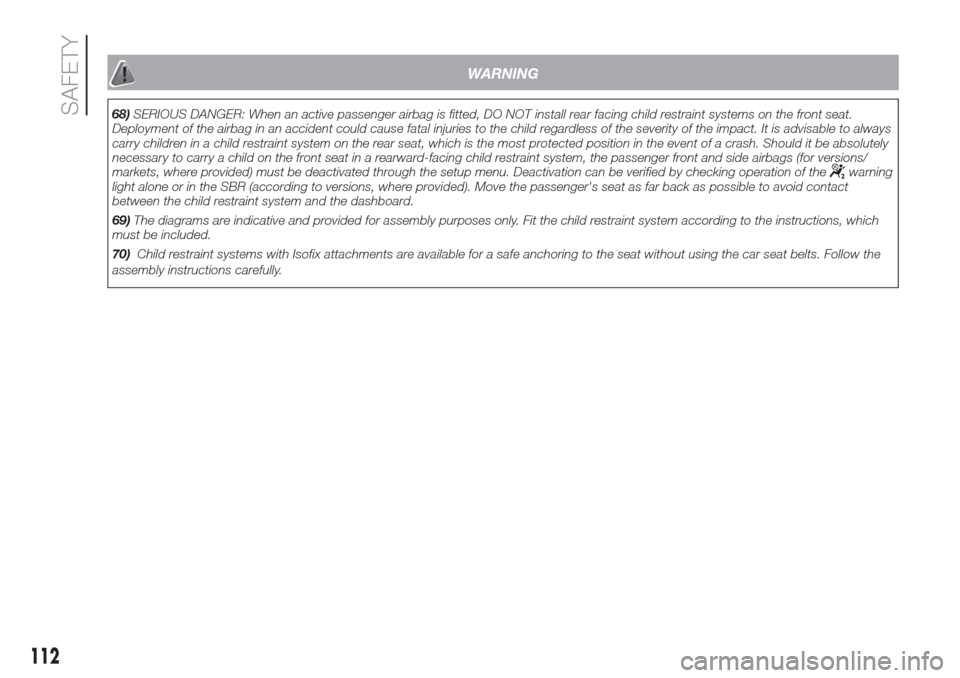

WARNING
68)SERIOUS DANGER: When an active passenger airbag is fitted, DO NOT install rear facing child restraint systems on the front seat.
Deployment of the airbag in an accident could cause fatal injuries to the child regardless of the severity of the impact. It is advisable to always
carry children in a child restraint system on the rear seat, which is the most protected position in the event of a crash. Should it be absolutely
necessary to carry a child on the front seat in a rearward-facing child restraint system, the passenger front and side airbags (for versions/
markets, where provided) must be deactivated through the setup menu. Deactivation can be verified by checking operation of the
warning
light alone or in the SBR (according to versions, where provided). Move the passenger's seat as far back as possible to avoid contact
between the child restraint system and the dashboard.
69)The diagrams are indicative and provided for assembly purposes only. Fit the child restraint system according to the instructions, which
must be included.
70)Child restraint systems with Isofix attachments are available for a safe anchoring to the seat without using the car seat belts. Follow the
assembly instructions carefully.
112
SAFETY

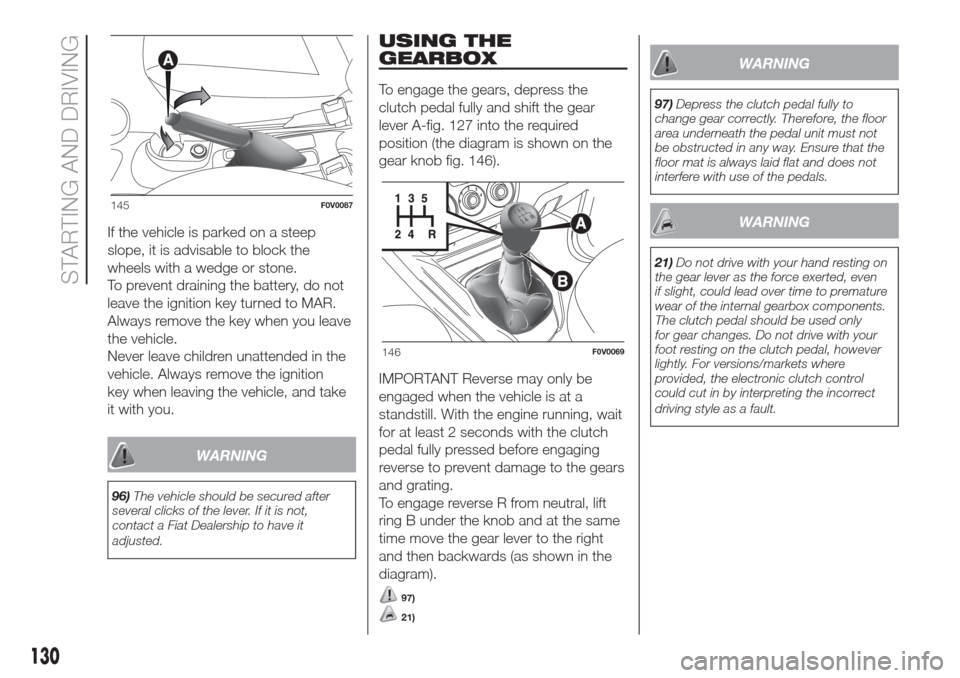

If the vehicle is parked on a steep
slope, it is advisable to block the
wheels with a wedge or stone.
To prevent draining the battery, do not
leave the ignition key turned to MAR.
Always remove the key when you leave
the vehicle.
Never leave children unattended in the
vehicle. Always remove the ignition
key when leaving the vehicle, and take
it with you.
WARNING
96)The vehicle should be secured after
several clicks of the lever. If it is not,
contact a Fiat Dealership to have it
adjusted.
USING THE
GEARBOX
To engage the gears, depress the
clutch pedal fully and shift the gear
lever A-fig. 127 into the required
position (the diagram is shown on the
gear knob fig. 146).
IMPORTANT Reverse may only be
engaged when the vehicle is at a
standstill. With the engine running, wait
for at least 2 seconds with the clutch
pedal fully pressed before engaging
reverse to prevent damage to the gears
and grating.
To engage reverse R from neutral, lift
ring B under the knob and at the same
time move the gear lever to the right
and then backwards (as shown in the
diagram).
97)
21)
WARNING
97)Depress the clutch pedal fully to
change gear correctly. Therefore, the floor
area underneath the pedal unit must not
be obstructed in any way. Ensure that the
floor mat is always laid flat and does not
interfere with use of the pedals.
WARNING
21)Do not drive with your hand resting on
the gear lever as the force exerted, even
if slight, could lead over time to premature
wear of the internal gearbox components.
The clutch pedal should be used only
for gear changes. Do not drive with your
foot resting on the clutch pedal, however
lightly. For versions/markets where
provided, the electronic clutch control
could cut in by interpreting the incorrect
driving style as a fault.
145F0V0087
146F0V0069
130
STARTING AND DRIVING

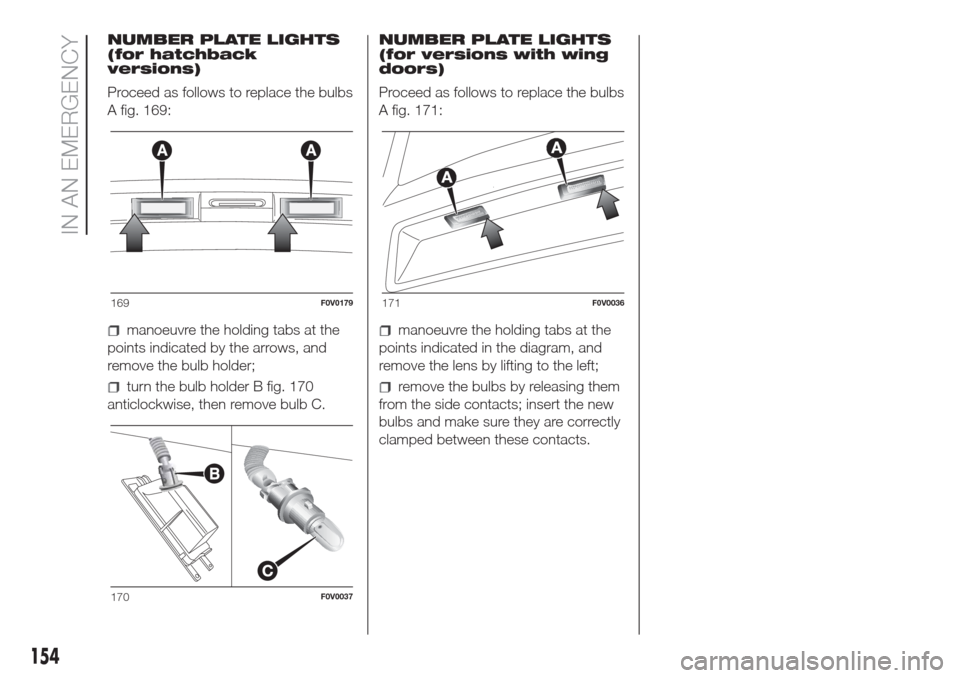

NUMBER PLATE LIGHTS
(for hatchback
versions)
Proceed as follows to replace the bulbs
A fig. 169:
manoeuvre the holding tabs at the
points indicated by the arrows, and
remove the bulb holder;
turn the bulb holder B fig. 170
anticlockwise, then remove bulb C.NUMBER PLATE LIGHTS
(for versions with wing
doors)
Proceed as follows to replace the bulbs
A fig. 171:
manoeuvre the holding tabs at the
points indicated in the diagram, and
remove the lens by lifting to the left;
remove the bulbs by releasing them
from the side contacts; insert the new
bulbs and make sure they are correctly
clamped between these contacts.
169F0V0179
170F0V0037
171F0V0036
154
IN AN EMERGENCY

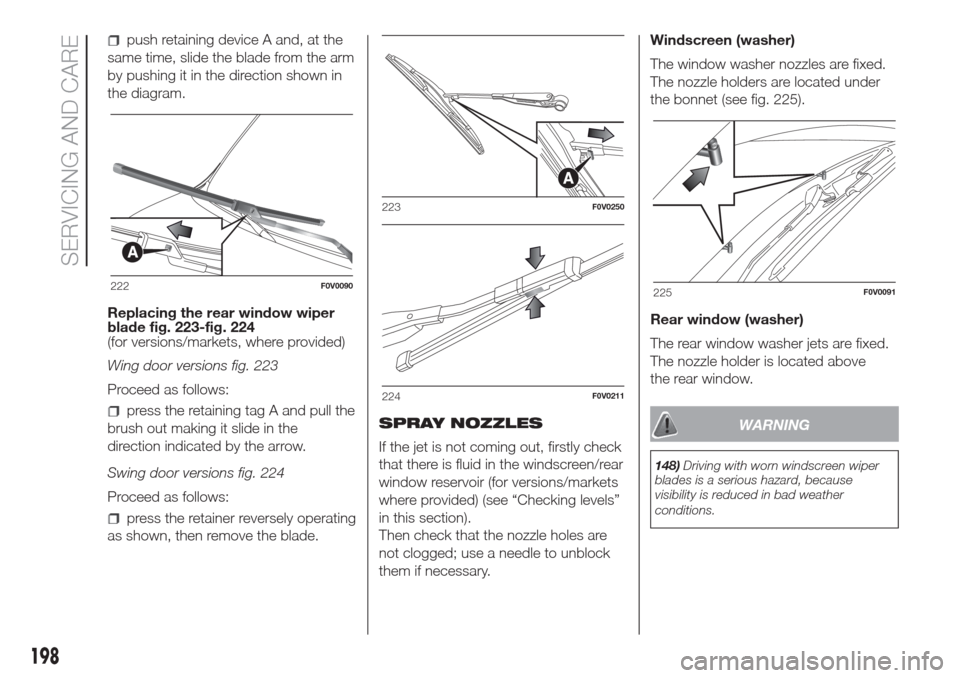

push retaining device A and, at the
same time, slide the blade from the arm
by pushing it in the direction shown in
the diagram.
Replacing the rear window wiper
blade fig. 223-fig. 224
(for versions/markets, where provided)
Wing door versions fig. 223
Proceed as follows:
press the retaining tag A and pull the
brush out making it slide in the
direction indicated by the arrow.
Swing door versions fig. 224
Proceed as follows:
press the retainer reversely operating
as shown, then remove the blade.SPRAY NOZZLES
If the jet is not coming out, firstly check
that there is fluid in the windscreen/rear
window reservoir (for versions/markets
where provided) (see “Checking levels”
in this section).
Then check that the nozzle holes are
not clogged; use a needle to unblock
them if necessary.Windscreen (washer)
The window washer nozzles are fixed.
The nozzle holders are located under
the bonnet (see fig. 225).
Rear window (washer)
The rear window washer jets are fixed.
The nozzle holder is located above
the rear window.
WARNING
148)Driving with worn windscreen wiper
blades is a serious hazard, because
visibility is reduced in bad weather
conditions.
222F0V0090
223F0V0250
224F0V0211
225F0V0091
198
