VERY IMPORTANT
REFUELLING
Petrol engines: only refuel with unleaded petrol with octane rating (RON) not less than 95 in compliance with the European specification
EN228.Diesel engines: only refuel with diesel fuel conforming to the European specification EN590. The use of other products or mixtures
may damage the engine beyond repair and consequently invalidate the warranty, due to the damage caused.

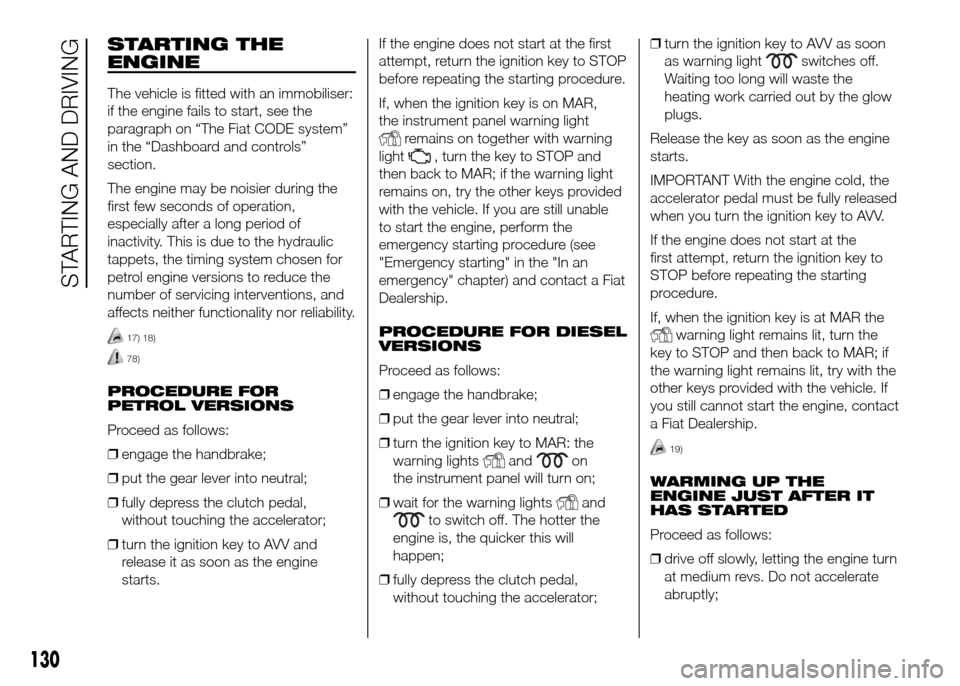

STARTING THE ENGINE
Petrol engines: make sure that the handbrake is engaged; set the gear lever to neutral; fully depress the clutch pedal without pressing the
accelerator, then turn the ignition key to AVV and release it as soon as the engine has started.Diesel engines: turn the ignition key to MAR
and wait for the
andwarning lights to switch off. Then turn the ignition key to AVV and release it as soon as the engine has
started.
PARKING ON FLAMMABLE MATERIAL
The catalytic converter develops high temperatures during operation. Do not park on grass, dry leaves, pine needles or other flammable
material: fire hazard.
RESPECTING THE ENVIRONMENT
The vehicle is fitted with a system that allows continuous diagnosis of the emission-related components in order to help protect the
environment.
ELECTRICAL ACCESSORIES
If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), visit a Fiat Dealership. They
can calculate the overall electrical requirement and check that the vehicle's electrical system can support the required load.
SCHEDULED SERVICING
Correct maintenance enables the vehicle to perfectly maintain performance and safety characteristics, its environmental friendliness and low
running costs over time.

.

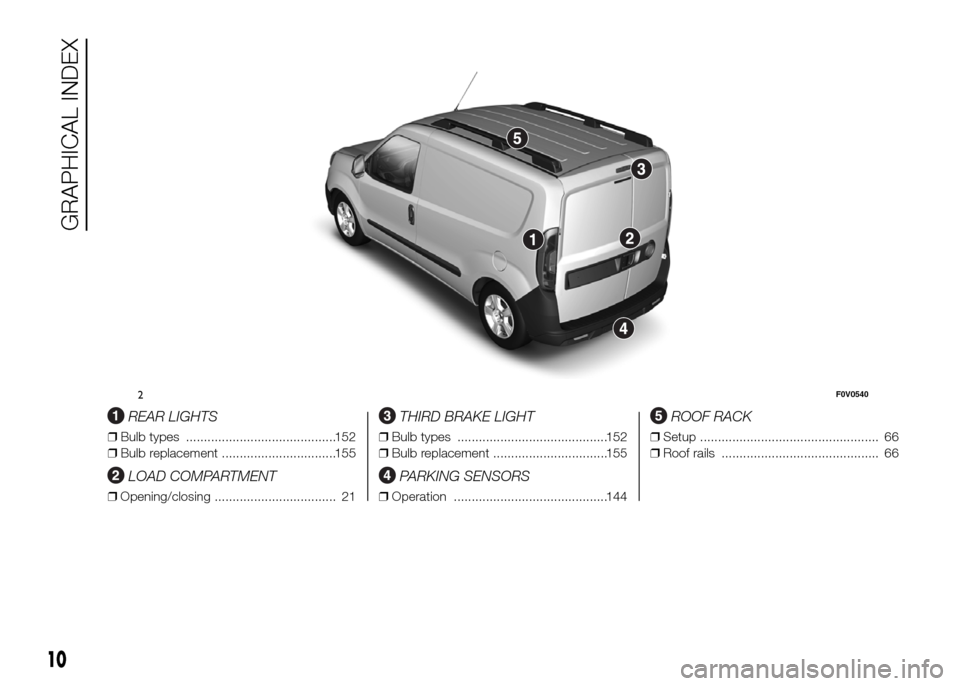

REAR LIGHTS
❒Bulb types ..........................................152
❒Bulb replacement ................................155
LOAD COMPARTMENT
❒Opening/closing .................................. 21
THIRD BRAKE LIGHT
❒Bulb types ..........................................152
❒Bulb replacement ................................155
PARKING SENSORS
❒Operation ...........................................144
ROOF RACK
❒Setup .................................................. 66
❒Roof rails ............................................ 66
2F0V0540
10
GRAPHICAL INDEX

STEERING LOCK
Activation
When the key is at STOP, remove the
key and turn the steering wheel until
it locks.
Deactivation
Move the steering wheel slightly as you
turn the ignition key to MAR.
WARNING
4) If the ignition device has been
tampered with (e.g. an attempted
theft), have it checked over by a
Fiat Dealership before driving
again.
5) Always remove the key when you
leave your vehicle to prevent
someone from accidentally
operating the controls. Remember
to engage the handbrake.
Engage first gear if the vehicle is
parked uphill or reverse gear if the
vehicle is parked downhill. Never
leave children unattended in the
vehicle.6) Never extract the key while the
vehicle is moving. The steering
wheel will automatically lock
as soon as it is turned. This also
applies to cases in which the
vehicle is towed.
7) It is absolutely forbidden to carry
out any after-market operation
involving steering system or
steering column modifications
(e.g.: installation of anti-theft
device) that could badly affect
performance and safety, cause
the lapse of warranty and also
result in non-compliance of the
vehicle with type approval
requirements.
SYMBOLS
Some vehicle components have
coloured labels whose symbols indicate
precautions to be observed when
using this component. Under the
bonnet there is also a label that
summarises all the symbols.
17

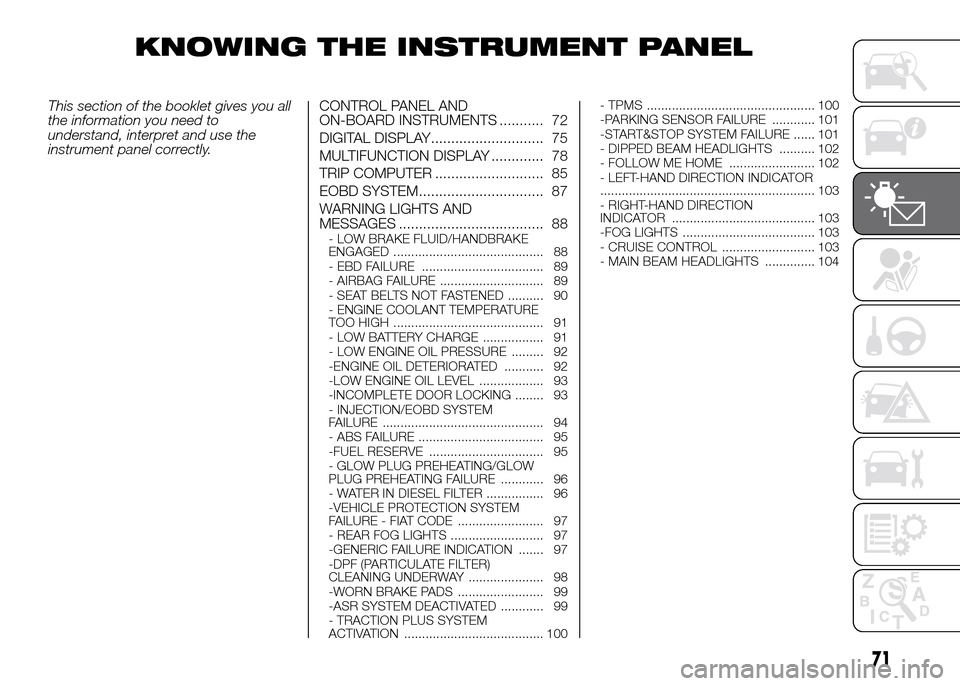

KNOWING THE INSTRUMENT PANEL
This section of the booklet gives you all
the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
ON-BOARD INSTRUMENTS ........... 72
DIGITAL DISPLAY............................ 75
MULTIFUNCTION DISPLAY ............. 78
TRIP COMPUTER ........................... 85
EOBD SYSTEM............................... 87
WARNING LIGHTS AND
MESSAGES .................................... 88
- LOW BRAKE FLUID/HANDBRAKE
ENGAGED .......................................... 88
- EBD FAILURE .................................. 89
- AIRBAG FAILURE ............................. 89
- SEAT BELTS NOT FASTENED .......... 90
- ENGINE COOLANT TEMPERATURE
TOO HIGH .......................................... 91
- LOW BATTERY CHARGE ................. 91
- LOW ENGINE OIL PRESSURE ......... 92
-ENGINE OIL DETERIORATED ........... 92
-LOW ENGINE OIL LEVEL .................. 93
-INCOMPLETE DOOR LOCKING ........ 93
- INJECTION/EOBD SYSTEM
FAILURE ............................................. 94
- ABS FAILURE ................................... 95
-FUEL RESERVE ................................ 95
- GLOW PLUG PREHEATING/GLOW
PLUG PREHEATING FAILURE ............ 96
- WATER IN DIESEL FILTER ................ 96
-VEHICLE PROTECTION SYSTEM
FAILURE - FIAT CODE ........................ 97
- REAR FOG LIGHTS .......................... 97
-GENERIC FAILURE INDICATION ....... 97
-DPF (PARTICULATE FILTER)
CLEANING UNDERWAY ..................... 98
-WORN BRAKE PADS ........................ 99
-ASR SYSTEM DEACTIVATED ............ 99
- TRACTION PLUS SYSTEM
ACTIVATION ....................................... 100- TPMS ............................................... 100
-PARKING SENSOR FAILURE ............ 101
-START&STOP SYSTEM FAILURE ...... 101
- DIPPED BEAM HEADLIGHTS .......... 102
- FOLLOW ME HOME ........................ 102
- LEFT-HAND DIRECTION INDICATOR
............................................................ 103
- RIGHT-HAND DIRECTION
INDICATOR ........................................ 103
-FOG LIGHTS ..................................... 103
- CRUISE CONTROL .......................... 103
- MAIN BEAM HEADLIGHTS .............. 104
71

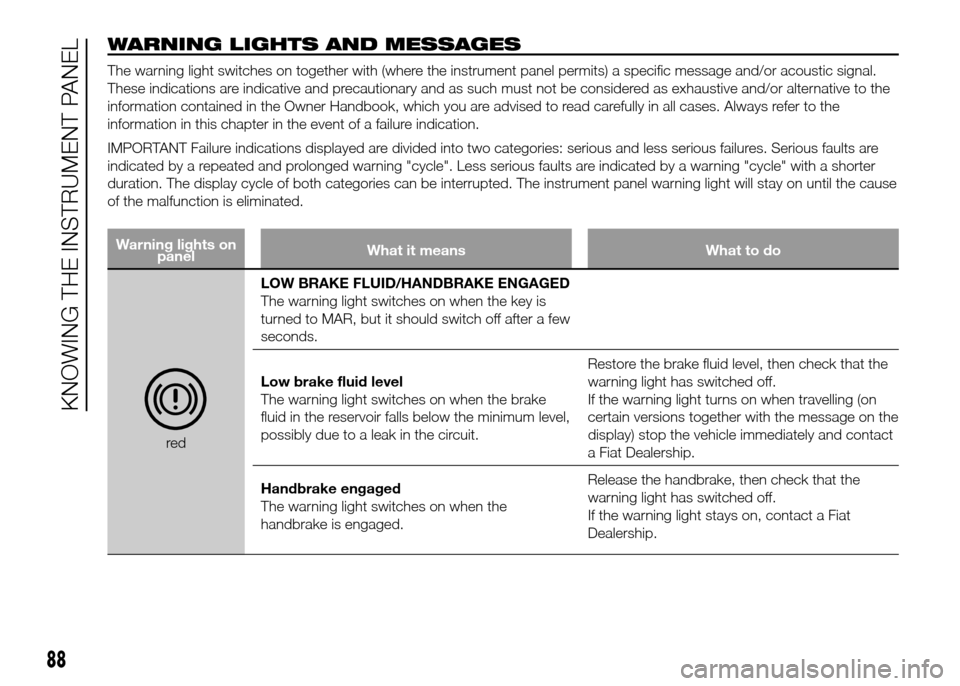

WARNING LIGHTS AND MESSAGES
The warning light switches on together with (where the instrument panel permits) a specific message and/or acoustic signal.
These indications are indicative and precautionary and as such must not be considered as exhaustive and/or alternative to the
information contained in the Owner Handbook, which you are advised to read carefully in all cases. Always refer to the
information in this chapter in the event of a failure indication.
IMPORTANT Failure indications displayed are divided into two categories: serious and less serious failures. Serious faults are
indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning "cycle" with a shorter
duration. The display cycle of both categories can be interrupted. The instrument panel warning light will stay on until the cause
of the malfunction is eliminated.
Warning lights on
panelWhat it means What to do
redLOW BRAKE FLUID/HANDBRAKE ENGAGED
The warning light switches on when the key is
turned to MAR, but it should switch off after a few
seconds.
Low brake fluid level
The warning light switches on when the brake
fluid in the reservoir falls below the minimum level,
possibly due to a leak in the circuit.Restore the brake fluid level, then check that the
warning light has switched off.
If the warning light turns on when travelling (on
certain versions together with the message on the
display) stop the vehicle immediately and contact
a Fiat Dealership.
Handbrake engaged
The warning light switches on when the
handbrake is engaged.Release the handbrake, then check that the
warning light has switched off.
If the warning light stays on, contact a Fiat
Dealership.
88
KNOWING THE INSTRUMENT PANEL

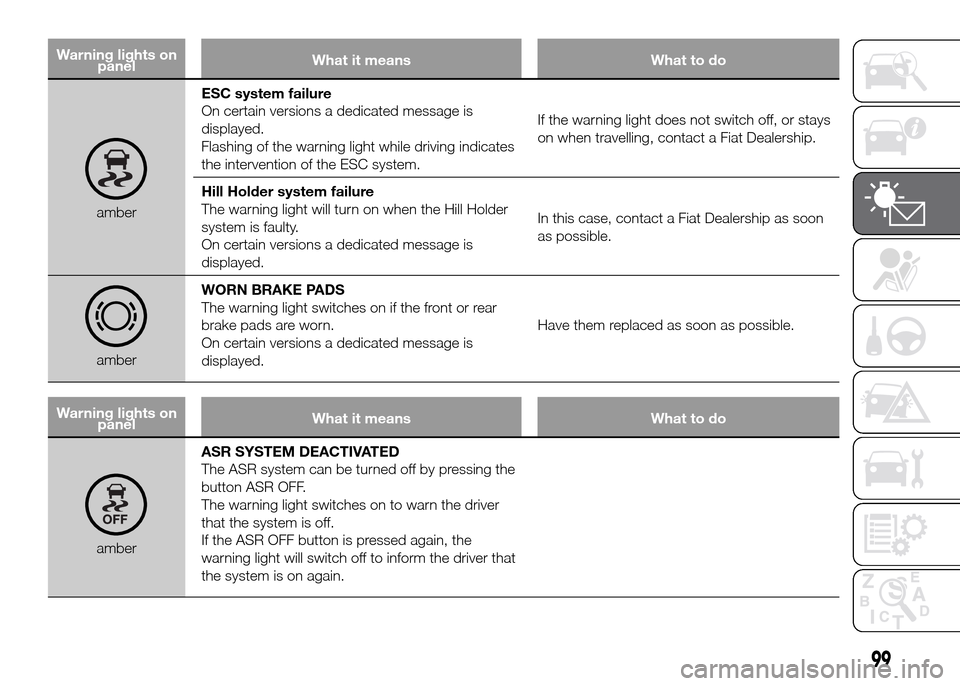

Warning lights on
panelWhat it means What to do
amberESC system failure
On certain versions a dedicated message is
displayed.
Flashing of the warning light while driving indicates
the intervention of the ESC system.If the warning light does not switch off, or stays
on when travelling, contact a Fiat Dealership.
Hill Holder system failure
The warning light will turn on when the Hill Holder
system is faulty.
On certain versions a dedicated message is
displayed.In this case, contact a Fiat Dealership as soon
as possible.
amberWORN BRAKE PADS
The warning light switches on if the front or rear
brake pads are worn.
On certain versions a dedicated message is
displayed.Have them replaced as soon as possible.
Warning lights on
panelWhat it means What to do
amberASR SYSTEM DEACTIVATED
The ASR system can be turned off by pressing the
button ASR OFF.
The warning light switches on to warn the driver
that the system is off.
If the ASR OFF button is pressed again, the
warning light will switch off to inform the driver that
the system is on again.
99

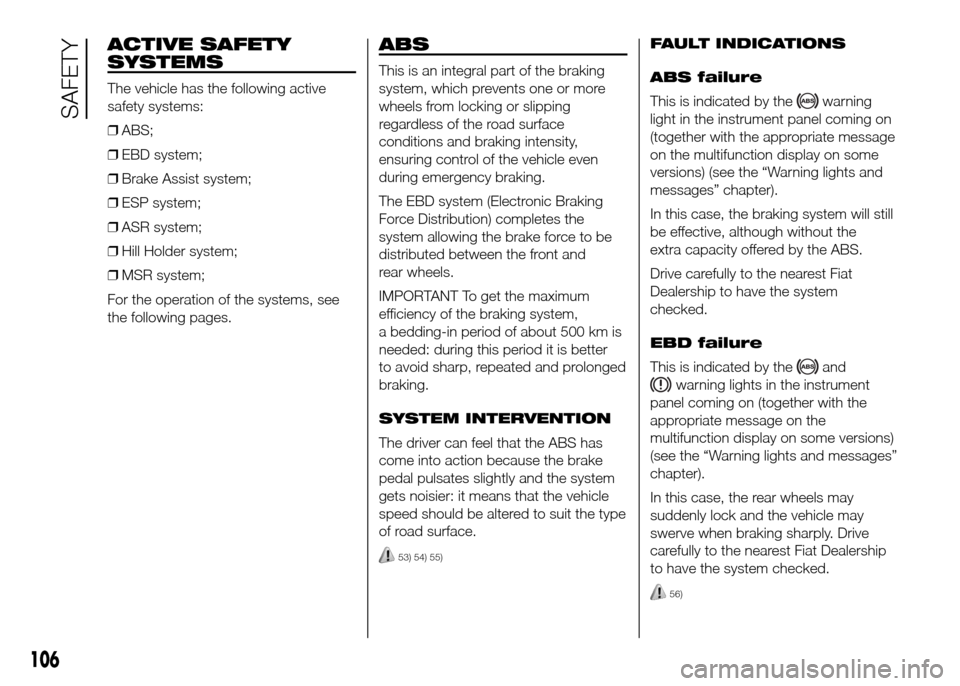

ACTIVE SAFETY
SYSTEMS
The vehicle has the following active
safety systems:
❒ABS;
❒EBD system;
❒Brake Assist system;
❒ESP system;
❒ASR system;
❒Hill Holder system;
❒MSR system;
For the operation of the systems, see
the following pages.
ABS
This is an integral part of the braking
system, which prevents one or more
wheels from locking or slipping
regardless of the road surface
conditions and braking intensity,
ensuring control of the vehicle even
during emergency braking.
The EBD system (Electronic Braking
Force Distribution) completes the
system allowing the brake force to be
distributed between the front and
rear wheels.
IMPORTANT To get the maximum
efficiency of the braking system,
a bedding-in period of about 500 km is
needed: during this period it is better
to avoid sharp, repeated and prolonged
braking.
SYSTEM INTERVENTION
The driver can feel that the ABS has
come into action because the brake
pedal pulsates slightly and the system
gets noisier: it means that the vehicle
speed should be altered to suit the type
of road surface.
53) 54) 55)
FAULT INDICATIONS
ABS failure
This is indicated by the
warning
light in the instrument panel coming on
(together with the appropriate message
on the multifunction display on some
versions) (see the “Warning lights and
messages” chapter).
In this case, the braking system will still
be effective, although without the
extra capacity offered by the ABS.
Drive carefully to the nearest Fiat
Dealership to have the system
checked.
EBD failure
This is indicated by the
and
warning lights in the instrument
panel coming on (together with the
appropriate message on the
multifunction display on some versions)
(see the “Warning lights and messages”
chapter).
In this case, the rear wheels may
suddenly lock and the vehicle may
swerve when braking sharply. Drive
carefully to the nearest Fiat Dealership
to have the system checked.
56)
106
SAFETY

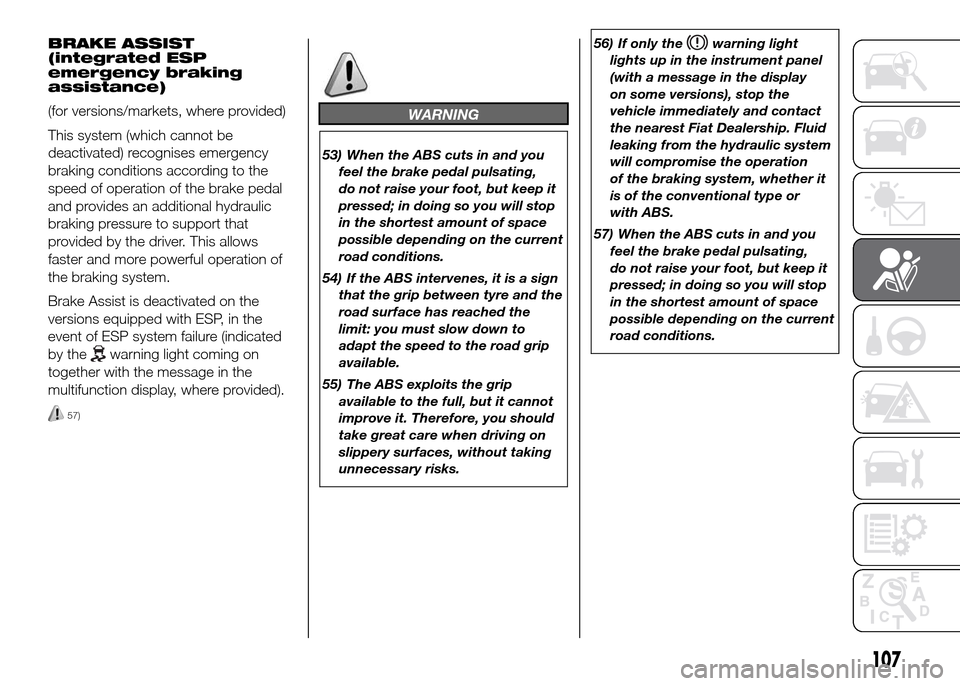

BRAKE ASSIST
(integrated ESP
emergency braking
assistance)
(for versions/markets, where provided)
This system (which cannot be
deactivated) recognises emergency
braking conditions according to the
speed of operation of the brake pedal
and provides an additional hydraulic
braking pressure to support that
provided by the driver. This allows
faster and more powerful operation of
the braking system.
Brake Assist is deactivated on the
versions equipped with ESP, in the
event of ESP system failure (indicated
by the
warning light coming on
together with the message in the
multifunction display, where provided).
57)
WARNING
53) When the ABS cuts in and you
feel the brake pedal pulsating,
do not raise your foot, but keep it
pressed; in doing so you will stop
in the shortest amount of space
possible depending on the current
road conditions.
54) If the ABS intervenes, it is a sign
that the grip between tyre and the
road surface has reached the
limit: you must slow down to
adapt the speed to the road grip
available.
55) The ABS exploits the grip
available to the full, but it cannot
improve it. Therefore, you should
take great care when driving on
slippery surfaces, without taking
unnecessary risks.56) If only the
warning light
lights up in the instrument panel
(with a message in the display
on some versions), stop the
vehicle immediately and contact
the nearest Fiat Dealership. Fluid
leaking from the hydraulic system
will compromise the operation
of the braking system, whether it
is of the conventional type or
with ABS.
57) When the ABS cuts in and you
feel the brake pedal pulsating,
do not raise your foot, but keep it
pressed; in doing so you will stop
in the shortest amount of space
possible depending on the current
road conditions.
107

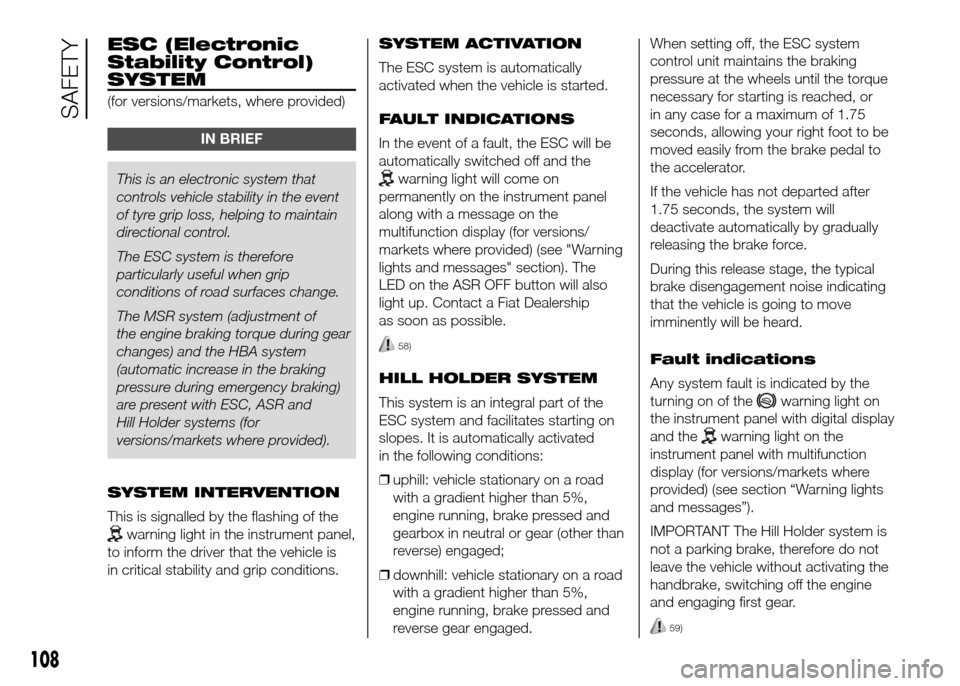

ESC (Electronic
Stability Control)
SYSTEM
(for versions/markets, where provided)
IN BRIEF
This is an electronic system that
controls vehicle stability in the event
of tyre grip loss, helping to maintain
directional control.
The ESC system is therefore
particularly useful when grip
conditions of road surfaces change.
The MSR system (adjustment of
the engine braking torque during gear
changes) and the HBA system
(automatic increase in the braking
pressure during emergency braking)
are present with ESC, ASR and
Hill Holder systems (for
versions/markets where provided).
SYSTEM INTERVENTION
This is signalled by the flashing of the
warning light in the instrument panel,
to inform the driver that the vehicle is
in critical stability and grip conditions.SYSTEM ACTIVATION
The ESC system is automatically
activated when the vehicle is started.
FAULT INDICATIONS
In the event of a fault, the ESC will be
automatically switched off and the
warning light will come on
permanently on the instrument panel
along with a message on the
multifunction display (for versions/
markets where provided) (see "Warning
lights and messages" section). The
LED on the ASR OFF button will also
light up. Contact a Fiat Dealership
as soon as possible.
58)
HILL HOLDER SYSTEM
This system is an integral part of the
ESC system and facilitates starting on
slopes. It is automatically activated
in the following conditions:
❒uphill: vehicle stationary on a road
with a gradient higher than 5%,
engine running, brake pressed and
gearbox in neutral or gear (other than
reverse) engaged;
❒downhill: vehicle stationary on a road
with a gradient higher than 5%,
engine running, brake pressed and
reverse gear engaged.When setting off, the ESC system
control unit maintains the braking
pressure at the wheels until the torque
necessary for starting is reached, or
in any case for a maximum of 1.75
seconds, allowing your right foot to be
moved easily from the brake pedal to
the accelerator.
If the vehicle has not departed after
1.75 seconds, the system will
deactivate automatically by gradually
releasing the brake force.
During this release stage, the typical
brake disengagement noise indicating
that the vehicle is going to move
imminently will be heard.
Fault indications
Any system fault is indicated by the
turning on of the
warning light on
the instrument panel with digital display
and the
warning light on the
instrument panel with multifunction
display (for versions/markets where
provided) (see section “Warning lights
and messages”).
IMPORTANT The Hill Holder system is
not a parking brake, therefore do not
leave the vehicle without activating the
handbrake, switching off the engine
and engaging first gear.
59)
108
SAFETY

STARTING THE
ENGINE
The vehicle is fitted with an immobiliser:
if the engine fails to start, see the
paragraph on “The Fiat CODE system”
in the “Dashboard and controls”
section.
The engine may be noisier during the
first few seconds of operation,
especially after a long period of
inactivity. This is due to the hydraulic
tappets, the timing system chosen for
petrol engine versions to reduce the
number of servicing interventions, and
affects neither functionality nor reliability.
17) 18)
78)
PROCEDURE FOR
PETROL VERSIONS
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒fully depress the clutch pedal,
without touching the accelerator;
❒turn the ignition key to AVV and
release it as soon as the engine
starts.If the engine does not start at the first
attempt, return the ignition key to STOP
before repeating the starting procedure.
If, when the ignition key is on MAR,
the instrument panel warning light
remains on together with warning
light
, turn the key to STOP and
then back to MAR; if the warning light
remains on, try the other keys provided
with the vehicle. If you are still unable
to start the engine, perform the
emergency starting procedure (see
"Emergency starting" in the "In an
emergency" chapter) and contact a Fiat
Dealership.
PROCEDURE FOR DIESEL
VERSIONS
Proceed as follows:
❒engage the handbrake;
❒put the gear lever into neutral;
❒turn the ignition key to MAR: the
warning lights
andon
the instrument panel will turn on;
❒wait for the warning lights
and
to switch off. The hotter the
engine is, the quicker this will
happen;
❒fully depress the clutch pedal,
without touching the accelerator;❒turn the ignition key to AVV as soon
as warning light
switches off.
Waiting too long will waste the
heating work carried out by the glow
plugs.
Release the key as soon as the engine
starts.
IMPORTANT With the engine cold, the
accelerator pedal must be fully released
when you turn the ignition key to AVV.
If the engine does not start at the
first attempt, return the ignition key to
STOP before repeating the starting
procedure.
If, when the ignition key is at MAR the
warning light remains lit, turn the
key to STOP and then back to MAR; if
the warning light remains lit, try with the
other keys provided with the vehicle. If
you still cannot start the engine, contact
a Fiat Dealership.
19)
WARMING UP THE
ENGINE JUST AFTER IT
HAS STARTED
Proceed as follows:
❒drive off slowly, letting the engine turn
at medium revs. Do not accelerate
abruptly;
130
STARTING AND DRIVING
