Power steering oil FIAT DUCATO 2007 3.G Owners Manual
[x] Cancel search | Manufacturer: FIAT, Model Year: 2007, Model line: DUCATO, Model: FIAT DUCATO 2007 3.GPages: 282, PDF Size: 4.71 MB
Page 146 of 282
145
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES

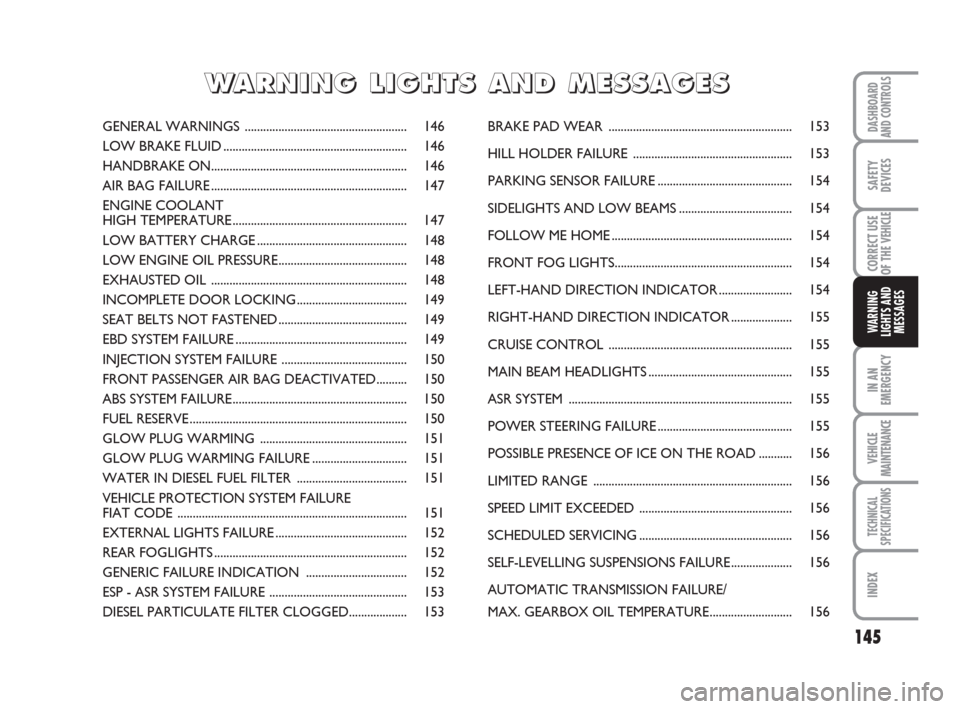

GENERAL WARNINGS ..................................................... 146
LOW BRAKE FLUID............................................................ 146
HANDBRAKE ON................................................................ 146
AIR BAG FAILURE................................................................ 147
ENGINE COOLANT
HIGH TEMPERATURE......................................................... 147
LOW BATTERY CHARGE................................................. 148
LOW ENGINE OIL PRESSURE.......................................... 148
EXHAUSTED OIL ................................................................ 148
INCOMPLETE DOOR LOCKING.................................... 149
SEAT BELTS NOT FASTENED.......................................... 149
EBD SYSTEM FAILURE........................................................ 149
INJECTION SYSTEM FAILURE ......................................... 150
FRONT PASSENGER AIR BAG DEACTIVATED.......... 150
ABS SYSTEM FAILURE......................................................... 150
FUEL RESERVE....................................................................... 150
GLOW PLUG WARMING ................................................ 151
GLOW PLUG WARMING FAILURE............................... 151
WATER IN DIESEL FUEL FILTER .................................... 151
VEHICLE PROTECTION SYSTEM FAILURE
FIAT CODE ........................................................................... 151
EXTERNAL LIGHTS FAILURE........................................... 152
REAR FOGLIGHTS............................................................... 152
GENERIC FAILURE INDICATION ................................. 152
ESP - ASR SYSTEM FAILURE ............................................. 153
DIESEL PARTICULATE FILTER CLOGGED................... 153BRAKE PAD WEAR ............................................................ 153
HILL HOLDER FAILURE .................................................... 153
PARKING SENSOR FAILURE............................................ 154
SIDELIGHTS AND LOW BEAMS..................................... 154
FOLLOW ME HOME........................................................... 154
FRONT FOG LIGHTS.......................................................... 154
LEFT-HAND DIRECTION INDICATOR........................ 154
RIGHT-HAND DIRECTION INDICATOR.................... 155
CRUISE CONTROL ............................................................ 155
MAIN BEAM HEADLIGHTS............................................... 155
ASR SYSTEM ......................................................................... 155
POWER STEERING FAILURE............................................ 155
POSSIBLE PRESENCE OF ICE ON THE ROAD ........... 156
LIMITED RANGE ................................................................. 156
SPEED LIMIT EXCEEDED .................................................. 156
SCHEDULED SERVICING.................................................. 156
SELF-LEVELLING SUSPENSIONS FAILURE.................... 156
AUTOMATIC TRANSMISSION FAILURE/
MAX. GEARBOX OIL TEMPERATURE........................... 156
WW W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
145-156 Ducato GB 6-11-2007 10:28 Pagina 145
Page 197 of 282
196
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE VEHICLE
IN AN
EMERGENCY
VEICHLE
MAINTENANCE
CHECKING FLUID

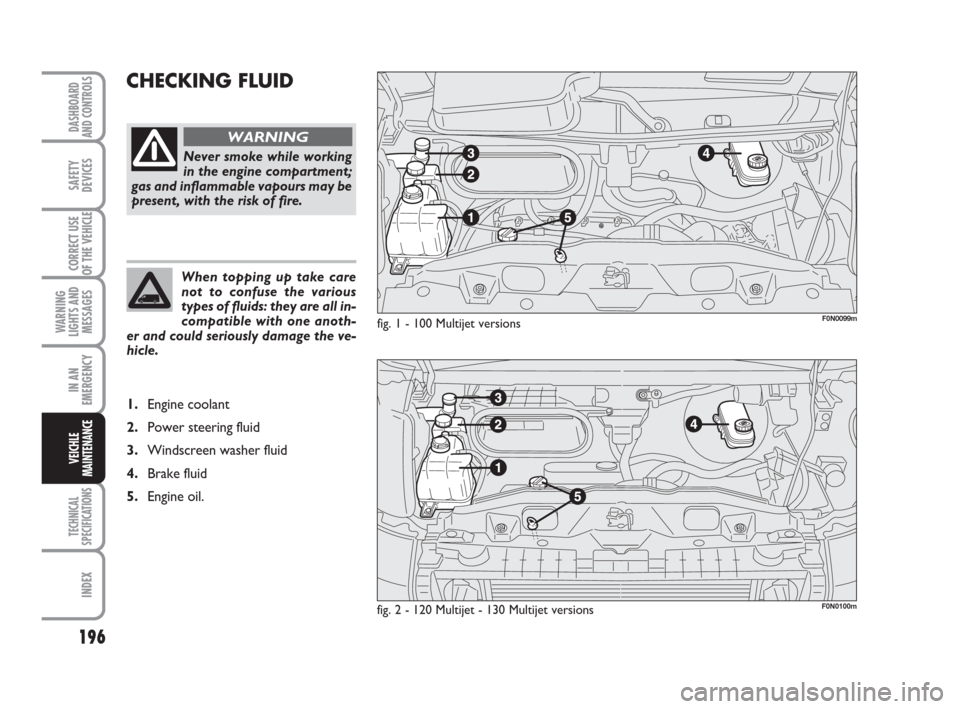

fig. 1 - 100 Multijet versions
Never smoke while working
in the engine compartment;
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
When topping up take care
not to confuse the various
types of fluids: they are all in-
compatible with one anoth-
er and could seriously damage the ve-
hicle.
1.Engine coolant
2.Power steering fluid
3.Windscreen washer fluid
4.Brake fluid
5.Engine oil.
F0N0099m
fig. 2 - 120 Multijet - 130 Multijet versionsF0N0100m
189-210 Ducato GB 6-11-2007 10:34 Pagina 196
Page 198 of 282
197
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
When topping up take care
not to confuse the various
types of fluids: they are all in-
compatible with one anoth-
er and could seriously damage the ve-
hicle.

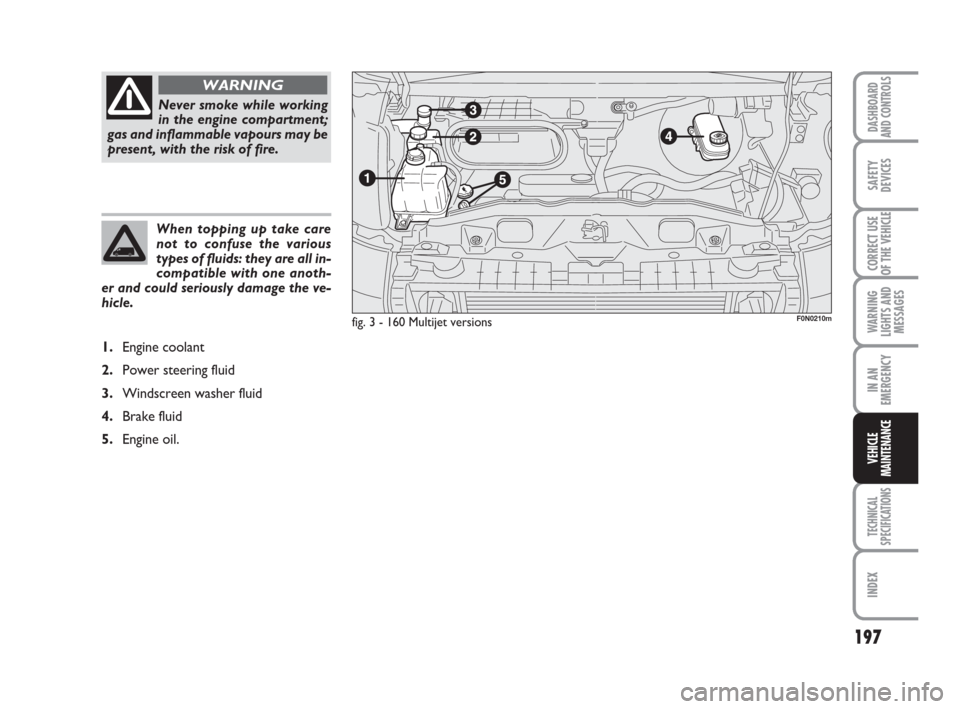

fig. 3 - 160 Multijet versionsF0N0210m
1.Engine coolant
2.Power steering fluid
3.Windscreen washer fluid
4.Brake fluid
5.Engine oil.
Never smoke while working
in the engine compartment;
gas and inflammable vapours may be
present, with the risk of fire.
WARNING
189-210 Ducato GB 6-11-2007 10:34 Pagina 197
Page 264 of 282
263
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
Lubricants
and greases
for transmission Use Fluid and lubricant quality specifications Genuine flluids Applications
for correct vehicle operation and lubricants
Brake fluids
Protective agent
for radiators
Additive for
diesel fuel
Windscreen/
rear window
washer fluid
(*) IMPORTANT Do not top up or mix with fluids having characteristics different from those specified.
(❑) For particularly hard climate conditions, we recommend use of a 60% PARAFLU UP and 40% demineralized water mixture.
Mechanical gearbox
and differential
Mechanical gearbox
and differential
CV joints on
wheel side
CV joints on
differential side
CV joints on
differential side
Hydraulic power
steering
Brake and clutch
hydraulic controls
Cooling circuits,
proportion: 50%
water and 50%
PARAFLU UP
(❑)
To be mixed with
diesel fuel
(25 cc per 10 litres)
To be used diluted or
undiluted in wind-
screen/rear window
washer/wiper systems TUTELA CAR
EXPERYA
TUTELA CAR
MATRYX
TUTELA STAR 500
TUTELA
MRM ZERO
TUTELA STAR 325
TUTELA GI/E
TUTELA TOP 4
PARAFLU UP (*)
TUTELA DIESEL
ART
TUTELA
PROFESSIONAL
SC 35 Synthetic-based oil, grade SAE 75W-80
that passes API GL-4 specifications
Synthetic-based oil, grade SAE 75W-85
that passes API GL-4 specifications
Molibdenum disulphide, lithium soap based grease.
NL.GI. 2 consistency
Lithium soap based grease.
NL.GI. 0 consistency
Poly-urea oil synthetic-based grease suitable for
high temperatures.
NL.GI. 2 consistency
Lubricant for power steering and automatic
transmissions that passes ATF DEXRON III specifications
Synthetic fluid FMVSS no. 116 DOT 4, ISO 4925
SAE J1704, CUNA NC 956- 01
Protective with antifreeze action, red colour based
on inhibited monoethylen glycol and organic formula,
that passes CUNA NC 956-16, ASTM D 3306
specifications
Additive for diesel fuels with protective action
for Diesel engines
Mixture of alcohol, water and surfactants
CUNA NC 956-II
211-269 Ducato GB 6-11-2007 10:35 Pagina 263
Page 273 of 282
272
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

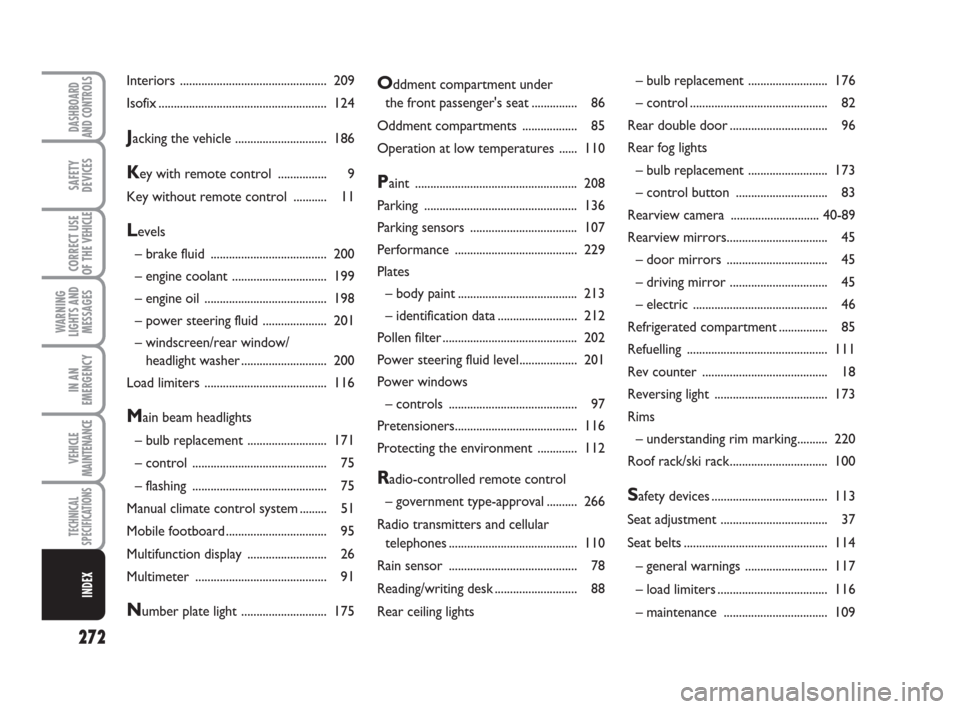

Oddment compartment under
the front passenger's seat ............... 86
Oddment compartments .................. 85
Operation at low temperatures ...... 110
Paint ..................................................... 208
Parking .................................................. 136
Parking sensors ................................... 107
Performance ........................................ 229
Plates
– body paint....................................... 213
– identification data.......................... 212
Pollen filter............................................ 202
Power steering fluid level................... 201
Power windows
– controls .......................................... 97
Pretensioners........................................ 116
Protecting the environment ............. 112
Radio-controlled remote control
– government type-approval.......... 266
Radio transmitters and cellular
telephones.......................................... 110
Rain sensor .......................................... 78
Reading/writing desk........................... 88
Rear ceiling lights– bulb replacement .......................... 176
– control............................................. 82
Rear double door................................ 96
Rear fog lights
– bulb replacement .......................... 173
– control button .............................. 83
Rearview camera ............................. 40-89
Rearview mirrors................................. 45
– door mirrors ................................. 45
– driving mirror ................................ 45
– electric ............................................ 46
Refrigerated compartment................ 85
Refuelling .............................................. 111
Rev counter ......................................... 18
Reversing light ..................................... 173
Rims
– understanding rim marking.......... 220
Roof rack/ski rack................................ 100
Safety devices...................................... 113
Seat adjustment ................................... 37
Seat belts............................................... 114
– general warnings ........................... 117
– load limiters.................................... 116
– maintenance .................................. 109 Interiors ................................................ 209
Isofix....................................................... 124
Jacking the vehicle .............................. 186
Key with remote control ................ 9
Key without remote control ........... 11
Levels
– brake fluid ...................................... 200
– engine coolant ............................... 199
– engine oil ........................................ 198
– power steering fluid ..................... 201
– windscreen/rear window/
headlight washer............................ 200
Load limiters ........................................ 116
Main beam headlights
– bulb replacement .......................... 171
– control ............................................ 75
– flashing ............................................ 75
Manual climate control system ......... 51
Mobile footboard................................. 95
Multifunction display .......................... 26
Multimeter ........................................... 91
Number plate light ............................ 175
270-280 Ducato GB 6-11-2007 10:35 Pagina 272
