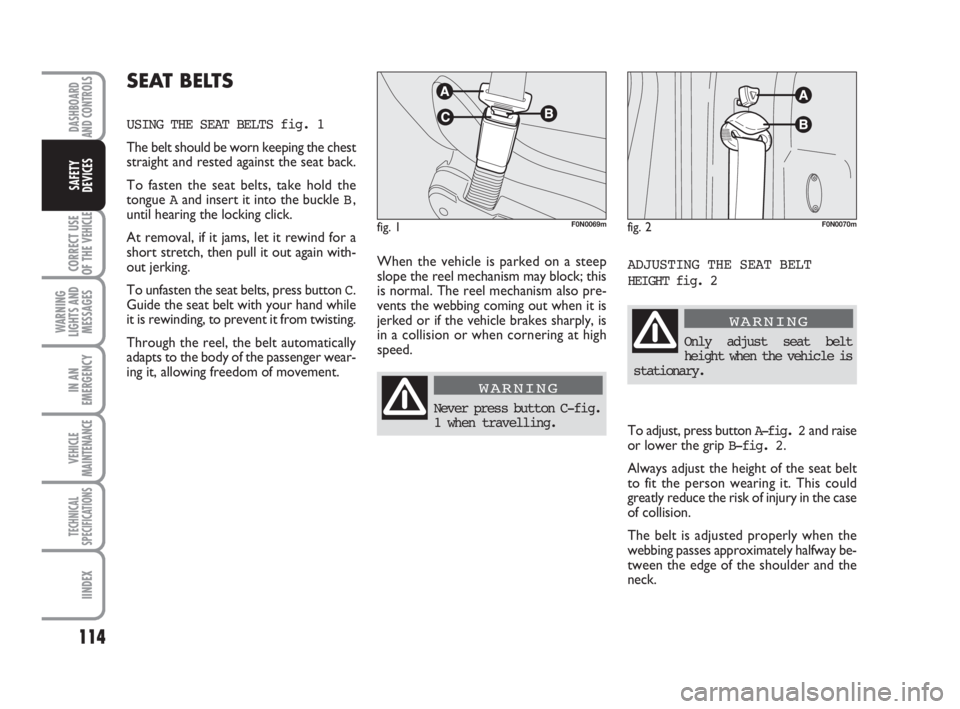

When the vehicle is parked on a steep
slope the reel mechanism may block; this
is normal. The reel mechanism also pre-
vents the webbing coming out when it is
jerked or if the vehicle brakes sharply, is
in a collision or when cornering at high
speed.ADJUSTING THE SEAT BELT
HEIGHT fig. 2
SEAT BELTS
USING THE SEAT BELTS fig. 1
The belt should be worn keeping the chest
straight and rested against the seat back.
To fasten the seat belts, take hold the
tongue Aand insert it into the buckle B,
until hearing the locking click.
At removal, if it jams, let it rewind for a
short stretch, then pull it out again with-
out jerking.
To unfasten the seat belts, press button C.
Guide the seat belt with your hand while
it is rewinding, to prevent it from twisting.
Through the reel, the belt automatically
adapts to the body of the passenger wear-
ing it, allowing freedom of movement.
fig. 1F0N0069mfig. 2F0N0070m
Never press button C-fig.
1 when travelling.
WARNING
Only adjust seat belt
height when the vehicle is
stationary.
WARNING
To adjust, press button A-fig. 2and raise
or lower the grip B-fig. 2.
Always adjust the height of the seat belt
to fit the person wearing it. This could
greatly reduce the risk of injury in the case
of collision.
The belt is adjusted properly when the
webbing passes approximately halfway be-
tween the edge of the shoulder and the
neck.
113-132 Ducato GB 6-11-2007 9:59 Pagina 114

115
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

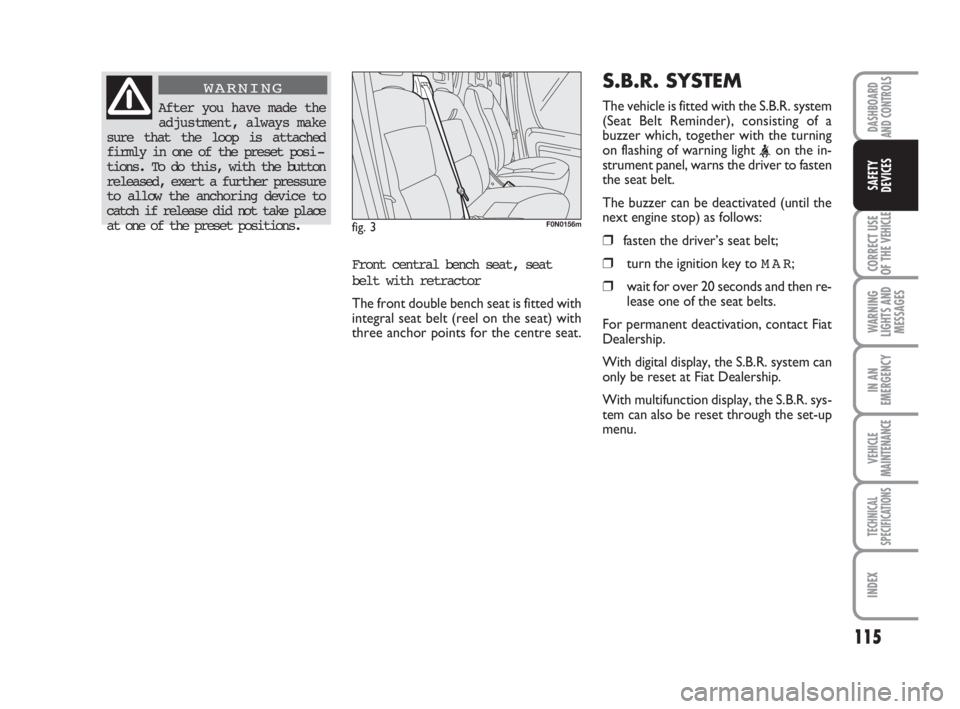

After you have made the
adjustment, always make
sure that the loop is attached
firmly in one of the preset posi -
tions. To do this, with the button
released, exert a further pressure
to allow the anchoring device to
catch if release did not take place
at one of the preset positions.
WARNING
Front central bench seat, seat
belt with retractor
The front double bench seat is fitted with
integral seat belt (reel on the seat) with
three anchor points for the centre seat.
fig. 3F0N0156m
S.B.R. SYSTEM
The vehicle is fitted with the S.B.R. system
(Seat Belt Reminder), consisting of a
buzzer which, together with the turning
on flashing of warning light
strument panel, warns the driver to fasten
the seat belt.
The buzzer can be deactivated (until the
next engine stop) as follows:
❒fasten the driver’s seat belt;
❒turn the ignition key to MAR;
❒wait for over 20 seconds and then re-
lease one of the seat belts.
For permanent deactivation, contact Fiat
Dealership.
With digital display, the S.B.R. system can
only be reset at Fiat Dealership.
With multifunction display, the S.B.R. sys-
tem can also be reset through the set-up
menu.
113-132 Ducato GB 6-11-2007 9:59 Pagina 115

116
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
PRETENSIONERS
To increase the efficiency of the seat belts,
the vehicle is fitted with pretensioners.
These devices, in the event of a violent
front crash, rewind the seat belts a few
centimetres. In this way they ensure that
the seat belt adheres perfectly to the
wearer before the restraining action be-
gins.
Pretensioner activation is indicated by
buckle withdrawal downwards; the seat
belt cannot be drawn back up even when
guiding it manually.
IMPORTANT To obtain the highest de-
gree of protection from the action of the
pretensioning device, wear the seat belt
keeping it firmly close to the chest and
pelvis.
A small amount of smoke may be pro-
duced. This smoke is in no way toxic and
presents no fire hazard.
The pretensioner does not require any
maintenance or greasing.
Anything that modifies its original condi-
tions invalidates its efficiency.
If due to unusual natural events (floods,
seas storm, etc.) the device has been af-
fected by water and mud, it must neces-
sarily be replaced.LOAD LIMITERS
To increase passenger’s safety, the front
seat belt reels contain a load limiter which
allows controlled sag in such a way as to
dose the force acting on the chest and
shoulders during the belt restraining ac-
tion in case of front crash.The pretensioner can on -
ly be used once. After a
collision that has triggered it,
have it replaced at a Fiat Dealer -
ship. Pretensioner validity is in -
dicated on the label in the glove
compartment: the pretensioners
should be replaced at a Fiat Deal -
ership as this date approaches.
WARNING
Operations which lead to
knocks, vibrations or lo -
calised heating (over
100°C for a maximum of 6
hours) in the area around the pre -
tensioners may cause damage or
trigger them. These devices are not
affected by vibrations caused by ir -
regularities of the road surface or
low obstacles such as kerbs, etc.
Contact a Fiat Dealership for any
assistance.
113-132 Ducato GB 6-11-2007 9:59 Pagina 116

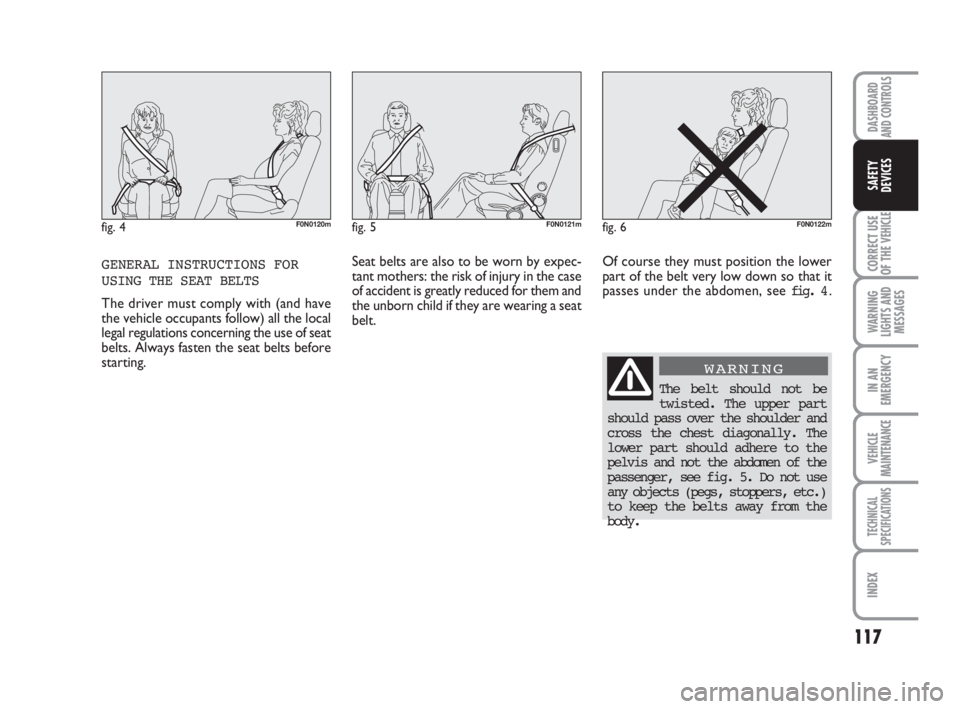

GENERAL INSTRUCTIONS FOR
USING THE SEAT BELTS
The driver must comply with (and have
the vehicle occupants follow) all the local
legal regulations concerning the use of seat
belts. Always fasten the seat belts before
starting.Seat belts are also to be worn by expec-
tant mothers: the risk of injury in the case
of accident is greatly reduced for them and
the unborn child if they are wearing a seat
belt.Of course they must position the lower
part of the belt very low down so that it
passes under the abdomen, see fig. 4.
117
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 4F0N0120mfig. 5F0N0121mfig. 6F0N0122m
The belt should not be
twisted. The upper part
should pass over the shoulder and
cross the chest diagonally. The
lower part should adhere to the
pelvis and not the abdomen of the
passenger, see fig. 5. Do not use
any objects (pegs, stoppers, etc.)
to keep the belts away from the
body.
WARNING
113-132 Ducato GB 6-11-2007 9:59 Pagina 117

118
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES

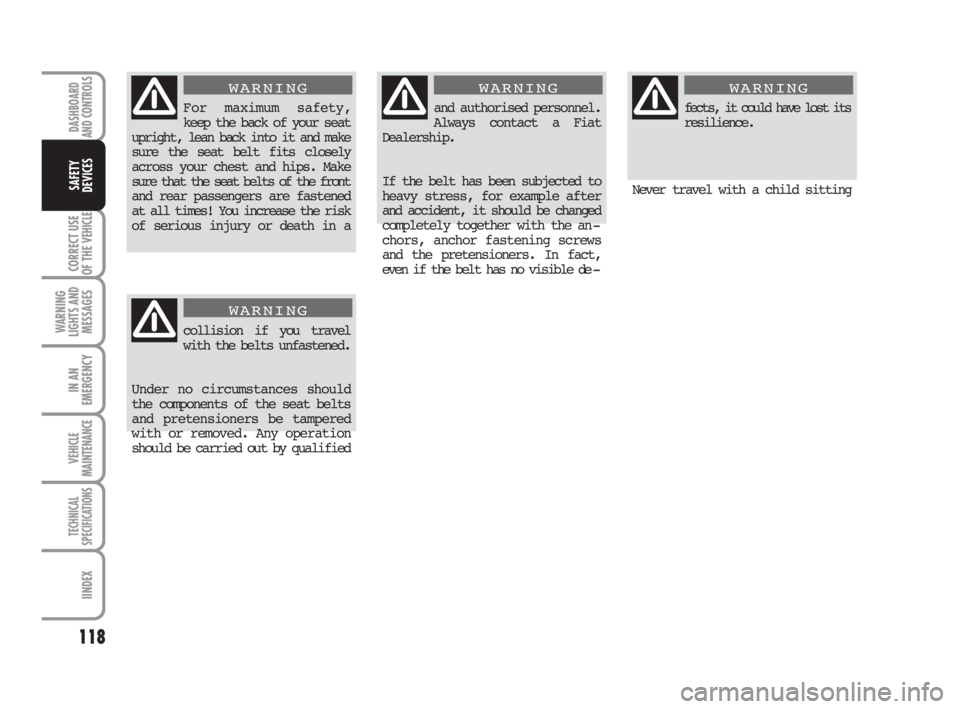

For maximum safety,
keep the back of your seat
upright, lean back into it and make
sure the seat belt fits closely
across your chest and hips. Make
sure that the seat belts of the front
and rear passengers are fastened
at all times! You increase the risk
of serious injury or death in a
WARNING
collision if you travel
with the belts unfastened.
Under no circumstances should
the components of the seat belts
and pretensioners be tampered
with or removed. Any operation
should be carried out by qualified
WARNING
and authorised personnel.
Always contact a Fiat
Dealership.
If the belt has been subjected to
heavy stress, for example after
and accident, it should be changed
completely together with the an -
chors, anchor fastening screws
and the pretensioners. In fact,
even if the belt has no visible de -
WARNING
fects, it could have lost its
resilience.
Never travel with a child sitting
WARNING
113-132 Ducato GB 6-11-2007 9:59 Pagina 118

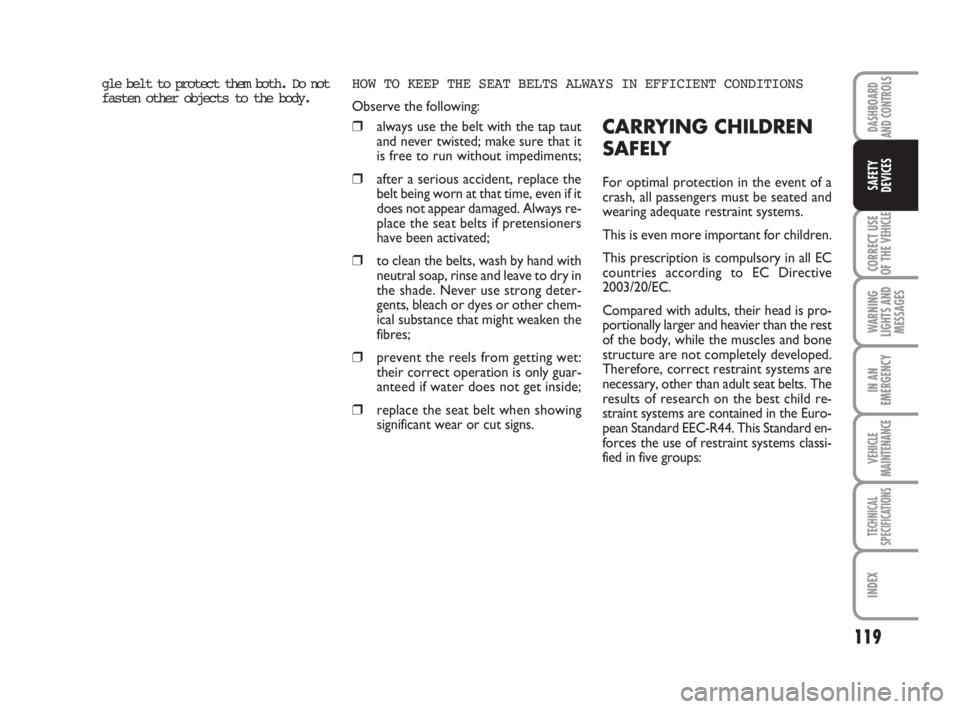

gle belt to protect them both. Do not
fasten other objects to the body.
❒always use the belt with the tap taut
and never twisted; make sure that it
is free to run without impediments;
❒after a serious accident, replace the
belt being worn at that time, even if it
does not appear damaged. Always re-
place the seat belts if pretensioners
have been activated;
❒to clean the belts, wash by hand with
neutral soap, rinse and leave to dry in
the shade. Never use strong deter-
gents, bleach or dyes or other chem-
ical substance that might weaken the
fibres;
❒prevent the reels from getting wet:
their correct operation is only guar-
anteed if water does not get inside;
❒replace the seat belt when showing
significant wear or cut signs.
CARRYING CHILDREN
SAFELY
For optimal protection in the event of a
crash, all passengers must be seated and
wearing adequate restraint systems.
This is even more important for children.
This prescription is compulsory in all EC
countries according to EC Directive
2003/20/EC.
Compared with adults, their head is pro-
portionally larger and heavier than the rest
of the body, while the muscles and bone
structure are not completely developed.
Therefore, correct restraint systems are
necessary, other than adult seat belts. The
results of research on the best child re-
straint systems are contained in the Euro-
pean Standard EEC-R44. This Standard en-
forces the use of restraint systems classi-
fied in five groups:
119
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
HOW TO KEEP THE SEAT BELTS ALWAYS IN EFFICIENT CONDITIONS
Observe the following:
113-132 Ducato GB 6-11-2007 9:59 Pagina 119

120
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Group 0 0-10 kg in weight
Group 0+0-13 kg in
weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
WARNING
As it may be noted, the groups
overlap partly and in fact, in
commerce it is possible to find
devices that cover more than
one weight group.
All restraint devices must bear the cer-
tification data, together with the control
brand, on a solidly fixed label which must
absolutely never be removed.
Over 1.50 m in height, from the point of
view of restraint systems, children are
considered as adults and wear the seat
belts normally.
WARNING
fig. 7F0N0123m
the rear seat, as this is the most protected position in the case
of a crash.
WARNING
SERIOUS DANGER Should it be absolutely necessary to carry a
child on the front passenger’s seat with the cradle seat facing
backwards, passenger’s air bags (front and side bags, where provided),
shall be deactivated through the setup menu. Deactivation shall be checked
through the instrument panel warning light F. The front passenger’s
seat shall also be adjusted in the most backward position to prevent
WARNING
fig. 8F0N0124m
With front passenger’s air bag ac -
tive do not place cradle child’s seats
facing backwards on the front pas -
senger seat since the air bag acti -
vation could cause serious injuries,
even mortal regardless of the se -
riousness of the crash. You are ad -
vised to carry children always on
113-132 Ducato GB 6-11-2007 9:59 Pagina 120

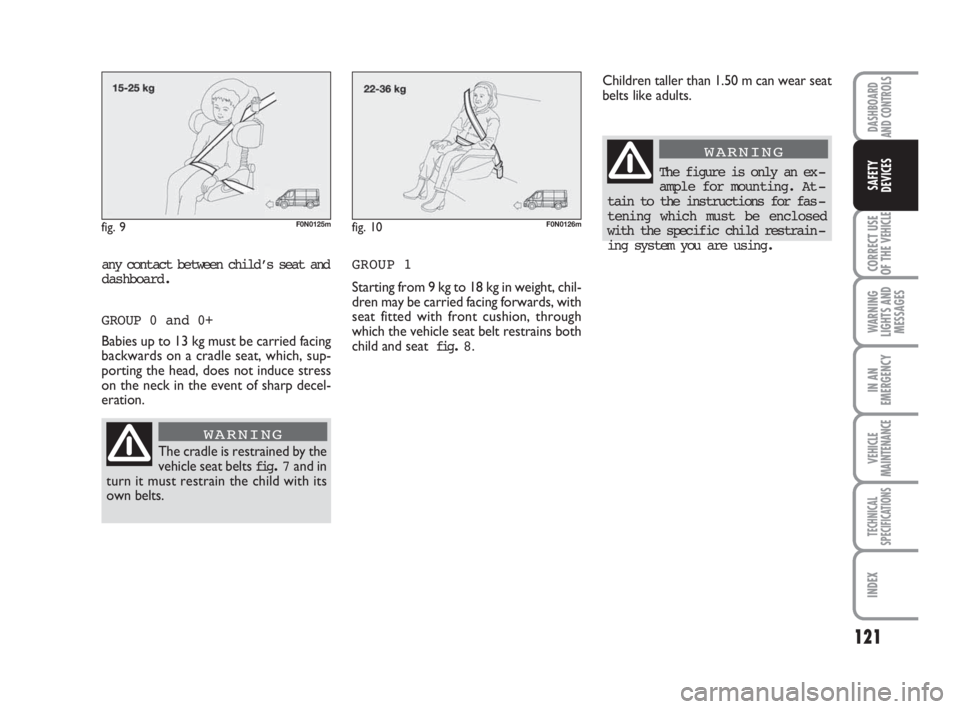

121
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
fig. 9F0N0125m
any contact between child’s seat and
dashboard.
GROUP 0 and 0+
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress
on the neck in the event of sharp decel-
eration.
The cradle is restrained by the
vehicle seat belts fig. 7and in
turn it must restrain the child with its
own belts.
WARNING
GROUP 1
Starting from 9 kg to 18 kg in weight, chil-
dren may be carried facing forwards, with
seat fitted with front cushion, through
which the vehicle seat belt restrains both
child and seat fig. 8.
fig. 10F0N0126m
The figure is only an ex -
ample for mounting. At -
tain to the instructions for fas -
tening which must be enclosed
with the specific child restrain -
ing system you are using.
WARNING
Children taller than 1.50 m can wear seat
belts like adults.
113-132 Ducato GB 6-11-2007 9:59 Pagina 121

122
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
IINDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
Seats exist which are suitable for covering weight groups 0 and 1 with a rear connection to the vehicle belts and
their own belts to restrain the child. Due to their size, they can be dangerous if installed incorrectly fastened to the
vehicle belts with a cushion. Carefully follow the instructions for installation provided with the seat.
GROUP 2
Starting from 15 kg to 25 kg in weight, children may be restrained directly by the vehicle belts fig. 9. The only function of the seat
is to position the child correctly in relation to the belts, so that the diagonal part adheres to the chest and not to the neck and that
the horizontal part clings to the child’s pelvis and not the abdomen.
113-132 Ducato GB 6-11-2007 9:59 Pagina 122

123
CORRECT USE
OF THE
VEHICLE
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
The figure is only an example for
mounting. Attain to the instructions
for fastening which must be en -
closed with the specific child re -
straining system you are using.
GROUP 3
For children from 22 kg to 36 kg the size
of the child’s chest no longer requires a
support to space the child’s back from the
seat back.
Fig. 10shows proper child seat posi-
tioning on the rear seat.The figure is only an example for
mounting. Attain to the instructions
for fastening which must be en -
closed with the specific child re -
straining system you are using.
PASSENGER SEAT COMPLIANCE
WITH REGULATIONS ON CHILD’S
SEAT USE
Your vehicle complies with the new Eu-
ropean Directive 2000/3/EC regulating
child’s seat assembling on the different ve-
hicle seats according to the following ta-
bles:
GroupRange
weightVAN, COMBI and
PANORAMA versions
CAB
1
STAND 2NDROW OF REAR
SEATS
Single or two-
Left side
Right side
Central
seater seat
rear
rear
passenger
WARNING
113-132 Ducato GB 6-11-2007 9:59 Pagina 123
