FIAT DUCATO 2015 3.G Owners Manual

Warning lights on
displayWhat it means What to do

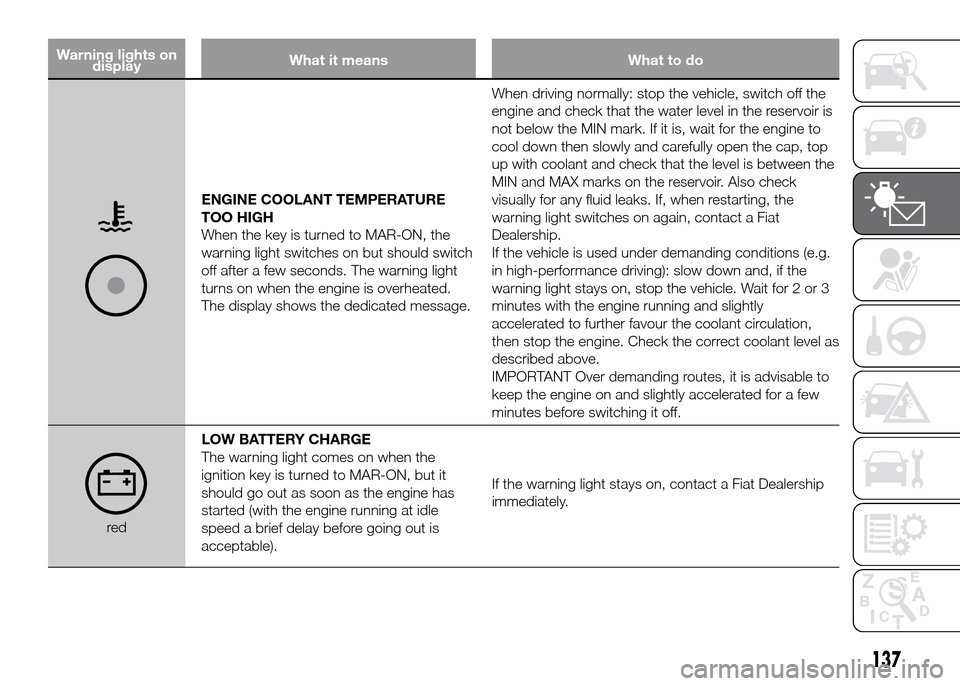

ENGINE COOLANT TEMPERATURE
TOO HIGH
When the key is turned to MAR-ON, the
warning light switches on but should switch
off after a few seconds. The warning light
turns on when the engine is overheated.
The display shows the dedicated message.When driving normally: stop the vehicle, switch off the
engine and check that the water level in the reservoir is
not below the MIN mark. If it is, wait for the engine to
cool down then slowly and carefully open the cap, top
up with coolant and check that the level is between the
MIN and MAX marks on the reservoir. Also check
visually for any fluid leaks. If, when restarting, the
warning light switches on again, contact a Fiat
Dealership.
If the vehicle is used under demanding conditions (e.g.
in high-performance driving): slow down and, if the
warning light stays on, stop the vehicle. Wait for 2 or 3
minutes with the engine running and slightly
accelerated to further favour the coolant circulation,
then stop the engine. Check the correct coolant level as
described above.
IMPORTANT Over demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few
minutes before switching it off.
redLOW BATTERY CHARGE
The warning light comes on when the
ignition key is turned to MAR-ON, but it
should go out as soon as the engine has
started (with the engine running at idle
speed a brief delay before going out is
acceptable).If the warning light stays on, contact a Fiat Dealership
immediately.
137

Warning lights on
displayWhat it means What to do

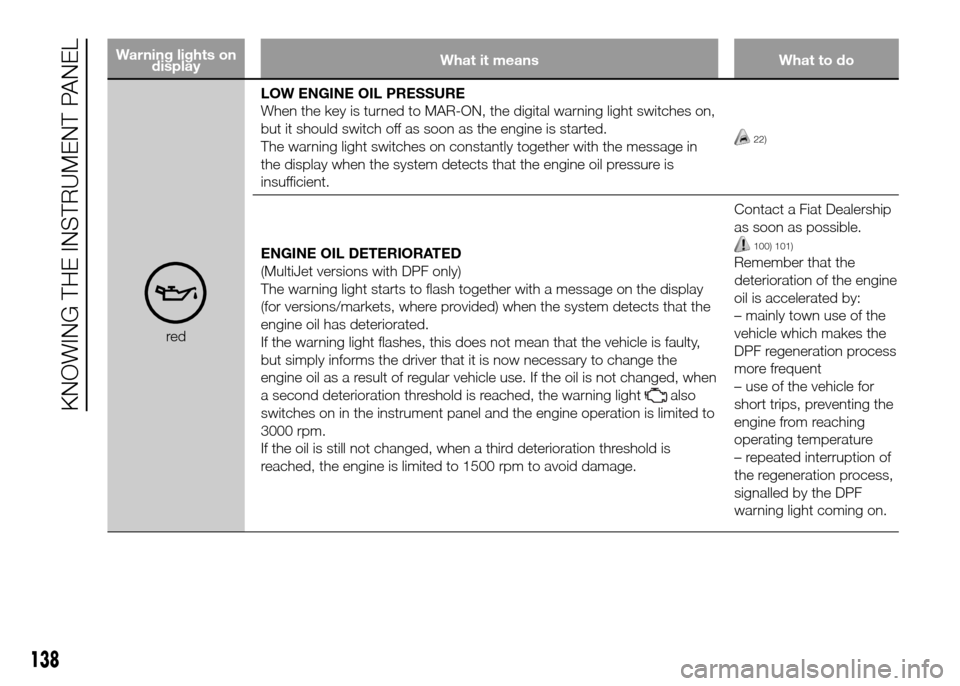

redLOW ENGINE OIL PRESSURE
When the key is turned to MAR-ON, the digital warning light switches on,
but it should switch off as soon as the engine is started.
The warning light switches on constantly together with the message in
the display when the system detects that the engine oil pressure is
insufficient.
22)
ENGINE OIL DETERIORATED
(MultiJet versions with DPF only)
The warning light starts to flash together with a message on the display
(for versions/markets, where provided) when the system detects that the
engine oil has deteriorated.
If the warning light flashes, this does not mean that the vehicle is faulty,
but simply informs the driver that it is now necessary to change the
engine oil as a result of regular vehicle use. If the oil is not changed, when
a second deterioration threshold is reached, the warning light
also
switches on in the instrument panel and the engine operation is limited to
3000 rpm.
If the oil is still not changed, when a third deterioration threshold is
reached, the engine is limited to 1500 rpm to avoid damage.Contact a Fiat Dealership
as soon as possible.
100) 101)
Remember that the
deterioration of the engine
oil is accelerated by:
– mainly town use of the
vehicle which makes the
DPF regeneration process
more frequent
– use of the vehicle for
short trips, preventing the
engine from reaching
operating temperature
– repeated interruption of
the regeneration process,
signalled by the DPF
warning light coming on.
138
KNOWING THE INSTRUMENT PANEL

Warning lights on
displayWhat it means What to do

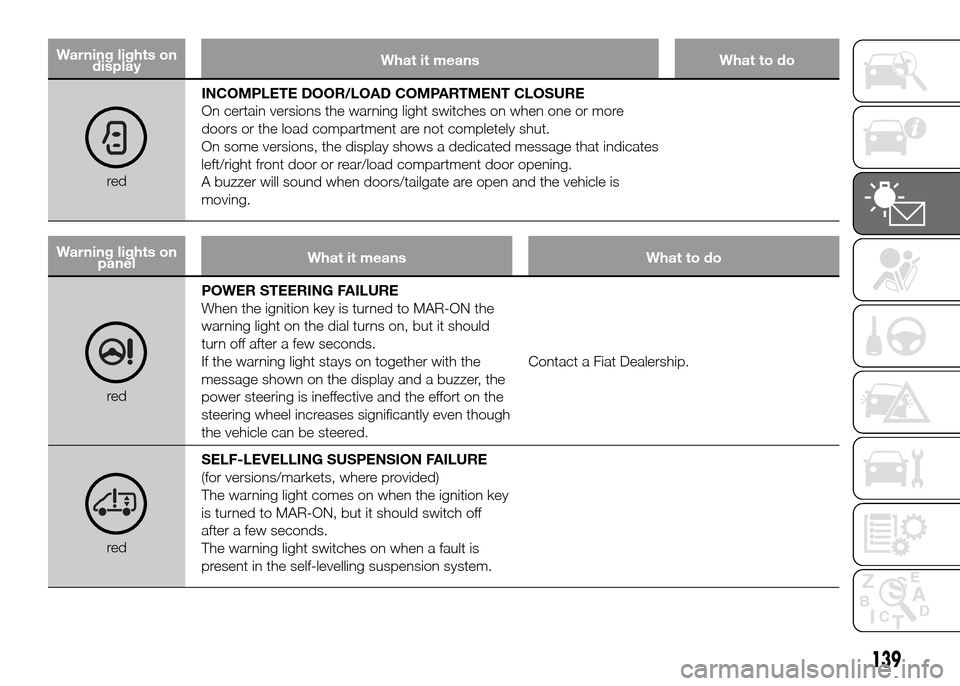

redINCOMPLETE DOOR/LOAD COMPARTMENT CLOSURE
On certain versions the warning light switches on when one or more
doors or the load compartment are not completely shut.
On some versions, the display shows a dedicated message that indicates
left/right front door or rear/load compartment door opening.
A buzzer will sound when doors/tailgate are open and the vehicle is
moving.
Warning lights on
panelWhat it means What to do
redPOWER STEERING FAILURE
When the ignition key is turned to MAR-ON the
warning light on the dial turns on, but it should
turn off after a few seconds.
If the warning light stays on together with the
message shown on the display and a buzzer, the
power steering is ineffective and the effort on the
steering wheel increases significantly even though
the vehicle can be steered.Contact a Fiat Dealership.
redSELF-LEVELLING SUSPENSION FAILURE
(for versions/markets, where provided)
The warning light comes on when the ignition key
is turned to MAR-ON, but it should switch off
after a few seconds.
The warning light switches on when a fault is
present in the self-levelling suspension system.
139

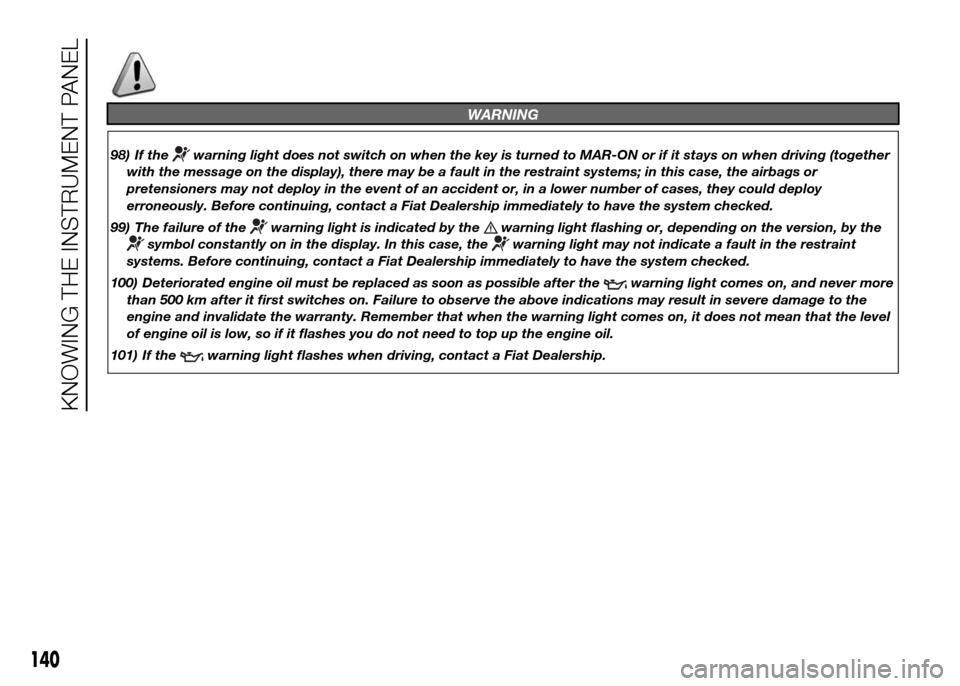

WARNING
98) If thewarning light does not switch on when the key is turned to MAR-ON or if it stays on when driving (together
with the message on the display), there may be a fault in the restraint systems; in this case, the airbags or
pretensioners may not deploy in the event of an accident or, in a lower number of cases, they could deploy
erroneously. Before continuing, contact a Fiat Dealership immediately to have the system checked.
99) The failure of the
warning light is indicated by thewarning light flashing or, depending on the version, by the
symbol constantly on in the display. In this case, thewarning light may not indicate a fault in the restraint
systems. Before continuing, contact a Fiat Dealership immediately to have the system checked.
100) Deteriorated engine oil must be replaced as soon as possible after the
warning light comes on, and never more
than 500 km after it first switches on. Failure to observe the above indications may result in severe damage to the
engine and invalidate the warranty. Remember that when the warning light comes on, it does not mean that the level
of engine oil is low, so if it flashes you do not need to top up the engine oil.
101) If the
warning light flashes when driving, contact a Fiat Dealership.
140
KNOWING THE INSTRUMENT PANEL

IMPORTANT
22) If thewarning light switches on when driving, stop the engine immediately and contact an Fiat Dealership.
Warning lights on
panelWhat it means What to do

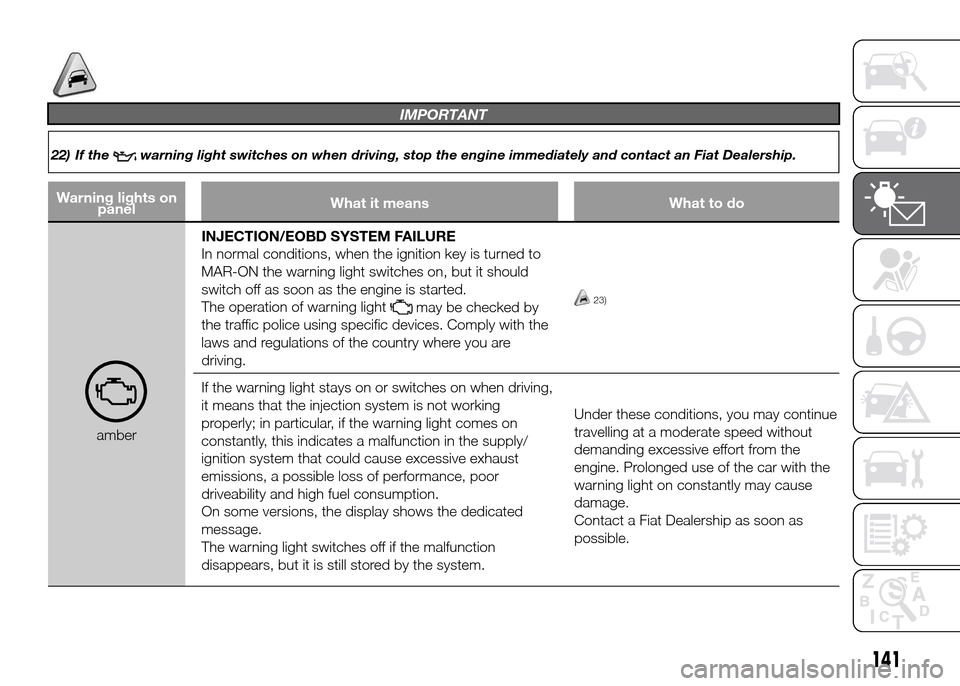

amberINJECTION/EOBD SYSTEM FAILURE
In normal conditions, when the ignition key is turned to
MAR-ON the warning light switches on, but it should
switch off as soon as the engine is started.
The operation of warning light
may be checked by
the traffic police using specific devices. Comply with the
laws and regulations of the country where you are
driving.23)
If the warning light stays on or switches on when driving,
it means that the injection system is not working
properly; in particular, if the warning light comes on
constantly, this indicates a malfunction in the supply/
ignition system that could cause excessive exhaust
emissions, a possible loss of performance, poor
driveability and high fuel consumption.
On some versions, the display shows the dedicated
message.
The warning light switches off if the malfunction
disappears, but it is still stored by the system.Under these conditions, you may continue
travelling at a moderate speed without
demanding excessive effort from the
engine. Prolonged use of the car with the
warning light on constantly may cause
damage.
Contact a Fiat Dealership as soon as
possible.
141

Warning lights on
panelWhat it means What to do

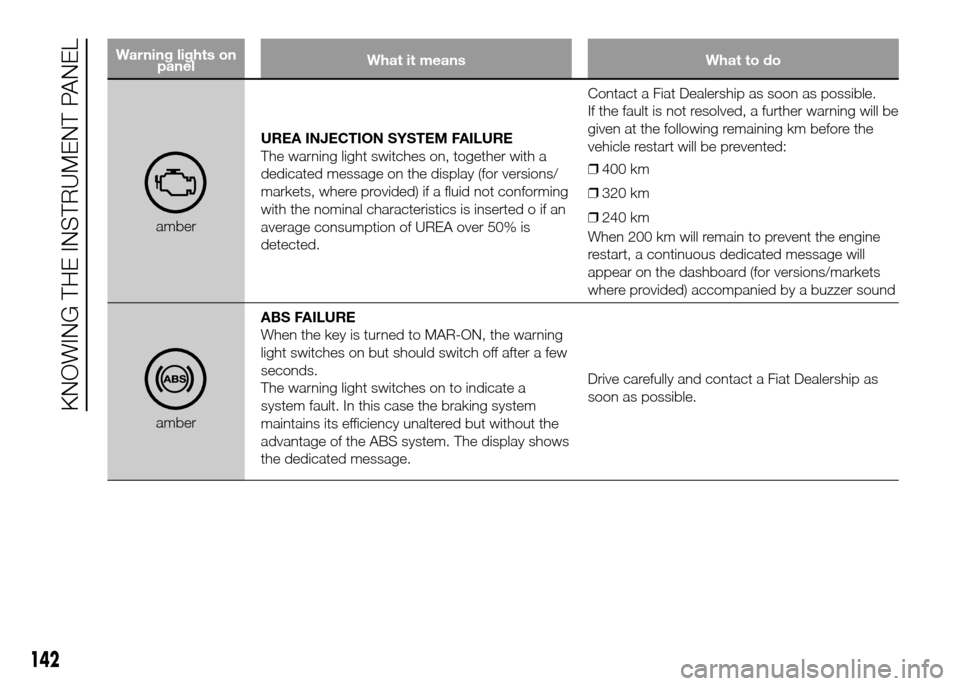

amberUREA INJECTION SYSTEM FAILURE
The warning light switches on, together with a
dedicated message on the display (for versions/
markets, where provided) if a fluid not conforming
with the nominal characteristics is inserted o if an
average consumption of UREA over 50% is
detected.Contact a Fiat Dealership as soon as possible.
If the fault is not resolved, a further warning will be
given at the following remaining km before the
vehicle restart will be prevented:
❒400 km
❒320 km
❒240 km
When 200 km will remain to prevent the engine
restart, a continuous dedicated message will
appear on the dashboard (for versions/markets
where provided) accompanied by a buzzer sound
amberABS FAILURE
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light switches on to indicate a
system fault. In this case the braking system
maintains its efficiency unaltered but without the
advantage of the ABS system. The display shows
the dedicated message.Drive carefully and contact a Fiat Dealership as
soon as possible.
142
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

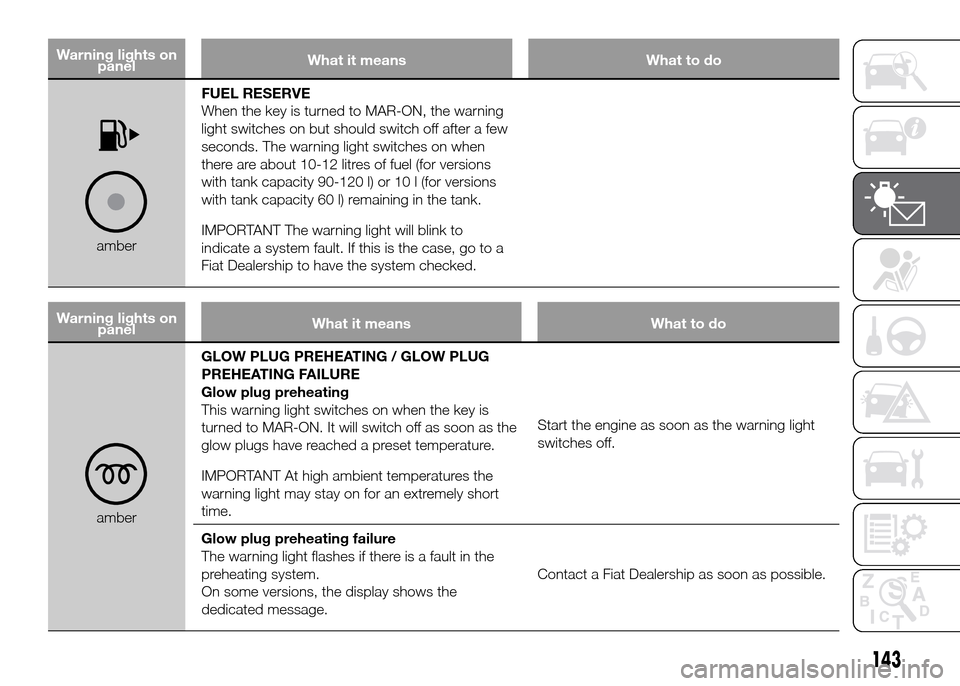

amberFUEL RESERVE
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds. The warning light switches on when
there are about 10-12 litres of fuel (for versions
with tank capacity 90-120 l) or 10 l (for versions
with tank capacity 60 l) remaining in the tank.
IMPORTANT The warning light will blink to
indicate a system fault. If this is the case, go to a
Fiat Dealership to have the system checked.
Warning lights on
panelWhat it means What to do
amberGLOW PLUG PREHEATING / GLOW PLUG
PREHEATING FAILURE
Glow plug preheating
This warning light switches on when the key is
turned to MAR-ON. It will switch off as soon as the
glow plugs have reached a preset temperature.
IMPORTANT At high ambient temperatures the
warning light may stay on for an extremely short
time.Start the engine as soon as the warning light
switches off.
Glow plug preheating failure
The warning light flashes if there is a fault in the
preheating system.
On some versions, the display shows the
dedicated message.Contact a Fiat Dealership as soon as possible.
143

Warning lights on
panelWhat it means What to do

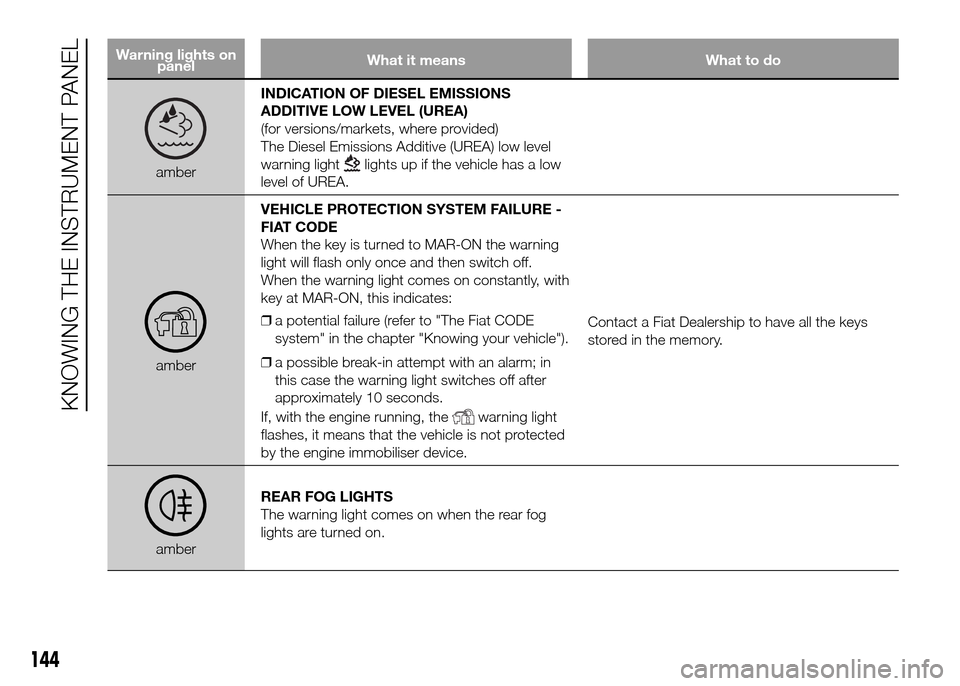

amberINDICATION OF DIESEL EMISSIONS
ADDITIVE LOW LEVEL (UREA)
(for versions/markets, where provided)
The Diesel Emissions Additive (UREA) low level
warning lightlights up if the vehicle has a low
level of UREA.
amberVEHICLE PROTECTION SYSTEM FAILURE -
FIAT CODE
When the key is turned to MAR-ON the warning
light will flash only once and then switch off.
When the warning light comes on constantly, with
key at MAR-ON, this indicates:
❒a potential failure (refer to "The Fiat CODE
system" in the chapter "Knowing your vehicle").
❒a possible break-in attempt with an alarm; in
this case the warning light switches off after
approximately 10 seconds.
If, with the engine running, the
warning light
flashes, it means that the vehicle is not protected
by the engine immobiliser device.Contact a Fiat Dealership to have all the keys
stored in the memory.
amberREAR FOG LIGHTS
The warning light comes on when the rear fog
lights are turned on.
144
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

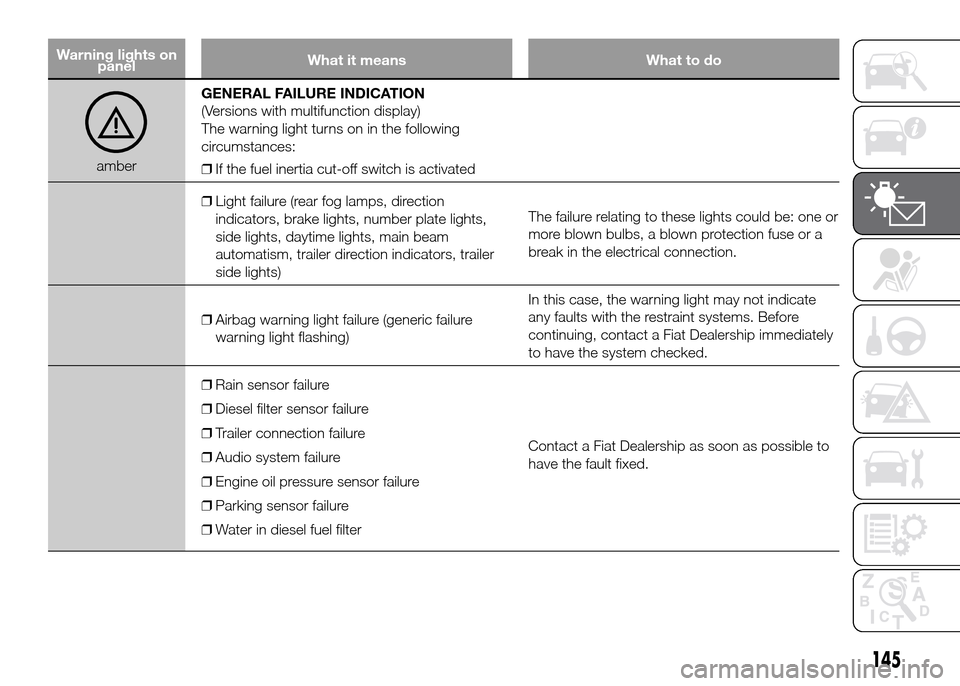

amberGENERAL FAILURE INDICATION
(Versions with multifunction display)
The warning light turns on in the following
circumstances:
❒If the fuel inertia cut-off switch is activated
❒Light failure (rear fog lamps, direction
indicators, brake lights, number plate lights,
side lights, daytime lights, main beam
automatism, trailer direction indicators, trailer
side lights)The failure relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a
break in the electrical connection.
❒Airbag warning light failure (generic failure
warning light flashing)In this case, the warning light may not indicate
any faults with the restraint systems. Before
continuing, contact a Fiat Dealership immediately
to have the system checked.
❒Rain sensor failure
❒Diesel filter sensor failure
❒Trailer connection failure
❒Audio system failure
❒Engine oil pressure sensor failure
❒Parking sensor failure
❒Water in diesel fuel filterContact a Fiat Dealership as soon as possible to
have the fault fixed.
145

Warning lights on
panelWhat it means What to do

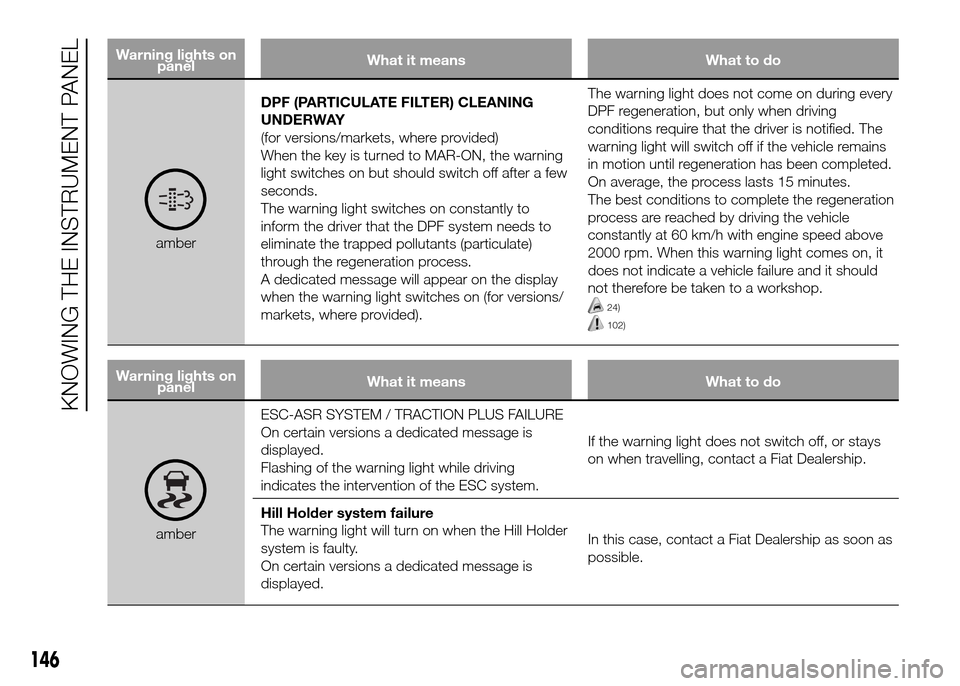

amberDPF (PARTICULATE FILTER) CLEANING
UNDERWAY
(for versions/markets, where provided)
When the key is turned to MAR-ON, the warning
light switches on but should switch off after a few
seconds.
The warning light switches on constantly to
inform the driver that the DPF system needs to
eliminate the trapped pollutants (particulate)
through the regeneration process.
A dedicated message will appear on the display
when the warning light switches on (for versions/
markets, where provided).The warning light does not come on during every
DPF regeneration, but only when driving
conditions require that the driver is notified. The
warning light will switch off if the vehicle remains
in motion until regeneration has been completed.
On average, the process lasts 15 minutes.
The best conditions to complete the regeneration
process are reached by driving the vehicle
constantly at 60 km/h with engine speed above
2000 rpm. When this warning light comes on, it
does not indicate a vehicle failure and it should
not therefore be taken to a workshop.
24)
102)
Warning lights on
panelWhat it means What to do
amberESC-ASR SYSTEM / TRACTION PLUS FAILURE
On certain versions a dedicated message is
displayed.
Flashing of the warning light while driving
indicates the intervention of the ESC system.If the warning light does not switch off, or stays
on when travelling, contact a Fiat Dealership.
Hill Holder system failure
The warning light will turn on when the Hill Holder
system is faulty.
On certain versions a dedicated message is
displayed.In this case, contact a Fiat Dealership as soon as
possible.
146
KNOWING THE INSTRUMENT PANEL
