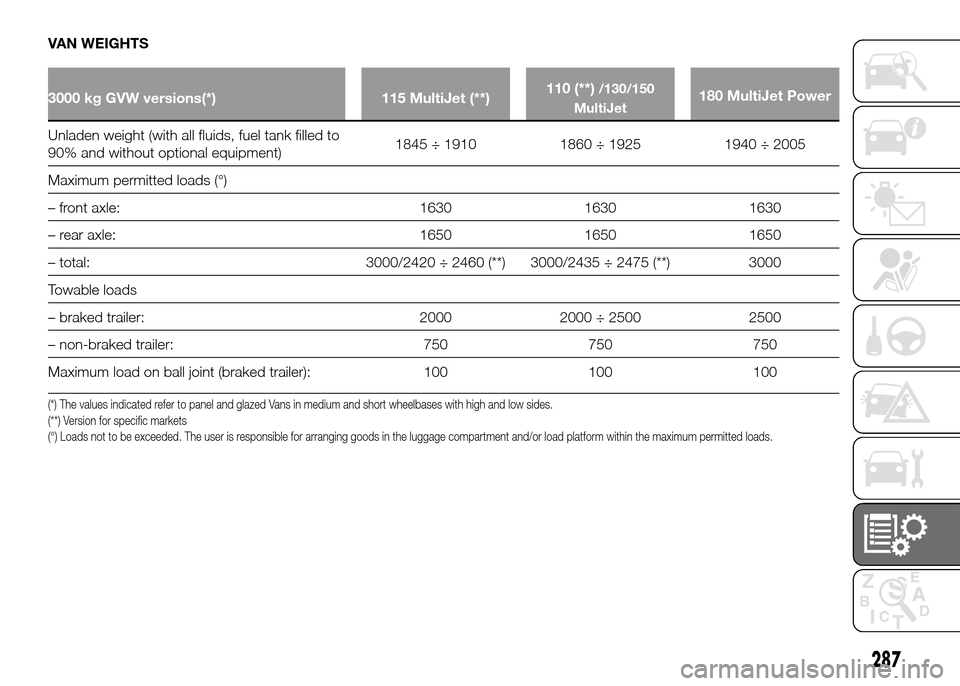

VAN WEIGHTS
3000 kg GVW versions(*) 115 MultiJet (**)110 (**)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1845 ÷ 1910 1860 ÷ 1925 1940 ÷ 2005
Maximum permitted loads (°)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 3000/2420 ÷ 2460 (**) 3000/2435 ÷ 2475 (**) 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
287

VAN WEIGHTS
3300 kg GVW versions(*) 115 MultiJet (**)110 (**)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1845 ÷ 1985 1860 ÷ 2000 1940 ÷ 2080
Maximum permitted loads (°)
– front axle: 1750 1750 1750 ÷ 1800
– rear axle: 1900 1900 1900
– total: 3300 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
288
TECHNICAL SPECIFICATIONS

VAN WEIGHTS
3500 kg GVW versions(*) 115 MultiJet (**)110 (**)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1845 ÷ 2035 1860 ÷ 2050 1940 ÷ 2130
Maximum permitted loads (°)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 ÷ 2500 2000
– total: 3490 ÷ 3500 3500 3500
Towable loads
– braked trailer: 2000 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
289

VAN WEIGHTS (MAXI versions)
3500 kg GVW versions(*)3995 kg - 4005 kg - 4250 kg GVW
versions(*)
110 (**)
/130/
150 MultiJet180 MultiJet
Power110 (**)/130/
150 MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1900 ÷ 2135 1980 ÷ 2215 1945 ÷ 2135 2025 ÷ 2215
Maximum permitted loads (°)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3995 ÷ 4250 3995 ÷ 4250
Towable loads
– braked trailer: 3000 3000 2000 ÷ 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
290
TECHNICAL SPECIFICATIONS

VAN WEIGHTS (MAXI versions)
3510 kg GVW versions(*) 110 (**)/130/150 MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%and without optional equipment)1900 ÷ 2090 2020 ÷ 2170
Maximum permitted loads (°)
– front axle: 2100 2100
– rear axle: 2400 2400
– total: 3510 3510
Towable loads
– braked trailer: 3000 3000
– non-braked trailer: 750 750
Maximum load on ball joint (braked trailer): 120 120
(*) The values indicated refer to panel and glazed Vans in medium and short wheelbases with high and low sides.
(**) Version for specific markets
(°) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permittedloads.
291

TRAILER TRUCK WEIGHTS
3000 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1795 ÷ 1875 1810 ÷ 1890 1890 ÷ 1935
Maximum permitted loads (***)
– front axle: 1630 1630 1630
– rear axle: 1650 1650 1650
– total: 2935 ÷ 3000 2935 ÷ 3000 3000
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
292
TECHNICAL SPECIFICATIONS

TRAILER TRUCK WEIGHTS
3300 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1795 ÷ 1895 1810 ÷ 1910 1890 ÷ 1990
Maximum permitted loads (***)
– front axle: 1750 1750 1750
– rear axle: 1900 1900 1900
– total: 3200 ÷ 3300 3200 ÷ 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
293

TRAILER TRUCK WEIGHTS
3500 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1795 ÷ 1930 1810 ÷ 1945 1890 ÷ 2025
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 2000 2000 2000
– total: 3300 ÷ 3500 3320 ÷ 3500 3395 ÷ 3500
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
294
TECHNICAL SPECIFICATIONS

TRAILER TRUCK WEIGHTS (MAXI versions)
3500 kg GVW versions3995 kg - 4005 kg - 4250 kg GVW
versions
110 (*)
/130/150
MultiJet180 MultiJet
Power110 (*)/130/150
MultiJet180 MultiJet
Power
Unladen weight (with all fluids, fuel tank
filled
to 90% and without optional
equipment)1895 ÷ 1985 1975 ÷ 2065 1895 ÷ 1985 1975 ÷ 2065
Maximum permitted loads (***)
– front axle: 2100 2100 2100 2100
– rear axle: 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500 2400 ÷ 2500
– total: 3500 3500 3920 ÷ 4005 3970 ÷ 4150
Towable loads
– braked trailer: 3000 3000 2500 2000 ÷ 2500
– non-braked trailer: 750 750 750 750
Maximum load on ball joint (braked trailer): 120 120 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
295

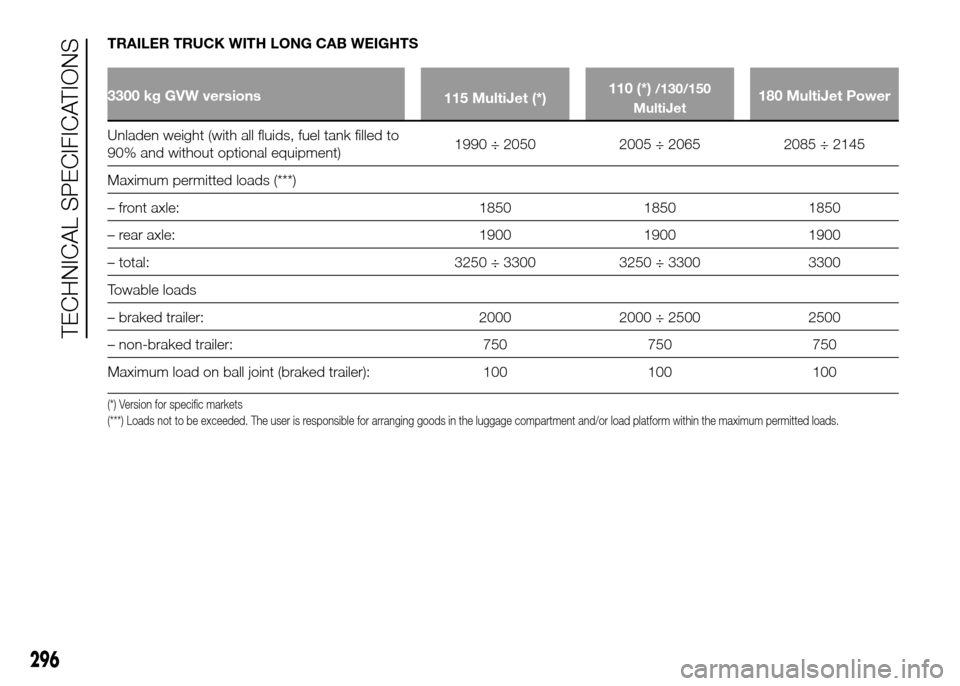

TRAILER TRUCK WITH LONG CAB WEIGHTS
3300 kg GVW versions
115 MultiJet (*)110 (*)/130/150
MultiJet180 MultiJet Power
Unladen weight (with all fluids, fuel tank filled to
90%
and without optional equipment)1990 ÷ 2050 2005 ÷ 2065 2085 ÷ 2145
Maximum permitted loads (***)
– front axle: 1850 1850 1850
– rear axle: 1900 1900 1900
– total: 3250 ÷ 3300 3250 ÷ 3300 3300
Towable loads
– braked trailer: 2000 2000 ÷ 2500 2500
– non-braked trailer: 750 750 750
Maximum load on ball joint (braked trailer): 100 100 100
(*) Version for specific markets
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.
296
