FIAT DUCATO 2016 Owner handbook (in English)

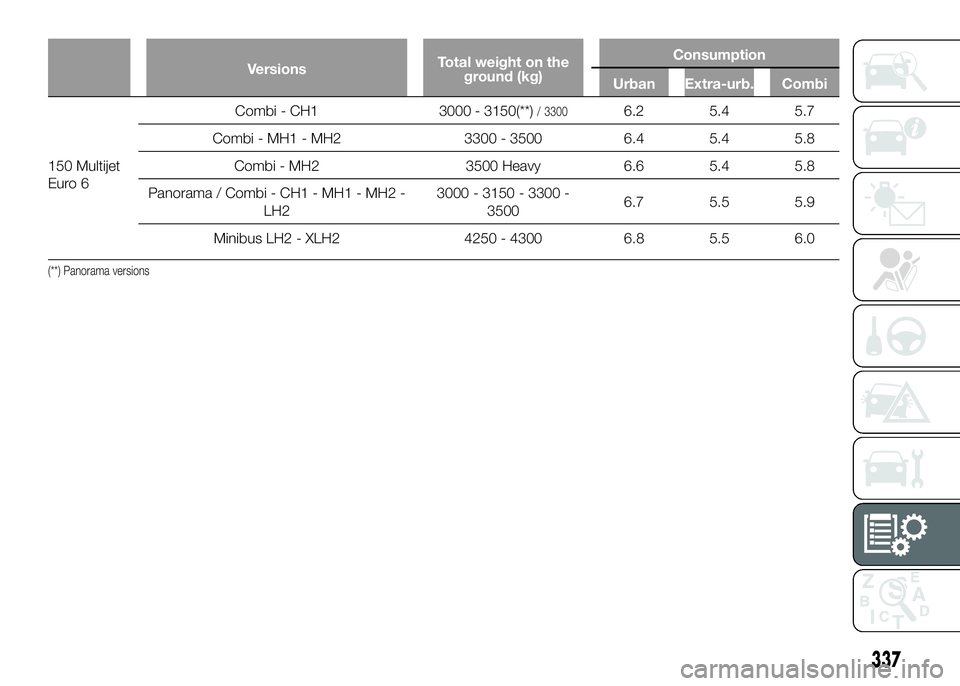

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
150 Multijet
Euro6Combi - CH1 3000 - 3150(**)
/ 33006.2 5.4 5.7
Combi - MH1 - MH2 3300 - 3500 6.4 5.4 5.8
Combi - MH2 3500 Heavy 6.6 5.4 5.8
Panorama / Combi - CH1 - MH1 - MH2 -
LH23000 - 3150 - 3300 -
35006.7 5.5 5.9
Minibus LH2 - XLH2 4250 - 4300 6.8 5.5 6.0
(**) Panorama versions
337

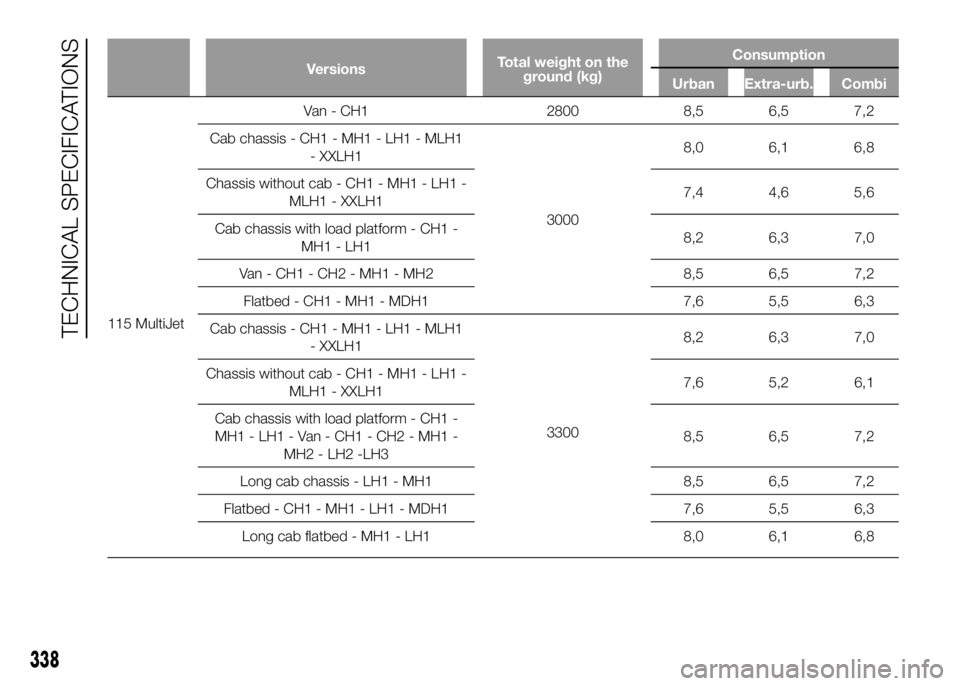

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
115 MultiJetV
an - CH1 2800 8,5 6,5 7,2
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
30008,0 6,1 6,8
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,4 4,6 5,6
Cab chassis with load platform - CH1 -
MH1 - LH18,2 6,3 7,0
Van - CH1 - CH2 - MH1 - MH2 8,5 6,5 7,2
Flatbed - CH1 - MH1 - MDH1 7,6 5,5 6,3
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
33008,2 6,3 7,0
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,6 5,2 6,1
Cab chassis with load platform - CH1 -
MH1 - LH1 - Van - CH1 - CH2 - MH1 -
MH2 - LH2 -LH38,5 6,5 7,2
Long cab chassis - LH1 - MH1 8,5 6,5 7,2
Flatbed - CH1 - MH1 - LH1 - MDH1 7,6 5,5 6,3
Long cab flatbed - MH1 - LH1 8,0 6,1 6,8
338
TECHNICAL SPECIFICATIONS

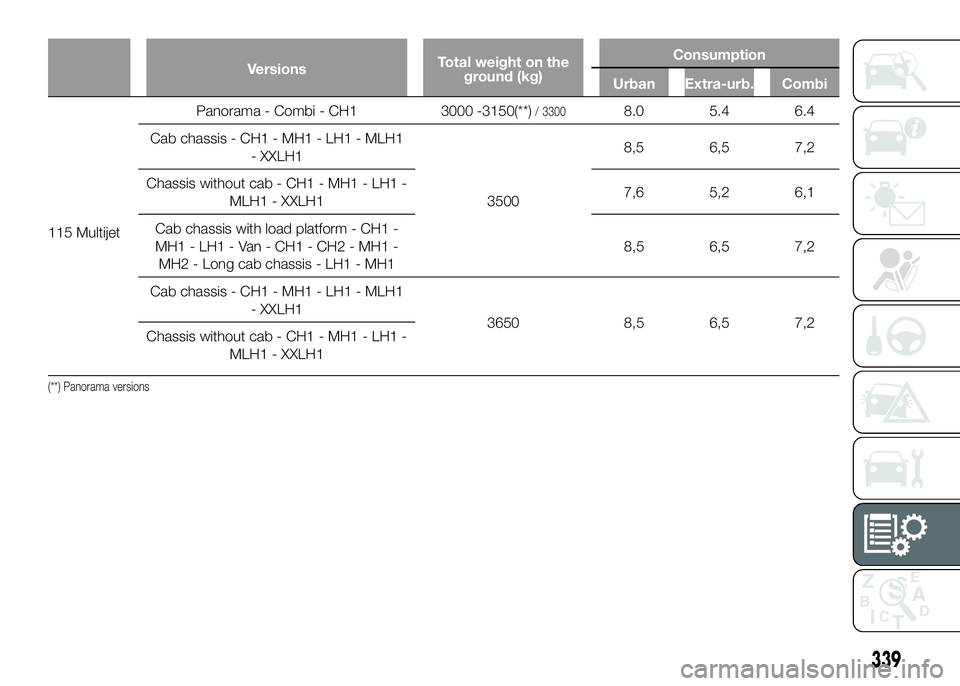

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
115 MultijetPanorama- Combi - CH1 3000 -3150(**)
/ 33008.0 5.4 6.4
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
35008,5 6,5 7,2
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH17,6 5,2 6,1
Cab chassis with load platform - CH1 -
MH1 - LH1 - Van - CH1 - CH2 - MH1 -
MH2 - Long cab chassis - LH1 - MH18,5 6,5 7,2
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3650 8,5 6,5 7,2
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH1
(**) Panorama versions
339

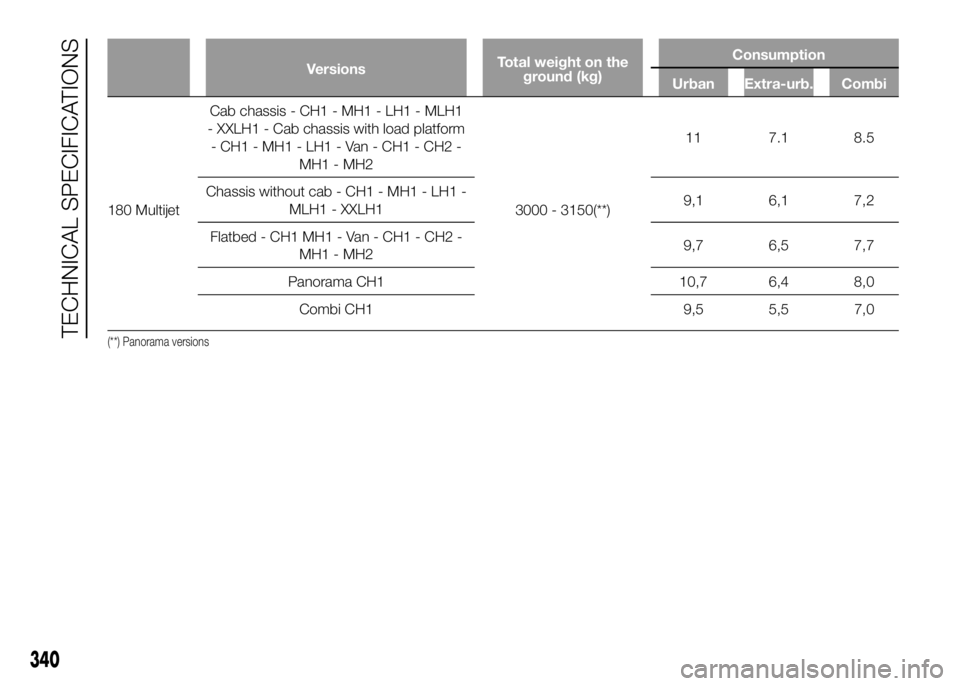

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultijetCab
chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Cab chassis with load platform
- CH1 - MH1 - LH1 - Van - CH1 - CH2 -
MH1 - MH2
3000 - 3150(**)11 7.1 8.5
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH19,1 6,1 7,2
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Panorama CH1 10,7 6,4 8,0
Combi CH1 9,5 5,5 7,0
(**) Panorama versions
340
TECHNICAL SPECIFICATIONS

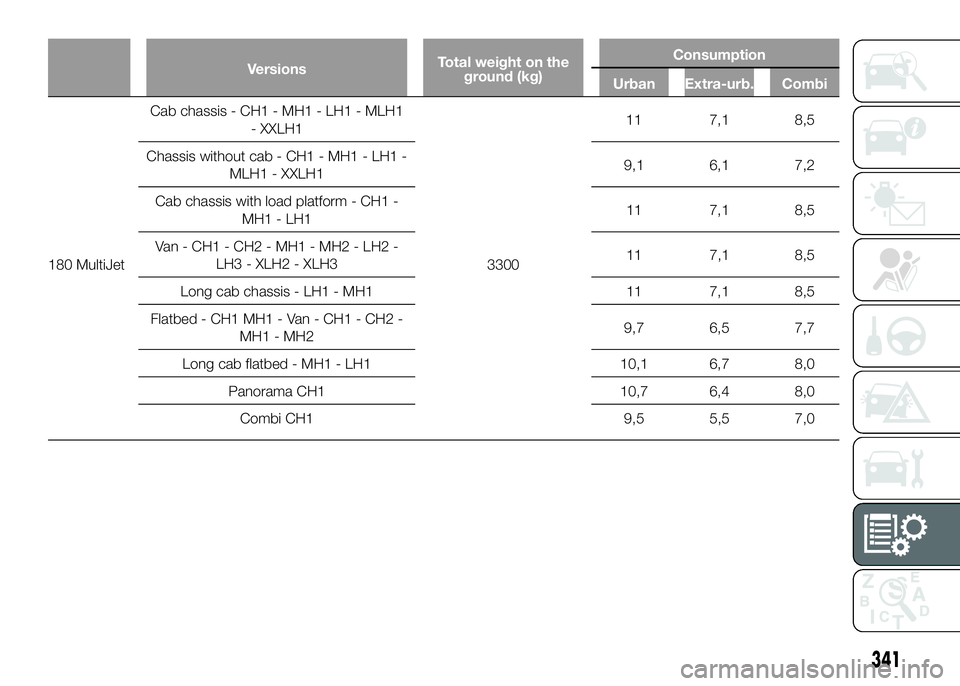

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
330011 7,1 8,5
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH19,1 6,1 7,2
Cab chassis with load platform - CH1 -
MH1 - LH111 7,1 8,5
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH311 7,1 8,5
Long cab chassis - LH1 - MH1 11 7,1 8,5
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Long cab flatbed - MH1 - LH1 10,1 6,7 8,0
Panorama CH1 10,7 6,4 8,0
Combi CH1 9,5 5,5 7,0
341

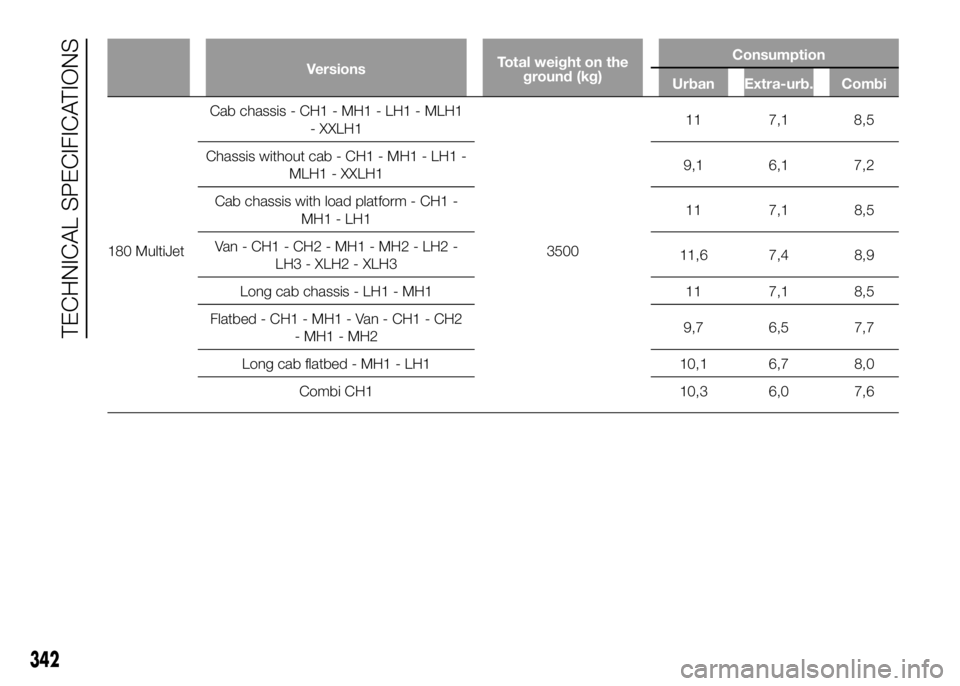

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCabchassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
350011 7,1 8,5
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH19,1 6,1 7,2
Cab chassis with load platform - CH1 -
MH1 - LH111 7,1 8,5
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH311,6 7,4 8,9
Long cab chassis - LH1 - MH1 11 7,1 8,5
Flatbed - CH1 - MH1 - Van - CH1 - CH2
- MH1 - MH29,7 6,5 7,7
Long cab flatbed - MH1 - LH1 10,1 6,7 8,0
Combi CH1 10,3 6,0 7,6
342
TECHNICAL SPECIFICATIONS

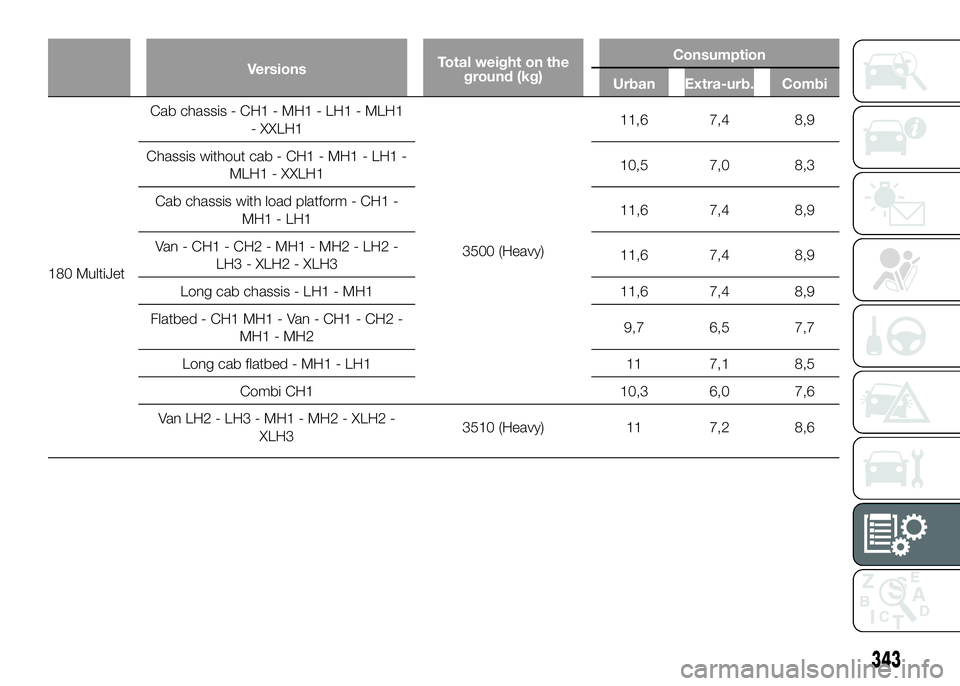

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab
chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3500 (Heavy)11,6 7,4 8,9
Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH110,5 7,0 8,3
Cab chassis with load platform - CH1 -
MH1 - LH111,6 7,4 8,9
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH311,6 7,4 8,9
Long cab chassis - LH1 - MH1 11,6 7,4 8,9
Flatbed - CH1 MH1 - Van - CH1 - CH2 -
MH1 - MH29,7 6,5 7,7
Long cab flatbed - MH1 - LH1 11 7,1 8,5
Combi CH1 10,3 6,0 7,6
Van LH2 - LH3 - MH1 - MH2 - XLH2 -
XLH33510 (Heavy) 11 7,2 8,6
343

VersionsTotal weight on the
ground (kg)Consumption
Urban Extra-urb. Combi
180 MultiJetCab
chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1
3995 - 4005 - 4250
(Heavy)11 7,2 8,6 Chassis without cab - CH1 - MH1 - LH1 -
MLH1 - XXLH1
Cab chassis with load platform - CH1 -
MH1 - LH1
Van - CH1 - CH2 - MH1 - MH2 - LH2 -
LH3 - XLH2 - XLH3
Long cab chassis - LH1 - MH1
Flatbed - CH1 MH1 10,5 7,0 8,3
Van CH1 - CH2 - MH1 - MH2 11 7,2 8,6
Long cab flatbed - MH1 - LH1 11,6 7,4 8,9
Minibus 11,6 7,4 8,9
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH13650 10,1 6,7 8,0
Cab chassis - CH1 - MH1 - LH1 - MLH1
- XXLH1 - Chassis without cab - CH1 -
MH1 - LH1 - MLH1 - XXLH14400 (Heavy) 10,1 6,7 8,0
344
TECHNICAL SPECIFICATIONS

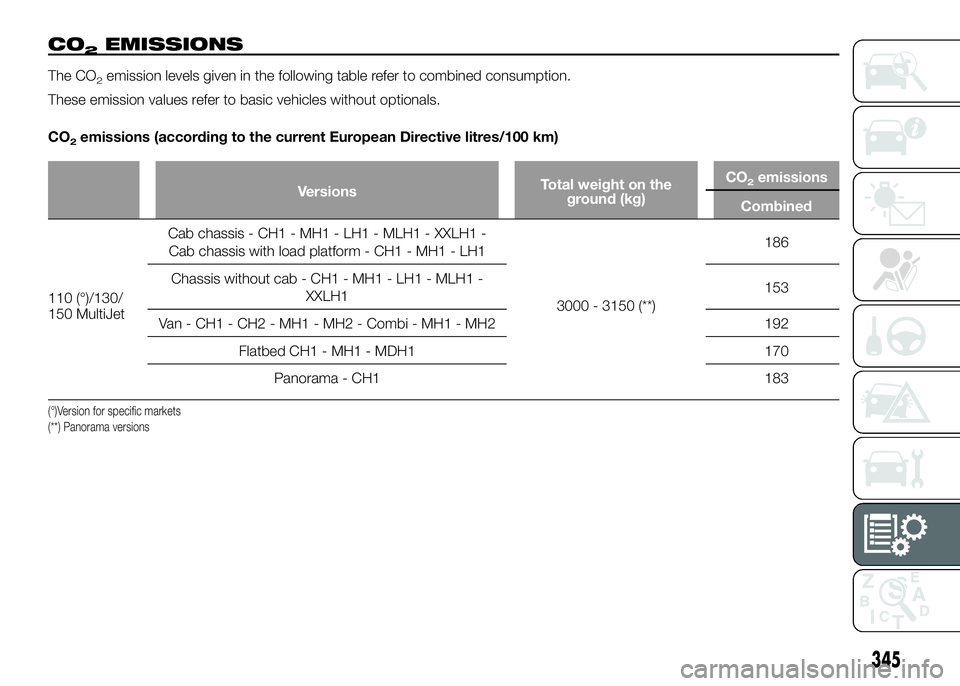

CO2EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
These emission values refer to basic vehicles without optionals.
CO
2emissions (according to the current European Directive litres/100 km)
VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150
MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Cab chassis with load platform - CH1 - MH1 - LH1
3000 - 3150 (**)186
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Van - CH1 - CH2 - MH1 - MH2 - Combi - MH1 - MH2 192
Flatbed CH1 - MH1 - MDH1 170
Panorama - CH1 183
(°)Version for specific markets
(**) Panorama versions
345

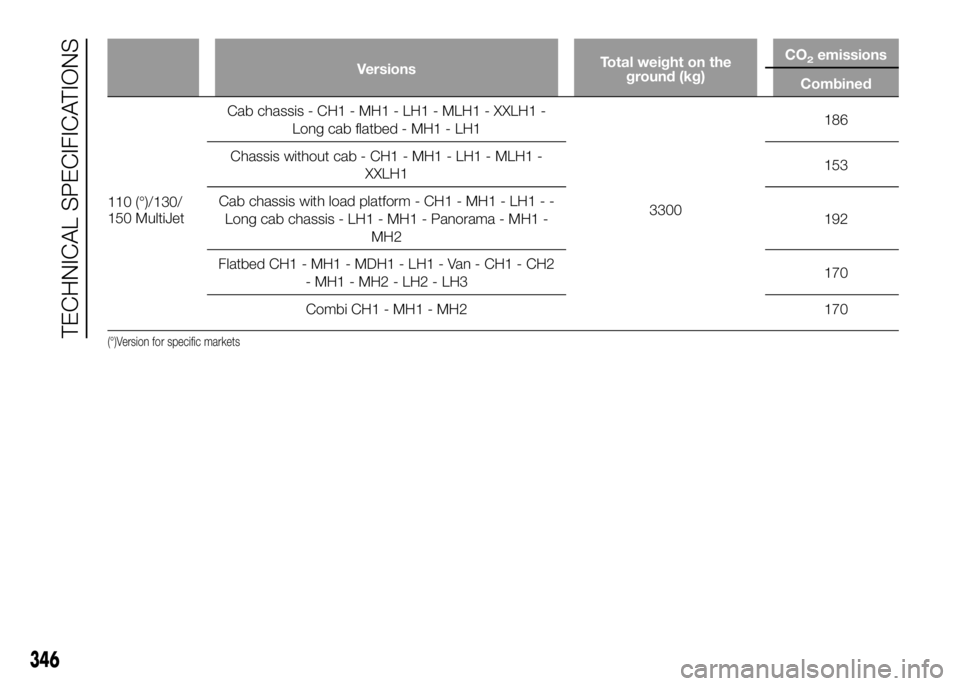

VersionsTotal weight on the
ground (kg)CO2emissions
Combined
110 (°)/130/
150MultiJetCab chassis - CH1 - MH1 - LH1 - MLH1 - XXLH1 -
Long cab flatbed - MH1 - LH1
3300186
Chassis without cab - CH1 - MH1 - LH1 - MLH1 -
XXLH1153
Cab chassis with load platform - CH1 - MH1 - LH1 - -
Long cab chassis - LH1 - MH1 - Panorama - MH1 -
MH2192
Flatbed CH1 - MH1 - MDH1 - LH1 - Van - CH1 - CH2
- MH1 - MH2 - LH2 - LH3170
Combi CH1 - MH1 - MH2 170
(°)Version for specific markets
346
TECHNICAL SPECIFICATIONS
