MUST BE READ!
REFUELLING
Petrol engines:only refuel with unleaded petrol with octane rating (RON) no less than 95.
Diesel engines:only refuel with diesel fuel conforming to the European specification EN590.
STARTING THE ENGINE
Make sure the handbrake is pulled up; put the gear lever to neutral; press the clutch pedal down to the floor
without touching the accelerator; then:
automatic gearbox:for operation and use, strictly follow instructions and warnings contained at paragraph
“Automatic gearbox” in section “Getting the best out of your vehicle”.
petrol engines:turn the ignition key to AVV and release it as soon as the engine starts.
diesel engines:turn the ignition key to MARand wait for the instrument panel warning light mand Y
to go out; then turn the ignition key to AVV and release it as soon as the engine starts.
PARKING OVER INFLAMMABLE MATERIAL
When functioning normally, the catalytic converter reaches high temperatures. For this reason do not park
the vehicle over inflammable material, grass, dry leaves, pine needles, etc.: fire hazard.
K


5GETTING TO KNOW YOUR VEHICLE
G G
E E
T T
T T
I I
N N
G G
T T
O O
K K
N N
O O
W W
Y Y
O O
U U
R R
V V
E E
H H
I I
C C
L L
E E
DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the vehicle version.
1Side air vents - 2Direction indicators and light stalk - 3Instrument panel - 4Windscreen wiper stalk -
5Central air vents - 6Writing/reading desk - 7Sound system compartment - 8Central button panel -9Central air vents -
10Oddment trays/passenger’s airbag - 11Side air vents - 12Bottle holder - 13Current socket - 14Ashtray - 15Air dis-
tribution - 16Air temperature - 17Air recirculation -18Cigar lighter - 19Fan control - 20Gear shift lever - 21Ignition
switch - 22Steering wheel adjustment lever - 23Horn - 24Airbag - 25Oddment trays
fig. 1F0D0080m

6GETTING TO KNOW YOUR VEHICLE
fig. 2F0D0246m
The presence and the position of the instruments and warning lights may vary according to the vehicle version.
1Side air vent - 2Oddment trays/passenger’s airbag - 3 Central air vents - 4Central button panel - 5Sound system com-
partment - 6Writing/reading desk - 7Direction indicators and light stalk - 8Instrument panel - 9Windscreen wiper stalk -
10Oddment trays - 11Ignition switch - 12Airbag - 13Horn - 14Steering wheel adjustment lever - 15Gear shift lever -
16Air distribution - 17Current socket - 18Ashtray - 19Air temperature - 20Air recirculation - 21Cigar lighter - 22Fan
control - 23Bottle holder

The CODE card fig. 4is also sup-
plied with the keys and it bears the fol-
lowing:
A- the electronic code to be used
for emergency starting (see “Emer-
gency start-up” in the “In an emer-
gency” section);
B- the mechanical key code to be
given to the Fiat Dealershipwhen
ordering duplicate keys.
Keep the CODE card in a safe place.
You should always have the elec-
tronic code number written on the
CODE card with you at all times in
case you need to perform an emer-
gency start-up. OPERATION
Each time the ignition key is turned
to STOP, or PARK, the protection
system will automatically immobilise
the engine.
When the key is turned to MARto
start the engine:
1)If the code is recognised the Y
fig. 5warning light on the instrument
panel will flash briefly: this means that
the protection system has recognised
the key code and disabled the engine
immobiliser. Turn the key to AVV, to
start.
2)If the Ywarning light stays on,
the code was not recognised. In this
case, turn the key to STOPand then
back to MAR. If the engine remains
immobilised, try with the other keys
provided.
fig. 5
F0D0191m
All the keys and the
CODE card must be
handed over to the new
owner when selling the vehicle.
8GETTING TO KNOW YOUR VEHICLE
The key B, with a built-in remote
control, has the same functions as key
Ain vehicles with door lock/unlock
remote control.
IMPORTANTIn order to ensure
perfect efficiency of the electronic de-
vices contained inside the keys, they
should never be exposed to direct
sunlight.
U.K. Vehicles only
At the behest of the motor Insurance
Companies the CODE card for emer-
gency starting and remplacement of
keys is not provided. If you need as-
sistance please contact your nearest
Fiat Dealershipor telephone Free
Phone 0800 717000.
fig. 4
F0D0001m

27GETTING TO KNOW YOUR VEHICLE
IMPORTANTFor foreign markets
(Italy excluded), the cabs of vehicles
for carrying goods are suitable for fit-
ting child restraint systems of the
“Universal” category, according to Eu-
ropean Standard ECE-R44 for the tab-
ulated groups.
IMPORTANTFor Italian market
only (foreign countries excluded), the
cabs of vehicle for carrying passengers
(combi and panorama), are suitable for
fitting child restraint systems of the
“Universal” category, according to Eu-
ropean Standard ECE-R44 for the tab-
ulated groups.
Below is a summary of the rules
of safety to be followed for car-
rying children:
1) The recommended position for
installing child’s seat is on the rear seat,
as it is the most protected in the case
of a crash;2) In vehicles fitted with passenger
airbag, neverplace child’s restraint
systems on the front seat.
3) If the passenger’s airbag is deac-
tivated always check the warning light
Fon the instrument panel to make
sure that it has actually been deacti-
vated.
4) Attain to the instructions for fas-
tening the specific child restraint sys-
tem which you are using. These in-
structions must be provided by the
manufacturer. Keep the child restraint
system installation instructions with
the vehicle documents and with this
Handbook. Never use a child restraint
system without installation instruc-
tions.
5) Always check the seat belt is well
fastened by pulling the webbing.
6) Only one child is to be strapped
to each retaining system.
7) Always check the seat belts do
not fit around the child’s throat.8) While travelling, do not let the
child sit incorrectly or release the
belts.
9)Passengers should never carry
children on their laps. No-one, how-
ever strong they are, can hold a child
in the event of a crash.
10) Replace the child restraint sys-
tem after an accident.
With passenger’s air bag
active, never place child’s
seats with the cradle facing back-
wards since the air bag activation
could cause to the child serious in-
juries, even mortal, regardless of the
seriousness of the crash that trig-
gered it. You are advised to carry
children always with proper re-
straint systems on the rear seats, as
this is the most protected position
in the case of a crash.
WARNING

29GETTING TO KNOW YOUR VEHICLE
INSTRUMENT PANEL
A- Engine coolant temperature
gauge
B- Speedometer
C- Rev counter
D- Fuel level gauge
E- Odometer setting and scheduled
servicing
F- Odometer
G- Clock setting.
fig. 27 Left-hand drive versionF0D0147m
fig. 28 Right-hand drive versionF0D0148m

65GETTING TO KNOW YOUR VEHICLE
STEERING COLUMN
STALKS
LEFT-HAND STALK
The left-hand stalk operates most of
the external lights.
The external lights can only be
switched on when the ignition key is
at MAR. The instrument panel and
the heating/ventilation (or climate con-
trol system) controls and the cigar
lighter ring will come on with the ex-
ternal lights.Side/taillights fig. 91
Turn the ring from åto 6to switch
the lights on. Instrument panel warn-
ing light 3will come on.
Dipped beam headlights fig. 92
Turn the ring from 6to 2.
IMPORTANTThe dipped beam
headlights will automatically be
switched off when the main beam
headlights are switched on if the front
fog lights are on.Main beam headlights fig. 93
Push the stalk from position 2to-
wards the dashboard to switch the
headlights on.
Instrument panel warning light 1
will come on.
Pull the stalk towards the steering
wheel to switch the lights off.
IMPORTANTThe dipped beam
headlights will be automatically
switched off when the main beam
headlights are on and the front fog
lights are switched on.
fig. 91
F0D0013m
fig. 92
F0D0014m
fig. 93
F0D0015m

66GETTING TO KNOW YOUR VEHICLE
Flashing the headlights fig. 94
Pull the stalk towards the steering
wheel (temporary position) to flash
the lights.Direction indicators fig. 95
Move the stalk as follows:
upwards - to turn the right-hand in-
dicators on
downwards - to turn the left-hand in-
dicators on.
Instrument panel warning light RE
will flash.
The direction indicators will auto-
matically be switched off when the ve-
hicle is straightened out.
If you wish to signal a lane change
where only a slight movement of the
steering wheel is required, move the
stalk up or down without pushing it far
enough to make it click. The stalk will
return to the neutral position as soon
as it is released.RIGHT-HAND STALK
Windscreen wiper/washer
fig. 96
The device will only work when the
ignition key is at MAR.
Positions
0- windscreen wiper off;
1- flick wipe;
2- slow continuous wipe;
3- fast continuous wipe;
4- temporary: when released the
stalk returns to position 0and auto-
matically switches the windscreen
wiper off.
fig. 94
F0D0016m
fig. 95
F0D0017m
fig. 96
F0D0018m

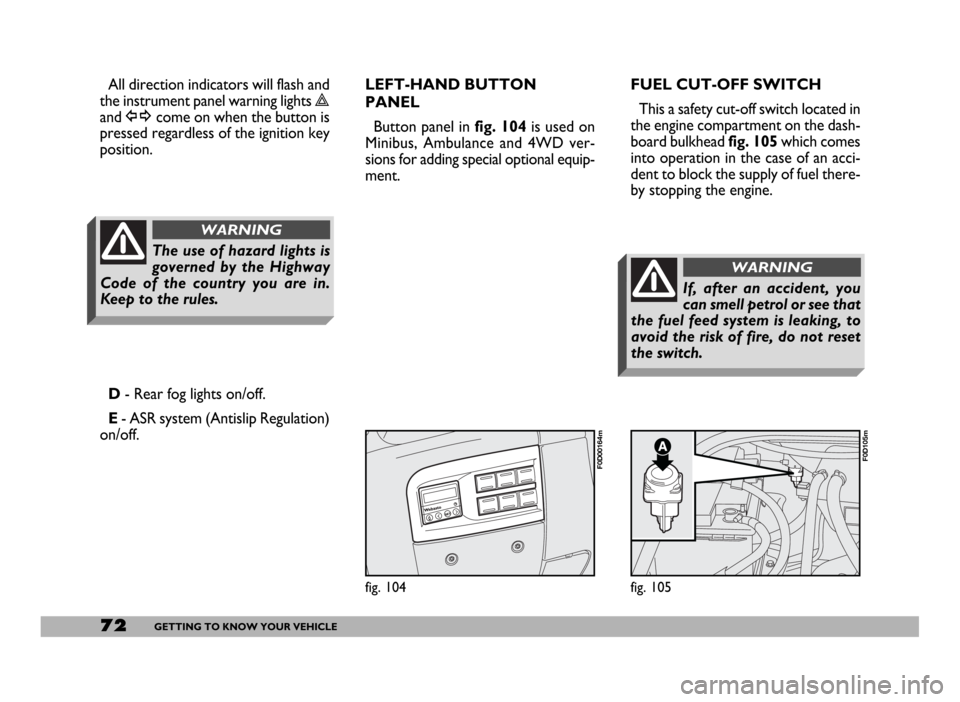

72GETTING TO KNOW YOUR VEHICLE
fig. 104
F0D00164m
fig. 105
F0D105m
All direction indicators will flash and
the instrument panel warning lights r
and ycome on when the button is
pressed regardless of the ignition key
position.FUEL CUT-OFF SWITCH
This a safety cut-off switch located in
the engine compartment on the dash-
board bulkhead fig. 105which comes
into operation in the case of an acci-
dent to block the supply of fuel there-
by stopping the engine.
D- Rear fog lights on/off.
E- ASR system (Antislip Regulation)
on/off.LEFT-HAND BUTTON
PANEL
Button panel in fig. 104is used on
Minibus, Ambulance and 4WD ver-
sions for adding special optional equip-
ment.
The use of hazard lights is
governed by the Highway
Code of the country you are in.
Keep to the rules.
WARNING
If, after an accident, you
can smell petrol or see that
the fuel feed system is leaking, to
avoid the risk of fire, do not reset
the switch.
WARNING

92GETTING TO KNOW YOUR VEHICLE
SIDE BAGS fig. 142
The purpose of the side bag is to
protect the front seat passenger’s
chest in the event of a side impact of
medium to high degree.
The device consists of a bag housed
in the front seat backs which imme-
diately inflates. This solution ensures
that the bag is in an optimal position
regardless of the seat position.
In the event of a side impact, the con-
trol unit processes the signals from a
deceleration sensor and fires the side
bag.
The bag inflates instantly and acts as
a soft protective barrier between the
front seat passenger’s chest and vehi-
cle door. The bag deflates immediate-
ly afterwards.
fig. 142
F0D0042m
fig. 140
F0D0163m
Manual deactivation
Should it be absolutely necessary to
carry a child on the front seat, the pas-
senger’s airbag can be deactivated.
Deactivation/reactivation takes place
with ignition key at STOPand oper-
ating it in the special key switch on the
left side of the tachograph.
IMPORTANTOperate the switch
only when the engine is not running
and the ignition key is removed.The key-operated switch (A-
fig. 140) has two positions:
– front passenger’s airbag on (posi-
tion ON
P): instrument panel warn-
ing light off F; it is absolutely pro-
hibited to carry a child on the front
seat.
– front passenger’s airbag off (posi-
tion OFF F): instrument panel
warning light on F; it is possible to
carry a child protected by special re-
straint system on the front seat.
The instrument panel warning light
F(B-fig. 141) stays on permanent-
ly until the passenger’s airbag is reac-
tivated.
Deactivation of the front passenger’s
airbag does not inhibit operation of
the side airbag.
fig. 141
F0D0227m
