Warning lights on
panelWhat it means What to do

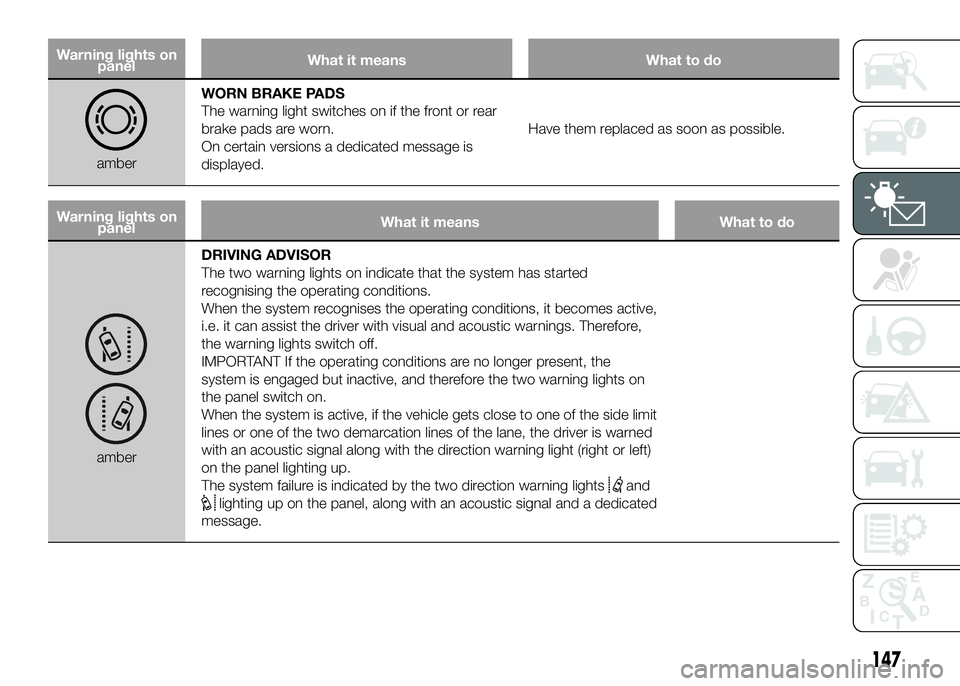

amberWORN BRAKE PADS
The warning light switches on if the front or rear
brake pads are worn.
On certain versions a dedicated message is
displayed.Have them replaced as soon as possible.
Warning lights on
panelWhat it means What to do
amberDRIVING ADVISOR
The two warning lights on indicate that the system has started
recognising the operating conditions.
When the system recognises the operating conditions, it becomes active,
i.e. it can assist the driver with visual and acoustic warnings. Therefore,
the warning lights switch off.
IMPORTANT If the operating conditions are no longer present, the
system is engaged but inactive, and therefore the two warning lights on
the panel switch on.
When the system is active, if the vehicle gets close to one of the side limit
lines or one of the two demarcation lines of the lane, the driver is warned
with an acoustic signal along with the direction warning light (right or left)
on the panel lighting up.
The system failure is indicated by the two direction warning lights
and
lighting up on the panel, along with an acoustic signal and a dedicated
message.
147

Warning lights on
panelWhat it means What to do
amberTPMS
TPMS failure
The warning light switches on when a fault is
detected in the TPMS.In this case, contact a Fiat Dealership as soon as
possible.
Tyre pressure low
The warning light switches on to indicate that the
tyre pressure is lower than the recommended
value and/or that slow pressure loss is occurring.
In these circumstances, optimal tyre duration and
fuel consumption may not be guaranteed.
IMPORTANT
23) Go to a Fiat Dealership as soon as possible if warning lighteither does not light up when the key is turned to
MAR to if while travelling the warning lights comes on either steady or blinking (along with a message on the display).
24) During regeneration, the fan could be operated.
148
KNOWING THE INSTRUMENT PANEL

WARNING

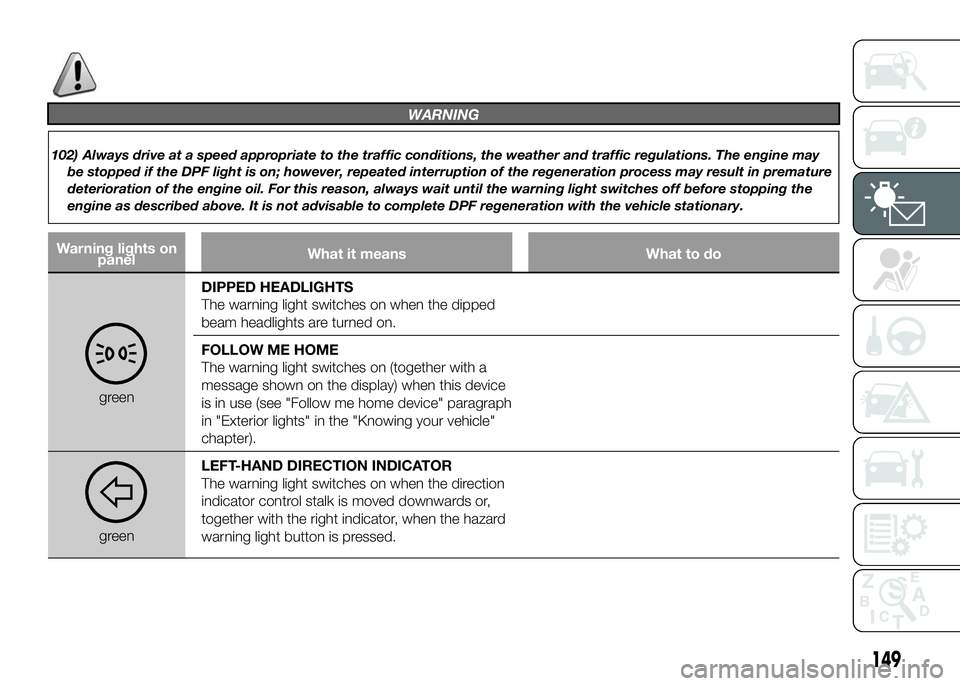

102) Always drive at a speed appropriate to the traffic conditions, the weather and traffic regulations. The engine may
be stopped if the DPF light is on; however, repeated interruption of the regeneration process may result in premature
deterioration of the engine oil. For this reason, always wait until the warning light switches off before stopping the
engine as described above. It is not advisable to complete DPF regeneration with the vehicle stationary.
Warning lights on
panelWhat it means What to do
greenDIPPED HEADLIGHTS
The warning light switches on when the dipped
beam headlights are turned on.
FOLLOW ME HOME
The warning light switches on (together with a
message shown on the display) when this device
is in use (see "Follow me home device" paragraph
in "Exterior lights" in the "Knowing your vehicle"
chapter).
greenLEFT-HAND DIRECTION INDICATOR
The warning light switches on when the direction
indicator control stalk is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
149

Warning lights on
panelWhat it means What to do

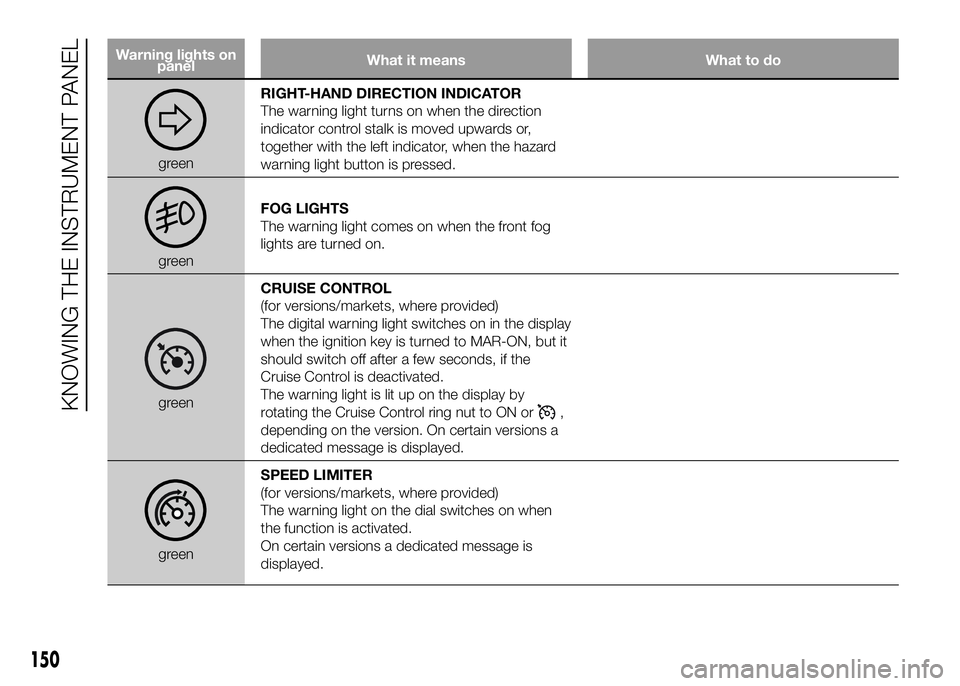

greenRIGHT-HAND DIRECTION INDICATOR
The warning light turns on when the direction
indicator control stalk is moved upwards or,
together with the left indicator, when the hazard
warning light button is pressed.
greenFOG LIGHTS
The warning light comes on when the front fog
lights are turned on.
greenCRUISE CONTROL
(for versions/markets, where provided)
The digital warning light switches on in the display
when the ignition key is turned to MAR-ON, but it
should switch off after a few seconds, if the
Cruise Control is deactivated.
The warning light is lit up on the display by
rotating the Cruise Control ring nut to ON or,
depending on the version. On certain versions a
dedicated message is displayed.
greenSPEED LIMITER
(for versions/markets, where provided)
The warning light on the dial switches on when
the function is activated.
On certain versions a dedicated message is
displayed.
150
KNOWING THE INSTRUMENT PANEL

Warning lights on
panelWhat it means What to do

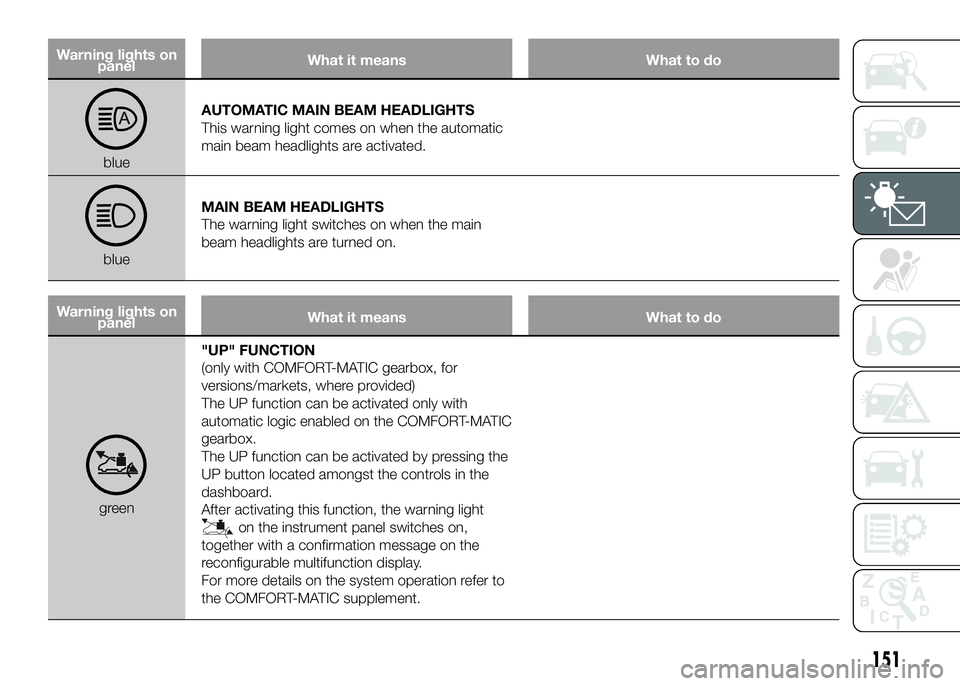

blueAUTOMATIC MAIN BEAM HEADLIGHTS
This warning light comes on when the automatic
main beam headlights are activated.
blueMAIN BEAM HEADLIGHTS
The warning light switches on when the main
beam headlights are turned on.
Warning lights on
panelWhat it means What to do
green"UP" FUNCTION
(only with COMFORT-MATIC gearbox, for
versions/markets, where provided)
The UP function can be activated only with
automatic logic enabled on the COMFORT-MATIC
gearbox.
The UP function can be activated by pressing the
UP button located amongst the controls in the
dashboard.
After activating this function, the warning light
on the instrument panel switches on,
together with a confirmation message on the
reconfigurable multifunction display.
For more details on the system operation refer to
the COMFORT-MATIC supplement.
151

Messages on display
What it means What to do

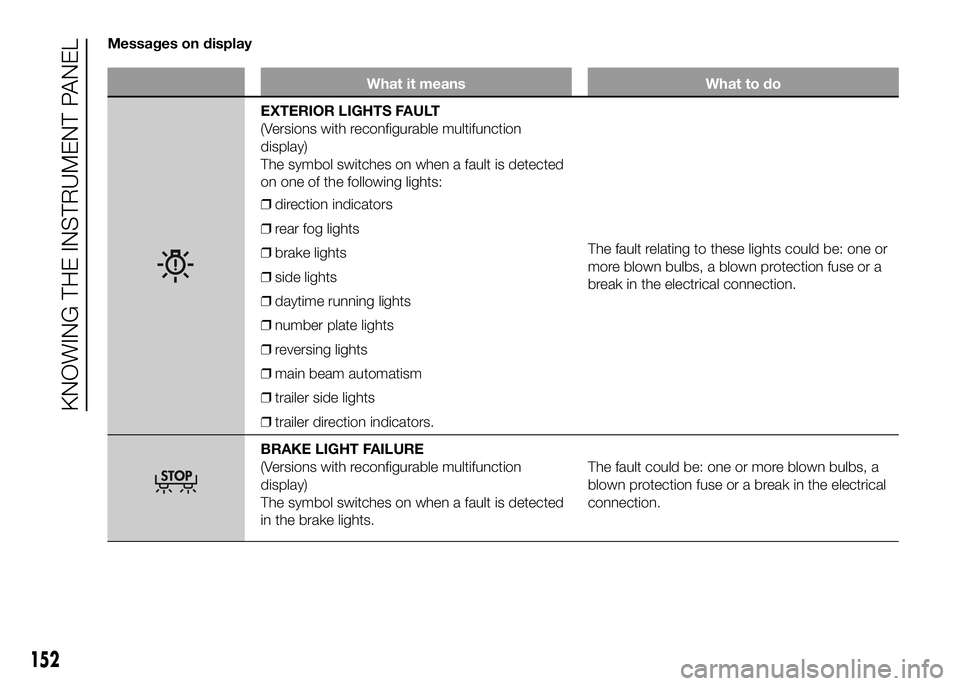

EXTERIOR LIGHTS FAULT
(Versions with reconfigurable multifunction
display)
The symbol switches on when a fault is detected
on one of the following lights:
❒direction indicators
❒rear fog lights
❒brake lights
❒side lights
❒daytime running lights
❒number plate lights
❒reversing lights
❒main beam automatism
❒trailer side lights
❒trailer direction indicators.The fault relating to these lights could be: one or
more blown bulbs, a blown protection fuse or a
break in the electrical connection.
BRAKE LIGHT FAILURE
(Versions with reconfigurable multifunction
display)
The symbol switches on when a fault is detected
in the brake lights.The fault could be: one or more blown bulbs, a
blown protection fuse or a break in the electrical
connection.
152
KNOWING THE INSTRUMENT PANEL

What it means What to do

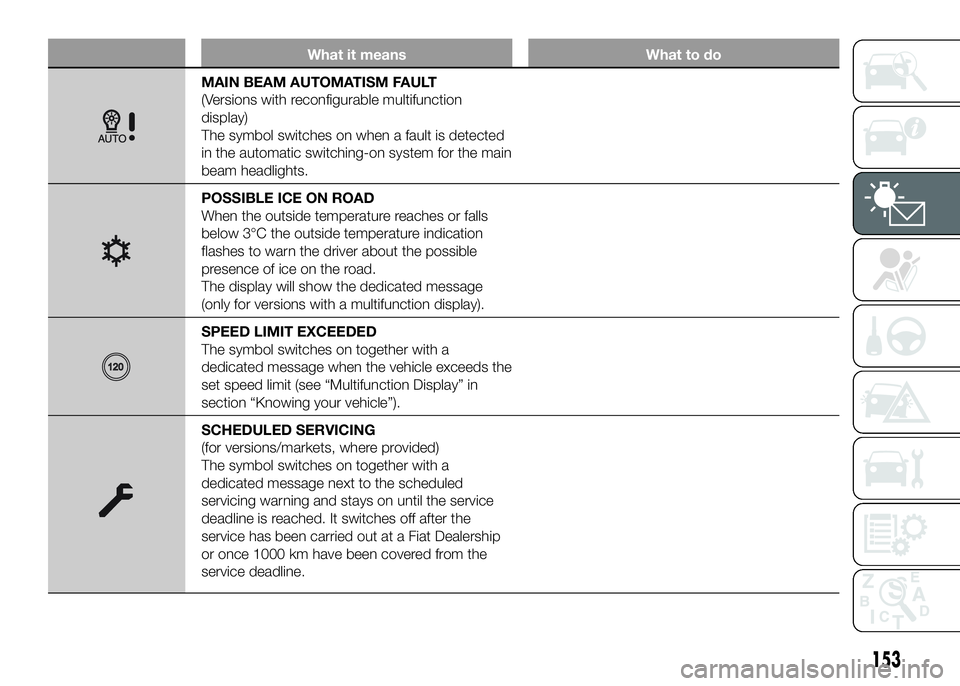

MAIN BEAM AUTOMATISM FAULT
(Versions with reconfigurable multifunction
display)
The symbol switches on when a fault is detected
in the automatic switching-on system for the main
beam headlights.
POSSIBLE ICE ON ROAD
When the outside temperature reaches or falls
below 3°C the outside temperature indication
flashes to warn the driver about the possible
presence of ice on the road.
The display will show the dedicated message
(only for versions with a multifunction display).
SPEED LIMIT EXCEEDED
The symbol switches on together with a
dedicated message when the vehicle exceeds the
set speed limit (see “Multifunction Display” in
section “Knowing your vehicle”).
SCHEDULED SERVICING
(for versions/markets, where provided)
The symbol switches on together with a
dedicated message next to the scheduled
servicing warning and stays on until the service
deadline is reached. It switches off after the
service has been carried out at a Fiat Dealership
or once 1000 km have been covered from the
service deadline.
153

What it means What to do

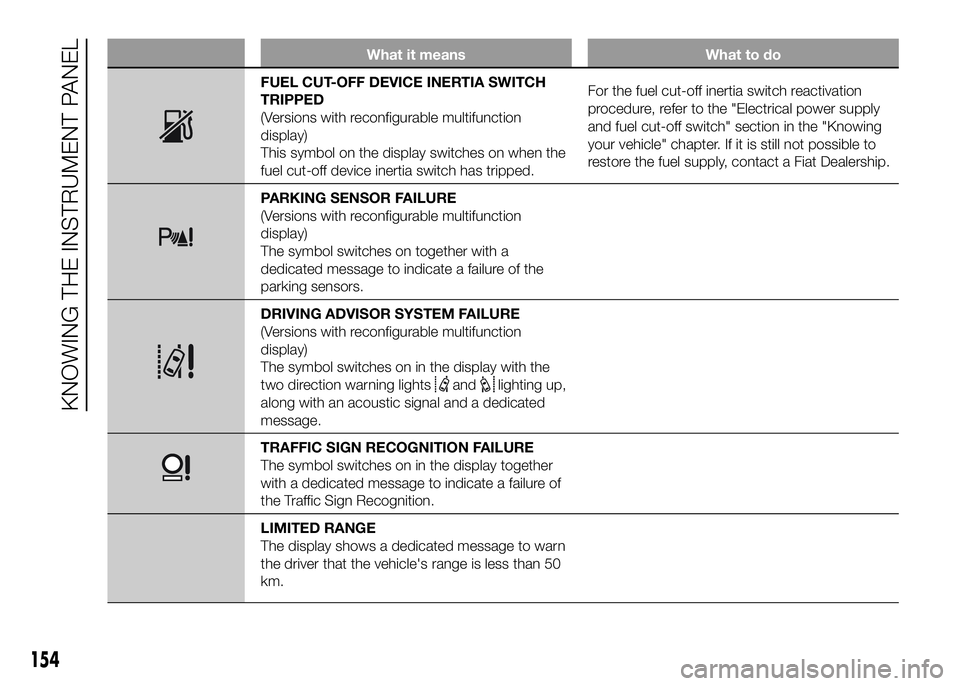

FUEL CUT-OFF DEVICE INERTIA SWITCH
TRIPPED
(Versions with reconfigurable multifunction
display)
This symbol on the display switches on when the
fuel cut-off device inertia switch has tripped.For the fuel cut-off inertia switch reactivation
procedure, refer to the "Electrical power supply
and fuel cut-off switch" section in the "Knowing
your vehicle" chapter. If it is still not possible to
restore the fuel supply, contact a Fiat Dealership.
PARKING SENSOR FAILURE
(Versions with reconfigurable multifunction
display)
The symbol switches on together with a
dedicated message to indicate a failure of the
parking sensors.
DRIVING ADVISOR SYSTEM FAILURE
(Versions with reconfigurable multifunction
display)
The symbol switches on in the display with the
two direction warning lights
andlighting up,
along with an acoustic signal and a dedicated
message.
TRAFFIC SIGN RECOGNITION FAILURE
The symbol switches on in the display together
with a dedicated message to indicate a failure of
the Traffic Sign Recognition.
LIMITED RANGE
The display shows a dedicated message to warn
the driver that the vehicle's range is less than 50
km.
154
KNOWING THE INSTRUMENT PANEL

What it means What to do

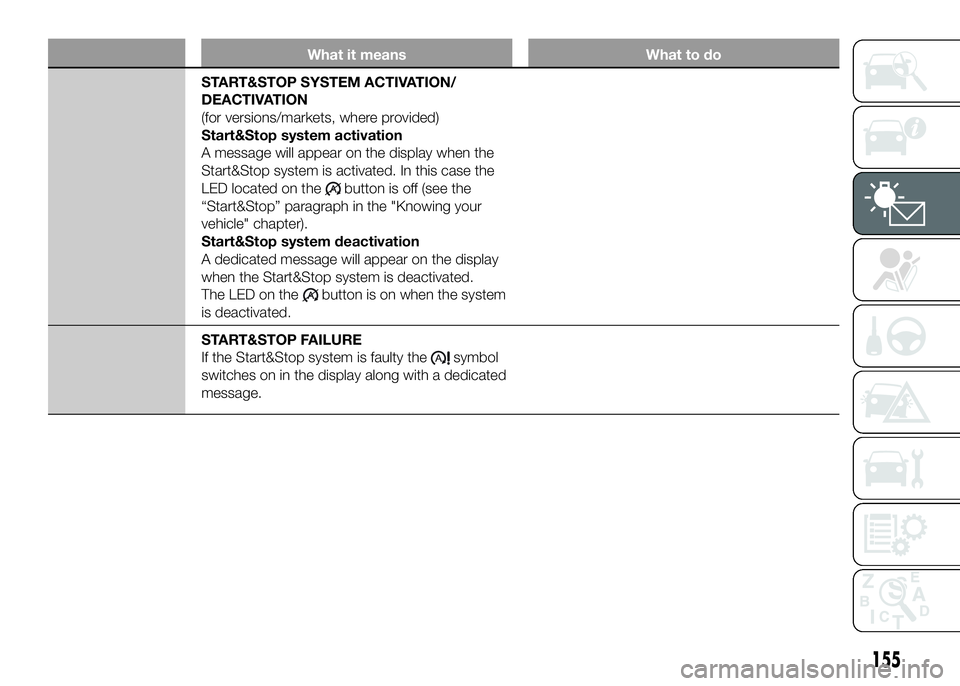

START&STOP SYSTEM ACTIVATION/
DEACTIVATION
(for versions/markets, where provided)
Start&Stop system activation
A message will appear on the display when the
Start&Stop system is activated. In this case the
LED located on the
button is off (see the
“Start&Stop” paragraph in the "Knowing your
vehicle" chapter).
Start&Stop system deactivation
A dedicated message will appear on the display
when the Start&Stop system is deactivated.
The LED on the
button is on when the system
is deactivated.
START&STOP FAILURE
If the Start&Stop system is faulty the
symbol
switches on in the display along with a dedicated
message.
155

Warning lights on
panelWhat it means What to do

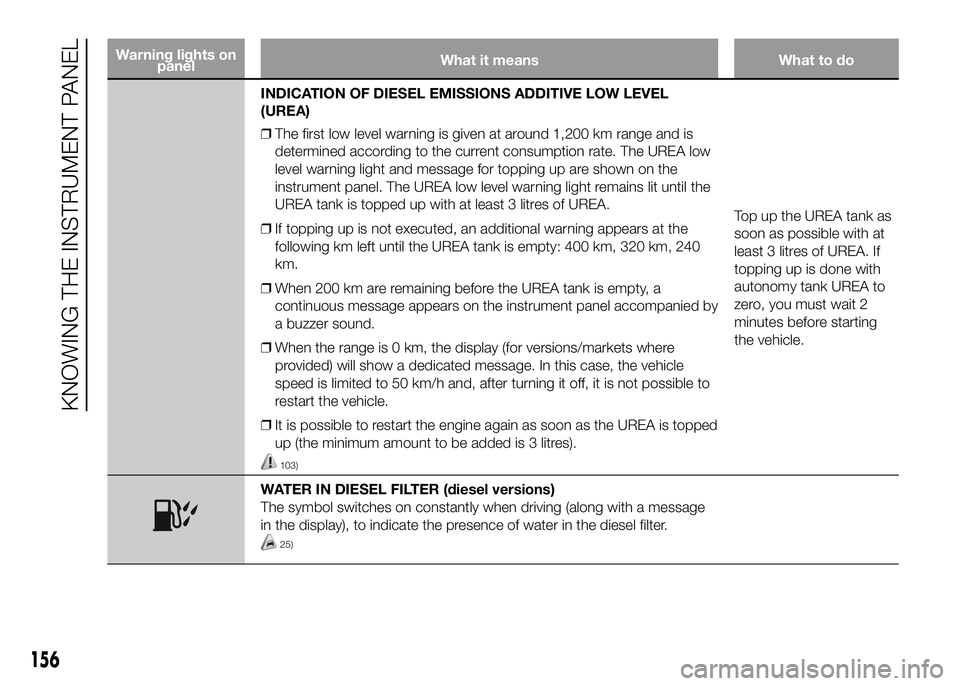

INDICATION OF DIESEL EMISSIONS ADDITIVE LOW LEVEL
(UREA)
❒Thefirst low level warning is given at around 1,200 km range and is
determined according to the current consumption rate. The UREA low
level warning light and message for topping up are shown on the
instrument panel. The UREA low level warning light remains lit until the
UREA tank is topped up with at least 3 litres of UREA.
❒If topping up is not executed, an additional warning appears at the
following km left until the UREA tank is empty: 400 km, 320 km, 240
km.
❒When 200 km are remaining before the UREA tank is empty, a
continuous message appears on the instrument panel accompanied by
a buzzer sound.
❒When the range is 0 km, the display (for versions/markets where
provided) will show a dedicated message. In this case, the vehicle
speed is limited to 50 km/h and, after turning it off, it is not possible to
restart the vehicle.
❒It is possible to restart the engine again as soon as the UREA is topped
up (the minimum amount to be added is 3 litres).
103)
Top up the UREA tank as
soon as possible with at
least 3 litres of UREA. If
topping up is done with
autonomy tank UREA to
zero, you must wait 2
minutes before starting
the vehicle.
WATER IN DIESEL FILTER (diesel versions)
The symbol switches on constantly when driving (along with a message
in the display), to indicate the presence of water in the diesel filter.
25)
