188) Do not travel with the
windscreen washer reservoir
empty: the windscreen washer is
essential for improving visibility.
189) Some commercial windscreen
washer additives are flammable.
The engine compartment contains
hot parts which could start a fire
on contact.
190) Do not release the cap from
the extension without previously
extracting the system using the
ring.
191) Brake fluid is poisonous and
highly corrosive. In the event of
accidental contact, immediately
wash the affected parts with
water and mild soap. Then rinse
thoroughly. Call a doctor
immediately if swallowed.
192) The
symbol on the container
indicates a synthetic brake fluid,
which is different from a mineral
fluid. Using a mineral fluid will
damage the special rubber seals
of the braking system beyond
repair.
193) Prevent power steering fluid
from coming into contact with
hot engine parts: it is flammable.
IMPORTANT
3) Power steering fluid consumption
is extremely low; if another top-up
is required after only a short
period of time, have the system
checked for leaks at a Fiat
Dealership.
AIR CLEANER/
POLLEN FILTER
Have the air cleaner replaced by a Fiat
Dealership.
AIR CLEANER – DUSTY
ROADS
(for versions/markets, where provided)
The air cleaner for dusty areas is
equipped with a visual filter block
indication device A fig. 247. Check the
reading of the blockage sensor at
intervals (Refer to the "Service
Schedule" in the "Maintenance and
care" section).
247F1A0238
250
SERVICING AND MAINTENANCE

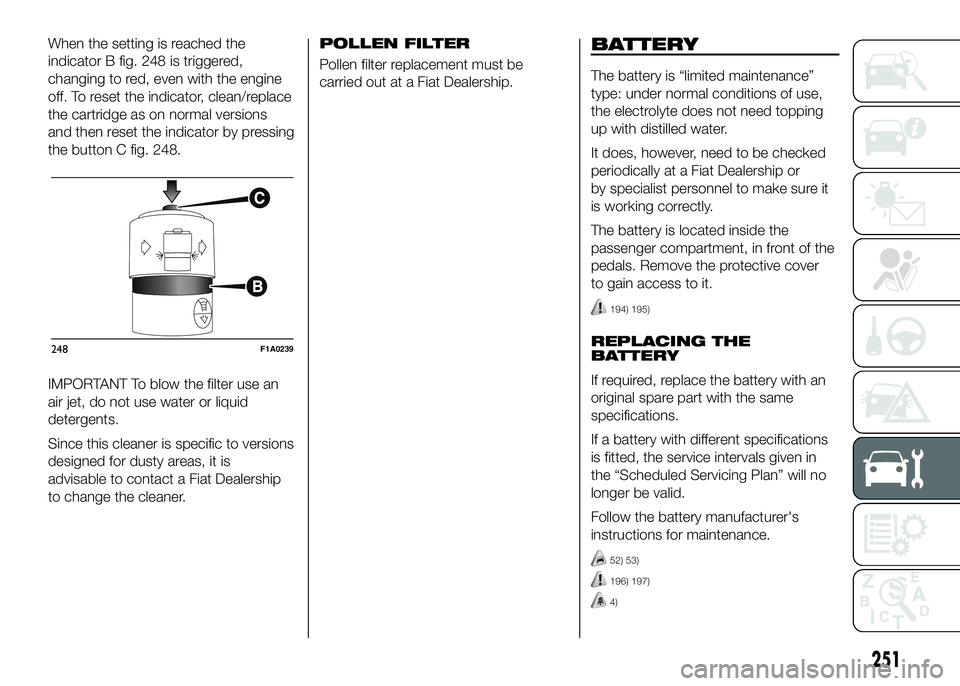

When the setting is reached the
indicator B fig. 248 is triggered,
changing to red, even with the engine
off. To reset the indicator, clean/replace
the cartridge as on normal versions
and then reset the indicator by pressing
the button C fig. 248.
IMPORTANT To blow the filter use an
air jet, do not use water or liquid
detergents.
Since this cleaner is specific to versions
designed for dusty areas, it is
advisable to contact a Fiat Dealership
to change the cleaner.POLLEN FILTER
Pollen filter replacement must be
carried out at a Fiat Dealership.BATTERY
The battery is “limited maintenance”
type: under normal conditions of use,
the electrolyte does not need topping
up with distilled water.
It does, however, need to be checked
periodically at a Fiat Dealership or
by specialist personnel to make sure it
is working correctly.
The battery is located inside the
passenger compartment, in front of the
pedals. Remove the protective cover
to gain access to it.
194) 195)
REPLACING THE
BATTERY
If required, replace the battery with an
original spare part with the same
specifications.
If a battery with different specifications
is fitted, the service intervals given in
the “Scheduled Servicing Plan” will no
longer be valid.
Follow the battery manufacturer's
instructions for maintenance.
52) 53)
196) 197)
4)
248F1A0239
251

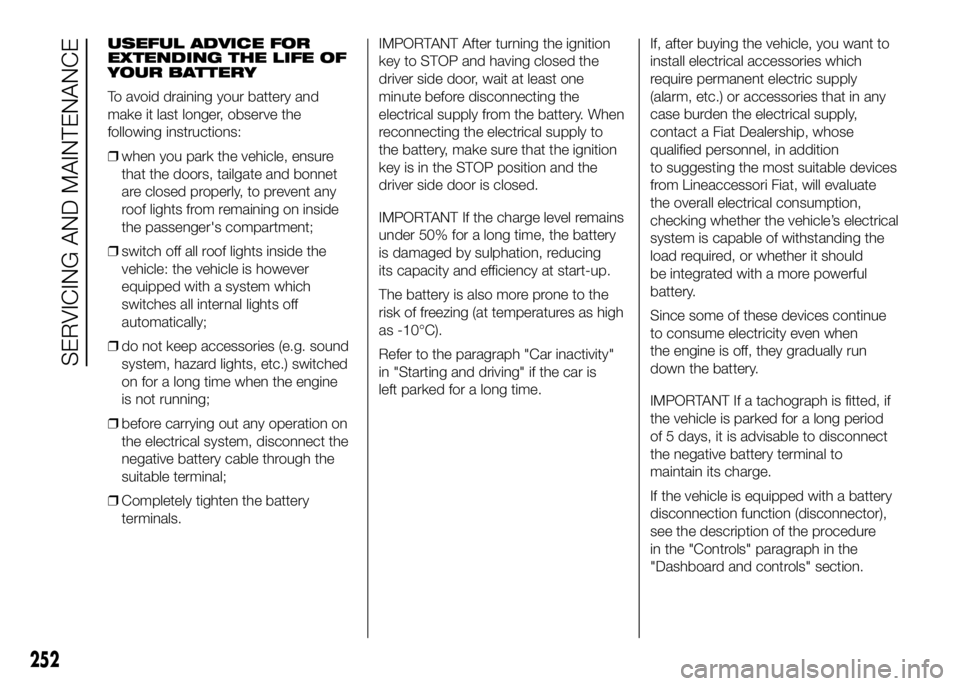

USEFUL ADVICE FOR
EXTENDING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and
make it last longer, observe the
following instructions:
❒when you park the vehicle, ensure
that the doors, tailgate and bonnet
are closed properly, to prevent any
roof lights from remaining on inside
the passenger's compartment;
❒switch off all roof lights inside the
vehicle: the vehicle is however
equipped with a system which
switches all internal lights off
automatically;
❒do not keep accessories (e.g. sound
system, hazard lights, etc.) switched
on for a long time when the engine
is not running;
❒before carrying out any operation on
the electrical system, disconnect the
negative battery cable through the
suitable terminal;
❒Completely tighten the battery
terminals.IMPORTANT After turning the ignition
key to STOP and having closed the
driver side door, wait at least one
minute before disconnecting the
electrical supply from the battery. When
reconnecting the electrical supply to
the battery, make sure that the ignition
key is in the STOP position and the
driver side door is closed.
IMPORTANT If the charge level remains
under 50% for a long time, the battery
is damaged by sulphation, reducing
its capacity and efficiency at start-up.
The battery is also more prone to the
risk of freezing (at temperatures as high
as -10°C).
Refer to the paragraph "Car inactivity"
in "Starting and driving" if the car is
left parked for a long time.If, after buying the vehicle, you want to
install electrical accessories which
require permanent electric supply
(alarm, etc.) or accessories that in any
case burden the electrical supply,
contact a Fiat Dealership, whose
qualified personnel, in addition
to suggesting the most suitable devices
from Lineaccessori Fiat, will evaluate
the overall electrical consumption,
checking whether the vehicle’s electrical
system is capable of withstanding the
load required, or whether it should
be integrated with a more powerful
battery.
Since some of these devices continue
to consume electricity even when
the engine is off, they gradually run
down the battery.
IMPORTANT If a tachograph is fitted, if
the vehicle is parked for a long period
of 5 days, it is advisable to disconnect
the negative battery terminal to
maintain its charge.
If the vehicle is equipped with a battery
disconnection function (disconnector),
see the description of the procedure
in the "Controls" paragraph in the
"Dashboard and controls" section.
252
SERVICING AND MAINTENANCE

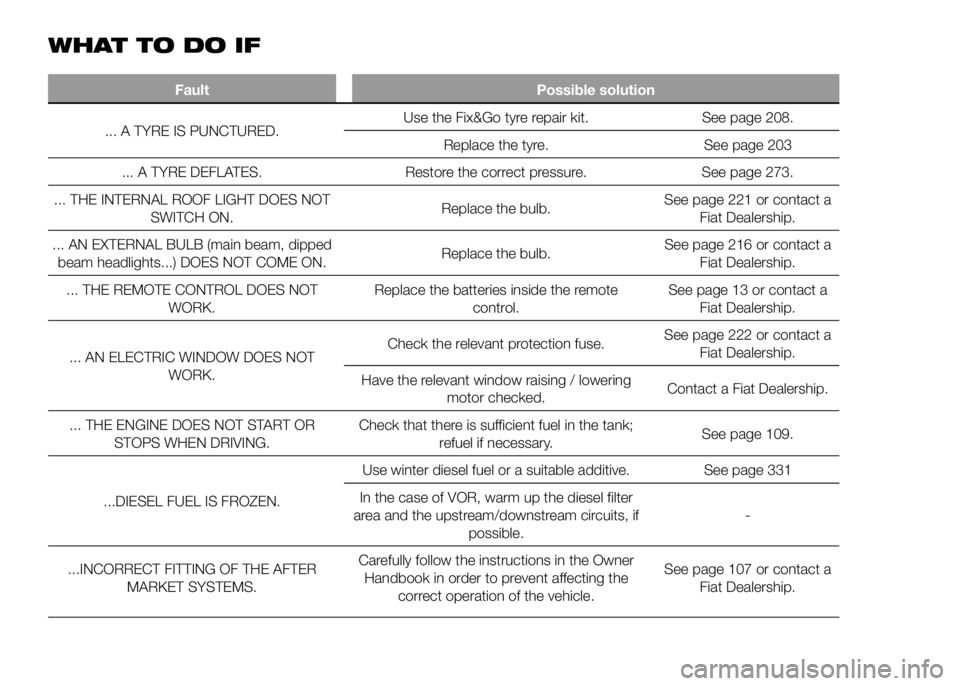

WHATTODOIF
Fault Possible solution
... A TYRE IS PUNCTURED.Use
the Fix&Go tyre repair kit. See page 208.
Replace the tyre. See page 203
... A TYRE DEFLATES. Restore the correct pressure. See page 273.
... THE INTERNAL ROOF LIGHT DOES NOT
SWITCH ON.Replace the bulb.See page 221 or contact a
Fiat Dealership.
... AN EXTERNAL BULB (main beam, dipped
beam headlights...) DOES NOT COME ON.Replace the bulb.See page 216 or contact a
Fiat Dealership.
... THE REMOTE CONTROL DOES NOT
WORK.Replace the batteries inside the remote
control.See page 13 or contact a
Fiat Dealership.
... AN ELECTRIC WINDOW DOES NOT
WORK.Check the relevant protection fuse.See page 222 or contact a
Fiat Dealership.
Have the relevant window raising / lowering
motor checked.Contact a Fiat Dealership.
... THE ENGINE DOES NOT START OR
STOPS WHEN DRIVING.Check that there is sufficient fuel in the tank;
refuel if necessary.See page 109.
...DIESEL FUEL IS FROZEN.Use winter diesel fuel or a suitable additive. See page 331
In the case of VOR, warm up the diesel filter
area and the upstream/downstream circuits, if
possible.-
...INCORRECT FITTING OF THE AFTER
MARKET SYSTEMS.Carefully follow the instructions in the Owner
Handbook in order to prevent affecting the
correct operation of the vehicle.See page 107 or contact a
Fiat Dealership.

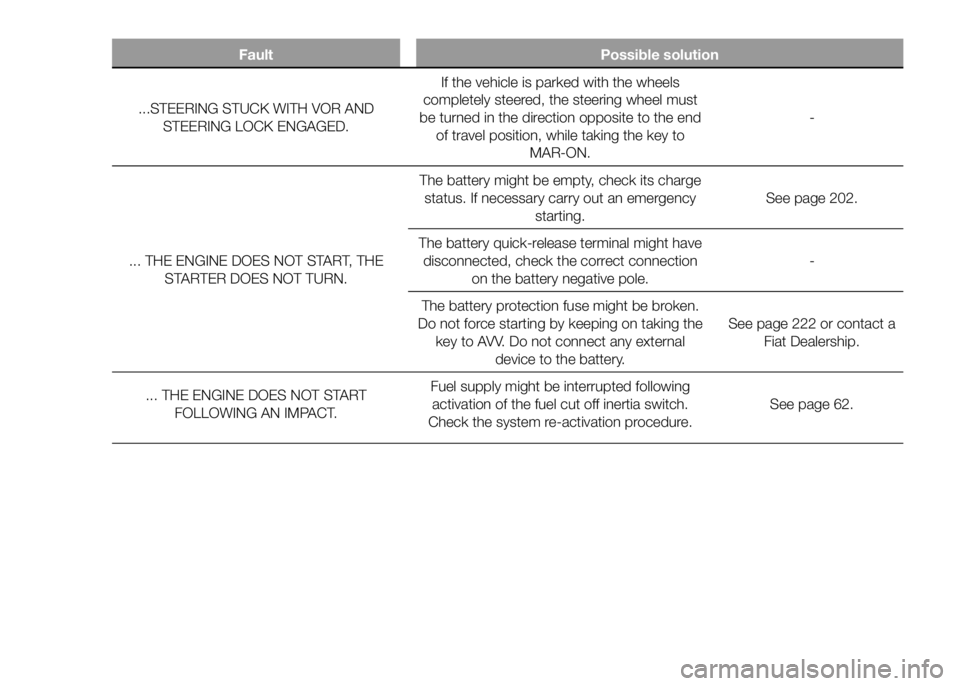

Fault Possible solution
...STEERING STUCK WITH VOR AND
STEERING
LOCK ENGAGED.If the vehicle is parked with the wheels
completely steered, the steering wheel must
be turned in the direction opposite to the end
of travel position, while taking the key to
MAR-ON.-
... THE ENGINE DOES NOT START, THE
STARTER DOES NOT TURN.The battery might be empty, check its charge
status. If necessary carry out an emergency
starting.See page 202.
The battery quick-release terminal might have
disconnected, check the correct connection
on the battery negative pole.-
The battery protection fuse might be broken.
Do not force starting by keeping on taking the
key to AVV. Do not connect any external
device to the battery.See page 222 or contact a
Fiat Dealership.
... THE ENGINE DOES NOT START
FOLLOWING AN IMPACT.Fuel supply might be interrupted following
activation of the fuel cut off inertia switch.
Check the system re-activation procedure.See page 62.

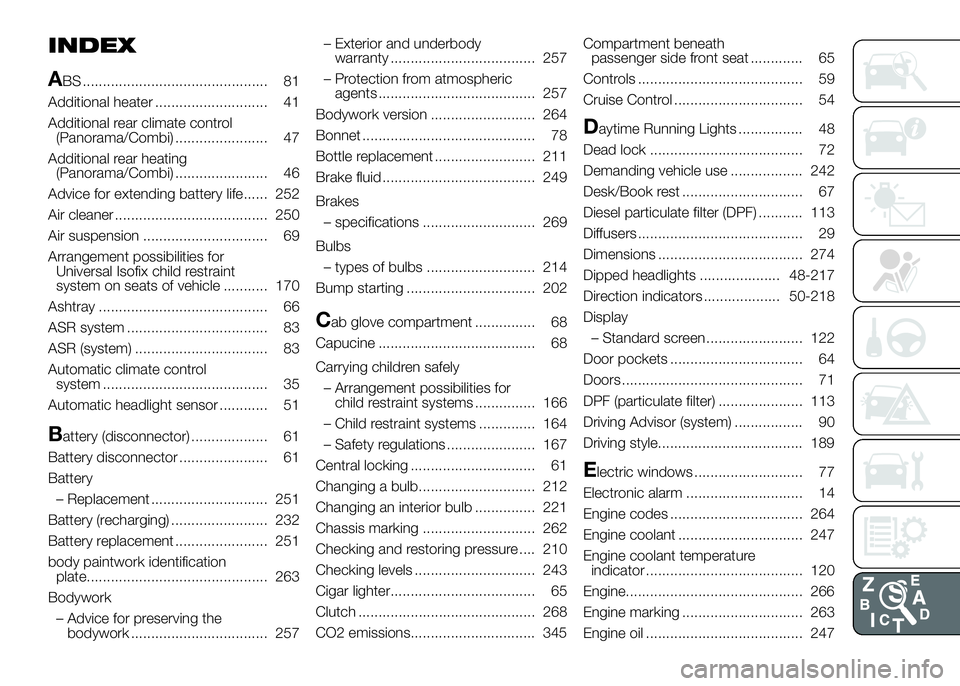

INDEX
A
BS .............................................. 81
Additional heater ............................ 41
Additional rear climate control
(Panorama/Combi) ....................... 47
Additional rear heating
(Panorama/Combi) ....................... 46
Advice for extending battery life...... 252
Air cleaner ...................................... 250
Air suspension ............................... 69
Arrangement possibilities for
Universal Isofix child restraint
system on seats of vehicle ........... 170
Ashtray .......................................... 66
ASR system ................................... 83
ASR (system) ................................. 83
Automatic climate control
system ......................................... 35
Automatic headlight sensor ............ 51
Battery (disconnector) ................... 61
Battery disconnector ...................... 61
Battery
– Replacement ............................. 251
Battery (recharging) ........................ 232
Battery replacement ....................... 251
body paintwork identification
plate............................................. 263
Bodywork
– Advice for preserving the
bodywork .................................. 257– Exterior and underbody
warranty .................................... 257
– Protection from atmospheric
agents ....................................... 257
Bodywork version .......................... 264
Bonnet ........................................... 78
Bottle replacement ......................... 211
Brake fluid ...................................... 249
Brakes
– specifications ............................ 269
Bulbs
– types of bulbs ........................... 214
Bump starting ................................ 202
Cab glove compartment ............... 68
Capucine ....................................... 68
Carrying children safely
– Arrangement possibilities for
child restraint systems ............... 166
– Child restraint systems .............. 164
– Safety regulations ...................... 167
Central locking ............................... 61
Changing a bulb............................. 212
Changing an interior bulb ............... 221
Chassis marking ............................ 262
Checking and restoring pressure .... 210
Checking levels .............................. 243
Cigar lighter.................................... 65
Clutch ............................................ 268
CO2 emissions............................... 345Compartment beneath
passenger side front seat ............. 65
Controls ......................................... 59
Cruise Control ................................ 54
Daytime Running Lights ................ 48
Dead lock ...................................... 72
Demanding vehicle use .................. 242
Desk/Book rest .............................. 67
Diesel particulate filter (DPF) ........... 113
Diffusers ......................................... 29
Dimensions .................................... 274
Dipped headlights .................... 48-217
Direction indicators ................... 50-218
Display
– Standard screen ........................ 122
Door pockets ................................. 64
Doors ............................................. 71
DPF (particulate filter) ..................... 113
Driving Advisor (system) ................. 90
Driving style.................................... 189
Electric windows ........................... 77
Electronic alarm ............................. 14
Engine codes ................................. 264
Engine coolant ............................... 247
Engine coolant temperature
indicator ....................................... 120
Engine............................................ 266
Engine marking .............................. 263
Engine oil ....................................... 247

Engine oil level gauge ..................... 121
EOBD system ................................ 99
ESC (system) ................................. 82
External lights................................. 48
Fiat CODE system......................... 11
Fix&Go Automatic quick tyre
repair kit................. 208-209-210-211
Flap on bench ............................ 19-68
Flashing ......................................... 49
Flex Floor rear seat......................... 21
Fluids and lubricants ...................... 329
Fog lights ................................. 60-218
Follow Me Home device ................. 50
Follow me home ............................ 50
Front airbags .................................. 174
– Driver's side front airbag............ 174
– Manually deactivating the
front airbag and side bag........... 175
– Passenger side front airbag ....... 175
Front roof light (changing a bulb) .... 221
Fuel consumption .......................... 333
Fuel cut-off switch ......................... 62
Fuel level gauge ............................. 120
Fuel tank cap ................................. 109
Fuses (replacement) ....................... 222
Gearbox ....................................... 186
Gear lever ...................................... 186
Gear Shift Indicator ........................ 122
Glove compartment.................... 63-64Glove compartment with lock......... 63
Hazard warning lights ................... 59
HBA (Hydraulic Brake Assist)
system ......................................... 84
HBA (system) ................................. 84
Headlight alignment corrector ........ 80
Headlights
– Headlight alignment corrector.... 80
– Light beam direction.................. 80
Headlight washers .................... 53-256
Head restraints
– Front ......................................... 24
Heated rear window ....................... 60
Heating and ventilation controls...... 29
Heating and ventilation ................... 28
Hill Descent Control System ........... 84
Hill Descent .................................... 84
Hill Holder system .......................... 83
Hill Holder (system) ........................ 83
Identification data .......................... 262
Ignition switch ................................ 15
Independent additional heater ........ 41
Inflation pressure ............................ 273
Inflation procedure ......................... 209
Instrument panel ............................ 116
Interior fittings ................................ 63
Interiors .......................................... 259
Isofix child restraint systems
(setup)– Arrangement possibilities for
child restraint system on
seats of vehicle.......................... 170
Jump starting ................................ 202
Lectern ......................................... 67
Lifting the vehicle ........................... 233
Light beam direction ...................... 80
Lights off ........................................ 48
Loading advice............................... 187
Main beam headlights............. 48-217
Maintenance and care - regular
checks ......................................... 242
Maintenance and care -
Scheduled Servicing .................... 238
Maintenance and care -
scheduled servicing plan .............. 239
Manual climate control system ....... 32
Manually deactivating the front
airbag and side bag ..................... 175
Moving footboard ........................... 74
MSR system .................................. 81
MSR (system)................................. 81
Multifunction display
– Control buttons ......................... 122
– Setup menu .............................. 123
Number plate lights....................... 221
On-board instruments................... 116
Parking ......................................... 185
Parking lights.............................. 49-60
INDEX
