KNOWING YOUR VEHICLE
In-depth knowledge of your new vehicle
starts here.
The booklet that you are reading simply
and directly explains how it is made
and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see what is described here for
yourself.SYMBOLS ...................................... 8
THE FIAT CODE SYSTEM ............... 8
THE KEYS....................................... 9
IGNITION SWITCH .......................... 10
ELECTRONIC ALARM..................... 11
DOORS ........................................... 12
SEATS ............................................ 16
STEERING WHEEL ......................... 21
REAR VIEW MIRRORS .................... 22
EXTERNAL LIGHTS......................... 24
HEADLIGHTS.................................. 27
ROOF LIGHTS ................................ 28
CONTROLS .................................... 29
WINDOW WASHING ....................... 32
HEATING AND VENTILATION.......... 34
HEATING AND VENTILATION
CONTROLS .................................... 35
MANUAL CLIMATE CONTROL
SYSTEM ......................................... 35
AUTOMATIC CLIMATE CONTROL
SYSTEM ......................................... 36
ADDITIONAL HEATER ..................... 37
INDEPENDENT ADDITIONAL
HEATER .......................................... 38
ELECTRIC WINDOWS .................... 41
BONNET ......................................... 42
HEAD RESTRAINTS ........................ 43
INTERIOR FITTINGS ...................... 44TACHOGRAPH ............................... 45
SELF-LEVELLING AIR
SUSPENSION ................................. 45
7

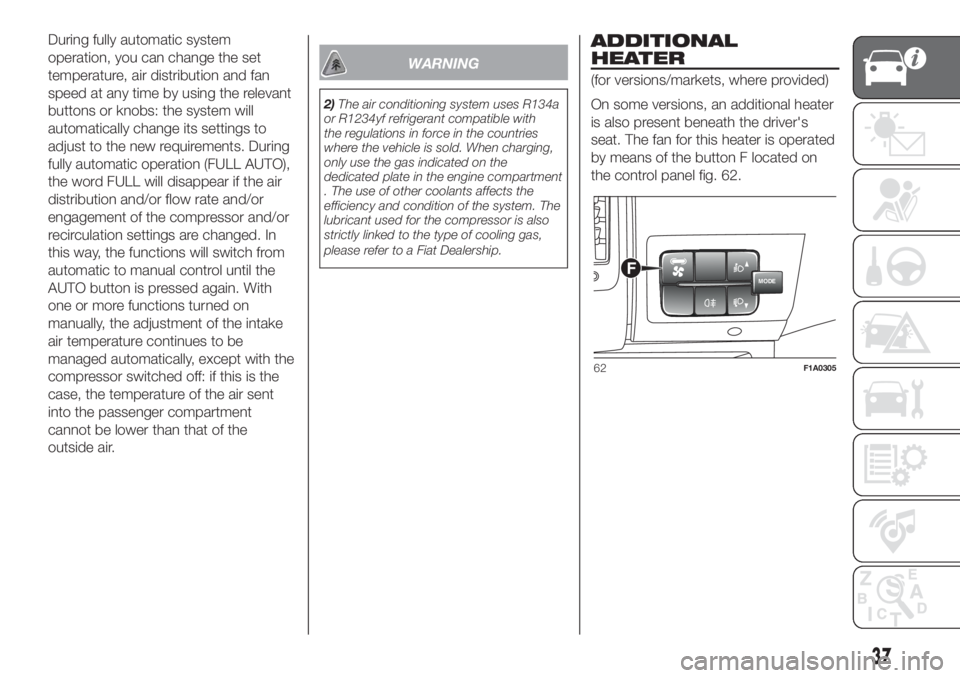

During fully automatic system
operation, you can change the set
temperature, air distribution and fan
speed at any time by using the relevant
buttons or knobs: the system will
automatically change its settings to
adjust to the new requirements. During
fully automatic operation (FULL AUTO),
the word FULL will disappear if the air
distribution and/or flow rate and/or
engagement of the compressor and/or
recirculation settings are changed. In
this way, the functions will switch from
automatic to manual control until the
AUTO button is pressed again. With
one or more functions turned on
manually, the adjustment of the intake
air temperature continues to be
managed automatically, except with the
compressor switched off: if this is the
case, the temperature of the air sent
into the passenger compartment
cannot be lower than that of the
outside air.
WARNING
2)The air conditioning system uses R134a
or R1234yf refrigerant compatible with
the regulations in force in the countries
where the vehicle is sold. When charging,
only use the gas indicated on the
dedicated plate in the engine compartment
. The use of other coolants affects the
efficiency and condition of the system. The
lubricant used for the compressor is also
strictly linked to the type of cooling gas,
please refer to a Fiat Dealership.
ADDITIONAL
HEATER
(for versions/markets, where provided)
On some versions, an additional heater
is also present beneath the driver's
seat. The fan for this heater is operated
by means of the button F located on
the control panel fig. 62.
MODEF
62F1A0305
37

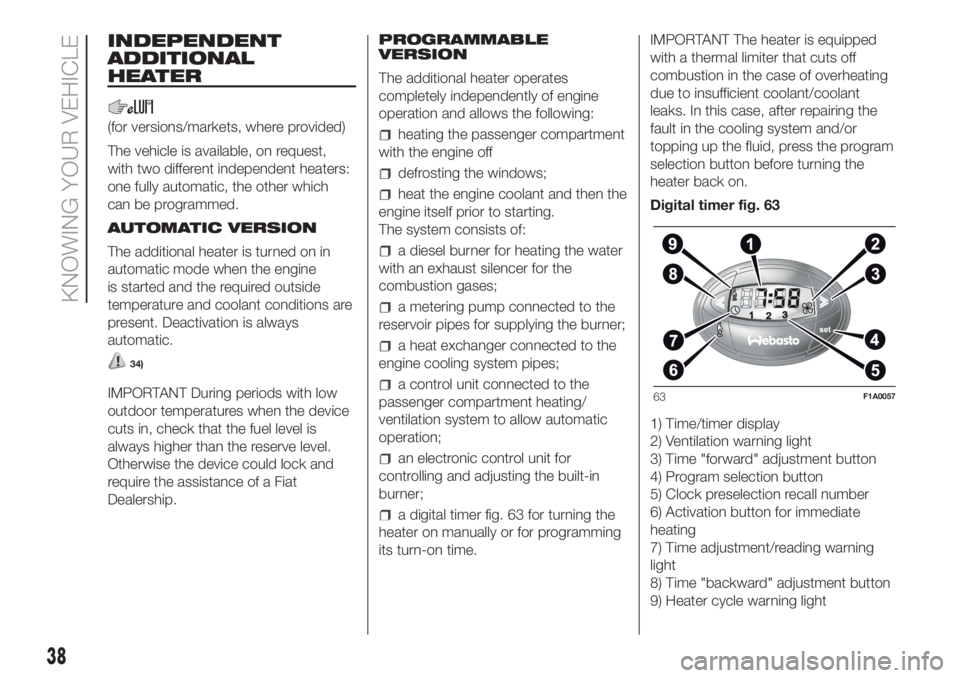

INDEPENDENT
ADDITIONAL
HEATER
(for versions/markets, where provided)
The vehicle is available, on request,
with two different independent heaters:
one fully automatic, the other which
can be programmed.
AUTOMATIC VERSION
The additional heater is turned on in
automatic mode when the engine
is started and the required outside
temperature and coolant conditions are
present. Deactivation is always
automatic.
34)
IMPORTANT During periods with low
outdoor temperatures when the device
cuts in, check that the fuel level is
always higher than the reserve level.
Otherwise the device could lock and
require the assistance of a Fiat
Dealership.PROGRAMMABLE
VERSION
The additional heater operates
completely independently of engine
operation and allows the following:
heating the passenger compartment
with the engine off
defrosting the windows;
heat the engine coolant and then the
engine itself prior to starting.
The system consists of:
a diesel burner for heating the water
with an exhaust silencer for the
combustion gases;
a metering pump connected to the
reservoir pipes for supplying the burner;
a heat exchanger connected to the
engine cooling system pipes;
a control unit connected to the
passenger compartment heating/
ventilation system to allow automatic
operation;
an electronic control unit for
controlling and adjusting the built-in
burner;
a digital timer fig. 63 for turning the
heater on manually or for programming
its turn-on time.IMPORTANT The heater is equipped
with a thermal limiter that cuts off
combustion in the case of overheating
due to insufficient coolant/coolant
leaks. In this case, after repairing the
fault in the cooling system and/or
topping up the fluid, press the program
selection button before turning the
heater back on.
Digital timer fig. 63
1) Time/timer display
2) Ventilation warning light
3) Time "forward" adjustment button
4) Program selection button
5) Clock preselection recall number
6) Activation button for immediate
heating
7) Time adjustment/reading warning
light
8) Time "backward" adjustment button
9) Heater cycle warning light
63F1A0057
38
KNOWING YOUR VEHICLE

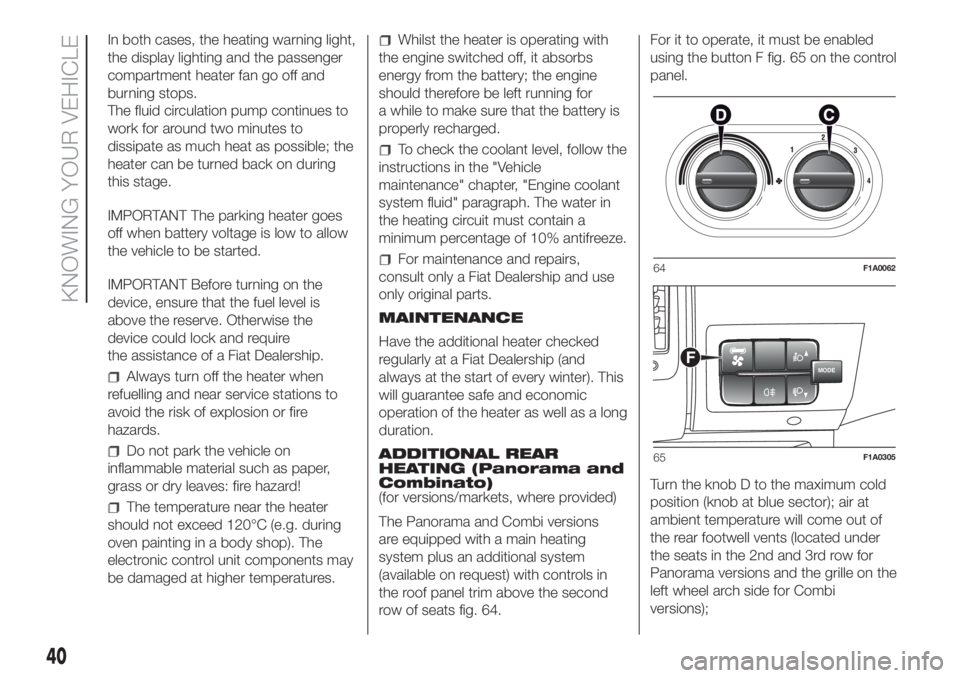

In both cases, the heating warning light,
the display lighting and the passenger
compartment heater fan go off and
burning stops.
The fluid circulation pump continues to
work for around two minutes to
dissipate as much heat as possible; the
heater can be turned back on during
this stage.
IMPORTANT The parking heater goes
off when battery voltage is low to allow
the vehicle to be started.
IMPORTANT Before turning on the
device, ensure that the fuel level is
above the reserve. Otherwise the
device could lock and require
the assistance of a Fiat Dealership.
Always turn off the heater when
refuelling and near service stations to
avoid the risk of explosion or fire
hazards.
Do not park the vehicle on
inflammable material such as paper,
grass or dry leaves: fire hazard!
The temperature near the heater
should not exceed 120°C (e.g. during
oven painting in a body shop). The
electronic control unit components may
be damaged at higher temperatures.
Whilst the heater is operating with
the engine switched off, it absorbs
energy from the battery; the engine
should therefore be left running for
a while to make sure that the battery is
properly recharged.
To check the coolant level, follow the
instructions in the "Vehicle
maintenance" chapter, "Engine coolant
system fluid" paragraph. The water in
the heating circuit must contain a
minimum percentage of 10% antifreeze.
For maintenance and repairs,
consult only a Fiat Dealership and use
only original parts.
MAINTENANCE
Have the additional heater checked
regularly at a Fiat Dealership (and
always at the start of every winter). This
will guarantee safe and economic
operation of the heater as well as a long
duration.
ADDITIONAL REAR
HEATING (Panorama and
Combinato)
(for versions/markets, where provided)
The Panorama and Combi versions
are equipped with a main heating
system plus an additional system
(available on request) with controls in
the roof panel trim above the second
row of seats fig. 64.For it to operate, it must be enabled
using the button F fig. 65 on the control
panel.
Turn the knob D to the maximum cold
position (knob at blue sector); air at
ambient temperature will come out of
the rear footwell vents (located under
the seats in the 2nd and 3rd row for
Panorama versions and the grille on the
left wheel arch side for Combi
versions);64F1A0062
MODEF
65F1A0305
40
KNOWING YOUR VEHICLE

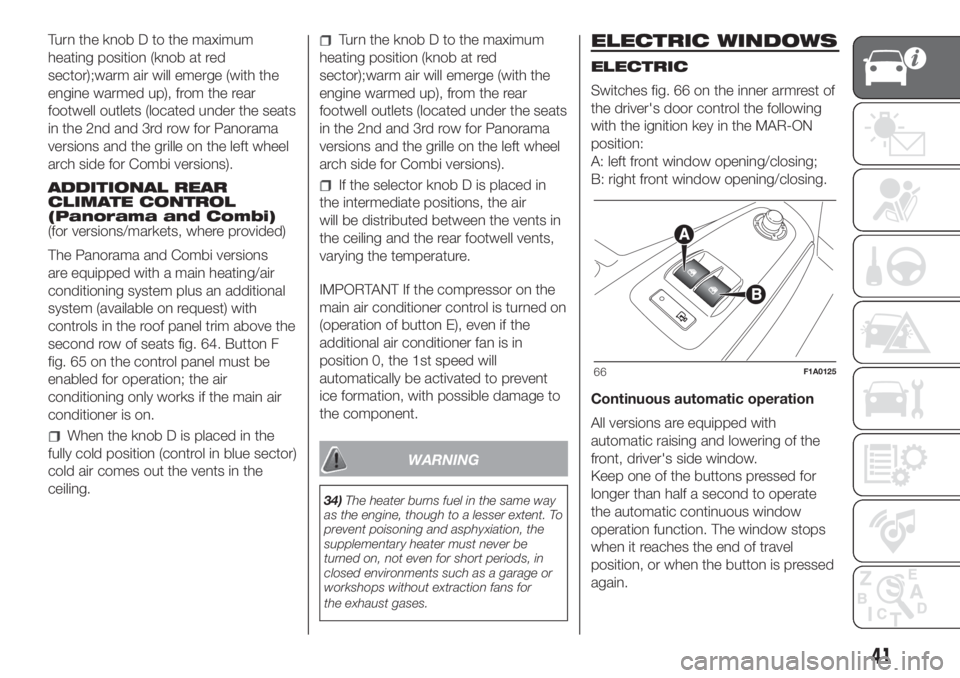

Turn the knob D to the maximum
heating position (knob at red
sector);warm air will emerge (with the
engine warmed up), from the rear
footwell outlets (located under the seats
in the 2nd and 3rd row for Panorama
versions and the grille on the left wheel
arch side for Combi versions).
ADDITIONAL REAR
CLIMATE CONTROL
(Panorama and Combi)
(for versions/markets, where provided)
The Panorama and Combi versions
are equipped with a main heating/air
conditioning system plus an additional
system (available on request) with
controls in the roof panel trim above the
second row of seats fig. 64. Button F
fig. 65 on the control panel must be
enabled for operation; the air
conditioning only works if the main air
conditioner is on.
When the knob D is placed in the
fully cold position (control in blue sector)
cold air comes out the vents in the
ceiling.
Turn the knob D to the maximum
heating position (knob at red
sector);warm air will emerge (with the
engine warmed up), from the rear
footwell outlets (located under the seats
in the 2nd and 3rd row for Panorama
versions and the grille on the left wheel
arch side for Combi versions).
If the selector knob D is placed in
the intermediate positions, the air
will be distributed between the vents in
the ceiling and the rear footwell vents,
varying the temperature.
IMPORTANT If the compressor on the
main air conditioner control is turned on
(operation of button E), even if the
additional air conditioner fan is in
position 0, the 1st speed will
automatically be activated to prevent
ice formation, with possible damage to
the component.
WARNING
34)The heater burns fuel in the same way
as the engine, though to a lesser extent. To
prevent poisoning and asphyxiation, the
supplementary heater must never be
turned on, not even for short periods, in
closed environments such as a garage or
workshops without extraction fans for
the exhaust gases.
ELECTRIC WINDOWS
ELECTRIC
Switches fig. 66 on the inner armrest of
the driver's door control the following
with the ignition key in the MAR-ON
position:
A: left front window opening/closing;
B: right front window opening/closing.
Continuous automatic operation
All versions are equipped with
automatic raising and lowering of the
front, driver's side window.
Keep one of the buttons pressed for
longer than half a second to operate
the automatic continuous window
operation function. The window stops
when it reaches the end of travel
position, or when the button is pressed
again.
66F1A0125
41

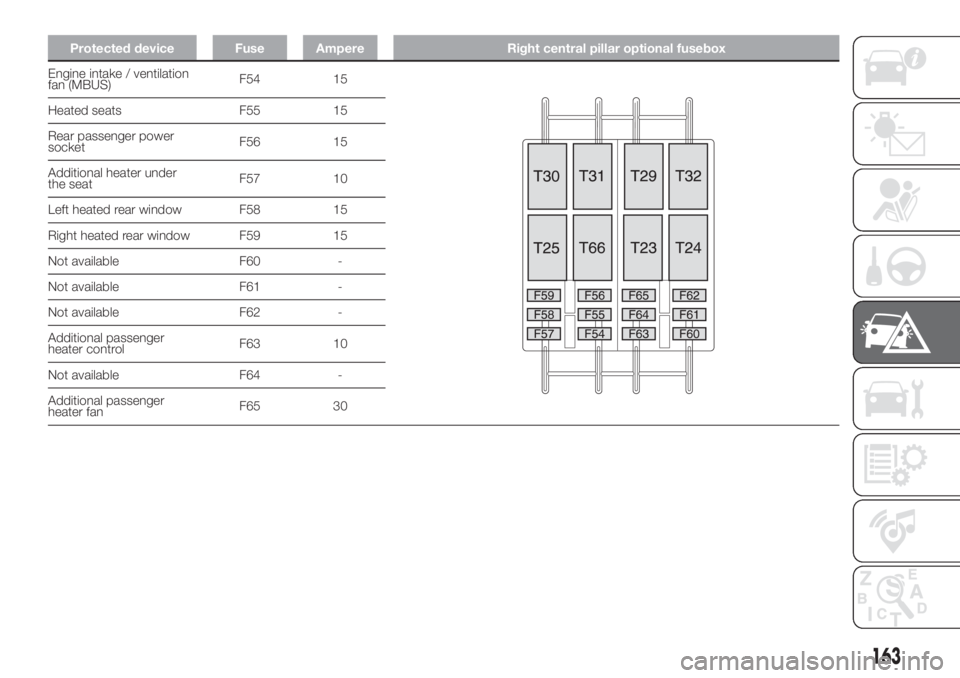

Protected device Fuse Ampere Right central pillar optional fusebox
Engine intake / ventilation
fan (MBUS)F54 15
Heated seats F55 15
Rear passenger power
socketF56 15
Additional heater under
the seatF57 10
Left heated rear window F58 15
Right heated rear window F59 15
Not available F60 -
Not available F61 -
Not available F62 -
Additional passenger
heater controlF63 10
Not available F64 -
Additional passenger
heater fanF65 30
163

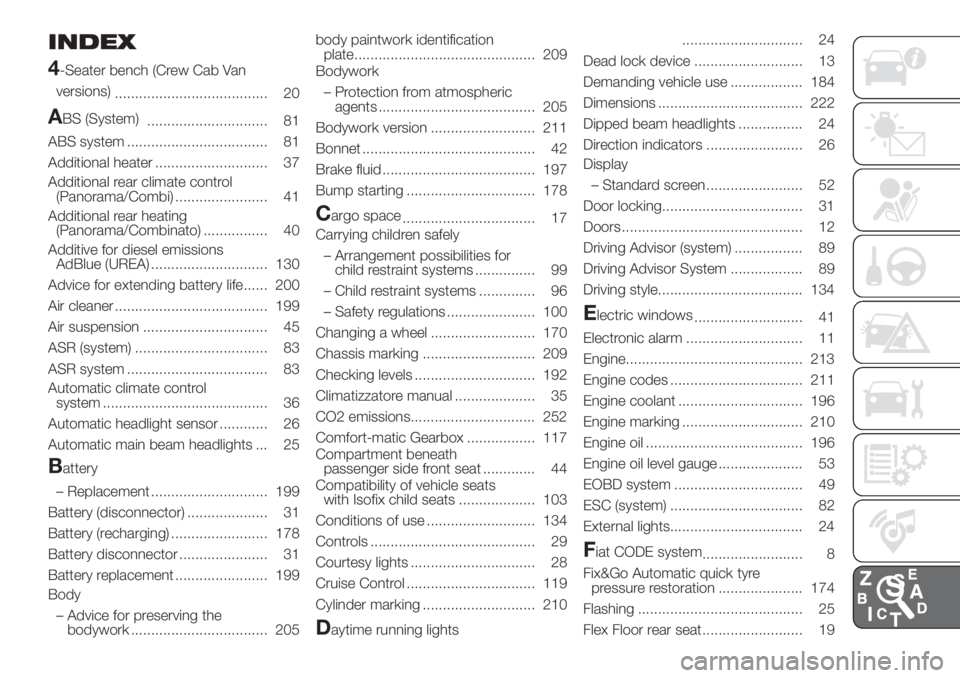

INDEX
4
-Seater bench (Crew Cab Van
versions)
...................................... 20
ABS (System)
.............................. 81
ABS system ................................... 81
Additional heater ............................ 37
Additional rear climate control
(Panorama/Combi) ....................... 41
Additional rear heating
(Panorama/Combinato) ................ 40
Additive for diesel emissions
AdBlue (UREA) ............................. 130
Advice for extending battery life...... 200
Air cleaner ...................................... 199
Air suspension ............................... 45
ASR (system) ................................. 83
ASR system ................................... 83
Automatic climate control
system ......................................... 36
Automatic headlight sensor ............ 26
Automatic main beam headlights ... 25
Battery
– Replacement ............................. 199
Battery (disconnector) .................... 31
Battery (recharging) ........................ 178
Battery disconnector ...................... 31
Battery replacement ....................... 199
Body
– Advice for preserving the
bodywork .................................. 205body paintwork identification
plate............................................. 209
Bodywork
– Protection from atmospheric
agents ....................................... 205
Bodywork version .......................... 211
Bonnet ........................................... 42
Brake fluid ...................................... 197
Bump starting ................................ 178
Cargo space
................................. 17
Carrying children safely
– Arrangement possibilities for
child restraint systems ............... 99
– Child restraint systems .............. 96
– Safety regulations ...................... 100
Changing a wheel .......................... 170
Chassis marking ............................ 209
Checking levels .............................. 192
Climatizzatore manual .................... 35
CO2 emissions............................... 252
Comfort-matic Gearbox ................. 117
Compartment beneath
passenger side front seat ............. 44
Compatibility of vehicle seats
with Isofix child seats ................... 103
Conditions of use ........................... 134
Controls ......................................... 29
Courtesy lights ............................... 28
Cruise Control ................................ 119
Cylinder marking ............................ 210
Daytime running lights.............................. 24
Dead lock device ........................... 13
Demanding vehicle use .................. 184
Dimensions .................................... 222
Dipped beam headlights ................ 24
Direction indicators ........................ 26
Display
– Standard screen ........................ 52
Door locking................................... 31
Doors ............................................. 12
Driving Advisor (system) ................. 89
Driving Advisor System .................. 89
Driving style.................................... 134
Electric windows
........................... 41
Electronic alarm ............................. 11
Engine............................................ 213
Engine codes ................................. 211
Engine coolant ............................... 196
Engine marking .............................. 210
Engine oil ....................................... 196
Engine oil level gauge ..................... 53
EOBD system ................................ 49
ESC (system) ................................. 82
External lights................................. 24
Fiat CODE system
......................... 8
Fix&Go Automatic quick tyre
pressure restoration ..................... 174
Flashing ......................................... 25
Flex Floor rear seat......................... 19

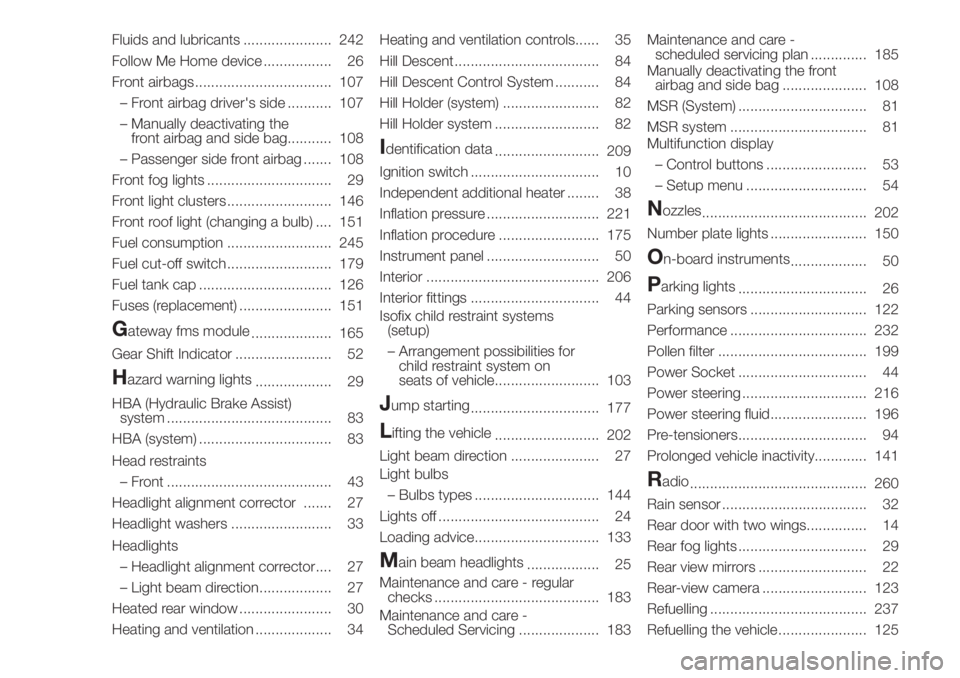

Fluids and lubricants ...................... 242
Follow Me Home device ................. 26
Front airbags .................................. 107
– Front airbag driver's side ........... 107
– Manually deactivating the
front airbag and side bag........... 108
– Passenger side front airbag ....... 108
Front fog lights ............................... 29
Front light clusters .......................... 146
Front roof light (changing a bulb) .... 151
Fuel consumption .......................... 245
Fuel cut-off switch .......................... 179
Fuel tank cap ................................. 126
Fuses (replacement) ....................... 151
Gateway fms module
.................... 165
Gear Shift Indicator ........................ 52
Hazard warning lights
................... 29
HBA (Hydraulic Brake Assist)
system ......................................... 83
HBA (system) ................................. 83
Head restraints
– Front ......................................... 43
Headlight alignment corrector ....... 27
Headlight washers ......................... 33
Headlights
– Headlight alignment corrector.... 27
– Light beam direction.................. 27
Heated rear window ....................... 30
Heating and ventilation ................... 34Heating and ventilation controls...... 35
Hill Descent .................................... 84
Hill Descent Control System ........... 84
Hill Holder (system) ........................ 82
Hill Holder system .......................... 82
Identification data
.......................... 209
Ignition switch ................................ 10
Independent additional heater ........ 38
Inflation pressure ............................ 221
Inflation procedure ......................... 175
Instrument panel ............................ 50
Interior ........................................... 206
Interior fittings ................................ 44
Isofix child restraint systems
(setup)
– Arrangement possibilities for
child restraint system on
seats of vehicle.......................... 103
Jump starting
................................ 177
Lifting the vehicle
.......................... 202
Light beam direction ...................... 27
Light bulbs
– Bulbs types ............................... 144
Lights off ........................................ 24
Loading advice............................... 133
Main beam headlights
.................. 25
Maintenance and care - regular
checks ......................................... 183
Maintenance and care -
Scheduled Servicing .................... 183Maintenance and care -
scheduled servicing plan .............. 185
Manually deactivating the front
airbag and side bag ..................... 108
MSR (System) ................................ 81
MSR system .................................. 81
Multifunction display
– Control buttons ......................... 53
– Setup menu .............................. 54
Nozzles
......................................... 202
Number plate lights ........................ 150
On-board instruments
................... 50
Parking lights
................................ 26
Parking sensors ............................. 122
Performance .................................. 232
Pollen filter ..................................... 199
Power Socket ................................ 44
Power steering ............................... 216
Power steering fluid........................ 196
Pre-tensioners................................ 94
Prolonged vehicle inactivity............. 141
Radio
............................................ 260
Rain sensor .................................... 32
Rear door with two wings............... 14
Rear fog lights ................................ 29
Rear view mirrors ........................... 22
Rear-view camera .......................... 123
Refuelling ....................................... 237
Refuelling the vehicle ...................... 125
