sensor FIAT FIORINO 2013 Owner handbook (in English)

4
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD........................................................................ 5
INSTRUMENT PANEL ......................................................... 6
SYMBOLS ............................................................................... 7
THE FIAT CODE SYSTEM ................................................. 7
THE KEYS .............................................................................. 8
ALARM ................................................................................... 11
IGNITION DEVICE ............................................................. 13
INSTRUMENTS .................................................................... 14
DIGITAL DISPLAY ............................................................... 16
MULTIFUNCTIONAL DISPLAY ...................................... 21
TRIP COMPUTER ................................................................ 30
SEATS ...................................................................................... 33
PARTITIONS .......................................................................... 36
HEAD RESTRAINTS............................................................. 38
STEERING WHEEL .............................................................. 39
REARVIEW MIRRORS......................................................... 39
HEATING AND CLIMATE CONTROL SYSTEM ........ 41
HEATING AND VENTILATION ...................................... 43
MANUAL CLIMATE CONTROL SYSTEM .................... 46
EXTERNAL LIGHTS ............................................................ 49WINDOW WASHING....................................................... 51
CEILING LIGHTS.................................................................. 52
CONTROLS ........................................................................... 55
INTERIOR FITTINGS........................................................... 56
DOORS .................................................................................. 59
WINDOW WINDERS ....................................................... 63
BOOT ...................................................................................... 64
BONNET................................................................................. 68
ROOF RACK/SKI RACK .................................................... 69
HEADLIGHTS........................................................................ 70
ABS SYSTEM ......................................................................... 71
ESP SYSTEM............................................................................ 72
TRACTION PLUS SYSTEM ............................................... 75
EOBD SYSTEM ..................................................................... 76
SPEED BLOCK ..................................................................... 76
PARKING SENSORS ........................................................... 77
SOUND SYSTEM.................................................................. 79
ELECTRICAL/ELECTRONIC DEVICES
INSTALLATION.................................................................... 80
VEHICLE REFUELLING........................................................ 80
ENVIRONMENTAL PROTECTION................................. 82
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S
001-035 Fiorino GB 1ed:001-035 Fiorino GB 1ed 2-12-2009 16:13 Pagina 4

77
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

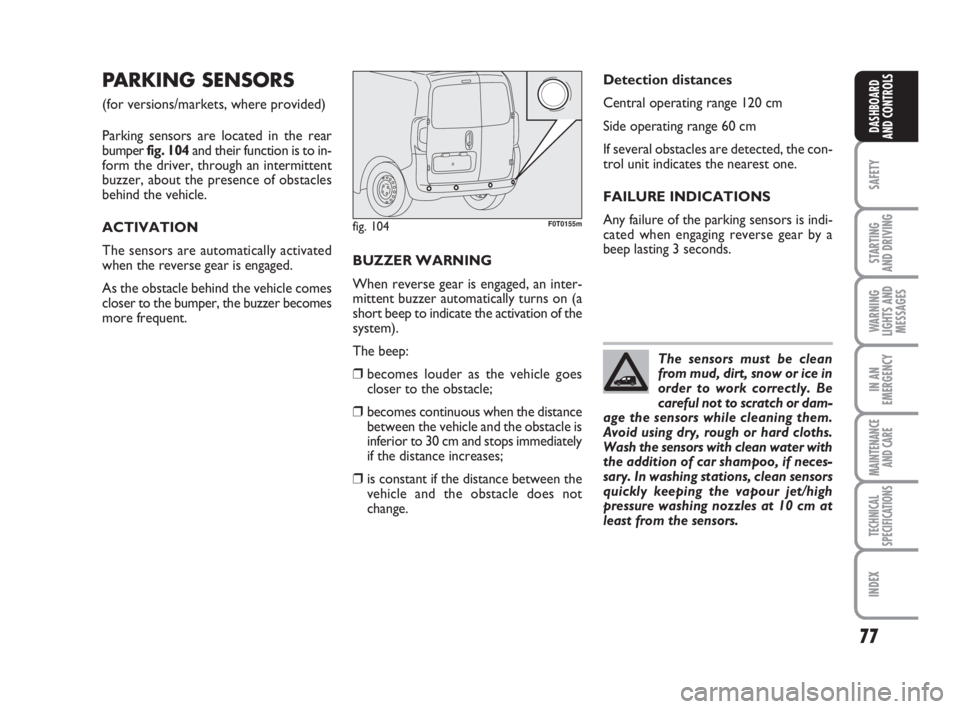

PARKING SENSORS
(for versions/markets, where provided)
Parking sensors are located in the rear
bumper fig. 104and their function is to in-
form the driver, through an intermittent
buzzer, about the presence of obstacles
behind the vehicle.
ACTIVATION
The sensors are automatically activated
when the reverse gear is engaged.
As the obstacle behind the vehicle comes
closer to the bumper, the buzzer becomes
more frequent.BUZZER WARNING
When reverse gear is engaged, an inter-
mittent buzzer automatically turns on (a
short beep to indicate the activation of the
system).
The beep:
❒becomes louder as the vehicle goes
closer to the obstacle;
❒becomes continuous when the distance
between the vehicle and the obstacle is
inferior to 30 cm and stops immediately
if the distance increases;
❒is constant if the distance between the
vehicle and the obstacle does not
change.Detection distances
Central operating range 120 cm
Side operating range 60 cm
If several obstacles are detected, the con-
trol unit indicates the nearest one.
FAILURE INDICATIONS
Any failure of the parking sensors is indi-
cated when engaging reverse gear by a
beep lasting 3 seconds.
fig. 104F0T0155m
The sensors must be clean
from mud, dirt, snow or ice in
order to work correctly. Be
careful not to scratch or dam-
age the sensors while cleaning them.
Avoid using dry, rough or hard cloths.
Wash the sensors with clean water with
the addition of car shampoo, if neces-
sary. In washing stations, clean sensors
quickly keeping the vapour jet/high
pressure washing nozzles at 10 cm at
least from the sensors.
036-082 Fiorino GB 1ed:036-082 Fiorino GB 1ed 30-11-2009 15:47 Pagina 77

78
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

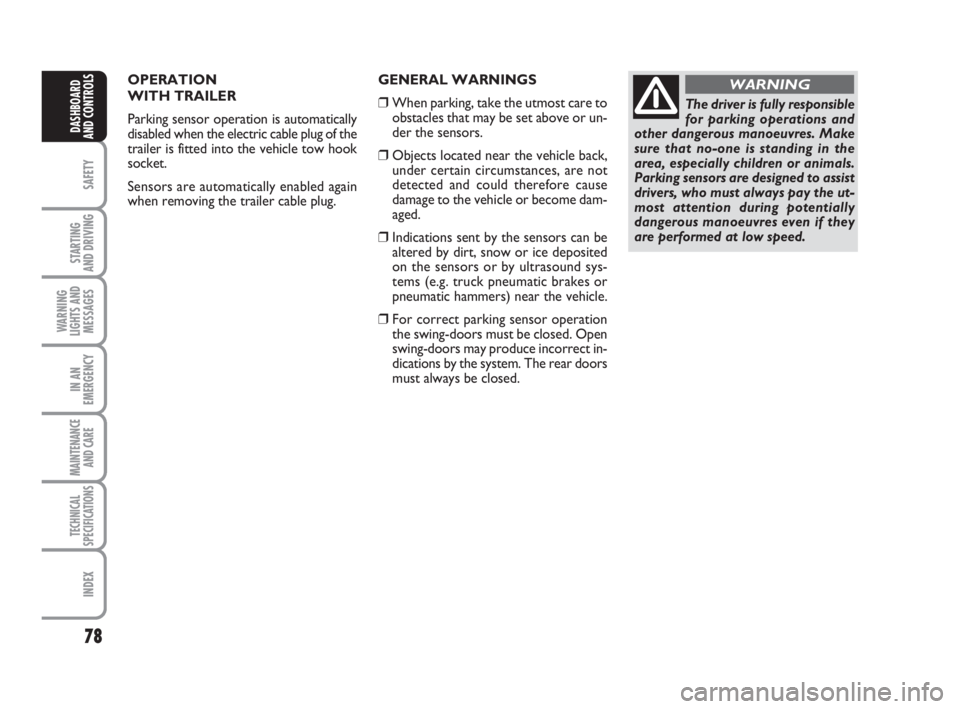

OPERATION
WITH TRAILER
Parking sensor operation is automatically
disabled when the electric cable plug of the
trailer is fitted into the vehicle tow hook
socket.
Sensors are automatically enabled again
when removing the trailer cable plug.GENERAL WARNINGS
❒When parking, take the utmost care to
obstacles that may be set above or un-
der the sensors.
❒Objects located near the vehicle back,
under certain circumstances, are not
detected and could therefore cause
damage to the vehicle or become dam-
aged.
❒Indications sent by the sensors can be
altered by dirt, snow or ice deposited
on the sensors or by ultrasound sys-
tems (e.g. truck pneumatic brakes or
pneumatic hammers) near the vehicle.
❒For correct parking sensor operation
the swing-doors must be closed. Open
swing-doors may produce incorrect in-
dications by the system. The rear doors
must always be closed.
The driver is fully responsible
for parking operations and
other dangerous manoeuvres. Make
sure that no-one is standing in the
area, especially children or animals.
Parking sensors are designed to assist
drivers, who must always pay the ut-
most attention during potentially
dangerous manoeuvres even if they
are performed at low speed.
WARNING
036-082 Fiorino GB 1ed:036-082 Fiorino GB 1ed 30-11-2009 15:47 Pagina 78

82
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ENVIRONMENTAL
PROTECTION
The devices for curtailing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation prevention system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system
(E.G.R.);
❒diesel particulate filter (DPF) (for ver-
sions/markets, where provided). Do not place free flames or lit
cigarettes near to the fuel
filler: this may pose a risk of
fire. Keep your face away
from the fuel filler to prevent breath-
ing in harmful vapours.
DIESEL PARTICULATE
FILTER DPF
(Diesel Particulate Filter)
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechan-
ical filter integral with the exhaust system
that physically traps carbon particles pre-
sent in the exhaust gases of Diesel engines.
The diesel particulate filter has been
adopted to eliminate particulates almost
totally in compliance with current / future
law regulations. During normal use of the
vehicle, the engine control unit records a
set of data (e.g.: travel time, type of route,
temperatures, etc.) and it will then calcu-
late the amount of particles trapped by the
filter.
Since this filter physically traps particulates,
it shall be cleaned (reclaimed) at regular
intervals by burning carbon particles. The
regeneration procedure is controlled au-
tomatically by the engine control unit ac-
cording to the filter conditions and the
conditions of use of the vehicle.
During the regeneration procedure, the
following situations may occur: limited in-
crease of idle speed, activation of electric
fan, limited increase of smoke, high tem-
peratures at the exhaust. These events
must not be considered as a malfunction-
ing: they do not impair vehicle behaviour
and the environment. If the dedicated
message is displayed, refer to section
“Warning lights and messages”. Closing
1) Fit the cap (complete with key) and turn
it clockwise until it clicks once or more.
2) Turn the key clockwise and extract it,
then close the flap.
The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction
noise when you release the cap is there-
fore entirely normal.
036-082 Fiorino GB 1ed:036-082 Fiorino GB 1ed 30-11-2009 15:47 Pagina 82

111
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

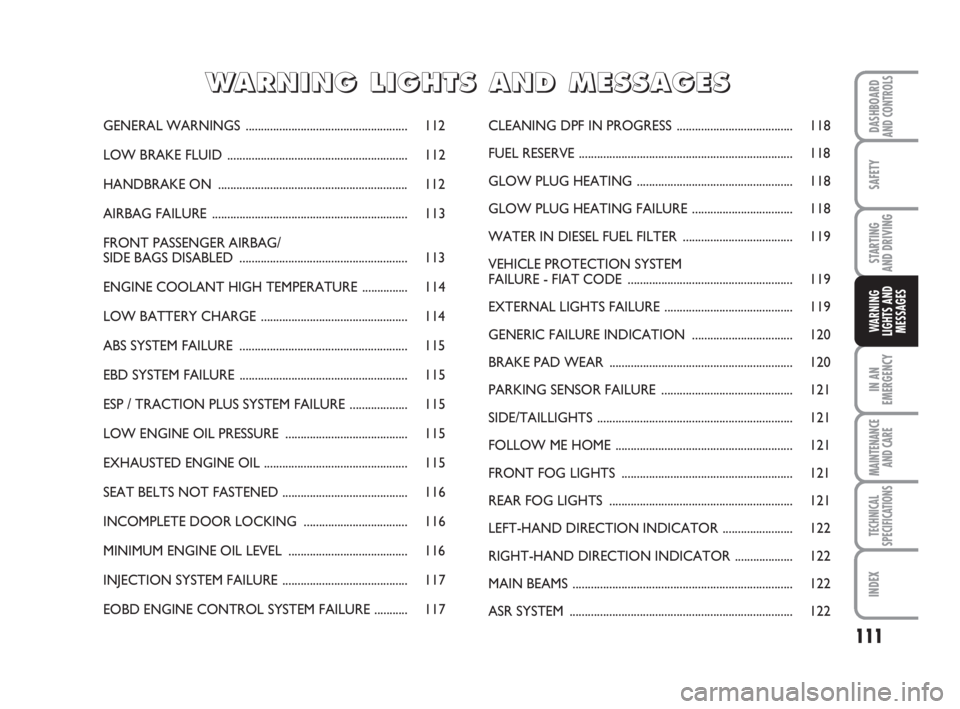

GENERAL WARNINGS ..................................................... 112
LOW BRAKE FLUID........................................................... 112
HANDBRAKE ON .............................................................. 112
AIRBAG FAILURE................................................................ 113
FRONT PASSENGER AIRBAG/
SIDE BAGS DISABLED....................................................... 113
ENGINE COOLANT HIGH TEMPERATURE ............... 114
LOW BATTERY CHARGE ................................................ 114
ABS SYSTEM FAILURE....................................................... 115
EBD SYSTEM FAILURE ....................................................... 115
ESP / TRACTION PLUS SYSTEM FAILURE ................... 115
LOW ENGINE OIL PRESSURE........................................ 115
EXHAUSTED ENGINE OIL............................................... 115
SEAT BELTS NOT FASTENED ......................................... 116
INCOMPLETE DOOR LOCKING .................................. 116
MINIMUM ENGINE OIL LEVEL....................................... 116
INJECTION SYSTEM FAILURE......................................... 117
EOBD ENGINE CONTROL SYSTEM FAILURE ........... 117CLEANING DPF IN PROGRESS...................................... 118
FUEL RESERVE ...................................................................... 118
GLOW PLUG HEATING................................................... 118
GLOW PLUG HEATING FAILURE................................. 118
WATER IN DIESEL FUEL FILTER.................................... 119
VEHICLE PROTECTION SYSTEM
FAILURE - FIAT CODE ...................................................... 119

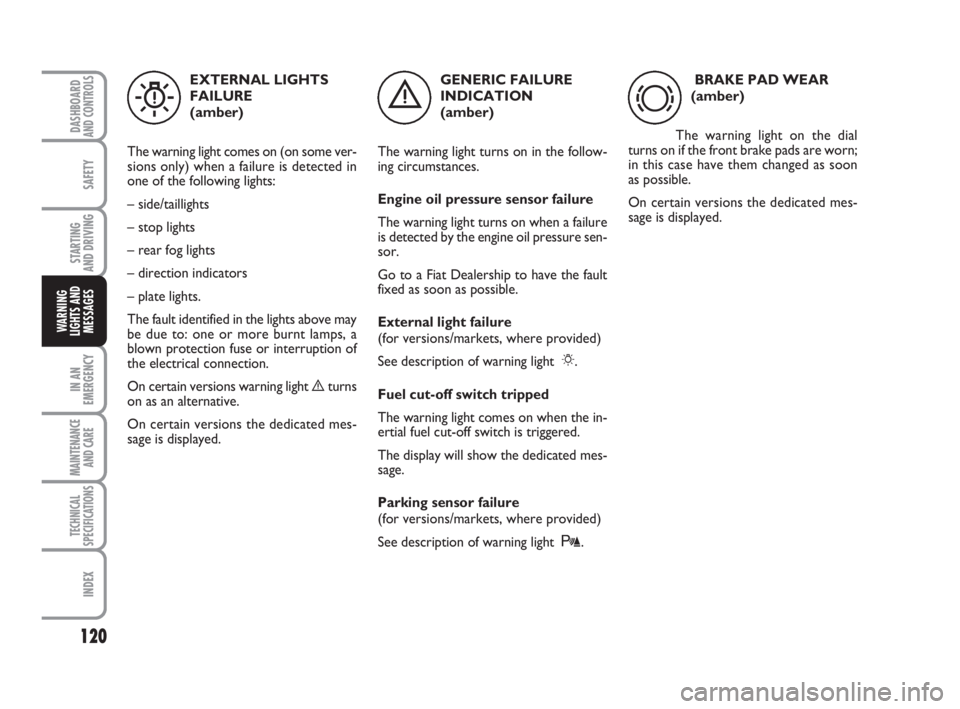

EXTERNAL LIGHTS FAILURE.......................................... 119
GENERIC FAILURE INDICATION ................................. 120
BRAKE PAD WEAR ............................................................ 120

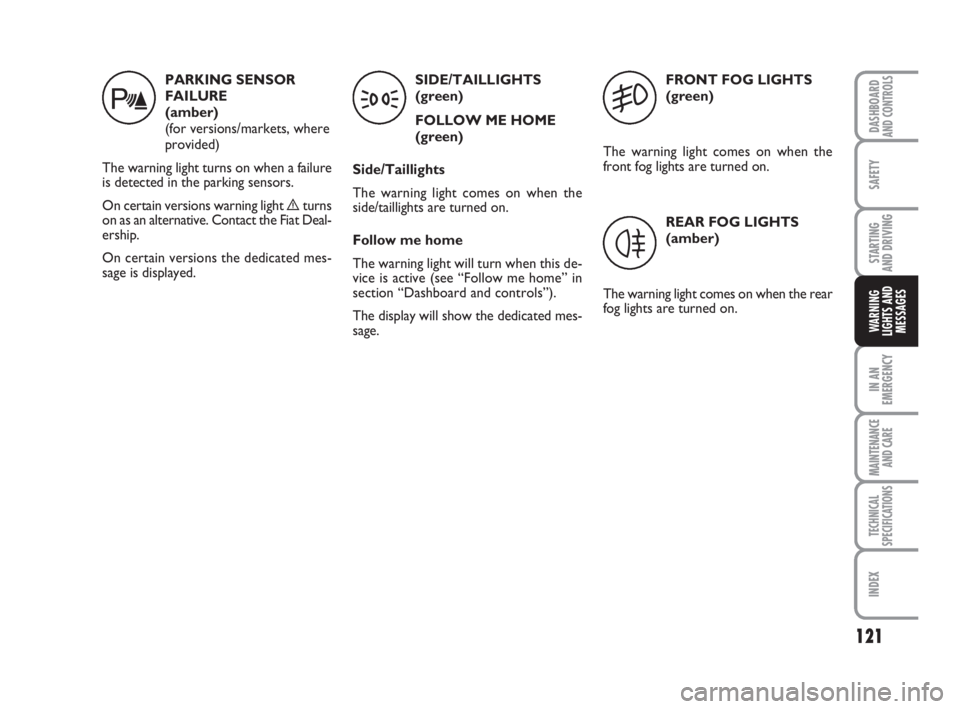

PARKING SENSOR FAILURE........................................... 121
SIDE/TAILLIGHTS................................................................ 121
FOLLOW ME HOME .......................................................... 121
FRONT FOG LIGHTS........................................................ 121
REAR FOG LIGHTS............................................................ 121
LEFT-HAND DIRECTION INDICATOR ....................... 122
RIGHT-HAND DIRECTION INDICATOR ................... 122
MAIN BEAMS........................................................................ 122
ASR SYSTEM ......................................................................... 122
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
111-122 Fiorino GB 1ed:111-122 Fiorino GB 1ed 2-12-2009 16:18 Pagina 111

120
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
GENERIC FAILURE
INDICATION
(amber)
The warning light turns on in the follow-
ing circumstances.
Engine oil pressure sensor failure
The warning light turns on when a failure
is detected by the engine oil pressure sen-
sor.
Go to a Fiat Dealership to have the fault
fixed as soon as possible.
External light failure
(for versions/markets, where provided)
See description of warning light 6.
Fuel cut-off switch tripped
The warning light comes on when the in-
ertial fuel cut-off switch is triggered.
The display will show the dedicated mes-
sage.
Parking sensor failure
(for versions/markets, where provided)
See description of warning light t.BRAKE PAD WEAR
(amber)
The warning light on the dial
turns on if the front brake pads are worn;
in this case have them changed as soon
as possible.
On certain versions the dedicated mes-
sage is displayed.
èd
EXTERNAL LIGHTS
FAILURE
(amber)
The warning light comes on (on some ver-
sions only) when a failure is detected in
one of the following lights:
– side/taillights
– stop lights
– rear fog lights
– direction indicators
– plate lights.
The fault identified in the lights above may
be due to: one or more burnt lamps, a
blown protection fuse or interruption of
the electrical connection.
On certain versions warning light èturns
on as an alternative.
On certain versions the dedicated mes-
sage is displayed.
W
111-122 Fiorino GB 1ed:111-122 Fiorino GB 1ed 2-12-2009 16:18 Pagina 120

121
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
PARKING SENSOR
FAILURE
(amber)
(for versions/markets, where
provided)
The warning light turns on when a failure
is detected in the parking sensors.
On certain versions warning light èturns
on as an alternative. Contact the Fiat Deal-
ership.
On certain versions the dedicated mes-
sage is displayed.SIDE/TAILLIGHTS
(green)
FOLLOW ME HOME
(green)
Side/Taillights
The warning light comes on when the
side/taillights are turned on.
Follow me home
The warning light will turn when this de-
vice is active (see “Follow me home” in
section “Dashboard and controls”).
The display will show the dedicated mes-
sage.FRONT FOG LIGHTS
(green)
The warning light comes on when the
front fog lights are turned on.
REAR FOG LIGHTS
(amber)
The warning light comes on when the rear
fog lights are turned on.
t35
4
111-122 Fiorino GB 1ed:111-122 Fiorino GB 1ed 2-12-2009 16:18 Pagina 121

149
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Climate system compressor F19 7.5 50
Rear heated window/Mirror demisters F20 30 50
Fuel pump F21 15 50
Fog lights F30 15 50
Available F08 – 50
Cigar lighter/Passenger compartment current outlets/Heated seats F85 30 50
+15 Reverse lights/decimetre/Water sensor in diesel fuel/
Reels for relays T02, T05, T14, T17 and T19 F87 7.5 50
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:34 Pagina 149

151
SAFETY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
DEVICE PROTECTED FUSE AMPERE FIGURE
Dipped beam headlight (on passenger’s side) F12 7.5 53
Dipped beam headlight (on driver’s side)/Headlight aiming control F13 7.5 53
INT/A relay reels SCM F31 5 53
Timed internal lighting F32 7.5 53
Bluetooth
®sound system/central unit node/Blue&Me™ node/Troubleshooting outlet for EOBD system/Volumetric alarm control unit/Alarm siren control unit F36 10 53
Instrument panel/Stop light control node (NA) F37 5 53
Door/boot lock actuators F38 20 53
Widow/rear window washer two direction pump F43 15 53
Front power window (on driver’s side) F47 20 53
Front power window (on passenger’s side) F48 20 53
Control lighting/Parking sensor control unit/
Electric door mirror control/Volumetric alarm control unit F49 5 53
INT Sound system node/Bluetooth
®central unit node/Blue&Me™ node/Movement of electric door mirrors/Clutch switch/Stop light control (NC) F51 5 53
Instrument panel node F53 5 53
123-154 Fiorino GB 1ed:123-154 Fiorino GB 1ed 3-12-2009 15:34 Pagina 151

201
WARNING
LIGHTS AND
MESSAGES
DASHBOARDAND CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
– beam alignment ................................ 70
– leveling ............................................... 70
– trim adjust ......................................... 70
Heater system/
Heating and ventilation ...................... 43
High beams
– bulb replacement ............................. 138
– control ............................................... 49
– flashing ............................................... 49
High mounted brake lights
– bulb replacement ............................. 141
Hill Holder system ................................. 73
Identification data .................................. 178
Ignition device ......................................... 13
In an emergency................................ 123
Instrument board ................................... 6
Instrument panel .................................... 5
Instruments ............................................. 14
Interior equipment ................................ 56
Interior ..................................................... 176
Isofix seat (provision for installation) 93
Jack ............................................................ 129
Keys
– mechanical key ................................. 8
– key with remote control ............... 8Lamps
– bulb types .......................................... 135
– general ............................................... 134
– interior bulb replacement .............. 142
– outer lighting bulb replacement ... 137
Lane change function ............................. 50
Level checks ............................................ 162
Low beams
– bulb replacement ............................. 138
– control ............................................... 49
Luggage rack/ski rack ............................ 72
Maintenance and care..................... 155
Manual AC system ................................. 46
Max. speeds ............................................. 189
MSR system ............................................. 74
Multi/function display ............................ 21
Number plate light
– bulb replacement ............................. 141
Oddments tray ....................................... 56
Outer lights ............................................. 49
Paintwork (maintenance) ..................... 174
Park sensors ............................................ 77 EOBD system ......................................... 76
ESP system ............................................... 72
Fiat CODE (system) ............................. 7
Fix&Go (device) ..................................... 130
Fluids and lubricants .............................. 193
Fog lights
– bulb replacement ............................. 139
– control ............................................... 55
Follow me home (device) .................... 50
Front roof lights ...........................142-143
Front seat arm rest ............................... 56
Fuel cap .................................................... 81
Fuel system .............................................. 182
Fuel
– consumption ..................................... 195
– economy ............................................ 106
– system shutoff .................................. 56
Fuses (replacement) .............................. 145
Glass cleaning ......................................... 51
Glove box ................................................ 56
Handbrake ............................................... 104
Hazard warning lights ............................ 55
Head rests ............................................... 38
Headlamps
– beam adjustment abroad ............... 70
200-208 Fiorino GB 1ed:202-208 Fiorino GB 1ed 2-12-2009 16:32 Pagina 201
