FIAT FIORINO 2014 Owner handbook (in English)

190
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

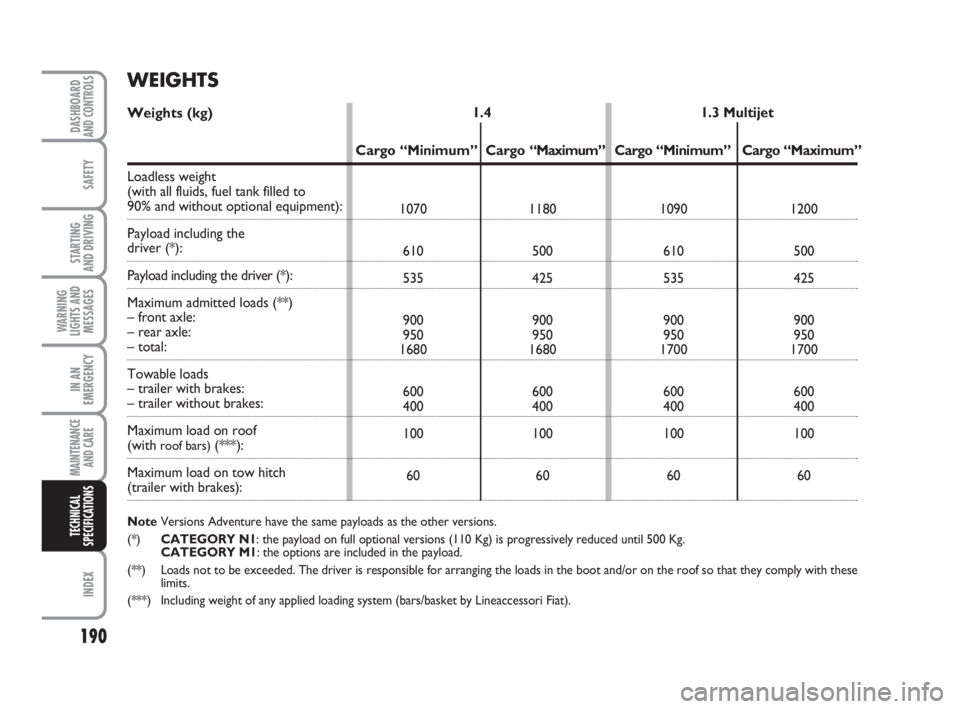

WEIGHTS
Weights (kg)
Loadless weight
(with all fluids, fuel tank filled to
90% and without optional equipment):
Payload including the
driver (*):
Payload including the driver (*):
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof
(with roof bars)(***):
Maximum load on tow hitch
(trailer with brakes):
NoteVersions Adventure have the same payloads as the other versions.
(*)CATEGORY N1: the payload on full optional versions (110 Kg) is progressively reduced until 500 Kg.
CATEGORY M1: the options are included in the payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply with these
limits.
(***) Including weight of any applied loading system (bars/basket by Lineaccessori Fiat).
1.4
Cargo “Minimum” Cargo “Maximum”
1070 1180
610 500
535 425
900 900
950 950
1680 1680
600 600
400 400
100 100
60 601.3 Multijet
Cargo “Minimum” Cargo “Maximum”
1090 1200
610 500
535 425
900 900
950 950
1700 1700
600 600
400 400
100 100
60 60
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:42 Pagina 190

191
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

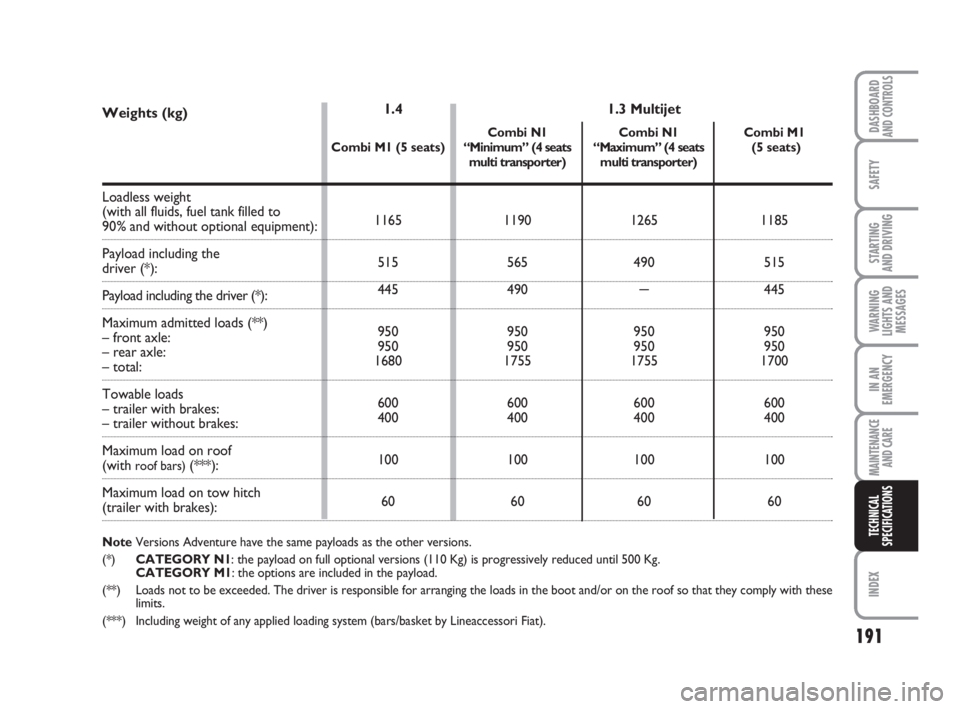

Weights (kg)
Loadless weight
(with all fluids, fuel tank filled to
90% and without optional equipment):
Payload including the
driver (*):
Payload including the driver (*):
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof
(with roof bars)(***):
Maximum load on tow hitch
(trailer with brakes):
NoteVersions Adventure have the same payloads as the other versions.
(*)CATEGORY N1: the payload on full optional versions (110 Kg) is progressively reduced until 500 Kg.
CATEGORY M1: the options are included in the payload.
(**) Loads not to be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply with these
limits.
(***) Including weight of any applied loading system (bars/basket by Lineaccessori Fiat).
1.4
Combi N1
Combi M1 (5 seats) “Minimum” (4 seats
multi transporter)
1165 1190
515 565
445 490
950 950
950 950
1680 1755
600 600
400 400
100 100
60 601.3 Multijet
Combi N1 Combi M1
“Maximum” (4 seats (5 seats)
multi transporter)
1265 1185
490 515
–445
950 950
950 950
1755 1700
600 600
400 400
100 100
60 60
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:42 Pagina 191

192
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

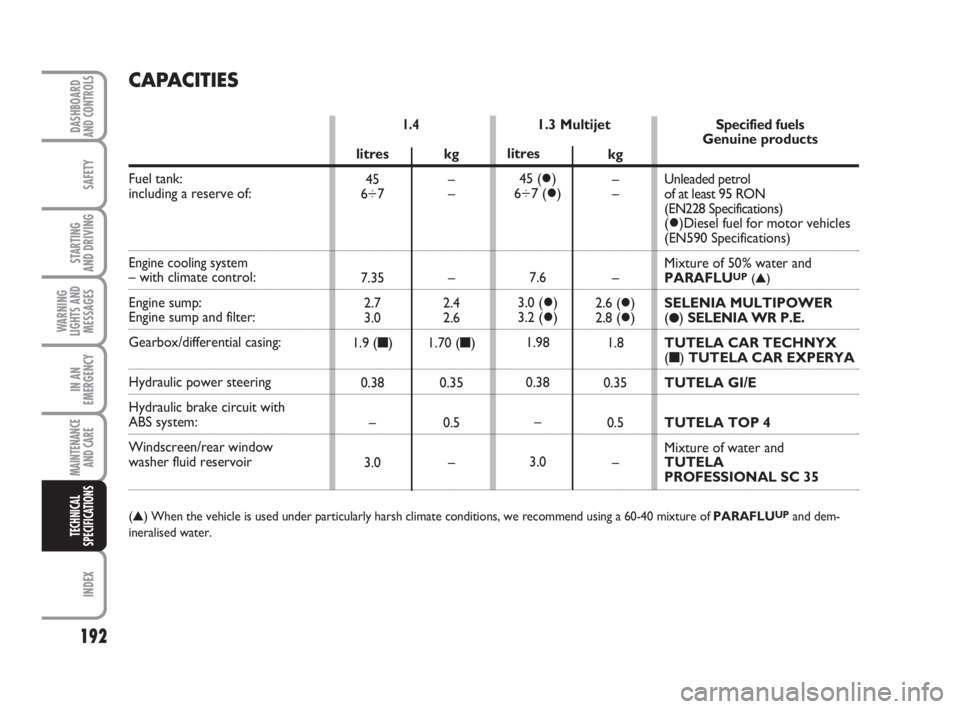

CAPACITIES
1.3 Multijet1.4
Fuel tank:
including a reserve of:
Engine cooling system– with climate control:
Engine sump:
Engine sump and filter:
Gearbox/differential casing:
Hydraulic power steering
Hydraulic brake circuit with
ABS system:
Windscreen/rear window
washer fluid reservoir
(▲) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand dem-
ineralised water.
litres
45
6
÷7
7.35
2.7
3.0
1.9 (
■)
0.38
–
3.0kg
–
–
–
2.4
2.6
1.70 (■)
0.35
0.5
–litres
45 (
)
6
÷7(
)
7.6
3.0 (
)
3.2 (
)
1.98
0.38
–
3.0kg
–
–
–
2.6 (
)
2.8 (
)
1.8
0.35
0.5
–Specified fuels
Genuine products
Unleaded petrol
of at least 95 RON
(EN228 Specifications)
(
)Diesel fuel for motor vehicles
(EN590 Specifications)
Mixture of 50% water and
PARAFLU
UP(▲)
SELENIA MULTIPOWER
(●) SELENIA WR P.E.
TUTELA CAR TECHNYX
(
■) TUTELA CAR EXPERYA
TUTELA GI/E
TUTELA TOP 4
Mixture of water and
TUTELA
PROFESSIONAL SC 35
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:42 Pagina 192

193
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
For diesel engines, in emergency cases where genuine products are not available, lubricants with min. performance ACEA C2
are accepted. If this is the case, the best engine performance is not guaranteed. We however recommend replacing the lubri-
cant with those recommended by Fiat Dealership.
The use of products with features lower than ACEA A1/B1 and ACEA C2 could cause engine damage which is not covered by
warranty.
If the vehicle is used in particularly cold climates, ask your Fiat Dealership for the right PETRONAS LUBRICANTSproduct.

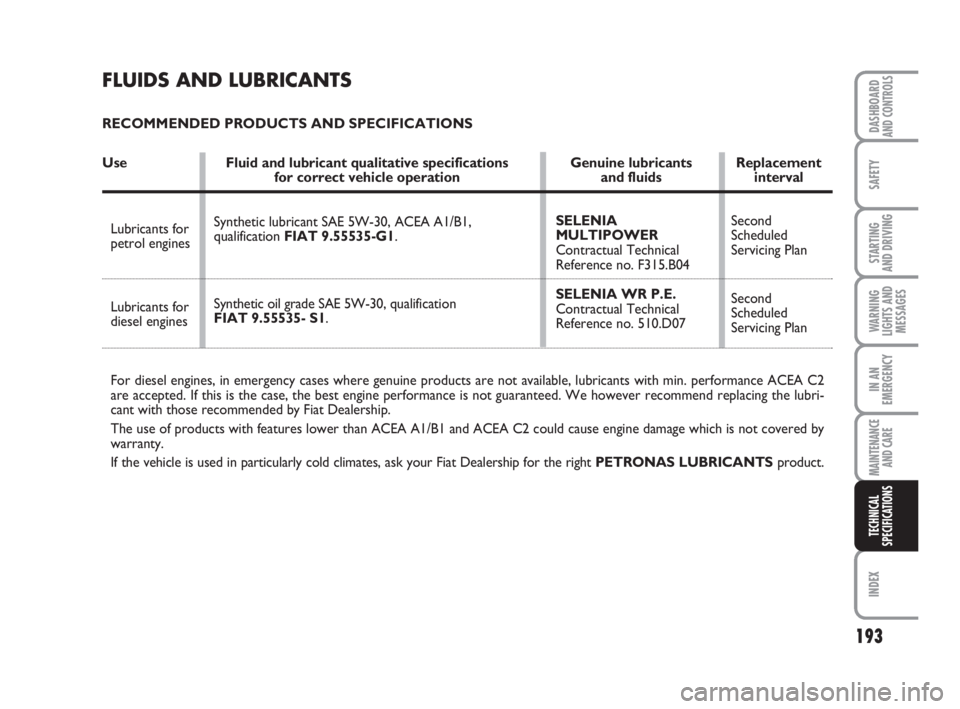

FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid and lubricant qualitative specifications Genuine lubricants Replacement
for correct vehicle operation and fluids interval
Synthetic lubricant SAE 5W-30, ACEA A1/B1,
qualification FIAT 9.55535-G1.
Synthetic oil grade SAE 5W-30, qualification
FIAT 9.55535- S1. Lubricants for
petrol engines
Lubricants for
diesel enginesSELENIA
MULTIPOWER
Contractual Technical
Reference no. F315.B04
SELENIA WR P.E.
Contractual Technical
Reference no. 510.D07Second
Scheduled
Servicing Plan
Second
Scheduled
Servicing Plan
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 193

194
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

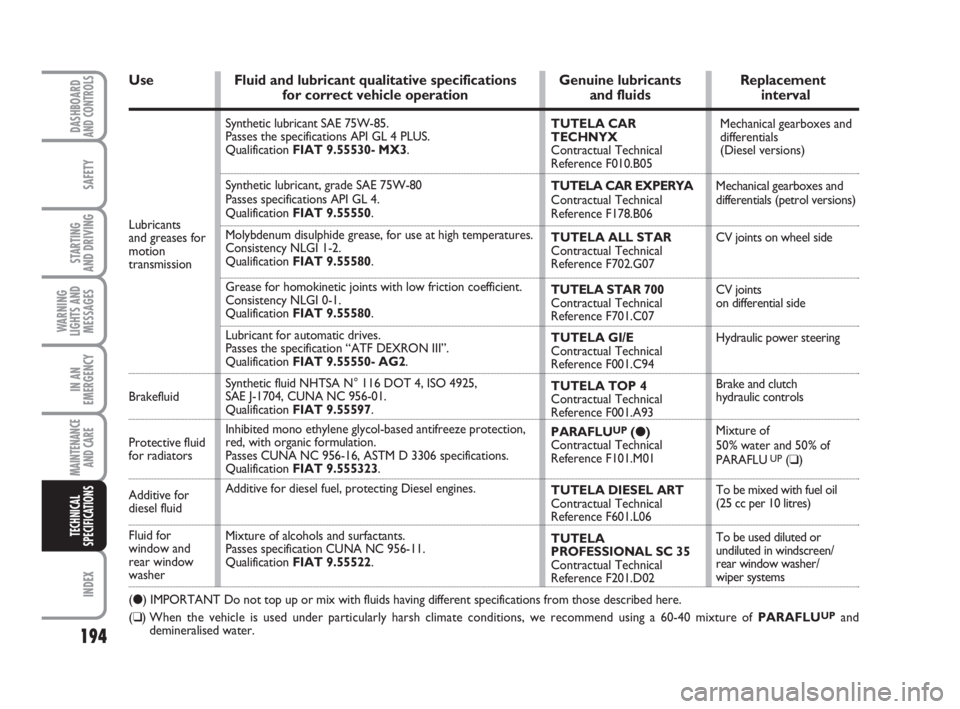

Lubricants
and greases for
motion
transmission
Use Fluid and lubricant qualitative specifications Genuine lubricants Replacementfor correct vehicle operation and fluids interval
(●) IMPORTANT Do not top up or mix with fluids having different specifications from those described here.
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture ofPARAFLU
UPand
demineralised water.Synthetic lubricant SAE 75W-85.
Passes the specifications API GL 4 PLUS.
Qualification FIAT 9.55530- MX3.
Synthetic lubricant, grade SAE 75W-80
Passes specifications API GL 4.
Qualification FIAT 9.55550.
Molybdenum disulphide grease, for use at high temperatures.
Consistency NLGI 1-2.
Qualification FIAT 9.55580.
Grease for homokinetic joints with low friction coefficient.
Consistency NLGI 0-1.
Qualification FIAT 9.55580.
Lubricant for automatic drives.
Passes the specification “ATF DEXRON III”.
Qualification FIAT 9.55550- AG2.
Synthetic fluid NHTSA N° 116 DOT 4, ISO 4925,
SAE J-1704, CUNA NC 956-01.
Qualification FIAT 9.55597.
Inhibited mono ethylene glycol-based antifreeze protection,
red, with organic formulation.
Passes CUNA NC 956-16, ASTM D 3306 specifications.
Qualification FIAT 9.555323.
Additive for diesel fuel, protecting Diesel engines.
Mixture of alcohols and surfactants.
Passes specification CUNA NC 956-11.
Qualification FIAT 9.55522.TUTELA CAR
TECHNYX
Contractual Technical
Reference F010.B05
TUTELA CAR EXPERYA
Contractual Technical
Reference F178.B06
TUTELA ALL STAR
Contractual Technical
Reference F702.G07
TUTELA STAR 700
Contractual Technical
Reference F701.C07
TUTELA GI/E
Contractual Technical
Reference F001.C94
TUTELA TOP 4
Contractual Technical
Reference F001.A93
PARAFLU
UP(●)
Contractual Technical
Reference F101.M01
TUTELA DIESEL ART
Contractual Technical
Reference F601.L06
TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference F201.D02Mechanical gearboxes and
differentials
(Diesel versions)
Mechanical gearboxes and
differentials (petrol versions)
CV joints on wheel side
CV joints
on differential side
Hydraulic power steering
Brake and clutch
hydraulic controls
Mixture of
50% water and 50% of
PARAFLU
UP(❑)
To be mixed with fuel oil
(25 cc per 10 litres)
To be used diluted or
undiluted in windscreen/
rear window washer/
wiper systems Brakefluid
Protective fluid
for radiators
Additive for
diesel fluid
Fluid for
window and
rear window
washer
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 194

195
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

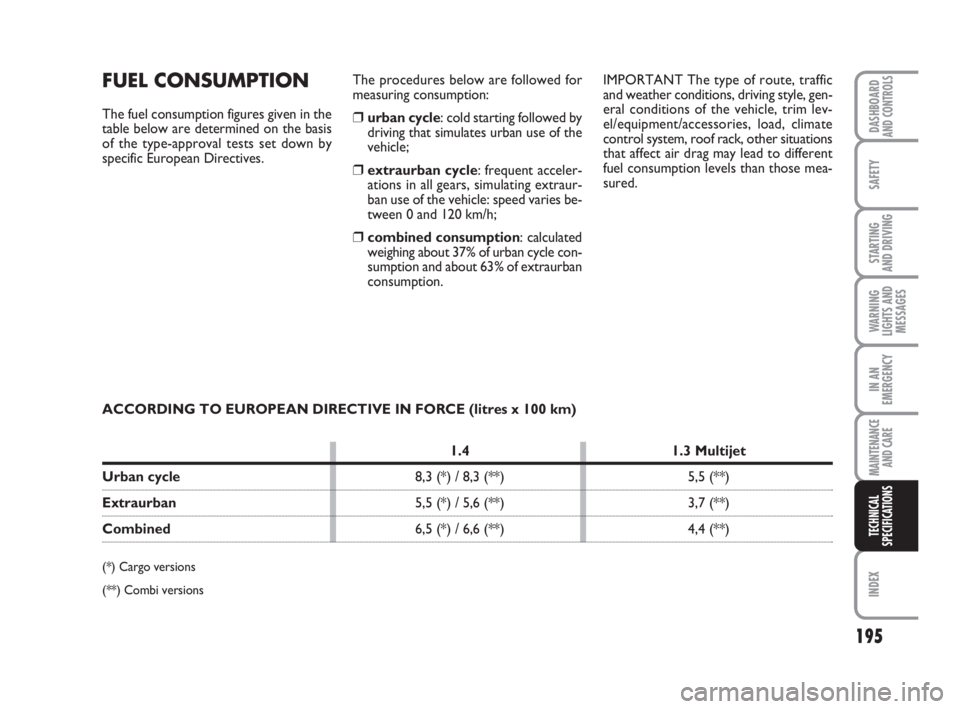

FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the type-approval tests set down by
specific European Directives. IMPORTANT The type of route, traffic
and weather conditions, driving style, gen-
eral conditions of the vehicle, trim lev-
el/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured. The procedures below are followed for
measuring consumption:❒urban cycle: cold starting followed by
driving that simulates urban use of the
vehicle;
❒extraurban cycle: frequent acceler-
ations in all gears, simulating extraur-
ban use of the vehicle: speed varies be-
tween 0 and 120 km/h;
❒combined consumption: calculated
weighing about 37% of urban cycle con-
sumption and about 63% of extraurban
consumption.
ACCORDING TO EUROPEAN DIRECTIVE IN FORCE (litres x 100 km)
1.4 1.3 Multijet
Urban cycle8,3 (*) / 8,3 (**) 5,5 (**)
Extraurban5,5 (*) / 5,6 (**) 3,7 (**)
Combined6,5 (*) / 6,6 (**) 4,4 (**)
(*) Cargo versions
(**) Combi versions
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 195

196
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

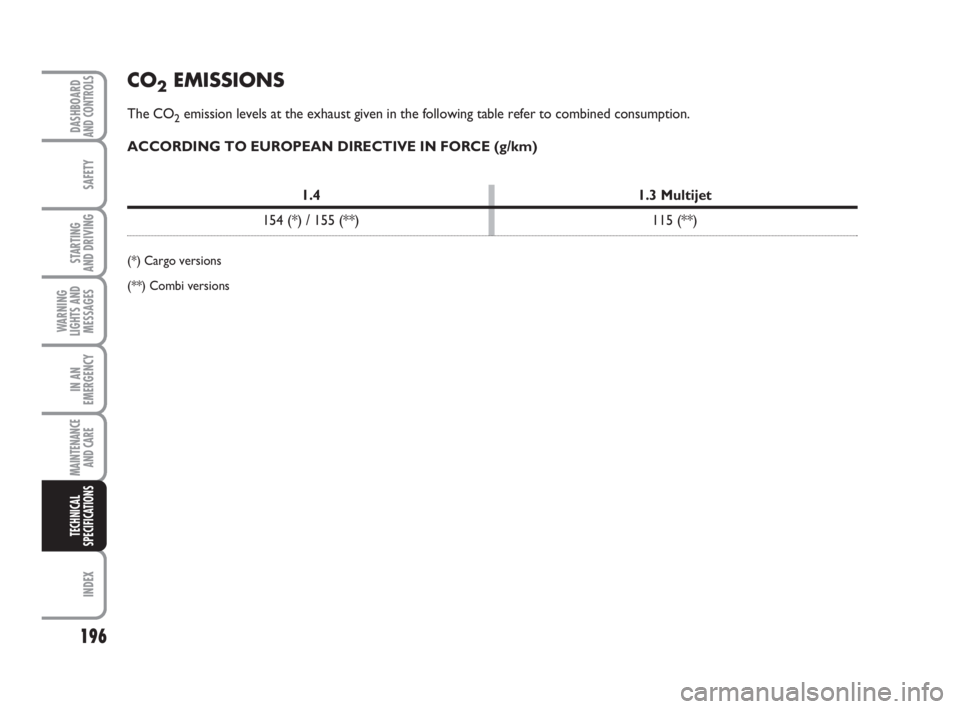

CO2EMISSIONS
The CO2emission levels at the exhaust given in the following table refer to combined consumption.
ACCORDING TO EUROPEAN DIRECTIVE IN FORCE (g/km)
1.4 1.3 Multijet
154 (*) / 155 (**) 115 (**)
(*) Cargo versions
(**) Combi versions
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 196

197
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
RADIO FREQUENCY REMOTE CONTROL: MINISTERIAL TYPE-APPROVALS
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 197

198

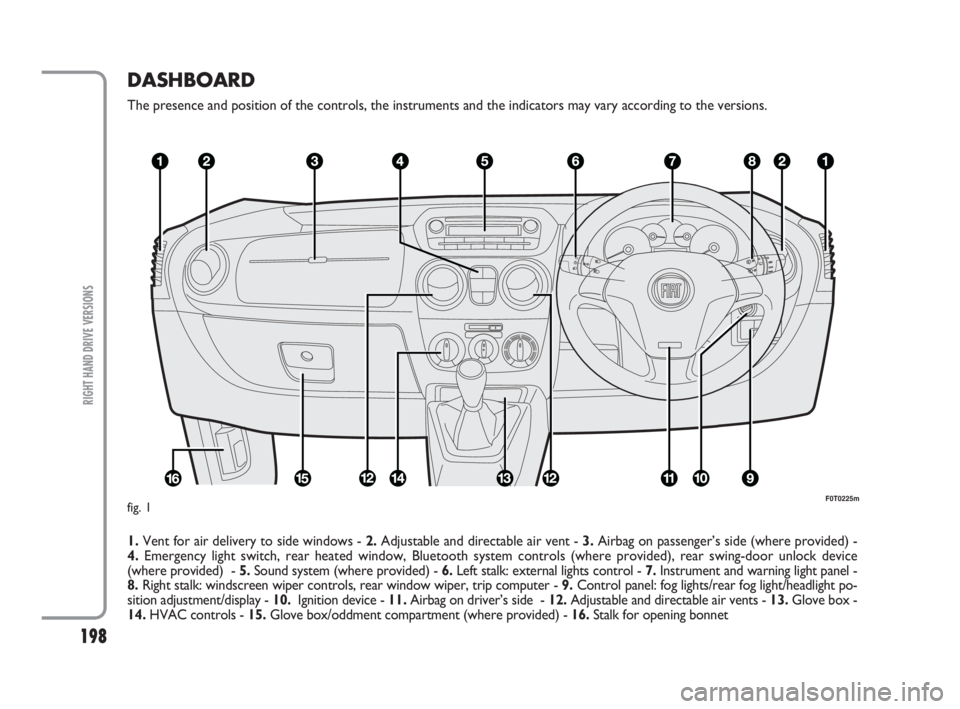

DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1.Vent for air delivery to side windows - 2.Adjustable and directable air vent - 3.Airbag on passenger’s side (where provided) -
4.Emergency light switch, rear heated window, Bluetooth system controls (where provided), rear swing-door unlock device
(where provided) - 5.Sound system (where provided) - 6.Left stalk: external lights control - 7.Instrument and warning light panel -
8.Right stalk: windscreen wiper controls, rear window wiper, trip computer - 9.Control panel: fog lights/rear fog light/headlight po-
sition adjustment/display - 10.Ignition device - 11.Airbag on driver’s side - 12.Adjustable and directable air vents - 13.Glove box -
14.HVAC controls - 15.Glove box/oddment compartment (where provided) - 16.Stalk for opening bonnet
F0T0225mfig. 1
RIGHT HAND DRIVE VERSIONS
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 198

199
RIGHT HAND DRIVE VERSIONS

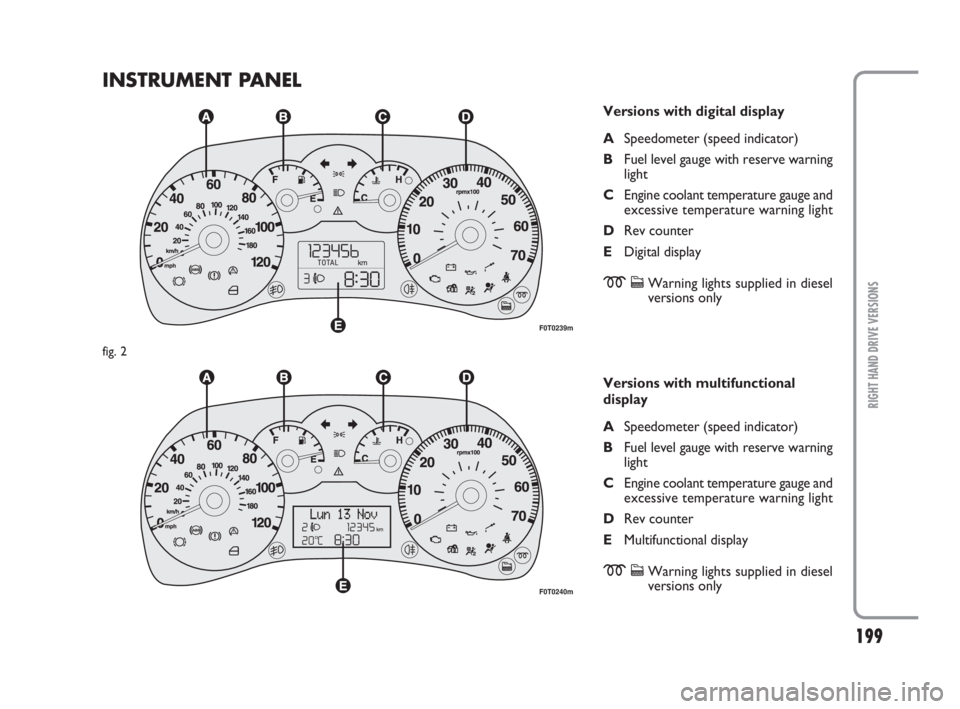

INSTRUMENT PANEL
Versions with digital display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EDigital display
mcWarning lights supplied in diesel
versions only
Versions with multifunctional
display
ASpeedometer (speed indicator)
BFuel level gauge with reserve warning
light
CEngine coolant temperature gauge and
excessive temperature warning light
DRev counter
EMultifunctional display
mcWarning lights supplied in diesel
versions only
F0T0239m
fig. 2
F0T0240m
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 199
