radio controls FIAT FIORINO 2014 Owner handbook (in English)

13
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 9F0T0039m
Never extract the key while
the vehicle is moving. The
steering wheel would be locked as
soon as the steering wheel is turned.
This also applies to cases in which the
vehicle is towed. Under no circum-
stances should after-market opera-
tions be carried out involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could negatively affect
performance and safety, cause the
lapse of the warranty and also result
in vehicle non-compliance with type-
approval requirements.
WARNINGIGNITION DEVICE
The key can be turned to 3 different po-
sitions fig. 9:
❒STOP: the engine is off, the key can be
extracted, the steering is locked. Some
electrical devices (e.g. car radio, central
door locking system, alarm, etc.) are en-
abled.
❒MAR: driving position. All electrical de-
vices work regularly.
❒AVV: engine start.
The ignition device is fitted with a safety
system that forces the driver to return the
ignition key to STOPbefore repeating the
starting operation, if the engine does not
start up.STEERING COLUMN LOCK
Engagement
When the key is at STOP, remove the key
and turn the steering wheel until it locks.
Disengagement
Rock the steering wheel slightly as you
turn the ignition key to MAR.
001-035 Fiorino GB 1ed:001-035 Fiorino GB 1ed 2-12-2009 16:14 Pagina 13

23
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Day
YearMonth
Deutsch
Português
English
Español
Français
Italiano
Nederland
Turkçe Example:

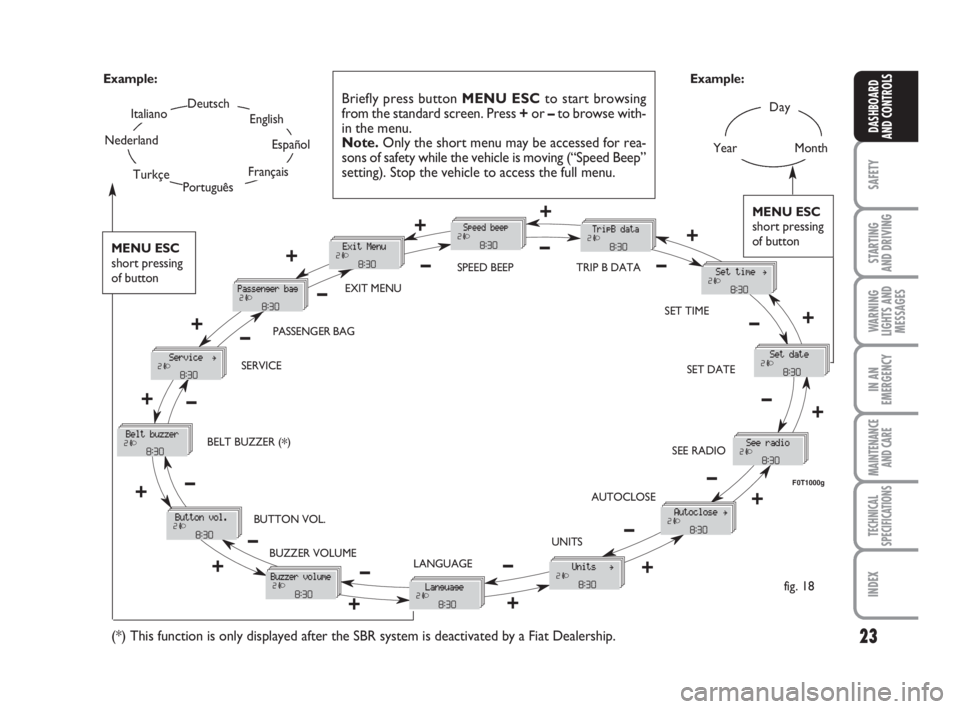

fig. 18 Example:
Briefly press button MENU ESCto start browsing
from the standard screen. Press +or –to browse with-
in the menu.
Note.Only the short menu may be accessed for rea-
sons of safety while the vehicle is moving (“Speed Beep”
setting). Stop the vehicle to access the full menu.
F0T1000g
MENU ESC
short pressing
of button
+
– +
–
– +
+
–
+–
–
– +
+++ ––––
++ +
– +
–
EXIT MENUSPEED BEEP
SET TIME
SET DATE
SEE RADIO
AUTOCLOSE
UNITS
LANGUAGE BUZZER VOLUME BUTTON VOL. BELT BUZZER (
*) SERVICEPASSENGER BAG
(*) This function is only displayed after the SBR system is deactivated by a Fiat Dealership.
–+
TRIP B DATA
MENU ESC
short pressing
of button
001-035 Fiorino GB 1ed:001-035 Fiorino GB 1ed 2-12-2009 16:14 Pagina 23

26
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

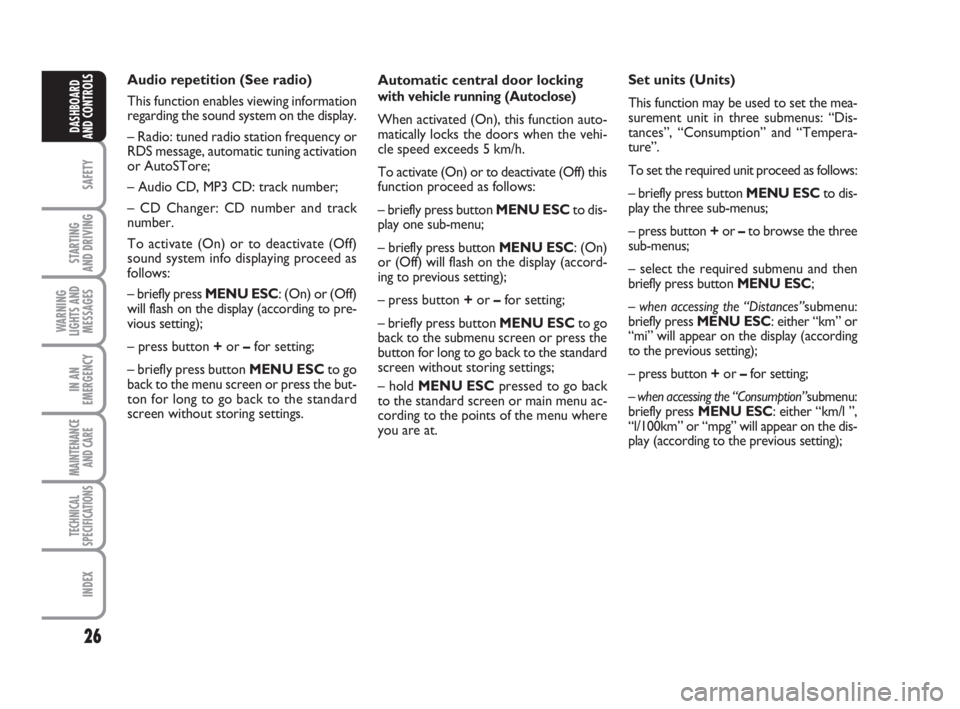

Automatic central door locking
with vehicle running (Autoclose)
When activated (On), this function auto-
matically locks the doors when the vehi-
cle speed exceeds 5 km/h.
To activate (On) or to deactivate (Off) this
function proceed as follows:
– briefly press button MENU ESCto dis-
play one sub-menu;
– briefly press button MENU ESC: (On)
or (Off) will flash on the display (accord-
ing to previous setting);
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the submenu screen or press the
button for long to go back to the standard
screen without storing settings;
– hold MENU ESCpressed to go back
to the standard screen or main menu ac-
cording to the points of the menu where
you are at. Audio repetition (See radio)
This function enables viewing information
regarding the sound system on the display.
– Radio: tuned radio station frequency or
RDS message, automatic tuning activation
or AutoSTore;
– Audio CD, MP3 CD: track number;
– CD Changer: CD number and track
number.
To activate (On) or to deactivate (Off)
sound system info displaying proceed as
follows:
– briefly press MENU ESC: (On) or (Off)
will flash on the display (according to pre-
vious setting);
– press button +or –for setting;
– briefly press button MENU ESCto go
back to the menu screen or press the but-
ton for long to go back to the standard
screen without storing settings.Set units (Units)
This function may be used to set the mea-
surement unit in three submenus: “Dis-
tances”, “Consumption” and “Tempera-
ture”.
To set the required unit proceed as follows:
– briefly press button MENU ESCto dis-
play the three sub-menus;
– press button +or –to browse the three
sub-menus;
– select the required submenu and then
briefly press button MENU ESC;
– when accessing the “Distances”submenu:
briefly press MENU ESC: either “km” or
“mi” will appear on the display (according
to the previous setting);
– press button +or –for setting;
– when accessing the “Consumption”submenu:
briefly press MENU ESC: either “km/l ”,
“l/100km” or “mpg” will appear on the dis-
play (according to the previous setting);
001-035 Fiorino GB 1ed:001-035 Fiorino GB 1ed 2-12-2009 16:14 Pagina 26

79
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SOUND SYSTEM
(for versions/markets, where provided)
For the operation of the radio with CD/
MP3 CD (for versions/markets, where pro-
vided), read the instructions for use given
in the Supplement attached to the Owner
Handbook.
BASIC EQUIPMENT
The system consists of:
❒sound system power supply cables;
❒front speakers cables (positioned on the
panels of the rear door mirrors);
❒loud speakers cables on front door pan-
els;
❒rear loud speakers cables (positioned
alongside the rear window shelf) (for
versions/markets, where provided);
❒sound system housing;
❒aerial power supply cable.EXTRA EQUIPMENT
The system consists of:
❒sound system power supply cables;
❒front loud speakers cables (positioned
on the panels of the rear door mirrors);
❒loud speakers cables on front door pan-
els;
❒rear loud speakers cables (positioned
alongside the rear window shelf) (for
versions/markets, where provided);
❒2 tweeters positioned on the panels of
the rear door mirrors;
❒2 midwoofers on front door bottom;
❒2 rear loud speakers (positioned along-
side the rear window shelf) (for ver-
sions/markets, where provided);
❒sound system housing;
❒aerial power supply cable;
❒aerial.INSTALLING THE
SOUND SYSTEM
The sound system must be installed in place
of the central box. This operation makes the
prepared cables available for connection.
To remove the central box press the
tongues A-fig. 105.
fig. 105F0T0032m
For connection to the exist-
ing devices supplied in the
vehicle contact Fiat Dealership to
prevent any trouble that could impair
vehicle safety.
WARNING
036-082 Fiorino GB 1ed:036-082 Fiorino GB 1ed 30-11-2009 15:47 Pagina 79

80
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

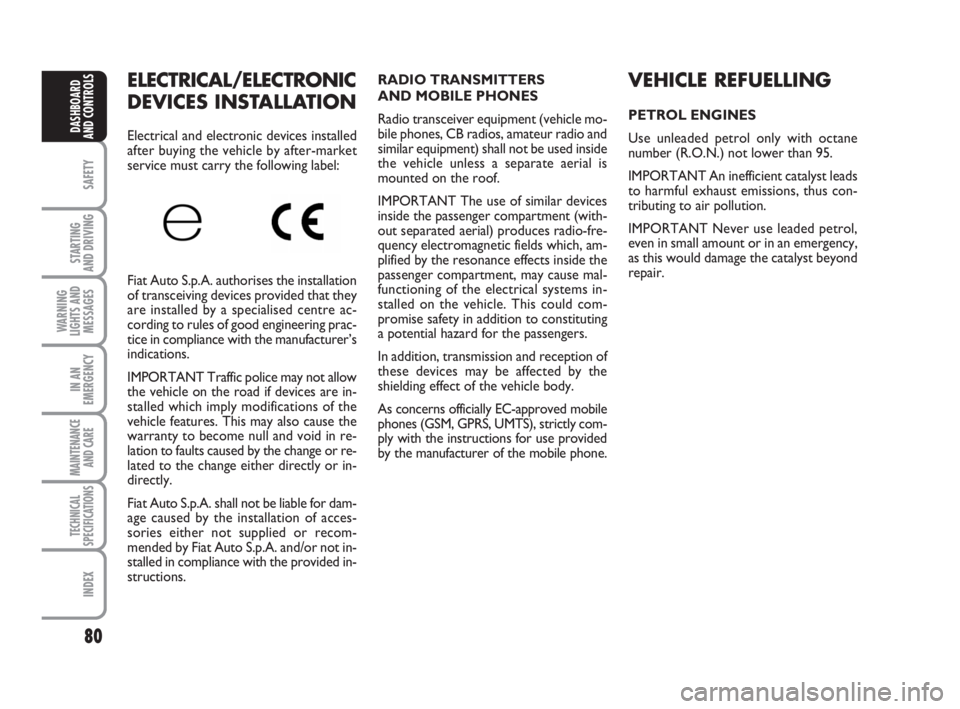

ELECTRICAL/ELECTRONIC
DEVICES INSTALLATION
Electrical and electronic devices installed
after buying the vehicle by after-market
service must carry the following label:
Fiat Auto S.p.A. authorises the installation
of transceiving devices provided that they
are installed by a specialised centre ac-
cording to rules of good engineering prac-
tice in compliance with the manufacturer’s
indications.
IMPORTANT Traffic police may not allow
the vehicle on the road if devices are in-
stalled which imply modifications of the
vehicle features. This may also cause the
warranty to become null and void in re-
lation to faults caused by the change or re-
lated to the change either directly or in-
directly.
Fiat Auto S.p.A. shall not be liable for dam-
age caused by the installation of acces-
sories either not supplied or recom-
mended by Fiat Auto S.p.A. and/or not in-
stalled in compliance with the provided in-
structions.RADIO TRANSMITTERS
AND MOBILE PHONES
Radio transceiver equipment (vehicle mo-
bile phones, CB radios, amateur radio and
similar equipment) shall not be used inside
the vehicle unless a separate aerial is
mounted on the roof.
IMPORTANT The use of similar devices
inside the passenger compartment (with-
out separated aerial) produces radio-fre-
quency electromagnetic fields which, am-
plified by the resonance effects inside the
passenger compartment, may cause mal-
functioning of the electrical systems in-
stalled on the vehicle. This could com-
promise safety in addition to constituting
a potential hazard for the passengers.
In addition, transmission and reception of
these devices may be affected by the
shielding effect of the vehicle body.
As concerns officially EC-approved mobile
phones (GSM, GPRS, UMTS), strictly com-
ply with the instructions for use provided
by the manufacturer of the mobile phone.
VEHICLE REFUELLING
PETROL ENGINES
Use unleaded petrol only with octane
number (R.O.N.) not lower than 95.
IMPORTANT An inefficient catalyst leads
to harmful exhaust emissions, thus con-
tributing to air pollution.
IMPORTANT Never use leaded petrol,
even in small amount or in an emergency,
as this would damage the catalyst beyond
repair.
036-082 Fiorino GB 1ed:036-082 Fiorino GB 1ed 30-11-2009 15:47 Pagina 80

177
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................. 178
ENGINE CODES - BODYWORK VERSIONS ............... 180
ENGINE .................................................................................. 181
FUEL FEED/IGNITION ....................................................... 182
TRANSMISSION .................................................................. 182
BRAKES................................................................................... 183
SUSPENSIONS ...................................................................... 183
STEERING .............................................................................. 183
WHEELS ................................................................................. 184
DIMENSIONS ....................................................................... 187
PERFORMANCE .................................................................. 189
WEIGHTS............................................................................... 190
CAPACITIES .......................................................................... 192
FLUIDS AND LUBRICANTS ............................................. 193
FUEL CONSUMPTION ...................................................... 195
CO
2EMISSIONS .................................................................. 196
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL TYPE-APPROVALS ................................... 197
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:42 Pagina 177

197
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
RADIO FREQUENCY REMOTE CONTROL: MINISTERIAL TYPE-APPROVALS
177-199 Fiorino GB 1ed:177-201 Fiorino GB 1ed 4-12-2009 9:43 Pagina 197

200
WARNING
LIGHTS AND
MESSAGES
DASHBOARDAND CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

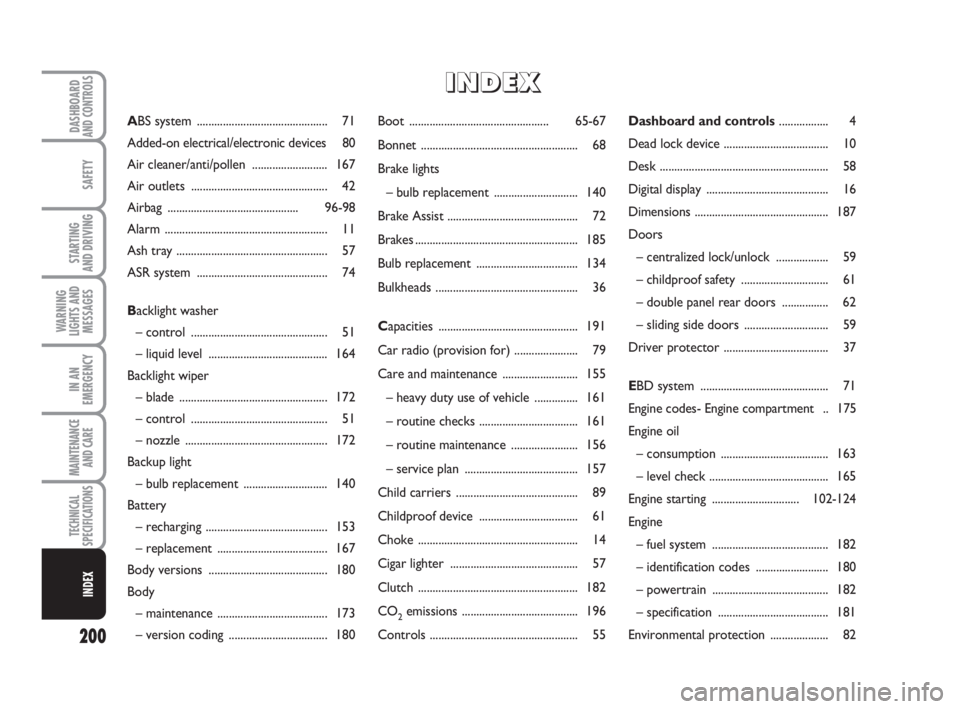

INDEX
Boot ................................................65-67
Bonnet ...................................................... 68
Brake lights
– bulb replacement ............................. 140
Brake Assist ............................................. 72
Brakes........................................................ 185
Bulb replacement ................................... 134
Bulkheads ................................................. 36
Capacities ................................................ 191
Car radio (provision for) ...................... 79
Care and maintenance .......................... 155
– heavy duty use of vehicle ............... 161
– routine checks .................................. 161
– routine maintenance ....................... 156
– service plan ....................................... 157
Child carriers .......................................... 89
Childproof device .................................. 61
Choke ....................................................... 14
Cigar lighter ............................................ 57
Clutch ....................................................... 182
CO
2emissions ........................................ 196
Controls ................................................... 55Dashboard and controls................. 4
Dead lock device .................................... 10
Desk .......................................................... 58
Digital display .......................................... 16
Dimensions .............................................. 187
Doors
– centralized lock/unlock .................. 59
– childproof safety .............................. 61
– double panel rear doors ................ 62
– sliding side doors ............................. 59
Driver protector .................................... 37
EBD system ............................................ 71
Engine codes- Engine compartment .. 175
Engine oil
– consumption ..................................... 163
– level check ......................................... 165
Engine starting ..............................102-124
Engine
– fuel system ........................................ 182
– identification codes ......................... 180
– powertrain ........................................ 182
– specification ...................................... 181
Environmental protection .................... 82 ABS system ............................................. 71
Added-on electrical/electronic devices 80
Air cleaner/anti/pollen .......................... 167
Air outlets ............................................... 42
Airbag .............................................96-98
Alarm ........................................................ 11
Ash tray .................................................... 57
ASR system ............................................. 74
Backlight washer
– control ............................................... 51
– liquid level ......................................... 164
Backlight wiper
– blade ................................................... 172
– control ............................................... 51
– nozzle ................................................. 172
Backup light
– bulb replacement ............................. 140
Battery
– recharging .......................................... 153
– replacement ...................................... 167
Body versions ......................................... 180
Body
– maintenance ...................................... 173
– version coding .................................. 180
I I
N N
D D
E E
X X
200-208 Fiorino GB 1ed:202-208 Fiorino GB 1ed 2-12-2009 16:32 Pagina 200

202
WARNING
LIGHTS AND
MESSAGES
DASHBOARDAND CONTROLS
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS

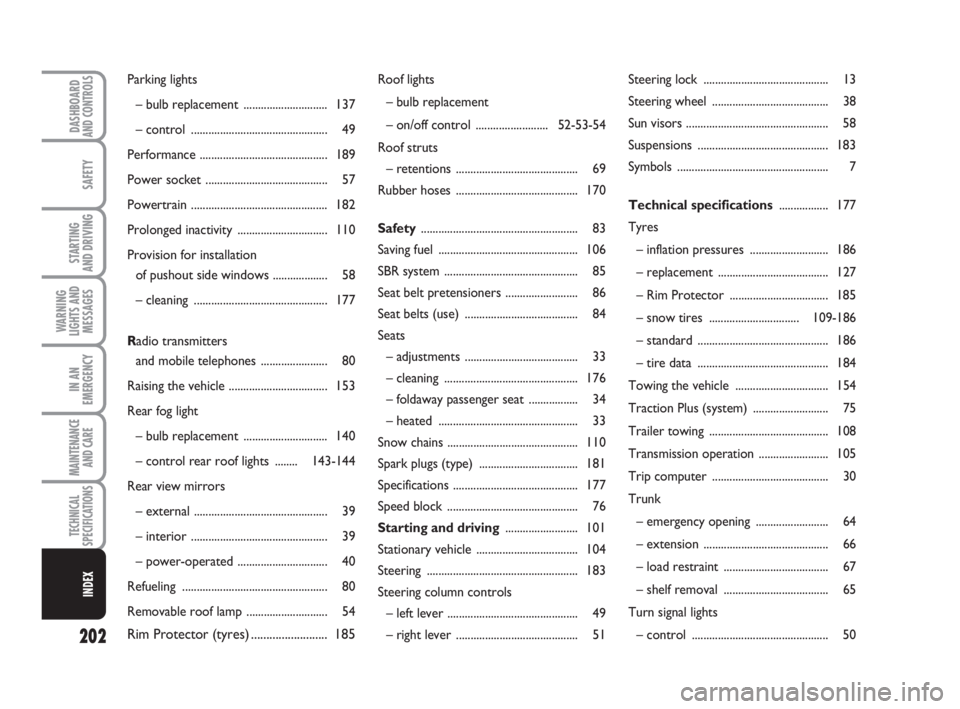

INDEX
Roof lights
– bulb replacement
– on/off control .........................52-53-54
Roof struts
– retentions .......................................... 69
Rubber hoses .......................................... 170
Safety...................................................... 83
Saving fuel ................................................ 106
SBR system .............................................. 85
Seat belt pretensioners ......................... 86
Seat belts (use) ....................................... 84
Seats
– adjustments ....................................... 33
– cleaning .............................................. 176
– foldaway passenger seat ................. 34
– heated ................................................ 33
Snow chains ............................................. 110
Spark plugs (type) .................................. 181
Specifications ........................................... 177
Speed block ............................................. 76
Starting and driving......................... 101
Stationary vehicle ................................... 104
Steering .................................................... 183
Steering column controls
– left lever ............................................. 49
– right lever .......................................... 51Steering lock ........................................... 13
Steering wheel ........................................ 38
Sun visors ................................................. 58
Suspensions ............................................. 183
Symbols .................................................... 7
Technical specifications................. 177
Tyres
– inflation pressures ........................... 186
– replacement ...................................... 127
– Rim Protector .................................. 185
– snow tires ...............................109-186
– standard ............................................. 186
– tire data ............................................. 184
Towing the vehicle ................................ 154
Traction Plus (system) .......................... 75
Trailer towing ......................................... 108
Transmission operation ........................ 105
Trip computer ........................................ 30
Trunk
– emergency opening ......................... 64
– extension ........................................... 66
– load restraint .................................... 67
– shelf removal .................................... 65
Turn signal lights
– control ............................................... 50 Parking lights
– bulb replacement ............................. 137
– control ............................................... 49
Performance ............................................ 189
Power socket .......................................... 57
Powertrain ............................................... 182
Prolonged inactivity ............................... 110
Provision for installation
of pushout side windows ................... 58
– cleaning .............................................. 177
Radio transmitters
and mobile telephones ....................... 80
Raising the vehicle .................................. 153
Rear fog light
– bulb replacement ............................. 140
– control rear roof lights ........ 143-144
Rear view mirrors
– external .............................................. 39
– interior ............................................... 39
– power-operated ............................... 40
Refueling .................................................. 80
Removable roof lamp ............................ 54Rim Protector (tyres)......................... 185
200-208 Fiorino GB 1ed:202-208 Fiorino GB 1ed 2-12-2009 16:32 Pagina 202
