FULL SIZE SPARE (for versions/markets,
where provided)
The full size spare is for temporary emergency use only.
This tire may look like the original equipped tire on the
front or rear axle of your vehicle, but it is not. This
spare tire may have limited tread life. When the tread is
worn to the tread wear indicators, the temporary use
full size spare tire needs to be replaced. Since it is not
the same as your original equipment tire, replace (or
repair) the original equipment tire and reinstall on the
vehicle at the first opportunity.
LIMITED-USE SPARE (for versions/markets,
where provided)
The limited-use spare tire is for temporary emergency
use only. This tire is identified by a label located on the
limited-use spare wheel. This label contains the driving
limitations for this spare. This tire may look like the
original equipped tire on the front or rear axle of your
vehicle, but it is not. Installation of this limited-use
spare tire affects vehicle handling. Since it is not the
same as your original equipment tire, replace (or re-
pair) the original equipment tire and reinstall on the
vehicle at the first opportunity.

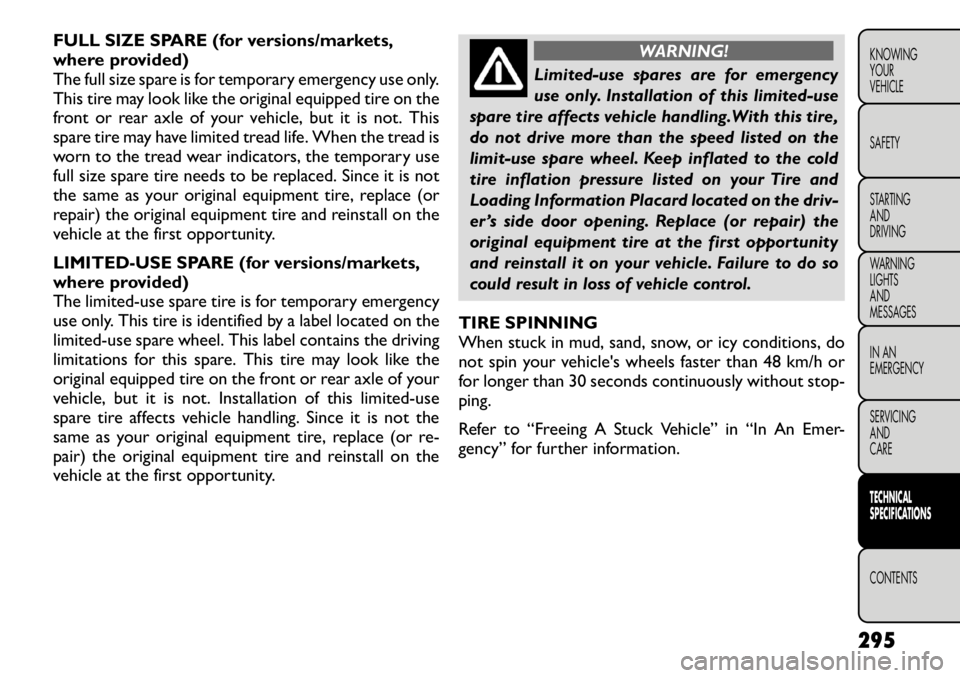

WARNING!
Limited-use spares are for emergency
use only. Installation of this limited-use
spare tire affects vehicle handling.With this tire,
do not drive more than the speed listed on the
limit-use spare wheel. Keep inflated to the cold
tire inflation pressure listed on your Tire and
Loading Information Placard located on the driv-
er ’s side door opening. Replace (or repair) the
original equipment tire at the first opportunity
and reinstall it on your vehicle. Failure to do so
could result in loss of vehicle control.
TIRE SPINNING
When stuck in mud, sand, snow, or icy conditions, do
not spin your vehicle's wheels faster than 48 km/h or
for longer than 30 seconds continuously without stop-ping.
Refer to “Freeing A Stuck Vehicle” in “In An Emer-
gency” for further information.
295
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

WARNING!

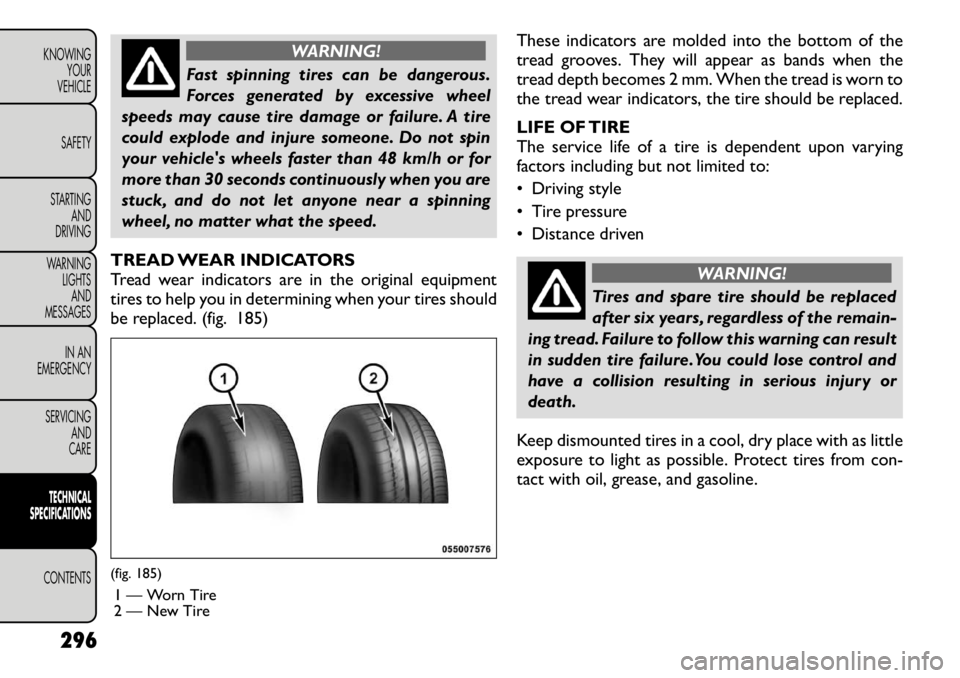

Fast spinning tires can be dangerous.
Forces generated by excessive wheel
speeds may cause tire damage or failure. A tire
could explode and injure someone. Do not spin
your vehicle's wheels faster than 48 km/h or for
more than 30 seconds continuously when you are
stuck, and do not let anyone near a spinning
wheel, no matter what the speed.
TREAD WEAR INDICATORS
Tread wear indicators are in the original equipment
tires to help you in determining when your tires should
be replaced. (fig. 185) These indicators are molded into the bottom of the
tread grooves. They will appear as bands when the
tread depth becomes 2 mm. When the tread is worn to
the tread wear indicators, the tire should be replaced.
LIFE OF TIRE
The service life of a tire is dependent upon varying
factors including but not limited to:
• Driving style
• Tire pressure
• Distance driven
WARNING!
Tires and spare tire should be replaced
after six years, regardless of the remain-
ing tread. Failure to follow this warning can result
in sudden tire failure.You could lose control and
have a collision resulting in serious injury or
death.
Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from con-
tact with oil, grease, and gasoline.
(fig. 185) 1 — Worn Tire
2 — New Tire
296
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

REPLACEMENT TIRES
The tires on your new vehicle provide a balance of
many characteristics. They should be inspected regu-
larly for wear and correct cold tire inflation pressure.
The manufacturer strongly recommends that you use
tires equivalent to the originals in size, quality and
performance when replacement is needed (refer to the
paragraph on “Tread Wear Indicators”). Refer to the
“Tire and Loading Information” placard for the size
designation of your tire. The Load Index and Speed
Symbol for your tire will be found on the original
equipment tire sidewall. See the Tire Sizing Chart
example found in the Tire Safety Information section of
this manual for more information relating to the Load
Index and Speed Symbol of a tire.
It is recommended to replace the two front tires or
two rear tires as a pair. Replacing just one tire can
seriously affect your vehicle’s handling. If you ever
replace a wheel, make sure that the wheel’s specifica-
tions match those of the original wheels.
It is recommended you contact your original equip-
ment or an authorized tire dealer with any questions
you may have on tire specifications or capability. Failure
to use equivalent replacement tires may adversely af-
fect the safety, handling, and ride of your vehicle.

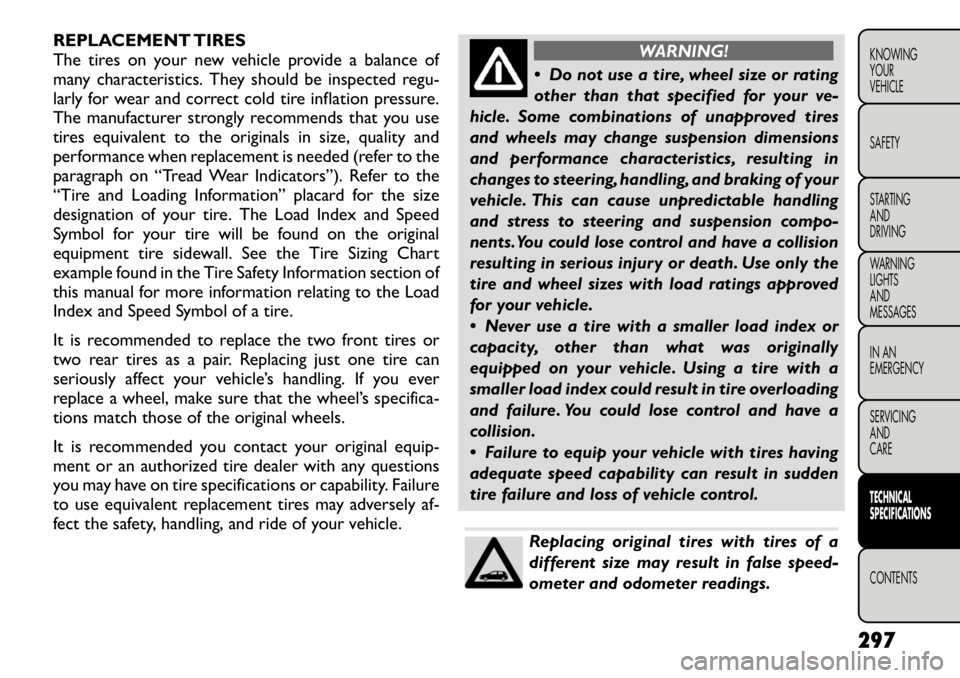

WARNING!
 Do not use a tire, wheel size or rating
other than that specified for your ve-
hicle. Some combinations of unapproved tires
and wheels may change suspension dimensions
and performance characteristics, resulting in
changes to steering, handling, and braking of your
vehicle. This can cause unpredictable handling
and stress to steering and suspension compo-
nents.You could lose control and have a collision
resulting in serious injury or death. Use only the
tire and wheel sizes with load ratings approved
for your vehicle.
 Never use a tire with a smaller load index or
capacity, other than what was originally
equipped on your vehicle. Using a tire with a
smaller load index could result in tire overloading
and failure. You could lose control and have a
collision.
 Failure to equip your vehicle with tires having
adequate speed capability can result in sudden
tire failure and loss of vehicle control.Replacing original tires with tires of a
different size may result in false speed-
ometer and odometer readings.
297
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

FUEL REQUIREMENTS — GASOLINE ENGINE
All engines are designed to meet all emissions regula-
tions and provide excellent fuel economy and perfor-
mance when using high quality unleaded gasoline with a
minimum research octane rating of 91. The use of
premium gasoline is not recommended, as it will not
provide any benefit over regular gasoline in these en-gines.
Light spark knock at low engine speeds is not harmful
to your engine. However, continued heavy spark knock
at high speeds can cause damage and immediate service
is required. Poor quality gasoline can cause problems
such as hard starting, stalling, and hesitations. If you
experience these symptoms, try another brand of
gasoline before considering service for the vehicle.
Over 40 auto manufacturer's world wide have issued
and endorsed consistent gasoline specifications (the
Worldwide Fuel Charter, WWFC) which define fuel
properties necessary to deliver enhanced emissions,
performance, and durability for your vehicle. The
manufacturer recommends the use of gasoline that
meets the WWFC specifications if they are available. Methanol
(Methyl or Wood Alcohol) is used in a variety of
concentrations when blended with unleaded gasoline.
You may find fuels containing 3% or more methanol
along with other alcohols called cosolvents. Problemsthat result from using methanol/gasoline or E-85 Etha-
nol blends are not the responsibility of the manufac-
turer. While MTBE is an oxygenate made from Metha-
nol, it does not have the negative effects of Methanol.
Do not use gasolines containing Metha-
nol or E-85 Ethanol. Use of these blends
may result in starting and driveability
problems and may damage critical fuel system
components.
Ethanol
The manufacturer recommends that your vehicle be
operated on fuel containing no more than 10% ethanol.
Purchasing your fuel from a reputable supplier may
reduce the risk of exceeding this 10% limit and/or of
receiving fuel with abnormal properties. It should also
be noted that an increase in fuel consumption should
be expected when using ethanol-blended fuels, due to
the lower energy content of ethanol. Problems that
result from using methanol/gasoline or E-85 ethanol
blends are not the responsibility of the manufacturer.
While MTBE is an oxygenate made from Methanol, it
does not have the negative effects of Methanol.
298
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Use of fuel with Ethanol content higher
than 10% may result in engine malfunc-
tion, starting and operating difficulties,
and materials degradation.These adverse effects
could result in permanent damage to your vehicle.
Clean Air Gasoline
Many gasolines are now being blended to contribute to
cleaner air, especially in those areas where air pollution
levels are high. These new blends provide a cleaner
burning fuel and some are referred to as “reformulated
gasoline.”
The manufacturer supports these efforts toward
cleaner air. You can help by using these blends as they
become available.
MMT In Gasoline
MMT is a manganese containing metallic additive that is
blended into some gasoline to increase octane. Gaso-
line blended with MMT provides no performance ad-
vantage beyond gasoline of the same octane number
without MMT. Gasoline blended with MMT reduces
spark plug life and reduces emission system perfor-
mance in some vehicles. The manufacturer recom-
mends that gasoline without MMT be used in your
vehicle. The MMT content of gasoline may not be
indicated on the gasoline pump; therefore, you should
ask your gasoline retailer whether or not his/her gaso-
line contains MMT. Materials Added To Fuel
Besides using unleaded gasoline with the proper octane
rating, gasolines that contain detergents, corrosion and
stability additives are recommended. Using gasolines
that have these additives will help improve fuel
economy, reduce emissions, and maintain vehicle per-
formance.
Indiscriminate use of fuel system cleaning agents should
be avoided. Many of these materials intended for gum
and varnish removal may contain active solvents or
similar ingredients. These can harm fuel system gasket
and diaphragm materials.
WARNING!
Carbon monoxide (CO) in exhaust gases
is deadly. Follow the precautions below
to prevent carbon monoxide poisoning:
 Do not inhale exhaust gases.They contain car-
bon monoxide, a colorless and odorless gas,
which can kill. Never run the engine in a closed
area, such as a garage, and never sit in a parked
vehicle with the engine running for an extended
period. If the vehicle is stopped in an open area
with the engine running for more than a short
period, adjust the ventilation system to force
fresh, outside air into the vehicle.
(Continued)
299
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

(Continued)
 Guard against carbon monoxide with proper
maintenance. Have the exhaust system inspected
every time the vehicle is raised. Have any abnor-
mal conditions repaired promptly. Until re-
paired, drive with all side windows fully open.
 Keep the liftgate closed when driving your ve-
hicle to prevent carbon monoxide and other poi-
sonous exhaust gases from entering the vehicle. FUEL REQUIREMENTS — DIESEL ENGINE
Use Premium Quality Diesel fuels with a Cetane rating
of 50 or higher, and meeting the EN590 standard are
highly recommended. See your authorized dealer for
further information regarding fuels available in your
area.
300
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

FLUID CAPACITIES
Metric
Fuel (Approximate) 77.6 Liters
Engine Oil with Filter
3.6L Engine 5.6 Liters
2.0L Diesel Engine 5.2 Liters
Cooling System *
3.6L Engine and Single- or Dual-Zone Climate Control System 12.4 Liters
3.6L Engine and Three-Zone Climate Control System 13.7 Liters
2.0L Diesel Engine and Single- or Dual-Zone Climate Control System 9.1 Liters
2.0L Diesel Engine and Three-Zone Climate Control System 9.9 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
301
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

FLUIDS, LUBRICANTS, AND GENUINE PARTS ENGINEComponent Fluids, Lubricants, and Genuine Parts
Engine Coolant50% mixture of demineralized water and PARAFLU UP* that meets FIAT
Qualification 9.55523 Antifreeze/Coolant or equivalent.
Engine Oil – 3.6L Engine SAE Grade 5W-30 SELENIA K POWER fully synthetic engine oil that meets
FIAT Qualification 9.55535 API SN, ILSAC GF-5 or equivalent.
Engine Oil – 2.0L Diesel Engine SAE Grade 5W-30 SELENIA WR P.E fully synthetic engine oil that meets FIAT
Qualification 9.55535–S1 or equivalent.
Spark Plugs – 3.6L Engine RER8ZWYCB4 (Gap 1.1 mm)
Fuel Selection – 3.6L Engine 91 Octane
Fuel Selection – 2.0L Diesel Engine 50 Cetane or higher (Less than 15 ppm Sulfur).
302
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

CHASSISComponent Fluid, Lubricant, or Genuine Part
Automatic Transmission (for
versions/markets, where provided)TUTELA TRANSMISSION FORCE4 Totally synthetic lubricant that meets FIAT
Classification 9.55550- AV4
Manual Transmission (for
versions/markets, where provided) Grade SAE 75W synthetic lubricant that meets Qualification FIAT
9.55550-MZ6 (TUTELA TRANSMISSION GEARFORCE Contractual Technical
Reference No. F002.F10).
Wheel-Side Constant Velocity Joints Molybdenum disulphide grease, for use at high temperatures. FIAT 9.55580
certification. NL.GI. 1-2 consistency (TUTELA ALL STAR Contractual
Technical Reference No. F702.G07)
Differential-Side Constant Velocity
Joints Grease for constant-velocity joints with low friction coefficient. FIAT 9.55580
certification. NL.GI. 0-2 consistency (TUTELA STAR 700 Contractual Technical
Reference No. F701.C07)
Brake/Clutch Master Cylinder Synthetic fluid, FMVSS no. 116, DOT 4, ISO 4925 SAE J-1704. Qualification
FIAT 9.55597 (TUTELA TOP 4 Contractual Technical Reference No. F001.A93)
Power Steering Reservoir Please refer to your Dealership.
Windshield/Rear Window Washer Fluid Mixture of alcohol, water and surfactants CUNA NC 956-II FIAT 9.55522
certification (TUTELA PROFESSIONAL SC35 Contractual Technical Reference
No. F201.D02)
303
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

CONTENTS
About Your Brakes . . . . . . . . . . . . . . . . . . . . 113,200
ABS (Anti-Lock Brake System) . . . . . . . . . . 113,114,229
Adding Engine Coolant (Antifreeze) . . . . . . . . . 281,282
Adding Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Adding Washer Fluid . . . . . . . . . . . . . . . . . . . . . . 278
Additives, Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . . . 274
Air Conditioner Maintenance . . . . . . . . . . . . . . . . 275
Air Conditioning Filter . . . . . . . . . . . . . . . . . . . 69,276
Air Conditioning Refrigerant . . . . . . . . . . . . . . . . . 275
Air Conditioning System . . . . . . . . . . . . . . . . . 65,275
Air Conditioning, Operating Tips . . . . . . . . . . . . . . . 70
Air Conditioning, Rear Zone . . . . . . . . . . . . . . . . . 66
Air Pressure, Tires . . . . . . . . . . . . . . . . . . . . . 227,292
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181,188
Airbag Deployment . . . . . . . . . . . . . . . . . . . . . . . 189
Airbag Light . . . . . . . . . . . . . . . . . . . 187,190,193,225
Airbag Maintenance . . . . . . . . . . . . . . . . . . . . . . . 190
Airbag, Side . . . . . . . . . . . . . . . . . . . . . . 183,186,188
Airbag, Window (Side Curtain) . . . . . . . . . 184,186,188
Alarm (Security Alarm) . . . . . . . . . . . . . . . . . . 15,230
Alarm System (Security Alarm) . . . . . . . . . . . . . . 15,16
All Wheel Drive (AWD) . . . . . . . . . . . . . . . . . . . 209
Alterations/Modifications, Vehicle . . . . . . . . . . . . . . . 5
Anti-Lock Brake System (ABS) . . . . . . . . . . . . . 113,114
Anti-Lock Warning Light . . . . . . . . . . . . . . 114,115,229
Anti-Theft Security Alarm (Theft Alarm) . . . . . . . . . 15
Anti-Theft System . . . . . . . . . . . . . . . . . . . . . . . . 230
Antifreeze (Engine Coolant) . . . . . . . . . . . 281,282,301 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Appearance Care . . . . . . . . . . . . . . . . . . . . . . . . 287 Arming Theft System (Security Alarm) . . . . . . . . . . . 15
Auto Down Power Windows . . . . . . . . . . . . . . . . 103
Auto Unlock, Doors . . . . . . . . . . . . . . . . . . . . . . . 97
Automatic Dimming Mirror . . . . . . . . . . . . . . . . . . 57
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 97
Automatic Headlights . . . . . . . . . . . . . . . . . . . . . . 71
Automatic Oil Change Indicator . . . . . . . . . . . . . . . 23
Automatic Temperature Control (ATC) . . . . . . . . . . 65
Automatic Transaxle . . . . . . . . . . . . . . . . . . . . . . 285
Adding Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 303
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Fluid and Filter Changes . . . . . . . . . . . . . . . . . . 286
Selection Of Lubricant . . . . . . . . . . . . . . . . . . . 303
Special Additives . . . . . . . . . . . . . . . . . . . . . . . 285
Automatic Transmission . . . . . . . . . . . . . . . . . . . . 203 Adding Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Fluid Level Check . . . . . . . . . . . . . . . . . . . . . . 286
Gear Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Auxiliary Electrical Outlet (Power Outlet) . . . . . . . . 89
Auxiliary Power Outlet . . . . . . . . . . . . . . . . . . . . . 89
Back-Up Lights . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274 Gas Caution . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Keyless Transmitter Replacement (RKE) . . . . . . . . 13
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Belts, Seat . . . . . . . . . . . . . . . . . . . . . . . . . . 159,193
Body Mechanism Lubrication . . . . . . . . . . . . . . . . . 277
Booster Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Brake Assist System . . . . . . . . . . . . . . . . . . . . . . . 116
Brake Control System, Electronic . . . . . . . . . . . . . . 114
307
KNOWING
YOURVEHICLE SAFETY
STARTING ANDDRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS
