4. Channel/Screen Selector Switch - Indicates whichchannel is being controlled by the remote control.
When the selector switch is in the Channel 1
position, the remote controls the functionality of
headphone Channel 1 (right side of the screen).
When the selector switch is in the Channel 2,
position the remote controls the functionality of
headphone Channel 2 (left side of the screen).
5. ▸▸ – In radio modes, press to seek the next tunable
station. In disc modes, press and hold to fast for-
ward through the current audio track or video
chapter. In menu modes use to navigate in the menu.
6. ▾/ Prev – In radio modes, press to select to the
previous station. In disc modes, press to advance to
the start of the current or previous audio track or
video chapter. In menu modes, use to navigate in the
menu.
7. MENU – Press to return to the main menu of a DVD disc, to select a satellite audio channel from the
Station list, or select playback modes (RANDOM
for a CD).
8. ▸/||
(Play/Pause) – Begin/resume or pause disc play.
9. ▪(Stop) – Stops disc play
10. PROG Up/Down – When listening to a radio mode, pressing PROG Up selects the next preset
and pressing PROG Down selects the previous preset stored in the radio. When listening to com-
pressed audio on a data disc, PROG Up selects the
next directory and PROG Down selects the pre-
vious directory. When listening to a disc in a radio
with a multiple-disc changer, PROG Up selects the
next disc and PROG Down selects the previous
disc.
11. MUTE – Press to mute the headphone audio out- put for the selected channel.
12. SLOW – Press to slow playback of a DVD disc. Press play (▸) to resume normal play.
13. STATUS – Press to display the current status.
14. MODE – Press to change the mode of the selected channel. See the Mode Selection section of this
manual for details on changing modes.
15. SETUP – When in a video mode, press the SETUP button to access the display settings (see the
display settings section) to access the DVD setup
menu, select the menu button on the radio. When
a disc is loaded in the DVD player (for versions/
markets, where provided) and the VES™ mode is
selected and the disc is stopped, press the SETUP
button to access the DVD Setup menu. (see the
DVD Setup Menu of this manual.)
151
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

IN AN EMERGENCY
JUMP-STARTING
If your vehicle has a discharged battery it can be
jump-started using a set of jumper cables and a battery
in another vehicle or by using a portable battery
booster pack. Jump-starting can be dangerous if done
improperly so please follow the procedures in this
section carefully.
NOTE: When using a portable battery booster pack
follow the manufacturer's operating instructions and
precautions.
Do not use a portable battery booster
pack or any other booster source with a
system voltage greater than 12 Volts or
damage to the battery, starter motor, alternator
or electrical system may occur.
WARNING!
Do not attempt jump-starting if the bat-
ter
y is frozen. It could rupture or explode
and cause personal injury. PREPARATIONS FOR JUMP-START
The battery in your vehicle is located between the left
front headlight assembly and the left front wheel splash
shield. To allow jump-starting, there are remote bat-
tery posts located on the left side of the engine com-
partment.
(fig. 149)
(fig. 149)
Remote Battery Posts1 — Remote Positive (+) Post (Covered With Protective
Cap)
2 — Remote Negative (-) Post
245
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
C ARETECHNICAL
SPECIFICATIONSCONTENTS

WARNING!
 T
ake care to avoid the radiator cool-
ing fan whenever the hood is raised. It
can start anytime the ignition switch is ON.You
can be injured by moving fan blades.
 Remove any metal jewelry such as watch
bands or bracelets that might make an inadver-
tent electrical contact . You could be seriously
injured.
 Batteries contain sulfuric acid that can burn
your skin or eyes and generate hydrogen gas
which is flammable and explosive. Keep open
flames or sparks away from the battery.
1. Set the parking brake, shift the automatic transmis- sion into PARK and the manual transmission into
gear and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary elec- trical accessories.
3. Remove the protective cover over the remote posi- tive (+)battery post. To remove the cover, press
the locking tab and pull upward on the cover.
4. If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set
the parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each
ot
her as this could establish a ground
connection and personal injury could result .
JUMP-STARTING PROCEDURE
WARNING!
Failure to follow this procedure could
resul
t in personal injury or property
damage due to battery explosion.Failure to follow these procedures could
result in damage to the charging system
of the booster vehicle or the discharged
vehicle.
1. Connect the positive (+)end of the jumper cable to
the remote positive (+)post of the discharged
vehicle.
2. Connect the opposite end of the positive (+)
jumper cable to the positive (+)post of the booster
battery.
3. Connect the negative end (-)of the jumper cable to
the negative (-)post of the booster battery.
246
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENC
Y
SERVICING AND
C

ARETECHNICAL
SPECIFICATIONSCONTENTS

4. Connect the opposite end of the negative(-)
jumper cable to the remote negative (-)post of the
vehicle with the discharged battery.
WARNING!
Do not connect the cable to the negative
pos
t(-) of the discharged battery. The
resulting electrical spark could cause the battery
to explode and could result in personal injury.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
Once the engine is started, remove the jumper
cables in the reverse sequence:
6. Disconnect the negative (-)jumper cable from the
remote negative (-)post of the vehicle with the
discharged battery.
7. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
8. Disconnect the opposite end of the positive (+)
jumper cable from the positive (+)post of the
booster battery. 9. Disconnect the positive
(+)end of the jumper cable
from the remote positive (+)post of the discharged
vehicle.
10. Reinstall the protective cover over the remote positive (+)battery post of the discharged vehicle.
If frequent jump-starting is required to start your
vehicle, you should have the battery and charging
system inspected at your authorized dealer.
Accessories that can be plugged into the
vehicle power outlets draw power from
the vehicle’s battery, even when not in
use (i.e., cellular phones, etc .). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
247
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
C ARETECHNICAL
SPECIFICATIONSCONTENTS

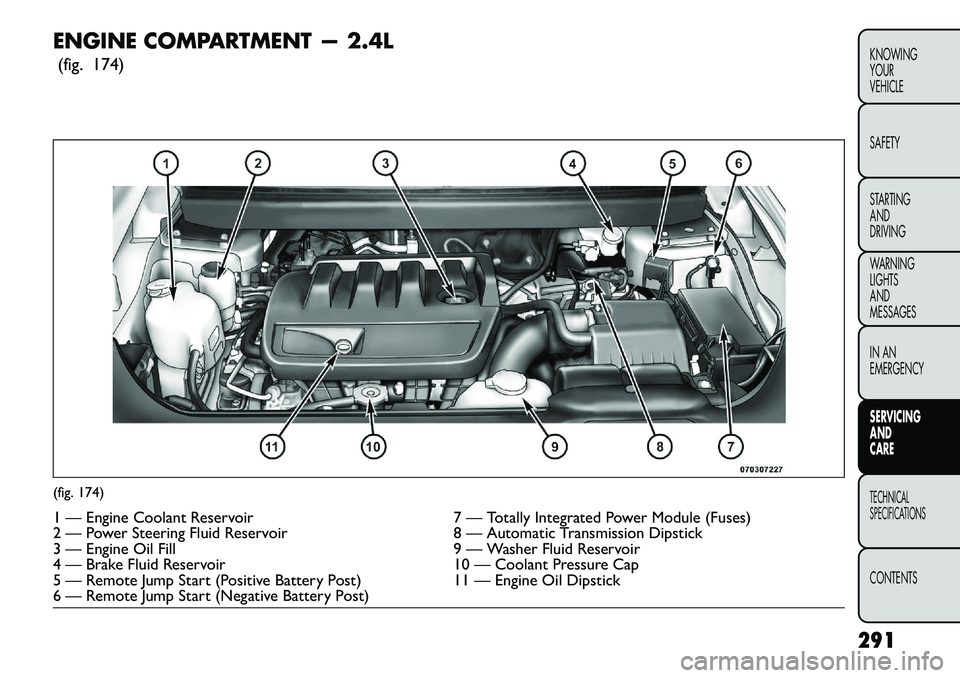

ENGINE COMPARTMENT — 2.4L(fig. 174)(fig. 174)1 — Engine Coolant Reservoir 7 — Totally Integrated Power Module (Fuses)
2 — Power Steering Fluid Reservoir 8 — Automatic Transmission Dipstick
3 — Engine Oil Fill 9 — Washer Fluid Reservoir
4 — Brake Fluid Reservoir 10 — Coolant Pressure Cap
5 — Remote Jump Start (Positive Battery Post) 11 — Engine Oil Dipstick
6 — Remote Jump Start (Negative Battery Post)
291
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Engine Oil Viscosity – 2.0L Diesel Engine
For best performance and maximum protection under
all types of operating conditions, the manufacturer
recommends Fully Synthetic Low Ash 5W-30 engine
oils that meet the requirements of FIAT Qualification
9.55535-S1 and ACEA C2.
Change Engine Oil – Diesel Engine
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
Materials Added To Engine Oil
Do not add any supplemental materials, other than leak
detection dyes, to the engine oil. Engine oil is an
engineered product and its performance may be im-
paired by supplemental additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to
the environment. Contact your authorizeddealer,
service station or governmental agency for advice on
how and where used oil and oil filters can be safely
discarded in your area.
ENGINE AIR CLEANER FILTER
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
WARNING!
The air induction system (air cleaner,
h
oses, etc .) can provide a measure of
protection in the case of engine backfire. Do not
remove the air induction system (air cleaner,
hoses, etc .) unless such removal is necessary for
repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc .) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service.
MAINTENANCE-FREE BATTERY
You will never have to add water, and periodic mainte-
nance is not required.
NOTE: The battery is stored in a compartment that
is located behind the left front fender and is accessible
through the wheel well. The wheel and tire assemble
do not need to be removed to access the compart-
ment. Remote battery terminals are located in the
engine compartment for jump-starting.
296
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
C
ARETECHNICAL
SPECIFICATIONSCONTENTS

Daytime Brightness, Interior Lights . . . . . . . . . . . . . . .78
Defroster, Rear Window . . . . . . . . . . . . . . . . . . . . . .84
Defroster, Windshield . . . . . . . . . . . . . . . . . . . .67, 200
Delay (Intermittent) Wipers . . . . . . . . . . . . . . . . . . .80
Diagnostic System, Onboard . . . . . . . . . . . . . . . . . .126
Diesel Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .327, 328
Diesel Fuel Requirements . . . . . . . . . . . . . . . . . . . .327
Dimmer Switch, Headlight . . . . . . . . . . . . . . . . . . . . .77
DipsticksAutomatic Transmission . . . . . . . . . . . . . . . . . . .309
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . .294, 295
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . .128
Disabled Vehicle Towing . . . . . . . . . . . . . . . . . . . . .280
Disposal Antifreeze (Engine Coolant) . . . . . . . . . . . . . . . .306
Door Locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Door Locks, Automatic . . . . . . . . . . . . . . . . . . . . . .102
Downshifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211
Driving Through Flowing, Rising, or Shallow Standing Water .224
Driving to Achieve Maximum Fuel Economy . . . . . . . . .26
Electrical Outlet, Auxiliary (Power Outlet) . . . . . . . . . .94
Electrical Power Outlets . . . . . . . . . . . . . . . . . . . . . .94
Electric Remote Mirrors . . . . . . . . . . . . . . . . . . . . . .61
Electronic Brake Control System . . . . . . . . . . . . . . .120 Anti-Lock Brake System . . . . . . . . . . . . . . . . . . .119
Brake Assist System . . . . . . . . . . . . . . . . . . . . . .122
Electronic Roll Mitigation . . . . . . . . . . . . . . . . . .122
Electronic Stability Program . . . . . . . . . . . . . . . .123
Traction Control System . . . . . . . . . . . . . . . . . .122
Electronic Roll Mitigation (ERM) . . . . . . . . . . . . . . . .122
Electronic Speed Control (Cruise Control) . . . . . . . . .85 Electronic Stability Program (ESP) . . . . . . . . . . . . . . .123
Electronic Vehicle Information Center (EVIC). . . . .19, 141
Emergency, In Case of
Freeing Vehicle When Stuck . . . . . . . . . . . . . . . .276
Hazard Warning Flasher . . . . . . . . . . . . . . . . . . . .89
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . .245
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .280
Engine. . . . . . . . . . . . . . . . . . . . . . . . . . .202, 291, 293 Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . .296
Break-In Recommendations . . . . . . . . . . . . . . . . .202
Checking Oil Level . . . . . . . . . . . . . . . . . . .294, 295
Compartment . . . . . . . . . . . . . . . . . . . . . .291, 292
Compartment Identification . . . . . . . . . . . . . . . .292
Coolant (Antifreeze) . . . . . . . . . . . . . . . . . .304, 328
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .303
Exhaust Gas Caution . . . . . . . . . . . . . . . . . .111, 199
Fails to Start . . . . . . . . . . . . . . . . . . . . . . . . . . .204
Flooded, Starting . . . . . . . . . . . . . . . . . . . . . . . .204
Fuel Requirements . . . . . . . . . . . . . . . . . . . . . . .324
Jump Starting . . . . . . . . . . . . . . . . . . . . . . . . . .245
Oil . . . . . . . . . . . . . . . . . . . . . . . . . .294, 327, 328
Oil Change Interval . . . . . . . . . . . . . . . .25, 295, 296
Oil Filler Cap . . . . . . . . . . . . . . . . . . .291, 293, 296
Oil Selection . . . . . . . . . . . . . . . . . . . . . . . . . .327
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .202
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202
Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . .7
Engine Oil Viscosity . . . . . . . . . . . . . . . . . . . . .295, 296
Engine Oil Viscosity Chart . . . . . . . . . . . . . . . . . . . .295
Enhanced Accident Response Feature . . . . . . . . . . . .195
Entry System, Illuminated . . . . . . . . . . . . . . . . . . . . .79
Ethanol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . .197
335
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Warning (Instrument Cluster Description) . . . . . . .239
Load Floor, Cargo . . . . . . . . . . . . . . . . . . . . . . . . .112
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101 Automatic Door . . . . . . . . . . . . . . . . . . . . . . . .102
Auto Unlock . . . . . . . . . . . . . . . . . . . . . . . . . .102
Child Protection . . . . . . . . . . . . . . . . . . . . . . . .104
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . .19
Lower Anchors and Tether for CHildren
(LATCH). . . . . . . . . . . . . . . . . . . . . . . . . . .184, 185
Low Tire Pressure System . . . . . . . . . . . . . . . . . . . .129
Lubrication, Body . . . . . . . . . . . . . . . . . . . . . . . . . .299
Luggage Rack (Roof Rack) . . . . . . . . . . . . . . . . . . . .117
Maintenance Free Battery . . . . . . . . . . . . . . . . . . . .296
Maintenance, General . . . . . . . . . . . . . . . . . . . . . . .294
Maintenance Procedures . . . . . . . . . . . . . . . . . . . . .294
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . .283
Maintenance, Sunroof . . . . . . . . . . . . . . . . . . . . . . .100
Malfunction Indicator Light (Check Engine) . . . . . . . . .239
Manual Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .309 Fluid Level Check . . . . . . . . . . . . . . . . . . . . . . .310
Lubricant Selection . . . . . . . . . . . . . . . . . . . . . .310
Manual Transmission . . . . . . . . . . . . . . . . . . . . . . . .210 Fluid Level Check . . . . . . . . . . . . . . . . . . . . . . .309
Frequency of Fluid Change . . . . . . . . . . . . . . . . .310
Lubricant Selection . . . . . . . . . . . . . . . . . . . . . .310
Map/Reading Lights. . . . . . . . . . . . . . . . . . . . . . . . . .79
Marker Lights, Side . . . . . . . . . . . . . . . . . . . . . . . . .265
Master Cylinder (Brakes) . . . . . . . . . . . . . . . . . . . . .307
Methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324
Methanol Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . .324 Mini-Trip Computer . . . . . . . . . . . . . . . . . . . . . . . . .27
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60, 88
Automatic Dimming . . . . . . . . . . . . . . . . . . . . . .60
Electric Powered . . . . . . . . . . . . . . . . . . . . . . . . .61
Electric Remote . . . . . . . . . . . . . . . . . . . . . . . . .61
Exterior Folding . . . . . . . . . . . . . . . . . . . . . . . . .62
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Rearview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Vanity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Mode Fuel Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Modifications/Alterations, Vehicle . . . . . . . . . . . . . . . . .5
Monitor, Tire Pressure System . . . . . . . . . . . . . . . . .129
Multi-Function Control Lever. . . . . . . . . . . . . . . . . . .77
Navigation System (Uconnect™ gps) . . . . . . . . .141, 143
New Vehicle Break-In Period . . . . . . . . . . . . . . . . . .202
Occupant Restraints . . . . . . . . . . . . . . . . .166, 192, 195
Occupant Restraints (Sedan) . . . . . . . .189, 190, 192, 194
Octane Rating, Gasoline (Fuel). . . . . . . . . . . . . .324, 328
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .240
Oil Change Indicator . . . . . . . . . . . . . . . . . . . . .25, 240
Oil Change Indicator, Reset . . . . . . . . . . . . . . . . .25, 240
Oil, Engine . . . . . . . . . . . . . . . . . . . . . . . . . . .294, 328 Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .327
Change Interval . . . . . . . . . . . . . . . . . . .25, 295, 296
Checking . . . . . . . . . . . . . . . . . . . . . . . . . .294, 295
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . .294, 295
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . .296
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .328
Filter Disposal . . . . . . . . . . . . . . . . . . . . . . . . .296
339
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Recommendation . . . . . . . . . . . . . . . . . . . . . . .327
Viscosity . . . . . . . . . . . . . . . . . . . . . . .295, 296, 327
Onboard Diagnostic System . . . . . . . . . . . . . . . . . . .126
Operating Precautions . . . . . . . . . . . . . . . . . . . . . .126
Operator Manual (Owner's Manual) . . . . . . . . . . . . . . .4
Outside Rearview Mirrors . . . . . . . . . . . . . . . . . . . . .60
Overhead Console . . . . . . . . . . . . . . . . . . . . . . . . . .87
Owner's Manual (Operator Manual) . . . . . . . . . . . . . . .4
Paint Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .311
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . .207
Park Sense System, Rear . . . . . . . . . . . . . . . . . . . . .136
Passenger Seat Back Tilt (Easy Entry System) . . . . . . . .55
Passing Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Pets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197
Power Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Distribution Center (Fuses) . . . . . . . . . . . . . . . .272
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Outlet (Auxiliary Electrical Outlet) . . . . . . . . . . . .94
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Steering . . . . . . . . . . . . . . . . . . . . . . . . . .127, 128
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
Transfer Unit . . . . . . . . . . . . . . . . . . . . . . . . . .310
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Power Transfer Unit . . . . . . . . . . . . . . . . . . . . . . . .310
Pregnant Women and Seat Belts . . . . . . . . . . . . . . . .176
Preparation for Jacking . . . . . . . . . . . . . . . . . . . . . .248
Pretensioners Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171
Programming Transmitters (Remote Keyless Entry) . . . .12 Radial Ply Tires . . . . . . . . . . . . . . . . . . . . . . . . . . .318
Radiator Cap (Coolant Pressure Cap) . . . . . . . . . . . .306
Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . . .163
Radio Remote Controls. . . . . . . . . . . . . . . . . . . . . .144
Radio (Sound Systems) . . . . . . . . . . . . . . . . . . . . . .143
Rear Air Conditioning. . . . . . . . . . . . . . . . . . . . . . . .70
Rear Axle (Differential) . . . . . . . . . . . . . . . . . . . . . .310
Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Rear Cupholder . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Rear Drive Assembly . . . . . . . . . . . . . . . . . . . . . . .310
Rear Fog Lights . . . . . . . . . . . . . . . . . . . . . . . . . . .244
Rear Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Rear Park Sense System. . . . . . . . . . . . . . . . . . . . . .136
Rear Seat, Folding . . . . . . . . . . . . . . . . . . . . . . . .52, 57
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Rear Window Defroster . . . . . . . . . . . . . . . . . . . . . .84
Rear Window Features . . . . . . . . . . . . . . . . . . . . . . .83
Rear Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . . . .83
Reclining Front Seats . . . . . . . . . . . . . . . . . . . . . . . .47
Reclining Rear Seats. . . . . . . . . . . . . . . . . . . . . . .54, 57
Recreational Towing . . . . . . . . . . . . . . . . . . . . . . . .236
Refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .298
Release, Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Reminder, Lights On . . . . . . . . . . . . . . . . . . . . . . . . .76
Reminder, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . .176
Remote Keyless Entry (RKE) . . . . . . . . . . . . . . . . . . .12
Remote Sound System (Radio) Controls . . . . . . . . . . .144
Repeater Lights, Side. . . . . . . . . . . . . . . . . . . . . . . .268
Replacement Bulbs . . . . . . . . . . . . . . . . . . . . . . . . .264
Replacement Keys . . . . . . . . . . . . . . . . . . . . . . . . . .11
Replacement Tires . . . . . . . . . . . . . . . . . . . . . . . . .322
Resetting Oil Change Indicator . . . . . . . . . . . . . .25, 240
Restraint, Head . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
340
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND
CARETECHNICAL
SPECIFICATIONSCONTENTS

Trailer and Tongue Weight . . . . . . . . . . . . . . . . .229
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .231
Trailer Towing Guide . . . . . . . . . . . . . . . . . . . . . . .228
Trailer Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .228
Transaxle Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . .211, 308
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309, 310
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210
Transmitter Battery Service (Remote Keyless Entry) . . .13
Transmitter Programming (Remote Keyless Entry) . . . . .12
Transmitter, Remote Keyless Entry (RKE) . . . . . . . . . .12
Transporting Pets . . . . . . . . . . . . . . . . . . . . . . . . . .197
Tread Wear Indicators. . . . . . . . . . . . . . . . . . . . . . .321
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . .240
Turn Signals . . . . . . . . . . . . . . . . . . . . . . . .77, 240, 268
UCI Connector . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Underhood Fuses . . . . . . . . . . . . . . . . . . . . . . . . . .272
Universal Consumer Interface (UCI) Connector . . . . .162
Unleaded Gasoline . . . . . . . . . . . . . . . . . . . . . . . . .324
Untwisting Procedure, Seat Belt . . . . . . . . . . . . . . . .170
Upholstery Care . . . . . . . . . . . . . . . . . . . . . . . . . .312
Vanity Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Vehicle Identification Number (VIN) . . . . . . . . . . . . .316
Vehicle Modifications/Alterations . . . . . . . . . . . . . . . . .5
Vehicle Storage . . . . . . . . . . . . . . . . . . . . . . . . .73, 314
Vehicle Theft Alarm (Security Alarm) . . . . . . . . . . . . .15
Viscosity, Engine Oil . . . . . . . . . . . . . . . . . . . . .295, 296 Warning Flasher, Hazard . . . . . . . . . . . . . . . . . . . . . .89
Warning Lights (Instrument Cluster Description) . . . . .239
Washer
Adding Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . .301
Washers, Headlight . . . . . . . . . . . . . . . . . . . . . . . . .82
Washers, Windshield . . . . . . . . . . . . . . . . . .80, 81, 301
Water Driving Through . . . . . . . . . . . . . . . . . . . . . . . .224
Wheel and Wheel Trim . . . . . . . . . . . . . . . . . . . . . .312
Wheel and Wheel Trim Care . . . . . . . . . . . . . . . . . .312
Wind Buffeting . . . . . . . . . . . . . . . . . . . . . . . .100, 110
Window Fogging . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Windshield Defroster . . . . . . . . . . . . . . . . . . . . . . .200
Windshield Washers . . . . . . . . . . . . . . . . . . . . . .80, 81 Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .301
Windshield Wiper Blades . . . . . . . . . . . . . . . . . . . .300
Windshield Wipers . . . . . . . . . . . . . . . . . . . . . . . . .80
Wiper Blade Replacement . . . . . . . . . . . . . . . . . . . .300
Wiper, Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Wiper, Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Wipers, Intermittent . . . . . . . . . . . . . . . . . . . . . . . .80
Wrecker Towing . . . . . . . . . . . . . . . . . . . . . . . . . .280
343
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND
CARETECHNICAL
SPECIFICATIONSCONTENTS
