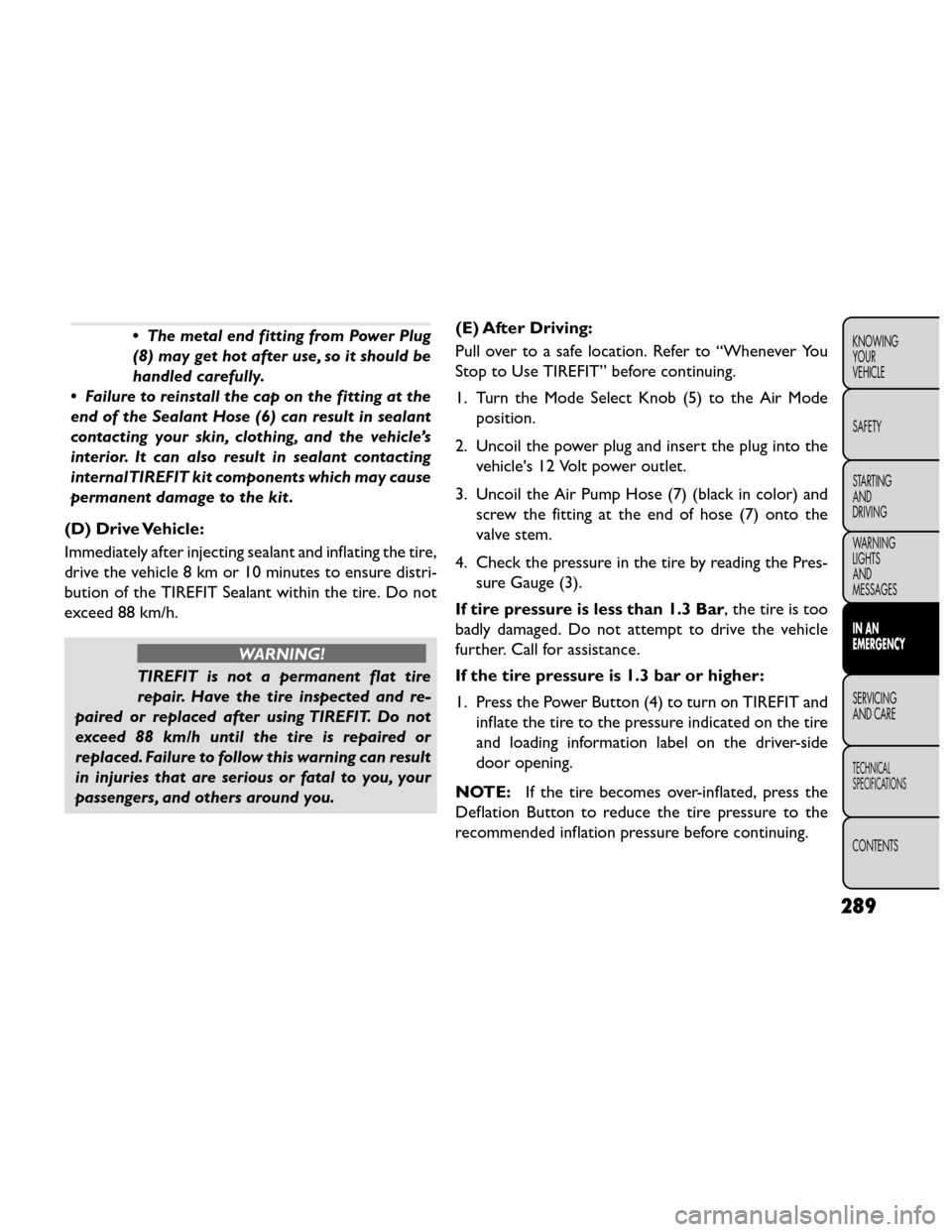

•The metal end fitting from Power Plug
(8) may get hot after use, so it should be
handled carefully.
• Failure to reinstall the cap on the fitting at the
end of the Sealant Hose (6) can result in sealant
contacting your skin, clothing, and the vehicle’s
interior. It can also result in sealant contacting
internalTIREFIT kit components which may cause
permanent damage to the kit .
(D) Drive Vehicle:
Immediately after injecting sealant and inflating the tire,
drive the vehicle 8 km or 10 minutes to ensure distri-
bution of the TIREFIT Sealant within the tire. Do not
exceed 88 km/h.
WARNING!
TIREFIT is not a permanent flat tire
repair. Hav

e the tire inspected and re-
paired or replaced after using TIREFIT. Do not
exceed 88 km/h until the tire is repaired or
replaced. Failure to follow this warning can result
in injuries that are serious or fatal to you, your
passengers, and others around you. (E) After Driving:
Pull over to a safe location. Refer to “Whenever You
Stop to Use TIREFIT” before continuing.
1. Turn the Mode Select Knob (5) to the Air Mode
position.
2. Uncoil the power plug and insert the plug into the vehicle's 12 Volt power outlet.
3. Uncoil the Air Pump Hose (7) (black in color) and screw the fitting at the end of hose (7) onto the
valve stem.
4. Check the pressure in the tire by reading the Pres- sure Gauge (3).
If tire pressure is less than 1.3 Bar, the tire is too
badly damaged. Do not attempt to drive the vehicle
further. Call for assistance.
If the tire pressure is 1.3 bar or higher:
1. Press the Power Button (4) to turn on TIREFIT and inflate the tire to the pressure indicated on the tire
and loading information label on the driver-side
door opening.
NOTE: If the tire becomes over-inflated, press the
Deflation Button to reduce the tire pressure to the
recommended inflation pressure before continuing.
289
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – InteriorBulb Number
Courtesy/Reading Lamps (Incandescent).......578
Courtesy/Reading Lamps
(Optional LED) ...............LED (Serviced at
Authorized Dealer)
GloveBoxLamp ........................194
CargoLamp ...........................579
Optional Door Map
Pocket/Cupholder .............LED (Serviced at
Authorized Dealer)
NOTE: For lighted switches, see your authorized
dealer for replacement instructions.
LIGHTS BULBS – Outside Bulb Number
LowBeamHeadlamp ....................H11
HighBeamHeadlamp ................HB 3/9005
Front Turn Signal ..............PY27W /3757AK
Front Position Lamp ...................W5W
FrontFogLamp.....................PSX24W
RearFogLamp.......................P S19W
Side Repeater Lamp ...................WY5W
Center High Mounted Stop
Lamp(CHMSL) ...............LED (Serviced at
Authorized Dealer)
Rear Tail/Stop ................LED (Serviced at
Authorized Dealer)
RearTailLiftgate ..............LED (Serviced at
Authorized Dealer)
Rear Turn Signal .....................WY21W
Backup Lamp ........................W21W
License Lamp .........................W5W
291
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

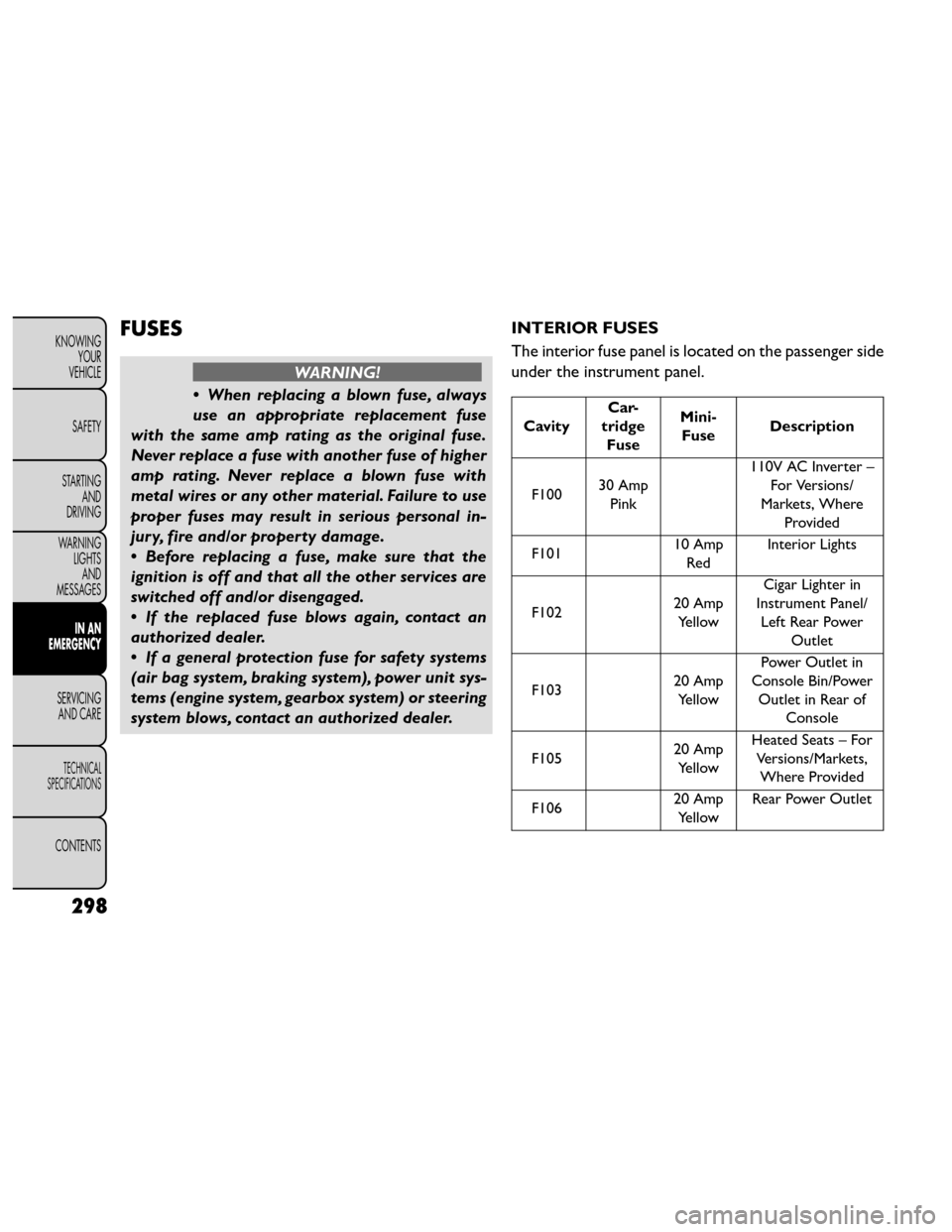

FUSES
WARNING!
• When replacing a blown fuse, always
use a n

appropriate replacement fuse
with the same amp rating as the original fuse.
Never replace a fuse with another fuse of higher
amp rating. Never replace a blown fuse with
metal wires or any other material. Failure to use
proper fuses may result in serious personal in-
jury, fire and/or property damage.
• Before replacing a fuse, make sure that the
ignitionisoffandthatalltheotherservicesare
switched off and/or disengaged.
• If the replaced fuse blows again, contact an
authorized dealer.
• If a general protection fuse for safety systems
(air bag system, braking system), power unit sys-
tems (engine system, gearbox system) or steering
system blows, contact an authorized dealer. INTERIOR FUSES
The interior fuse panel is located on the passenger side
under the instrument panel.
Cavity
Car-
tridge Fuse Mini-
Fuse Description
F100 30 Amp
Pink 110V AC Inverter –
For Versions/
Markets, Where Provided
F101 10 Amp
Red Interior Lights
F102 20 Amp
Yellow Cigar Lighter in
Instrument Panel/ Left Rear Power Outlet
F103 20 Amp
Yellow Power Outlet in
Console Bin/Power Outlet in Rear of Console
F105 20 Amp
Yellow Heated Seats – For
Versions/Markets,Where Provided
F106 20 Amp
Yellow Rear Power Outlet
298
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

CavityCar-
tridge Fuse Mini-
Fuse Description
F101 60 Amp
Yellow Interior Power Dis-
tribution Center Rail
F102 60 Amp
Yellow Interior Power Dis-
tribution Center Rail
F103 60 Amp
Yellow Interior Power Dis-
tribution Center Rail
F105 60 Amp
Yellow Interior Power Dis-
tribution Center Rail Ignition Run Relay
F106 60 Amp
Yellow Interior Power Dis-
tribution Center Rail Run/Accessory Relays
F139 40 Amp
Green Climate Control
System Blower
F140 30 Amp
Pink Power Locks
F141 40 Amp
Green Anti-Lock Brake
System
F142 40 Amp
Green Glow Plugs – For
Versions/Markets, Where Provided
F143 40 Amp
Green Exterior Lights 1CavityCar-
tridge Fuse Mini-
Fuse Description
F144 40 Amp
Green Exterior Lights 2
F145 30 Amp
Pink To Body
Computer – Lamp
F146 30 Amp
Pink Spare
F147 30 Amp
Pink Spare
F148 40 Amp
Green Radiator Fan Motor
F149 30 Amp
Pink Starter Solenoid
F150 25 Amp
Natural Powertrain Control
Modules
F151 30 Amp
Pink Headlamp Washer
Motor–For
Versions/Markets, Where Provided
F152 25 Amp
Natural Diesel Fuel Heater –
For Versions/
Markets, Where Provided
F153 20 Amp
Yellow Fuel Pump
301
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

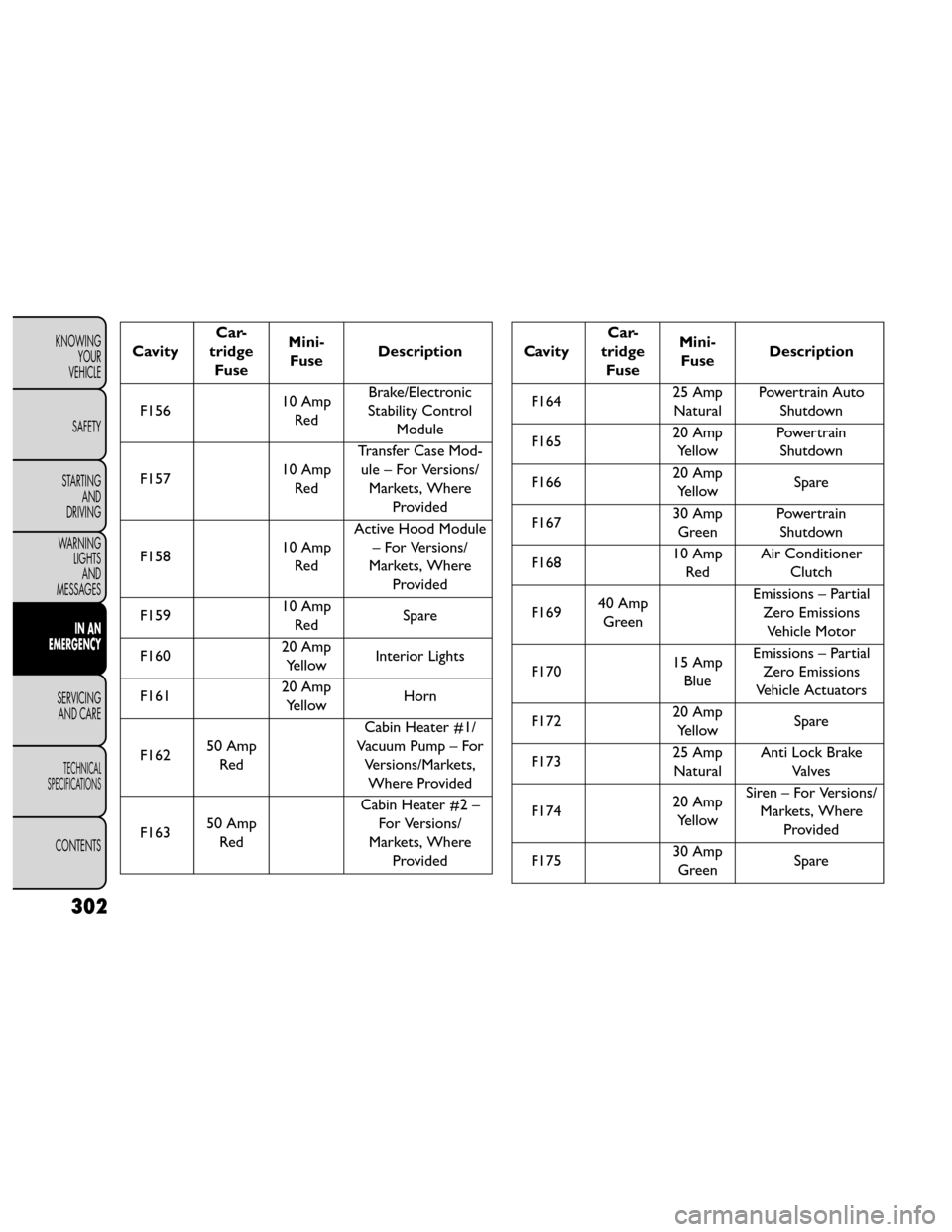

CavityCar-
tridge Fuse Mini-
Fuse Description
F156 10 Amp
Red Brake/Electronic
Stability Control Module
F157 10 Amp
Red Transfer Case Mod-
ule – For Versions/ Markets, Where Provided
F158 10 Amp
Red Active Hood Module
– For Versions/
Markets, Where Provided
F159 10 Amp
Red Spare
F160 20 Amp
Yellow Interior Lights
F161 20 Amp
Yellow Horn
F162 50 Amp
Red Cabin Heater #1/
Vacuum Pump – For Versions/Markets,Where Provided
F163 50 Amp
Red Cabin Heater #2 –
For Versions/
Markets, Where ProvidedCavity Car-
tridge Fuse Mini-
Fuse Description
F164 25 Amp
Natural Powertrain Auto
Shutdown
F165 20 Amp
Yellow Powertrain
Shutdown
F166 20 Amp
Yellow Spare
F167 30 Amp
Green Powertrain
Shutdown
F168 10 Amp
Red Air Conditioner
Clutch
F169 40 Amp
Green Emissions – Partial
Zero EmissionsVehicle Motor
F170 15 Amp
Blue Emissions – Partial
Zero Emissions
Vehicle Actuators
F172 20 Amp
Yellow Spare
F173 25 Amp
Natural Anti Lock Brake
Va l ve s
F174 20 Amp
Yellow Siren – For Versions/
Markets, Where Provided
F175 30 Amp
Green Spare
302
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

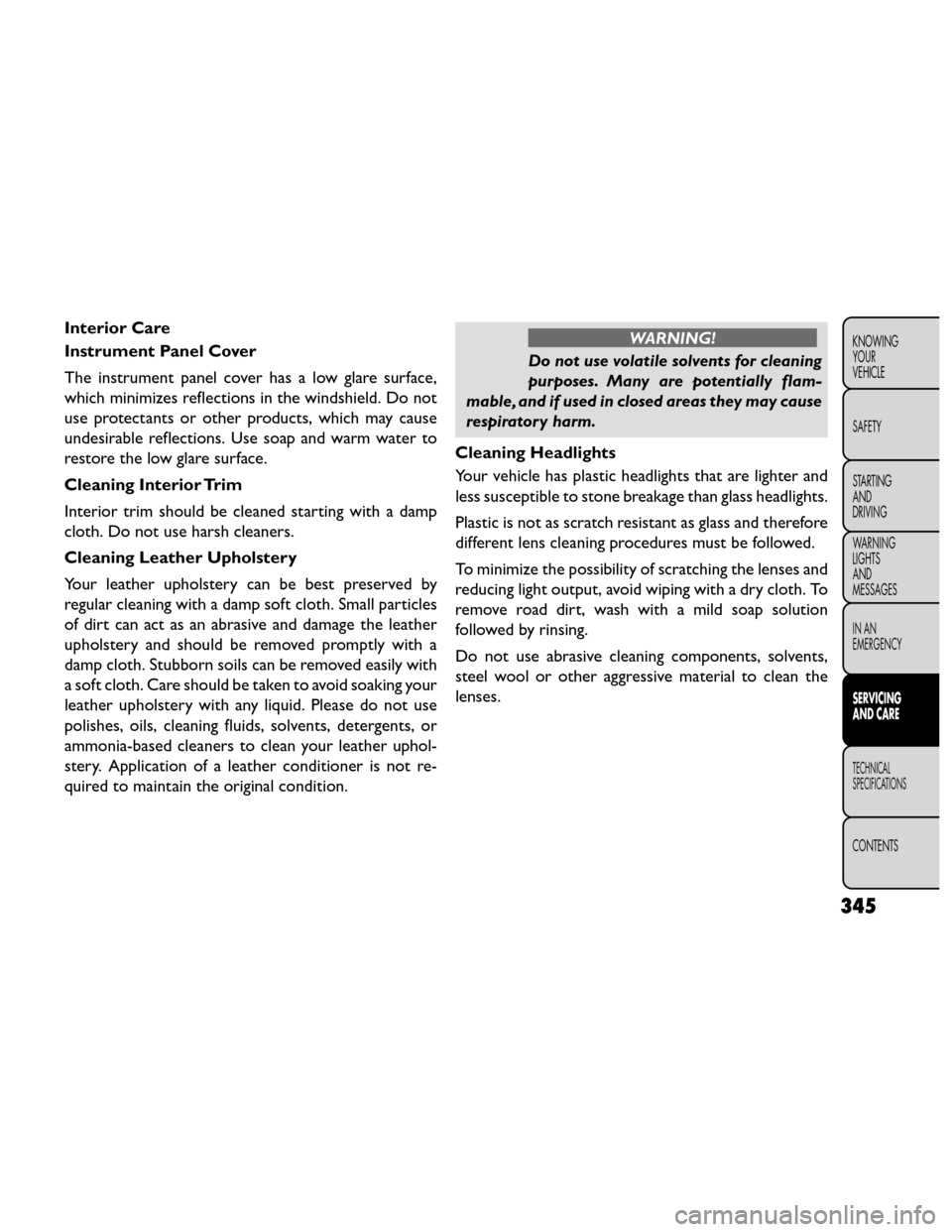

Interior Care
Instrument Panel Cover
The instrument panel cover has a low glare surface,
which minimizes reflections in the windshield. Do not
use protectants or other products, which may cause
undesirable reflections. Use soap and warm water to
restore the low glare surface.
Cleaning Interior Trim
Interior trim should be cleaned starting with a damp
cloth. Do not use harsh cleaners.
Cleaning Leather Upholstery
Your leather upholstery can be best preserved by
regular cleaning with a damp soft cloth. Small particles
of dirt can act as an abrasive and damage the leather
upholstery and should be removed promptly with a
damp cloth. Stubborn soils can be removed easily with
a soft cloth. Care should be taken to avoid soaking your
leather upholstery with any liquid. Please do not use
polishes, oils, cleaning fluids, solvents, detergents, or
ammonia-based cleaners to clean your leather uphol-
stery. Application of a leather conditioner is not re-
quired to maintain the original condition.WARNING!
Do not use volatile solvents for cleaning
purposes. Man

y are potentially flam-
mable, and if used in closed areas they may cause
respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution
followed by rinsing.
Do not use abrasive cleaning components, solvents,
steel wool or other aggressive material to clean the
lenses.
345
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

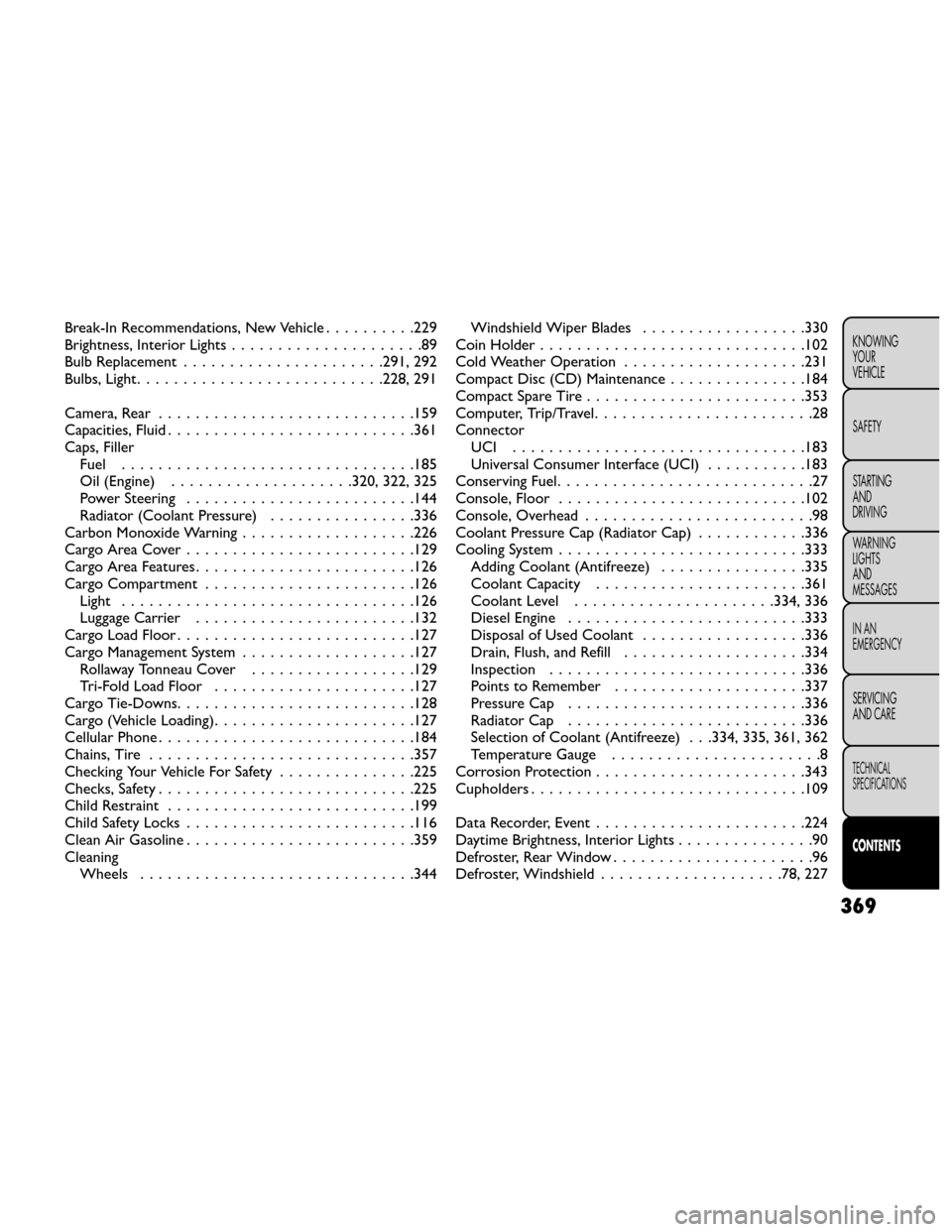

Break-In Recommendations, New Vehicle..........229
Brightness, Interior Lights .....................89
Bulb Replacement ...................... 291, 292
Bulbs, Light ...........................228, 291
Camera, Rear ............................159
Capacities, Fluid ...........................361
Caps, Filler Fuel ................................185
Oil (Engine) ....................320, 322, 325
Power Steering .........................144
Radiator (Coolant Pressure) ................336
Carbon Monoxide Warning ...................226
CargoAreaCover.........................129
Cargo Area Features ........................126
CargoCompartment .......................126 Light ................................126
Luggage Carrier ........................132
Cargo Load Floor ..........................127
Cargo Management System ...................127
Rollaway Tonneau Cover ..................129
Tri-Fold Load Floor ......................127
Cargo Tie-Downs ..........................128
Cargo (Vehicle Loading) ......................127
Cellular Phone ............................184
Chains, Tire .............................357
Checking Your Vehicle For Safety ...............225
Checks, Safety ............................225
Child Restraint ...........................199
Child Safety Locks .........................116
Clean Air Gasoline .........................359
Cleaning Wheels ..............................344 Windshield Wiper Blades
..................330
Coin Holder .............................102
Cold Weather Operation ....................231
Compact Disc (CD) Maintenance ...............184
Compact Spare Tire ........................353
Computer, Trip/Travel ........................28
Connector UCI ............................... .183
Universal Consumer Int

erface (UCI) ...........183
Conserving Fuel ............................27
Console, Floor ...........................102
Console, Overhead .........................98
Coolant Pressure Cap (Radiator Cap) ............336
Cooling System ...........................333
Adding Coolant (Antifreeze) ................335
Coolant Capacity .......................361
Coolant Level ......................334, 336
Diesel Engine ..........................333
Disposal of Used Coolant ..................336
Drain, Flush, and Refill ....................334
Inspection ............................336
Points to Remember .....................337
Pressure Cap ..........................336
Radiator Cap ..........................336
Selection of Coolant (Antifreeze) . . .334, 335, 361, 362
Temperature Gauge .......................8
Corrosion Protection .......................343
Cupholders ..............................109
Data Recorder, Event .......................224
Daytime Brightness, Interior Lights ...............90
Defroster, Rear Window ......................96
Defroster, Windshield ....................78, 227
369
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

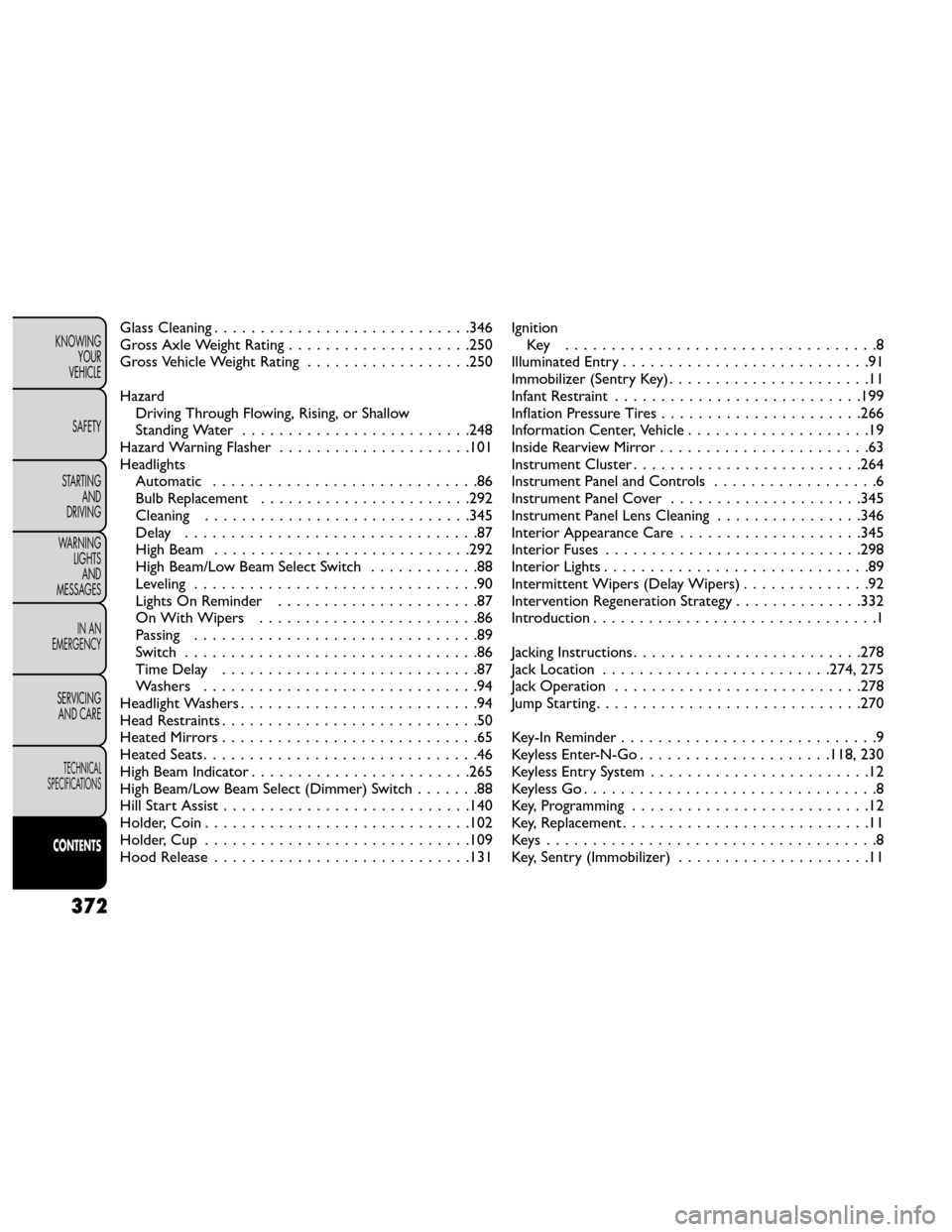

Glass Cleaning............................346
Gross Axle Weight Rating ....................250
Gross Vehicle Weight Rating ..................250
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water .........................248
Hazard Warning Flasher .....................101
Headlights Automatic .............................86
Bulb Replacement .......................292
Cleaning .............................345
Delay ................................87
High Beam ............................292
High Beam/Low Beam Select Switch ............88
Leveling ...............................90
Lights On Reminder ......................87
On With Wipers ........................86
Passing ...............................89
Switch ................................86
TimeDelay ............................87
Washers ..............................94
Headlight Washers ..........................94
Head Restraints ............................50
HeatedMirrors............................65
Heated Seats ..............................46
High Beam Indicator ........................265
High Beam/Low Beam Select (Dimmer) Switch .......88
Hill Start Assist ...........................140
Holder, Coin .............................102
Holder, Cup .............................109
Hood Release ............................131 Ignition
Key ..................................8
Illuminated Entry ...........................91
Immobilizer (Sentry Key) ......................11
Infant Restraint ...........................199
Inflation Pressure Tires ......................266
Information Center, Vehicle ....................19
Inside Rearview Mirror .......................63
Instrument Cluster .........................264
Instrument Panel and Controls ..................6
Instrument Panel Cover .....................345
Instrument Panel Lens Cleaning ................346
Interior Appearance Care ....................345
Interior Fuses ............................298
Interior Lights .............................89
Intermittent Wipers (Delay Wipers) ..............92
Intervention Regeneration Strategy ..............332
Introduction ...............................1
Jacking Instructions .........................278
Jack Location ......................... 274, 275
Jack Operation ..........................

.278
Jump Starting .............................270
Key-In Reminder ............................9
Keyless Enter-N-Go .....................118, 230
Keyless Entry System ........................12
Keyless Go ................................8
Key, Programming ..........................12
Key, Replacement ...........................11
Keys....................................8
Key, Sentry (Immobilizer) .....................11
372
KNOWING
YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

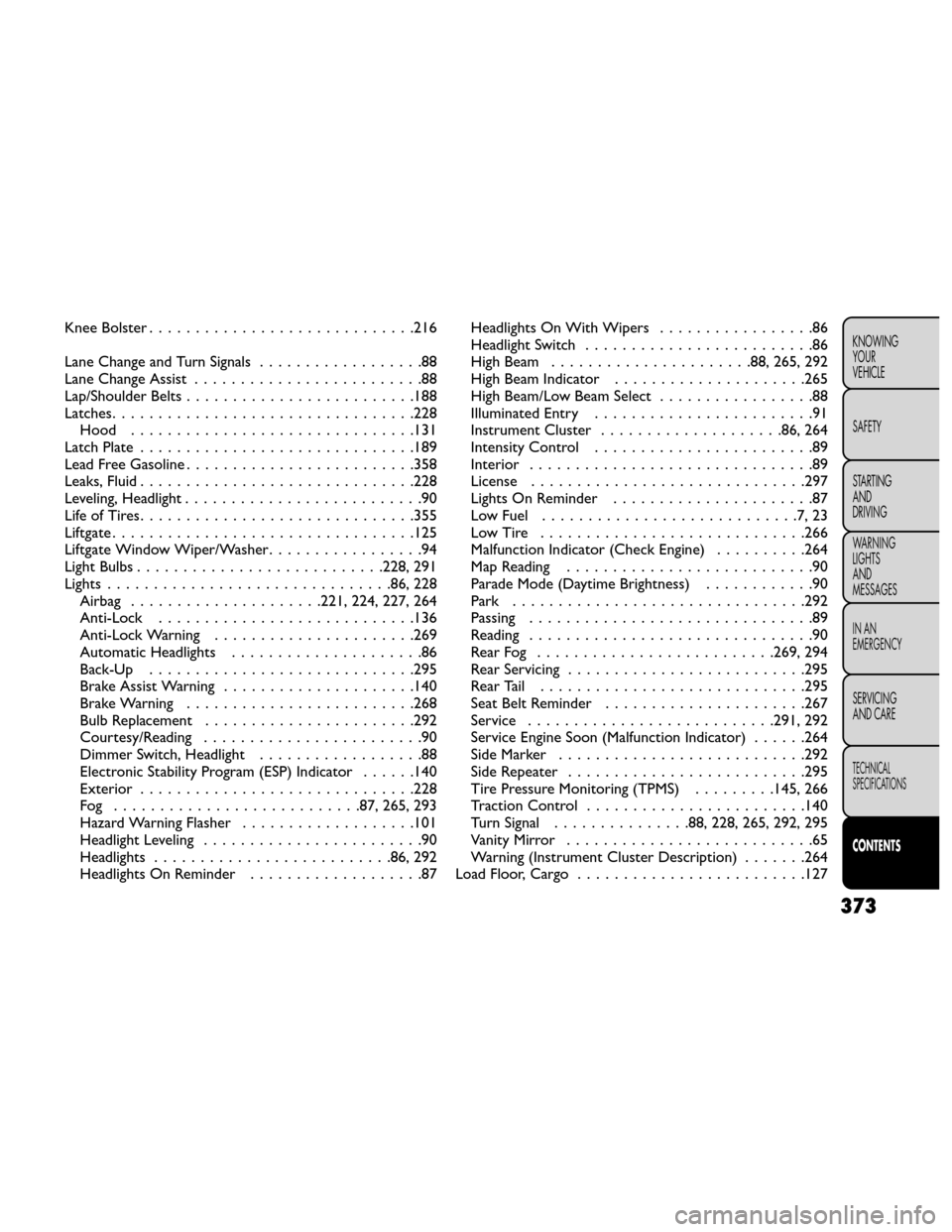

Knee Bolster.............................216
Lane Change and Turn Signals ..................88
Lane Change Assist .........................88
Lap/Shoulder Belts .........................188
Latches .................................228
Hood ...............................131
Latch Plate ..............................189
Lead Free Gasoline .........................358
Leaks, Fluid ..............................228
Leveling, Headlight ..........................90
LifeofTires..............................355
Liftgate.................................125
Liftgate Window Wiper/Washer .................94
Light Bulbs ...........................228, 291
Lights ...............................86, 228
Airbag .....................221, 224, 227, 264
Anti-Lock ............................136
Anti-Lock Warning ......................269
Automatic Headlights .....................86
Back-Up .............................295
Brake Assist Warning .....................140
Brake Warning .........................268
Bulb Replacement .......................292
Courtesy/Reading ........................90
Dimmer Switch, Headlight ..................88
Electronic Stability Program (ESP) Indicator ......140
Exterior ..............................228
Fog ...........................87, 265, 293
Hazard Warning Flasher ...................101
Headlight Leveling ........................90
Headlights ..........................86, 292
Headlights On Reminder ...................87 Headlights On With Wipers
.................86
Headlight Switch .........................86
High Beam ......................88, 265, 292
High Beam Indicator .....................265
High Beam/Low Beam Select .................88
Illuminated Entry ........................91
Instrument Cluster ....................86, 264
Intensity Control ........................89
Interior ...............................89
License ..............................297
Lights On Reminder ......................

87
Low Fuel ............................7,23
LowTire .............................266
Malfunction Indicator (Check Engine) ..........264
Map Reading ...........................90
Parade Mode (Daytime Brightness) ............90
Park ................................292
Passing ...............................89
Reading ...............................90
RearFog ..........................269, 294
Rear Servicing ..........................295
RearTail .............................295
Seat Belt Reminder ......................267
Service ...........................291, 292
Service Engine Soon (Malfunction Indicator) ......264
Side Marker ...........................292
Side Repeater ..........................295
Tire Pressure Monitoring (TPMS) .........145, 266
Traction Control ........................140
Turn Signal ...............88, 228, 265, 292, 295
Vanity Mirror ...........................65
Warning (Instrument Cluster Description) .......264
Load Floor, Cargo .........................127
373
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
