3. Lift the control lever with the other hand, allow theseatback to move forward slightly, and then release
the lever.
WARNING!
To prevent personal injury or damage to
objects ,

keep your head, arms, and ob-
jects out of the folding path of the seatback.
4. Gently guide the seatback into the folded position.
To Unfold The Seat
Raise the seatback and lock it in place.
WARNING!
Be certain that the seatback is locked
securely in

to position. Otherwise, the
seat will not provide the proper stability for child
seats and/or passengers. An improperly latched
seat could cause serious injury.
Forward And Rearward Adjustment
The control lever is on the outboard side of the seat.
Lift the lever to move the seat forward or rearward.
Release the lever once the seat is in the desired
position. Then, using body pressure, move forward and
rearward on the seat to be sure that the seat adjusters
have latched.
(fig. 33)
(fig. 32) Seatback Release(fig. 33)Manual Seat Adjustment
55
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
W

ARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

WARNING!
Adjusting a seat while the vehicle is mov-
ing is dan

gerous. The sudden movement
of the seat could cause you to lose control. The
seat belt might not be adjusted properly and you
could be injured. Adjust any seat only while the
vehicle is parked.
Recliner Adjustment
The recline lever is on the outboard side of the seat. To
recline the seatback, lean back, lift the lever, position the
seatback as desired, and then release the lever. To return
the seatback to its normal upright position, lean back, lift
the lever, lean forward, and then release the lever once
the seatback is in the upright position.
(fig. 34)
WARNING!
• Adjusting a seat while the vehicle is
mo vin

g is dangerous. The sudden move-
ment of the seat could cause you to lose control.
The seat belt might not be adjusted properly and
you could be injured. Adjust the seat only while
the vehicle is parked.
• Do not ride with the seatback reclined so that
the shoulder belt is no longer resting against your
chest . In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Seatback/Armrest — Second Row Passenger
Seat
The latch release-loop is located at the top of the
seatback/armrest. Pull the release-loop forward to re-
lease the latch and then downward to lower the
seatback/armrest.
(fig. 35)
Raise the seatback/armrest and lock it in place when
not in use, or when additional seating area is required.
(fig. 34) Recline Lever
56
KNOWINGYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W

ARNING LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

WARNING!
Keep the latch clean and free of objects
and be c

ertain that the seatback/
armrest is locked securely into position. Other-
wise, the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
Stadium Tip 'n Slide™ (Easy Entry/Exit Seat) —
Seven Passenger Models
This feature allows passengers to easily enter or exit
the third-row passenger seats from either side of the
vehicle. To Move The Second-Row Passenger Seat
Forward
NOTE:
Raise the seatback/armrest before moving the
seat to allow for full seat travel.
Move the control lever on the upper outboard side of
the seatback forward. Then, in one fluid motion, the
seat cushion flips upward and the seat moves forward
on its tracks.
(fig. 36) (fig. 37)
NOTE: A hand-grip is molded into the front of each
quarter trim panel near the door opening to assist
entry and exit from the third-row passenger seats.
(fig. 35)
Seatback/Armrest(fig. 36)Tip 'n Slide™ Control Lever
57
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
W

ARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

WARNING!
Do not drive the vehicle with the seat in
this position, as it is only intended for
entering and exiting the third row seats. Failure to
follow this warning may result in personal injury.
To Unfold And Move The Second-Row
Passenger Seat Rearward
Move the seatback rearward until it locks in place and
then continue sliding the seat rearward on its tracks
until it locks in place.
Push the seat cushion downward to lock it in place. Adjust the seat track position as desired. Using body
pressure, move forward and rearward on the seat to be
sure that the seat adjusters have latched.
WARNING!
Be certain that the seatback and seat
are locked s

ecurely into position. Other-
wise, the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.
50/50 SPLIT THIRD-ROW PASSENGER
SEATS WITH FOLD-FLAT FEATURE
(Seven Passenger Models)
To provide additional storage area, each third-row
passenger seatback can be folded flat. This allows for
extended cargo space and still maintains some rear
seating room if needed.
NOTE: Prior to folding the third-row passenger seat-
back, make sure the second-row passenger seatback is
not in a reclined position. This will allow the seatback
to fold easily.
(fig. 37)
Tip 'n Slide™ Seat
58
KNOWINGYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W

ARNING LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

To Fold The Seatback
Pull the latch release-loop located at the top of the
seatback upward, push the seatback forward slightly,
and release the release-loop. Then, continue to push
the seatback forward. The head restraints will fold
automatically as the seatback moves forward.
(fig. 38)
To Unfold The Seatback
Grasp the assist strap loop on the seatback and pull it
toward you to raise the seatback. Continue to raise the
seatback until it locks in place. Raise the head restraint
to lock it in place.
(fig. 39)
The seatback can also be locked in the reclined posi-
tion. To do so, pull the latch release-loop located at the
top of the seatback upward, allow the seatback to
recline, and release the release-loop.
(fig. 38)Seatback Release(fig. 39) Assist Strap
59
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
W

ARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

WARNING!
• Be certain that the seatback is locked
secu rely

into position. Otherwise, the
seat will not provide the proper stability for
passengers. An improperly latched seat could
cause serious injury.
• Do not allow a passenger to sit in a third row
seat without having the head restraint unfolded
and locked in place. Failure to follow this warning
may result in personal injury to the passenger in
the event of a collision.
• Do not allow a passenger to sit in a third row
seat with the second row seatback(s) folded flat .
In a collision, the passenger could slide under-
neath the seat belt and be seriously or even
fatally injured.
TILT/TELESCOPING STEERING
COLUMN
This feature allows you to tilt the steering column
upward or downward. It also allows you to lengthen or
shorten the steering column. The tilt/telescoping con-
trol handle is located below the steering wheel at the
end of the steering column.
(fig. 40)
To unlock the steering column, push the control handle
downward. To tilt the steering column, move the steer-
ing wheel upward or downward as desired. To lengthen
or shorten the steering column, pull the steering wheel
outward or push it inward as desired. To lock the
steering column in position, pull the control handle
upward until fully engaged.
(fig. 40)
Tilt/Telescoping Steering Control Handle
60
KNOWINGYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W

ARNING LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

WARNING!
Do not adjust the steering column while
driving. A

djusting the steering column
while driving or driving with the steering column
unlocked could cause the driver to lose control of
the vehicle. Be sure the steering column is locked
before driving your vehicle. Failure to follow this
warning may result in serious injury or death.

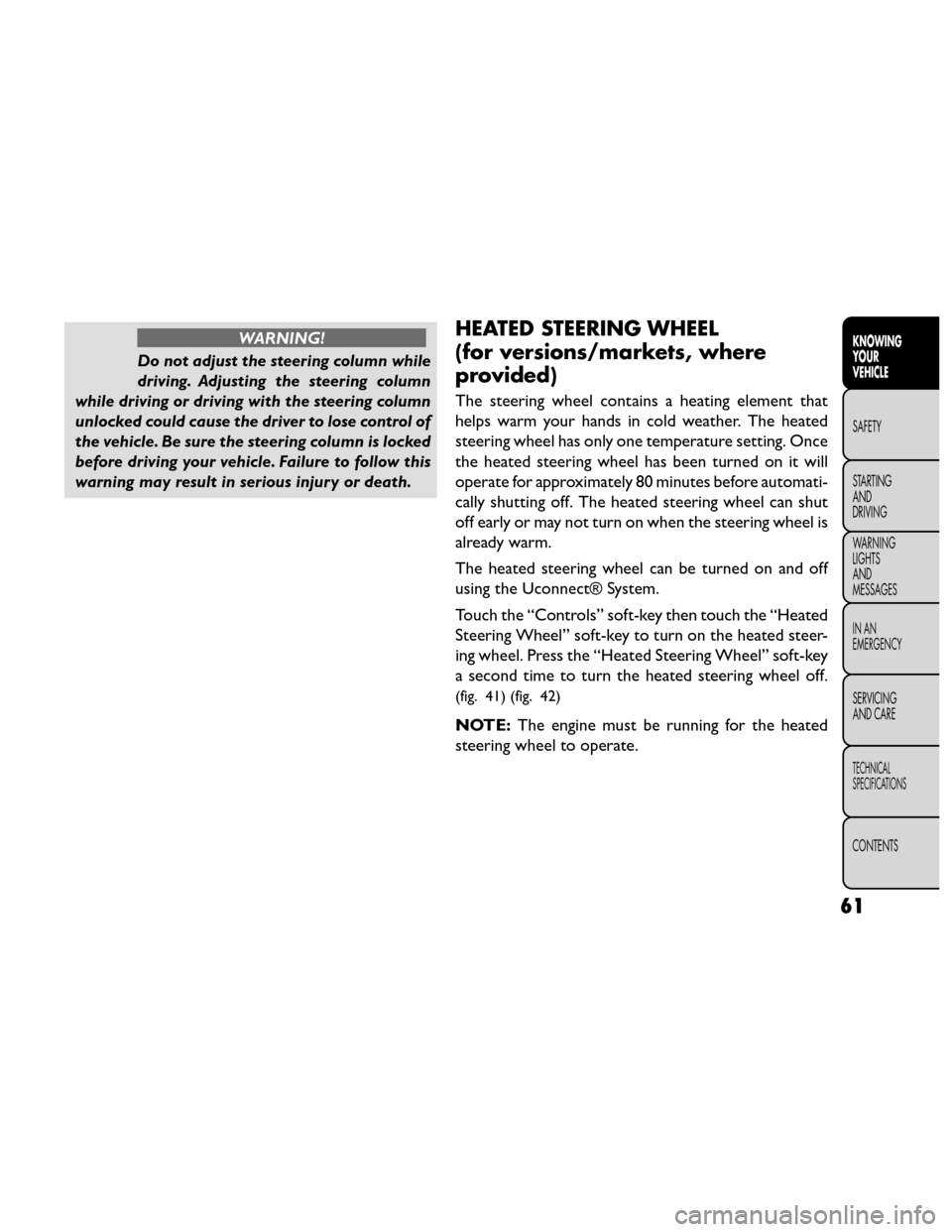

HEATED STEERING WHEEL
(for versions/markets, where
provided)
The steering wheel contains a heating element that
helps warm your hands in cold weather. The heated
steering wheel has only one temperature setting. Once
the heated steering wheel has been turned on it will
operate for approximately 80 minutes before automati-
cally shutting off. The heated steering wheel can shut
off early or may not turn on when the steering wheel is
already warm.
The heated steering wheel can be turned on and off
using the Uconnect® System.
Touch the “Controls” soft-key then touch the “Heated
Steering Wheel” soft-key to turn on the heated steer-
ing wheel. Press the “Heated Steering Wheel” soft-key
a second time to turn the heated steering wheel off.
(fig. 41) (fig. 42)
NOTE: The engine must be running for the heated
steering wheel to operate.
61
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
W

ARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

WARNING!
• Persons who are unable to feel pain to
th e

skin because of advanced age,
chronic illness, diabetes, spinal cord injury, medi-
cation, alcohol use, exhaustion or other physical
conditionmustexercisecarewhenusingtheseat
heater. It may cause burns even at low tempera-
tures, especially if used for long periods of time.
• Do not place anything on the seat or seatback
that insulates against heat , such as a blanket or
cushion. This may cause the seat heater to over-
heat . Sitting in a seat that has been overheated
could cause serious burns due to the increased
surface temperature of the seat .
(fig. 41)
Controls Soft-Key
(fig. 42)Heated Steering Wheel Soft-Key
62
KNOWINGYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W

ARNING LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

MIRRORS
INSIDE DAY/NIGHT MIRROR
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. Adjust the mirror to
center on the view through the rear window.
Headlight glare can be reduced by moving the small
control lever under the mirror to the night position
(lever flipped toward the rear of vehicle). The mirror
should be adjusted while set in the day position (to-
ward the windshield).
(fig. 43)
AUTOMATIC DIMMING MIRROR
(for versions/markets, where provided)
This mirror automatically adjusts for headlight glare
from vehicles behind you. This feature will be defaulted
on, and only be disabled when the vehicle is moving in
reverse.
(fig. 44)
To avoid damage to the mirror during
cleaning, never spray any cleaning solu-
tion directly onto the mirror. Apply the
solution onto a clean cloth and wipe the mirror
clean.
(fig. 43)
Adjusting Rearview Mirror(fig. 44)Automatic Dimming Mirror
63
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND
DRIVING
W

ARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

OUTSIDE MIRRORS
To receive maximum benefit, adjust the outside mir-
ror(s) to center on the adjacent lane of traffic and a
slight overlap of the view obtained from the inside
mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the
passenger si

de convex mirror will look
smaller and farther away than they really are.
Relying too much on your passenger side convex
mirror could cause you to collide with another
vehicle or other object . Use your inside mirror
when judging the size or distance of a vehicle
seen in the passenger side convex mirror. Failure
to follow this warning may result in serious injury
or death.
POWER MIRRORS
The power mirror switch is located on the driver's
door trim panel.
(fig. 45)
Models Without Express Window Feature
Press the mirror select button marked L (left) or
R (right) and then press one of the four arrow buttons
to move the mirror in the direction the arrow is
pointing.
Models With Express Window Feature
Press and release the mirror select button marked
L (left) or R (right) and then press one of the four arrow
buttons to move the mirror in the direction the arrow is
pointing. The selection times out after 30 seconds of
inactivity in order to guard against accidentally changing
a mirror position following an adjustment.
NOTE: A light in the selected button will illuminate
indicating the mirror is activated and can be adjusted.
(fig. 45)
Power Mirror Switches
64
KNOWINGYOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
W

ARNING LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICING AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
