FIAT FREEMONT 2016 1.G Owner's Manual
Manufacturer: FIAT, Model Year: 2016, Model line: FREEMONT, Model: FIAT FREEMONT 2016 1.GPages: 412, PDF Size: 3.36 MB
Page 21 of 412

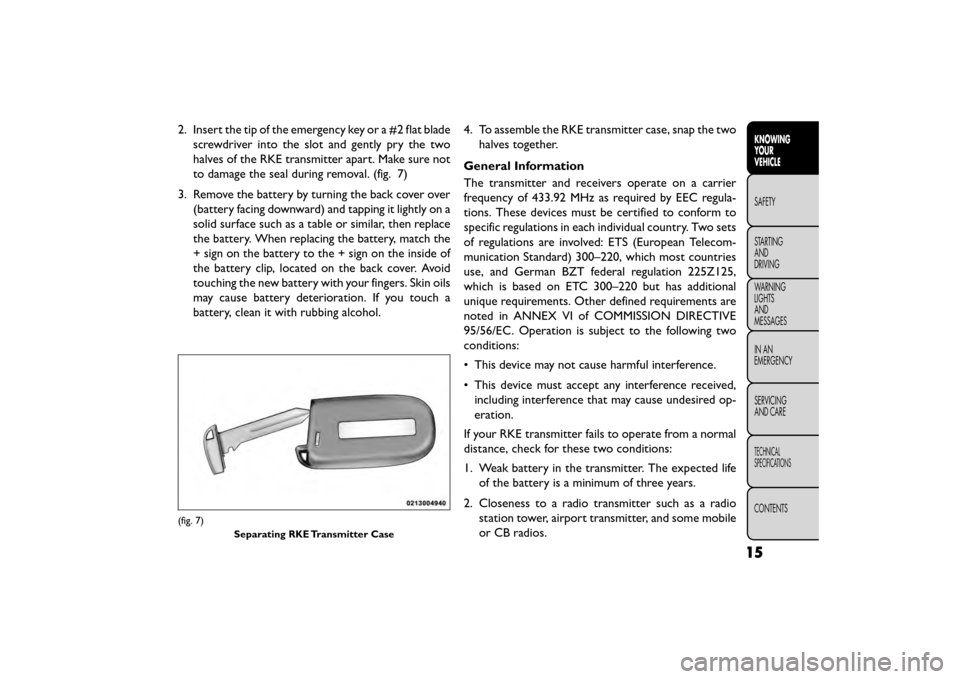

2. Insert the tip of the emergency key or a #2 flat bladescrewdriver into the slot and gently pry the two
halves of the RKE transmitter apart. Make sure not
to damage the seal during removal. (fig. 7)
3. Remove the battery by turning the back cover over (battery facing downward) and tapping it lightly on a
solid surface such as a table or similar, then replace
the battery. When replacing the battery, match the
+ sign on the battery to the + sign on the inside of
the battery clip, located on the back cover. Avoid
touching the new battery with your fingers. Skin oils
may cause battery deterioration. If you touch a
battery, clean it with rubbing alcohol. 4. To assemble the RKE transmitter case, snap the two
halves together.
General Information
The transmitter and receivers operate on a carrier
frequency of 433.92 MHz as required by EEC regula-
tions. These devices must be certified to conform to
specific regulations in each individual country. Two sets
of regulations are involved: ETS (European Telecom-
munication Standard) 300–220, which most countries
use, and German BZT federal regulation 225Z125,
which is based on ETC 300–220 but has additional
unique requirements. Other defined requirements are
noted in ANNEX VI of COMMISSION DIRECTIVE
95/56/EC. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired op-
eration.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak battery in the transmitter. The expected life of the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station tower, airport transmitter, and some mobile
or CB radios.
(fig. 7)
Separating RKE Transmitter Case
15
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 22 of 412

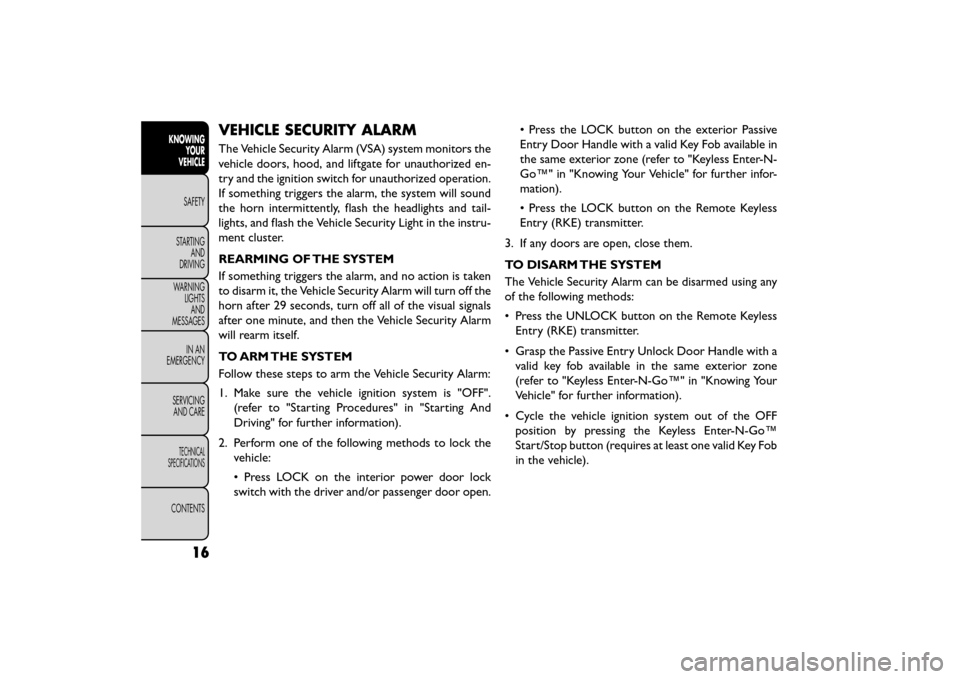

VEHICLE SECURITY ALARM
The Vehicle Security Alarm (VSA) system monitors the
vehicle doors, hood, and liftgate for unauthorized en-
try and the ignition switch for unauthorized operation.
If something triggers the alarm, the system will sound
the horn intermittently, flash the headlights and tail-
lights, and flash the Vehicle Security Light in the instru-
ment cluster.
REARMING OF THE SYSTEM
If something triggers the alarm, and no action is taken
to disarm it, the Vehicle Security Alarm will turn off the
horn after 29 seconds, turn off all of the visual signals
after one minute, and then the Vehicle Security Alarm
will rearm itself.
TO ARM THE SYSTEM
Follow these steps to arm the Vehicle Security Alarm:
1. Make sure the vehicle ignition system is "OFF".(refer to "Starting Procedures" in "Starting And
Driving" for further information).
2. Perform one of the following methods to lock the vehicle:
• Press LOCK on the interior power door lock
switch with the driver and/or passenger door open. • Press the LOCK button on the exterior Passive
Entry Door Handle with a valid Key Fob available in
the same exterior zone (refer to "Keyless Enter-N-
Go™" in "Knowing Your Vehicle" for further infor-
mation).
• Press the LOCK button on the Remote Keyless
Entry (RKE) transmitter.
3. If any doors are open, close them.
TO DISARM THE SYSTEM
The Vehicle Security Alarm can be disarmed using any
of the following methods:
• Press the UNLOCK button on the Remote Keyless Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle with a valid key fob available in the same exterior zone
(refer to "Keyless Enter-N-Go™" in "Knowing Your
Vehicle" for further information).
• Cycle the vehicle ignition system out of the OFF position by pressing the Keyless Enter-N-Go™
Start/Stop button (requires at least one valid Key Fob
in the vehicle).
16
KNOWING YOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 23 of 412

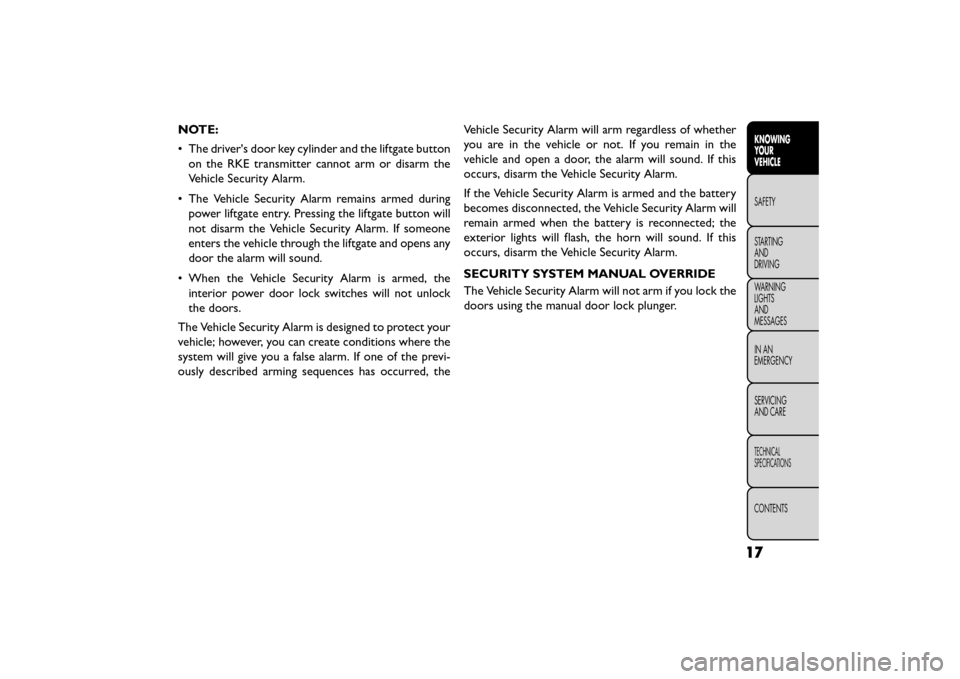

NOTE:
• The driver's door key cylinder and the liftgate buttonon the RKE transmitter cannot arm or disarm the
Vehicle Security Alarm.
• The Vehicle Security Alarm remains armed during power liftgate entry. Pressing the liftgate button will
not disarm the Vehicle Security Alarm. If someone
enters the vehicle through the liftgate and opens any
door the alarm will sound.
• When the Vehicle Security Alarm is armed, the interior power door lock switches will not unlock
the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
SECURITY SYSTEM MANUAL OVERRIDE
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
17
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 24 of 412
PREMIUM SECURITY SYSTEM (for
versions/markets, where
provided)
The Premium Security system monitors the doors,
hood latch, and trunk for unauthorized entry and the
ignition switch for unauthorized operation. The system
also includes a dual function intrusion sensor and
vehicle tilt sensor. The intrusion sensor monitors the
vehicle interior for motion. The vehicle tilt sensor
monitors the vehicle for any tilting actions (tow away,
tire removal, ferry transport, etc).
In the event that something triggers the security sys-
tem, the headlights will turn on, the alarm will sound
and the turn signal and side repeater lights will flash for
29 seconds, and then the lights will continue to flash for
an additional 5 seconds. The system will repeat this
sequence for up to 8 security violations in any mode
(door ajar, motion, hood ajar, etc.) before having to
rearm the system. At the end of any particular trigger
event, the lights will continue to flash for 26 seconds.TO ARM THE SYSTEM
Follow these steps to arm the theft alarm:
1. Make sure the vehicle ignition system is "OFF".
(refer to "Starting Procedures" in "Starting And
Driving" for further information).
2. Perform one of the following methods to lock the vehicle:
• Push LOCK on the interior power door lock
switch with the driver and/or passenger door open.
• Push the LOCK button on the exterior Passive
Entry Door Handle with a valid Key Fob available in
the same exterior zone (refer to "Keyless Enter-N-
Go™" in "Knowing Your Vehicle" for further infor-
mation).
• Push the LOCK button on the Remote Keyless
Entry (RKE) transmitter.
3. If any doors are open, close them.
NOTE:
• Once the security system is armed, it remains in that state until you disarm it by following either of the
disarming procedures described. If a power loss oc-
curs after arming the system, you must disarm the
system after restoring power to prevent alarm acti-
vation.
18
KNOWING YOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 25 of 412
• The ultrasonic intrusion sensor (motion detector)actively monitors your vehicle every time you arm
the security system. If you prefer, you can turn OFF
the ultrasonic intrusion sensor and vehicle tilt sensor
when arming the security system. To do so, push the
LOCK button on the RKE transmitter three times
within 5 seconds of arming the system (while the
Vehicle Security Light is flashing rapidly).
TO DISARM THE SYSTEM
The Vehicle Security Alarm can be disarmed using any
of the following methods:
• Push the UNLOCK button on the Remote Keyless Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle with a valid key fob available in the same exterior zone
(refer to "Keyless Enter-N-Go™" in "Knowing Your
Vehicle" for further information).
• Cycle the vehicle ignition system out of the OFF position by pushing the Keyless Enter-N-Go™ Start/
Stop button (requires at least one valid Key Fob in
the vehicle). NOTE:
• The driver's door key cylinder and the trunk button
on the RKE transmitter cannot arm or disarm the
Vehicle Security Alarm.
• When the Vehicle Security Alarm is armed, the interior power door lock switches will not unlock
the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
SECURITY SYSTEM MANUAL OVERRIDE
The system will not arm if you lock the doors using the
manual door lock plunger.
19
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 26 of 412
STEERING WHEEL LOCK
Your vehicle may be equipped with a passive electronic
steering wheel lock. This lock prevents steering the
vehicle without the ignition key. If the steering wheel is
moved to one of the lock positions with the key in the
off positions, the steering wheel will lock.
TO MANUALLY LOCK THE STEERING
WHEEL
With the engine running, rotate the steering wheel
one-half revolution in either direction (three o’clock or
nine o’clock position), turn off the engine and remove
the key. Turn the steering wheel slightly in either
direction until the lock engages.
TO RELEASE THE STEERING WHEEL LOCK
Cycle the ignition and start the engine.
NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right
to disengage it. If you turned the wheel to the left to
engage the lock, turn the wheel slightly to the left to
disengage it.
ELECTRONIC VEHICLE
INFORMATION CENTER (EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.
(fig. 8)
This system allows the driver to select a variety of
useful information by pushing the switches mounted on
the steering wheel. The EVIC consists of the following:
• Radio Info
• Fuel Economy
• Vehicle Speed
• Trip Info
(fig. 8)
Electronic Vehicle Information Center (EVIC)
20
KNOWINGYOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 27 of 412

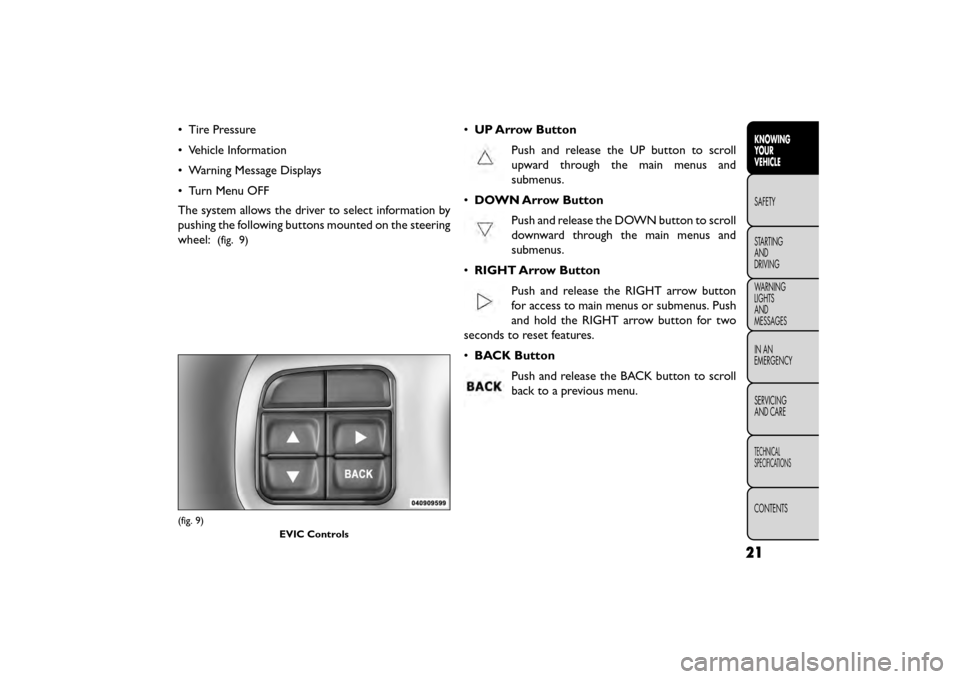

• Tire Pressure
• Vehicle Information
• Warning Message Displays
• Turn Menu OFF
The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:
(fig. 9)
•UP Arrow Button
Push and release the UP button to scroll
upward through the main menus and
submenus.
• DOWN Arrow Button
Push and release the DOWN button to scroll
downward through the main menus and
submenus.
• RIGHT Arrow Button
Push and release the RIGHT arrow button
for access to main menus or submenus. Push
and hold the RIGHT arrow button for two
seconds to reset features.
• BACK Button
Push and release the BACK button to scroll
back to a previous menu.
(fig. 9) EVIC Controls
21
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 28 of 412

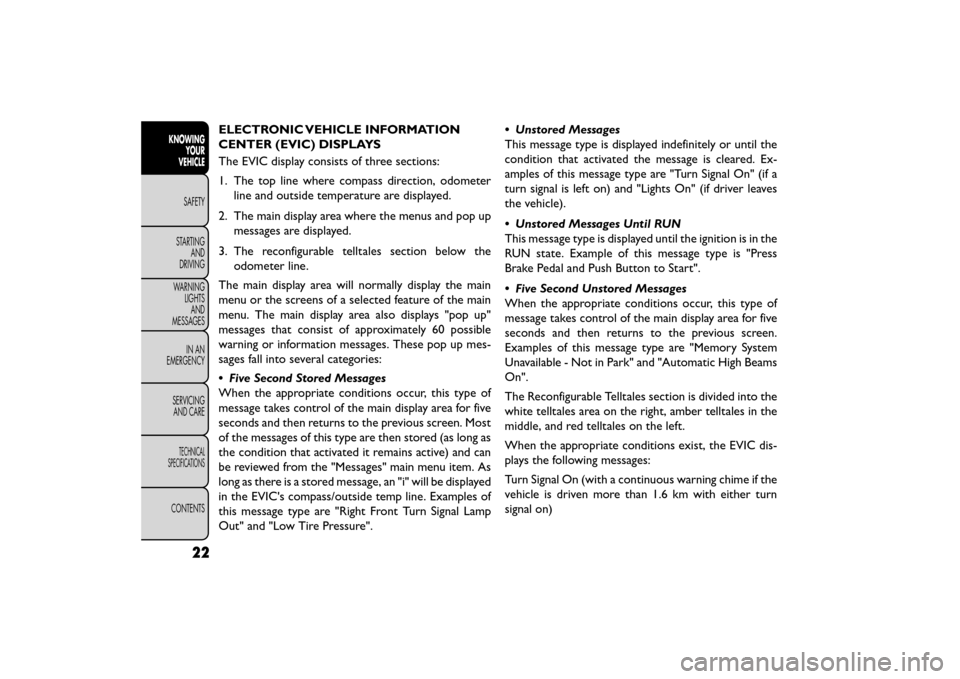

ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) DISPLAYS
The EVIC display consists of three sections:
1. The top line where compass direction, odometerline and outside temperature are displayed.
2. The main display area where the menus and pop up messages are displayed.
3. The reconfigurable telltales section below the odometer line.
The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays "pop up"
messages that consist of approximately 60 possible
warning or information messages. These pop up mes-
sages fall into several categories:
• Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Most
of the messages of this type are then stored (as long as
the condition that activated it remains active) and can
be reviewed from the "Messages" main menu item. As
long as there is a stored message, an "i" will be displayed
in the EVIC's compass/outside temp line. Examples of
this message type are "Right Front Turn Signal Lamp
Out" and "Low Tire Pressure". • Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Ex-
amples of this message type are "Turn Signal On" (if a
turn signal is left on) and "Lights On" (if driver leaves
the vehicle).
• Unstored Messages Until RUN
This message type is displayed until the ignition is in the
RUN state. Example of this message type is "Press
Brake Pedal and Push Button to Start".
• Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen.
Examples of this message type are "Memory System
Unavailable - Not in Park" and "Automatic High Beams
On".
The Reconfigurable Telltales section is divided into the
white telltales area on the right, amber telltales in the
middle, and red telltales on the left.
When the appropriate conditions exist, the EVIC dis-
plays the following messages:
Turn Signal On (with a continuous warning chime if the
vehicle is driven more than 1.6 km with either turn
signal on)
22
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 29 of 412
Left Front Turn Signal Light Out (with a single chime)
Left Rear Turn Signal Light Out (with a single chime)
Right Front Turn Signal Light Out (with a single chime)
Right Rear Turn Signal Light Out (with a single chime)
RKE Battery Low (with a single chime)
Personal Settings Not Available – Vehicle Not in PARK
(for versions/markets, where provided)
Left/Right Front Door Ajar (one or more doors open,
with a single chime if speed is above 1.6 km/h)
Left/Right Rear Door Ajar (one or more doors open,
with a single chime if speed is above 1.6 km/h)
Door(s) Ajar (with a single chime if vehicle is in motion)
Liftgate Ajar (with a single chime)
Low Washer Fluid (with a single chime)
Ignition or Accessory On
Vehicle Not in Park (for versions/markets, where pro-
vided)
Key Left Vehicle
Key Not Detected
Low Tire Pressure (with a single chime). Refer to
information on “Tire Pressure” and “Tire Pressure
Monitor” in “Knowing Your Vehicle”.Inflate Tire to XXX. Refer to information on "Tire
Pressure" and "Tire Pressure Monitor" in "Knowing
Your Vehicle."
Service TPM System (with a single chime). Refer to
information on “Tire Pressure Monitor” in “Knowing
Your Vehicle”.
Oil Change Required (with a single chime)
Check Gascap (refer to “Adding Fuel” in “Knowing
Your Vehicle”)
Oil Change Due (with a single chime)
Exhaust System — Regeneration Required Now. Un-
der conditions of exclusive short duration and low
speed driving and low speed driving cycles, the engine
and exhaust after-treatment system may never reach
the conditions required to remove the trapped PM. If
this occurs the “Exhaust System Regeneration Re-
quired Now” message will be displayed on the EVIC. By
driving your vehicle at highway speeds for as little as 30
minutes, you can remedy the condition in the particu-
late filter system by allowing the trapped PM to be
removed to restore the system to normal operating
condition.
23
KNOWING
YOUR
VEHICLE
SAFETY
STAR
TING
AND
DRIVING
WARNING
LIGHTS
AND
MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Page 30 of 412

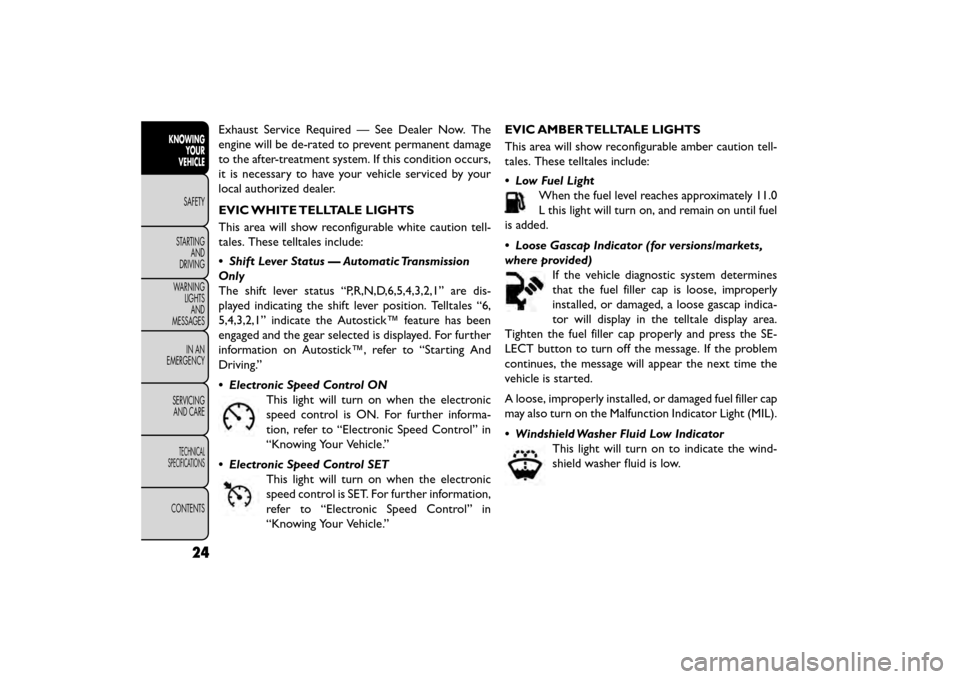

Exhaust Service Required — See Dealer Now. The
engine will be de-rated to prevent permanent damage
to the after-treatment system. If this condition occurs,
it is necessary to have your vehicle serviced by your
local authorized dealer.
EVIC WHITE TELLTALE LIGHTS
This area will show reconfigurable white caution tell-
tales. These telltales include:
• Shift Lever Status — Automatic Transmission
Only
The shift lever status “P,R,N,D,6,5,4,3,2,1” are dis-
played indicating the shift lever position. Telltales “6,
5,4,3,2,1” indicate the Autostick™ feature has been
engaged and the gear selected is displayed. For further
information on Autostick™, refer to “Starting And
Driving.”
• Electronic Speed Control ONThis light will turn on when the electronic
speed control is ON. For further informa-
tion, refer to “Electronic Speed Control” in
“Knowing Your Vehicle.”
• Electronic Speed Control SET This light will turn on when the electronic
speed control is SET. For further information,
refer to “Electronic Speed Control” in
“Knowing Your Vehicle.” EVIC AMBER TELLTALE LIGHTS
This area will show reconfigurable amber caution tell-
tales. These telltales include:
• Low Fuel Light
When the fuel level reaches approximately 11.0
L this light will turn on, and remain on until fuel
is added.
• Loose Gascap Indicator (for versions/markets,
where provided) If the vehicle diagnostic system determines
that the fuel filler cap is loose, improperly
installed, or damaged, a loose gascap indica-
tor will display in the telltale display area.
Tighten the fuel filler cap properly and press the SE-
LECT button to turn off the message. If the problem
continues, the message will appear the next time the
vehicle is started.
A loose, improperly installed, or damaged fuel filler cap
may also turn on the Malfunction Indicator Light (MIL).
• Windshield Washer Fluid Low Indicator This light will turn on to indicate the wind-
shield washer fluid is low.
24
KNOWINGYOUR
VEHICLE
SAFETY
STAR
TINGAND
DRIVING
WARNING LIGHTSAND
MESSAGES
IN AN
EMERGENCY
SERVICINGAND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
