Page 11 of 312

FIAT FULLBACK 2016 1.G Owners Manual GRAPHICAL INDEX
HEADLIGHTSBulb types..................... 213Daytime running lights........... 40Dipper beam headlights......... 40Headlamps..................... 40Bulb replacement.............. 213
W

Page 40 of 312

FIAT FULLBACK 2016 1.G Owners Manual To adjust the mirror position
It is possible to move the mirror up/ down
and left/right to adjust its position.
To reduce the glare
The lever (A) at the bottom of the mirror
can be used to adjust the

Page 42 of 312

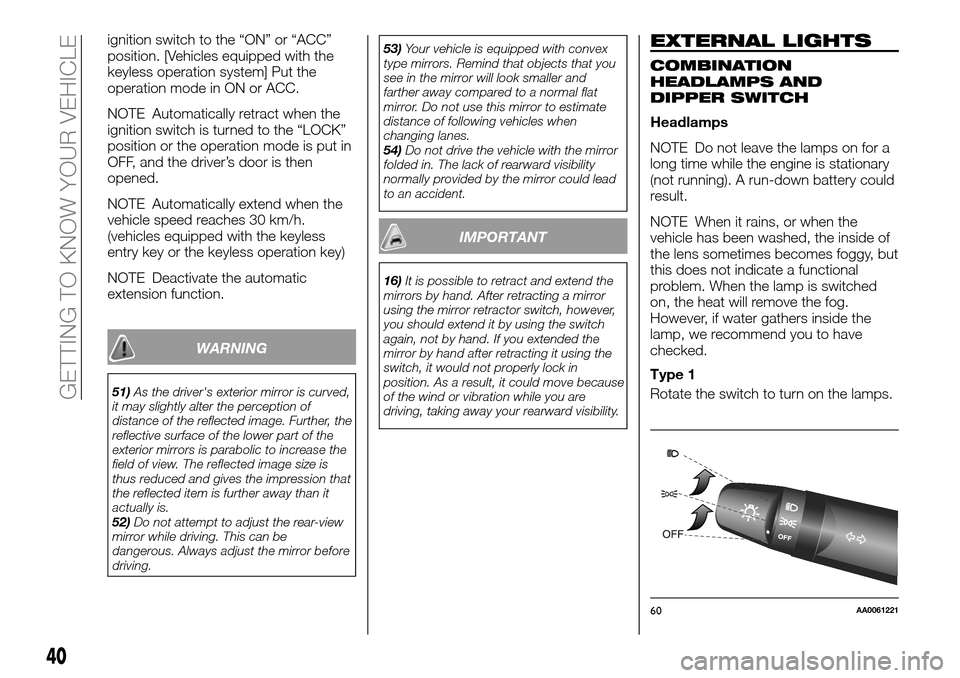

FIAT FULLBACK 2016 1.G Owners Manual ignition switch to the “ON” or “ACC”
position. [Vehicles equipped with the
keyless operation system] Put the
operation mode in ON or ACC.
NOTE Automatically retract when the
ignition switch is

Page 43 of 312

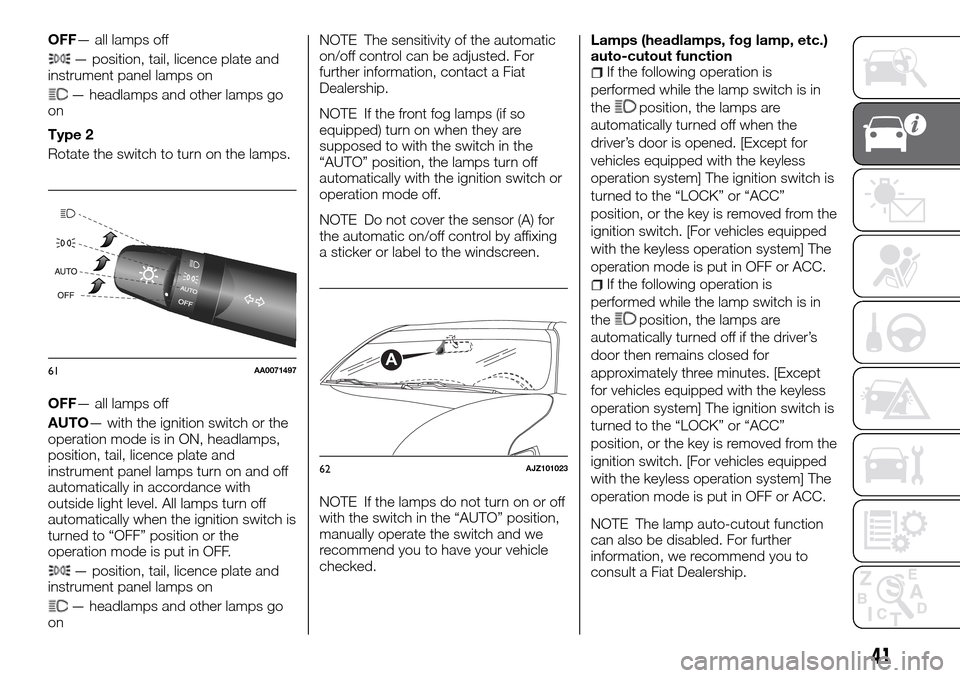

FIAT FULLBACK 2016 1.G Owners Manual OFF— all lamps off
— position, tail, licence plate and
instrument panel lamps on
— headlamps and other lamps go
on
Type 2
Rotate the switch to turn on the lamps.
OFF— all lamps off
AUTO— wit

Page 44 of 312

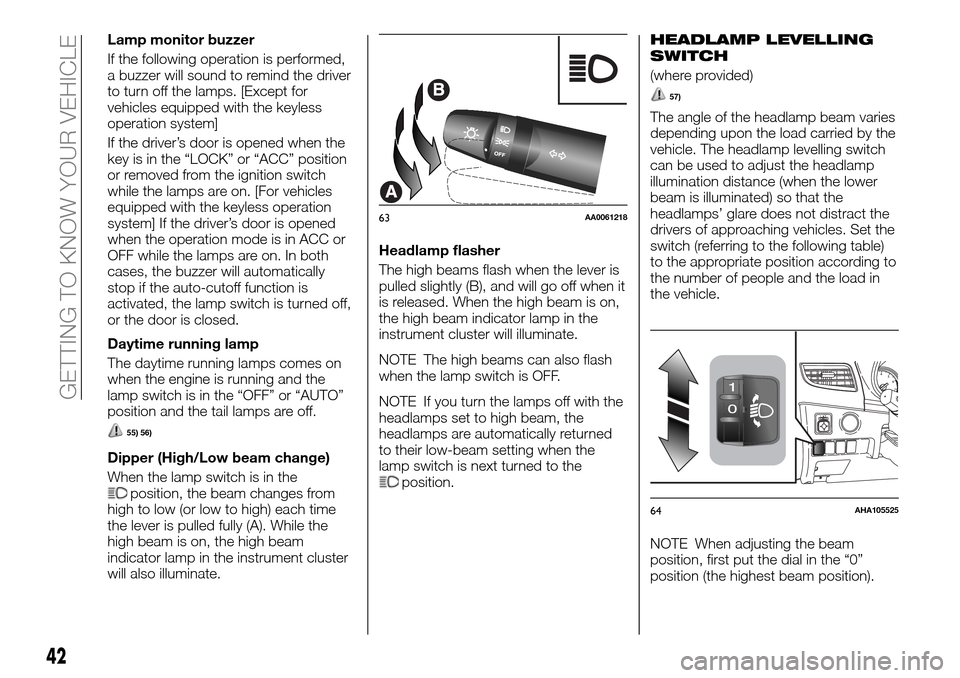

FIAT FULLBACK 2016 1.G Owners Manual Lamp monitor buzzer
If the following operation is performed,
a buzzer will sound to remind the driver
to turn off the lamps. [Except for
vehicles equipped with the keyless
operation system]
If the dri

Page 45 of 312

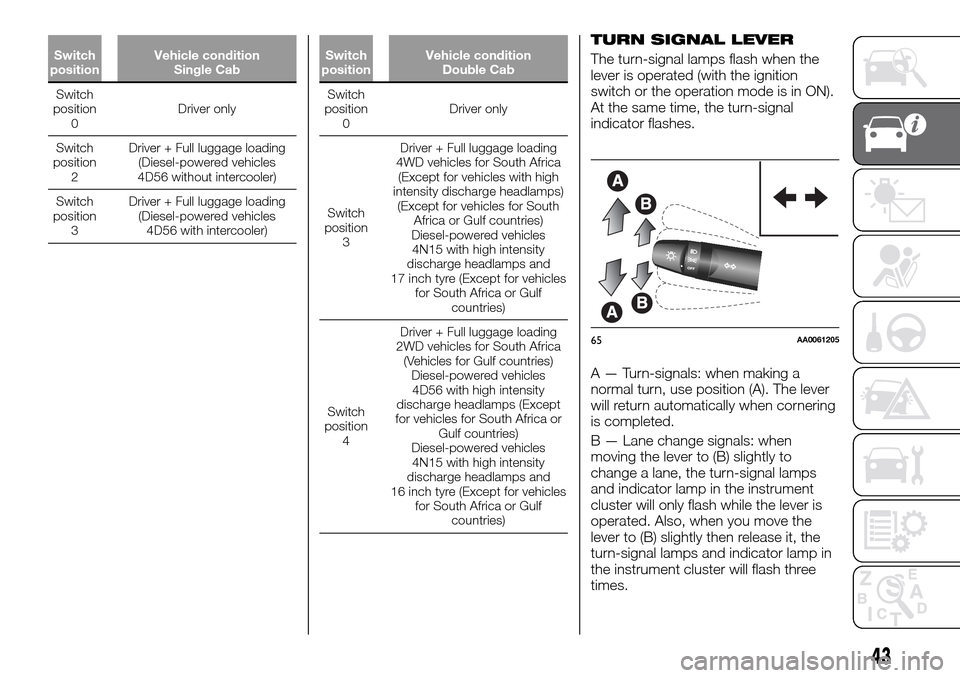

FIAT FULLBACK 2016 1.G Owners Manual Switch
positionVehicle condition
Single Cab
Switch
position
0Driver only
Switch
position
2Driver + Full luggage loading
(Diesel-powered vehicles
4D56 without intercooler)
Switch
position
3Driver + Ful

Page 46 of 312

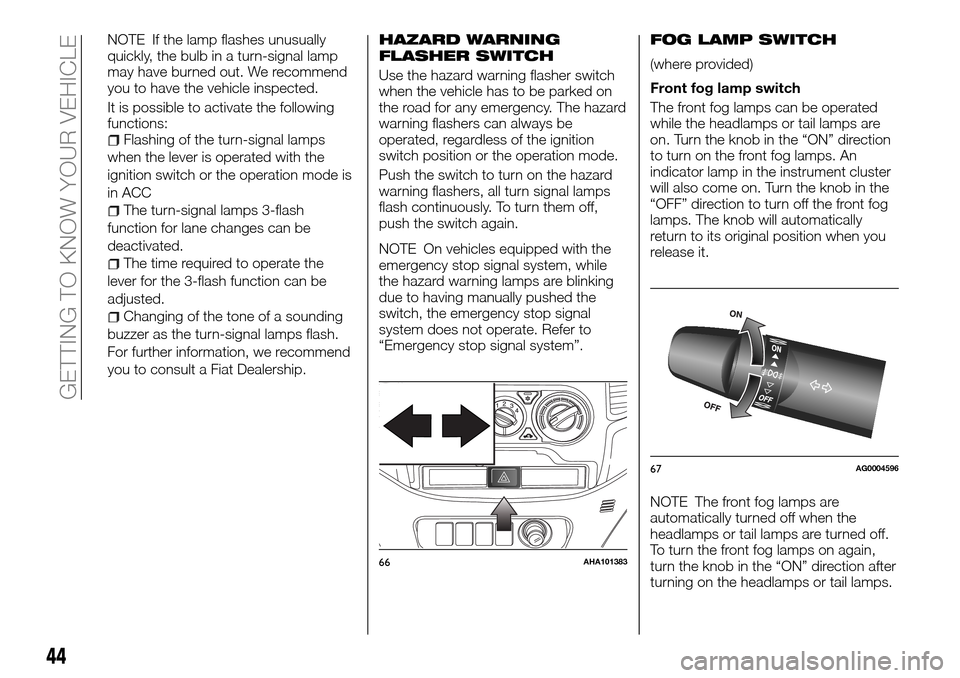

FIAT FULLBACK 2016 1.G Owners Manual NOTE If the lamp flashes unusually
quickly, the bulb in a turn-signal lamp
may have burned out. We recommend
you to have the vehicle inspected.
It is possible to activate the following
functions:
Flas

Page 47 of 312

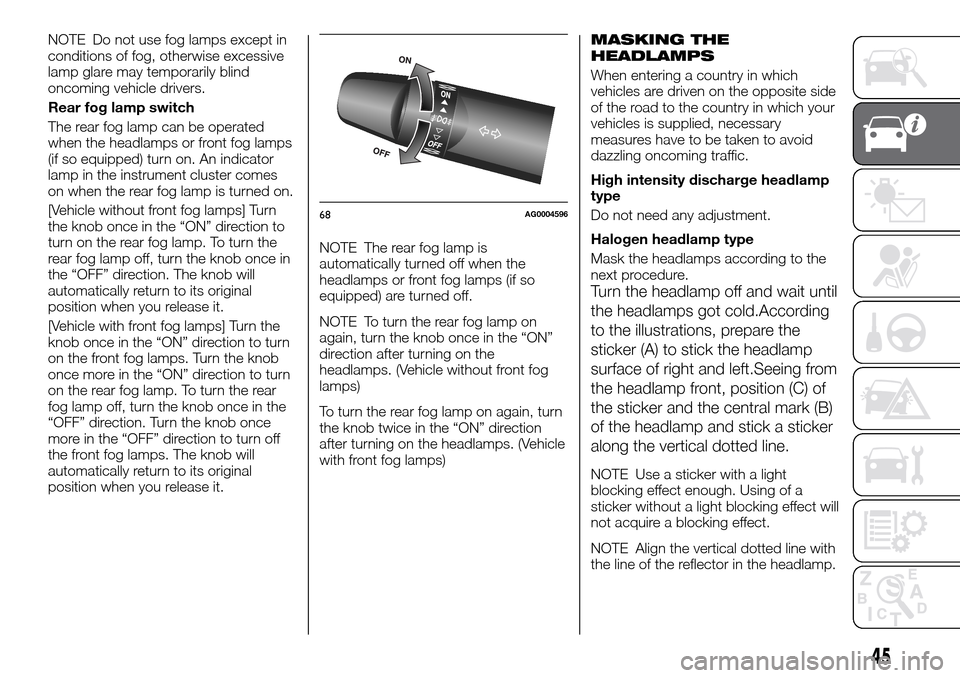

FIAT FULLBACK 2016 1.G Owners Manual NOTE Do not use fog lamps except in
conditions of fog, otherwise excessive
lamp glare may temporarily blind
oncoming vehicle drivers.
Rear fog lamp switch
The rear fog lamp can be operated
when the he

Page 53 of 312

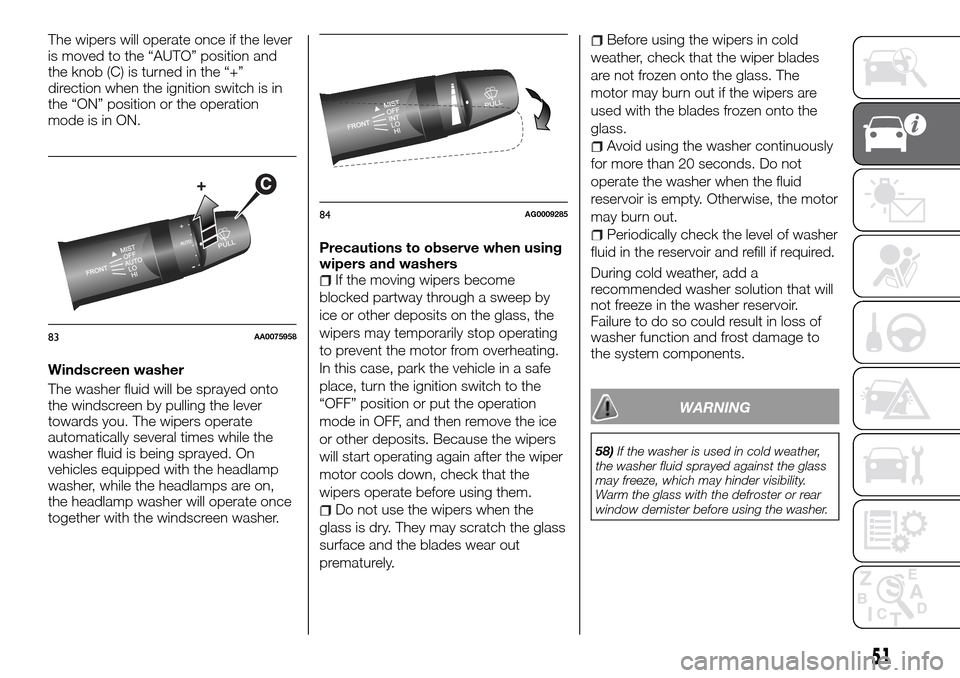

FIAT FULLBACK 2016 1.G Owners Manual The wipers will operate once if the lever
is moved to the “AUTO” position and
the knob (C) is turned in the “+”
direction when the ignition switch is in
the “ON” position or the operation

Page 79 of 312

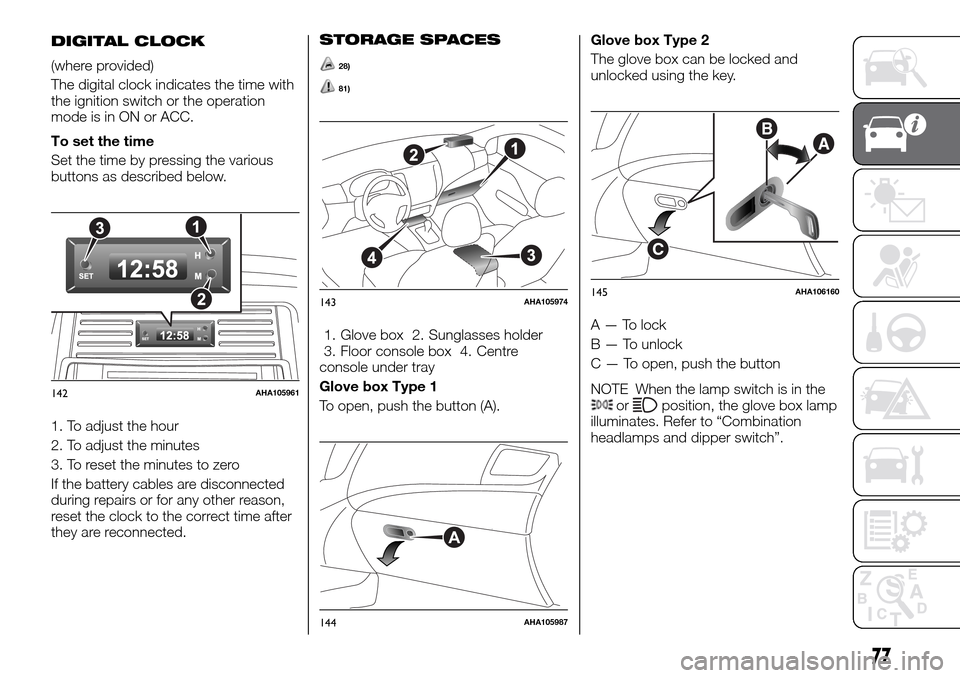

FIAT FULLBACK 2016 1.G Owners Manual DIGITAL CLOCK
(where provided)
The digital clock indicates the time with
the ignition switch or the operation
mode is in ON or ACC.
To set the time
Set the time by pressing the various
buttons as desc
