5. To close, turn the fuel cap slowly
clockwise until you hear clicking
sounds, then gently push the fuel tank
filler door closed.
WARNING
86)When handling fuel, comply with the
safety regulations displayed by garages
and filling stations.
87)Fuel is highly flammable and explosive.
You could be burned or seriously injured
when handling it. When refueling your
vehicle, always turn the engine off and
keep away from flames, sparks and
smoking materials. Always handle fuel in
well ventilated outdoor areas.
88)Before removing the fuel cap, be sure
to get rid of your body’s static electricity by
touching a metal part of the vehicle or fuel
pump. Any static electricity on your body
could create a spark that ignites fuel vapor.
89)Perform the whole refueling process
(opening the fuel tank filler door, removing
the fuel cap, etc.) by yourself. Do not let
any other person come near the fuel tank
filler. If you allowed a person to help you
and that person was carrying static
electricity, fuel vapor could be ignited.
90)Do not move away from the fuel tank
filler until refueling is finished. If you moved
away and did something else (for example,
sitting on a seat) part-way through the
refueling process, you could pick up a
fresh charge of static electricity.
91)Be careful not to inhale fuel vapor. Fuel
contains toxic substances.92)Keep the doors and windows closed
while refueling the vehicle. If they were
open, fuel vapor could get into the cabin.
93)If the fuel cap must be replaced, use
only a Fiat genuine part.
94)Since the fuel system may be under
pressure, remove the fuel cap slowly. This
relieves any pressure or vacuum that might
have built up in the fuel tank. If you hear a
hissing sound, wait until it stops before
removing the cap. Otherwise, fuel may
spray out, injuring you or others.
95)Do not apply any object/plug to the
end of the filler which is not provided for
the car. The use of non-compliant
objects/plugs could cause a pressure
increase inside the tank, resulting in
dangerous situations.
96)Do not use a mobile phone near the
refuelling pump: risk of fire.
97)Do not tilt the gun.
84
GETTING TO KNOW YOUR VEHICLE

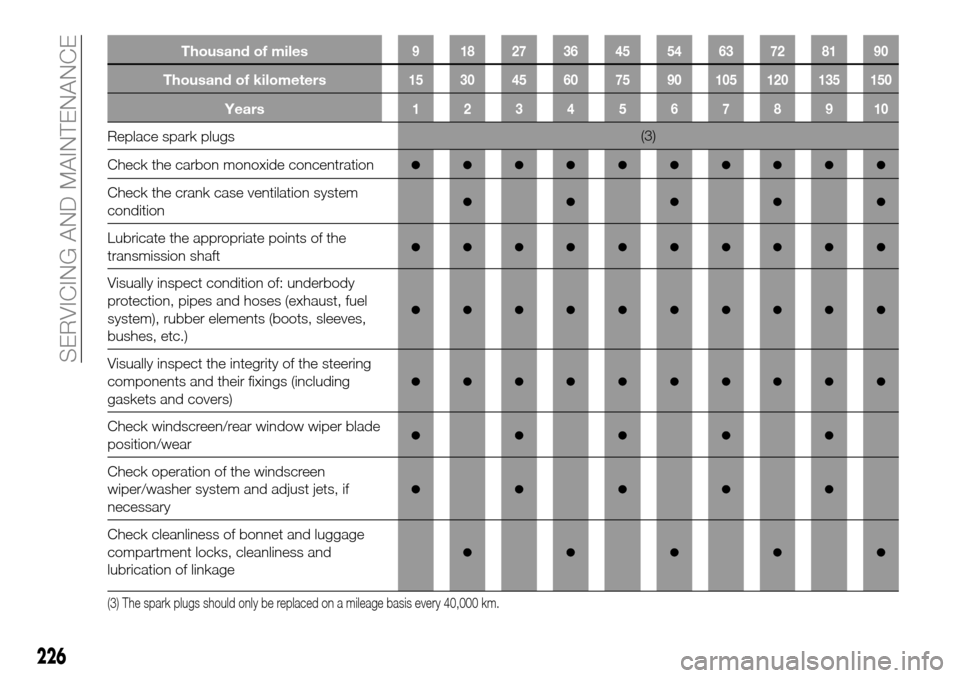

Thousand of miles9 182736455463728190
Thousand of kilometers15 30 45 60 75 90 105 120 135 150
Years12345678910
Replace spark plugs(3)
Check the carbon monoxide concentration
●●●●●●●●●●
Check the crank case ventilation system
condition●●●●●
Lubricate the appropriate points of the
transmission shaft●●●●●●●●●●
Visually inspect condition of: underbody
protection, pipes and hoses (exhaust, fuel
system), rubber elements (boots, sleeves,
bushes, etc.)
●●●●●●●●●●
Visually inspect the integrity of the steering
components and their fixings (including
gaskets and covers)
●●●●●●●●●●
Check windscreen/rear window wiper blade
position/wear●●●●●
Check operation of the windscreen
wiper/washer system and adjust jets, if
necessary
●●●●●
Check cleanliness of bonnet and luggage
compartment locks, cleanliness and
lubrication of linkage
●●●●●
(3) The spark plugs should only be replaced on a mileage basis every 40,000 km.
226
SERVICING AND MAINTENANCE
