A — To lock
B — To unlock
C — To open, push the button
NOTE When the lamps are illuminated
with the lamp switch in the
,,
or “AUTO” position (vehicles with
automatic lamp control), the glove box
lamp illuminates, refer to “Combination
headlamps and dipper switch”.Centre console under tray
The centre console under tray is on the
floor console part.
Type 1
Type 2
NOTE The centre console under tray is
removable, so it is also possible to use
as storage space.NOTE When using a commercially
available USB connector cable
connected to the USB input terminal or
commercially available HDMI connector
cable connected to the HDMI input
terminal, if you hold up extra length of
the cable in the storage space and
install the tray, you can use only the
necessary length cable pulled out from
the storage space.
Do not use the centre console under
tray as an ashtray. This could cause a
fire or the tray will be damaged
Floor console box
Upper and lower boxes are located
inside the floor console box. The floor
console box can also be used as an
armrest.
160AHA106160161AHA105365
162AHA101686
163AHZ100567
83
Glove box
The glove box can be locked and
unlocked using the key.

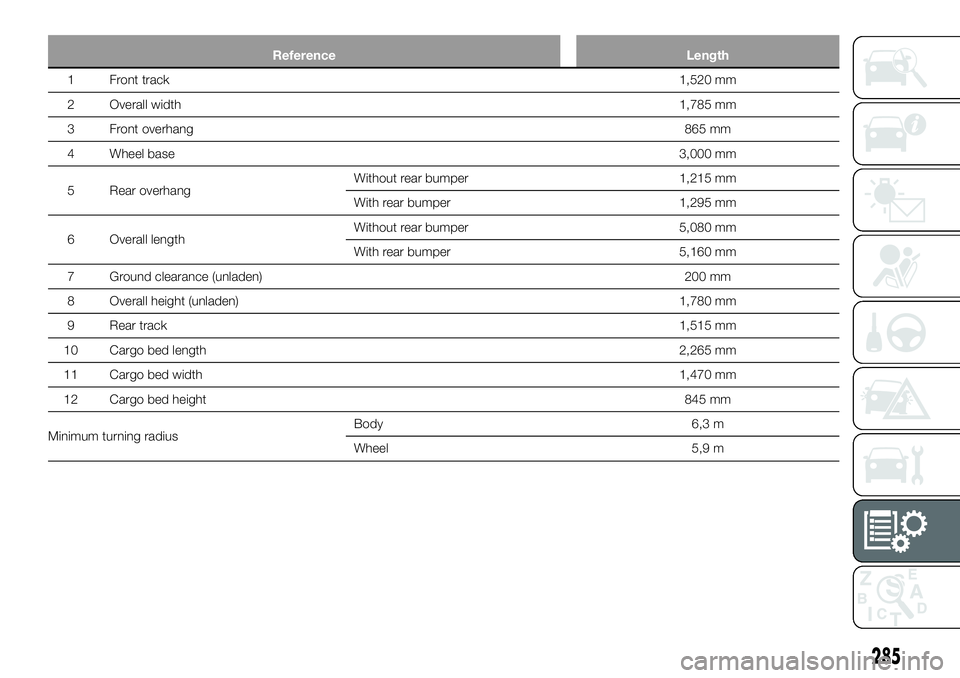

Reference Length
1 Front track1,520 mm
2 Overall width1,785 mm
3 Front overhang865 mm
4 Wheel base3,000 mm
5 Rear overhangWithout rear bumper 1,215 mm
With rear bumper 1,295 mm
6 Overall lengthWithout rear bumper 5,080 mm
With rear bumper 5,160 mm
7 Ground clearance (unladen)200 mm
8 Overall height (unladen)1,780 mm
9 Rear track1,515 mm
10 Cargo bed length2,265 mm
11 Cargo bed width1,470 mm
12 Cargo bed height845 mm
Minimum turning radiusBody 6,3 m
Wheel 5,9 m
