KEYS
1. Master key 2. Keyless entry key
3. Keyless operation key
4. Emergency key
1)
NOTE The key is a precision electronic
part with a built-in signal transmitter.
Please observe the following in order to
prevent a malfunction.
Do not leave anywhere that is
exposed to direct sunlight, for example
on the dashboard.
Do not disassemble or modify.
Do not excessively bend the key or
subject it to a strong impact.
Do not expose to water.
Keep away from magnetic key rings.
Keep away from audio systems,
personal computers, TVs, and any
other equipment that generates a
magnetic field.
Keep away from devices that emit
strong electromagnetic waves, such as
cellular phones, wireless devices and
high frequency equipment (including
medical devices).
Do not wash with ultrasonic cleaners
or similar equipment.
Do not leave the key where it may be
exposed to high temperature or high
humidity.
NOTE The engine is designed so that it
will not start if the ID code registered in
the immobilizer computer and the key’s
ID code do not match. Refer to the
section entitled “Electronic immobilizer”
for details and key usage.
NOTE If you lose one of them, contact
an Authorised Dealership as soon as
possible to prevent theft.
KEY NUMBER TAG
The key number is stamped on the tag
as indicated in the illustration. Make a
record of the key number and store the
key and key number tag in separateplaces, so that you can order a key
from your Fiat Dealership in the event
the original keys are lost.
ELECTRONIC
IMMOBILIZER
(where provided)
2)
The electronic immobilizer is designed
to reduce significantly the possibility of
vehicle theft. The purpose of the system
is to immobilize the vehicle if an invalid
start is attempted. A valid start attempt
can only be achieved, using a key
“registered” to the immobilizer system.
Vehicles without keyless operation
system
In the following cases, the vehicle may
not be able to receive the registered ID
code from the registered key and
engine may not start.
When the key contacts a key ring or
other metallic or magnetic object
4AH3101213
5AA0109480
13

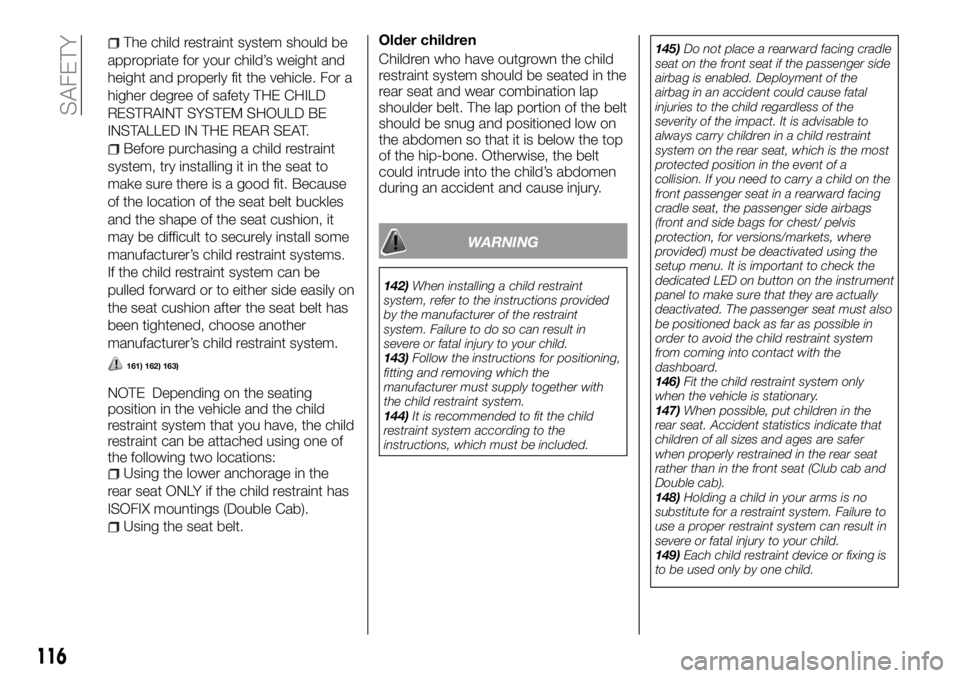

The child restraint system should be
appropriate for your child’s weight and
height and properly fit the vehicle. For a
higher degree of safety THE CHILD
RESTRAINT SYSTEM SHOULD BE
INSTALLED IN THE REAR SEAT.
Before purchasing a child restraint
system, try installing it in the seat to
make sure there is a good fit. Because
of the location of the seat belt buckles
and the shape of the seat cushion, it
may be difficult to securely install some
manufacturer’s child restraint systems.
If the child restraint system can be
pulled forward or to either side easily on
the seat cushion after the seat belt has
been tightened, choose another
manufacturer’s child restraint system.
161) 162) 163)
NOTE Depending on the seating
position in the vehicle and the child
restraint system that you have, the child
restraint can be attached using one of
the following two locations:
Using the lower anchorage in the
rear seat ONLY if the child restraint has
ISOFIX mountings (Double Cab).
Using the seat belt.
Older children
Children who have outgrown the child
restraint system should be seated in the
rear seat and wear combination lap
shoulder belt. The lap portion of the belt
should be snug and positioned low on
the abdomen so that it is below the top
of the hip-bone. Otherwise, the belt
could intrude into the child’s abdomen
during an accident and cause injury.
WARNING
142)When installing a child restraint
system, refer to the instructions provided
by the manufacturer of the restraint
system. Failure to do so can result in
severe or fatal injury to your child.
143)Follow the instructions for positioning,
fitting and removing which the
manufacturer must supply together with
the child restraint system.
144)It is recommended to fit the child
restraint system according to the
instructions, which must be included.145)Do not place a rearward facing cradle
seat on the front seat if the passenger side
airbag is enabled. Deployment of the
airbag in an accident could cause fatal
injuries to the child regardless of the
severity of the impact. It is advisable to
always carry children in a child restraint
system on the rear seat, which is the most
protected position in the event of a
collision. If you need to carry a child on the
front passenger seat in a rearward facing
cradle seat, the passenger side airbags
(front and side bags for chest/ pelvis
protection, for versions/markets, where
provided) must be deactivated using the
setup menu. It is important to check the
dedicated LED on button on the instrument
panel to make sure that they are actually
deactivated. The passenger seat must also
be positioned back as far as possible in
order to avoid the child restraint system
from coming into contact with the
dashboard.
146)Fit the child restraint system only
when the vehicle is stationary.
147)When possible, put children in the
rear seat. Accident statistics indicate that
children of all sizes and ages are safer
when properly restrained in the rear seat
rather than in the front seat (Club cab and
Double cab).
148)Holding a child in your arms is no
substitute for a restraint system. Failure to
use a proper restraint system can result in
severe or fatal injury to your child.
149)Each child restraint device or fixing is
to be used only by one child.
116
SAFETY

178)When there is an active passenger
airbag, DO NOT install rearward facing
child restraint systems on the front seat.
Deployment of the airbag in an accident
could cause fatal injuries to the child
regardless of the severity of the impact.
Therefore, always deactivate the passenger
side airbag when a rearward facing child
restraint system is installed on the front
passenger seat. The front passenger seat
must also be positioned back as far as
possible in order to prevent the child
restraint system from coming into contact
with the dashboard. Immediately reactivate
the passenger airbag as soon as the child
restraint system has been removed.
179)Older children should be seated,
properly wearing the seat belt, with an
appropriate booster seat if needed.
180)Extreme Hazard! NEVER use a
rearward facing child restraint on a seat
protected by an ACTIVE AIRBAG in front of
it, DEATH or SERIOUS INJURY to the
CHILD can occur.
181)Do not fit any accessory that makes
the indicator impossible to see, and do not
cover the indicator with a sticker. You would
not be able to verify the status of the
passenger airbag system.182)To reduce risk of serious or fatal injury:
always turn the ignition switch to the
“LOCK” position or put the operation mode
in OFF, before operating the front
passenger’s airbag ON-OFF switch. Failure
to do so could adversely affect the airbag
performance; Wait at least 60 seconds to
operate the front passenger’s airbag
ON-OFF switch after turning the ignition
switch to the “LOCK” position or putting
the operation mode in OFF. The SRS airbag
system is designed to retain enough
voltage to deploy the airbag; Always
remove the key from the front passenger’s
airbag ON-OFF switch after operating that
switch. Failure to do so could lead to
improper position of the front passenger’s
airbag ON-OFF switch; Do not turn OFF the
front passenger’s airbag ON-OFF switch
except when a child restraint system is
fitted to the front passenger seat; If the OFF
indicator does not come on when the front
passenger’s airbag ONOFF switch is turned
OFF, do not fit a child restraint system to
the front passenger seat. We recommend
you to have the system inspected by a Fiat
Dealership; if the OFF indicator remains on
when the front passenger’s airbag ON-OFF
switch is turned ON, do not allow anyone
to sit on the front passenger seat. We
recommend you to have the system
inspected by a Fiat Dealership.
183)Do not apply stickers or other objects
to the steering wheel, the dashboard in the
passenger side airbag area and the seats.
Never put objects (e.g. mobile phones) on
the passenger side of the dashboard since
they could interfere with correct inflation of
the passenger airbag and also cause
serious injury to the passengers.184)Do not set anything on, or attach
anything to, the instrument panel above the
glove box. It might strike and injure an
occupant if the airbag inflates.
185)Do not attach accessories to, or put
them in front of, the windscreen. These
objects could restrict the airbag inflation, or
strike and injure an occupant if the airbags
inflate.
186)Do not attach additional keys or
accessories (hard, pointed or heavy
objects) to the ignition key. Such objects
could prevent the driver’s knee airbag from
inflating normally or could be propelled to
cause serious injury if the airbag inflates.
See fig. 233.
187)Do not attach accessories to the
lower portion of the driver’s side instrument
panel. Such objects could prevent the
driver’s knee airbag from inflating normally
or could be propelled to cause serious
injury if the airbag inflates.
188)Do not put packages, pets or other
objects between the airbags and the driver
or front passenger. It could affect airbag
performance, or could cause injury when
the airbag inflates.
189)Right after the airbag inflation, several
airbag system components will be hot. Do
not touch these components. There is a
danger of being burnt.
190)The airbag system is designed to
work only once. Once the airbags have
deployed, they will not work again. They
must promptly be replaced and we
recommend you to have the entire airbag
system inspected by a Fiat Dealership.
191)Do not affix rigid objects to the
garment hooks or support handles.
137
