❒extra-urban cycle: frequent accelerat-
ing in all gears, simulating extraurban
use of the car: speed varies between 0
and 120 km/h;
❒combined consumption: is calculated
weighing about 37% of urban cycle con-
sumption and about 63% of extraurban
consumption.

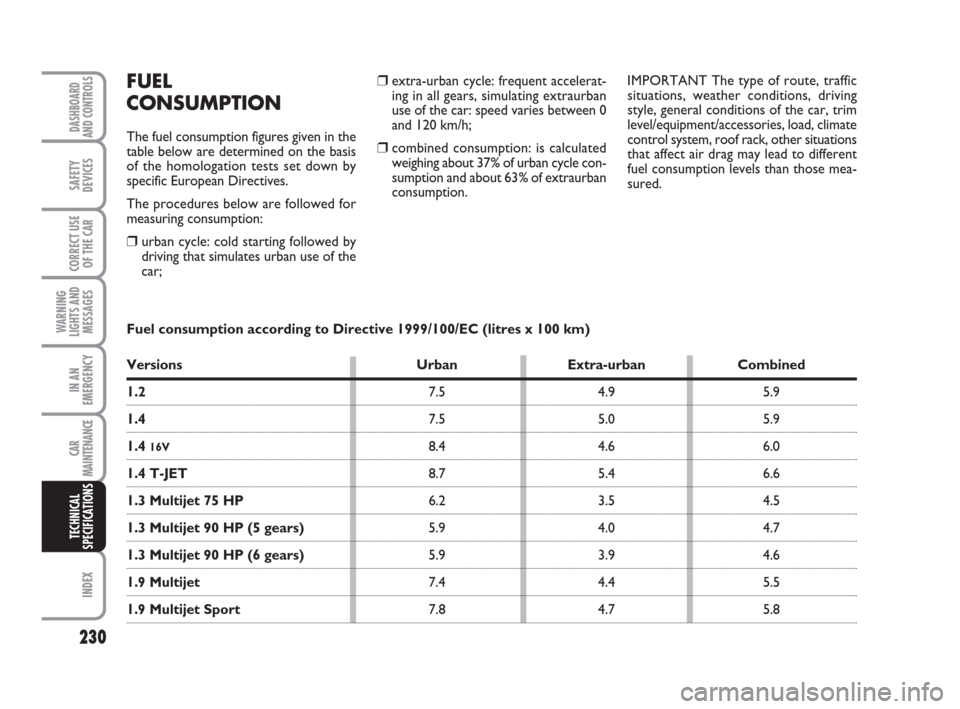

FUEL
CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒urban cycle: cold starting followed by
driving that simulates urban use of the
car;IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured.
Fuel consumption according to Directive 1999/100/EC (litres x 100 km)
Versions Urban Extra-urban Combined
1.27.5 4.9 5.9
1.47.5 5.0 5.9
1.4 16V8.4 4.6 6.0
1.4 T-JET8.7 5.4 6.6
1.3 Multijet 75 HP6.2 3.5 4.5
1.3 Multijet 90 HP (5 gears)5.9 4.0 4.7
1.3 Multijet 90 HP (6 gears)5.9 3.9 4.6
1.9 Multijet7.4 4.4 5.5
1.9 Multijet Sport7.8 4.7 5.8
211-231 Punto GDX GB 31-07-2007 11:15 Pagina 230

231
WARNING
LIGHTS AND
MESSAGES
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

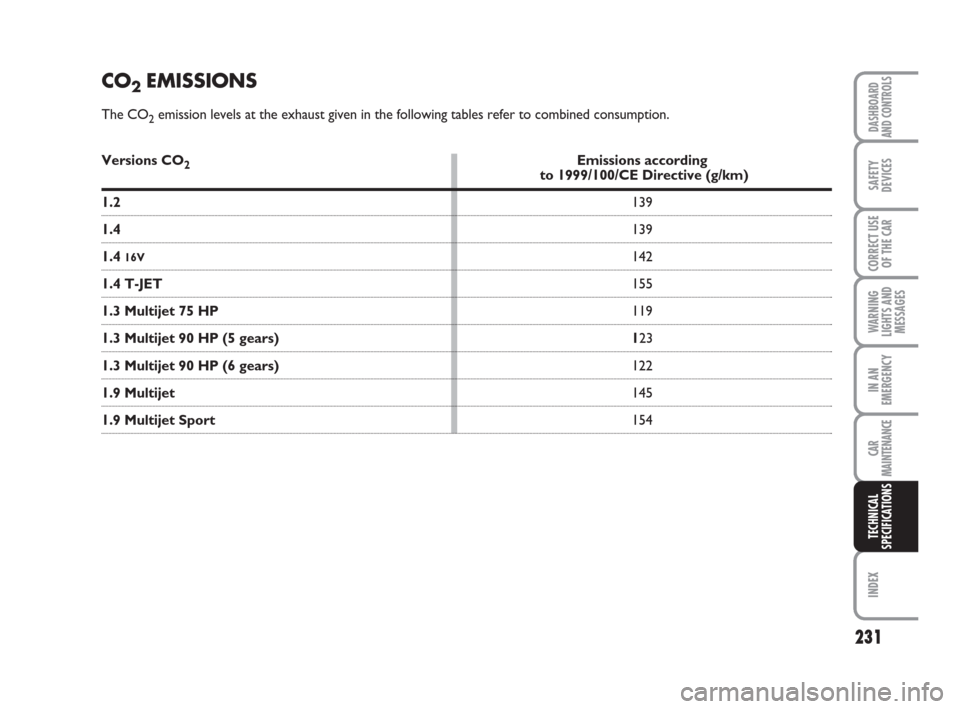

CO2EMISSIONS
The CO2emission levels at the exhaust given in the following tables refer to combined consumption.
Versions CO
2Emissions accordingto 1999/100/CE Directive (g/km)
1.2139
1.4139
1.4 16V142
1.4 T-JET155
1.3 Multijet 75 HP119
1.3 Multijet 90 HP (5 gears) 123
1.3 Multijet 90 HP (6 gears)122
1.9 Multijet145
1.9 Multijet Sport154
211-231 Punto GDX GB 31-07-2007 11:15 Pagina 231

232
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

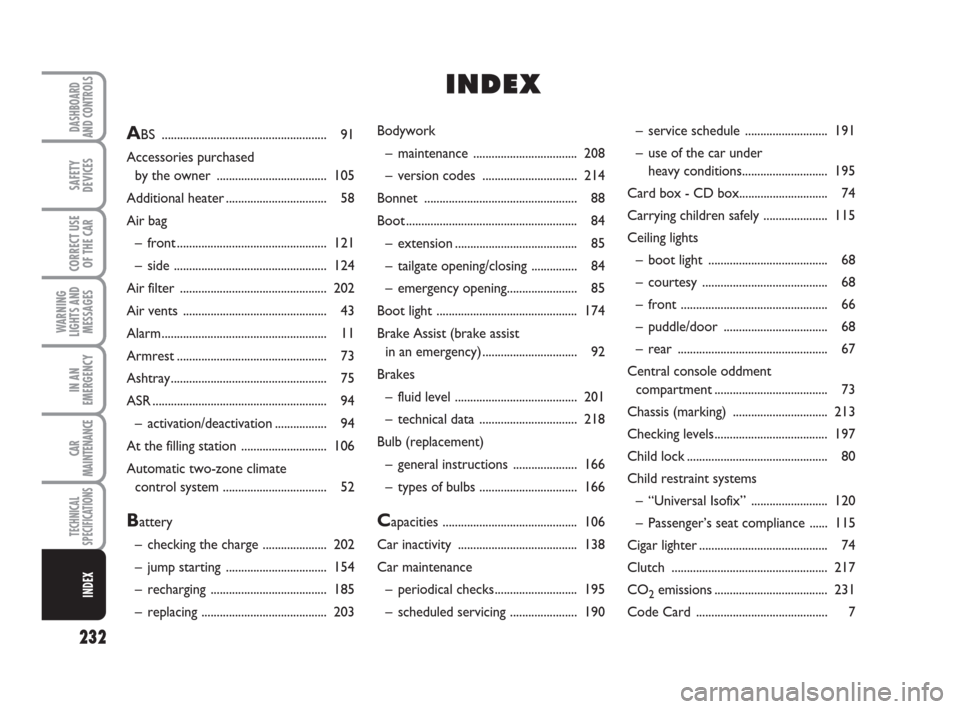

INDEX
Bodywork
– maintenance .................................. 208
– version codes ............................... 214
Bonnet .................................................. 88
Boot ........................................................ 84
– extension........................................ 85
– tailgate opening/closing ............... 84
– emergency opening....................... 85
Boot light .............................................. 174
Brake Assist (brake assist
in an emergency)............................... 92
Brakes
– fluid level ........................................ 201
– technical data ................................ 218
Bulb (replacement)
– general instructions ..................... 166
– types of bulbs ................................ 166
Capacities ............................................ 106
Car inactivity ....................................... 138
Car maintenance
– periodical checks........................... 195
– scheduled servicing ...................... 190– service schedule ........................... 191
– use of the car under
heavy conditions............................ 195
Card box - CD box............................. 74
Carrying children safely ..................... 115
Ceiling lights
– boot light ....................................... 68
– courtesy ......................................... 68
– front ................................................ 66
– puddle/door .................................. 68
– rear ................................................. 67
Central console oddment
compartment..................................... 73
Chassis (marking) ............................... 213
Checking levels..................................... 197
Child lock.............................................. 80
Child restraint systems
– “Universal Isofix” ......................... 120
– Passenger’s seat compliance ...... 115
Cigar lighter.......................................... 74
Clutch ................................................... 217
CO
2emissions..................................... 231
Code Card ........................................... 7
ABS ...................................................... 91
Accessories purchased
by the owner .................................... 105
Additional heater................................. 58
Air bag
– front................................................. 121
– side .................................................. 124
Air filter ................................................ 202
Air vents ............................................... 43
Alarm...................................................... 11
Armrest................................................. 73
Ashtray................................................... 75
ASR ......................................................... 94
– activation/deactivation................. 94
At the filling station ............................ 106
Automatic two-zone climate
control system .................................. 52
Battery
– checking the charge ..................... 202
– jump starting ................................. 154
– recharging ...................................... 185
– replacing ......................................... 203
II I
N N
D D
E E
X X
232-240 Punto GDX GB 20-07-2007 9:44 Pagina 232

233
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

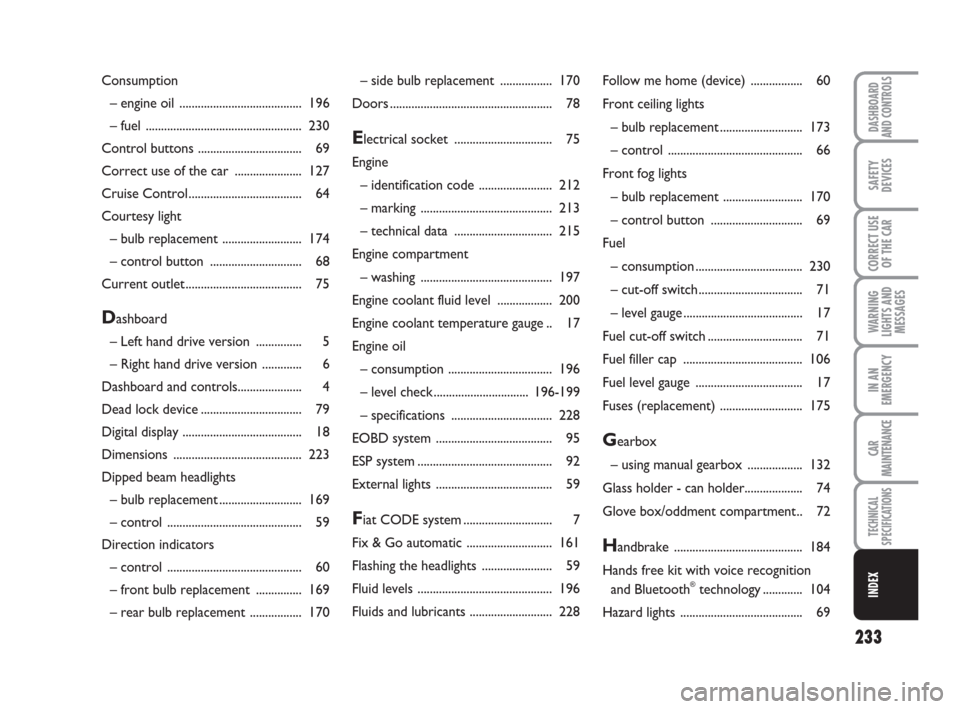

– side bulb replacement ................. 170
Doors..................................................... 78
Electrical socket ................................ 75
Engine
– identification code ........................ 212
– marking ........................................... 213
– technical data ................................ 215
Engine compartment
– washing ........................................... 197
Engine coolant fluid level ..................200
Engine coolant temperature gauge .. 17
Engine oil
– consumption .................................. 196
– level check...............................196-199
– specifications ................................. 228
EOBD system ...................................... 95
ESP system............................................ 92
External lights ...................................... 59
Fiat CODE system............................. 7
Fix & Go automatic ............................ 161
Flashing the headlights ....................... 59
Fluid levels ............................................ 196
Fluids and lubricants ........................... 228Follow me home (device) ................. 60
Front ceiling lights
– bulb replacement........................... 173
– control ............................................ 66
Front fog lights
– bulb replacement .......................... 170
– control button .............................. 69
Fuel
– consumption................................... 230
– cut-off switch.................................. 71
– level gauge ....................................... 17
Fuel cut-off switch............................... 71
Fuel filler cap ....................................... 106
Fuel level gauge ................................... 17
Fuses (replacement) ........................... 175
Gearbox
– using manual gearbox .................. 132
Glass holder - can holder................... 74
Glove box/oddment compartment .. 72
Handbrake .......................................... 184
Hands free kit with voice recognition
and Bluetooth
®technology............. 104
Hazard lights ........................................ 69 Consumption
– engine oil ........................................ 196
– fuel ................................................... 230
Control buttons .................................. 69
Correct use of the car ...................... 127
Cruise Control..................................... 64
Courtesy light
– bulb replacement .......................... 174
– control button .............................. 68
Current outlet...................................... 75
Dashboard
– Left hand drive version ............... 5
– Right hand drive version ............. 6
Dashboard and controls..................... 4
Dead lock device................................. 79
Digital display ....................................... 18
Dimensions .......................................... 223
Dipped beam headlights
– bulb replacement........................... 169
– control ............................................ 59
Direction indicators
– control ............................................ 60
– front bulb replacement ............... 169
– rear bulb replacement ................. 170
232-240 Punto GDX GB 20-07-2007 9:44 Pagina 233

234
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Load limiters ...................................... 112
Main beam headlights
– bulb replacement .......................... 169
– control ............................................ 59
– flashing ............................................ 59
Manual climate control system ........ 46
Multifunction display........................... 23
Number plate light ............................ 172
Oddment compartments.................. 72
Paint ..................................................... 208
Parking .................................................. 131
Parking sensors.................................... 101
Performance ........................................ 224
Plates
– bodywork paint
identification plate ....................... 213
– model plate .................................... 212
Pollen filter ........................................... 202
Power socket ...................................... 75
Power steering .................................... 96
Power windows .................................. 81Presetting for mounting the
“Isofix Universal” child
restraint system................................. 120
Pretensioners ...................................... 112
Prolonged car inactivity...................... 138
Protecting the environment ............. 107
Puddle/door light
– bulb replacement .......................... 174
Radio transmitters and cellular
telephones ......................................... 105
Radionavigator presetting system .... 104
Rain sensor............................................ 62
Rear ceiling lights
– bulb replacement........................... 173
– control ............................................ 67
Rear doors emergency lock device .... 81
Rear fog lights
– bulb replacement .......................... 171
– control button .............................. 70
Rear window washer
– control ............................................ 63
– fluid level ........................................ 200 Head restraints
– front ................................................ 38
– rear................................................... 39
Headlight washer
– control ............................................ 63
– fluid level ........................................ 200
Headlights.............................................. 89
– beam adjustment .......................... 89
– headlight slant adjusting device . 89
Heated rear window ...............45-50-58
Heating and ventilation system ........ 42
Identification data .............................. 212
Ignition switch ..................................... 13
In an emergency .................................. 153
Instrument panel ................................. 14
Instruments .......................................... 16
Interior fittings .................................... 72
Interiors ................................................ 210
Isofix (child restraint system) .......... 120
Jack ........................................................ 156
Jacking the car ..................................... 186
Key with remote control ................ 8
Key without remote control ...........11
Keys ........................................................ 8
232-240 Punto GDX GB 20-07-2007 9:44 Pagina 234

235
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Side/taillights
– control ............................................ 59
– front bulb replacement................. 168
– rear bulb replacement.................. 170
Smart washing ..................................... 62
Snow chains ......................................... 137
Sound system ...................................... 103
Spark plugs
– type ................................................. 215
Speedometer ....................................... 16
Starting the engine
– bump starting ................................ 155
– diesel engines ................................ 129
– emergency start-up ...................... 154
– ignition switch ............................... 13
– jump starting .................................. 154
– petrol engines ............................... 128
– stopping the engine....................... 130
– warming up the engine ................ 130
Steering.................................................. 218
Steering column lock ......................... 13
Steering wheel (adjustment) ............ 40
Sunroof.................................................. 76
Sun visors ............................................. 75
Suspensions .......................................... 218Symbols ................................................. 7
Tailgate ................................................ 84
Technical specifications ..................... 211
Third brake light ................................. 172
Top speeds ........................................... 224
Towing the car .................................... 187
Towing trailers
– tow hook installation ................... 135
T.P.M.S. system.................................... 98
Transmission ........................................ 217
Trip computer ..................................... 34
Tyre pressure ...................................... 222
Tyres
– changing .......................................... 155
– maintenance .................................. 205
– standard tyres................................ 221
– understanding tyre marking ....... 219
Using the manual gearbox .............. 132
Ventilation .......................................... 42
Warning lights and messages ......... 139
Weights ................................................ 225 Rear window wiper
– blades .............................................. 207
– control ............................................ 63
– nozzles ............................................ 208
Rearview mirrors
– door mirrors ................................. 41
– driving mirror ................................ 40
Refuelling............................................... 106
Rev counter.......................................... 16
Reversing light ..................................... 171
Roof rack/ski rack .............................. 88
Rubber hoses ....................................... 206
Safety devices ..................................... 109
Seat adjustment ................................... 38
Seat belts
– general instructions ..................... 113
– load limiters ................................... 112
– maintenance .................................. 115
– use ................................................... 110
Seats
– adjustment ..................................... 38
– cleaning ........................................... 210
– tilting (rear seats).......................... 85
232-240 Punto GDX GB 20-07-2007 9:44 Pagina 235

236
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Wheel
– changing .......................................... 155
– spare wheel ................................... 221
Wheel geometry ................................. 219
Wheel rims
– understanding rim marking ........ 220
Window
(washing/cleaning) .......................61-209
Window winders................................. 81
Windscreen/rear window/
headlight washer fluid level ............ 200
Windscreen/rear window
wiper blades ...................................... 206
Windscreen washer
– control ............................................ 61
– fluid level ........................................ 200
Windscreen wiper
– blades .............................................. 206
– control ............................................ 61
– nozzles ............................................ 207
232-240 Punto GDX GB 20-07-2007 9:44 Pagina 236

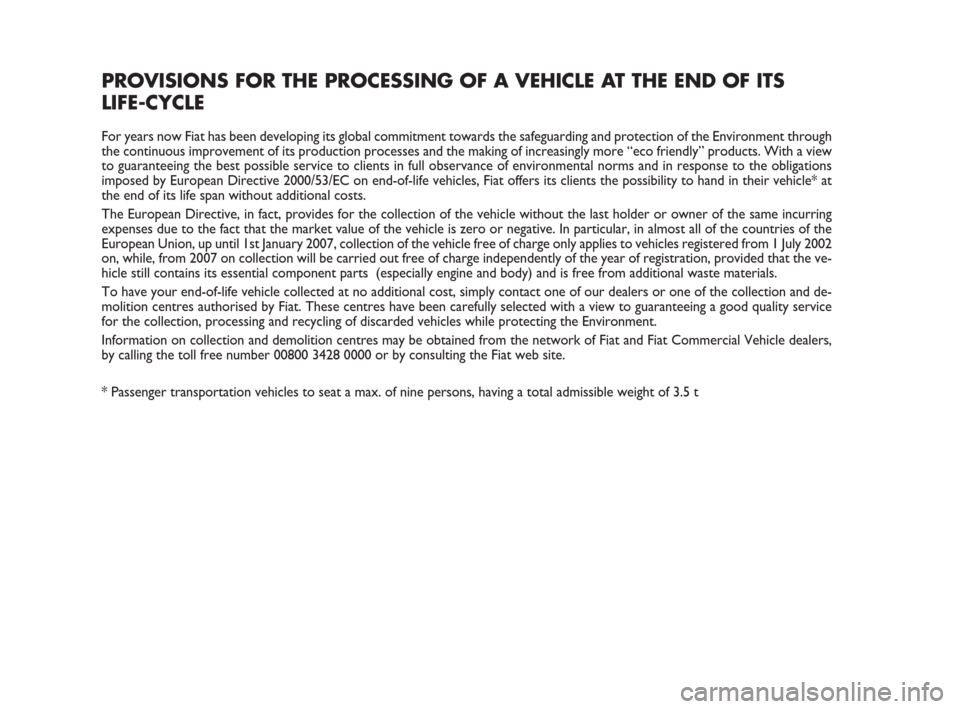

PROVISIONS FOR THE PROCESSING OF A VEHICLE AT THE END OF ITS
LIFE-CYCLE
For years now Fiat has been developing its global commitment towards the safeguarding and protection of the Environment through
the continuous improvement of its production processes and the making of increasingly more “eco friendly” products. With a view
to guaranteeing the best possible service to clients in full observance of environmental norms and in response to the obligations
imposed by European Directive 2000/53/EC on end-of-life vehicles, Fiat offers its clients the possibility to hand in their vehicle* at
the end of its life span without additional costs.
The European Directive, in fact, provides for the collection of the vehicle without the last holder or owner of the same incurring
expenses due to the fact that the market value of the vehicle is zero or negative. In particular, in almost all of the countries of the
European Union, up until 1st January 2007, collection of the vehicle free of charge only applies to vehicles registered from 1 July 2002
on, while, from 2007 on collection will be carried out free of charge independently of the year of registration, provided that the ve-
hicle still contains its essential component parts (especially engine and body) and is free from additional waste materials.
To have your end-of-life vehicle collected at no additional cost, simply contact one of our dealers or one of the collection and de-
molition centres authorised by Fiat. These centres have been carefully selected with a view to guaranteeing a good quality service
for the collection, processing and recycling of discarded vehicles while protecting the Environment.
Information on collection and demolition centres may be obtained from the network of Fiat and Fiat Commercial Vehicle dealers,
by calling the toll free number 00800 3428 0000 or by consulting the Fiat web site.
* Passenger transportation vehicles to seat a max. of nine persons, having a total admissible weight of 3.5 t
232-240 Punto GDX GB 20-07-2007 9:44 Pagina 237

232-240 Punto GDX GB 20-07-2007 9:44 Pagina 238

232-240 Punto GDX GB 20-07-2007 9:44 Pagina 239
