Passenger front and side airbag
activation/deactivation (BAG P)
(for versions/markets where available)
This function is used to activate/deactivate
the front passenger’s air bag.
Proceed as follows:
❒press MENU ESCand, after the mes-
sage BAG P OFF (to deactivate) or
BAG P On (to activate) is displayed by
pressing buttons +or –, press MENU
ESCagain;
❒the confirmation request message will
be displayed;
❒press +or –to select YES (confirming
activation/deactivation) or no (to abort);
❒briefly press MENU ESC to confirm
setting and go back to the menu screen
or hold the button down to go back to
the standard screen without saving.
MENU ESC
MENU ESC
MENU ESC
– +
– +
– +
– +
F0M1001i
F0M1003iF0M1002i F0M1005i
F0M1006i F0M1002i
F0M1003i
Setting the distance unit (Unit)
With this function, it is possible to set the
distance unit.
To do so, proceed as follows:
– briefly press MENU ESC– the display
will show the wording (Unit) and the pre-
viously set unit (km) or (mi);
– press +or –to select the required dis-
tance unit.
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 20

21
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CONTROL BUTTONS fig. 19
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENUPress briefly to display the menu
ESCand/or go to the next screen or
confirm your choice.
Hold down to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.
MULTIFUNCTION
DISPLAY
(for versions/markets where provided)
The car can be equipped with the multi-
function display that, depending on previ-
ous settings, shows useful information
when driving.
STANDARD SCREEN fig. 18
The standard screen shows the following
information:
ADate.
BOdometer (distance covered in km or
miles).
CTime (always displayed, even with key
removed from the ignition and front
doors closed).
DExternal temperature.
EHeadlight alignment position (only
with dipped beam headlights on).
NBWhen one of the front doors is
opened, the display turns on and shows
for a few seconds the time and distance
covered.
fig. 18F0M0121m
NBThe +and –buttons activate differ-
ent functions according to the following
situations:
Controlling the car’s interior lights
– on the standard screen, they control in-
strument panel brightness, the sound sys-
tem and the automatic climate control
system.
Setup menu
– within the menu, they scroll up and
down;
– during settings operations, they increase
or decrease values.
fig. 19F0M0122m
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 21

22
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

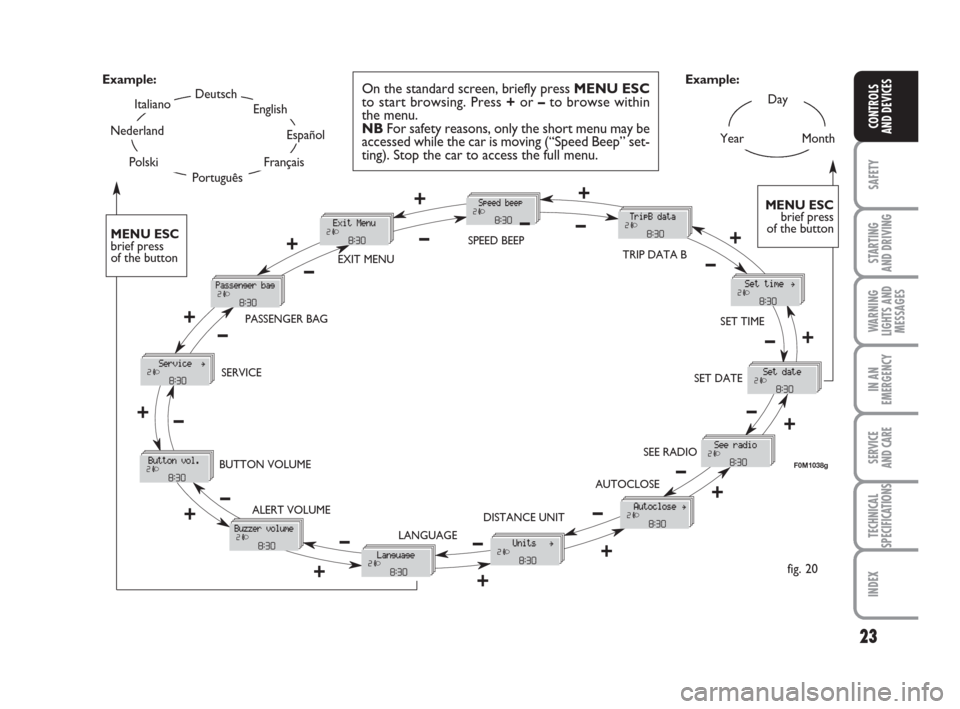

SETUP MENU fig. 20

The menu comprises a series of functions
arranged in a circle which can be select-
ed through the +and –buttons to access
the different operations and settings de-
scribed in the following paragraphs. A sub-
menu is provided for some items (clock
and unit setting).
The setup menu can be activated by briefly
pressing MENU ESC.
Single presses on +or –will scroll the set-
up menu options.
Management modes differ from each oth-
er according to the option selected.
Selecting an option from the main menu
without a submenu
– Briefly press MENU ESCto select the
main menu option to set.
– Press +or –(with single presses) to se-
lect the new setting;
– briefly press MENU ESCto store the
new setting and go back to the previous
main menu option.Selecting “Set Date” and “Set time”:
– Briefly press MENU ESCto select the
first value to change (e.g. hours/minutes
or year/month/day).
– Press +or –(with single presses) to se-
lect the new setting;
– Briefly press MENU ESCto store the
new setting and go to the next setup menu
option: if this is the last one you will go
back to the previous menu option.
Hold down MENU ESC:
– to quit the set up menu if you are in the
main menu;
– to quit the main menu if you are in an-
other point of the menu (e.g. at submenu
option setting level, at submenu level or
at main menu option setting level);
– to save only the settings already stored
(and confirmed by pressing the MENU
ESCbutton).
The setup menu environment is timed.
Only the changes saved by the user by
briefly pressing MENU ESC will be
stored when the menu is automatically
closed. Selecting an option from the main menu with
a submenu:
– briefly press MENU ESCto display the
first submenu option;
– Press +or –(with single presses) to
scroll all the submenu options.
– Briefly press MENU ESCto select the
displayed submenu option and open the
relevant setup menu.
– Press +or –(with single presses) to
select the new setting for this submenu
option.
– briefly press MENU ESC to store the
new setting and go back to the previous
submenu option.
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 22

23
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Day
YearMonth
Deutsch
Português
English
Español
Français
Italiano
Nederland
Polski Example:
fig. 20 Example:
On the standard screen, briefly press MENU ESC
to start browsing. Press +or –to browse within
the menu.
NBFor safety reasons, only the short menu may be
accessed while the car is moving (“Speed Beep” set-
ting). Stop the car to access the full menu.
F0M1038g
MENU ESC
brief press
of the button+
–
+
–
– +
– –
– +
+
++ ––––
++ – –
+ +
–
EXIT MENU SPEED BEEP
SET TIME
SET DATE
SEE RADIO
AUTOCLOSE
DISTANCE UNIT
LANGUAGE ALERT VOLUME BUTTON VOLUMESERVICE PASSENGER BAG
–+
TRIP DATA B
MENU ESC
brief press
of the button
+
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 23

24
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
To cancel the setting, proceed as follows:
– briefly press MENU ESC: (On) will
flash on the display;
– press –: (Off) will flash on the display;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
Trip B activation (tripB data)
This function may be used to activate
(On) or deactivate (Off) the Trip B display
(partial trip).
For more information see the “Trip com-
puter” section.
For activation/deactivation, proceed as fol-
lows:
– briefly press MENU ESC– On or Off
will flash on the display (depending on pre-
vious setting); DISPLAY FUNCTIONS
Speed limit (Speed Beep)
This function is used to set the car speed
limit (km/h or mph); the driver is imme-
diately alerted when this limit is ex-
ceeded (see section “Warning lights and
messages”).
To set the desired speed limit, proceed as
follows:
– briefly press MENU ESC– the display
will show the wording (Speed Buzz);
– press +or –to select speed limit acti-
vation (On) or deactivation (Off);
– if the function is on, press +or –to se-
lect the required speed limit and then
press MENU ESCto confirm;
NBThe speed may be set in the range from
30 to 200 km/h, or from 20 to 125 mph ac-
cording to the previously chosen unit (see
“Setting the distance unit (Unit)” described
below). The setting will increase/decrease
by five units each time +/–is pressed. Hold
down +/–to increase/decrease the setting
rapidly. Complete the setting with single
presses of the button when the required
setting is approached.
– press +or –to make your choice;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
Setting the clock (Set time)
This function allows you to set the clock
through two submenus: “Time” and
“Mode”.
To carry out the adjustment, proceed as
follows:
– briefly press MENU ESC– the display
will show the two sub-menus “Time” and
“Mode”;
– press +or –to switch between the two
sub-menus;
– select the required option and then
press MENU ESCbriefly;
– if selecting “Time”, briefly press MENU
ESC– the “hours” will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– the “min-
utes” will flash on the display;
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 24

25
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Setting date (Set Date)
Using this function it is possible to change
the date (day – month – year).
To update, proceed as follows:
– briefly press MENU ESC– “day” (dd)
will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– “month”
(mm) will flash on the display;
– press +or –to set the value;
– briefly press MENU ESC– “year”
(yyyy) will flash on the display;
– press +or –to make the adjustment.
NBThe setting increases or decreases by
one unit each time +or – is pressed. Hold
the button down to increase/decrease the
setting rapidly. Complete the setting with
single presses of the button when you ap-
proach the required setting.
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving. – press +or –to adjust the value;
– if selecting “Mode”,briefly press MENU
ESC – the mode will flash on the display;
– press +or –to select “24h” or “12h”.
When you have made the required ad-
justments, briefly press MENU ESCto
go back to the menu screen or hold the
button down to go back to the main menu
without saving.
– hold MENU ESCdown to go back to
the standard screen or main menu, de-
pending on where you are in the menu.Initial page (display of information
on the main screen)
(for versions/ markets where available)
This function allows you to choose the in-
formation you would like to see on the
main screen. You can choose to display the
date or the turbocharger boost pressure.
To make your choice, proceed as follows:
– briefly press MENU ESC– “Initial
page” will appear on the display;
– briefly press MENU ESConce again to
show the display options “Date” and “En-
gine info”;
– press +or –to select the information
you wish to see on the main page of the
display;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.
When the key is turned to MARand the
initial check stage is over, the display will
show the information selected via the “Ini-
tial page” menu function.
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 25

26
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Automatic central door locking
with car running (Autoclose)
When activated (On), this function auto-
matically locks the doors when the car
speed exceeds 20 km/h.
To activate (On) or deactivate (Off) this
function, proceed as follows:
– briefly press MENU ESCto display
a submenu;
– briefly press MENU ESC– On or Off
will flash on the display (depending on the
previous setting);
– press +or –to make your choice;
– briefly press MENU ESCto go back to
the submenu screen or hold the button
down to go back to the main menu with-
out saving.
– hold MENU ESCdown again to go
back to the standard screen or main
menu, depending on where you are in the
menu. Audio information
(See sound system)
With this function the display shows in-
formation relevant to the sound system.
– Radio: selected radio station frequency
or RDS message, automatic tuning acti-
vation or AutoSTore;
– CD, MP3: track number;
– CD Changer: CD number and track
number;
To show the sound system information in
the display (On) or clear it (Off), proceed
as follows:
– briefly press MENU ESC– On or Off
will flash on the display (depending on the
previous setting);
– press +or –to make your choice;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Setting measurement units
(Units of measurement)
With this function it is possible to set the
measurement units through three sub-
menus: “Distance”, “Consumption” and
“Temperature”.
To set the desired measurement unit, pro-
ceed as follows:
– briefly press MENU ESCto display the
three sub-menus;
– press +or –to switch between the
three sub-menus;
– select the required option and then
press MENU ESCbriefly;
– if selecting “Distance”: briefly press
MENU ESCand the display will show
“km” or “mi” (depending on the previous
setting);
– press +or –to make your choice;
– if selecting “Consumption”: briefly press
MENU ESCand the display will show
“km/l”, “l/100km” or “mpg” (depending on
the previous setting);
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 26

27
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Selecting language (Language)
Display messages can be shown in differ-
ent languages: Italian, English, German,
Portuguese, Spanish, French, Polish and
Dutch.
To set the required language, proceed as
follows:
– briefly press MENU ESC– the previ-
ously set language will flash on the display;
– press +or –to make your choice;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Adjusting the failure/warning
buzzer volume (Alert Volume)
This function allows the volume of the
buzzer which accompanies the display of
failures/warnings to be adjusted (over
8 levels).
To set the desired volume, proceed as fol-
lows:
– briefly press MENU ESC– the previ-
ously set volume level will flash on the dis-
play;
– press +or –to set the value;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving. If the distance unit set is “km” the fuel con-
sumption unit will be displayed in km/l or
l/100km.
If the distance unit set is “mi” the fuel con-
sumption unit will be displayed in “mpg”.
– press +or –to make your choice;
– if selecting “Temperature”: briefly press
MENU ESCand the display will show
“C” or “F” (depending on the previous
setting);
– press +or –to make your choice;
When you have made the adjustment,
briefly press MENU ESCto go back to
the sub-menu screen or hold the button
down to go back to the main menu with-
out saving.
– hold down MENU ESCagain to go
back to the standard screen or main
menu, depending on where you are in the
menu.
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 27

28
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Adjusting the button volume
(Button Vol.)
This function may be used to adjust (over
8 levels) the volume of the noise made
when the MENU ESC, +and –buttons
are pressed.
To set the desired volume, proceed as fol-
lows:
– briefly press MENU ESC– the previ-
ously set volume level will flash on the dis-
play;
– press +or –to set the value;
– briefly press MENU ESCto return to
the menu screen or hold the button down
to return to the standard screen without
saving.Scheduled Servicing (Service)
Through this function it is possible to dis-
play information related to regular sched-
uling intervals.
This information can be consulted as
follows:
– briefly press MENU ESC– service in-
tervals in km or mi, depending on the
previous setting, will be displayed (see
“Measurement units” section);
– briefly press MENU ESCto go back to
the menu screen or hold the button down
to go back to the standard screen.NBThe “Scheduled Service Plan” re-
quires the vehicle to be serviced every
30,000 km (or 18,000 mi). This indication
will appear automatically, with the key at
MAR, starting from 2,000 km (or
1,240 mi) and will be displayed every
200 km (or 124 mi). Below 200 km the sig-
nals become more frequent. The indica-
tion will appear in kilometres or miles de-
pending on the unit of measurement
settings. When the next scheduled service
is approaching, and when the key is turned
to MAR, the message “Service” will ap-
pear on the display followed by the num-
ber of kilometres or miles left. Go to a Fi-
at Dealership, where the “Scheduled
Service Plan” operations will be performed
and the message will be reset.
001-032 ACTUAL 1ed EN.qxd 28-08-2009 13:41 Pagina 28

29
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
Passenger front and side airbag
activation/deactivation
(Passenger bag)
(for versions/markets where available)
This function is used to activate/deactivate
the front passenger’s air bag.
Proceed as follows:
❒press MENU ESCand, after seeing
messages “Bag pass: Off” (to deactivate)
or “Bag pass: On” (to activate) by
pressing buttons +and –, press MENU
ESCagain;
❒the display will show the confirmation
request message;
❒press +or –to select either Yes (to
confirm activation/deactivation) or No
(to abort);
❒briefly press MENU ESC to confirm
setting and go back to the menu screen
or hold the button down to go back to
the standard screen without saving.
MENU ESC
MENU ESC
MENU ESC
– +
– +
– +
– +
F0M1009g
F0M1011gF0M1010g F0M1013g
F0M1014g
F0M1009g
F0M1015g
F0M1016gF0M1009g
Menu exit
This function closes the cycle of settings
listed in the menu screen.
Briefly press MENU ESCto go back to
the standard screen without saving.
Press –to return to the first menu option
(Speed Beep).
