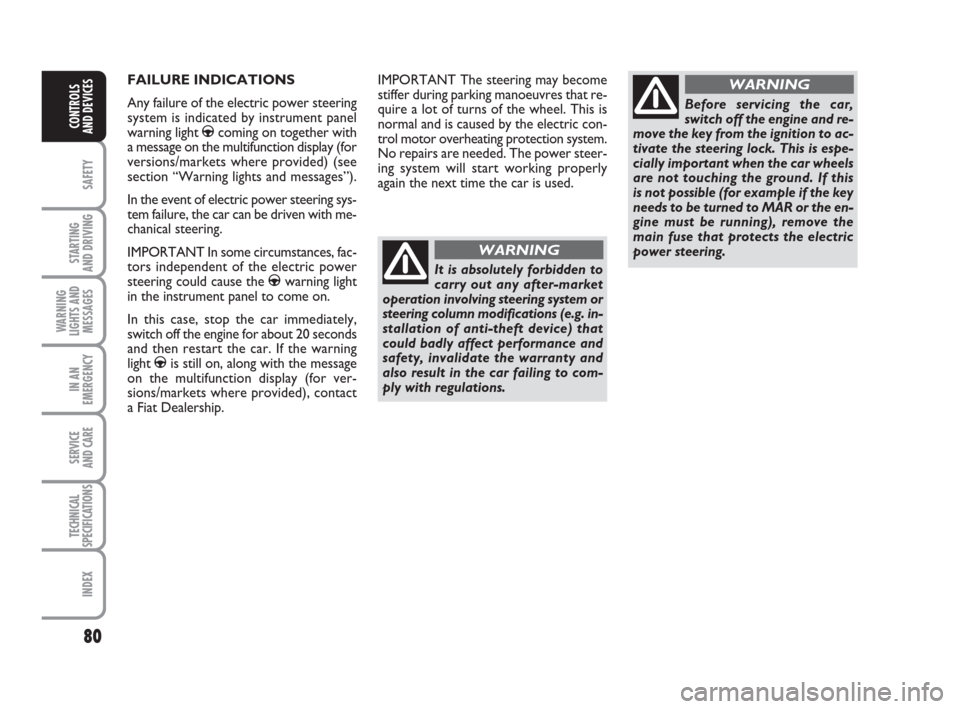

FAILURE INDICATIONS
Any failure of the electric power steering
system is indicated by instrument panel
warning light
gcoming on together with
a message on the multifunction display (for
versions/markets where provided) (see
section “Warning lights and messages”).
In the event of electric power steering sys-
tem failure, the car can be driven with me-
chanical steering.
IMPORTANT In some circumstances, fac-
tors independent of the electric power
steering could cause the
gwarning light
in the instrument panel to come on.
In this case, stop the car immediately,
switch off the engine for about 20 seconds
and then restart the car. If the warning
light
gis still on, along with the message
on the multifunction display (for ver-
sions/markets where provided), contact
a Fiat Dealership.IMPORTANT The steering may become
stiffer during parking manoeuvres that re-
quire a lot of turns of the wheel. This is
normal and is caused by the electric con-
trol motor overheating protection system.
No repairs are needed. The power steer-
ing system will start working properly
again the next time the car is used.
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car failing to com-
ply with regulations.
WARNING
Before servicing the car,
switch off the engine and re-
move the key from the ignition to ac-
tivate the steering lock. This is espe-
cially important when the car wheels
are not touching the ground. If this
is not possible (for example if the key
needs to be turned to MAR or the en-
gine must be running), remove the
main fuse that protects the electric
power steering.
WARNING
072-086 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 80

81
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

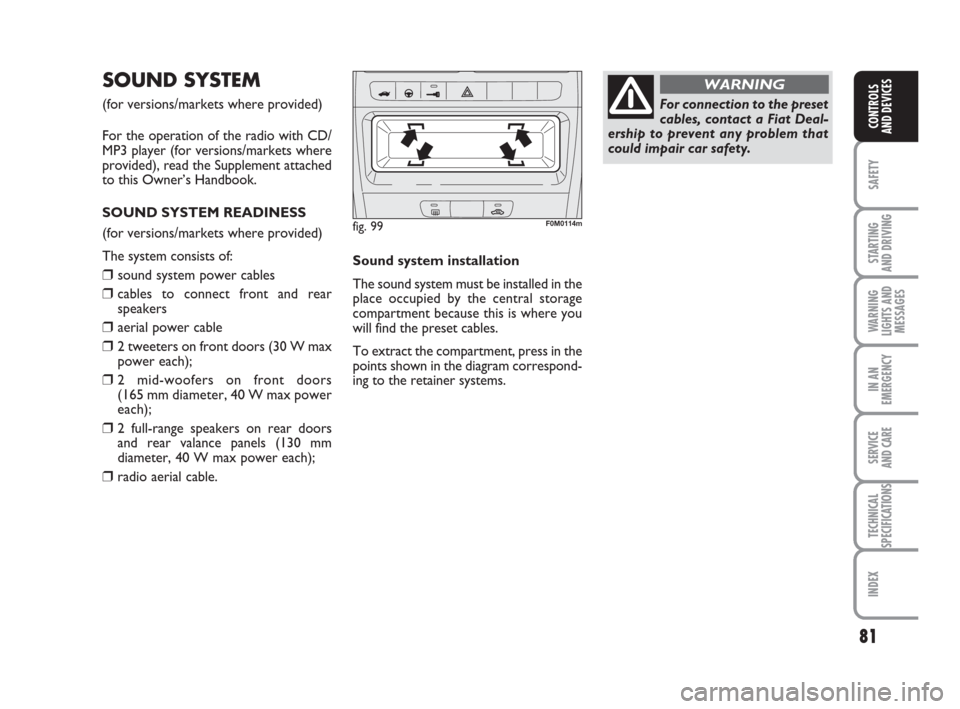

SOUND SYSTEM
(for versions/markets where provided)
For the operation of the radio with CD/
MP3 player (for versions/markets where
provided), read the Supplement attached
to this Owner’s Handbook.
SOUND SYSTEM READINESS
(for versions/markets where provided)
The system consists of:
❒sound system power cables
❒cables to connect front and rear
speakers
❒aerial power cable
❒2 tweeters on front doors (30 W max
power each);
❒2 mid-woofers on front doors
(165 mm diameter, 40 W max power
each);
❒2 full-range speakers on rear doors
and rear valance panels (130 mm
diameter, 40 W max power each);
❒radio aerial cable.Sound system installation
The sound system must be installed in the
place occupied by the central storage
compartment because this is where you
will find the preset cables.
To extract the compartment, press in the
points shown in the diagram correspond-
ing to the retainer systems.
fig. 99F0M0114m
For connection to the preset
cables, contact a Fiat Deal-
ership to prevent any problem that
could impair car safety.
WARNING
072-086 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 81

82
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

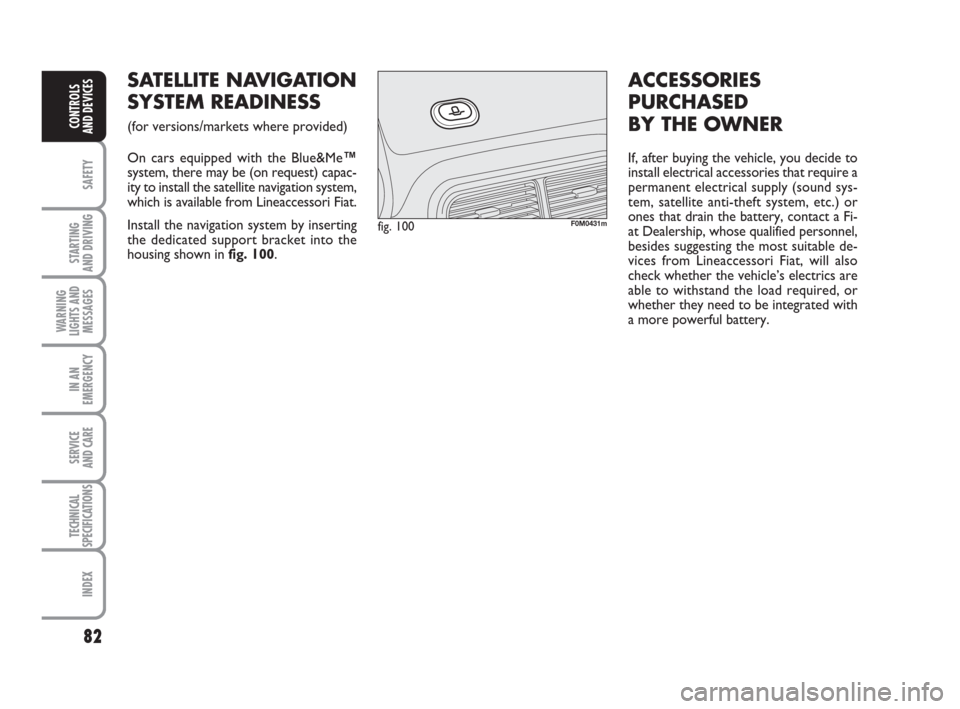

SATELLITE NAVIGATION
SYSTEM READINESS
(for versions/markets where provided)
On cars equipped with the Blue&Me™
system, there may be (on request) capac-
ity to install the satellite navigation system,
which is available from Lineaccessori Fiat.
Install the navigation system by inserting
the dedicated support bracket into the
housing shown in fig. 100.
fig. 100F0M0431m
ACCESSORIES
PURCHASED
BY THE OWNER
If, after buying the vehicle, you decide to
install electrical accessories that require a
permanent electrical supply (sound sys-
tem, satellite anti-theft system, etc.) or
ones that drain the battery, contact a Fi-
at Dealership, whose qualified personnel,
besides suggesting the most suitable de-
vices from Lineaccessori Fiat, will also
check whether the vehicle’s electrics are
able to withstand the load required, or
whether they need to be integrated with
a more powerful battery.
072-086 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 82

83
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

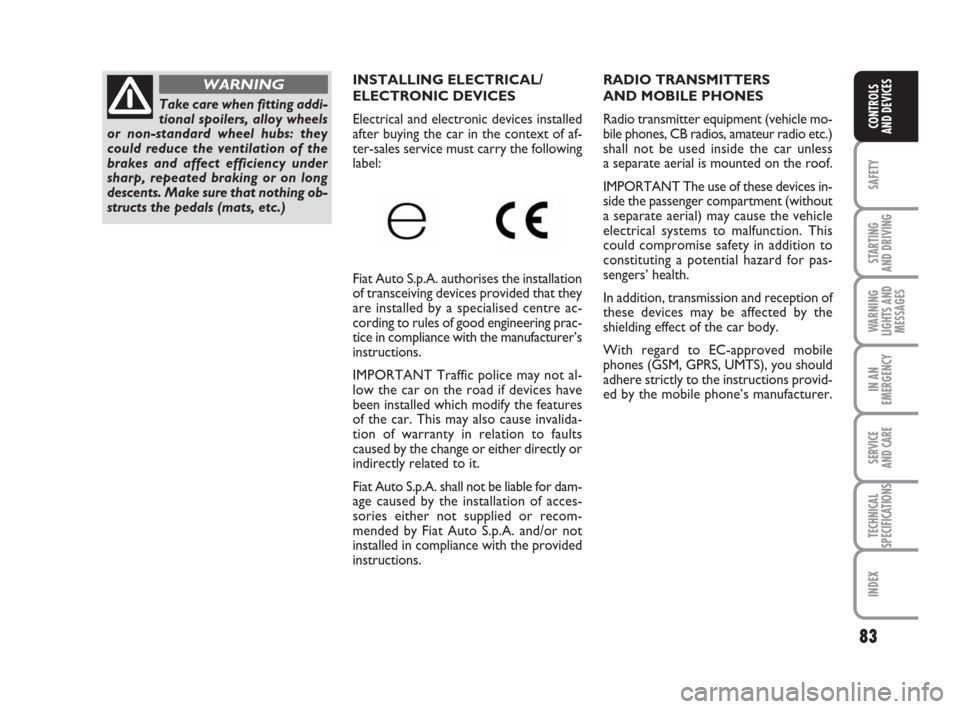

RADIO TRANSMITTERS
AND MOBILE PHONES
Radio transmitter equipment (vehicle mo-
bile phones, CB radios, amateur radio etc.)
shall not be used inside the car unless
a separate aerial is mounted on the roof.
IMPORTANT The use of these devices in-
side the passenger compartment (without
a separate aerial) may cause the vehicle
electrical systems to malfunction. This
could compromise safety in addition to
constituting a potential hazard for pas-
sengers’ health.
In addition, transmission and reception of
these devices may be affected by the
shielding effect of the car body.
With regard to EC-approved mobile
phones (GSM, GPRS, UMTS), you should
adhere strictly to the instructions provid-
ed by the mobile phone’s manufacturer.
Take care when fitting addi-
tional spoilers, alloy wheels
or non-standard wheel hubs: they
could reduce the ventilation of the
brakes and affect efficiency under
sharp, repeated braking or on long
descents. Make sure that nothing ob-
structs the pedals (mats, etc.)
WARNINGINSTALLING ELECTRICAL/
ELECTRONIC DEVICES
Electrical and electronic devices installed
after buying the car in the context of af-
ter-sales service must carry the following
label:
Fiat Auto S.p.A. authorises the installation
of transceiving devices provided that they
are installed by a specialised centre ac-
cording to rules of good engineering prac-
tice in compliance with the manufacturer’s
instructions.
IMPORTANT Traffic police may not al-
low the car on the road if devices have
been installed which modify the features
of the car. This may also cause invalida-
tion of warranty in relation to faults
caused by the change or either directly or
indirectly related to it.
Fiat Auto S.p.A. shall not be liable for dam-
age caused by the installation of acces-
sories either not supplied or recom-
mended by Fiat Auto S.p.A. and/or not
installed in compliance with the provided
instructions.
072-086 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 83

84
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

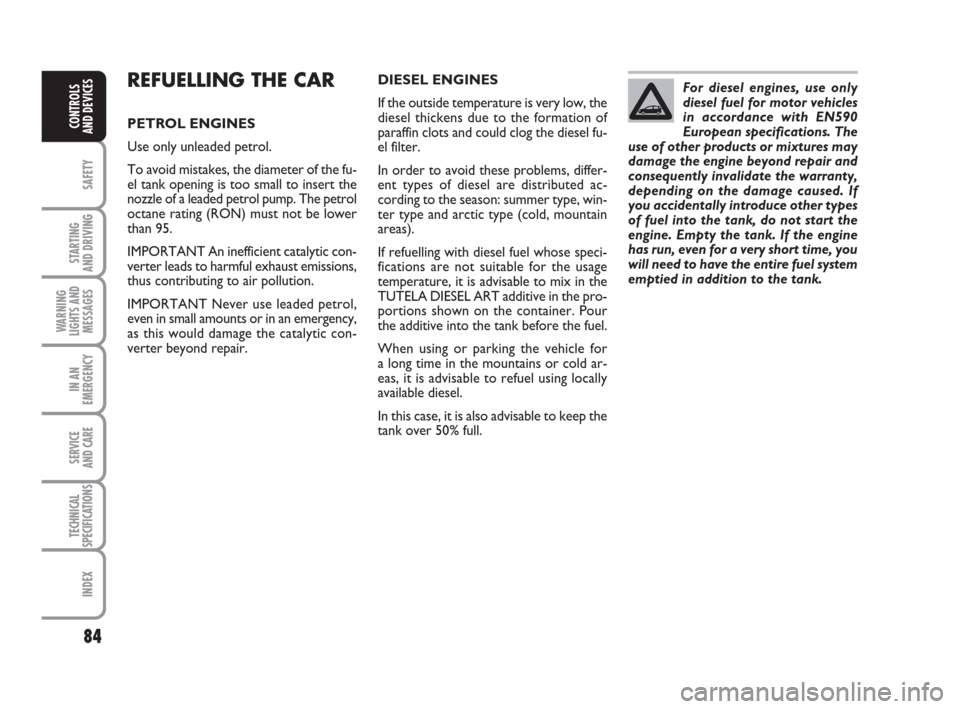

REFUELLING THE CAR
PETROL ENGINES
Use only unleaded petrol.
To avoid mistakes, the diameter of the fu-
el tank opening is too small to insert the
nozzle of a leaded petrol pump. The petrol
octane rating (RON) must not be lower
than 95.
IMPORTANT An inefficient catalytic con-
verter leads to harmful exhaust emissions,
thus contributing to air pollution.
IMPORTANT Never use leaded petrol,
even in small amounts or in an emergency,
as this would damage the catalytic con-
verter beyond repair.DIESEL ENGINES
If the outside temperature is very low, the
diesel thickens due to the formation of
paraffin clots and could clog the diesel fu-
el filter.
In order to avoid these problems, differ-
ent types of diesel are distributed ac-
cording to the season: summer type, win-
ter type and arctic type (cold, mountain
areas).
If refuelling with diesel fuel whose speci-
fications are not suitable for the usage
temperature, it is advisable to mix in the
TUTELA DIESEL ART additive in the pro-
portions shown on the container. Pour
the additive into the tank before the fuel.
When using or parking the vehicle for
a long time in the mountains or cold ar-
eas, it is advisable to refuel using locally
available diesel.
In this case, it is also advisable to keep the
tank over 50% full.For diesel engines, use only
diesel fuel for motor vehicles
in accordance with EN590
European specifications. The
use of other products or mixtures may
damage the engine beyond repair and
consequently invalidate the warranty,
depending on the damage caused. If
you accidentally introduce other types
of fuel into the tank, do not start the
engine. Empty the tank. If the engine
has run, even for a very short time, you
will need to have the entire fuel system
emptied in addition to the tank.
072-086 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 84

85
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

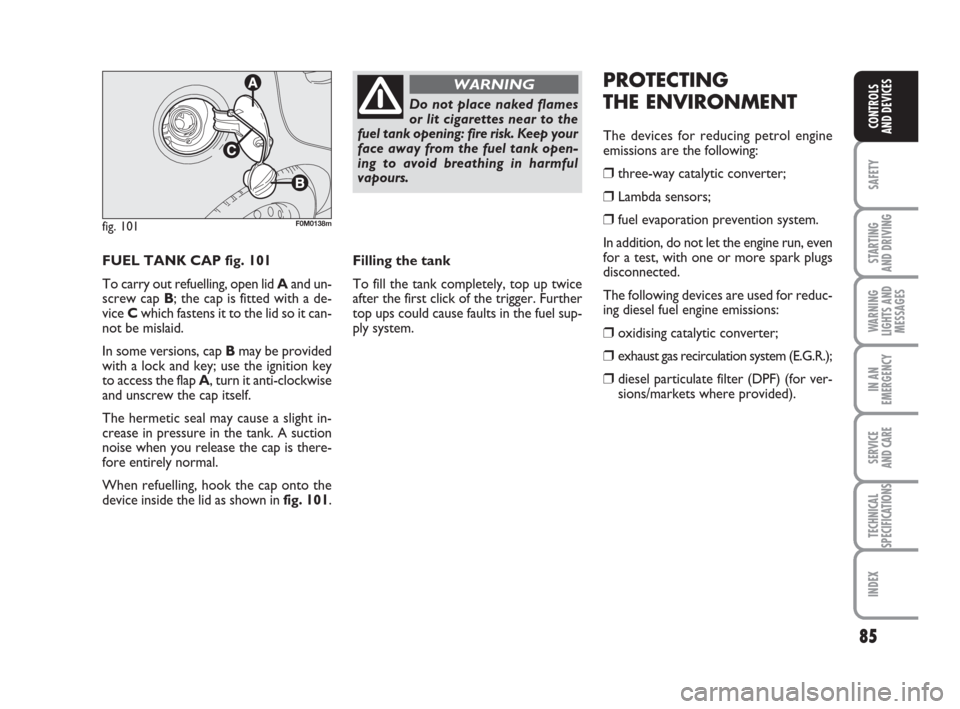

FUEL TANK CAP fig. 101
To carry out refuelling, open lid Aand un-
screw cap B; the cap is fitted with a de-
vice Cwhich fastens it to the lid so it can-
not be mislaid.
In some versions, cap Bmay be provided
with a lock and key; use the ignition key
to access the flap A, turn it anti-clockwise
and unscrew the cap itself.
The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction
noise when you release the cap is there-
fore entirely normal.
When refuelling, hook the cap onto the
device inside the lid as shown in fig. 101.
fig. 101F0M0138m
Do not place naked flames
or lit cigarettes near to the
fuel tank opening: fire risk. Keep your
face away from the fuel tank open-
ing to avoid breathing in harmful
vapours.
WARNING
Filling the tank
To fill the tank completely, top up twice
after the first click of the trigger. Further
top ups could cause faults in the fuel sup-
ply system.
PROTECTING
THE ENVIRONMENT
The devices for reducing petrol engine
emissions are the following:
❒three-way catalytic converter;
❒Lambda sensors;
❒fuel evaporation prevention system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The following devices are used for reduc-
ing diesel fuel engine emissions:
❒oxidising catalytic converter;
❒exhaust gas recirculation system (E.G.R.);
❒diesel particulate filter (DPF) (for ver-
sions/markets where provided).
072-086 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 85

86
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
The catalytic converter
reaches high temperatures
during normal operation. Do not
park the on grass, dry leaves, pine
needles or other flammable materi-
al: fire hazard.
WARNING

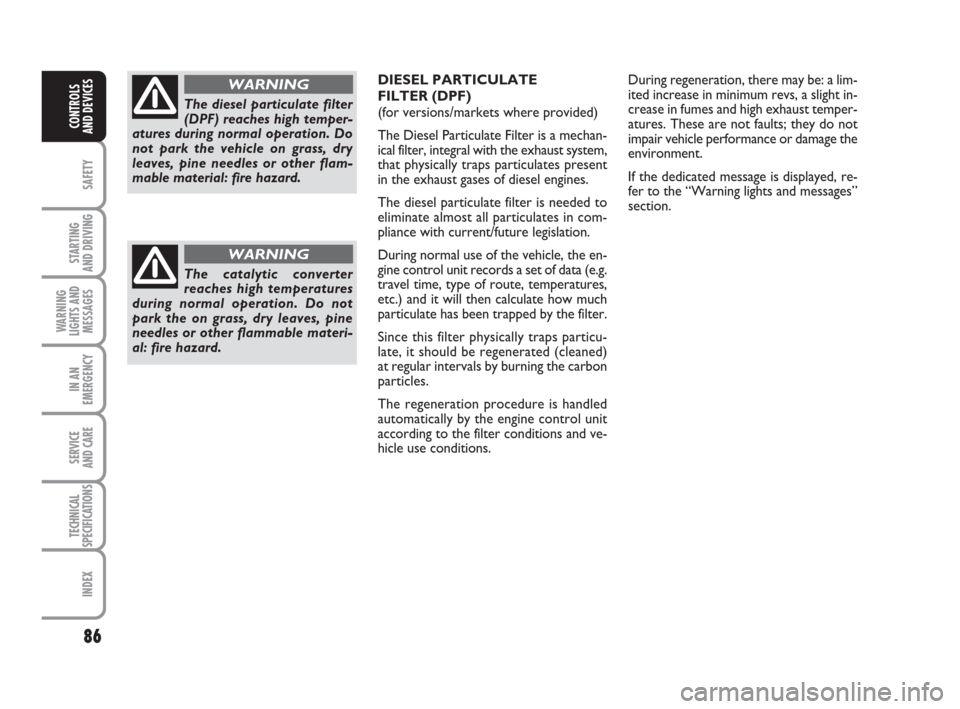

DIESEL PARTICULATE
FILTER (DPF)
(for versions/markets where provided)
The Diesel Particulate Filter is a mechan-
ical filter, integral with the exhaust system,
that physically traps particulates present
in the exhaust gases of diesel engines.
The diesel particulate filter is needed to
eliminate almost all particulates in com-
pliance with current/future legislation.
During normal use of the vehicle, the en-
gine control unit records a set of data (e.g.
travel time, type of route, temperatures,
etc.) and it will then calculate how much
particulate has been trapped by the filter.
Since this filter physically traps particu-
late, it should be regenerated (cleaned)
at regular intervals by burning the carbon
particles.
The regeneration procedure is handled
automatically by the engine control unit
according to the filter conditions and ve-
hicle use conditions.During regeneration, there may be: a lim-
ited increase in minimum revs, a slight in-
crease in fumes and high exhaust temper-
atures. These are not faults; they do not
impair vehicle performance or damage the
environment.
If the dedicated message is displayed, re-
fer to the “Warning lights and messages”
section.
The diesel particulate filter
(DPF) reaches high temper-
atures during normal operation. Do
not park the vehicle on grass, dry
leaves, pine needles or other flam-
mable material: fire hazard.
WARNING
072-086 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 86

87
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

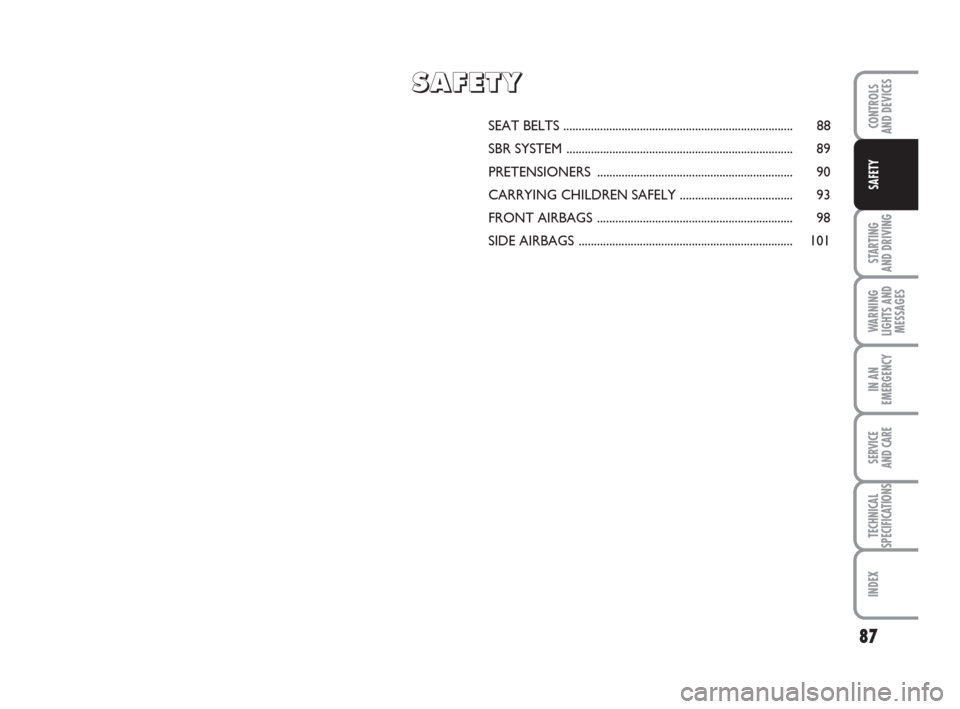

SEAT BELTS ........................................................................... 88
SBR SYSTEM .......................................................................... 89
PRETENSIONERS ................................................................ 90
CARRYING CHILDREN SAFELY ..................................... 93
FRONT AIRBAGS ................................................................ 98
SIDE AIRBAGS ...................................................................... 101
S S
A A
F F
E E
T T
Y Y
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 87

88
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
The reel may lock up when the car is
parked on a steep slope: this is perfectly
normal. Furthermore, the reel mechanism
locks the belt if it is pulled sharply or in
the event of sudden braking, collisions and
high-speed bends.
The rear seat is fitted with inertia seat
belts with three anchor points and a reel.
The rear seat belts must be worn as per
fig. 2(with safety belt for the middle seat,
for versions/markets where provided) or
as per fig. 3(two rear seats).

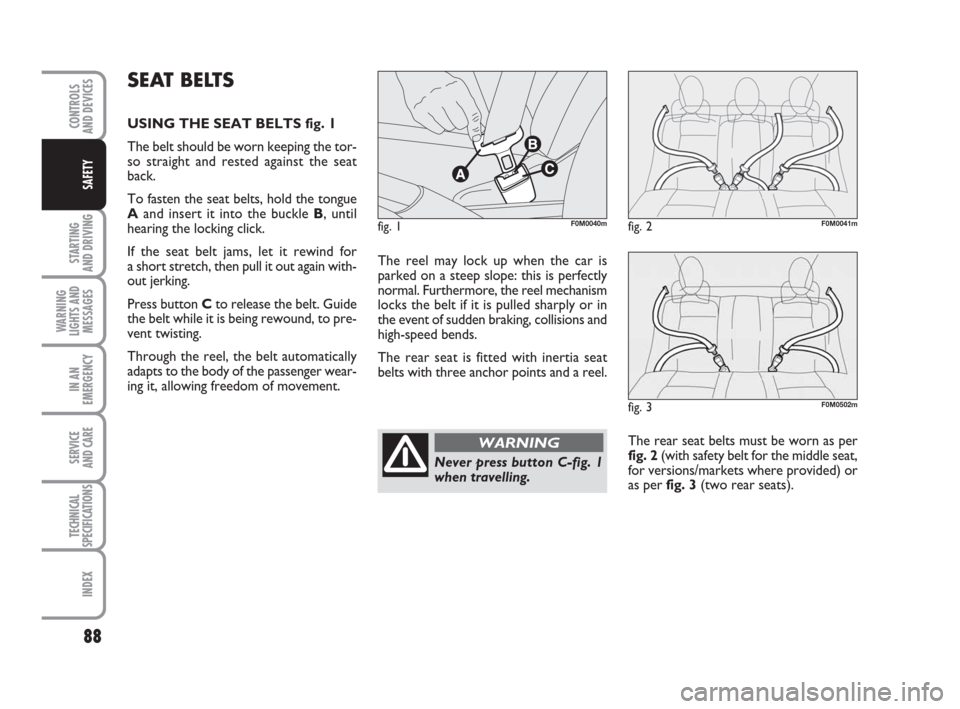

SEAT BELTS
USING THE SEAT BELTS fig. 1
The belt should be worn keeping the tor-
so straight and rested against the seat
back.
To fasten the seat belts, hold the tongue
Aand insert it into the buckle B, until
hearing the locking click.
If the seat belt jams, let it rewind for
a short stretch, then pull it out again with-
out jerking.
Press button Cto release the belt. Guide
the belt while it is being rewound, to pre-
vent twisting.
Through the reel, the belt automatically
adapts to the body of the passenger wear-
ing it, allowing freedom of movement.
fig. 1F0M0040mfig. 2F0M0041m
fig. 3F0M0502m
Never press button C-fig. 1
when travelling.
WARNING
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 88

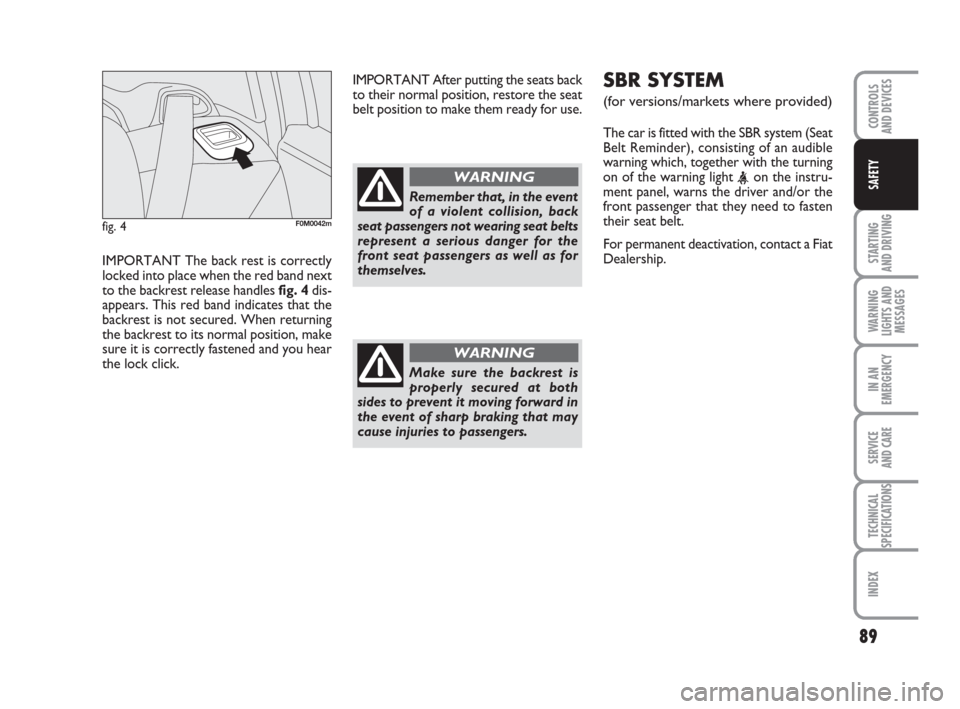

IMPORTANT The back rest is correctly
locked into place when the red band next
to the backrest release handles fig. 4dis-
appears. This red band indicates that the
backrest is not secured. When returning
the backrest to its normal position, make
sure it is correctly fastened and you hear
the lock click.
89
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
fig. 4F0M0042m
Remember that, in the event
of a violent collision, back
seat passengers not wearing seat belts
represent a serious danger for the
front seat passengers as well as for
themselves.
WARNING
Make sure the backrest is
properly secured at both
sides to prevent it moving forward in
the event of sharp braking that may
cause injuries to passengers.
WARNING
IMPORTANT After putting the seats back
to their normal position, restore the seat
belt position to make them ready for use.SBR SYSTEM
(for versions/markets where provided)
The car is fitted with the SBR system (Seat
Belt Reminder), consisting of an audible
warning which, together with the turning
on of the warning light
ment panel, warns the driver and/or the
front passenger that they need to fasten
their seat belt.
For permanent deactivation, contact a Fiat
Dealership.
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 89
