FIAT GRANDE PUNTO 2010 199 / 1.G Owner's Guide

30
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

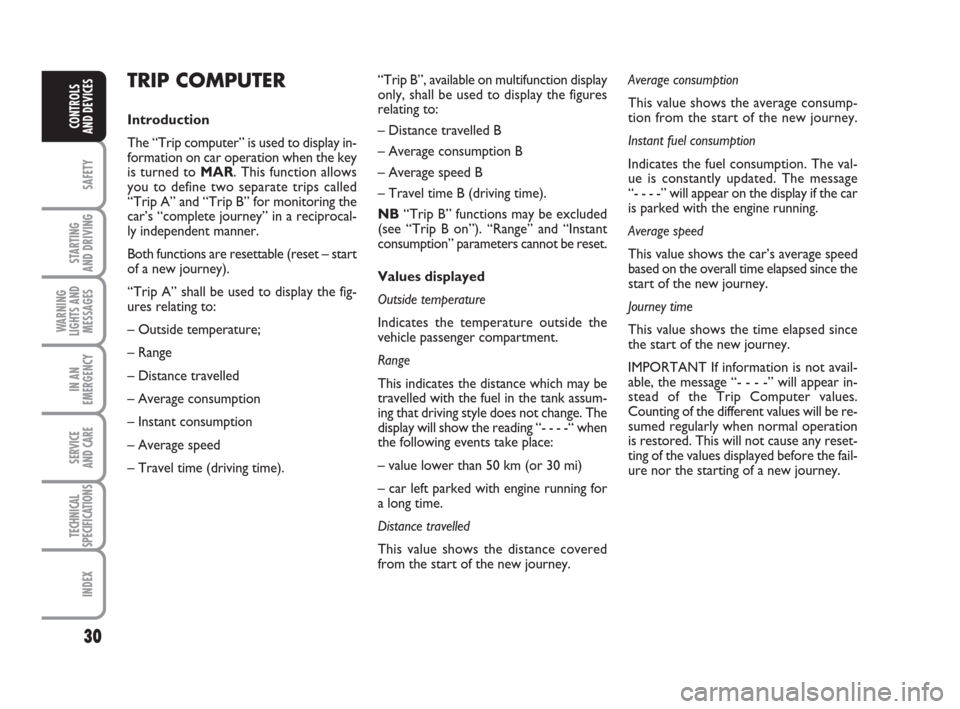

TRIP COMPUTER
Introduction
The “Trip computer” is used to display in-
formation on car operation when the key
is turned to MAR. This function allows
you to define two separate trips called
“Trip A” and “Trip B” for monitoring the
car’s “complete journey” in a reciprocal-
ly independent manner.
Both functions are resettable (reset – start
of a new journey).
“Trip A” shall be used to display the fig-
ures relating to:
– Outside temperature;
– Range
– Distance travelled
– Average consumption
– Instant consumption
– Average speed
– Travel time (driving time).“Trip B”, available on multifunction display
only, shall be used to display the figures
relating to:
– Distance travelled B
– Average consumption B
– Average speed B
– Travel time B (driving time).
NB“Trip B” functions may be excluded
(see “Trip B on”). “Range” and “Instant
consumption” parameters cannot be reset.
Values displayed
Outside temperature
Indicates the temperature outside the
vehicle passenger compartment.
Range
This indicates the distance which may be
travelled with the fuel in the tank assum-
ing that driving style does not change. The
display will show the reading “- - - -“ when
the following events take place:
– value lower than 50 km (or 30 mi)
– car left parked with engine running for
a long time.
Distance travelled
This value shows the distance covered
from the start of the new journey.Average consumption
This value shows the average consump-
tion from the start of the new journey.
Instant fuel consumption
Indicates the fuel consumption. The val-
ue is constantly updated. The message
“- - - -” will appear on the display if the car
is parked with the engine running.
Average speed
This value shows the car’s average speed
based on the overall time elapsed since the
start of the new journey.
Journey time
This value shows the time elapsed since
the start of the new journey.
IMPORTANT If information is not avail-
able, the message “- - - -” will appear in-
stead of the Trip Computer values.
Counting of the different values will be re-
sumed regularly when normal operation
is restored. This will not cause any reset-
ting of the values displayed before the fail-
ure nor the starting of a new journey.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 30

31
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
fig. 21F0M0124m

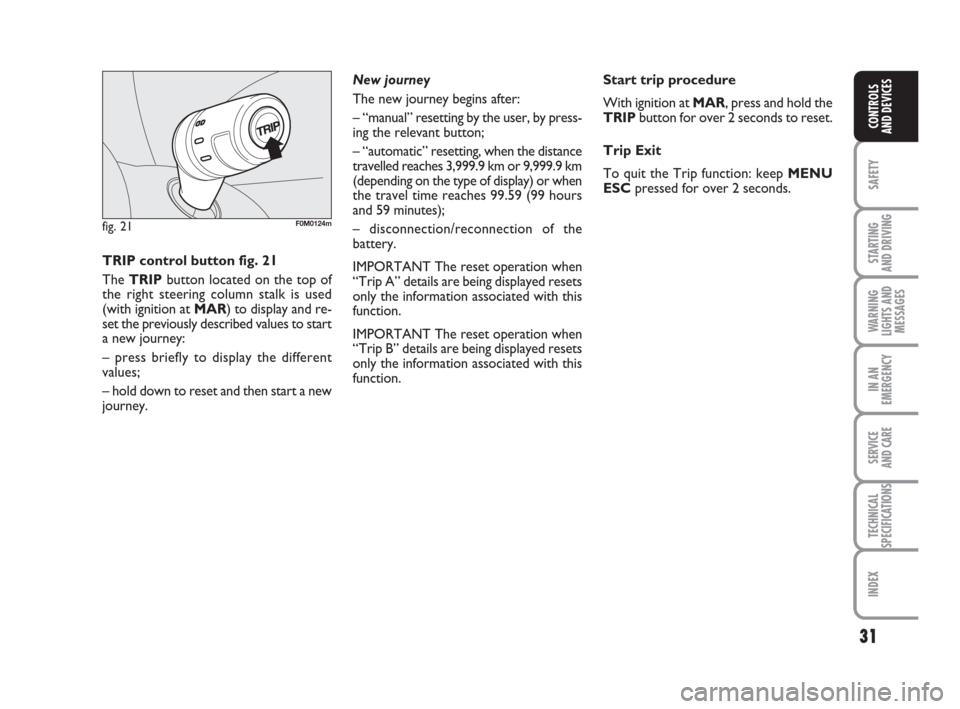

TRIP control button fig. 21
The TRIPbutton located on the top of
the right steering column stalk is used
(with ignition at MAR) to display and re-
set the previously described values to start
a new journey:
– press briefly to display the different
values;
– hold down to reset and then start a new
journey.New journey
The new journey begins after:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the distance
travelled reaches 3,999.9 km or 9,999.9 km
(depending on the type of display) or when
the travel time reaches 99.59 (99 hours
and 59 minutes);
– disconnection/reconnection of the
battery.
IMPORTANT The reset operation when
“Trip A” details are being displayed resets
only the information associated with this
function.
IMPORTANT The reset operation when
“Trip B” details are being displayed resets
only the information associated with this
function.Start trip procedure
With ignition at MAR, press and hold the
TRIPbutton for over 2 seconds to reset.
Trip Exit
To quit the Trip function: keep MENU
ESCpressed for over 2 seconds.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 31

32
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
The fabric upholstery of your
car is designed to withstand
normal wear and tear for
a long time. Some precau-
tions are needed though. Avoid pro-
longed and/or excessive rubbing
against clothing accessories such as
metal buckles and Velcro strips which,
by applying a high pressure on the fab-
ric in a small area, could cause some
threads to break, thereby damaging
the upholstery.
Height adjustment fig. 22
(for versions/markets, where provided)
Move lever Bupwards or downwards to
achieve the required height.
IMPORTANT Adjustment must be car-
ried out only when seated in the relevant
seat.
Backrest angle adjustment fig. 22
Turn knob C.

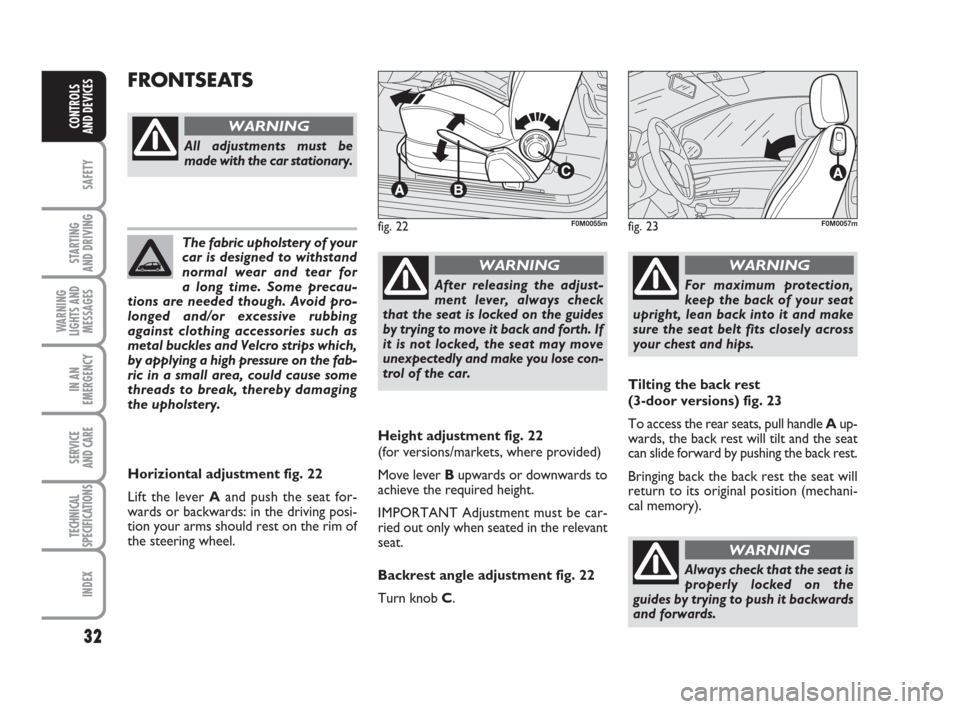

FRONTSEATS
fig. 22F0M0055m
All adjustments must be
made with the car stationary.
WARNING
Horiziontal adjustment fig. 22
Lift the lever Aand push the seat for-
wards or backwards: in the driving posi-
tion your arms should rest on the rim of
the steering wheel.
After releasing the adjust-
ment lever, always check
that the seat is locked on the guides
by trying to move it back and forth. If
it is not locked, the seat may move
unexpectedly and make you lose con-
trol of the car.
WARNING
For maximum protection,
keep the back of your seat
upright, lean back into it and make
sure the seat belt fits closely across
your chest and hips.
WARNING
fig. 23F0M0057m
Tilting the back rest
(3-door versions) fig. 23
To access the rear seats, pull handle Aup-
wards, the back rest will tilt and the seat
can slide forward by pushing the back rest.
Bringing back the back rest the seat will
return to its original position (mechani-
cal memory).
Always check that the seat is
properly locked on the
guides by trying to push it backwards
and forwards.
WARNING
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 32

33
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
The fabric upholstery of your
car is designed to withstand
normal wear and tear for
a long time. Some precautions
are needed though. Avoid prolonged
and/or excessive rubbing against cloth-
ing accessories such as metal buckles
and Velcro strips which, by applying
a high pressure on the fabric in a small
area, could cause some threads to
break, thereby damaging the upholstery.

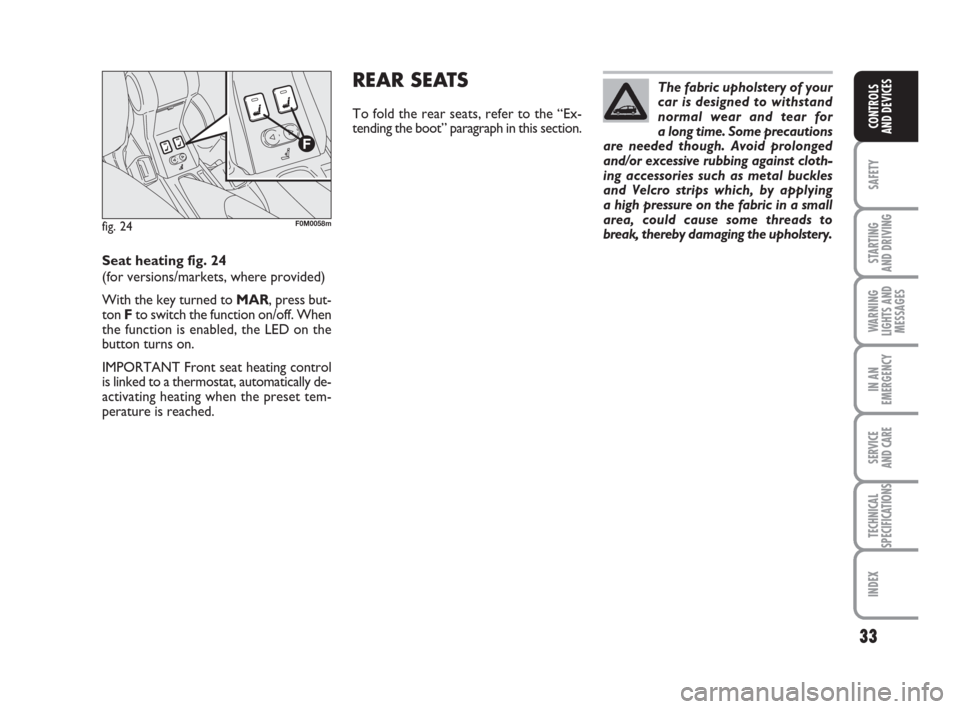

Seat heating fig. 24
(for versions/markets, where provided)
With the key turned to MAR, press but-
ton Fto switch the function on/off. When
the function is enabled, the LED on the
button turns on.
IMPORTANT Front seat heating control
is linked to a thermostat, automatically de-
activating heating when the preset tem-
perature is reached.REAR SEATS
To fold the rear seats, refer to the “Ex-
tending the boot” paragraph in this section.
fig. 24F0M0058m
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 33

34
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
HEAD RESTRAINTS
FRONT HEAD RESTRAINTS
fig. 25
On certain versions the head restraints
are adjustable in height and they lock au-
tomatically in the required position.
To adjust head restraints, proceed as fol-
lows:
❒upwards adjustment: lift the head re-
straint until it locks.❒downwards adjustment: press button
Aand lower the head restraint.
Lifting off the front head restraints: press
buttons Aand Bat the same time and lift.REAR HEAD RESTRAINTS fig. 26
(for versions/markets, where provided)
To move the head restraint upwards, raise
it until hearing the click (position of use).
To bring it back to the position of non-
use, press button Aand push the head re-
straint down into the back rest.
To extract the rear head restraints, press
buttons Aand Bat the same time and lift.
IMPORTANT When the rear seats are in
use, the head restraints must always be
in the position of use.
fig. 25F0M0025mfig. 26F0M0026m
Head restraints must be ad-
justed so that the head,
rather than the neck, rests on them.
Only then can they protect your head
correctly.
WARNING
To make the best use of the head restraint
protective action, adjust the seat back so
that your trunk is upright and keep your
head as close as possible to the head re-
straint.
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 34

35
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
MIRRORS
REAR-VIEW MIRROR fig. 28
The mirror is fitted with a safety device
that causes its release in the event of a vi-
olent impact with the passenger.

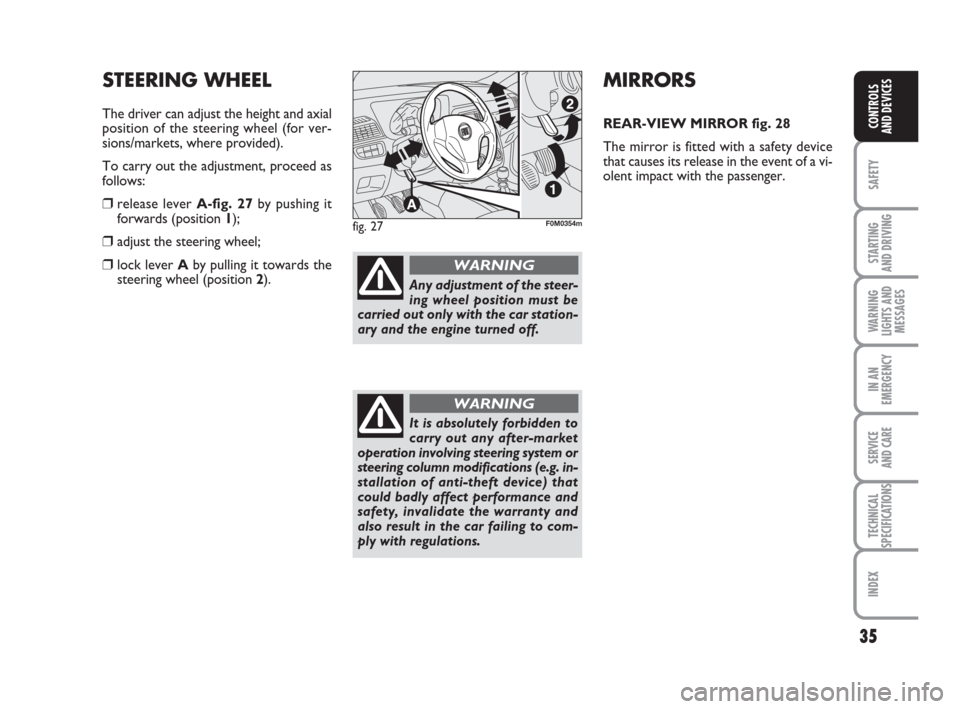

STEERING WHEEL
The driver can adjust the height and axial
position of the steering wheel (for ver-
sions/markets, where provided).
To carry out the adjustment, proceed as
follows:
❒release lever A-fig. 27by pushing it
forwards (position 1);
❒adjust the steering wheel;
❒lock lever Aby pulling it towards the
steering wheel (position 2).
fig. 27F0M0354m
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car failing to com-
ply with regulations.
WARNING
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 35

36
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

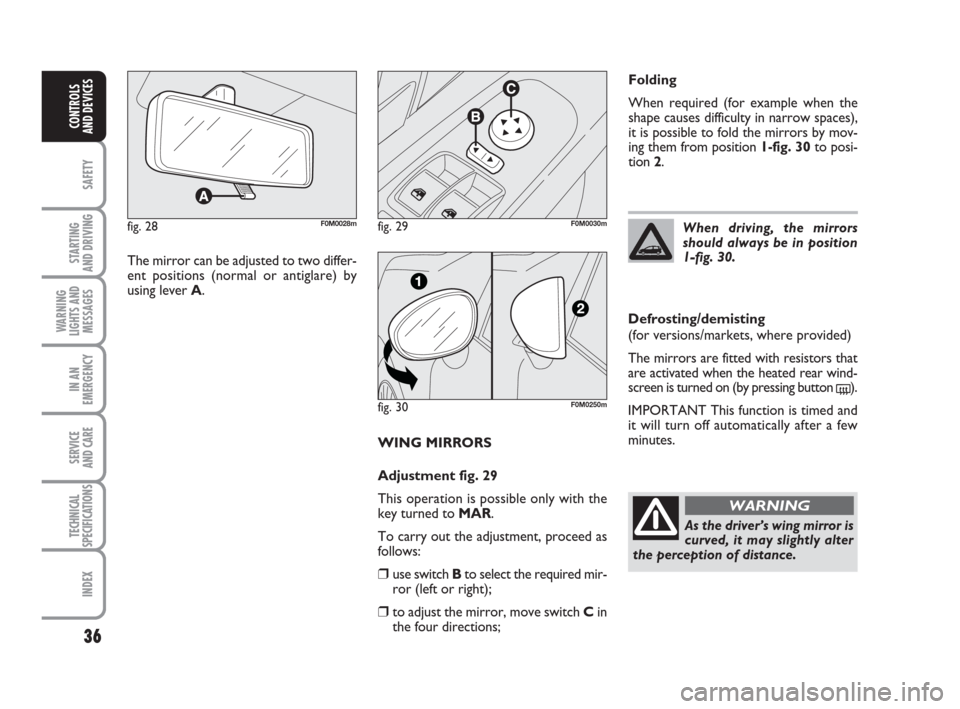

WING MIRRORS
Adjustment fig. 29
This operation is possible only with the
key turned to MAR.
To carry out the adjustment, proceed as
follows:
❒use switch Bto select the required mir-
ror (left or right);
❒to adjust the mirror, move switch Cin
the four directions;
fig. 28F0M0028mfig. 29F0M0030m
The mirror can be adjusted to two differ-
ent positions (normal or antiglare) by
using lever A.
fig. 30F0M0250m
Folding
When required (for example when the
shape causes difficulty in narrow spaces),
it is possible to fold the mirrors by mov-
ing them from position 1-fig. 30 to posi-
tion 2.
When driving, the mirrors
should always be in position
1-fig. 30.
As the driver’s wing mirror is
curved, it may slightly alter
the perception of distance.
WARNING
Defrosting/demisting
(for versions/markets, where provided)
The mirrors are fitted with resistors that
are activated when the heated rear wind-
screen is turned on (by pressing button
().
IMPORTANT This function is timed and
it will turn off automatically after a few
minutes.
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 36

37
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
fig. 31
F0M0355m
HEATING AND VENTILATION SYSTEM
1.Upper fixed vent –2.Adjustable central vents –3.Fixed side vents –4.Adjustable side vents –5. Lower vents for front seats
–6.Lower vents for rear seats
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 37

38
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

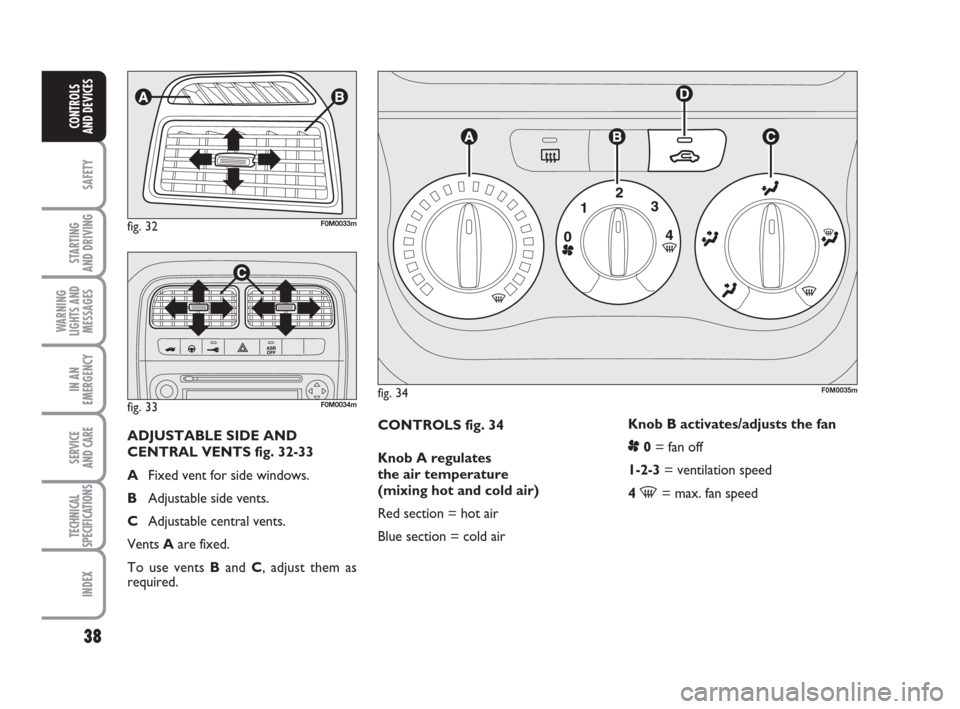

CONTROLS fig. 34
Knob A regulates
the air temperature
(mixing hot and cold air)
Red section = hot air
Blue section = cold airKnob B activates/adjusts the fan
p0= fan off
1-2-3= ventilation speed
4
-= max. fan speed
fig. 34F0M0035m
fig. 32F0M0033m
fig. 33F0M0034m
ADJUSTABLE SIDE AND
CENTRAL VENTS fig. 32-33
AFixed vent for side windows.
BAdjustable side vents.
CAdjustable central vents.
Vents Aare fixed.
To use vents Band C, adjust them as
required.
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 38

39
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

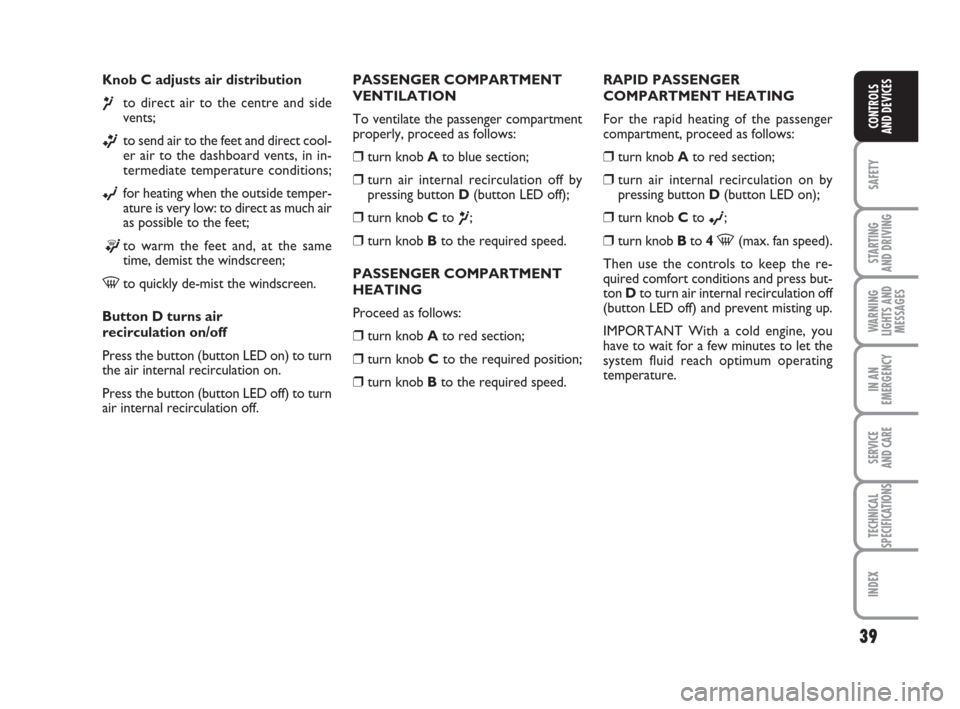

Knob C adjusts air distribution
¶to direct air to the centre and side
vents;
ßto send air to the feet and direct cool-
er air to the dashboard vents, in in-
termediate temperature conditions;
©for heating when the outside temper-
ature is very low: to direct as much air
as possible to the feet;
®to warm the feet and, at the same
time, demist the windscreen;
-to quickly de-mist the windscreen.
Button D turns air
recirculation on/off
Press the button (button LED on) to turn
the air internal recirculation on.
Press the button (button LED off) to turn
air internal recirculation off.RAPID PASSENGER
COMPARTMENT HEATING
For the rapid heating of the passenger
compartment, proceed as follows:
❒turn knob Ato red section;
❒turn air internal recirculation on by
pressing button D(button LED on);
❒turn knob Cto ©;
❒turn knob Bto 4 -(max. fan speed).
Then use the controls to keep the re-
quired comfort conditions and press but-
ton Dto turn air internal recirculation off
(button LED off) and prevent misting up.
IMPORTANT With a cold engine, you
have to wait for a few minutes to let the
system fluid reach optimum operating
temperature. PASSENGER COMPARTMENT
VENTILATION
To ventilate the passenger compartment
properly, proceed as follows:
❒turn knob Ato blue section;
❒turn air internal recirculation off by
pressing button D(button LED off);
❒turn knob Cto ¶;
❒turn knob Bto the required speed.
PASSENGER COMPARTMENT
HEATING
Proceed as follows:
❒turn knob Ato red section;
❒turn knob Cto the required position;
❒turn knob Bto the required speed.
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 39
