ECO mode FIAT GRANDE PUNTO ACTUAL 2014 1.G Owners Manual

50
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
REAR WINDOW WASHER/WIPER
fig. 42
This can work only when the key is turned
to MAR.
The function stops when the stalk is re-
leased.
Turning the twist switch from Oto
'will
operate the rear window wiper as follows:
❒intermittent operation if the wind-
screen wiper is off;
❒synchronised operation (but with half-
stroke frequency) when the windscreen
wiper is on;
❒continuous operation with reverse en-
gaged and function on.Do not use the rear window
wiper to remove layers of
snow or ice. In such condi-
tions, the rear window wiper
may be subjected to excessive stress,
prompting intervention from the mo-
tor protection which prevents opera-
tion for a few seconds. If operation is
not restored, even after turning the key
and restarting the engine, go to a Fiat
Dealership.
The rear window wiper will run in con-
tinuous mode when the windscreen wiper
is on and reverse gear is engaged.
Pushing the stalk towards the dashboard
(temporary position) will activate the rear
window washer jet.
Keeping the stalk pushed for more than
half a second will also activate the rear
window wiper.
Smart wash function is activated when the
stalk is released, like for the windscreen
wiper.
fig. 42F0M0218m
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 50

52
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

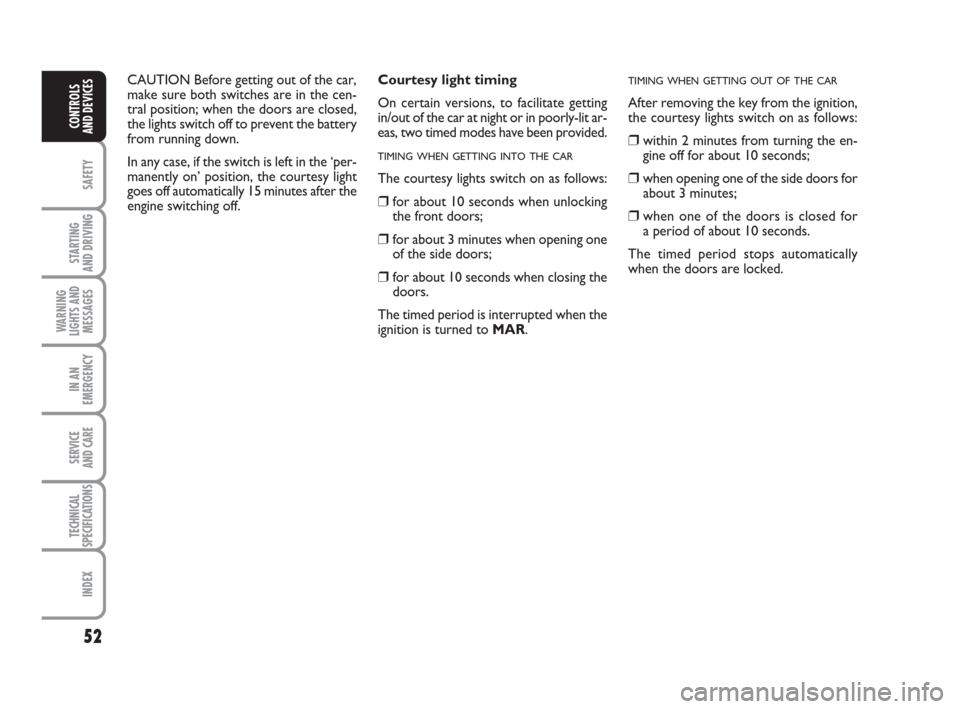

Courtesy light timing
On certain versions, to facilitate getting
in/out of the car at night or in poorly-lit ar-
eas, two timed modes have been provided.
TIMING WHEN GETTING INTO THE CAR
The courtesy lights switch on as follows:
❒for about 10 seconds when unlocking
the front doors;
❒for about 3 minutes when opening one
of the side doors;
❒for about 10 seconds when closing the
doors.
The timed period is interrupted when the
ignition is turned to MAR.
TIMING WHEN GETTING OUT OF THE CAR
After removing the key from the ignition,
the courtesy lights switch on as follows:
❒within 2 minutes from turning the en-
gine off for about 10 seconds;
❒when opening one of the side doors for
about 3 minutes;
❒when one of the doors is closed for
a period of about 10 seconds.
The timed period stops automatically
when the doors are locked. CAUTION Before getting out of the car,
make sure both switches are in the cen-
tral position; when the doors are closed,
the lights switch off to prevent the battery
from running down.
In any case, if the switch is left in the ‘per-
manently on’ position, the courtesy light
goes off automatically 15 minutes after the
engine switching off.
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 52

65
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

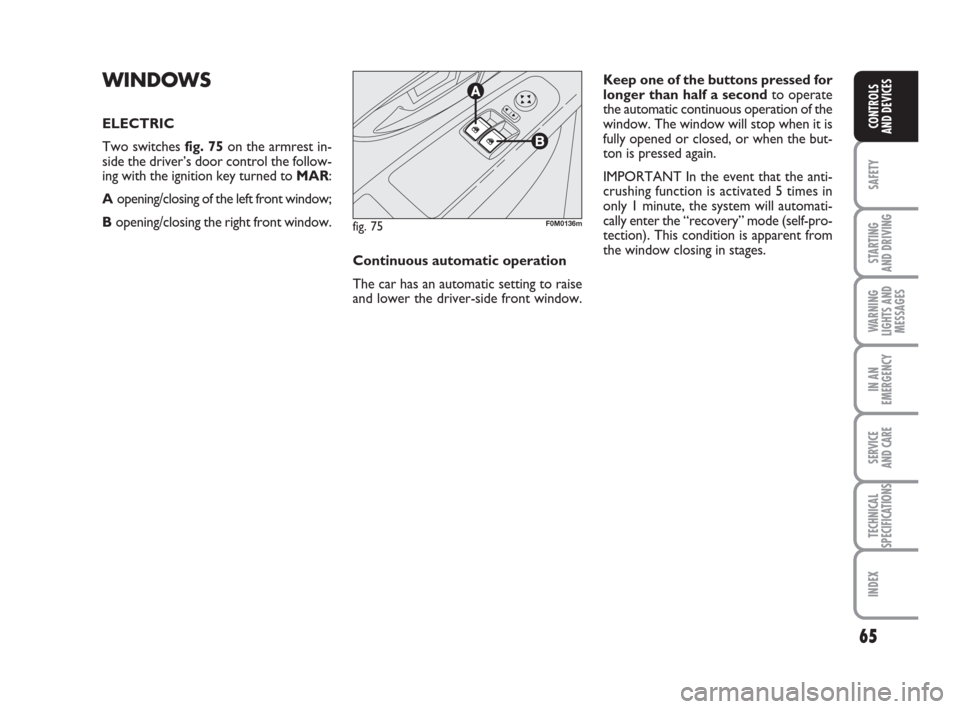

WINDOWS
ELECTRIC
Two switches fig. 75on the armrest in-
side the driver’s door control the follow-
ing with the ignition key turned to MAR:
Aopening/closing of the left front window;
B opening/closing the right front window.Keep one of the buttons pressed for
longer than half a secondto operate
the automatic continuous operation of the
window. The window will stop when it is
fully opened or closed, or when the but-
ton is pressed again.
IMPORTANT In the event that the anti-
crushing function is activated 5 times in
only 1 minute, the system will automati-
cally enter the “recovery” mode (self-pro-
tection). This condition is apparent from
the window closing in stages.
fig. 75F0M0136m
Continuous automatic operation
The car has an automatic setting to raise
and lower the driver-side front window.
033-071 ACTUAL 1ed EN 21-07-2010 14:26 Pagina 65

126
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
LOW ENGINE OIL
PRESSURE (red)
EXHAUSTED ENGINE
OIL
(only Multijet versions with
DPF - red)
When the ignition key is turned to MAR
(ON), the warning light switches on and
should go out as soon as the engine is
started.
Low engine oil pressure
The warning light turns on and stays on
constantly (for versions/markets, where
provided) along with the message on the
display when the system detects that en-
gine oil pressure is low.
v
If the warning light vturns on when the vehicle is
travelling (on certain versions to-
gether with the message on the dis-
play) stop the engine immediately
and contact a Fiat Dealership.
WARNING
❒if the vehicle is used under de-
manding conditions (e.g. towing
trailers uphill or fully loaded): slow
down and, if the light stays on, stop the
car. Stop for 2 or 3 minutes with the
engine running and slightly accelerated
to assist better coolant circulation.
Then switch the engine off. Check cor-
rect fluid level as described above.
IMPORTANT On particularly demanding
journeys, it is advisable to keep the engine
on and slightly accelerated for a few min-
utes before switching it off.
A specific message is displayed on certain
versions.
LOW BATTERY
CHARGE (red)
When the ignition key is moved to MAR,
the warning light turns on but should go
out as soon as the engine is started (with
the engine idling, a brief delay can be ex-
pected).
If the warning light comes on, either per-
manently or intermittently, contact a Fiat
Dealership immediately.
w
Exhausted engine oil
(only Multijet versions with DPF)
The warning light will flash and a specific
message will appear on the display (for
versions/markets, where provided). The
warning light may flash in the following
ways, depending on the version:
– for 1 minute every two hours;
– for 3 minute cycles with the warning
light off for intervals of 5 seconds until oil
is changed.
After the initial warning, each time the en-
gine is started up, the warning light will
continue to flash in the above mentioned
modes, until the oil is changed. A specific
message will appear on the display (for
versions/markets, where provided) in ad-
dition to the warning light.
If the warning light flashes, this does not
mean that the car is defective but simply
informs the driver that it is now necessary
to change the oil as a result of regular ve-
hicle use.
Note that engine oil is exhausted faster
under the following circumstances:
– use of the vehicle prevalently for city dri-
ving, requiring more frequent regenera-
tion of DPF
– use of the vehicle for short drives, in
which the engine does not have time to
reach its regular operating temperature
– repeated interruption of the regenera-
tion process, signalled by the DPF warn-
ing light coming on.
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 126

The engine of your car is factory filled with Selenia.
Oil change? The experts recommend Selenia
This is an engine oil range which satisfies the most advanced
international specifications. Its superior technical characteristics
allow Selenia to guarantee the highest performance
and protection of your engine.
The Selenia range includes a number of technologically advanced products:
SELENIA K PURE ENERGY
Pagine_ITA.indd418-05-200511:54:19
Synthetic lubricant designed for latest generation, low
emission, petrol engines. Its specific formulation warrants
the utmost protection also for high performance
turbocharged engines with high thermal stress.
Its low ash content helps to maintain the total cleanliness
of modern catalysts.
SELENIA WR PURE ENERGY
Fully synthetic lubricant that can meet the requirements of
the latest diesel engines. Low ash content to protect the
particulate filter from the residual products of combustion.
High Fuel Economy System that allows
considerable fuel saving.
It reduces the danger of dirtying the turbine to ensure the
protection of increasingly high performance diesel
enginesSELENIA MULTIPOWER
Particularly ideal for the protection of new generation petrol
engines, very effective even in the most severe weather
conditions. It guarantees a reduction in fuel consumption
(Energy conserving) and it is also ideal for alternative
engines.
SELENIA SPORT
Fully synthetic lubricant capable of meeting the needs of
high performance engines.
Studied to protect the engine also in high thermal stress
conditions, it prevents deposits on the turbine to achieve
the utmost performance in total safety.
The range also includes Selenia StAR Pure Energy, Selenia
Racing, Selenia K, Selenia WR, Selenia 20K, Selenia 20K AR.
For further information on Selenia products visit the web site
www.selenia.com.

Pagine_ITA.indd118-05-200511:53:40
205-214 ACTUAL 1ed EN 26-07-2010 16:15 Pagina 211
