AND DEVICESDASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM ................................................. 6
THE KEYS .............................................................................. 8
ALARM ................................................................................... 10
IGNITION ............................................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS .................................................................... 14
DIGITAL DISPLAY ............................................................... 16
MULTIFUNCTION DISPLAY ............................................ 21
TRIP COMPUTER ................................................................ 30
FRONT SEATS ..................................................................... 32
REAR SEATS .......................................................................... 33
HEAD RESTRAINTS ........................................................... 34
STEERING WHEEL .............................................................. 35
MIRRORS ............................................................................... 35
HEATING AND VENTILATION SYSTEM .................... 37
MANUAL CLIMATE CONTROL SYSTEM .................... 41
EXTERIOR LIGHTS ............................................................. 47
WINDOW CLEANING ..................................................... 49
CEILING COURTESY LIGHTS ......................................... 51
CONTROLS ........................................................................ 53
FUEL CUT-OFF SYSTEM ................................................... 55INTERIOR FITTINGS........................................................... 56
SKYDOME SUNROOF ....................................................... 60
DOORS .................................................................................. 62
ELECTRIC WINDOW OPENING ................................. 65
BOOT ..................................................................................... 67
BONNET ............................................................................... 70
ROOF RACK/SKI RACK .................................................... 71
HEADLIGHTS ....................................................................... 72
ABS SYSTEM ......................................................................... 74
ESP SYSTEM .......................................................................... 75
EOBD SYSTEM ..................................................................... 78
“DUAL DRIVE” ELECTRIC POWER
STEERING SYSTEM ............................................................. 79
START&STOP SYSTEM ...................................................... 81
SYSTÈME GEAR SHIFT INDICATOR ............................. 86
SOUND SYSTEM ................................................................. 87
ABILITY TO INSTALL A PORTABLE
NAVIGATION SYSTEM ..................................................... 88
ACCESSORIES PURCHASED BY THE OWNER ......... 88
REFEULLING THE CAR ..................................................... 90
PROTECTING THE ENVIRONMENT ........................... 91
C C
O O
N N
T T
R R
O O
L L
S S
A A
N N
D D
D D
E E
V V
I I
C C
E E
S S
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 4
Page 22 of 216
21
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
CONTROL BUTTONS fig. 19
+To scroll the displayed menu and the
related options upwards or to in-
crease the displayed value.
MENUPress briefly to display the menu
ESCand/or go to the next screen or
confirm your choice.
Hold down to go back to the
standard screen.
–To scroll the displayed menu and the
related options downwards or to de-
crease the value displayed.
MULTIFUNCTION
DISPLAY
(for versions/markets, where provided)
The car can be equipped with the multi-
function display that, depending on previ-
ous settings, shows useful information
when driving.
STANDARD SCREEN fig. 18
The standard screen shows the following
information:
ADate.
BOdometer (distance covered in km or
miles).
CTime (always displayed, even with key
removed from the ignition and front
doors closed).
DExternal temperature.
EHeadlight alignment position (only
with dipped beam headlights on).
FStart&Stop indicator (for versions/
markets where provided).
GGear Shift Indicator (for versions/
markets where provided).
NBWhen one of the front doors is
opened, the display turns on and shows
for a few seconds the time and distance
covered.
fig. 18F0M0538m
NBThe +and –buttons activate differ-
ent functions according to the following
situations:
Controlling the car’s interior lights
– on the standard screen, they control in-
strument panel brightness, the sound sys-
tem and the automatic climate control
system.
Setup menu
– within the menu, they scroll up and
down;
– during settings operations, they increase
or decrease values.
fig. 19F0M0122m
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 21
Page 48 of 216
47
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
EXTERIOR LIGHTS
The left-hand stalk fig. 39operates most
of the external lights.
The external lights can be switched on on-
ly when the key is turned to MAR.
The instrument panel and the various con-
trols on the dashboard will be lit up when
the exterior lights are switched on.
LIGHTS OFF
Twist switch turned to position O.
SIDELIGHTS – TAIL LIGHTS
Twist the switch to position
6.
The light
3on the instrument panel
comes on.FLASHING THE HEADLIGHTS
Pull the stalk towards the steering wheel
(1
atemporary position) regardless of the
position of the twist switch. The warn-
ing light
1on the instrument panel will
come on.
fig. 39F0M0060m
DIPPED BEAM HEADLIGHTS
Twist the switch to position
2.
The light
3on the instrument panel
comes on.
MAIN BEAM HEADLIGHTS
When the twist switch is at
2, pull the
stalk towards the steering wheel (2ndtem-
porary position).
The warning light
1on the instrument
panel will come on.
To turn the main beams off, pull the stalk
towards the steering wheel again (dipped
beams will come back on).
033-071 ACTUAL 1ed EN 18-01-2011 11:49 Pagina 47
Page 55 of 216
54
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
HEATED REAR WINDOW fig. 49
Press button Ato activate. The device will
be switched off automatically after ap-
proximately 20 minutes.
fig. 49F0M0036m
PARKING LIGHTS
These lights can be turned on, only with
the key turned to STOPor removed, by
turning the twist switch on the left stalk
first to Oand then to
6or 2.
The
3light on the instrument panel
comes on.
DUALDRIVE ELECTRIC POWER
STEERING SYSTEM fig. 48
Press button A to activate the “CITY”
function (see the “Electric power steering
system” paragraph in this section). When
the function is active, the word CITYis
lit up on the instrument panel. Press the
button again to deactivate the function.
fig. 48F0M0073m
REAR FOG LAMPS fig. 47
Press button 4to turn these lights on
with the dipped beam headlights or the
front fog lights (for versions/markets,
where provided) switched on.
The 4light on the instrument panel will
come on.
Press the button again to turn the lights
off or turn off the dipped beam headlights
and/or the front fog lights (for versions/
markets, where provided).
The use of rear fog lamps is governed by
the highway code of the country you are
in. Keep to the rules.
fig. 47F0M0071m
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 54
Page 73 of 216
72
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

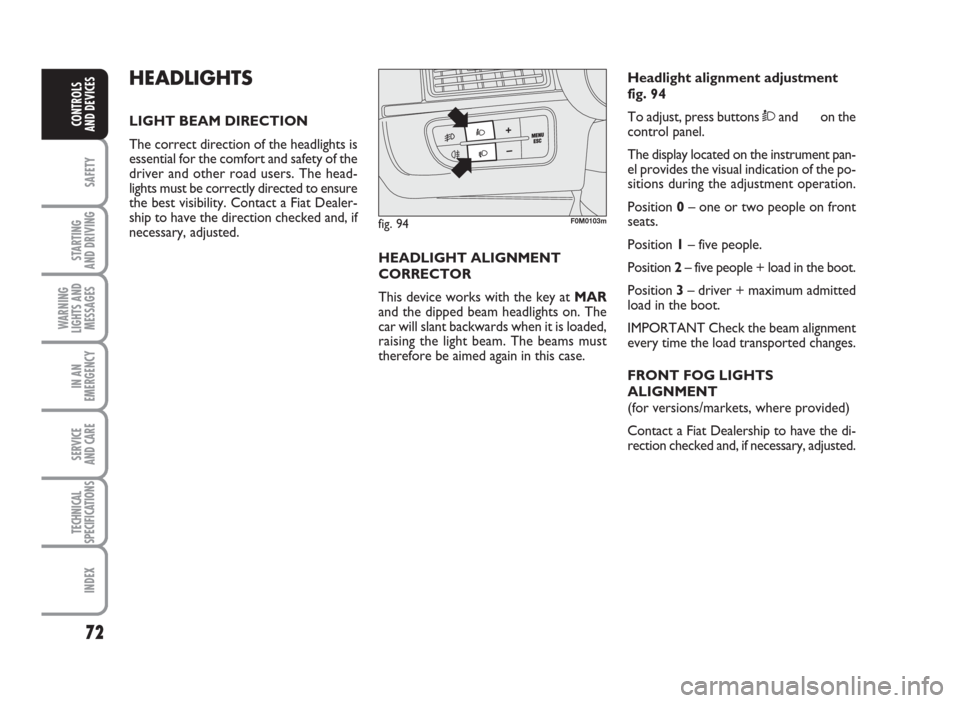

HEADLIGHTS
LIGHT BEAM DIRECTION
The correct direction of the headlights is
essential for the comfort and safety of the
driver and other road users. The head-
lights must be correctly directed to ensure
the best visibility. Contact a Fiat Dealer-
ship to have the direction checked and, if
necessary, adjusted.
HEADLIGHT ALIGNMENT
CORRECTOR
This device works with the key atMAR
and the dipped beam headlights on. The
car will slant backwards when it is loaded,
raising the light beam. The beams must
therefore be aimed again in this case.Headlight alignment adjustment
fig. 94
To adjust, press buttonsÒand on the
control panel.
The display located on the instrument pan-
el provides the visual indication of the po-
sitions during the adjustment operation.
Position0– one or two people on front
seats.
Position1– five people.
Position2– five people + load in the boot.
Position3– driver + maximum admitted
load in the boot.
IMPORTANT Check the beam alignment
every time the load transported changes.
FRONT FOG LIGHTS
ALIGNMENT
(for versions/markets, where provided)
Contact a Fiat Dealership to have the di-
rection checked and, if necessary, adjusted.
fig. 94F0M0103m
072-092 ACTUAL 1ed EN 26-07-2010 10:54 Pagina 72
Page 74 of 216
73
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

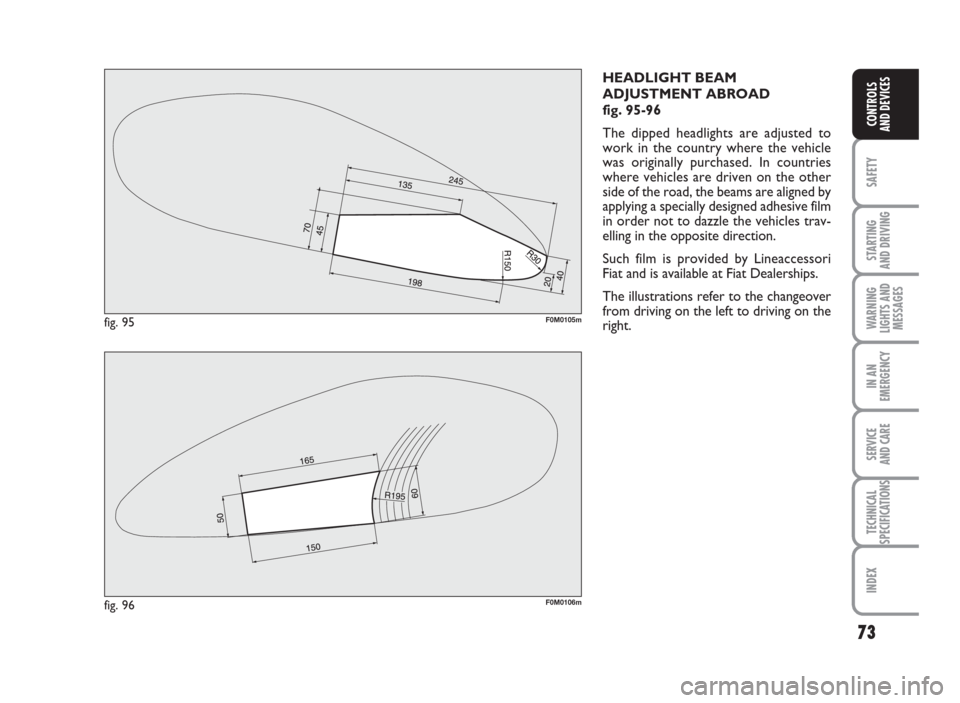

HEADLIGHT BEAM
ADJUSTMENT ABROAD
fig. 95-96
The dipped headlights are adjusted to
work in the country where the vehicle
was originally purchased. In countries
where vehicles are driven on the other
side of the road, the beams are aligned by
applying a specially designed adhesive film
in order not to dazzle the vehicles trav-
elling in the opposite direction.
Such film is provided by Lineaccessori
Fiat and is available at Fiat Dealerships.
The illustrations refer to the changeover
from driving on the left to driving on the
right.
fig. 95F0M0105m
fig. 96F0M0106m
072-092 ACTUAL 1ed EN 26-07-2010 10:54 Pagina 73
Page 118 of 216
117
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING
Roof rack/ski rack
Remove the roof rack or ski rack from the
roof after use. These accessories decrease
aerodynamic penetration and have a neg-
ative effect on fuel consumption. It is bet-
ter to use a trailer to transport particu-
larly bulky objects.
Electrical devices
Use electrical devices only for the amount
of time needed. The heated rear window,
auxiliary headlights, windscreen wipers and
fan heater use up a considerable amount
of current, causing increased fuel con-
sumption (up to +25% in the urban cycle).
Air conditioning
Air conditioning leads to higher fuel con-
sumption (on average up to +20%). If the
temperature outside is not too extreme,
try and use the air vents.
Spoilers
The use of non-certified spoilers may ad-
versely affect aerodynamics and fuel con-
sumption.DRIVING STYLE
Starting
Do not warm up the engine at low or high
revs when the vehicle is stationary; this
causes the engine to warm up more slow-
ly, thereby increasing fuel consumption
and emissions. It is advisable to set off im-
mediately and slowly, avoiding high revs:
this allows the engine to warm up more
quickly.
Unnecessary actions
Avoid revving up when stationary at traf-
fic lights or before stopping the engine.
The latter action, like double declutching,
is entirely unnecessary and causes in-
creased fuel consumption and pollution.
Gear selection
Use a higher gear as soon as traffic and
road conditions allow. Using a low gear
for faster acceleration will increase fuel
consumption.
In the same way, improper use of a high
gear increases fuel consumption, emissions
and engine wear.SAVING FUEL
Here are some suggestions which may
help you to save fuel and reduce the
amount of toxic emissions released into
the atmosphere.
GENERAL CONSIDERATIONS
Car maintenance
Have checks and adjustments carried out
in accordance with the “Scheduled Service
Plan”.
Tyres
Check the tyre pressure at least once
every 4 weeks: if the pressure is too low,
consumption levels increase as resistance
to rolling is higher.
Unnecessary loads
Do not travel with an overloaded boot.
The weight of the car (especially when dri-
ving in town) and its arrangement greatly
affect fuel consumption and stability.
111-122 ACTUAL 1ed EN 20-07-2010 16:10 Pagina 117
Page 124 of 216
123
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
GENERAL WARNINGS ..................................................... 124
LOW BRAKE FLUID LEVEL .............................................. 124
HANDBRAKE ON .............................................................. 124
AIRBAG FAULT ................................................................... 125
OVERHEATED ENGINE COOLANT ............................ 125
LOW BATTERY CHARGE ................................................ 126
LOW ENGINE OIL PRESSURE -
EXHAUSTED ENGINE OIL ............................................... 126
“DUALDRIVE” ELECTRIC POWER
STEERING FAULT ............................................................... 127
DOOR OPEN ....................................................................... 127
LOW ENGINE OIL LEVEL ................................................ 127
EBD FAULT ........................................................................... 127
INJECTION SYSTEM FAULT
(Multijet versions) ................................................................. 128
ENGINE CONTROL SYSTEM FAULT (EOBD)
(petrol versions) ................................................................... 128
FRONT PASSENGER AIRBAG DEACTIVATED .......... 129
ABS FAULT ........................................................................... 129
FUEL RESERVE ...................................................................... 129
SEAT BELT NOT FASTENED ........................................... 129
GLOW PLUG HEATING ................................................... 130
GLOW PLUG HEATING FAULT .................................... 130WATER IN DIESEL FILTER ............................................... 130
FIAT CODE CAR PROTECTION SYSTEM FAULT .... 131
EXTERIOR LIGHTS FAULT .............................................. 131
REAR FOG LAMPS .............................................................. 131
GENERIC WARNING ........................................................ 131
DPF CLEANING IN PROGRESS
(Multijet versions) ................................................................. 132
ESP SYSTEM FAULT ............................................................ 132
WORN BRAKE PADS ........................................................ 132
HILL HOLDER FAULT ....................................................... 132
SIDELIGHTS AND DIPPED BEAM HEADLIGHTS ...... 133
FOLLOW ME HOME .......................................................... 133
FOG LIGHTS ........................................................................ 133
LEFT-HAND DIRECTION INDICATOR ....................... 133
RIGHT-HAND DIRECTION INDICATOR ................... 133
“DUALDRIVE” ELECTRIC POWER STEERING ON ... 133
MAIN BEAM HEADLIGHTS .............................................. 133
POSSIBLE ICE ON ROAD ................................................. 134
LIMITED RANGE ................................................................. 134
ASR SYSTEM ......................................................................... 134
SPEED LIMIT EXCEEDED .................................................. 134
W W
A A
R R
N N
I I
N N
G G
L L
I I
G G
H H
T T
S S
A A
N N
D D
M M
E E
S S
S S
A A
G G
E E
S S
123-134 ACTUAL 1ed EN 31-08-2010 9:23 Pagina 123
Page 134 of 216
133
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WARNING
LIGHTS AND
MESSAGES
“DUALDRIVE”
ELECTRIC POWER
STEERING ON (green)
The word “CITY” appears on the display
when the “Dualdrive” electric power
steering system is activated by pressing the
relevant control button. Press the button
again to make the “CITY” disappear.
CITY
MAIN BEAM
HEADLIGHTS
(blue)
The light comes on when the main beams
are turned on.
1
FOG LIGHTS
(green)
The light comes on when the front fog
lights are turned on.
5
LEFT-HAND
DIRECTION
INDICATOR
(green – intermittent)
The light (arrow) comes on when the di-
rection indicator control lever is moved
downwards or, together with the right-
hand arrow, when the hazard warning light
button is pressed.
F
RIGHT-HAND
DIRECTION
INDICATOR
(green – intermittent)
The light (arrow) comes on when the di-
rection indicator control lever is moved
upwards or, together with the left-hand
arrow, when the hazard warning light
button is pressed.
D
SIDELIGHTS
AND DIPPED BEAM
HEADLIGHTS (green)
FOLLOW ME HOME
(green)
Sidelights and dipped beam
headlights
The light comes on when the sidelights or
dipped beams are turned on.
Follow Me Home
The light comes on when this device is ac-
tive (see “Follow Me Home” in the “Dash-
board and controls” section).
The display will show a specific message.
3
123-134 ACTUAL 1ed EN 31-08-2010 9:24 Pagina 133
Page 148 of 216
147
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
CHANGING A BULB
GENERAL INSTRUCTIONS
❒When a light is not working, check that
the corresponding fuse is intact before
changing the bulb. For the location of
fuses, refer to the “Changing a fuse”
paragraph in this section;
❒before changing a bulb check the con-
tacts for rusting;
❒burnt bulbs must be replaced by others
of the same type and wattage;
❒for safety reasons, always check the di-
rection of the headlight beam after
changing a bulb.
IMPORTANT The internal surface of the
light may appear slightly misty: this does
not indicate a fault, and is actually caused
by low temperature and the degree of hu-
midity in the air. Misting will rapidly dis-
appear when the headlights are switched
on. The presence of drops inside the head-
lights indicates infiltration of water. Go to
a Fiat Dealership.
TYPES OF BULBS
Various types of bulbs are fitted to your
car:
AGlass bulbs: clipped into position. Pull
to remove.BBayonet-type bulbs: to remove from
its holder, press the bulb in and turn
it anti-clockwise.
CTubular bulbs: release them from
their contacts to remove.
D-EHalogen bulbs: to remove the bulb,
release the clip holding the bulb in
place. Halogen bulbs must be han-
dled holding the metallic part
only. Touching the transpar-
ent part of the bulb with your
fingers may reduce the intensity of the
light emitted and even compromise the
longevity of the bulb itself. In the event
of accidental contact, wipe the bulb
with an alcohol-soaked cloth and leave
to dry.
Modifications or repairs to
the electrical system (ECUs)
that are not carried out properly or
do not take the system’s technical
specifications into account can cause
malfunctions leading to the risk of fire.
WARNING
Halogen bulbs contain pres-
surised gas which may cause
small fragments of glass to be pro-
jected outwards if the bulb is broken.
WARNING
fig. 15F0M0207m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 147
