Page 5 of 216
4
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICESDASHBOARD ...................................................................... 5
SYMBOLS ............................................................................... 6
THE FIAT CODE SYSTEM ................................................. 6
THE KEYS .............................................................................. 8
ALARM ................................................................................... 10
IGNITION ............................................................................. 12
INSTRUMENT PANEL ........................................................ 13
INSTRUMENTS .................................................................... 14
DIGITAL DISPLAY ............................................................... 16
MULTIFUNCTION DISPLAY ............................................ 21
TRIP COMPUTER ................................................................ 30
FRONT SEATS ..................................................................... 32
REAR SEATS .......................................................................... 33
HEAD RESTRAINTS ........................................................... 34
STEERING WHEEL .............................................................. 35
MIRRORS ............................................................................... 35
HEATING AND VENTILATION SYSTEM .................... 37
MANUAL CLIMATE CONTROL SYSTEM .................... 41
EXTERIOR LIGHTS ............................................................. 47
WINDOW CLEANING ..................................................... 49
CEILING COURTESY LIGHTS ......................................... 51
CONTROLS ........................................................................ 53
FUEL CUT-OFF SYSTEM ................................................... 55INTERIOR FITTINGS........................................................... 56
SKYDOME SUNROOF ....................................................... 60
DOORS .................................................................................. 62
ELECTRIC WINDOW OPENING ................................. 65
BOOT ..................................................................................... 67
BONNET ............................................................................... 70
ROOF RACK/SKI RACK .................................................... 71
HEADLIGHTS ....................................................................... 72
ABS SYSTEM ......................................................................... 74
ESP SYSTEM .......................................................................... 75
EOBD SYSTEM ..................................................................... 78
“DUAL DRIVE” ELECTRIC POWER
STEERING SYSTEM ............................................................. 79
START&STOP SYSTEM ...................................................... 81
SYSTÈME GEAR SHIFT INDICATOR ............................. 86
SOUND SYSTEM ................................................................. 87
ABILITY TO INSTALL A PORTABLE
NAVIGATION SYSTEM ..................................................... 88
ACCESSORIES PURCHASED BY THE OWNER ......... 88
REFEULLING THE CAR ..................................................... 90
PROTECTING THE ENVIRONMENT ........................... 91
C C
O O
N N
T T
R R
O O
L L
S S
A A
N N
D D
D D
E E
V V
I I
C C
E E
S S
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 4
Page 6 of 216
DASHBOARD
The presence and position of the controls, the instruments and the indicators may vary according to the versions.
1.Adjustable side air vents – 2.Fixed side air vents – 3.Left-hand lever: exterior lights control – 4.Instrument panel – 5.Right-
hand lever: front and rear windscreen wiper controls, trip computer – 6.Controls on dashboard – 7.Adjustable central air vents
– 8.Fixed upper air vent – 9.Front airbag, passenger side – 10.Glove compartment – 11.Sound system (for versions/markets
where provided) – 12.HVAC controls – 13.Ignition – 14.Front airbag, driver’s side – 15. Steering wheel adjustment lever
– 16.Controls display: fog light/rear fog lamp/headlamp alignment adjustment/digital display/multifunction display.
5
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
F0M0400mfig. 1
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 5
Page 13 of 216
12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IGNITION
The key can be turned to 3 different po-
sitions fig. 9:
❒STOP: engine off, key can be extract-
ed, steering locked. Some electrical de-
vices (e.g. sound system, central door
locking system, etc.) can function.
❒MAR: driving position. All electrical
devices can function.
❒AVV: engine starting (temporary posi-
tion).
The ignition device is fitted with an elec-
tronic safety system that, in the event the
engine fails to start, turns back the ignition
key to STOPbefore repeating the start-
ing operation.STEERING LOCK
Engagement
When the key is in position STOP, re-
move it and turn the steering wheel until
it locks.
Disengagement
Rock the steering wheel slightly as you
turn the key to MAR.
If the ignition device has
been tampered with (e.g. an
attempted theft), have it checked
over by a Fiat Dealership as soon as
possible.
WARNING
Always remove the key when
you leave your car to pre-
vent someone from accidentally op-
erating the controls. Remember to
engage the handbrake. Engage first
gear if the car is parked uphill or re-
verse if the car is parked downhill.
Never leave children unattended in
the car.
WARNING
fig. 9F0M0015m
Never extract the key while
the vehicle is moving. The
steering wheel would lock automati-
cally as soon as it is turned. This also
applies to when the car is towed.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car not complying
with regulations.
WARNING
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 12
Page 32 of 216
31
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
fig. 21F0M0124m
TRIP control button fig. 21
The TRIPbutton located on the top of
the right steering column stalk is used
(with ignition at MAR) to display and re-
set the previously described values to start
a new journey:
– press briefly to display the different
values;
– hold down to reset and then start a new
journey.New journey
The new journey begins after:
– “manual” resetting by the user, by press-
ing the relevant button;
– “automatic” resetting, when the distance
travelled reaches 3,999.9 km or 9,999.9 km
(depending on the type of display) or when
the travel time reaches 99.59 (99 hours
and 59 minutes);
– disconnection/reconnection of the
battery.
IMPORTANT The reset operation when
“Trip A” details are being displayed resets
only the information associated with this
function.
IMPORTANT The reset operation when
“Trip B” details are being displayed resets
only the information associated with this
function.Start trip procedure
With ignition at MAR, press and hold the
TRIPbutton for over 2 seconds to reset.
Trip Exit
To quit the Trip function: keep MENU
ESCpressed for over 2 seconds.
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 31
Page 33 of 216
32
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
The fabric upholstery of your
car is designed to withstand
normal wear and tear for
a long time. Some precau-
tions are needed though. Avoid pro-
longed and/or excessive rubbing
against clothing accessories such as
metal buckles and Velcro strips which,
by applying a high pressure on the fab-
ric in a small area, could cause some
threads to break, thereby damaging
the upholstery.
Height adjustment fig. 22
(for versions/markets, where provided)
Move lever Bupwards or downwards to
achieve the required height.
IMPORTANT Adjustment must be car-
ried out only when seated in the relevant
seat.
Backrest angle adjustment fig. 22
Turn knob C.
FRONTSEATS
fig. 22F0M0055m
All adjustments must be
made with the car stationary.
WARNING
Horiziontal adjustment fig. 22
Lift the lever Aand push the seat for-
wards or backwards: in the driving posi-
tion your arms should rest on the rim of
the steering wheel.
After releasing the adjust-
ment lever, always check
that the seat is locked on the guides
by trying to move it back and forth. If
it is not locked, the seat may move
unexpectedly and make you lose con-
trol of the car.
WARNING
For maximum protection,
keep the back of your seat
upright, lean back into it and make
sure the seat belt fits closely across
your chest and hips.
WARNING
fig. 23F0M0057m
Tilting the back rest
(3-door versions) fig. 23
To access the rear seats, pull handle Aup-
wards, the back rest will tilt and the seat
can slide forward by pushing the back rest.
Bringing back the back rest the seat will
return to its original position (mechani-
cal memory).
Always check that the seat is
properly locked on the
guides by trying to push it backwards
and forwards.
WARNING
001-032 ACTUAL 1ed EN.qxd 31-08-2010 9:24 Pagina 32
Page 36 of 216
35
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
MIRRORS
REAR-VIEW MIRROR fig. 28
The mirror is fitted with a safety device
that causes its release in the event of a vi-
olent impact with the passenger.
STEERING WHEEL
The driver can adjust the height and axial
position of the steering wheel (for ver-
sions/markets, where provided).
To carry out the adjustment, proceed as
follows:
❒release lever A-fig. 27by pushing it
forwards (position 1);
❒adjust the steering wheel;
❒lock lever Aby pulling it towards the
steering wheel (position 2).
fig. 27F0M0354m
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car failing to com-
ply with regulations.
WARNING
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 35
Page 48 of 216
47
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
EXTERIOR LIGHTS
The left-hand stalk fig. 39operates most
of the external lights.
The external lights can be switched on on-
ly when the key is turned to MAR.
The instrument panel and the various con-
trols on the dashboard will be lit up when
the exterior lights are switched on.
LIGHTS OFF
Twist switch turned to position O.
SIDELIGHTS – TAIL LIGHTS
Twist the switch to position
6.
The light
3on the instrument panel
comes on.FLASHING THE HEADLIGHTS
Pull the stalk towards the steering wheel
(1
atemporary position) regardless of the
position of the twist switch. The warn-
ing light
1on the instrument panel will
come on.
fig. 39F0M0060m
DIPPED BEAM HEADLIGHTS
Twist the switch to position
2.
The light
3on the instrument panel
comes on.
MAIN BEAM HEADLIGHTS
When the twist switch is at
2, pull the
stalk towards the steering wheel (2ndtem-
porary position).
The warning light
1on the instrument
panel will come on.
To turn the main beams off, pull the stalk
towards the steering wheel again (dipped
beams will come back on).
033-071 ACTUAL 1ed EN 18-01-2011 11:49 Pagina 47
Page 49 of 216
48
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
DIRECTION INDICATORS fig. 40
Put the stalk in the permanent position:
❒Up (position 1): right-hand direction in-
dicator;
❒Down (position 2): left-hand direction
indicator.
The
¥or Îlights will blink on the in-
strument panel.
Indicators are switched off automatically
when the steering wheel is straightened.
If you want the indicator to flash briefly to
show that you are about to change lane,
move the stalk up or down without it
clicking into position. When released, the
stalk will return to its default position.
Lane change function
If you wish to signal a lane change, put the
left stalk in the temporary position for less
than half a second. The direction indicator
on the side selected will be activated for
5 flashes and then go out automatically.“FOLLOW ME HOME” DEVICE
This will light up the space in front of the
vehicle for a certain period of time.
Activation
With the key turned to STOPor re-
moved, pull the left-hand stalk towards the
steering wheel within 2 minutes from
when the engine is turned off.
Each time the stalk is moved, the lights
stay on for an extra 30 seconds up to
a maximum of 210 seconds; then the lights
are switched off automatically.When the stalk is moved, the light
3on
the instrument panel will light up and the
corresponding message will appear in the
display (see “Warning lights and mes-
sages”) as long as the function is on. The
light comes on when the stalk is first
moved and stays on until the function is
automatically deactivated. Each movement
of the stalk increases only the amount of
time the lights stay on.
Deactivation
Keep the stalk pulled towards the steer-
ing wheel for more than 2 seconds.
fig. 40F0M0061m
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 48
Page 50 of 216
49
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
WINDOW WASHING
The right stalk fig. 41controls windscreen
wiper/washer and rear window wiper/
washer operation.
WINDSCREEN WASHER/WIPER
This can work only when the key is turned
to MAR.
The twist switch on the right stalk can be
moved to four different positions:
Owindscreen wiper off;
≤intermittent operation;
≥continuous slow operation;
¥continuous fast operation.
Move the stalk to position A(temporary)
to limit operation to the time for which
the stalk is held in this position. When re-
leased, the stalk returns to its default po-
sition, automatically stopping the wiper.Do not use the windscreen
wiper to remove layers of
snow or ice from the wind-
screen. In such conditions, the
windscreen wipers may be subjected to
excessive stress, prompting interven-
tion from the motor protection which
prevents operation for a few seconds.
If operation is not restored, even after
turning the key and restarting the en-
gine, go to a Fiat Dealership.
With the twist switch in position
≤, the
windscreen wiper will automatically adapt
to the speed of the car.IMPORTANT Replace the wiper blades as
specified in the “Car maintenance” sec-
tion.
fig. 41F0M0062m
“Smart washing” function
Pull the stalk towards the steering wheel
(temporary position) to operate the wind-
screen washer.
Keeping the stalk pulled for more than half
a second, with just one movement it is
possible to operate the washer jet and the
wiper at the same time.
The wiper stops working three strokes af-
ter releasing the stalk.
A further stroke 6 seconds later com-
pletes the wiping operation.
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 49
Page 55 of 216
54
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

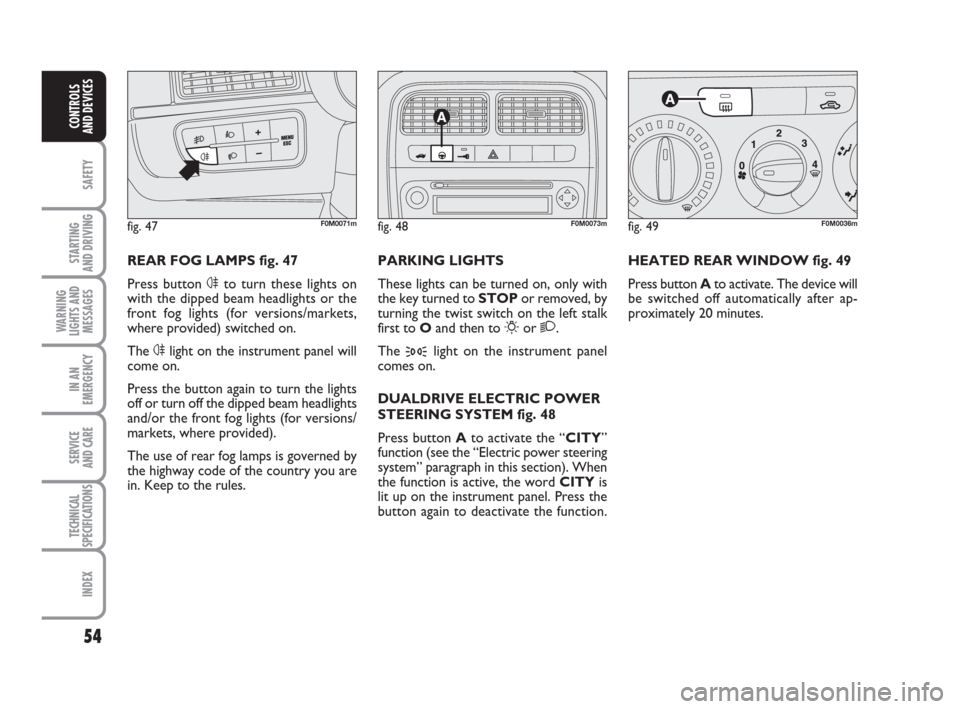

HEATED REAR WINDOW fig. 49
Press button Ato activate. The device will
be switched off automatically after ap-
proximately 20 minutes.
fig. 49F0M0036m
PARKING LIGHTS
These lights can be turned on, only with
the key turned to STOPor removed, by
turning the twist switch on the left stalk
first to Oand then to
6or 2.
The
3light on the instrument panel
comes on.
DUALDRIVE ELECTRIC POWER
STEERING SYSTEM fig. 48
Press button A to activate the “CITY”
function (see the “Electric power steering
system” paragraph in this section). When
the function is active, the word CITYis
lit up on the instrument panel. Press the
button again to deactivate the function.
fig. 48F0M0073m
REAR FOG LAMPS fig. 47
Press button 4to turn these lights on
with the dipped beam headlights or the
front fog lights (for versions/markets,
where provided) switched on.
The 4light on the instrument panel will
come on.
Press the button again to turn the lights
off or turn off the dipped beam headlights
and/or the front fog lights (for versions/
markets, where provided).
The use of rear fog lamps is governed by
the highway code of the country you are
in. Keep to the rules.
fig. 47F0M0071m
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 54
