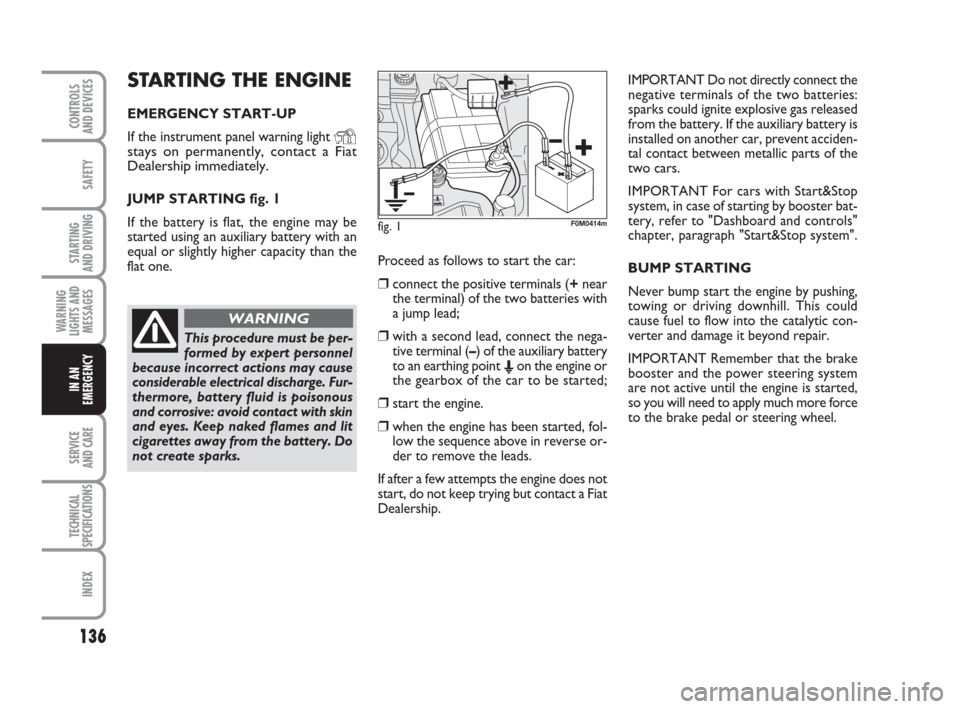

STARTING THE ENGINE
EMERGENCY START-UP
If the instrument panel warning light
Ystays on permanently, contact a Fiat
Dealership immediately.
JUMP STARTING fig. 1
If the battery is flat, the engine may be
started using an auxiliary battery with an
equal or slightly higher capacity than the
flat one. Proceed as follows to start the car:
❒connect the positive terminals (+near
the terminal) of the two batteries with
a jump lead;
❒with a second lead, connect the nega-
tive terminal (–) of the auxiliary battery
to an earthing point
Eon the engine or
the gearbox of the car to be started;
❒start the engine.
❒when the engine has been started, fol-
low the sequence above in reverse or-
der to remove the leads.
If after a few attempts the engine does not
start, do not keep trying but contact a Fiat
Dealership.IMPORTANT Do not directly connect the
negative terminals of the two batteries:
sparks could ignite explosive gas released
from the battery. If the auxiliary battery is
installed on another car, prevent acciden-
tal contact between metallic parts of the
two cars.
IMPORTANT For cars with Start&Stop
system, in case of starting by booster bat-
tery, refer to "Dashboard and controls"
chapter, paragraph "Start&Stop system".
BUMP STARTING
Never bump start the engine by pushing,
towing or driving downhill. This could
cause fuel to flow into the catalytic con-
verter and damage it beyond repair.
IMPORTANT Remember that the brake
booster and the power steering system
are not active until the engine is started,
so you will need to apply much more force
to the brake pedal or steering wheel.
This procedure must be per-
formed by expert personnel
because incorrect actions may cause
considerable electrical discharge. Fur-
thermore, battery fluid is poisonous
and corrosive: avoid contact with skin
and eyes. Keep naked flames and lit
cigarettes away from the battery. Do
not create sparks.
WARNING
fig. 1F0M0414m
135-166 ACTUAL 1ed EN 26-07-2010 16:00 Pagina 136

180
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SERVICE
AND CARE

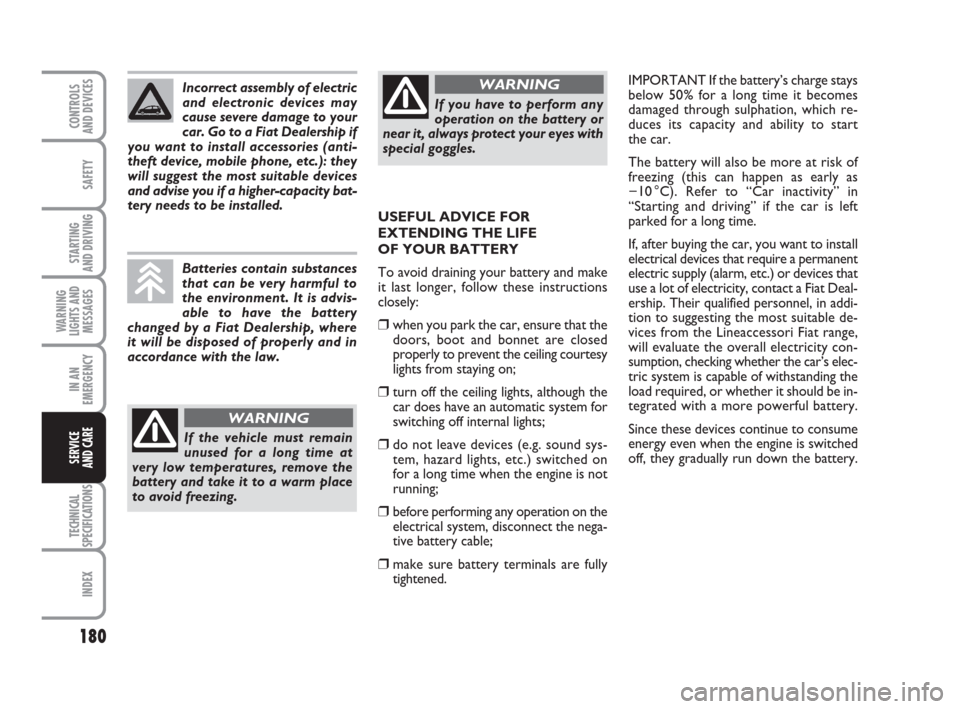

IMPORTANT If the battery’s charge stays
below 50% for a long time it becomes
damaged through sulphation, which re-
duces its capacity and ability to start
the car.
The battery will also be more at risk of
freezing (this can happen as early as
−10 °C). Refer to “Car inactivity” in
“Starting and driving” if the car is left
parked for a long time.
If, after buying the car, you want to install
electrical devices that require a permanent
electric supply (alarm, etc.) or devices that
use a lot of electricity, contact a Fiat Deal-
ership. Their qualified personnel, in addi-
tion to suggesting the most suitable de-
vices from the Lineaccessori Fiat range,
will evaluate the overall electricity con-
sumption, checking whether the car’s elec-
tric system is capable of withstanding the
load required, or whether it should be in-
tegrated with a more powerful battery.
Since these devices continue to consume
energy even when the engine is switched
off, they gradually run down the battery. USEFUL ADVICE FOR
EXTENDING THE LIFE
OF YOUR BATTERY
To avoid draining your battery and make
it last longer, follow these instructions
closely:
❒when you park the car, ensure that the
doors, boot and bonnet are closed
properly to prevent the ceiling courtesy
lights from staying on;
❒turn off the ceiling lights, although the
car does have an automatic system for
switching off internal lights;
❒do not leave devices (e.g. sound sys-
tem, hazard lights, etc.) switched on
for a long time when the engine is not
running;
❒before performing any operation on the
electrical system, disconnect the nega-
tive battery cable;
❒make sure battery terminals are fully
tightened. Incorrect assembly of electric
and electronic devices may
cause severe damage to your
car. Go to a Fiat Dealership if
you want to install accessories (anti-
theft device, mobile phone, etc.): they
will suggest the most suitable devices
and advise you if a higher-capacity bat-
tery needs to be installed.
Batteries contain substances
that can be very harmful to
the environment. It is advis-
able to have the battery
changed by a Fiat Dealership, where
it will be disposed of properly and in
accordance with the law.
If the vehicle must remain
unused for a long time at
very low temperatures, remove the
battery and take it to a warm place
to avoid freezing.
WARNING
If you have to perform any
operation on the battery or
near it, always protect your eyes with
special goggles.
WARNING
