MIRRORS
REAR-VIEW MIRROR fig. 28
The mirror is fitted with a safety device
that causes its release in the event of a vi-
olent impact with the passenger.
STEERING WHEEL
The driver can adjust the height and axial
position of the steering wheel (for ver-
sions/markets, where provided).
To carry out the adjustment, proceed as
follows:
❒release lever A-fig. 27by pushing it
forwards (position 1);
❒adjust the steering wheel;
❒lock lever Aby pulling it towards the
steering wheel (position 2).
fig. 27F0M0354m
Any adjustment of the steer-
ing wheel position must be
carried out only with the car station-
ary and the engine turned off.
WARNING
It is absolutely forbidden to
carry out any after-market
operation involving steering system or
steering column modifications (e.g. in-
stallation of anti-theft device) that
could badly affect performance and
safety, invalidate the warranty and
also result in the car failing to com-
ply with regulations.
WARNING
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 35

59
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

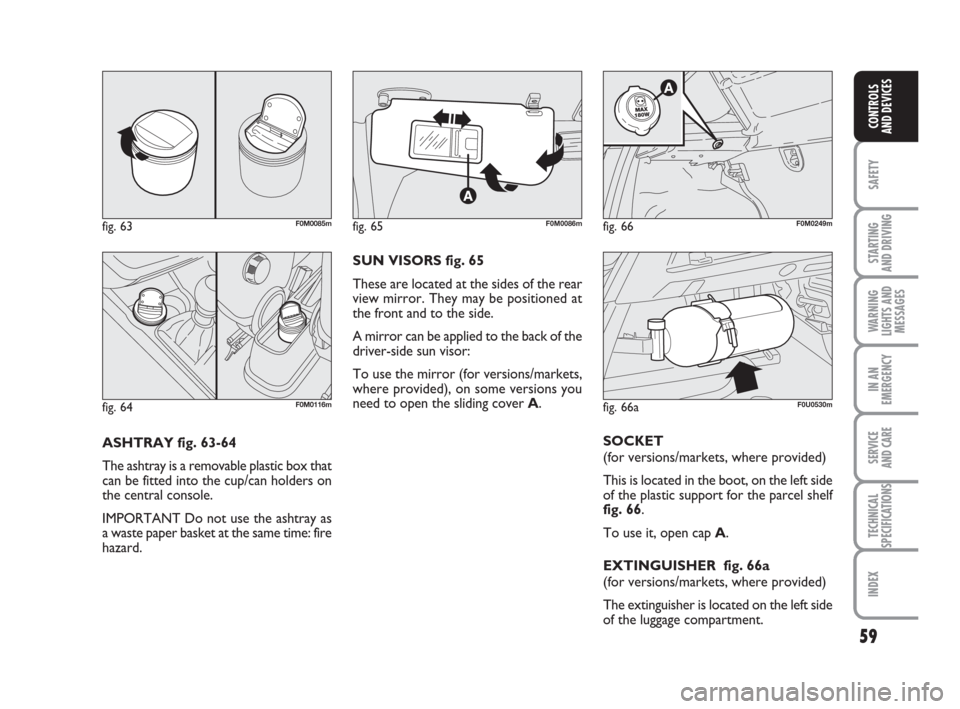

ASHTRAY fig. 63-64
The ashtray is a removable plastic box that
can be fitted into the cup/can holders on
the central console.
IMPORTANT Do not use the ashtray as
a waste paper basket at the same time: fire
hazard.SUN VISORS fig. 65
These are located at the sides of the rear
view mirror. They may be positioned at
the front and to the side.
A mirror can be applied to the back of the
driver-side sun visor:
To use the mirror (for versions/markets,
where provided), on some versions you
need to open the sliding cover A.
fig. 63F0M0085mfig. 65F0M0086m
fig. 64F0M0116m
SOCKET
(for versions/markets, where provided)
This is located in the boot, on the left side
of the plastic support for the parcel shelf
fig. 66.
To use it, open cap A.
EXTINGUISHER fig. 66a
(for versions/markets, where provided)
The extinguisher is located on the left side
of the luggage compartment.
fig. 66F0M0249m
fig. 66aF0U0530m
033-071 ACTUAL 1ed EN 21-07-2010 14:25 Pagina 59

118
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
STARTING
AND DRIVING

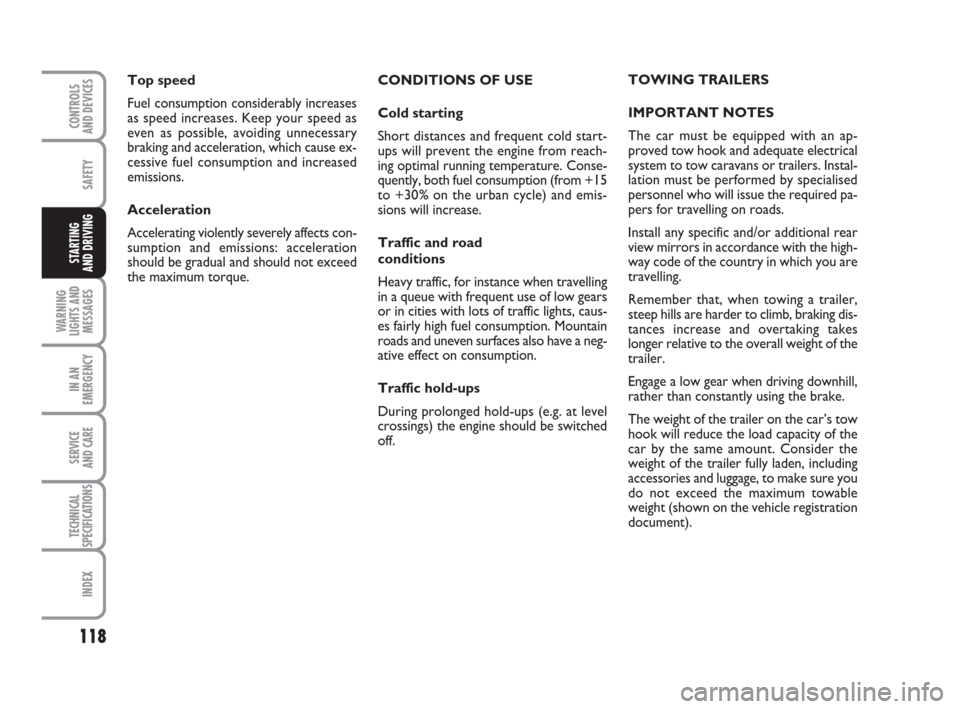

CONDITIONS OF USE
Cold starting
Short distances and frequent cold start-
ups will prevent the engine from reach-
ing optimal running temperature. Conse-
quently, both fuel consumption (from +15
to +30% on the urban cycle) and emis-
sions will increase.
Traffic and road
conditions
Heavy traffic, for instance when travelling
in a queue with frequent use of low gears
or in cities with lots of traffic lights, caus-
es fairly high fuel consumption. Mountain
roads and uneven surfaces also have a neg-
ative effect on consumption.
Traffic hold-ups
During prolonged hold-ups (e.g. at level
crossings) the engine should be switched
off.TOWING TRAILERS
IMPORTANT NOTES
The car must be equipped with an ap-
proved tow hook and adequate electrical
system to tow caravans or trailers. Instal-
lation must be performed by specialised
personnel who will issue the required pa-
pers for travelling on roads.
Install any specific and/or additional rear
view mirrors in accordance with the high-
way code of the country in which you are
travelling.
Remember that, when towing a trailer,
steep hills are harder to climb, braking dis-
tances increase and overtaking takes
longer relative to the overall weight of the
trailer.
Engage a low gear when driving downhill,
rather than constantly using the brake.
The weight of the trailer on the car’s tow
hook will reduce the load capacity of the
car by the same amount. Consider the
weight of the trailer fully laden, including
accessories and luggage, to make sure you
do not exceed the maximum towable
weight (shown on the vehicle registration
document). Top speed
Fuel consumption considerably increases
as speed increases. Keep your speed as
even as possible, avoiding unnecessary
braking and acceleration, which cause ex-
cessive fuel consumption and increased
emissions.
Acceleration
Accelerating violently severely affects con-
sumption and emissions: acceleration
should be gradual and should not exceed
the maximum torque.
111-122 ACTUAL 1ed EN 20-07-2010 16:10 Pagina 118

207
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

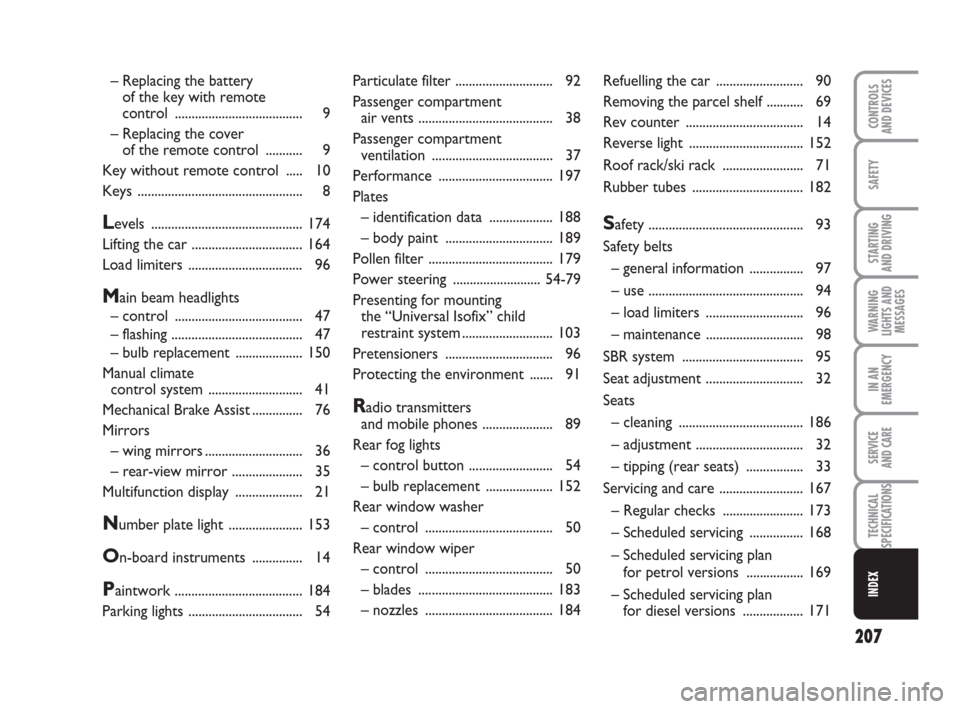

Particulate filter ............................. 92
Passenger compartment
air vents ........................................ 38
Passenger compartment
ventilation .................................... 37
Performance .................................. 197
Plates
– identification data ................... 188
– body paint ................................ 189
Pollen filter ..................................... 179
Power steering ..........................54-79
Presenting for mounting
the “Universal Isofix” child
restraint system........................... 103
Pretensioners ................................ 96
Protecting the environment ....... 91
Radio transmitters
and mobile phones ..................... 89
Rear fog lights
– control button ......................... 54
– bulb replacement .................... 152
Rear window washer
– control ...................................... 50
Rear window wiper
– control ...................................... 50
– blades ........................................ 183
– nozzles ...................................... 184Refuelling the car .......................... 90
Removing the parcel shelf ........... 69
Rev counter ................................... 14
Reverse light .................................. 152
Roof rack/ski rack ........................ 71
Rubber tubes ................................. 182
Safety .............................................. 93
Safety belts
– general information ................ 97
– use .............................................. 94
– load limiters ............................. 96
– maintenance ............................. 98
SBR system .................................... 95
Seat adjustment ............................. 32
Seats
– cleaning ..................................... 186
– adjustment ................................ 32
– tipping (rear seats) ................. 33
Servicing and care ......................... 167
– Regular checks ........................ 173
– Scheduled servicing ................ 168
– Scheduled servicing plan
for petrol versions ................. 169
– Scheduled servicing plan
for diesel versions .................. 171 – Replacing the battery
of the key with remote
control ...................................... 9
– Replacing the cover
of the remote control ........... 9
Key without remote control ..... 10
Keys ................................................. 8Levels ............................................. 174
Lifting the car ................................. 164
Load limiters .................................. 96
Main beam headlights
– control ...................................... 47
– flashing ....................................... 47
– bulb replacement .................... 150
Manual climate
control system ............................ 41
Mechanical Brake Assist............... 76
Mirrors
– wing mirrors ............................. 36
– rear-view mirror ..................... 35
Multifunction display .................... 21
Number plate light ...................... 153
On-board instruments ............... 14
Paintwork ...................................... 184
Parking lights .................................. 54
