HILL HOLDER SYSTEM
(where provided)
It is an integral part of the ESP system and facilitates
starting on an uphill slope.
It is automatically activated in the following conditions:
Uphill: vehicle stationary on a road with gradient
above 2%, engine running, clutch and brake pedals
pressed and gearbox in neutral position or gear
engaged (reverse excluded).
Downhill: stationary on a road with gradient above 2%,
engine running, clutch and brake pedals pressed and
reverse engaged.
During pickup the ESP system control unit maintains
the wheel braking pressure until the engine torque
required for start up is reached, or anyway for a
maximum of 2 seconds, so that the right foot can be
moved easily from the brake pedal to the accelerator
pedal.After 2 seconds and without starting the car, the
system automatically deactivates gradually releasing the
braking pressure. During this phase it is possible to
hear the typical brake mechanical disengaging noise
which indicates the car is about to move off.
FAILURE WARNINGS
In the event of failure, the instrument cluster warning
light *will come on together with the message on
the reconfigurable multifunction display.
IMPORTANT The Hill Holder system is not a parking
brake therefore, never leave the car without engaging
the parking brake, the first gear and turning the engine
off.
WARNINGFor correct operation of the ESP system, the tyres must absolutely be of the same
brand and type on all wheels, in perfect conditions and, above all, of the type,
brand and size specified.
WARNINGDuring the use of the spare wheel, the ESP system carries on working. However,
you must remind that the spare wheel presents dimensions smaller than the
standard tyre and therefore the grip is reduced as to the other car tyres.

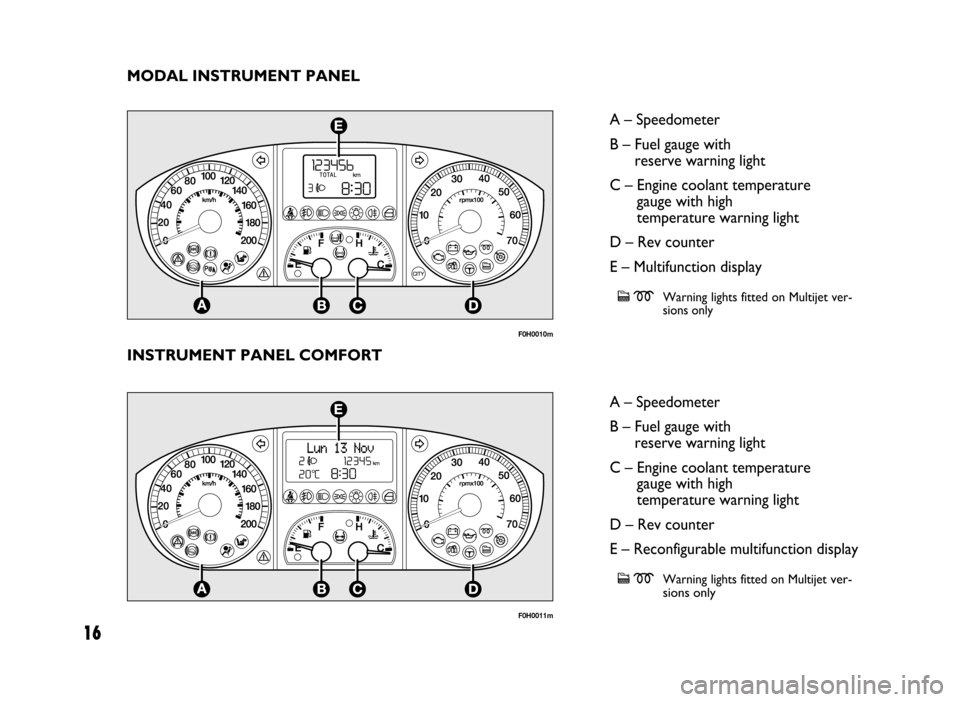

INSTRUMENT PANEL COMFORT
F0H0011m
A – Speedometer
B – Fuel gauge with
reserve warning light
C – Engine coolant temperature
gauge with high
temperature warning light
D – Rev counter
E – Reconfigurable multifunction display
cmWarning lights fitted on Multijetver-
sions only
16
16 Nero 603.46.431 Supplemento Fiat Idea
MODAL INSTRUMENT PANEL
A – Speedometer
B – Fuel gauge with
reserve warning light
C – Engine coolant temperature
gauge with high
temperature warning light
D – Rev counter
E – Multifunction display
cmWarning lights fitted on Multijet ver-
sions only
F0H0010m

17
17 Nero 603.46.431 Supplemento Fiat Idea
WARNING LIGHTS AND MESSAGES
ESP SYSTEM FAILURE (where provided) -
SYSTEM NOT AVAILABLE
Turning the ignition key to MAR, the warning light
on the dial comes on but shall go off after few
seconds.
If the warning light does not go off or stays on when
travelling (on certain versions together with the
message on the display) and with led on ASR button,
contact Fiat Dealership.
Warning light flashing when driving indicates that the
ESP system is active.
á
Warning light
on dial Message on reconfigurable
multifunction display
(amber) (amber)
ASR SYSTEM (Antislip Regulation)
It’s a function of ESP system and controls the vehicle
drive and cuts in automatically every time one or both
driving wheels slip.
In slipping conditions, two different control systems
are activated:
❒if the slipping involves both the driving wheels, the
ASR function intervenes reducing the power
transmitted by the engine;
❒if the slipping involves only one driving wheel, the
ASR system cuts in automatically braking the wheel
that is slipping. The action of the ASR is particularly helpful in the
following circumstances:
❒ slipping of the inner wheel due to the effect of
dynamic load changes or excessive acceleration;
❒ too much power transmitted to the wheels also in
relation to the conditions of the road surface;
❒ acceleration on slippery, snowy or frozen surfaces;
❒in the case of loss of grip on a wet surface
(aquaplaning).

19
19 Nero 603.46.431 Supplemento Fiat Idea
F0H0329m
SWITCHING ON/OFF OF THE ASR SYSTEM
The ASR function switches on automatically each time the engine is
started.
When travelling, the ASR system can be switched off and on again by
pressing the ASR switch on the central control panel.
Switching on is indicated by the relevant message on the reconfigurable
multifunction display (where provided).
When the device is switched off this is shown by the lighting up of the led
on the ASR button and by the message on the reconfigurable
multifunction display .
If the ASR function is switched off when travelling, it will turn on again
automatically the next time the engine is started
When travelling on snow with snow chains, it may be helpful to turn the
ASR device off: in fact, in these conditions, slipping of the driving wheels
when moving off makes it possible to obtain better drive.
WARNINGThe performance of the system, in terms of active safety should not induce the
driver to take pointless and unnecessary risks. The style of driving must in any case
always be adapted to the conditions of the road surface, visibility an traffic. Road
safety is always the driver’s responsibility.
