WARNING LIGHTS AND MESSAGES
ESP SYSTEM FAILURE (where provided) -
SYSTEM NOT AVAILABLE
Turning the ignition key to MAR, the warning light
on the dial comes on but shall go off after few
seconds.
If the warning light does not go off or stays on when
travelling (on certain versions together with the
message on the display) and with led on ASR button,
contact Fiat Dealership.
Warning light flashing when driving indicates that the
ESP system is active.
á
Warning light
on dial Message on reconfigurable
multifunction display
(amber) (amber)
ASR SYSTEM (Antislip Regulation)
It’s a function of ESP system and controls the vehicle
drive and cuts in automatically every time one or both
driving wheels slip.
In slipping conditions, two different control systems
are activated:
❒if the slipping involves both the driving wheels, the
ASR function intervenes reducing the power
transmitted by the engine;
❒if the slipping involves only one driving wheel, the
ASR system cuts in automatically braking the wheel
that is slipping. The action of the ASR is particularly helpful in the
following circumstances:
❒ slipping of the inner wheel due to the effect of
dynamic load changes or excessive acceleration;
❒ too much power transmitted to the wheels also in
relation to the conditions of the road surface;
❒ acceleration on slippery, snowy or frozen surfaces;
❒in the case of loss of grip on a wet surface
(aquaplaning).

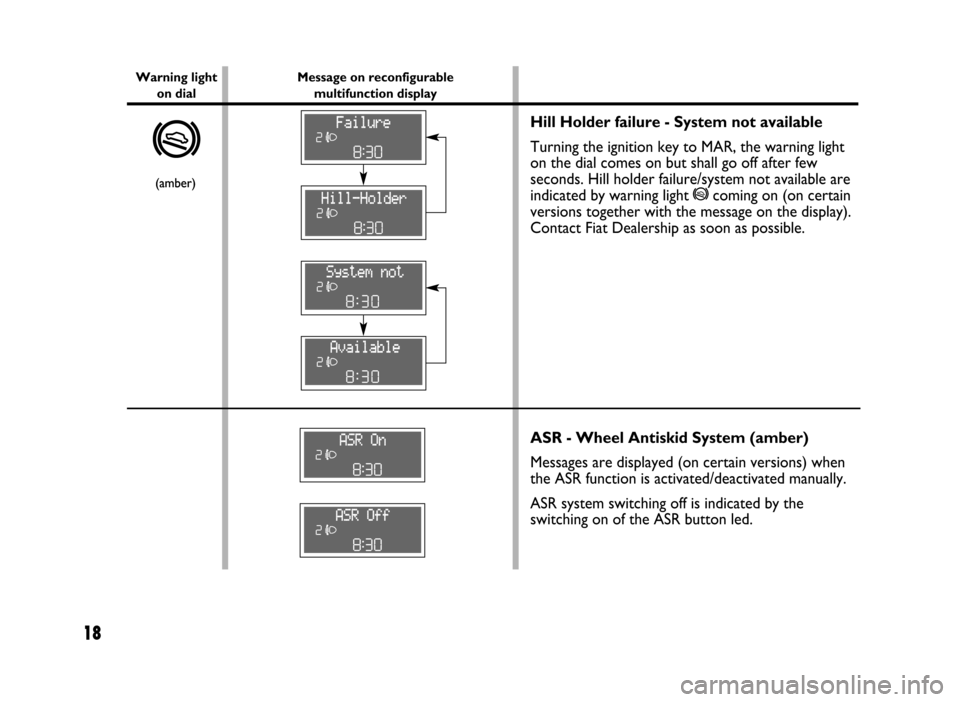

Hill Holder failure - System not available
Turning the ignition key to MAR, the warning light
on the dial comes on but shall go off after few
seconds. Hill holder failure/system not available are
indicated by warning light *coming on (on certain
versions together with the message on the display).
Contact Fiat Dealership as soon as possible.
*
Warning light
on dialMessage on reconfigurable
multifunction display
18
18 Nero 603.46.431 Supplemento Fiat Idea
(amber) (amber)
ASR - Wheel Antiskid System (amber)
Messages are displayed (on certain versions) when
the ASR function is activated/deactivated manually.
ASR system switching off is indicated by the
switching on of the ASR button led.
