warning FIAT IDEA 2005 1.G Dualogic Transmission Manual

18

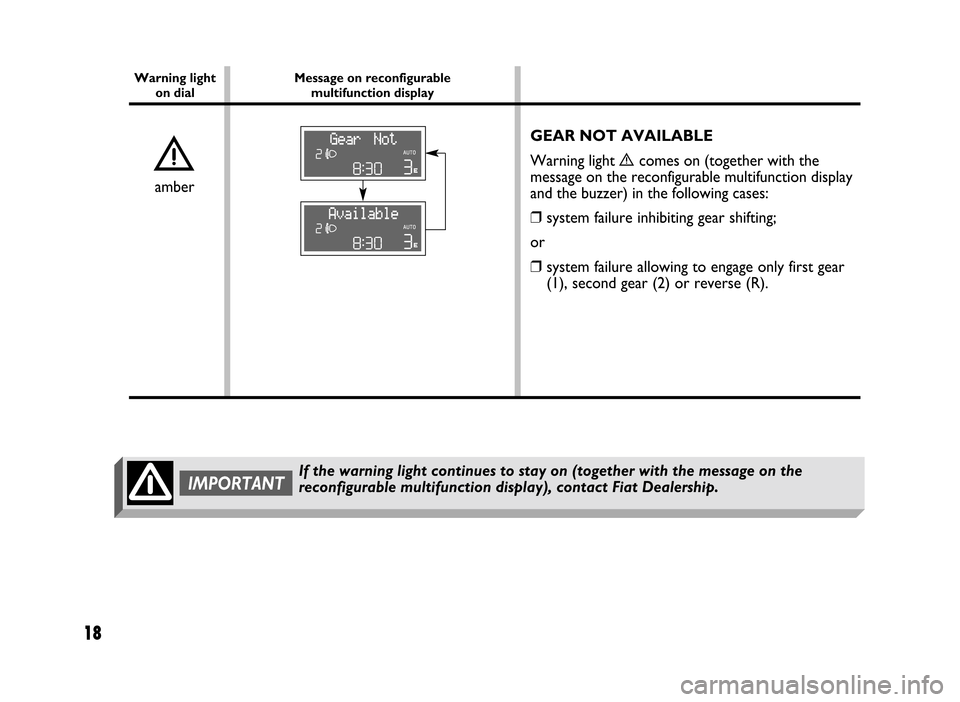

GEAR NOT AVAILABLE
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) in the following cases:
❒system failure inhibiting gear shifting;
or
❒system failure allowing to engage only first gear
(1), second gear (2) or reverse (R).
Message on reconfigurable
multifunction display Warning light
on dial
è
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
amber

19

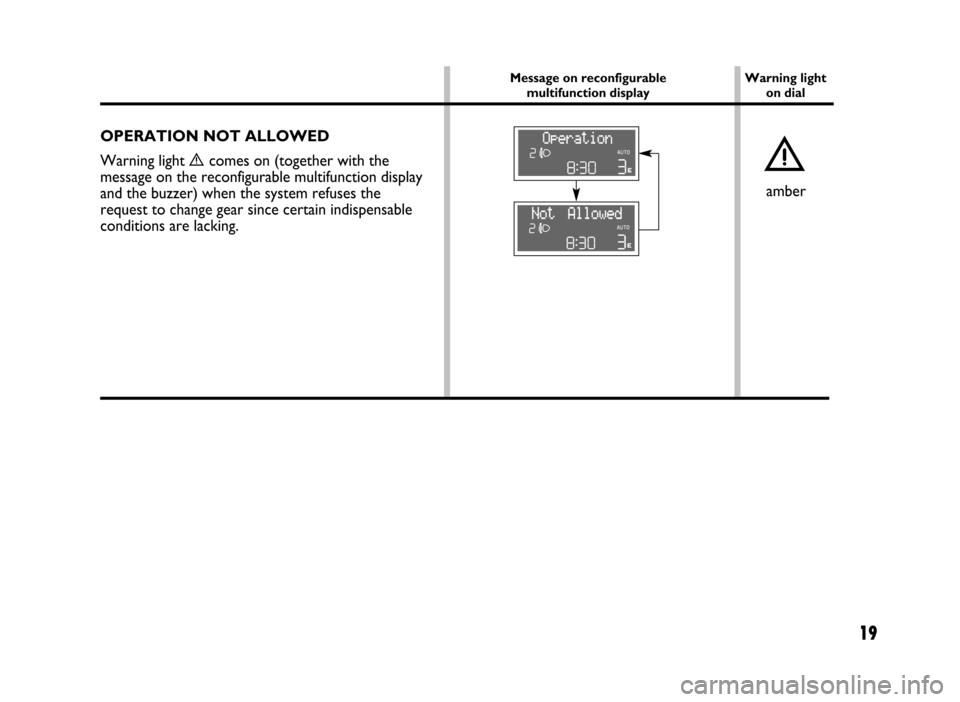

OPERATION NOT ALLOWED
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) when the system refuses the
request to change gear since certain indispensable
conditions are lacking.è
Warning light
on dial Message on reconfigurable
multifunction display
amber

20

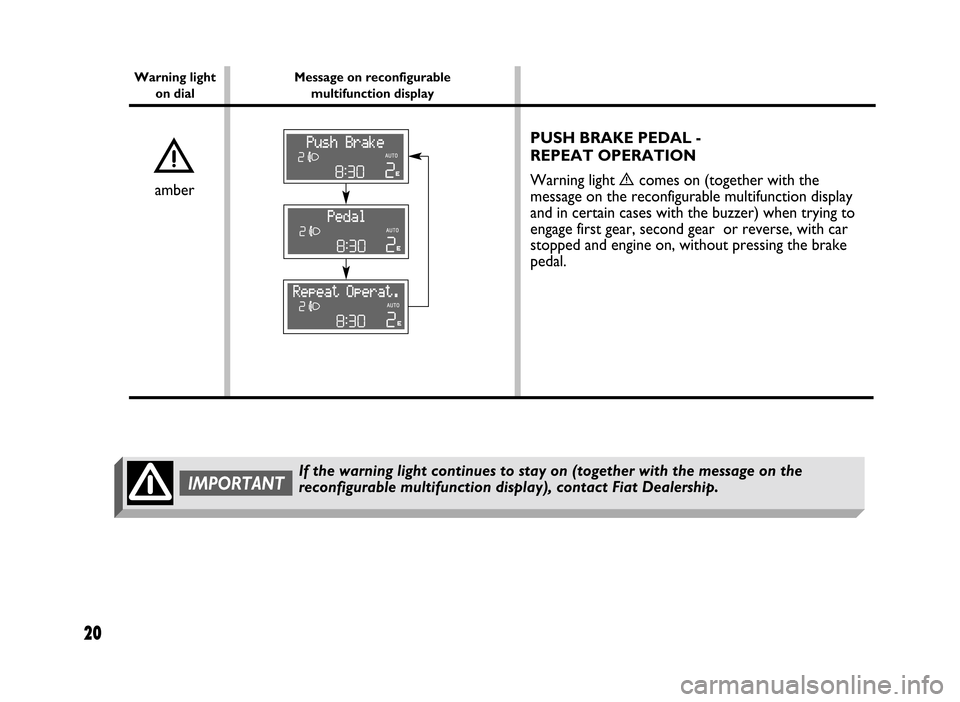

PUSH BRAKE PEDAL -
REPEAT OPERATION
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and in certain cases with the buzzer) when trying to
engage first gear, second gear or reverse, with car
stopped and engine on, without pressing the brake
pedal.è
Message on reconfigurable
multifunction display Warning light
on dial
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
amber

21
Message on reconfigurable
multifunction displayWarning light
on dial

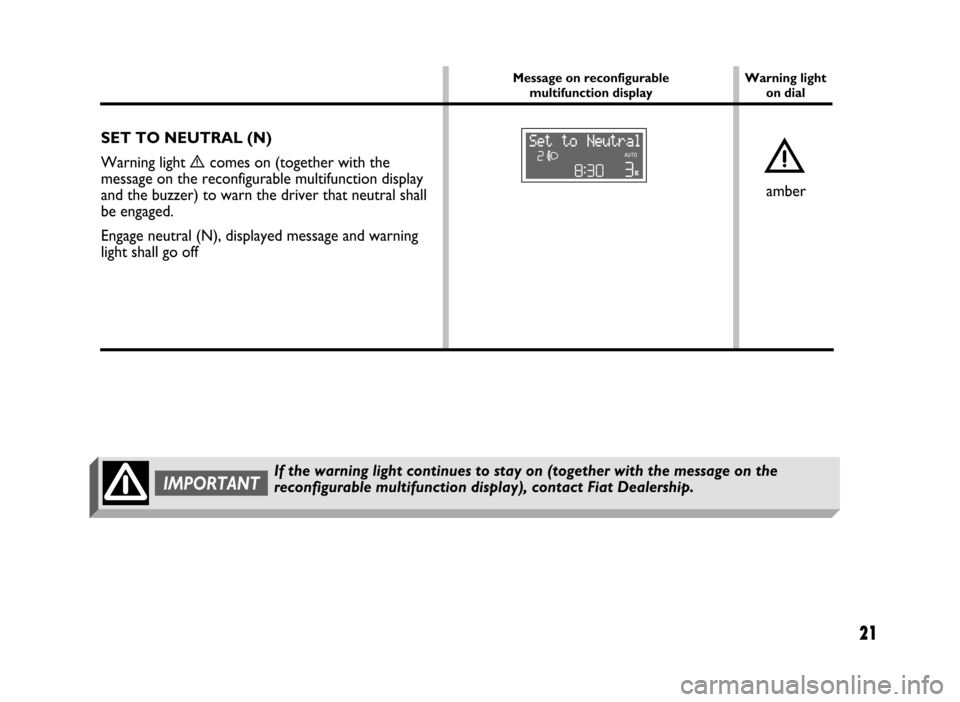

SET TO NEUTRAL (N)
Warning light
ècomes on (together with the
message on the reconfigurable multifunction display
and the buzzer) to warn the driver that neutral shall
be engaged.
Engage neutral (N), displayed message and warning
light shall go offè
If the warning light continues to stay on (together with the message on the
reconfigurable multifunction display), contact Fiat Dealership.IMPORTANT
amber
