fuse FIAT IDEA 2005 1.G Radio CD Manual

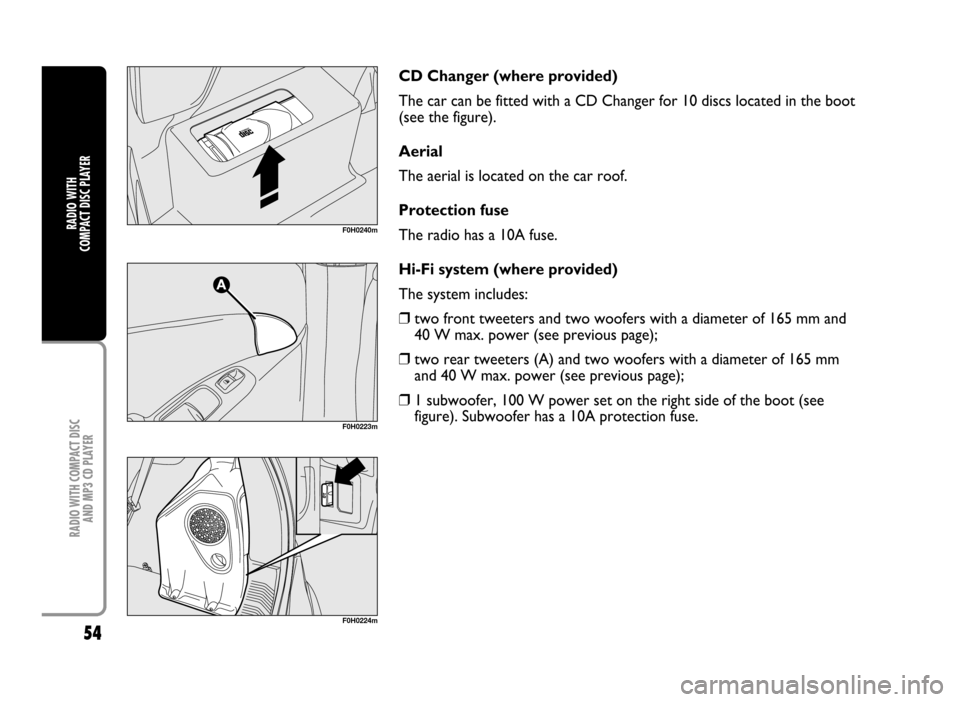

54
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
CD Changer (where provided)
The car can be fitted with a CD Changer for 10 discs located in the boot
(see the figure).
Aerial
The aerial is located on the car roof.
Protection fuse
The radio has a 10A fuse.
Hi-Fi system (where provided)
The system includes:
❒two front tweeters and two woofers with a diameter of 165 mm and
40 W max. power (see previous page);
❒two rear tweeters (A) and two woofers with a diameter of 165 mm
and 40 W max. power (see previous page);
❒1 subwoofer, 100 W power set on the right side of the boot (see
figure). Subwoofer has a 10A protection fuse.
F0H0240m
F0H0223m
F0H0224m

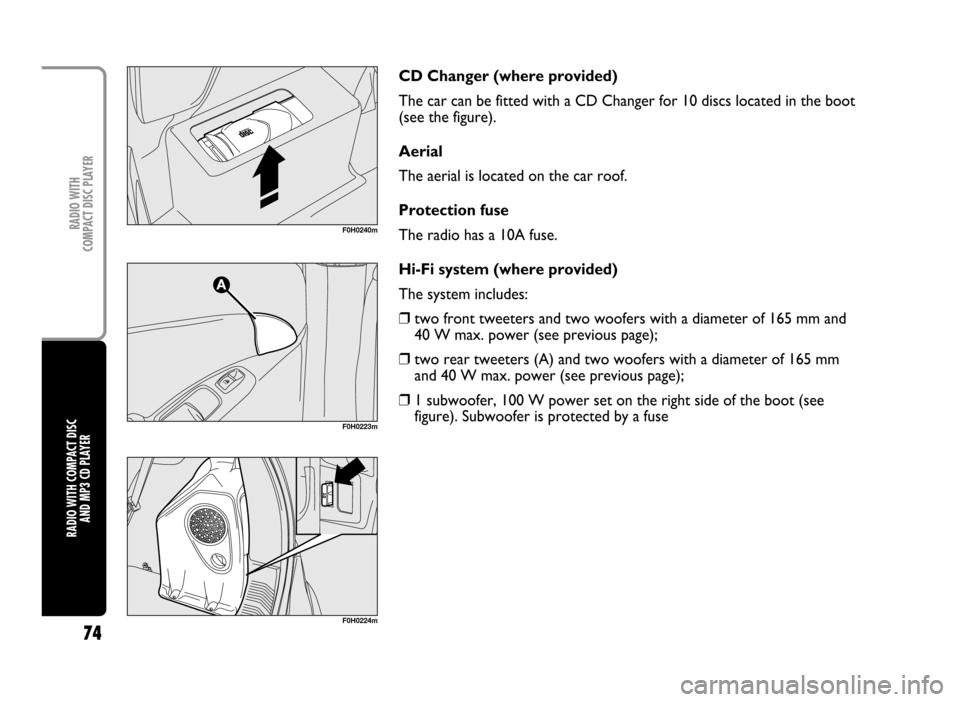

74
RADIO WITH COMPACT DISC
AND MP3 CD PLAYERRADIO WITH
COMPACT DISC PLAYER
CD Changer (where provided)
The car can be fitted with a CD Changer for 10 discs located in the boot
(see the figure).
Aerial
The aerial is located on the car roof.
Protection fuse
The radio has a 10A fuse.
Hi-Fi system (where provided)
The system includes:
❒two front tweeters and two woofers with a diameter of 165 mm and
40 W max. power (see previous page);
❒two rear tweeters (A) and two woofers with a diameter of 165 mm
and 40 W max. power (see previous page);
❒1 subwoofer, 100 W power set on the right side of the boot (see
figure). Subwoofer is protected by a fuse
F0H0240m
F0H0223m
F0H0224m
